Product Type	Freestanding Fridge-Freezer
Brand	Logik
Model	LFC55S13
Total Capacity	230 L (approx.)
Fridge Capacity	170 L
Freezer Capacity	60 L
Energy Class	F (EU 2019)
Annual Energy Consumption	227 kWh
Noise Level	40 dB
Climate Class	N-ST (16°C – 38°C)
Dimensions (H x W x D)	1800 x 550 x 550 mm
Weight	48 kg
Voltage / Frequency	220-240 V / 50 Hz
Defrost Type	Fridge: Auto Defrost; Freezer: Manual Defrost
Refrigerant	R600a
Adjustable Shelves	Yes, 4 shelves (glass)
Door Storage	3 shelves (fridge), 2 shelves (freezer)
Ice Cube Tray	Included
Reversible Door	Yes
Temperature Control	Thermostat dial (0-7)
Cleaning Instructions	Unplug, use mild detergent, avoid abrasive cleaners
Spare Parts Availability	Contact Logik support or authorised service centers

Frequently Asked Questions - LFC55S13 Logik

How do I adjust the temperature in my Logik LFC55S13?

Turn the thermostat dial inside the fridge compartment. Settings range from 0 (off) to 7 (coldest). A medium setting (3-4) is recommended for normal use.

How do I defrost the freezer?

The freezer requires manual defrosting. Unplug the appliance, remove food, and leave the door open. Place towels to absorb water. Do not use sharp tools to remove ice.

Why is my fridge not cooling properly?

Check if the thermostat is set correctly, ensure the door seals are clean and intact, and verify that the condenser coils (rear) are dust-free. Also, avoid overloading or blocking air vents.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the user manual: remove hinges, swap door handles, and reattach hinges on the opposite side.

How do I clean the fridge?

Unplug the fridge first. Clean inside with a solution of warm water and mild detergent. Wipe dry. For the condenser coils at the back, vacuum gently to improve efficiency.

What is the correct power supply for the LFC55S13?

The appliance operates on 220-240 volts with a frequency of 50 Hz. Ensure the power outlet is properly grounded.

How do I change the interior light bulb?

Unplug the fridge. Remove the light cover (usually clips off), unscrew the bulb, and replace with a same type (typically 10W or 15W). If LED, it may be integral; contact service.

What should I do if water leaks inside the fridge?

Check if the defrost drain at the back is blocked. Clean it with a pipe cleaner or cotton swab. Also ensure the fridge is level to allow proper drainage.

How can I save energy with this fridge?

Place the fridge away from heat sources, allow hot food to cool before storing, keep doors closed, and defrost regularly. Clean condenser coils every 6 months.

Where can I find spare parts for the Logik LFC55S13?

Contact Logik customer support or visit an authorized service center. Some parts may be available from online retailers. The model number is LFC55S13.

USER MANUAL LFC55S13 Logik

Exterior view of a white refrigerator with a closed lid (no visible text or symbols)

Contents

Safety Warnings....4

Unpacking....5

Installation 6

Location 6

Reversing the Door Swing....6

Door Space Requirements 10

Rear Spacer 10

Levelling the Unit 10

Cleaning Before Use 11

Before Using Your Unit....11

Interior Accessories....11

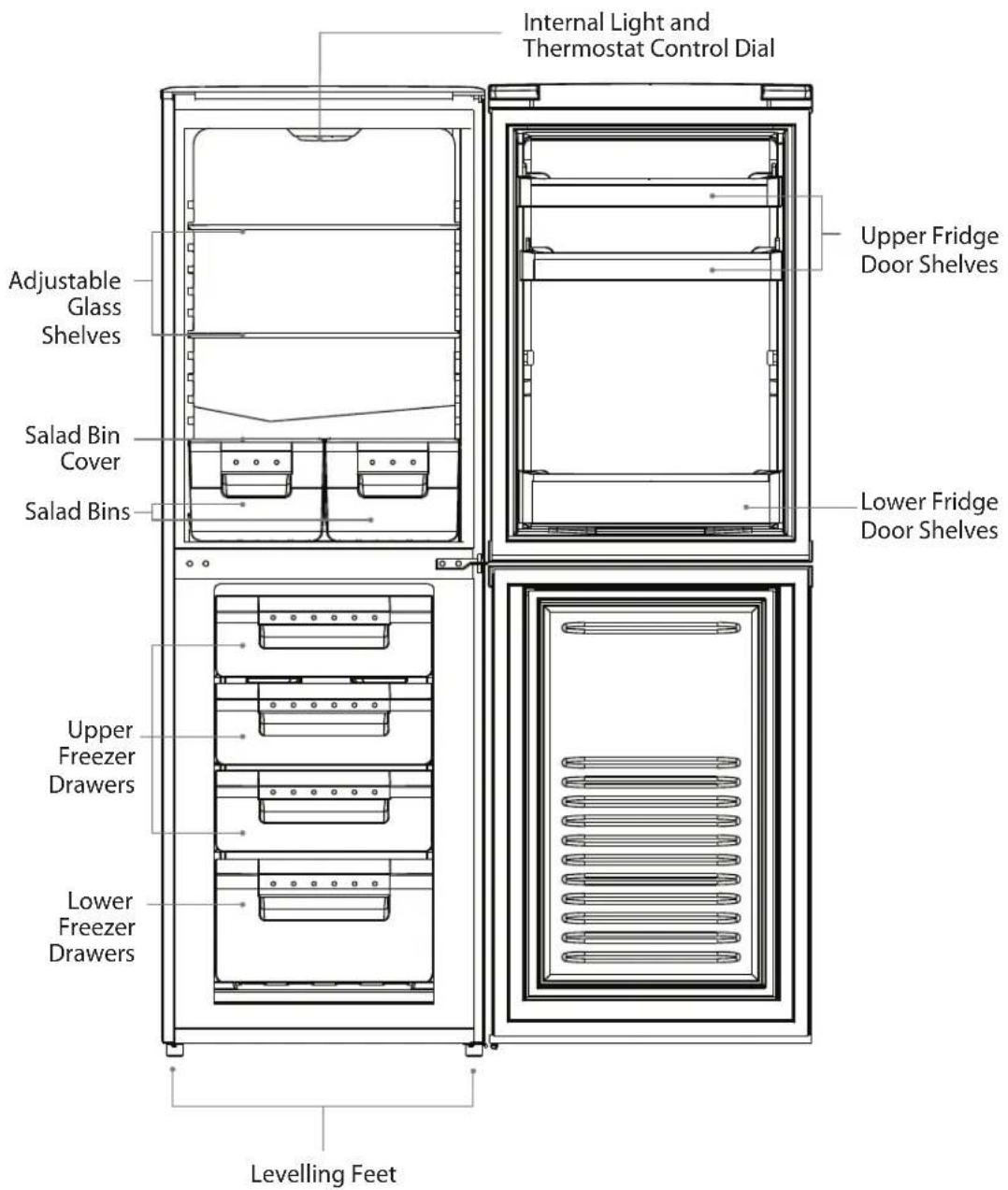

Product Overview....12

Operation 13

Switching On Your Unit 13

Adjusting the Temperature....13

Noises Inside the Unit! 13

Shopping for Chilled Foods 14

Tips for Keeping Food in the Unit....14

Cleaning 15

Defrosting 15

Cleaning the Interior and the Exterior of the Unit....15

Cleaning Tips....15

Maintenance 16

Care When Handling / Moving Your Unit....16

Servicing....16

Switching Off for Long Periods of Time....16

Disposal 16

Specifications....17

Safety Warnings

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.

• This appliance is intended for indoor household use and similar applications such as:

• farm houses and by clients in hotels, motels and other residential type environment;

• bed and breakfast type environment;
• catering and similar non-retail applications.

- Ensure that the plug is easily accessible to enable disconnection from the mains supply.

- Keep ventilation openings in the unit enclosure clear of obstructions.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.

- If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.

- Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.

- Do not damage the refrigerant circuit (The refrigerant is a very environmentally friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)

• The unit must be manoeuvred by a minimum of 2 persons.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the unit.
• If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.
• Do not store volatile or flammable substances, such as aerosol cans with a flammable propellant, in the unit.
• Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Thank you for purchasing your new Logik Fridge Freezer.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Simple line drawing of a two-tier refrigerator with no text or symbols

The Main Unit

Glass shelves X2

Salad Bin Cover X1

Upper drawers X3 Bottom drawer X1

Salad Bins X2

Egg Tray

Upper balconies X2 Bottom balcony X1

Instruction Manual

Isometric view of a rectangular frame with internal geometric patterns (no text or symbols)

Ice Tray Rear Spacers x 2

If items are missing or damaged please contact Partmaster (UK only).

Tel: [phone] for assistance.

Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 38°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

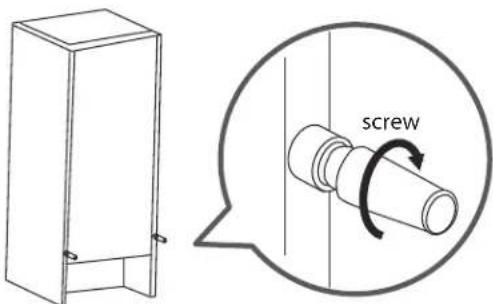

Installing the Spacers

Screw the spacers to the left and right side of the unit's rear part.

Free Space Requirements

When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear of the unit and 25 mm at the top of the unit. The door can be opened to the right or the left, depending on which best suits the location. Please ensure there is adequate space for the door to fully open to 160°.

Pure mechanical diagram showing a rectangular block with a diagonal guide and dimension lines, no text or symbols present.

Reversing the Door Swing

Tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

• Ensure the unit is unplugged and empty.
- To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. a chair just below the top panel.
- All parts removed must be saved to do the reinstallation of the door.
- Do not lay the unit flat as this may damage the coolant system.
• We recommend that 2 people handle the unit during assembly.
- If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.

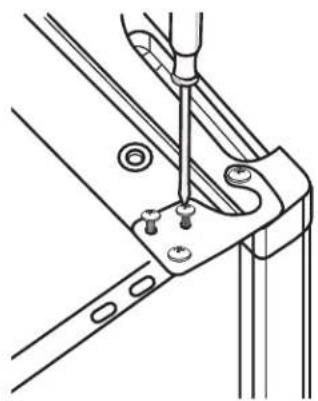

1. Remove the 4 screws from top cover.
2. Lift the top cover away from the fridge.
3. Remove the three screws, then remove the upper hinge that holds the door in place. Lift the upper door and place it on a padded surface to prevent it from scratching.

Simple line drawing of a screwdriver on a flat surface (no text or symbols)

Diagram of a mechanical device with multiple slots and upward arrows indicating motion or force (no text or symbols)

Technical line drawing of a mechanical bracket assembly with mounting holes and bolts (no text or symbols)

INSTALLATION

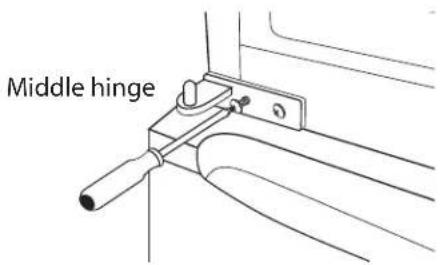

1. Take off the middle hinge by removing the screws. Lift the lower door and place it on a padded surface to prevent it from scratching.

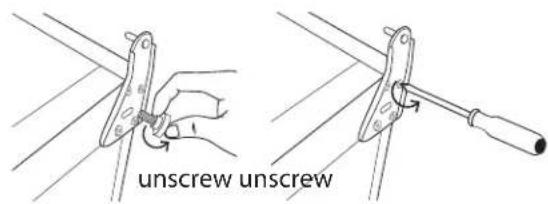

1. Remove the lower screws, hinge bracket and adjustable feet from the unit bottom. Keep the matching bracket and foot together.

1. Remove the remaining screw-type adjustable foot from the other side of the unit bottom and transfer it to the corresponding position on the opposite side of the unit bottom.

Line drawing of a hand holding a tool near a metal bracket (no text or symbols)

1. Reattach the bottom door hinge, screws and foot to the opposite side of the unit.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

INSTALLATION

1. After replacing the freezer door, screw the middle hinge back onto the opposite side of the unit.

Ensure the freezer door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the hinge.

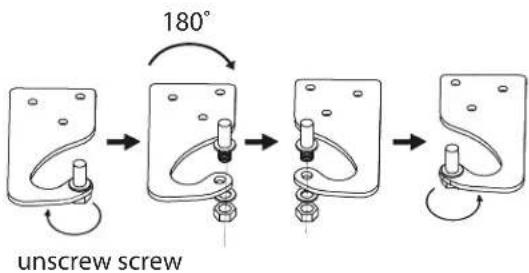

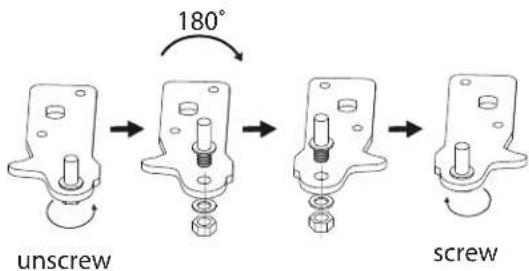

1. Remove and replace the pin on the reverse side of the hinge.

1. Carefully set the upper door back into place. Re-attach the re-assembled upper door hinge on the opposite side of the unit. Ensure the fridge door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.

Technical line drawing of a mechanical assembly with a tool inserted, showing no text or symbols

1. On the top panel move the blanking plate to the side opposite the hinge.

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

INSTALLATION

1. Put the top cover back on and fix it in place with the screws.
2. With the door closed, check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. Re-adjust the levelling feet as needed.

Simple line drawing of a screwdriver on a flat surface (no text or symbols)

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wipe completely dry before replacing the shelves, drawers and salad bin. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST

Check that you have a socket which is compatible with the plug supplied with the unit.

• Before Turning On!

Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

Isometric line drawing of a rectangular panel with internal grid pattern (no text or symbols)

Egg Tray Ice Tray

Switching On Your Unit

1. Before connecting the unit to the mains supply, adjust the thermostat control dial to the desired position. Bear in mind that the higher the number, the lower the temperature. Position 3 is the recommended setting when operating at normal room temperature (between 16^ C and 38^ C). This is located on the right side of the cabinet. Connect the mains cable to the mains socket.

2. The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the door often.

3. To ensure that the unit is cool enough to sufficiently chill your food, wait 24 hours before filling it with food.

4. If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops.

Place the thermometer in the centre of the unit, where it can be read easily. Leave overnight, the temperature in the unit should be an average of 5^ C.

Simple line drawing of a boat hull (no text or symbols)

Simple line drawing of a dome-shaped object with a central triangular indentation (no text or symbols)

Adjusting the Temperature

The internal temperature of the unit is controlled by a thermostat. The recommended position is between 1 to 4 for colder working environments (i.e. during winter) and between 5 to 6 for hotter environments. Please adjust according to the environment.

Noises Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Shopping for Chilled Foods

• Take a quick look at the chilled food package and make sure it is in perfect condition.
- Try to keep chilled food together whilst shopping and on the journey home as this will help to keep the food cold.
- Don't buy chilled food unless you can chill it straight away. Specially insulated bags can be bought from most supermarkets and hardware shops. These bags can keep chilled food cold for longer while transporting.
- Food that has been left in a car or at room temperature for a prolonged period of time could raise the food temperature to a dangerous level, which allows harmful bacteria to grow.
• Always unpack and place chilled food in the unit before storing dry food.

Tips for Keeping Food in the Unit

- Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.

- Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the unit are kept cool.

- To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.

- Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.

- To prevent cold air escaping from the unit, try to limit the number of times you open the door. We recommend that you only open the door when you need to put food in or take food out.

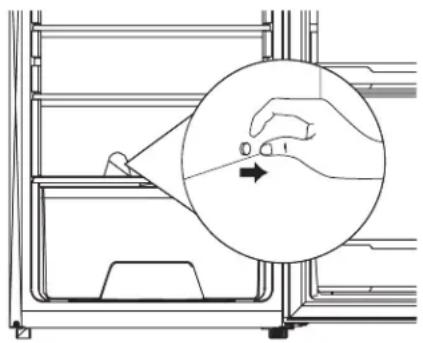

Defrosting

Frost may accumulate on the inner rear surface of the appliance which will automatically defrost during the off cycle of the compressor.

Water is channelled via the drain hole to the collection tray above the compressor where it will evaporate.

Please ensure the drain hole is checked and cleaned on a regular basis so water can exit the storage compartment.

The freezer compartment of this unit is frost-free. With proper use, there should not be any frost accumulated.

Diagram showing a hand pressing down on a device panel with an inset magnified view of the handle (no text or symbols)

However, in case of improper use of the freezer compartment, frost might build up in the freezer compartment after the unit has been used for a period of time. Scrape away the frost using a plastic scraper (not included).

Do not use a metal or sharp instrument to scrape away the frost, nor should you use any electrical appliances to aid defrosting.

We recommend that defrosting should be carried out when the frost layer builds up to 10mm (\~0.39"). Choose a time when the stock of frozen food is low, follow these procedures:

1. Take out the food, turn the unit off at the mains supply and leave the door open. Ideally, the frozen food should be put into another freezer. If this is not possible, wrap the food in several sheets of newspaper or large towels and then a thick blanket to keep to keep it cool.
2. Place a shallow bowl or pan below the freezer compartment. Scrape away the frost using the plastic scraper. Defrosting the remaining frost can be speeded up by placing a bowl of hot water inside the freezer compartment cabinet and closing the door. As the solid frost loosens, scrape it away with the plastic scraper and remove.
3. When defrosting is complete, clean your unit's interior and exterior.

Cleaning the Interior and the Exterior of the Unit

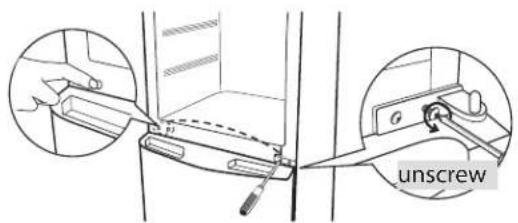

• Remove all the shelves and the salad bin. To remove the salad bin first remove the lower door shelf.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a 'wrung-out' sponge or cloth. Wipe completely dry before replacing the shelves and salad bin.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

Care When Handling / Moving Your Unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

Condensation

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the door as a safeguard.

Model LFC55W13 / LFC55S13
Appliance Category Category 7 (Refrigerator - Freezer)
Overall Dimension (W x D x H) 550 x 580 x 1660 mm
Fresh Food Storage Compartment Volume	136L
Frozen Food Storage Volume	64L ***
Defrosting Type Fridge = Auto Defrost, Freezer = Frost-free
Climate Class ST
This appliance is intended to be used at an ambient temperature between 16°C and 38°C.
Storage Temperature	Freezer: ≤-18°CFridge: 0-8°C, average ≤4°C
Energy Consumption 0.644kWh / 24h
Energy consumption 235 kWh per year, based on standard test results for 24 hours.Actual energy consumption will depend on how the appliance is used and where it is located.
Airborne Acoustical Noise 43dB(A)
Energy Grading A+
Temperature Rise Time 12 hours
Freezing Capacity 3.5kg/24h
Rated Voltage AC 220~240V/50Hz
Rated Current 0.4A

Features and specifications are subject to change without prior notice.

For general information about this appliance

and handy hints and tips, please visit

www.knowhow.com/knowledgebank or call 0344 5611234.

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct

to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

DSG Retail Ltd. (co. no. 504877)

Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK.

IB-LFC55S_W13-140611V3
