| Product Type | Freestanding Dishwasher |
| Model | LS474WN |
| Brand | Logik |

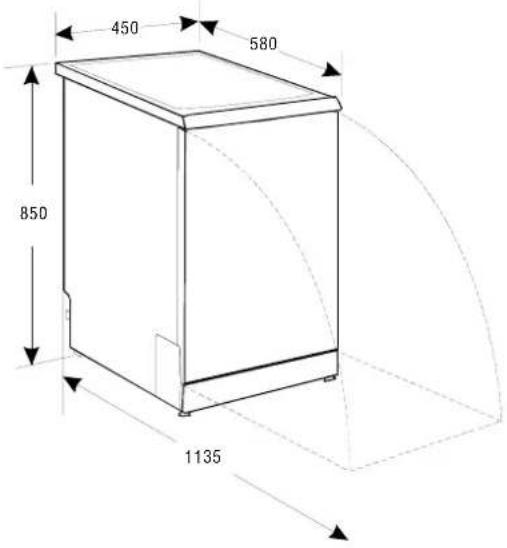

| Dimensions (W x D x H) | 450 x 580 x 850 mm |
| Capacity | 8 place settings |
| Power Supply | 230 V / 50 Hz, 1930 W |
| Water Pressure | 0.04 - 1.0 MPa |
| Wash Programs | Auto, Strong, Normal, Eco, Rinse, Glass, Rapid |
| Water Softener | Yes, with adjustable salt consumption |
| Rinse Aid Dispenser | Yes, with 6 settings |
| Detergent Dispenser | Yes, with pre/main compartments |
| Filter System | 3-stage: Coarse, Main, Fine filters |
| Spray Arms | Upper and lower |
| Adjustable Upper Rack | Yes, height adjustable |
| Folding Spikes | Yes, in lower rack |
| Silverware Basket | Yes, removable |
| Delay Start | Up to 24 hours |
| Energy Consumption | 0.65 - 1.35 kWh per cycle (depending on program) |
| Water Consumption | 6.7 - 17.5 L per cycle (depending on program) |
| Noise Level | Not specified (typical ~49 dB) |
| Safety Features | Grounding, child lock (not specified), overflow protection |
| Installation Type | Freestanding or built-in (with condensation strip) |
| Accessories Included | Salt funnel, condensation strip, inlet hose, drain hose |
Frequently Asked Questions - LS474WN Logik
User questions about LS474WN Logik
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Dishwasher in PDF format for free! Find your manual LS474WN - Logik and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LS474WN by Logik.
USER MANUAL LS474WN Logik
Read This Manual
This manual contains sections of Safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips etc. Carefully reading it before using the dishwasher will help you to use and maintain the dishwasher properly.
Before Calling For Service
To review the section on Troubleshooting Tips will help you to solve some common problems by yourself and not need to ask for the help professional technicians.
NOTE:
This product has been wet tested to ensure correct operation. As a result some water can remain inside the unit. This is normal and safe. Please remove any water droplets from the exterior if necessary.
Thank You!
NOTE:
The manufacturer, following a policy of constant development and up-dating of the product, may make modifications without giving prior notice.
Safety Information .... 1
Operating Instructions
Control Panel....2 Dishwasher Features.... 2 Wash Cycle Table.... 3 Turning On the Appliance....3 Water Softener 4 Detergent....5 Rinse Aid 5,6 Loading the Dishwasher Rack . . . . . . . . . Filtering System 9 Caring for the Dishwasher....10
Installation Manual..... 14~20
Troubleshooting Tips
Before recalling for service....21,22 Fault codes.... 22
⚠ WARNING! HYDROGEN GAS IS EXPLOSIVE
Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE.
If the hot-water system has not been used for such a period, before using the dishwasher turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
GROUNDING INSTRUCTIONS
▲ WARNING!
This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; if it does not fit the outlet, have a proper outlet installed by a qualified electrician.
WARNING! PROPER USE
- Do not abuse, sit on, or stand on the door rack of the dishwasher.
- Do not touch the heating element during or immediately after use. Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, as there is a risk of water squirting out. Do not place heavy objects on the door when it is open; the appliance could tip forward. Avoid contact with skin and eyes and keep children away from detergent. When loading items to be washed: 1) Locate sharp items so that they do not damage the door seal; 2) Load sharp knives with the handles up to reduce the risk of cut-type injuries; 3) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position. When using your dishwasher, you should prevent plastic items from contacting the heating element.
- Check that the detergent receptacle is empty after completion of the wash cycle. Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer's recommendations. Use only detergent and rinse additives designed for an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent. Keep these products out of the reach of children. The maximum number of place settings to be washed in your dishwasher is 8.
- Other means for disconnection from the supply must be incorporated in the fixed wiring with at least minimum permissible inlet water pressure of 1 MPa and contact separation in all poles.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY
SAVE THESE INSTRUCTIONS
Operation Instruction
IMPORTANT!
To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

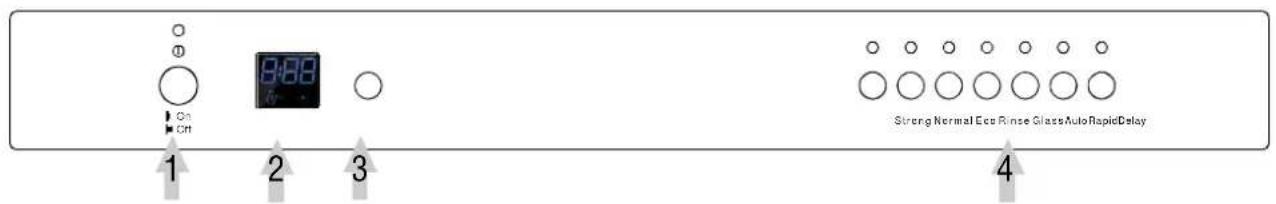

Control Panel
1 ON/OFF Button: To turn on/off the power supply. 2 Display Window: Program remaining time, delay time, fault codes, etc. Salt Warning Light: Comes on when the softener needs to be refilled. Rinse Aid Warning Light: Comes on when the rinse aid dispenser needs to be refilled.
3 Delayed Start Button: Press this button to set the delayed hours for washing. You can delay the start of washing up to 24 hours. One press on this button delays the start of washing by one hour.
Program button: To select washing program when pressing the button.

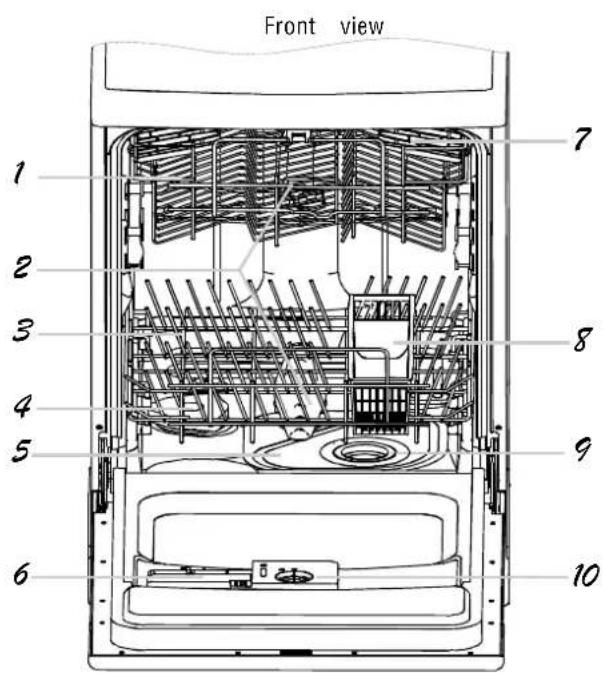

Dishwasher Features
1 Upper Basket
4 Water Softener
7 Cup Shelf
10 Rinse Aid Dispenser
2 Spray Arms
5 Main Filter
8 Silverware Basket
11 Drain pipe connector
3 Lower Basket
6 Detergent Dispenser 9 Coarse Filter
12 Inlet pipe connector
WASH CYCLE TABLE
| Program | Cycle Selection Information | Description of Cycle | Detergent pre/main | Running time(min) | Energy (Kwh) | Water (l) | Rinse Aid |
| Auto | For all soiled loads, such pots,pans,casserole dishes and dishes that have been sitting with dried foodon for a while. | Pre-wash (40°C)Autowash (50-60°C)Rinse Rinse (70°C)Drying. | 4/20g | 161* | 0.8~1.2 | 9~12 | |
| Strong | For the heaviest soiled loads, such as pots,pans,casserole dishes and dishes that have been sitting with dried food on them for a while. | Pre-wash (50°C)Autowash (60°C)Wash Rinse Rinse (70°C)Drying | 4/20 g. | 175 | 1.35 | 17.5 | |
| Normal | For normally soiled loads, such as pots, plates,glasses and lightly soiled pans.standard daily cycle. | Pre-wash Pre-wash Wash (50°C) Rinse (65°C)Drying | 4/20 g. | 150 | 0.74 | 10.4 | |
| Eco | For lightly soiled loads,such as plates,glasses,bowls and lightly soiled pans. | Pre-wash Wash (45°C) Rinse (60°C)Drying | 20 g. | 105 | 0.65 | 10.4 | |
| Rinse | For dishes that need to rinsed and dried only. | Wash(45°C) Rinse (70°C)Drying | / | 90 | 0.75 | 7.7 | |
| Glass | For lightly soiled loads, such as glasses, crystal and fire china. | Pre-wash Wash (40°C) Rinse (70°C)Drying | 15 g. | 110 | 0.75 | 10.4 | |
| Rapid | A shorter wash for lightly soiled loads that do not need drying. | Wash (40°C) Rinse (45°C) | 15 g. | 30 | 0.40 | 6.7 | / |
* AUTO Wash Cycle: If you select the AUTO program, the dishwasher will automatically evaluate the turbidity of the dishes, then optimize water temperature and running time to get your dishes clean as quickly as possible. Note: Running time will vary from the display due to the automatic system.
Starting a wash cycle...
1. Draw out the lower and upper baskets, load the dishes, and push them back. It is recommended that you load the lower basket first, then the upper (see the section entitled "Loading the Dishwasher"). 2. Pour in the detergent (see the section entitled "Salt, Detergent and Rinse Aid"). 3. Close the door with a little force to ensure it is properly shut. NOTE: A click could be heard when the door is closed perfectly. 4. Insert the plug into the socket. The power supply is 220-240VAC 50HZ, and the socket specification is 12A 250VAC. Make sure that the supply is turned on to full pressure. 5. Press the ON/OFF button. 6. Turn the knob located on the right of the control panel in the clockwise direction until the number or symbol for the desired cycle is selected. 7. Press the Start/Reset button to start the washing. 8. When the washing is over, you can shut off the appliance by pressing the ON/OFF button.
NOTE:
Change the Programme
Premise: A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. In this case, the detergent dispenser must be refilled (see the paragraph entitled "Filling the Detergent").
Press and hold the current program button for more than 3 seconds to cancel the program, then you can change the program to the desired cycle setting (see the section entitled "Starting a wash cycle...").
- Press the Program Button to select a desired wash cycle. After 3 seconds, the machine will start working.
- Press the delay button for more than 3 seconds to re-edit the delay time.
NOTE: If you open the door during washing, the machine will pause. The program light will stop blinking and the buzzer will sound every minute unless you close the door. After you close the door, the machine will continue working after 10 seconds.
The display window shows the state of the dishwasher: a) Display window shows "--:--" --> stand by; b) Display window shows "H:MM" and not blinking -->; c) Display window shows "H:MM" and blinking --> run.
NOTE: After you open the door during washing, the unit will pause for a few seconds before its restarting. This is normal.
WATER SOFTENER
There are two ways to reduce the hardness: one way is using water softener, the other detergent.
The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.
The appliance is equipped with a special softener that uses a salt specifically designed to eliminate lime and minerals from the water.

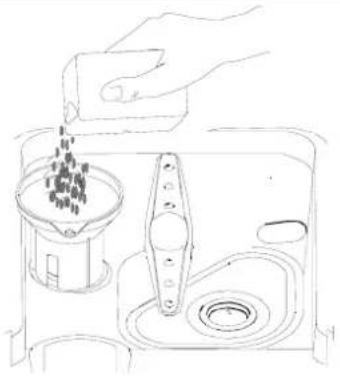

Loading the Salt into the Softener
Always use salt intended for use with dishwashers. The salt container is located beneath the lower rack and should be filled as follows:

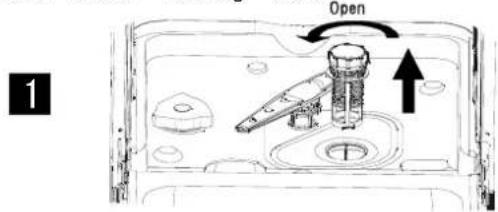

1. Remove the lower basket and then unscrew and remove the cap from the container. 2. If you are filling the container for the first time, fill 2/3 of its volume (around 500ml). 3. Place the end of the funnel (supplied) into the hole and introduce about 1.2kg of salt. It is normal for a small amount of water to come out of the salt container. 4. Carefully screw the cap back on. 5. Usually, the salt warning light will be off in 2–6 days after the salt container is filled with salt.
NOTE: 1. The salt container must be refilled when the salt warning light comes on. Though the salt container is filled enough, the indicator light may not black out before the salt fully dissolves. 2. If there are spills of the salt, a soak program could be run to wipe them out.
Adjusting Salt Consumption
The dishwasher is designed to allow for adjusting the amount of salt consumed based on the hardness of the water used. This is intended to optimize and customize the level of salt consumption so that the salt consumption could be set as follows:
1. Unscrew the cap from the salt container. 2. There is a ring on the container with an arrow on it (see Figure to the side). If necessary, rotate the ring in the anticlockwise direction from the "-" setting toward the "+" sign, based on the hardness of the water being used. It is recommended that adjustments should be made in accordance with the following schema:
| WATER HARDNESS | Selector Position | Salt consumption (gram/cycle) | Auto nomy (cycles/1.2kgs) | |||
| dH | fH | Clark | mmol/l | |||
| 0~8 | 0~14 | 0~10 | 0~1.4 | / | 0 | / |
| 8~22 | 14~39 | 10~28 | 1.4~3.9 | - | 20 | 60 |
| 22~45 | 39~80 | 28~56 | 3.9~8 | Mid | 40 | 30 |
| >45 | >80 | >56 | >8 | + | 60 | 20 |
Note: 1 °dH = 1.25 °Clark = 1.78 °fH = 0.178 mmol/l
°dH : German degree, °fH : French degree, °Clark: British degree
The dispenser must be refilled before the start of each wash cycle following the instructions provided in the "Wash Cycle Table". Your dishwasher uses less detergent and rinses better. Generally, only one tablespoon of detergent is needed for a normal wash load. Also, more heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.
Amount of Detergent to Use
If the water isn't too hard, you may also prevent the formation of deposits by adding detergent. The amount of detergent needed can vary due to differences in water hardness. To determine the water hardness in your area, contact your local water utility or area water softening company. The harder the water, the more detergent you may need. Remember, you should adjust the amount of detergent you use by small amounts until you find the correct amount.
▲ WARNING!
Dishwasher detergent is corrosive! Take care to keep it out of reach of children.
RINSE AID DISPENSER
To open the dispenser, turn the cap to the "open" arrow and lift it out. Pour the rinse aid into the dispenser, being careful not to overfill the dispenser, because this can cause oversudsing. Wipe away any spills with a damp cloth. Replace the cap by inserting it aligned with "open" and turning it to the closed (right) arrow. If you have soft water, you may not need rinse aid, as it can cause a white film to develop on your dishes.
Adjusting Rinse Aid Dispenser
A measured amount of rinse aid is released during the final rinse. As with detergent, the amount of rinse aid needed for your dishes depends on the hardness of the water in your area. Too much rinse aid can result in lather or foaming and cause cloudiness or streaks on your dishes. If the water in your area is very soft, you may not need rinse aid. If you do, you can dilute it with an equal amount of water.
The rinse aid dispenser has six settings. Always start with the dispenser set on "2". If spots and poor drying are problems, increase the amount of rinse aid dispensed by removing the lid and rotating the dial to "3". If the dishes still are not drying properly or are spotty, turn the dial to the next higher number until your dishes are spot-free. We suggest you set it on "4". (Factory value is "4".)
When to Refill the Rinse Aid Dispenser
If there is no rinse aid warning light in the control panel, you can judge the amount of rinse aid by the following means. The black dot on the rinse aid dispenser indicates the amount of rinse aid in the dispenser. As the rinse aid diminishes, the size of the black dot decreases. You should never let the rinse aid get below 1/4 full.
As the rinse aid diminishes, the size of the black dot on the aid level indicator changes, as illustrated below.
Full
3/4 full
1/2 full
- 1/4 full - Should refill to eliminate spotting
Empty
Loading the Dishwasher Racks
For best performance of the dishwasher, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.
Attention before or after Loading the Dishwasher Racks
Scrape off any large amounts of left-over food. It is not necessary to rinse the dishes under running water.
Place objects in the dishwasher in the following way:
- 1. Items such as cups, glasses, pots/pans, etc. are stood upside down. 2. Curved items, or those with recesses, should be at a slant so that water can run off.
- They are stacked securely and cannot tip over.
- They do not prevent the spray arms from rotating while washing takes place.
Very small items should not be washed in the dishwasher as they could easily fall out of the racks.
Removing the dishes
To prevent water dripping from the upper rack onto the dishes in the lower rack, we recommend that you empty the lower basket first and then the upper rack.
Loading the Dishwasher Racks (8 sets).

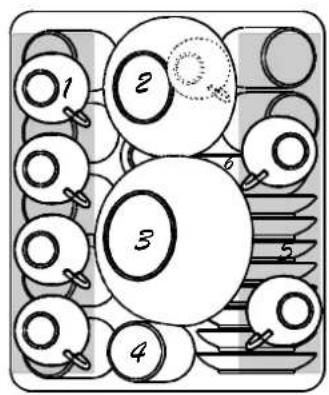

Loading the Upper Rack
The upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty).
Position the dishes and cookware so that they do not get in the way of the spray of water.
The upper rack can be adjusted for height by putting wheels of different height into the rails.
For the below placement method of the rack, the adjustment of the upper rack must be as shown in the illustration below.
1 Cups 2 Small serving bowl 3 Large serving bowl 4 Glasses 5 Saucers 6 Dish

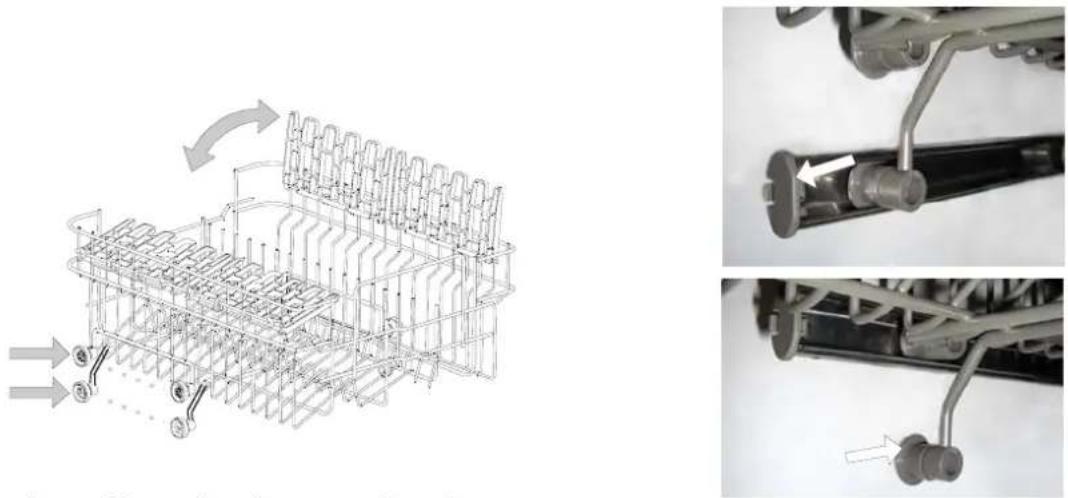

Adjusting the Upper Rack
If required, the height of the upper rack can be adjusted in order to create more space for large utensils either in the upper rack or lower rack. The upper rack can be adjusted for height by putting wheels of different height into the rails. Lengthy items, serving cutlery, salad servers or knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms. The shelf can be folded back or removed when not required for use.

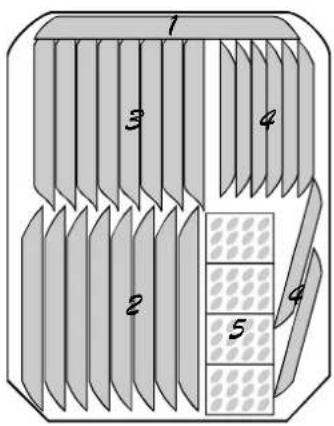

Loading the Lower Rack
We recommend that you place large items which are most difficult to clean into the lower rack: pots, pans, lids, serving dishes and bowls, as shown in the figure to the right. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.
Pots, serving bowls, etc., must always be placed top down. - Deep pots should be slanted to allow water to flow out.
The bottom rack features fold down tine rows so that larger or more pots and pans can be loaded.
1 Oval platter 2 Dinner plates 3 Soup plates 4 Dessert dishes 5 Silverware basket

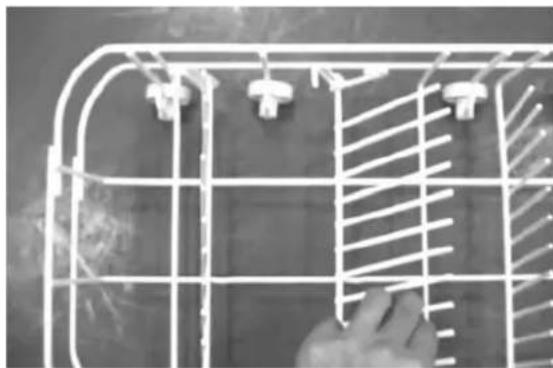

Folding spikes
To improve stacking of pots and pans, the spikes can be folded down.

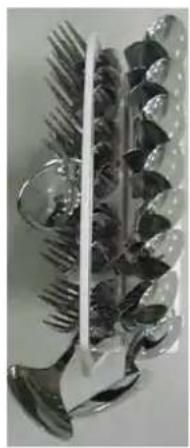

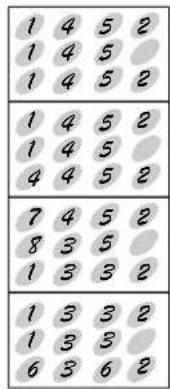

SILVERWARE BASKET
Silverware should be placed in the silverware basket with handles at the bottom. If the rack has side baskets, the spoon should be loaded individually into the appropriate slots. Especially long utensils should be placed in the horizontal position at the front of the upper rack.
1 Forks, 2 Soup spoons, 3 Dessert spoons, 4 Teaspoons
5 Knife, 6 Serving spoon, 7 Gravy ladle, 8 Serving fork
▲ WARNING!
Do not let any item extend through the bottom.
Not suitable for the dishwasher.
The following should not be cleaned in the dishwasher:
- Wooden cutlery and utensils—these will leach out and become unsightly. Sensitive ornamental glasses, craft utensils and vases, special antique or irretrievable utensils. These ornaments are not dishwasher-proof. ■ Plastic parts sensitive to hot water. ■ Copper and tin utensils. ■ Utensils which are soiled with ash, wax, lubricating grease or ink. ■ Absorbent materials such as sponges and cloths.
Aluminium and silver parts have a tendency to discolour and fade during the wash cycle. Even some types of glass may turn cloudy after many wash cycles.
Recommendation:
In future, buy utensils which are identified as dishwasher-proof.
Damage to glassware and other dishes
Possible causes:
■ Type of glass or manufacturing process. ■ Chemical composition of detergent. ■ Water temperature and duration of dishwasher programme.
Suggested remedy:
Use glassware or porcelain dishes that have been marked "dishwasher-proof" by the manufacturer. Use a mild detergent that is described as "kind to dishes". If necessary, seek further information from detergent manufacturers. - Select a programme with as low a temperature as possible. To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the programme has ended.
Filtering System
The filter prevents larger remnants of food or other objects from getting inside the pump. This residue can occasionally clog up the filters.

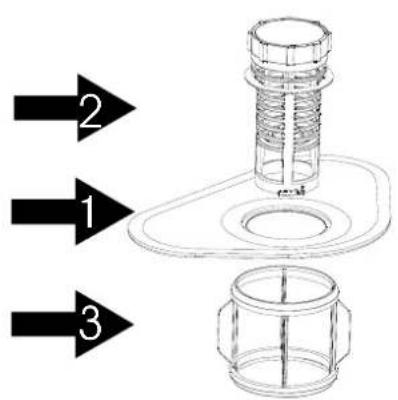

The filter system consists of a coarse filter, a flat (Main filter) and a microfilter (Fine filter).
Main filter 1
Food and soil particles trapped by this filter are pulverized by a special jet on the lower spray arm and washed down the drain.
Coarse filter 2
Larger items, such as pieces of bone or glass, that could clog the drain are trapped in the coarse filter. To remove an item caught in this filter, gently squeeze the taps on the top of this filter and lift it out.
Fine filter 3
This filter holds soil and food residue in the sump area and prevents it from being redeposited on the dishes during a cycle.

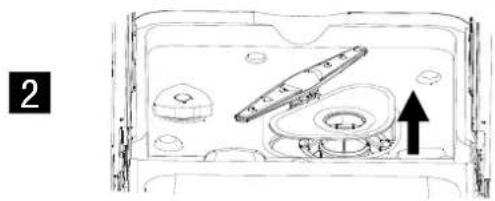

- Inspect the filters for obstructions every time the dishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.
Step 1: Unscrew the coarse filter and then gently lift it up
Step 2: Gently lift the Main filter up

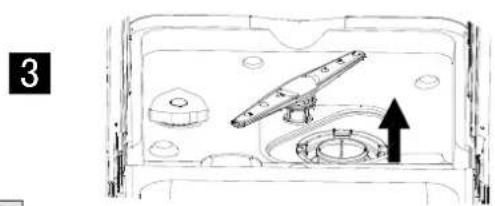

Step 3: Gently lift the Fine filter up
NOTE:
To install the filter system back, please do the following:
- Gently insert the Fine filter back to the Filtering System.
- Gently insert the Main Filter back to the Filtering System.
- Gently insert the Coarse Filter back to the Filtering System, and screw back the Filter Cylinder securely.
Caring for the Dishwasher
To clean the control panel use a lightly dampened cloth then dry thoroughly. To clean the exterior use a good appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
Protect Against Freezing
If your dishwasher is left in an unheated place during the winter, ask a service technician to:
1 Cut off electrical power to the dishwasher.
2 Turn off the water supply and disconnect the water inlet pipe from the water valve.
3 Drain water from the inlet and water valve. pipe (Use a pan to catch the water.)
4 Reconnect the water pipe to the water valve.
5. Remove the filter in the tub at the bottom and use a sponge to soak up water in the sump.
Cleaning the Spray Arms
It is necessary to clean the spray arms regularly for hard water chemicals, spray arm jets, and bearings. To remove the spray arm, screw off the nut and washer on top of the spray arm and remove the arm. Wash the arms in water and use a soft brush to clean the jets. Replace them after rinsing thoroughly.
Cleaning the Filters
Filter assembly
For best performance and results, the filter assembly must be cleaned. The filter efficiently removes food particles from the wash water, allowing it to be recirculated during the cycle. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter assembly, pull on the cup handle in the upward direction. The entire filter assembly should be cleaned once a week.
To clean the coarse filter and the fine filter, use a cleaning brush. Then, reassemble the filter parts as shown in the figures on the left and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downward.
The dishwasher must never be used without the filters. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.
▲ WARNING!
Never run the dishwasher without the filters in place.
When cleaning the filters, do not knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be debased.
To clean the edge around the door, you should use only a soft, warm, damp cloth. To prevent penetration of water into the door lock and electrical components, do not use a spray of any kind.
Also, never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish. Some paper towels can also scratch or leave marks on the surface.
▲ WARNING!
Never use a spray cleaner to clean the door panel, for it could damage the door lock and electrical components. It is not allowed to use abrasive agents or some paper towels because of the risk of scratching or leaving spots on the stainless steel surface.
How to Keep Your Dishwasher in Shape
After Every Wash
After every wash, turn off the water supply to the appliance and leave the door slightly ajar so that moisture and odors are not trapped inside.
Remove the Plug
Before cleaning or performing maintenance, always remove the plug from the socket. Do not run risks.
No Solvents or Abrasive Cleaning
To clean the exterior and rubber parts of the dishwasher,
do not use solvents or abrasive cleaning products. Rather, use only a cloth and warm soapy water.
To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little white vinegar, or a cleaning product made specifically for dishwashers.
When You Go on Holiday
When you go on holiday, it is recommended that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply, and leave the door of the appliance slightly ajar. This will help the seals last longer and prevent odors from forming within the appliance.
Moving the Appliance
If the appliance must be moved, try to keep it in the upright position. If absolutely necessary, it can be positioned on its side or back.
Seals
One of the factors that cause odors to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.
About Electricity Connecting
CAUTION, for personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE THIRD GROUNDING PRONG FROM THE POWER CORD.
Electrical Requirements
Please see the rating label to know the rated voltage and connect the dishwasher to an appropriate power supply. Use a required fuse of 12 amps. A fused electrical supply is required - copper wire only. A time delay fuse or circuit breaker is recommended, and provide a separate circuit serving only this appliance. The outlet should be placed in an adjacent cabinet.
Electrical Connection
⚠️ Ensure proper ground exists before use.
After making sure that the voltage and frequency values for the current correspond to those on the rating plate, and that the electrical system is sized for the maximum voltage on the rating plate, insert the plug into an electrical socket that is properly earthed. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket rather than using adaptors or the like, as they could cause overheating and burns.
The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused.
Water pressure must be between 0.04 MPa and 1 MPa. If the pressure is below this, consult our Service Department for advice.
1. Pull the safety supply hoses completely out from the storage compartment located at the rear of the dishwasher.
2. Tighten the screws of the safety supply hose to the faucet with a thread of 3/4 inch.
3. Turn the water fully on before starting the dishwasher.
NOTE:
If the appliance stops operating, please check the water connection. The device connected at the water inlet is designed to stop water flow in the event of a fault with the pipe. Please check the small window. If it is red then the pipe must be replaced. If it is clear then please follow the troubleshooting guidelines within this manual.
ABOUT THE SAFETY SUPPLY HOSE.
The safety supply hose consists of double walls. The hose's system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water.
▲ WARNING!
A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.
How to Disconnect the Safety Supply Hose
1. Turn off the water. 2. Release the water pressure by depressing the pressure release button. This relieves water pressure and protects you, and the room, from severe splashing. 3. Unscrew the safety supply hose from the faucet.
How to Disconnect the Dishwasher
1. Remove the power cord plug from the wall receptacle. 2. Disconnect the Unicouple from the faucet adapter.
NOTE: When the motor stops at the end of the final rinse, the Unicouple can be disconnected and returned to storage.
COLD WATER CONNECTION
Connect the cold water supply hose to a threaded 3/4 (inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damage the appliance.
HOT WATER CONNECTION
The water supply to the appliance can also be connected to the house hot water line (centralized system, heating system), as long as it does not exceed a temperature of 60°C. In this case, the wash cycle time will be shortened by about 15 minutes and the wash efficiency slightly reduced.
The connection must be made to the hot water line following the same procedures as those for the connection to the cold water line.
Positioning the Appliance
Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation.
Levelling the Appliance
Once the appliance is positioned, adjust the feet (screwing them in or out) to height of the dishwasher, making it level. In any case, the appliance should not be more than 2 degrees out of level.
Drain Hose Connection

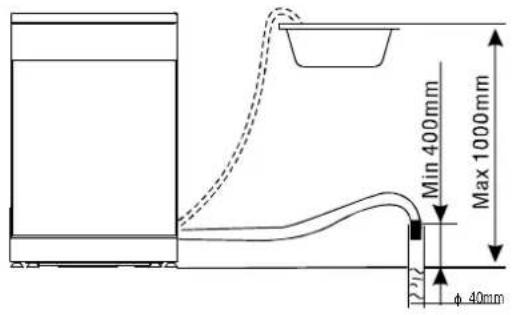

Insert the drain hose into a drain pipe with a minimum diameter of 40 mm, or let it run into the sink, making sure to avoid bending or crimping it. Use the special plastic support that comes with the appliance. The free end of the hose must be at a height between 400 and 1000 mm and must not be immersed in water.
How to Drain Excess Water From Hoses
If the sink is 1000 mm or higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.
DIMENSIONS (mm)
Dimension: 450 x 580 x 850 (mm)
Capacity: 8 place settings
Water pressure: 0.04-1.0 MPa
Power supply: 1930 W
Rated voltage: 230 V / 50 Hz
- Notes
Carefully read this manual before installation.
Reading this manual will help you understand the connections of the inlet, drain hose, and power cord, and to find an optimal position for the dishwasher.
This product is exclusively available through Dixons Stores Group. In the unlikely event of a problem with your product, please return to the store where your purchase was made.
▲ Attention:
The installation of the pipes and electrical equipment should be made by a qualified person.
! Warning
Electrical Shock Hazard. Disconnect electrical power before carrying out any re-wiring.
Failure to do so can result in death or electrical shock.
- Installation preparation
The installation position of the dishwasher should be near the existing inlet and power cord.
One side of the cabinet sink should be chosen to facilitate the connection of the dishwasher.
Note: Please check that the accompanying installation accessories are provided.
- Installation instruction
Please carefully read the installation instruction.
Preparations should be made before moving the dishwasher to the installation place.
1. Choose a place near the sink to facilitate the installation of inlet and drain (see Figure 1). 2. If the dishwasher is installed at the corner of the cabinet, there should be some clearance (see Figure 2) when the door is opened.
[Figure 1]

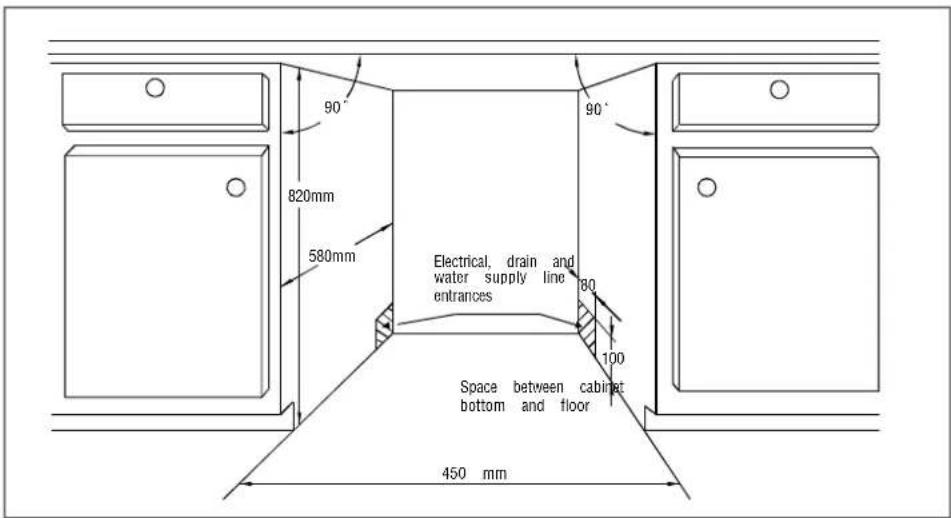

Cabinet dimensions: Less than 5 mm between the top of the dishwasher and the cabinet, and the outer door aligned to the cabinet.

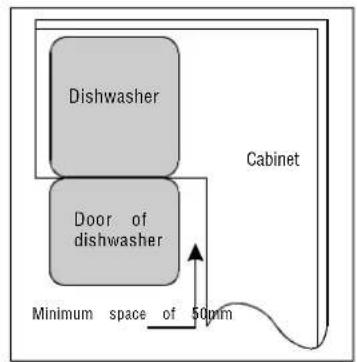

[Figure 2]
Minimum space when the door is opened
Installation
Water inlet hose connection
Make sure your plumbing is suitable to install your new dishwasher. If in doubt, contact a qualified plumber.
The appliance must be connected to the water mains using the new hose. Old hose sets must not be re-used.
The water pressure coming from the water mains supply must be a minimum of 0.4 and a maximum of 10 bars.

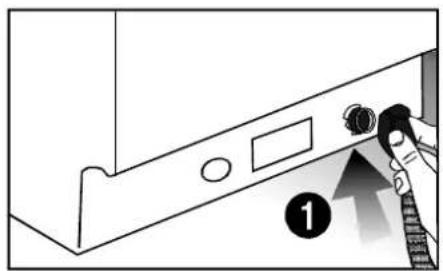

First, connect the water inlet hose to your dishwasher ①, ensuring the black rubber seal is in place.
Then connect the straight end to your water mains supply. Ensure the black rubber seal is in place.
Please turn on the tap and check for leakages after connecting the hose.
Please ensure the tap is turned off when the machine is not used.
If you only have one cold water feed (for example, for your washing machine), don't worry. A Y adaptor will provide you with the additional cold water feed you need for your dishwasher. Y adaptors are available from most DIY stores.
Drain hose connection
- Fit the drainage hose of your machine to the drainage pipe without bending.
- Secure your hose firmly to the waste pipe to avoid it coming off during the washing process.
- The waste pipe must only be connected into the foul drains and not surface water drainage system.

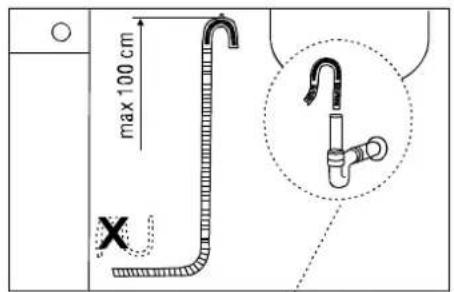

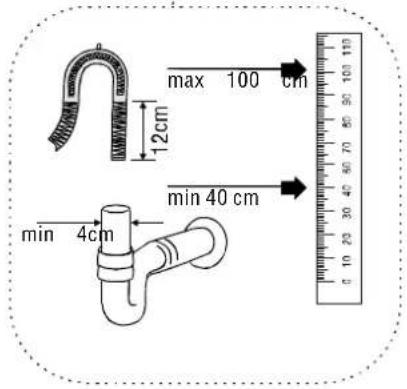

- The hose should be placed between 40 cm and 100 cm from the floor level and must not be extended otherwise the machine may not empty the waste water.
- Connection of drain hoses

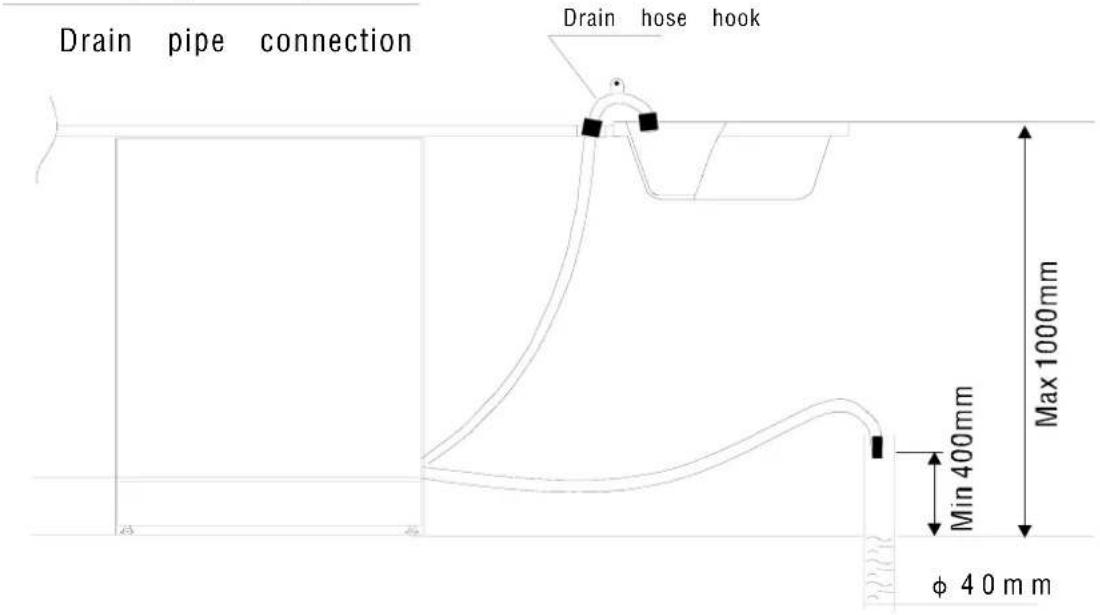

Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it run into the sink, making sure to avoid bending or crimping it. Use the special plastic support that comes with the appliance (Figure 3). The free end of the hose must be at a height between 400 and 1000mm and must not be immersed in water to avoid back flow. ATTENTION: The special plastic hose support must be tightly fastened to the wall to prevent the drain hose from moving and allowing water to spill outside the drain.
【Figure 3】

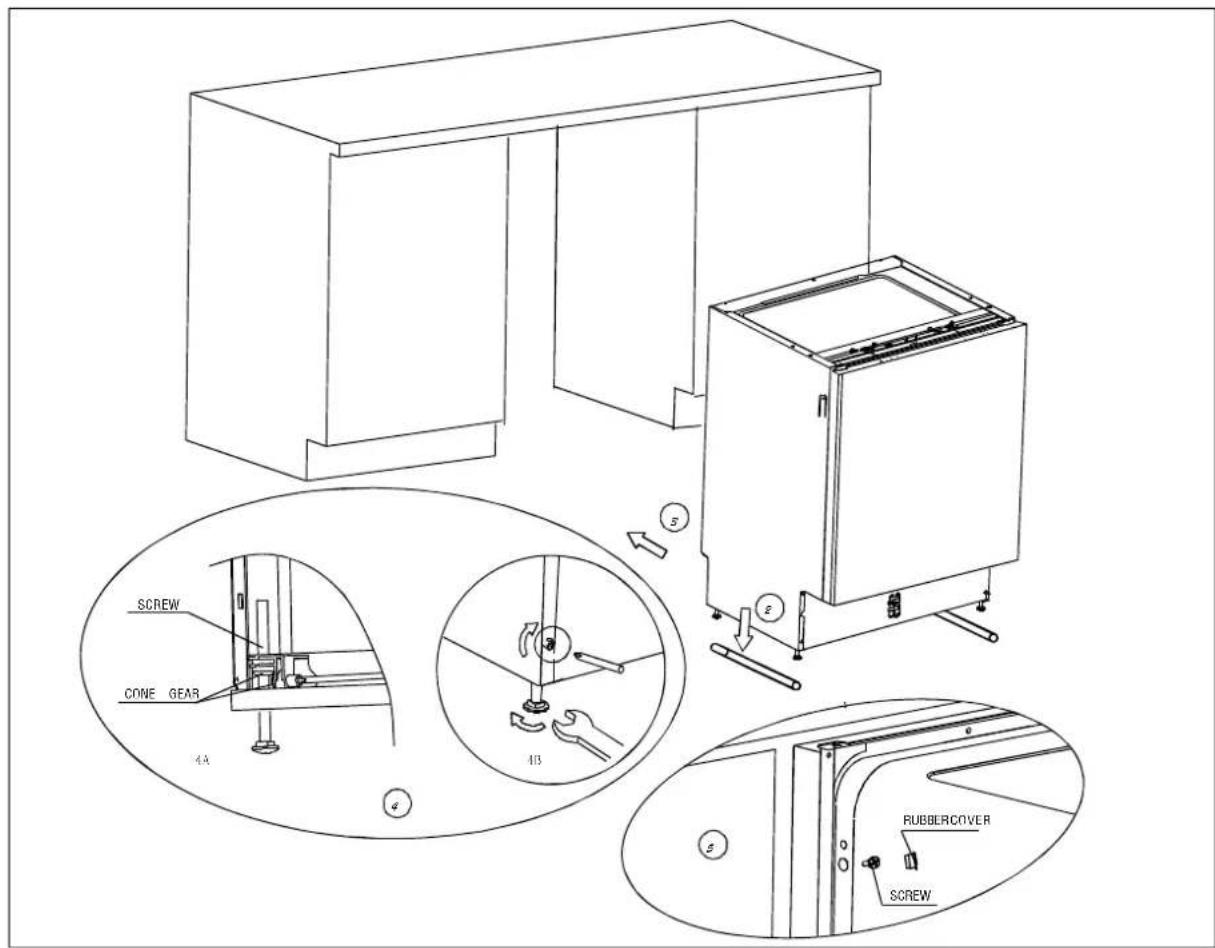

- Dishwasher installation steps
1. Connect the inlet hose to the cold water supply.
2. Connect the drain hose.
3. Connect the power cord.
4. Put the dishwasher on slide rails.
5. Add the condensation strip following instructions on the reverse side of the condensation strip.
6. Place the dishwasher into position.
7 Level the dishwasher. The rear feet can be adjusted from the front of the dishwasher by turning the screws on the left and right hand side of the cabinet (Figure 4A). To adjust the front feet, use a spanner and turn the front feet until the dishwasher is level (Figure 4B).
8 The dishwasher must be secured in place. There are two ways to do this:
A. Normal work surface: secure to the work surface by using two wood screws, ensuring the dishwasher weight is not being supported by the surface. B. Marble or granite work top: secure the bracket to the side panel of the dishwasher and secure the dishwasher to the furniture housing. Put the rubber cap over the screw (Figure F).
- Condensation strip
For all built-in models and some free standing models (when you take off the top board and put the unit into the cabinet), this condensation strip must be fitted to the underside of the worktop above your dishwasher to protect it against any moisture. Its purpose is to deflect steam rising from your appliance to protect your worktop's underside.
• The strip is located inside your dishwasher. - Ensure the surface is clean prior to sticking to underside of the worktop. - Separate the backing paper from the strip. - Stick to the underside of the worktop.
Note: Failure to attach strip could result in damage to the underside of your work surface!
● Installation of the plinth
Unscrew the two screws and adjust the distance of left and right plinth tab to your need. The adjustable range is from 39mm to 134mm. (Figure a)
The dishwasher must be level for the racks to operate correctly and to give maximum performance.

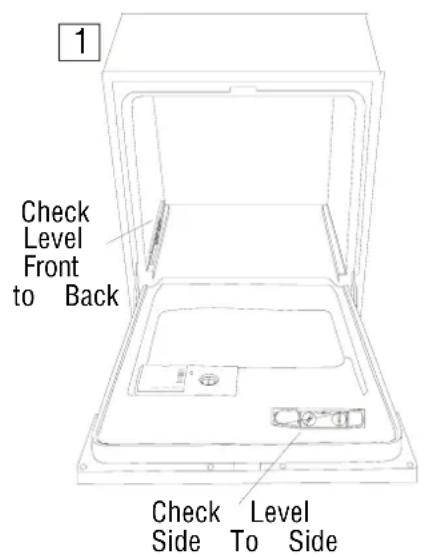

1 Place a spirit level on the door and the lower rack rail as shown in diagram to check if the dishwasher is level. 2 It is easy to level the dishwasher by adjusting the four leveling legs individually from the front of the dishwasher.

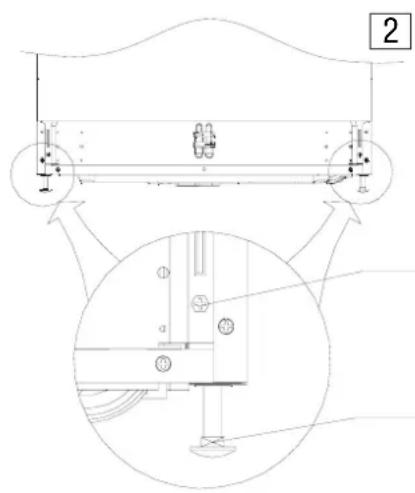

2.1 Refer to Remark A diagram 2 below for adjustment of the rear legs, turn the screw clockwise to lower the rear legs until the correct height is obtained.
2.2 Refer to Remark B diagram 2 below for adjustment of the front legs to obtain the correct height.
3 When leveling the dishwasher be careful not to allow the dishwasher to
Remark A: adjust the height of back foot with a screwdriver.
Remark B: adjust the height of front foot with a spanner.
【Figure 4】
Illustration of feet adjustment
- Start of dishwasher
The following should be checked before starting the dishwasher.
1 The dishwasher is level and fixed. 2 The inlet valve is opened. 3 The connections not leaking. 4 Drainage hose has been fitted.
5 The power is switched on.
6 The inlet and drain hoses are not trapped or kinked.
7 All packing materials and documents should be taken out from the dishwasher.
- Attention
After installation, please put this installation manual in a safe place. The content of this manual is very helpful to users who may be unfamiliar with the appliance
Before Calling for service...
Troubleshooting Tips
Review the charts on the following pages may make you be free of calling for service.
| Problem | Possible Causes | What To Do |
| Dishwasher doesn't run | Fuse blown, or the circuit breaker acted | Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher |
| Power supply is not turned on | Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket. | |
| Water pressure is low | Check that the water supply is connected properly and the water is turned on. | |
| Drain pump doesn't stop | Overflow | The system is designed to detect an overflow. When it does, it shuts off the circulation pump and turns on the drain pump. |
| Noise | Some audible sounds are normal | Sound from soft food shredding action and detergent cup opening. |
| Utensils are not secure in the baskets or something small has dropped into the basket | To ensure everything is secured in the dishwasher. | |
| Motor hums Dishwasher has not been used regularly. If you do not use it often, remember to set it to fill and pump out every which will help keep the seal moist. | ||
| Suds in the tub | Improper detergent | Use only the special dishwasher detergent to avoid suds.If this occurs, open the dishwasher and let suds evaporate.Add 1 gallon of cold water to the tub. Close and la dishwasher, then drain out the water by slowly turning th Dial until a drain period is reached. Repeat if necessary. |
| Spilled rinse agent Always wipe up rinse agent spills immediately. | ||
| Stained tub interior | Detergent with colorant was used | Make sure that the detergent is the one without colorant. |
| Dishes are not dried | Rinse agent dispenser is empty | Make sure that the rinse agent dispense is filled. |
| Dishes and flatware not clean | Improper program | Select stronger program |
| Improper rack loading | Make sure that the action of the detergent dispenser and spray arms are not blocked by large dishware. | |
| Spots and filming on glasses and flatware | 1 Extremely hard water2 Low inlet temperature3 Overloading the dishwasher4 Improper loading5 Old or damp powder detergent6 Empty rinse agent dispenser7 Incorrect dosage of detergent | To remove spots from glassware:1 Take out all metal utensils out of the dishwasher.2 Do not add detergent.3 Choose the longest cycle.4 Start the dishwasher and allow it to run for about 18 to 22 minutes, then it will be in the main wash.5 Open the door to pour 2 cups of white vinegar into the bottom of the dishwasher.6 Close the door and let the dishwasher complete the cycle. If the vinegar does not work: Repeat as above, except use 1/4 cup (60 ml)of citric acid crystals instead of vinegar. |
Before calling for service...
| Problem | Possible Causes | What To Do |
| Cloudiness on glassware | Combination of soft water and too much detergent | Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them clean. |
| Yellow or brown film on inside surfaces | Tea or coffee stains using a solution of 1/2 cup of bleach and 3 cups warm water to remove the stains by hand.⚠ WARNINGYou have to wait for 20 minutes after a cycle to let the heating elements cool down before cleaning interior; otherwise, burns will happen. | |
| Iron deposits in water can cause an overall film | You have to call a water softener company for a special filter. | |
| White film on inside surface | Hard water minerals To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent for the risk of foaming or suds. | |
| Detergent cup lid won't latch | Dial is not in Off the position | Turn the Disoff toposition and slide the door latch to the left. |
| Detergent left in dispenser cups | Dishes block detergent cups | Re-loading the dishes properly. |
| Steam | Normal phenomenon | There is some steam coming through the vent by the door latch during drying and water draining. |
| Black or gray marks on dishes | Aluminum utensils have rubbed against dishes | Use a mild abrasive cleaner to eliminate those marks. |
| Water standing in the bottom of the tub | This is normal A small amount of clean water around the outlet on the tub bottom at the back of the tub keeps the water seal lubricated. | |
| Dishwasher leaks | Overfill dispenser or rinse aid spills | Be careful not to overfill the rinse aid dispenser.Spilled rinse aid could cause oversudsing and lead to overflowing. Wipe away any spills with a damp cloth. |
| Dishwasher isn't level | Make sure the dishwasher is level. | |
Fault codes
| Codes | Meanings | Possible Causes |
| E1 | Longer inlet time. | Faucets is not opened. |
| E3 | Longer heating time, but not reaching required temperature | Malfunction of temperature sensor or of heating element. |
| E4 | Overfilled. | Too much inlet water. |
| E6,E7 | Abnormal temperature | Short circuit or break of temperature sensor. |
This symbol on the product or in the instructions means that your electrical equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.
and electronic
- READ THIS MANUAL
- BEFORE CALLING FOR SERVICE
- NOTE
- OPERATING INSTRUCTIONS
- TROUBLESHOOTING TIPS
- ⚠ WARNING! HYDROGEN GAS IS EXPLOSIVE
- GROUNDING INSTRUCTIONS
- ▲ WARNING
- WARNING! PROPER USE
- READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY
- OPERATION INSTRUCTION
- IMPORTANT
- CONTROL PANEL
- DISHWASHER FEATURES
- STARTING A WASH CYCLE
- CHANGE THE PROGRAMME
- WATER SOFTENER
- LOADING THE SALT INTO THE SOFTENER
- ADJUSTING SALT CONSUMPTION
- AMOUNT OF DETERGENT TO USE
- RINSE AID DISPENSER
- ADJUSTING RINSE AID DISPENSER
- WHEN TO REFILL THE RINSE AID DISPENSER
- LOADING THE DISHWASHER RACKS
- ATTENTION BEFORE OR AFTER LOADING THE DISHWASHER RACKS
- LOADING THE DISHWASHER RACKS (8 SETS)
- LOADING THE UPPER RACK
- ADJUSTING THE UPPER RACK
- LOADING THE LOWER RACK
- FOLDING SPIKES
- SILVERWARE BASKET
- NOT SUITABLE FOR THE DISHWASHER
- THE FOLLOWING SHOULD NOT BE CLEANED IN THE DISHWASHER
- RECOMMENDATION
- DAMAGE TO GLASSWARE AND OTHER DISHES
- FILTERING SYSTEM
- MAIN FILTER
- COARSE FILTER
- FINE FILTER
- CARING FOR THE DISHWASHER
- PROTECT AGAINST FREEZING
- CLEANING THE SPRAY ARMS
- CLEANING THE FILTERS
- FILTER ASSEMBLY
- HOW TO KEEP YOUR DISHWASHER IN SHAPE
- AFTER EVERY WASH
- REMOVE THE PLUG
- NO SOLVENTS OR ABRASIVE CLEANING
- WHEN YOU GO ON HOLIDAY
- MOVING THE APPLIANCE
- SEALS
- ABOUT ELECTRICITY CONNECTING
- CAUTION, FOR PERSONAL SAFETY
- ELECTRICAL REQUIREMENTS
- ELECTRICAL CONNECTION
- ⚠️ ENSURE PROPER GROUND EXISTS BEFORE USE
- ABOUT THE SAFETY SUPPLY HOSE
- HOW TO DISCONNECT THE SAFETY SUPPLY HOSE
- HOW TO DISCONNECT THE DISHWASHER
- COLD WATER CONNECTION
- HOT WATER CONNECTION
- POSITIONING THE APPLIANCE
- LEVELLING THE APPLIANCE
- DRAIN HOSE CONNECTION
- HOW TO DRAIN EXCESS WATER FROM HOSES
- DIMENSIONS (MM)
- NOTES
- ▲ ATTENTION
- WARNING
- INSTALLATION PREPARATION
- INSTALLATION INSTRUCTION
- INSTALLATION
- WATER INLET HOSE CONNECTION
- THE APPLIANCE MUST BE CONNECTED TO THE WATER MAINS USING THE NEW HOSE. OLD HOSE SETS MUST NOT BE RE-USED
- CONNECTION OF DRAIN HOSES
- DISHWASHER INSTALLATION STEPS
- CONDENSATION STRIP
- ● INSTALLATION OF THE PLINTH
- START OF DISHWASHER
- ATTENTION
Brand : Logik
Model : LS474WN
Category : Dishwasher
