Frequently Asked Questions - LSBSDX18 Logik

How do I adjust the temperature on my Logik LSBSDX18 fridge?

Use the thermostat dial inside the fridge compartment. Turn it clockwise for colder settings and counterclockwise for warmer. Allow 24 hours for temperature to stabilize.

Can the door be reversed to open from the other side?

Yes, the door is reversible. See the user manual for step-by-step instructions on removing and repositioning the hinges and door seal.

Why is my fridge making noise?

Some noise is normal due to the compressor and cooling fan. If it becomes loud or irregular, check that the fridge is level and not touching walls. Ensure items inside are not vibrating.

How often should I defrost the fridge?

This model features auto defrost, so manual defrosting is not required. However, clean the interior periodically to prevent ice buildup.

What is the energy consumption of the LSBSDX18?

The annual energy consumption is approximately 180 kWh, placing it in energy class A+. Actual consumption varies with usage and ambient temperature.

How do I clean the fridge?

Unplug the fridge and remove all food. Use a soft cloth with mild detergent and warm water. Avoid abrasive cleaners. Dry thoroughly before plugging back.

What is the capacity of the fridge?

The net capacity is 98 liters, suitable for a household of 1-2 people. It includes 3 glass shelves and a vegetable crisper.

Can I store hot food inside?

No, allow hot food to cool to room temperature before placing in the fridge. This prevents temperature rise and energy waste.

How long is the warranty?

Typically, Logik appliances come with a 1-year manufacturer warranty. Check your purchase receipt or contact Logik support for details.

What should I do if the fridge stops cooling?

First, check power supply and thermostat setting. Ensure ventilation slots are clear. If problem persists, contact Logik customer service for repair options.

USER MANUAL LSBSDX18 Logik

American Style Fridge Freezer with Water Dispenser

Instruction Manual

LSBSDX18

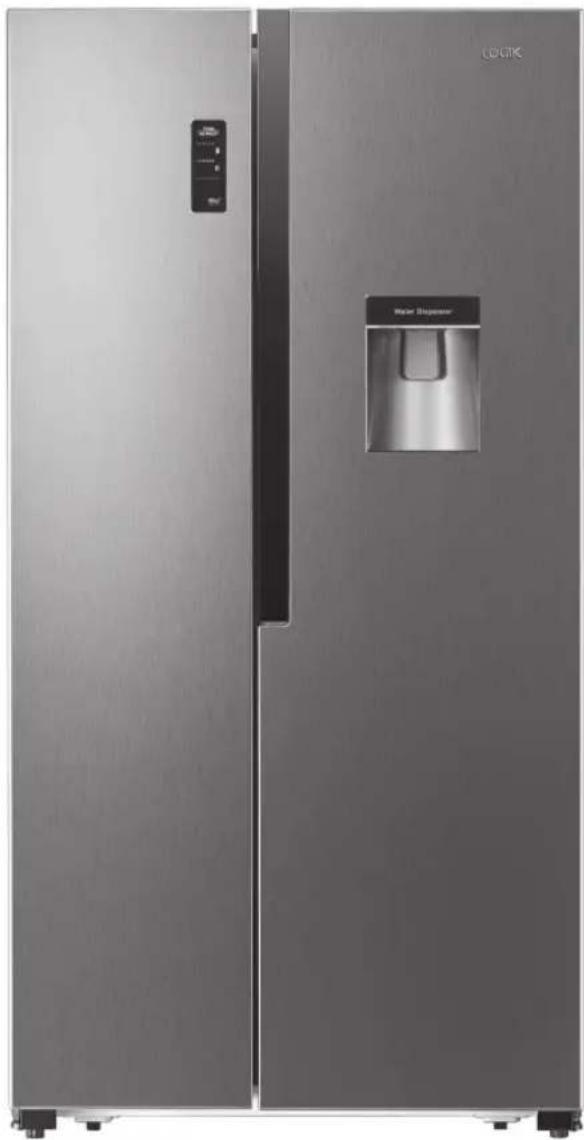

Exterior view of a modern stainless steel refrigerator with a water dispenser on the side (no visible text or symbols)

Contents

Safety Warnings....4

Unpacking....6

Installation....7

Location 7

Levelling the Unit 7

Free Space Requirements ....7

Moving the Unit....7

Cleaning Before Use 8

Before Using Your Unit....8

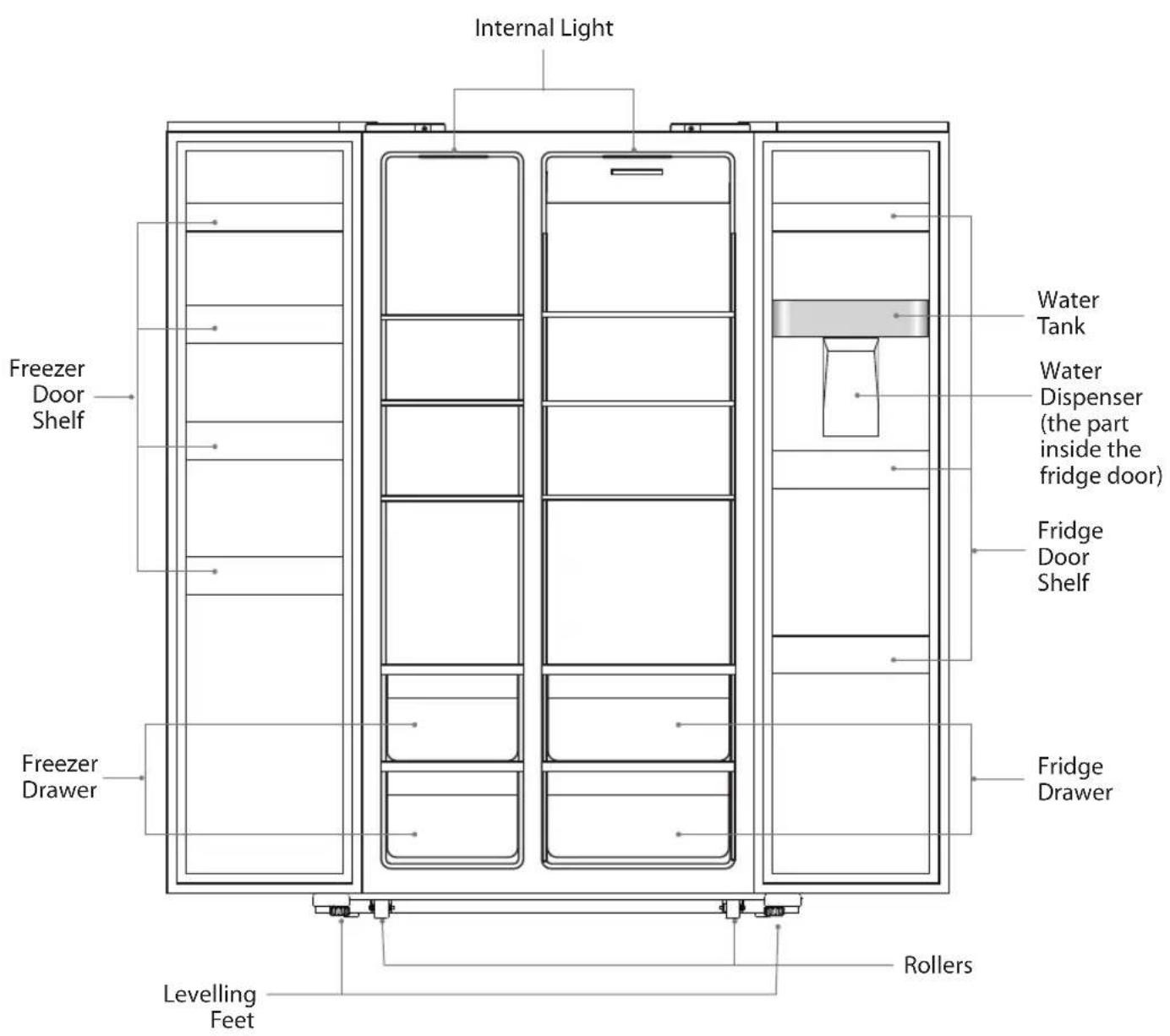

Product Overview....9

Operation....10

Temperature Setting 10

Super Cool Mode 10

Super Freeze Mode 10

Smart Mode....11

Lock and Unlock....11

Door Alarm....11

Before Using the Water Dispenser....11

Filling the Water Tank 12

Receiving Water from the Water Dispenser 12

Noises Inside the Unit! 13

Tips for Keeping Food in the Unit....13

Preparations for Freezing....13

Defrosting Frozen Food....14

Cleaning 15

Cleaning the Interior and the Exterior of the Unit....15

Cleaning the Water Tank and Water Dispenser....15

Maintenance 16

Changing the Internal Light 16

Care When Handling / Moving the Unit 16

Servicing 16

Switching Off for Long Periods of Time 16

Condensation....16

Disposal....16

Specifications....17

Product Fiche 17

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.

• This appliance is intended for indoor household use and similar applications such as:

• farm houses and by clients in hotels, motels and other residential type environment;

• bed and breakfast type environment;

• catering and similar non-retail applications.

• Ensure that the plug is easily accessible to enable disconnection from the mains supply.

• If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.
• Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.

• The unit must be manoeuvred by a minimum of 2 persons.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children should be supervised to ensure that they do not play with the unit.

- If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment. (If applicable)

WARNING

• Keep ventilation openings in the unit enclosure or in the built-in structure clear of obstructions.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.
• Do not damage the refrigerant circuit (The refrigerant is a very environmental-friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Thank you for purchasing your new product.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a two-door refrigerator with front panel and side door (no text or symbols)

Main Unit

Freezer Door Shelf x 4

Fridge Door Shelf x 3

Freezer Drawer x 2

Fridge Drawer x 2

Freezer Glass Shelf x 4

Fridge Glass Shelf x 4

Instruction Manual

Egg Tray x 2

Ice Tray

If items are missing or damaged please contact Partmaster (UK only).

Tel: [phone] for assistance.

INSTALLATION

Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 10^ C and 38^ C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Make sure the levelling feet (not the rollers) are well secured to the floor to prevent movement of the appliance.

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

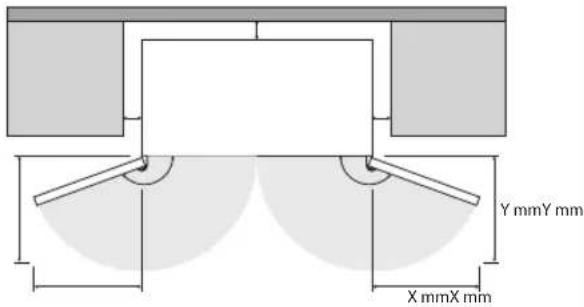

Free Space Requirements

When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear and 25 mm at the top of the unit.

Please ensure there is more than twice the width and depth distance space of the unit to fully open the door.

Moving the Unit

Adjust the levelling feet until the rollers can roll freely.

INSTALLATION

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves, drawers and salad bin. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the unit.
• Before Turning On!
Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

Connect the mains cable to the mains socket.

Before changing any setting, ensure the buttons are unlocked by pressing ☐/☐ for 3 seconds.

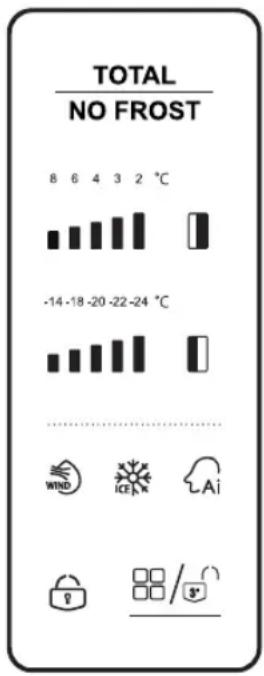

Temperature Setting

Fridge temperature setting:

• Recommended fridge temperature: 4°C.
- Press [REDACTED] repeatedly to set the fridge temperature.

Freezer temperature setting:

• Recommended freezer temperature: -18°C.
- Press □ repeatedly to set the freezer temperature.

The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the doors often.

To ensure that the unit is cool enough to sufficiently chill and freeze your food, wait 24 hours before filling it with food.

If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops. Place the thermometer in the centre of either the fridge or freezer compartment and leave overnight. The correct temperature for the fridge compartment should be an average of 5^ C. The correct temperature for the freezer compartment should be -18^ C or lower.

Super Cool Mode

Super Cool can refrigerate your food faster, keeping food fresh for a longer period.

• Press 1v repeatedly to select Super Cool function (The light will be illuminated.
• Super Cool will automatically deactivate after 6 hours, and the fridge temperature will set to 2^ . The light will extinguish.

Super Freeze Mode

Super Freeze can quickly lower the temperature within the freezer so food can freeze faster.

• Press 📄/ 📋 repeatedly to select Super Freeze function (✗) The light will be illuminated.
• Super Freeze will automatically deactivate after 26 hours, and the freezer temperature will set to -24^ . The light will extinguish.

Smart Mode

When Smart mode is selected, the temperature of the appliance will be automatically adjusted (fridge temperature will be set to 4^ C and freezer temperature will be set to -18^ C).

- Press / repeatedly to select Smart function (A). The light will be illuminated.

Lock and Unlock

All buttons are locked if is illuminated. To unlock, press for 3 seconds. The appliance will be locked automatically within 20 seconds when no more buttons are pressed.

Door Alarm

If the door is open for a long time, an alarm will sound. Close the door to clear the alarm.

Before Using the Water Dispenser

Before using the water dispenser, clean the water tank first.

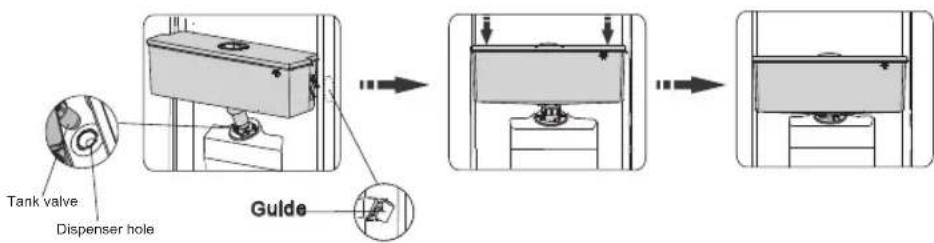

1. Take out the water tank by gripping it tightly on both sides, then keep pulling it upward and downward with some force until removed.

2. Take off the water tank cover, and wash the water tank, valve and its cover. After washing, drain the water from inside the tank and replace the cover.

3. Insert the water tank valve into the water dispenser hole first.

Illustration of hands holding a rectangular object with upward and downward arrows indicating motion or force (no text or symbols)

Be careful not to press on the tank valve.

1. Fit the water tank along the guides on the door. Press down on both sides of the water tank.

1. When a click is heard, that means the installation is completed.

Filling the Water Tank

You can fill drinking water into the water tank through either opening the small lid or the large lid. Close the lid after filling.

• Do not fill above the level, otherwise, it may overflow.
• Before filling with water, ensure that the water tank is steady and in a correct position
- Apart from drinking water, other beverages (such as milk, juice, carbonated beverage, etc) are not suggested to be used, especially beverages that include grain must not be used (may result in blockage and damage).
• Hot water must not be filled into the water tank directly.
- Do not touch other parts of the unit when filling water, it may lead to leakage.

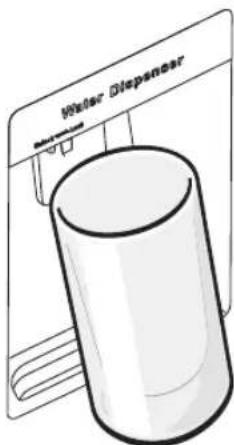

Receiving Water from the Water Dispenser

- Before you dispense the water, make sure the lock device is at "Unlock" position.

• Ensure to slide to "Lock" position after each use to prevent children from playing with the lever.
• When at "Lock" position, do not push on the lever with force. It will damage the mechanism.

- You should use the type of container that can fit under the water dispenser. Place the container properly underneath and push on the lever for water to flow.

Noises Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Tips for Keeping Food in the Unit

• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.
• Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the unit are kept cool.
• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
• Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
• To prevent cold air escaping from the unit, try to limit the number of times you open the door. We recommend that you only open the door when you need to put food in or take food out.

Preparations for Freezing

• Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better.
• Leave cooked food to cool completely. Chill food before freezing if possible.
• Consider how you will want to cook the food before freezing it.
• Don't freeze food in metal containers if you may want to microwave it straight from the freezer.
• Use special freezer bags, freezer film, polythene bags, plastic containers, and aluminium foil (heavy duty grade only). If in doubt, double wrap your food. Don't use aluminium foil for acidic foods, e.g. citrus fruits. Don't use thin cling film, glass, or used food containers without cleaning.
• Exclude as much air from the container as possible. You could buy a special vacuum pump which sucks excessive air out of the packaging.

- Leave a small amount of air space when freezing liquids to allow expansion.

- You can use the space in the freezer most efficiently if you freeze liquids (or solids with liquids, e.g. stew) in square blocks. This is known as "Preforming". Pour the liquid into a polythene bag which is inside a square sided container. Freeze it, and then remove it from the container and seal the bag.

Line drawing of a hand pouring liquid into a container with a small object inside (no text or symbols)

- Label your frozen foods as they will look the same when in frozen state. Use special freezer tapes, labels and pens with different colours. This allows you to easily organise and to effectively use the freezer. Write the contents and date; otherwise the frozen food might exceed the storage time and this could cause food poisoning. Please refer to your food packaging for the recommended storage time.

- You may also add the weight and cooking notes, e.g. "defrost first", "cook from frozen" and keep a separate log of what is in each drawer. This will save opening the door and searching around unnecessarily.

Defrosting Frozen Food

1. Take the frozen food out from the unit and uncover the frozen food. Let it defrost at room temperature. Don't forget that defrosting in a warm area encourages the growth of bacteria and low temperature cooking may not destroy dangerous bacteria.
2. Drain off and throw away any liquid lost during defrosting.
3. Always make sure there are no ice-crystals in the food before cooking, particularly with meat. These crystals indicate that the food has not fully defrosted.
4. Cook food as soon as possible after defrosting.
5. Many microwaves and ovens have a defrost setting. To avoid bacterial build up, only use these if you intend to cook the food immediately afterwards.

Never re-freeze anything that has been defrosted unless you cook it again, to kill off harmful bacteria. Never re-freeze defrosted shellfish. Re-seal packs properly after removing items. This prevents drying or freezer-burn and a build up of frost on any remaining food.

Cleaning the Interior and the Exterior of the Unit

• Remove all the shelves and drawers.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves and drawers.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

Cleaning the Water Tank and Water Dispenser

• Remove the water tank. Wash the tank, tank cover and valve lightly under water.
  • After cleaning, dry them thoroughly before installing back in the fridge.
• Wipe the receiving base of the water dispenser with dry towel regularly to avoid overflowing.

Maintenance

Changing the Internal Light

The internal light is an LED light. It cannot be changed by the user; please contact your service agent.

Care When Handling / Moving the Unit

Hold the unit around its sides or base when moving it.

Servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the unit, leaving the door ajar to prevent unpleasant smells.

Condensation

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in the unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the doors as a safeguard.

Specifications

Rated Voltage 220-240V~, 50 Hz
Rated Current 1.6 A
Rated Power Defrost: 240 W
Overall Dimension (H x W x D) 1786 x 910 x 643 mm

Features and specifications are subject to change without prior notice.

Product Fiche

Brand Logik
Model LSBSDX18
Household Appliance Category 7
Energy Efficiency Class A+
Energy consumption 411 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Fridge Storage Volume 337 L
Freezer Storage Volume	177 L
Total Frost Free
Temperature Rise Time	10 hours
Freezing Capacity	11 kg/24 hrs
Climate Class	SN, N, STThis appliance is intended to be used at an ambient temperature between 10°C and 38°C to achieve the claimed Energy Consumption and Grading.
Airborne Acoustical Noise 43 dB(A) re 1	pW

Illustration of four people gathered around a table with devices and a washing machine (no text or symbols)

Team Knowhow

Help with all life's kit ^TM

For general information about this appliance and handy hints and tips, please visit:

www.TeamKnowhow.com/discover or call 0344 561 1234

Partmaster .co.uk

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the

very next day. Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only) Calls charged at National Rate.

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

DSG Retail Ltd. (co. no. 504877)

1 Portal Way, London, W3 6RS, UK
