Brand	Steren
Model	STV-150
Product Type	TV Stand
Overall Dimensions (W x D x H)	130 cm x 40 cm x 50 cm (51 in x 15.7 in x 19.7 in)
Weight Capacity (shelf)	30 kg (66 lbs) max per shelf
Materials	Engineered wood with laminate finish, tempered glass shelves
Finish	Dark wood grain / black (depending on variant)
Max TV Size	Up to 55 inches
Number of Shelves	3 adjustable shelves
Cable Management	Yes, built-in cable routing holes and back panel cutouts
Mounting Options	TV can be placed on top (no wall mount included)
Assembly Required	Yes, full assembly with included tools and instructions
Cleaning	Wipe with a soft, damp cloth; avoid abrasive cleaners
Safety Features	Anti-tip strap included for child safety
Weight (net)	25 kg (55 lbs)
Warranty	1 year limited manufacturer warranty

Frequently Asked Questions - STV-150 Steren

What are the overall dimensions of the Steren STV-150?

The dimensions are approximately 130 cm (width) x 40 cm (depth) x 50 cm (height). Always verify with a tape measure before assembly.

What is the weight capacity of the shelves?

Each shelf can hold up to 30 kg (66 lbs) when evenly distributed. Do not exceed this limit to avoid damage.

Does the STV-150 include anti-tip safety hardware?

Yes, the unit comes with an anti-tip strap and anchoring hardware to secure it to the wall, especially important for child safety.

What TV sizes are compatible with this stand?

It can accommodate most TVs up to 55 inches, but always check the TV's base width and weight against the stand's top surface dimensions and capacity.

Does the TV stand require assembly?

Yes, full assembly is required. All necessary tools and a detailed instruction manual are included in the box.

How do I clean the Steren STV-150?

Use a soft, damp cloth to wipe surfaces. Avoid harsh chemicals or abrasive sponges that may damage the laminate finish.

Does the stand have cable management?

Yes, it features built-in cable routing holes and open back panel sections to keep cords organized and hidden.

What material is the STV-150 made of?

The frame is constructed from engineered wood with a durable laminate finish. Shelves are tempered glass for a modern look.

Can I mount my TV on the wall above this unit?

Yes, you can use the stand as a base for a wall-mounted TV. However, the stand itself does not include a wall mount bracket.

What is the warranty coverage?

Steren offers a 1-year limited warranty against manufacturing defects. Retain your proof of purchase for claims.

USER MANUAL STV-150 Steren

3D rendering of a metallic medical or laboratory stand with vertical supports and a central vertical component (no text or symbols visible)

Technical illustration of a mechanical component with a magnified inset showing a tool interacting with it (no text or symbols present)

3D rendering of a metallic stand with vertical supports and a cylindrical top, set against a grid background (no text or symbols)

Instruction Manual

0414c

Before using your new Steren's product, please read this instruction manual to prevent any damage.

IMPORTANT

The instructions of this manual are for reference about the product. There may be differences due to updates.

Please check our website (www.steren.com) to obtain the latest version of the instruction manual.

CAUTIONS

• During assembly, use only the supplied parts and attach them firmly.
• Do not miss any piece during assembly. Install all parts as directed.
  • Install with at least two people.

HIGHLIGHTS

• The mobile TV stand supports up to 80 kg, being compatible with LCD and LED screens. For 19" to 60" screens.
• It has double arm for the floor, balanced base and wheels, to offer great stability to your screen, even in movement. Place it wherever you want, easily.
• Manufactured in low carbon steel, black finished.

CONTENT

Supplied parts for bracket

TV mounting hardware

HOW TO USE

First, you must assemble the base, pay attention to use the indicated parts as shown in the image.

The second step consists in assembly the posts.

A. Use the holders of the wheels to secure the stand.

Next, you will need to mount the plate.

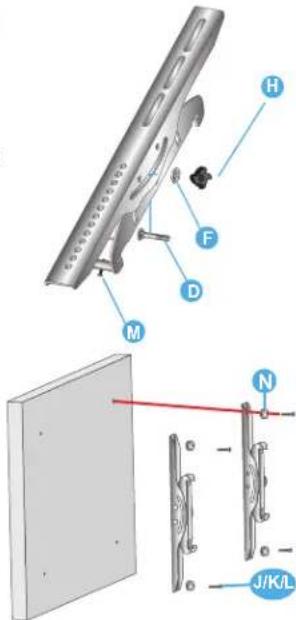

Assembling the screen brackets

1. Insert the D screw inside the screen fastener. The smallest notch on the bracket should align with the rectangular holes of the bracket.
2. Insert a metal washer (F) between the screw and fastener.
3. Insert the M screw to attach the arm to the base.
4. Repeat this procedure to assemble the other arm, but taking care that both the central screw and the knob are opposite to each other, so they can adjust in the external side.

Attaching the LCD TV to the screen brackets

This product includes two different models of screws, washers and spacers. In this step select the compatible hardware for your screen.

Remember that you will not use all the pieces to attach your television.

Place the support arms on the back of the screen.

Mechanical assembly diagram showing a bracket mounted on a pole with an inset close-up of a tool (no text or symbols visible)

Finally, turn the screws to fix the base, as shown in the image.

Product design and specifications are subject to change without notice.

STEREN

Product: 19 to 60' mobile LCD/LED TV stand

Part number: STV-150

Brand: Steren

WARRANTY

This Steven product is warranted under normal usage against defects in workmanship and materials to the original purchaser for one year from the date of purchase.

CONDITIONS

1. This warranty card with all the required information, invoice or purchase ticket, product box or package, and product, must be presented when warranty service is required.
2. If the product is in the warranty time, the company will repair it free of charge
3. The repairing time will not exceed 30 natural days, from the day the claim was received.
4. Steven sell parts, components, consumables and accessories to customer, as well as warranty service, at any of the addresses mentioned later.

THIS WARRANTY IS VOID IN THE NEXT CASES:

If the product has been damaged by an accident, acts of God, mishandling, leaky batteries, failure to follow enclosed instructions, improper repair by unauthorized personnel, improper safe keeping, among others.

a) The consumer can also claim the warranty service in the purchase establishment.

b) If you lose the warranty card, we can reissue it. If you show the invoice or purchase ticket.
