SR11010GRN - Freezer SWAN - Free user manual and instructions

Product Type	Freezer
Brand	Swan
Model	SR11010GRN
Capacity	101 liters
Energy Class	F
Annual Energy Consumption	210 kWh
Climate Class	N-ST
Freezer Star Rating	4 stars
Freezing Capacity	4 kg/24h
Storage Time During Power Failure	12 hours
Noise Level	42 dB(A)
Dimensions (H x W x D)	85.0 x 55.5 x 55.0 cm
Net Weight	25.0 kg
Power Supply	220-240 V, 50 Hz
Current	0.5 A
Defrost Type	Manual
Temperature Control	Mechanical thermostat
Interior Light	No
Door Reversibility	Yes
Shelves	1 wire shelf, 1 door bin
Refrigerant	R600a
Maintenance & Cleaning	Clean interior with mild detergent; defrost when frost exceeds 5mm
Safety Features	Keep ventilation grille clear; do not store flammable liquids
Spare Parts & Repairability	Spare parts available from Swan service centers; repair-friendly design
General Information	User manual available for free download at notice-facile.com

Frequently Asked Questions - SR11010GRN SWAN

How do I clean my Swan SR11010GRN freezer?

Unplug the freezer and remove all food. Use a mild detergent and warm water to wipe the interior. Do not use abrasive cleaners. Dry thoroughly before plugging back in.

How often should I defrost the freezer?

Defrost when the frost layer reaches 5mm (about 0.2 inches). Manual defrosting is required for this model. Remove food and let ice melt naturally.

What is the ideal temperature setting?

Set the thermostat to a medium setting (around -18°C or 0°F). Adjust based on the amount of food stored and ambient temperature.

Why is my freezer making unusual noises?

Normal operation sounds include compressor hum, refrigerant flow, and occasional clicks. If noises are loud or persistent, ensure the freezer is level and not touching walls.

How do I install the freezer correctly?

Place the freezer on a level, sturdy surface away from heat sources. Allow at least 10cm clearance around the sides and back for ventilation. Wait 4 hours before plugging in after transport.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual to change the hinge side. You will need a screwdriver and spanner.

What is the energy consumption of this freezer?

The annual energy consumption is approximately 210 kWh. Actual consumption depends on usage and ambient temperature.

How long will food stay frozen during a power failure?

The storage time is about 12 hours if the freezer is full. Keep the door closed to maximize cold retention.

Where can I download the user manual?

You can download the manual for free at notice-facile.com. Search for model SR11010GRN or Swan freezers.

What should I do if the freezer stops cooling?

Check if the power cord is plugged in and the thermostat is on. Ensure the ventilation grilles are not blocked. If still not working, contact Swan support.

USER MANUAL SR11010GRN SWAN

Important Safeguards

• Do not connect your appliance to the electricity supply until all packing and transit protectors have been removed.
• Leave to stand upright for at least 4 hours before switching on to allow compressor oil to settle
• This fridge/freezer must only be used for its intended purpose i.e the storing and freezing of edible foodstuff.
• Do not dispose of the appliance on a fire. Your appliance contains non-CFC/HFC natural substances in the cooling system and in the insulation, which are potentially flammable if exposed to fire. Therefore, take care not to damage, the cooling circuit or pipes of the appliance in transportation and in use. In case of damage do not expose the appliance to fire or potential ignition source and immediately ventilate the room where the appliance is situated.
  • We suggest you contact your local authority for disposal

information and facilities available.

• See installation section for information on suitable location.
- On delivery, check to make sure that the product is not damaged and that all the parts and accessories are in perfect condition.
- Ensure that the plug remains readily accessible. Do not use multiple adaptor or extension cables.
- Failure to observe these instructions may invalidate your right to free service during the guarantee period.
- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other

Important Safeguards

than those recommended by the manufacturer.

• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
  • We suggest you keep these instructions in a safe place for easy reference.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years. Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it must be replaced by the manufacturer

or qualified person in order to avoid an electrical hazard

- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility company.

Your Refrigerator

Your refrigerator uses LED technology for illuminating the cabinet. The LED is designed to last for many years and should never need to be changed. In the unlikely even that the LED light stops working, call the help line number on the cover of this booklet to arrange a service visit.

WARNING: DO NOT ATTEMPT TO CHANGE THE LED LAMP AS IT NEEDS TO BE DONE BY A QUALIFIED SERVICE ENGINEER

However, it is perfectly OK to continue using the fridge in the meantime.

Installation Notes

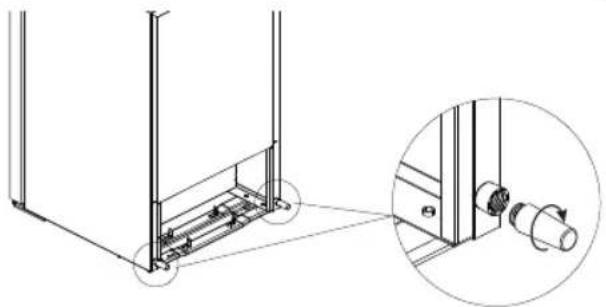

Fit the 2 spacer pegs as shown in the diagram. These will prevent the product from being pushed too close to the wall and damaging the cooling system.

It is important that upon receipt you stand your appliance upright for at least 4 hours before switching on to allow the system to settle. Please note that the door cannot be reversed on this product.

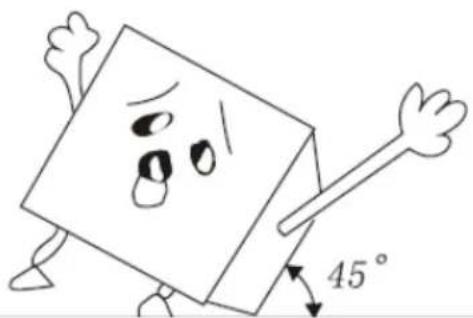

1. The appliance should not be tilted more than 45 degrees when you move it. Do not use force on any part such as the condenser, the door or handle. They could distort and affect the operation of the refrigerator. Ensure all packaging is removed before installation

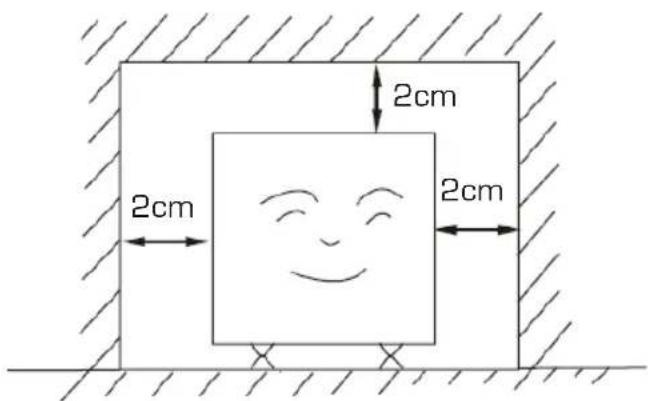

1. Make sure there is enough ventilation space around the sides and top of the refrigerator.

Installation Notes

1. The appliance should not be installed near external heat sources eg direct sunlight, radiators or external moisture sources.

2. External heat sources like radiators or environments more than 32 degrees Centigrade can cause the compressor to over-run and the ice compartment to freeze up. EG. Siting the fridge in a conservatory is not a good idea.

3. Exposure to sunlight for long periods can cause the coloured components to fade.

Damage resulting from ignoring the above guidance is not covered under your warranty.

1. Ensure the supply voltage of socket is same as rating label.
2. The plug must be properly inserted to the wall socket.
3. The mains supply socket must be earthed - preferably with a switch. If it is not earthed, do NOT install this appliance there. Do not use an extension cord
4. The product is equipped with adjustable feet. Once the product is in place, adjust these to ensure the fridge is level and doesn't rock.

ONLY SITE THE PRODUCT WHERE THE AMBIENT TEMPERATURE IS BETWEEN 10 AND 32 DEGREES CENTIGRADE

First Time Use

1. It is important that upon receipt you stand your appliance upright for at least 4 hours before switching on to allow the system to settle. Not doing this could render the refrigeration system beyond economical repair!
2. When using the refrigerator for the first time, set the thermostat inside the refrigerator to 5 without any food inside. When the refrigerator starts, you will hear the quiet hum of the compressor. You may also hear the circulation of liquids and gases in the refrigeration system. This is normal on first start up, Generally it will take 2-3 hours for the appliance to reach temperature. Once temperature has been reached then put the food inside.
3. The temperature of the refrigerator can be adjusted by rotating the disc of the thermostat. The higher the value on the setting of the thermostat, the maximum value of refrigeration (coldest being 7). Typically a medium setting of 4-5 is best for most circumstances.
4. Do not put too much food in the refrigerator. Avoid opening the doors too frequently as this will waste energy and can cause excessive frost build-up.

Food Storage Tips

REFRIGERATOR COMPARTMENT

Dairy and multipurpose Guard

- Store fatty foods, like butter and cheese. Store small, packed foods, like milk, yogurt and beverages.

Refrigerator compartment: 1°C to 5°C

This is the area where the food should be stored to be kept cold/chilled:

• Note: raw and uncooked foods should always be wrapped
• precooked chilled foods
• precooked meats
• prepared salads, desserts, homemade products, and leftovers

Vegetable Drawer/Crisper

• This the part of the refrigerator has higher humidity.
  • Vegetables, fruit, fresh salads should be stored in this compartment.

Wire Wine Rack

For storing bottled liquids. Always ensure lids are air tight and sealed properly.

Notes:

• Always place raw meat, fish and poultry on the lowest shelf of the refrigerator.
- Ensure that food is well-wrapped or covered before it is stored. This will prevent food from dehydrating, deteriorating in colour or losing flavour and will help maintain freshness. It will also prevent cross-flavouring.

PLEASE DO NOT OVERLOAD ANY OF THE RACKS, DRAWERS OR TRAYS. IT COULD CAUSE DAMAGE TO THE CABINET OR DOOR AND IS NOT COVERED UNDER WARRANTY

FREEZER COMPARTMENT

Seal food in containers with lids, in plastic wrap or in plastic bags to prevent drying and the mingling of odours.

Wrapping food

• Pack the food in suitably sized portions for your household.
• Vegetable and fruit portions should be no heavier than 1 kg, while meat portions can be up to 2.5 kg.
• Smaller portions freeze through more quickly and the quality is retained better when defrosting and preparing the food.
• It is important to seal food in airtight bags or containers before freezing to prevent it from losing flavour or dehydrating.
• Wrap the food, press out any air and seal it airtight.

Suitable wrapping materials:

Plastic bags, cling-film, aluminium foil and freezer containers. These items are available from any dealer.

Unsuitable wrapping materials:

Wrapping paper, greaseproof paper, cellophane, bin bags or used carrier bags.

Suitable sealing materials:

• Rubber bands, plastic clips, string, freezer tape or similar.
• Plastic film and bags may be heat-sealed using a special sealing iron or press.

Before placing a package in the freezer, it should be clearly labelled with the contents and date of freezing.

Cleaning & Maintenance

DAILY CLEANING

The outside of your refrigerator can be cleaned using a soft cloth moistened with a mild detergent solution. Wipe dry with kitchen towel.

Do not use chemical or abrasive cleaners on any part of your refrigerator as these could permanently damage or discolour the surfaces.

INTERNAL CLEANING

Wipe up any internal spills immediately with a soft cloth moistened with a mild detergent solution. Dry thoroughly.

SHELVES AND GUARDS

The Dairy guards, and shelves can be removed and cleaned separately. However, we don't recommend cleaning the transparent plastic parts in a dishwasher because the high temperatures can dull the plastic over time.

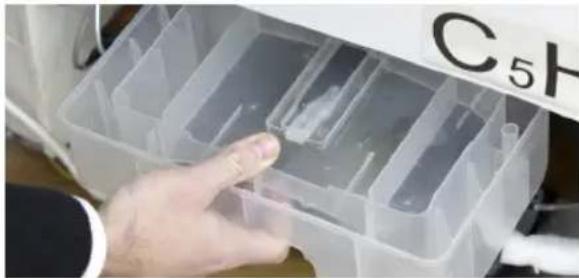

DRAIN HOLE AND CLEANING TOOL

There is a small drain hole at the back of the refrigerator cabinet. There is also a small cleaning tool in the hole. Use the tool to clear the drain hole when necessary. Do not allow foodstuff to clog this hole

PERIODIC MAINTENANCE

From time to time, it may be necessary to perform more extensive cleaning to keep your refrigerator in top condition and to maintain energy efficiency.

Before performing any of these maintenance steps, switch off your refrigerator and remove the plug from the mains socket. Allow the freezer section to defrost thoroughly.

EVAPORATOR TRAY

If you notice an odour from the back of the fridge, it is a sign that the evaporator tray needs to be cleaned. The evaporator tray is a small plastic tray that sits on top of the compressor. Grip the tray firmly and pull it sharply toward you.

Take care when moving the refrigerator not to damage the cooling matrix or tilt the appliance more than 45 degrees. Replace the tray, ensuring the clips lock into place. Warmth from the compressor is usually enough to evaporate any water in the tray. Excessive water is a sign of an overly humid environment.

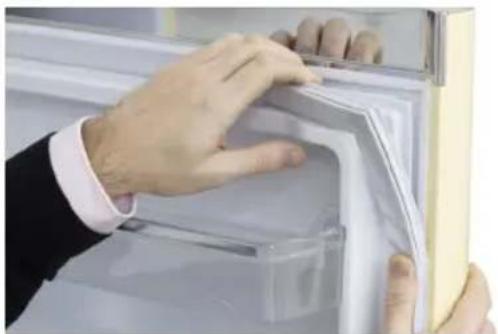

DOOR SEALS

Ensure that the door seals are kept free from debris at all times. If they don't seal properly this can waste energy and cause excessive ice build-up.

The seals should last for many years. However, if they need to be changed, the removal and fitting is very easy - as shown above. Visit our website to buy replacement seals.

Troubleshooting

1. If the refrigerator does not run:

Check the supply voltage is available at the socket and check that the power plug is correctly connected.

2. If the refrigerator does not become cold enough:

a. Is the thermostat set too low? (setting 1 is warmest setting 7 is coldest)
b. Is there enough space around the refrigerator?
c. Is the door opened too frequently or not closed properly? (check seals).
d. Is there direct sun shine on the appliance or are there heat sources nearby?
e. Is there too much food inside the compartment?
f. Is there dust and debris built up on cooling matrix or compressor?

3. Food is freezing or too cold in refrigerator compartment:

a. There is too little food in the refrigerator
b. Thermostat is set too high

4. If the refrigerator operates noisily:

a. Check that the appliance is installed on a stable, level floor. Adjust the feet if necessary. The refrigerator is too near the wall (use the spacer pegs provided).
b. The food stored in the refrigerator is not touching - particularly applies to bottles. The refrigerator creates very slight vibrations, which can be amplified greatly with touching bottles!

Note:

During high relative humidity environment, condensation may occur on the surface of the refrigerator. This is not a malfunction. Simply clean the surface of condensation.

If the refrigerator is not working properly after all these checks, contact the service help line without further delay.

Service and Spares

If you experience any problems at all with your refrigerator or require spare parts, expert help is just a phone call away!

0333 220 6050

You will need to quote the model and serial number of your appliance. This is printed on the service label just inside the door under the thermostat.

Specifications

Refrigerator section capacity: 168L

Freezer section capacity: 40L

Freezing capacity: 2kg/item

Energy rating: A+

Includes: 3 x Glass fridge shelves / 1 x Chrome wine rack

1 x Freezer glass shelf and 1 x Salad crisper

Outer dimensions: (H)149.7cm x (W)54.6cm x (D) 64.6cm

Weight: 51kg

BS Plug Wiring

The wires in the mains lead are coloured in accordance with the following code:

BLUE

NEUTRAL

BROWN

LIVE

GREEN/YELLOW EARTH

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW.

WARNING: THIS APPLIANCE MUST BE EARTHED

WEEE Directive

Disposal of Unit

Disposal instructions for Swan items in accordance with the WEEE directive. Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recyclemore.co.uk, or www.recyclenow.co.uk for access to information about the recycling of electrical items. The WEEE directive, introduced in August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.

Warranty

This product is guaranteed for one year from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty product will be repaired, refunded or replaced at our discretion.

The following conditions apply:

The product must have been purchased from new. Proof of purchase will be required The product must be installed and used in accordance with the instructions contained in this instruction guide. It must be used only for household and similar purposes such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments;
  • catering and similar non-retail applications.

The appliance has not been altered, serviced, dismantled or otherwise interfered with by any person not authorised by Swan.

Any repair work must be undertaken by us or our appointed agent.

Any parts removed during repair work or any appliance that is replaced becomes our property. It does not cover wear and tear, damage, misuse or consumable parts. Swan Products Ltd has no liability for incidental or consequential loss or damage. Food value is NOT covered by the warranty.

This warranty does not cover normal wear and tear such as scratches and discolouration resulting from normal, daily, long term use. It does not cover discolouration resulting from exposure to direct sunlight for extended periods.

This guarantee is valid in the UK and Eire Only.
