| Product Type | Car Audio Component Speaker System |
| Brand | JL Audio |
| Model | C3-525 |
| Speaker Size | 5.25 inches |
| System Type | 2-way component system |
| Woofer Cone Material | Polymer/Mica Composite |
| Tweeter Type | 1-inch Silk Dome |
| Crossovers | External (included) |
| Power Handling (RMS) | 60 Watts |
| Power Handling (Peak) | 180 Watts |
| Impedance | 4 Ohms |
| Sensitivity | 92 dB (1W/1m) |
| Frequency Response | 55 Hz - 25 kHz |

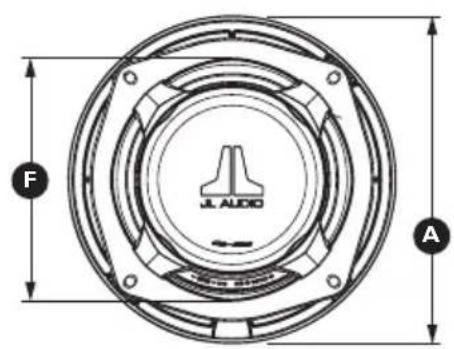

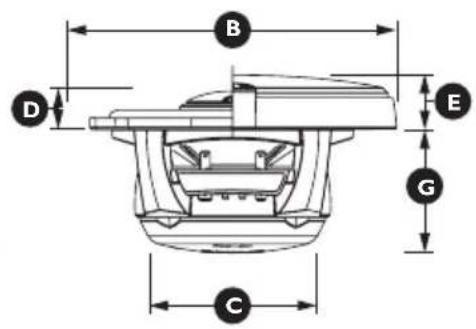

| Mounting Depth | 1.875 inches (48 mm) |
| Mounting Diameter | 5.125 inches (130 mm) |
| Weight (per speaker) | 3.2 lbs (1.45 kg) |
| Grille Included | Yes |
| Recommended Amplifier Power | 30 - 120 Watts RMS per channel |
| Tweeter Level Adjustment | Yes (via crossover) |
| Cleaning Instructions | Wipe with dry cloth; avoid liquids |
| Repairability | Factory service only; no user-serviceable parts |
Frequently Asked Questions - C3-525 JL Audio
What is included in the C3-525 component system?
The JL Audio C3-525 includes two 5.25-inch woofers, two 1-inch silk dome tweeters, two external crossovers, mounting hardware, and grilles.
What is the recommended amplifier power for these speakers?
JL Audio recommends an amplifier delivering between 30 and 120 Watts RMS per channel for optimal performance.

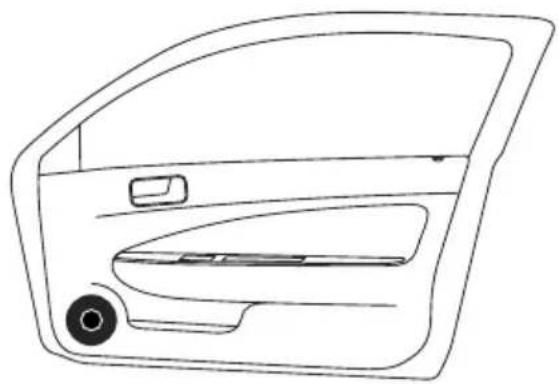

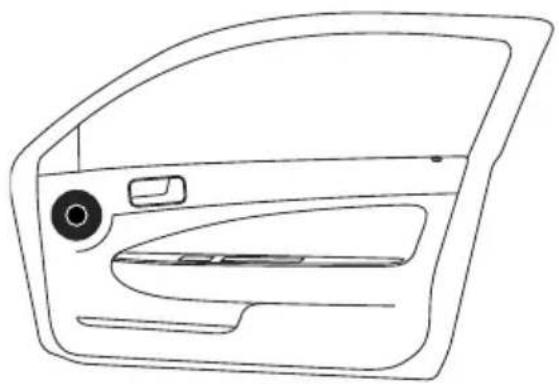

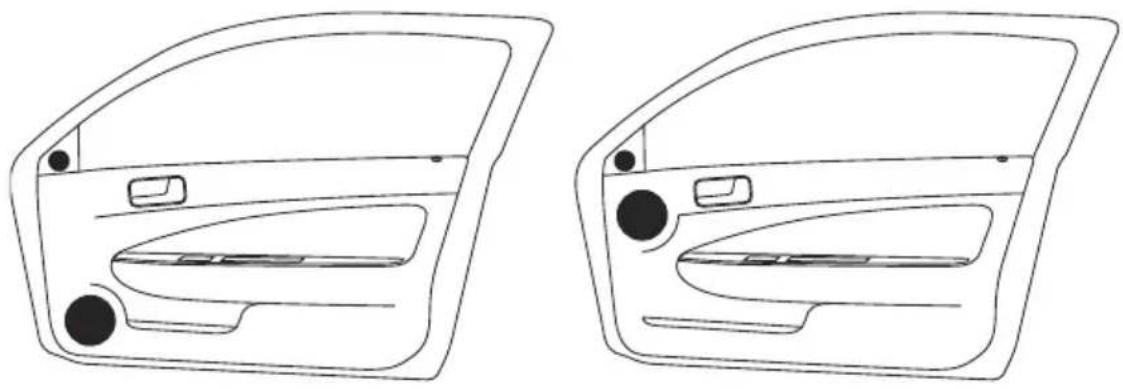

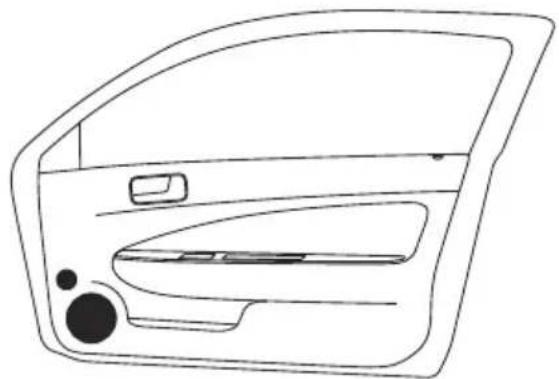

Can I install the C3-525 in my car door?
Yes, the C3-525 is designed for custom installation in doors, kick panels, or other locations with a mounting depth of 1.875 inches. Ensure proper clearance for mounting depth and diameter.
What is the difference between component and coaxial speakers?
Component systems like the C3-525 separate the woofer, tweeter, and crossover for better sound imaging and staging, while coaxial speakers combine all drivers into one unit.
How do I adjust the tweeter level?
The included external crossover has a tweeter level adjustment switch (typically -3 dB, 0 dB, +3 dB) to tailor the high-frequency output to your preference.
Are the C3-525 speakers weather-resistant?
The C3-525 is designed for interior use only. Exposure to moisture or extreme temperatures may damage the speakers.
What is the warranty on JL Audio C3-525 speakers?
JL Audio offers a 2-year warranty from the original purchase date against defects in materials and workmanship. Warranty terms may vary by region.
Can I use the C3-525 with a factory stereo?
Yes, but an external amplifier is recommended to fully realize the speakers' potential. Factory head units may not deliver enough clean power.

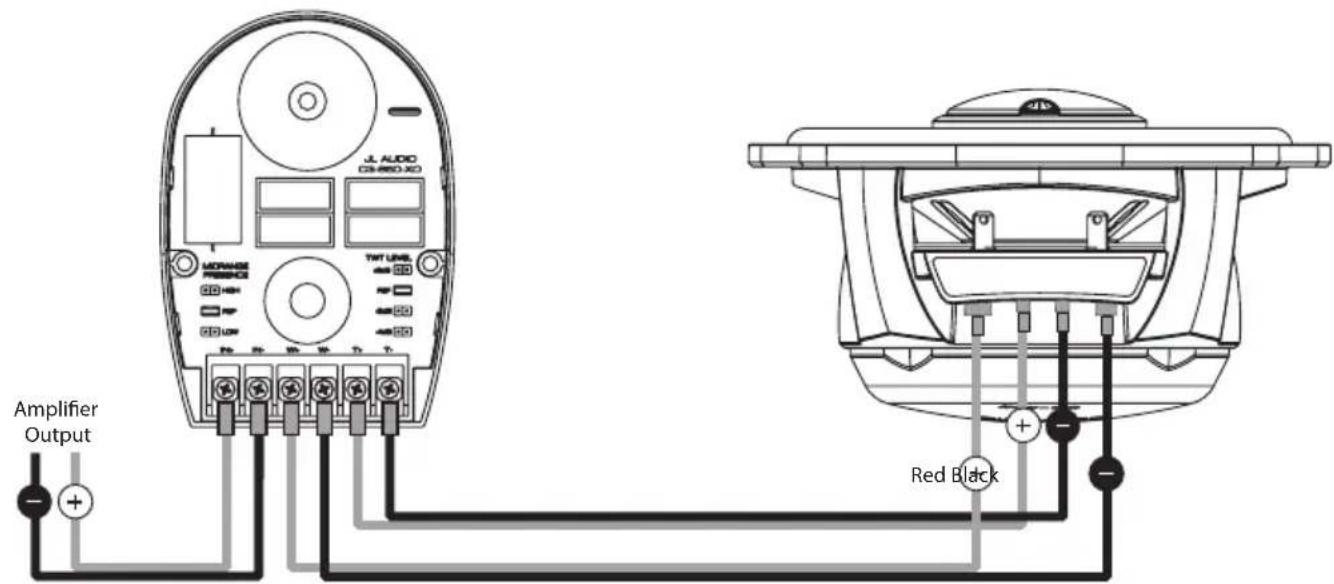

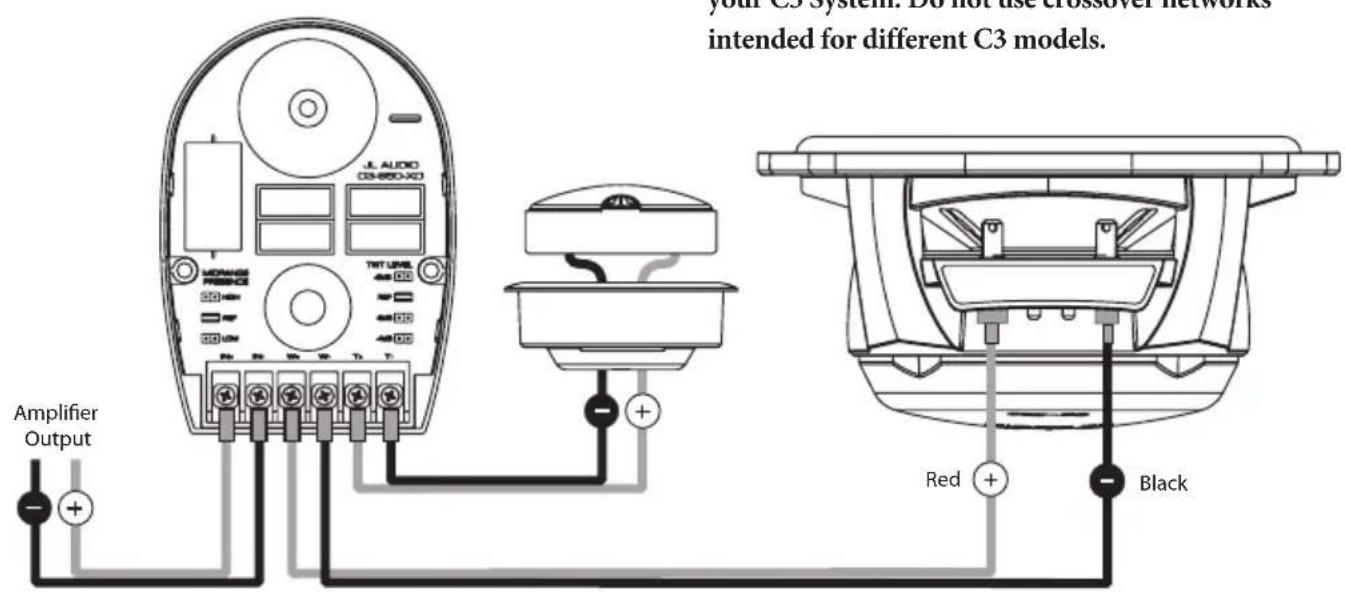

How do I wire the C3-525 system?
Connect the amplifier output to the crossover input, then the woofer and tweeter to the respective crossover outputs. Ensure correct polarity for proper phase.
What is the frequency response of the C3-525?
The frequency response is 55 Hz to 25 kHz, providing deep bass and clear highs across the audible spectrum.
