Product Type	Microwave Oven
Brand	Ramtons
Model	RM/238
Capacity	20 Liters
Power Output	700 Watts
Power Consumption	1150 Watts
Voltage / Frequency	230 V / 50 Hz
Dimensions (W x H x D)	44.0 x 25.9 x 33.0 cm
Net Weight	11 kg
Control Type	Mechanical with Timer
Functions	Defrost, Auto Cook, Timer, Turntable
Door Type	Side Opening
Interior Light	Yes
Turntable Diameter	24.5 cm
Material	Stainless Steel Exterior, Plastic Interior
Safety Features	Overheating Protection, Door Interlock, Child Safety Lock
Cleaning & Maintenance	Wipe interior and exterior with damp cloth; do not use abrasive cleaners
Spare Parts Availability	Contact Ramtons Customer Service
Repair Information	Refer to authorized Ramtons service center

Frequently Asked Questions - RM/238 Ramtons

How do I set the timer and power level?

Turn the timer knob to the desired time in minutes. For power level, some models have a separate knob; if not, the default is high (100% power). Refer to the manual for specific settings.

Can I use metal containers in this microwave?

No, metal containers and aluminum foil can cause arcing and damage the microwave. Use microwave-safe glass, ceramic, or plastic containers only.

How do I defrost food using the RM/238?

Set the timer based on the weight of the food. For best results, use the defrost function if available, or use 30% power level. Turn food halfway through defrosting.

Why is my microwave not heating?

Check that the door is fully closed and the timer is set. If it still doesn't heat, the magnetron may be faulty. Contact Ramtons support for diagnosis.

How do I clean the microwave interior?

Wipe with a damp cloth and mild detergent. For stubborn stains, heat a bowl of water with lemon slices for 2 minutes to loosen residue. Do not use abrasive cleaners.

What is the maximum cooking time?

The mechanical timer typically allows up to 30 minutes per setting. For longer cooking, you can reset the timer after it stops.

Does the RM/238 have a child lock feature?

Yes, this model includes a child safety lock. Refer to the manual for how to activate it (often by pressing and holding a button or turning the timer in a specific sequence).

Can I use the microwave without the turntable?

The turntable ensures even cooking. Operating without it may result in uneven heating. If the turntable is broken, replace it before use.

What should I do if the microwave sparks?

Immediately stop the microwave and unplug it. Remove any metal objects. If sparks continue, contact a technician. Do not use the microwave until inspected.

Where can I find spare parts for my RM/238?

Spare parts can be ordered from Ramtons authorized service centers or their official website. Provide the model number RM/238 for accurate parts.

USER MANUAL RM/238 Ramtons

Amtons Ideas for easy living

MICROWAVE OVEN

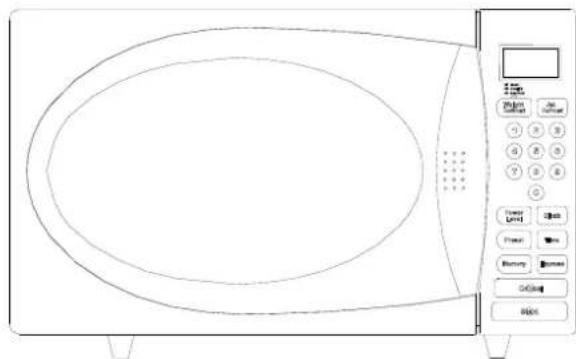

Line drawing of a microwave oven with control panel and buttons (no text or symbols on the main diagram)

MODEL: RM 238

Owner's Manual

Please read these instructions carefully before installing and operating the oven.

Record in the space below the SERIAL NO. found on the nameplate on your oven and retain this information for future reference.

SERIAL NO.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

3. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the
   a. Door (bent),
   b. Hinges and latches (broken or loosened),
   c. Door seals and sealing surfaces.

4. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

CONTENT

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY .... 1

IMPORTANT SAFETY INSTRUCTIONS 2

SPECIFICATIONS 4

INSTALLATION....4

RADIO INTERFERENCE....4

MICROWAVE COOKING PRINCIPLES 4

GROUNDING INSTRUCTIONS....5

BEFORE YOU CALL FOR SERVICE 5

UTENSILS GUIDE 5

PART NAMES 7

CONTROL PANEL 8

HOW TO SET THE OVEN CONTROLS 9

Setting The Clock....9

Power Level....9

Preset 10

Express 10

Setting "weight defrost" 10

Setting "jet defrost" 11

Program Cooking....11

Setting "child lock" 11

CLEANING AND CARE 12

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliance basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.
2. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
3. Do not operate the oven when empty.
4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard
5. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
6. To reduce the risk of fire in the oven cavity:
   When heating food in plastic or paper container, check the oven frequently to the possibility of ignition.
   Remove wire twist-ties from paper or plastic bags before placing bag in oven.
   If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
   Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.
7. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.
8. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle the container.
9. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.
10. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
11. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.
12. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.
13. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
14. Utensils should be checked to ensure that they are suitable for use in microwave oven.
15. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.
16. This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is

intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

2. Children should be supervised to ensure that they do not play with the appliance.

3. The microwave oven is only used in freestanding.

4. WARNING: Do not install oven over a range cooktop or other heat-producing appliance. if installed could be damaged and the warranty would be avoid.

5. The accessible surface may be hot during operation.

6. The microwave oven shall not be placed in a cabinet.

7. The door or the outer surface may get hot when the appliance is operating.

8. The temperature of accessible surfaces may be high when the appliance is operating.

9. The appliance shall be placed against a wall.

10. Appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction

11. Children being supervised not to play with appliance

12. WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person

13. The instructions shall state that appliances are not intended to be operated by means of an external timer or separate remote-control system.

14. The microwave oven is for household use only and not for commercial use.

15. Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.

16. Please secure the turn table before you move the appliance to avoid damages.

17. Caution: It is dangerous to repair or maintain the appliance by no other than a specialist because under these circumstances the cover have to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service centre.

18. The microwave oven is intended for defrosting, cooking and steaming of food only.

19. Use gloves if you remove any heated food.

20. Caution! Steam will escape, when opening lids or wrapping foil.

21. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

22. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle.

SPECIFICATIONS

Power Consumption:	230V~50Hz, 1200W(Microwave)
Output:	700W
Operation Frequency: 2450MHz
Outside Dimensions:	262mm(H)×452mm(W)×334mm(D)
Oven Cavity Dimensions:	198mm(H)×315mm(W)×297mm(D)
Oven Capacity:	Compact 20Litres
Cooking Uniformity:	Turntable System
Net Weight:	Approx.10.5kg

INSTALLATION

1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.
3. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
4. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
5. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.
6. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
7. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
8. The socket must be readily accessible so that it can be easily unplugged in an emergency.
9. Do not use the oven outdoors.

RADIO INTERFERENCE

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment.

When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or television.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

MICROWAVE COOKING PRINCIPLES

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.

3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.

4. Turn foods over once during microwave cooking to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.

5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

GROUNDING INSTRUCTIONS

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING Improper use of the grounding plug can result in a risk of electric shock.

Note:

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

BEFORE YOU CALL FOR SERVICE

If the oven fails to operate:

1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
3. Check to ensure that the control panel is programmed correctly and the timer is set.
4. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

UTENSILS GUIDE

1. The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and heat the food.
2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.

4. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.

5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils.

COOKWARE	MICROWAVE
Heat-Resistant Glass Yes
Non Heat-Resistant Glass No
Heat-Resistant Ceramics Yes
Microwave-Safe Plastic Dish Yes
Kitchen Paper Yes
Metal Tray No
Metal Rack No
Aluminum Foil & Foil Containers No

PART NAMES

1. Door Safety Lock System
2. Oven Window
3. Wave Guide(Please do not remove the mica plate covering the wave guide)
4. Turntable Roller
5. Glass Tray
6. Control Panel

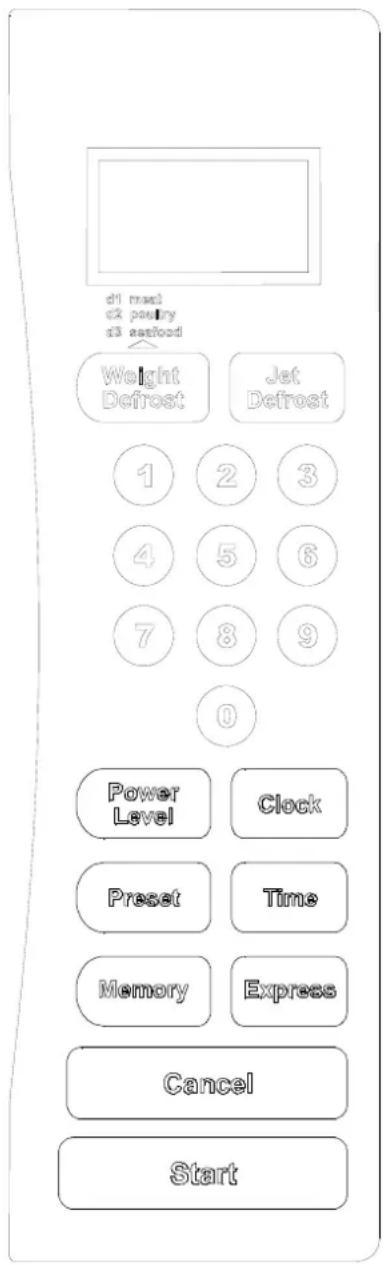

CONTROL PANEL

DISPLAY

Cooking time, power, indicators and present time are displayed.

NUMBER PADS (0-9)

Touch to set times or weights.

WEIGHT DEFROST

Use to defrost frozen meat, poultry and seafood by weight. The defrosting time and power level are automatically set once the food category and the weight are programmed.

JET DEFROST

Touch to set defrosting time; the oven automatically divides the defrosting time into periods of alternating defrost and stand times by cycling on and off.

TIME

Use to set cooking time.

CLOCK

Use to set the time of day or recall the time of day.

PRESET

Use to set the oven to start-up at a later time.

POWER LEVEL

Use to set power level. To check power level during time cooking, touch POWER LEVEL pad.

MEMORY

When programming the oven to cook by time, use the MEMORY pad when setting both the 1st and the 2nd cooking stage. The respective lights will come on to indicate which stage the oven is operating in.

EXPRESS

Use this feature to program the oven for 4 popular microwave timings at HIGH power.

START

Touch to start the cooking or defrosting programs. The cooking indicator light and the oven light will turn on and the cooling fan will operate.

CANCEL

Touch to clear the selected power level, cooking or defrosting time that previously programmed. But the time of day clock cannot be cancelled.

It is also used to set child lock.

(Also see following pages for more detail.)

HOW TO SET THE OVEN CONTROLS

Each time a button is touched, a beep will sound to acknowledge the touch.

SETTING THE CLOCK

1. Touch CLOCK pad.
2. Touch CANCEL pad.
3. Use the number pads to enter the correct time.
4. Touch CLOCK pad again.

NOTE:

This is a 12-hour clock. To reset the time of day, repeat the steps given above. You can check the clock time while cooking is in progress by touching the CLOCK pad.

POWER LEVEL

1. If you want to set a power level other than 100% power, touch POWER LEVEL, and then use the number pads to enter the power level. You can set the power level from 0 to 9.
2. Touch TIME pad.

3. Use the number pads to set a cooking time. You can set a cooking time from one second to 99 minutes and 99 seconds.

4. Touch START to start cooking.

USE THESE SINGLE DIGIT TO REPRESENT POWER LEVELS
Number pad	% of Power
1,0	100%
9	90%
8	80%
7	70%
6	60%
5	50%
4	40%
3	30%
2	20%
1	10%
0	0%

PRESET

Suppose you want to set the oven to start-up at 2 o'clock.

1. Set the cooking programs.
2. Touch PRESET pad.
3. Touch numeral pads 2.0.0.
4. Touch START pad.

NOTE: Be sure the time of day clock is set at the correct time before programming PRESET.

EXPRESS

Use this feature to program the oven for 4 popular microwave timings.

With each touch of the EXPRESS pad you can program the oven for:

15 seconds .....TOUCH ONCE
30 seconds.....TOUCH TWICE

1 minute.....TOUCH 3 TIMES
2 minutes.....TOUCH 4 TIMES

The oven will operate at HIGH power (100% power output) for EXPRESS cooking program.

Suppose you want to set the oven to cook for 1 minute at 100% by using the feature:

1. Touch the EXPRESS pad 3 times then "1:00" will appear in the display.
2. Touch START pad.

SETTING "WEIGHT DEFROST"

Suppose you want to defrost 600g shrimp.

1. Touch WEIGHT DEFROST pad 3 times. "d3" will appear in the display.
2. Touch number pads to enter food weight.
3. Touch START pad.

NOTE: The maximum allowable weight for each category is shown below.

FOOD CATEGORY	MAXIMUM WEIGHT	DISPLAY
Meat 230	0g d1
Poultry 4	000g d2
Seafood	900g d3

For foods exceeding these maximum weights, use the JET DEFROST program. If you program weight in excess of the maximum recommended, the oven will not operate properly.

During defrosting program, the system will pause and sound beeps to remind user to turn food over, and then press START to resume the defrosting.

SETTING "JET DEFROST"

1. Touch JET DEFROST pad.
2. Enter desired defrosting time by touching correct number pads.
3. Touch START pad.

NOTE: During defrosting program, the system will pause and sound beeps to remind user to turn food over, and then press START to resume the defrosting.

PROGRAM COOKING

The oven has the ability to be programmed to do several consecutive functions.

Suppose you want set the following cooking program:

① JET DEFROST;
② 1st stage: Cook for 5 minutes at 100%;
③ 2nd stage: Cook for 10 minutes at 50%.

Steps:

1. Touch CANCEL pad.
2. Touch JET DEFROST pad.
3. Enter desired defrosting time by touching correct number pads.
4. Touch MEMORY pad.
5. Touch POWER LEVEL, and then use the number pads to enter the power level.
6. Touch TIME pad.
7. Use the number pads to 5 minutes.
8. Touch MEMORY pad.
9. Touch POWER LEVEL, and then use the number pads to enter the power level.
10. Touch TIME pad.
11. Use the number pads to 10 minutes.
12. Touch START pad.

NOTE: JET DEFROST can only be selected before the cooking stage in a program. It can not be selected between or after stage1 or stage 2.

SETTING "CHILD LOCK"

Use to prevent unsupervised operation of the oven by little children. The CHILD LOCK indicator will show up on display screen, and the oven can not be operated while the CHILD LOCK is set.

1. To set the CHILD LOCK: Press and hold the CANCEL button for 3 seconds, a beep sounds and LOCK indicator lights.
2. To cancel the CHILD LOCK: Press and hold the CANCEL button for 3 seconds until lock indicator on display turns off.

CLEANING AND CARE

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity condition. And it is normal.
7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.
9. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
10. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
11. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous.
12. Please do not dispose this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities.
