SP32010TEN - Stand mixer SWAN - Free user manual and instructions

Product Type	Stand Mixer
Brand	Swan
Model	SP32010TEN
Power	1000 W
Bowl Capacity	5 L
Number of Speeds	6
Attachments Included	Dough hook, whisk, flat beater
Bowl Material	Stainless steel
Housing Material	Plastic with die-cast metal
Dimensions (W x D x H)	30 x 20 x 35 cm
Weight	5 kg
Power Supply	220-240 V, 50/60 Hz
Safety Features	Non-slip feet, overload protection
Cleaning	Detachable parts dishwasher safe
Warranty	2 years
Spare Parts Availability	Available from manufacturer or authorized dealers
Functions	Mixing, kneading, whisking
Repairability	Modular design; spare parts available

Frequently Asked Questions - SP32010TEN SWAN

How do I clean the stand mixer?

Detach all removable parts (bowl, beaters, whisk, dough hook) and wash them in warm soapy water or the dishwasher. Wipe the main body with a damp cloth. Do not immerse the motor housing in water.

Can I use the mixer to knead heavy dough?

Yes, the 1000W motor and dough hook can handle bread dough for up to 2 kg of flour. However, avoid overloading and use the lowest speed for kneading.

What attachments are included?

The mixer comes with a dough hook, whisk, and flat beater. Each is designed for specific tasks like kneading, whipping cream, and mixing cake batter.

Is the bowl dishwasher safe?

Yes, the stainless steel bowl and all attachments are dishwasher safe. However, hand washing is recommended for longevity.

What should I do if the mixer stops working during use?

The mixer has an overload protection feature. If it stops, turn it off, unplug, and let it cool for 10-15 minutes. Reduce the load and restart.

Can I use metal bowls or utensils with this mixer?

No, use only the provided bowl. Metal utensils can damage the bowl and attachments. Use silicone or wooden utensils.

How do I change the speed?

Use the speed control lever on the side of the mixer. Start at a low speed and increase gradually. Never change speed abruptly with a heavy load.

Does the mixer have a pulse function?

Yes, the mixer includes a pulse function (usually marked as 'P') for short bursts of high speed. Use it for mixing delicate ingredients.

Where can I find spare parts?

Spare parts such as bowls, beaters, and covers are available from the Swan website or authorized service centers. Check the manual for part numbers.

How do I store the mixer?

Store in a dry place with the attachments inside the bowl or separately. Ensure the power cord is wrapped neatly to avoid damage.

USER MANUAL SP32010TEN SWAN

PEACOCK

PALE HONEY

Team by Swan

1500W

STAND MIXER CARE & USE INSTRUCTIONS

Model: SP32010 (all colours)

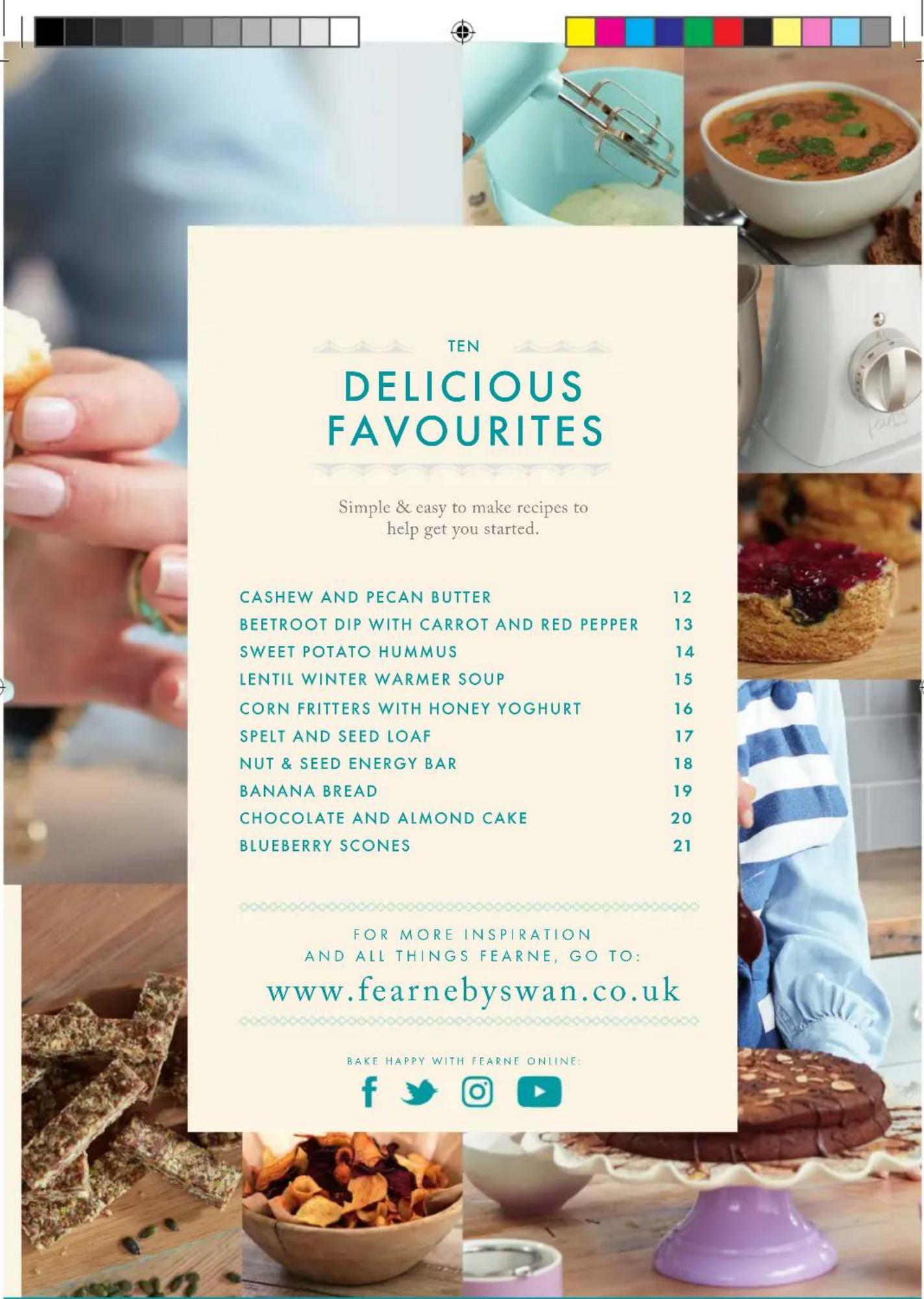

FEATURING TEN DELICIOUS FAVOURITES

We love what we do

We're proud of our quality

www.fearnebyswan.co.uk

LILY

"I adore baking and do it most days. It's the perfect activity to get all the family involved, with the best edible results!

At the weekends we love to fill our kitchen with hungry faces for brunch and lunch. Cake will definitely be on the agenda!"

"I do like a sweet treat!

Feame

PEACOCK

PALE HONEY

Team by Swan

1500W STAND MIXER CARE & USE INSTRUCTIONS

IMPORTANT SAFEGUARDS 04

WHAT'S IN THE BOX 05

HOW TO USE 06

CLEANING & MAINTENANCE 07

WARRANTY 08

BS PLUG 08

TECHNICAL INFORMATION 09

SPARE PARTS 09

DELICIOUS FAVOURITES 10

AFFIX YOUR RECEIPT 22

DISPOSAL OF THE PRODUCT 22

TRUFFLE

LILY

IMPORTANT SAFEGUARDS

When using your Fearne by Swan stand mixer especially when children are present, basic safety precautions should always be followed, including the following:

1. Read all instructions before using.
2. To protect against electrical shock, do not submerge the mixer or allow the AC cord or plug to come in contact with water or other liquids.
3. Unplug the appliance when not in use.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Do not use outdoors.
6. Do not let the cord hang over the edge of the table/counter or touch hot surfaces.
7. Always unplug the appliance before assembling, disassembling and cleaning the accessories.
8. Before plugging into a socket, check whether your voltage corresponds to the rating label of the appliance.
9. Do not use accessories other than those supplied with the appliance.
10. Avoid contact with moving parts. Keep hands, hair, clothing, as well as spatulas and other utensils, away from beater, whisk or dough hooks during operation to prevent injury and / or damage to the mixer.
11. Remove beaters from mixer before washing.
12. Do not mix non-food substances.
13. Do not use this appliance for anything other than its intended use.
14. Do not operate in the presence of flammable fumes

15. Caution: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

16. Always disconnect the appliance from the supply if it's left unattended.

17. Please handle with care to avoid injury, never misuse the appliance.

18. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

19. Keep hands and utensils out of the container while blending. A scraper may be used but must be used only when the unit is not running.

20. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

WHAT'S IN THE BOX

1. Attachment cover

2. Attachment release button

3. Mixer head

4. Bowl

5. Head release lever

6. Speed switch

7. Whisker

8. Beater

9. Dough hook

ATTACHMENTS AND THEIR USES

Whisker (7): For whisking egg whites; cream; instant puddings; all-in-one cake mixes; creaming margarine and sugar (use a block margarine at room temperature); mixing eggs into sponge and fruitcakes.

Beater (8): For stirring flour or fruit into cake mixes, making shout crust pastry

Dough hook (9): For all yeast mixtures. Use both hooks together.

IMPORTANT SAFETY NOTES

1. Never run the mixer for longer than 10 minutes – it will overheat.
2. Don't use the whisk for heavy mixtures – you could damage it.
3. After cleaning, re-fit the bowl. This keeps the mechanism underneath covered.

HOW TO USE THE STAND MIXER

1. Lift the release lever to 'unlock' position and raise mixer head.
2. Put the ingredients into the bowl, then fit the bowl onto the base.
3. Choose an attachment to insert into the mixing head and twist clockwise to tighten.
4. Raise the mixer head a little further to release the safety lock of the lever, then lift the release lever again and lower the mixer head until the release lever returns to the "lock" position.
5. Plug the mixer into 220-240 volt 50/60 Hz AC only outlet, then select a speed.
6. To switch off, turn the switch back to 'off'.

TO REMOVE ATTACHMENT

1. Switch off and unplug the machine.
2. Remove the bowl cover.
3. Release the mixer head.
4. Push and twist anti-clockwise to ejector the tool.
5. Remove the tool before removing the bowl.

CHOOSING A SPEED

1. If you have got something in the bowl that might splash (e.g. cream or flour), start on the lowest speed, then increase it if necessary.
2. If you hear the machine labouring, increase the speed. If it still labours the mix may be too thick, stop mixer & add more liquid.

WHICH SPEED TO USE

The guide may help you select a speed for most tasks. These guides are recommendations. Please adjust mixer speed as needed.

Task Speed
Fold, stir or cream butter and sugar 2-4
Making pastry 2-4
Mix cake mixes, cookie dough or mash potatoes 2-8
Kneading 2-6
Whisking 8-10
Blending 8-10

CLEANING & MAINTENANCE

Clean the appliance with a damp cloth only. Do not immerse the motor unit in water.

1. Always unplug the appliance before cleaning.

POWER UNIT / MIXER

1. Wipe with a damp cloth, then leave to air-dry.
2. Never use abrasives

ATTACHMENTS AND ALL OTHER PARTS

1. Wash by hand, then dry thoroughly.
2. Accessories and bowl are dishwasher safe.

2 YEAR WARRANTY

This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

1. The product must be returned to the retailer with proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this instruction guide.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, damage, misuse or consumable parts.
5. Swan Products Ltd has limited liability for incidental or consequential loss or damage.
6. This guarantee is valid in the UK and Eire Only.

BS PLUG

The wires in the mains lead are coloured in accordance with the following code:

BLUE......NEUTRAL

BROWN......LIVE

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW.

WARNING: THIS APPLIANCE MUST BE EARTHED

TECHNICAL INFORMATION

Model: SP32010

220-240V \~50/60Hz 1500W

Distributed by Swan Products Ltd, PO Box 3117, Stoke-on-Trent, ST4 9GD

© 2017 Swan Products Ltd

Made in China

SPARE PARTS

When ordering spare parts, please use the references below:

Part No: Description:

SP32010N004 Bowl

SP32010N007 Whisker

SP32010N008 Beater

SP32010N009 Dough hook

"I get loads out of making food! The whole process brings me joy. From chopping, mixing, just that whole lovely cathartic process and then the best bit, eating it."

Feame

MAKES 1 JAR OF 240g

CASHEW AND PECAN BUTTER

INGREDIENTS

150g raw unsalted cashew nuts 100g raw pecan nuts Sea salt

PREP TIME: 10 MINS PLUS COOLING TIME

METHOD

Preheat the oven to 180°C / 160°C fan / 350°F / gas mark 4.

Spread the nuts out on a baking tray and roast in the oven for 6-7 minutes, or until a shade darker and aromatic, taking care not to let them burn. Once roasted, remove the nuts and leave to cool completely.

Add the cooled nuts into the Fearne by Swan food processor and blitz until the nuts transform into a creamy smooth butter. Depending on the strength of your processor, this can take anything from 3 – 6 minutes, as the natural oils within the nuts slowly release, aiding the process. Add in a good pinch of salt to taste and blitz to combine.

Transfer to an airtight container.

SERVES 4

BEETROOT DIP WITH CARROT AND RED PEPPER

INGREDIENTS

5 raw beetroot

3 tbsp Greek or soy yoghurt

2 tbsp tahini

Juice and zest of half a lemon

2 tbsp extra virgin olive oil, plus more to serve

1 tsp fresh thyme leaves

Sea salt and pepper

1 tbsp coriander leaves, to serve

Carrot and red pepper batons, to serve

PREP TIME: 15 MINS

COOKING TIME: 60 MINS

METHOD

Preheat the oven to 200°C / 180°C fan / gas mark 6.

Wrap the beetroot in foil and roast for 50 - 60 minutes until completely tender. Remove, peel off the skin and leave to cool completely.

Add the cooled beetroot to the Fearne by Swan food processor together with the yoghurt, tahini, lemon zest and juice, olive oil and thyme and blitz until smooth. Season to taste with salt and pepper. Thin with one tablespoon of water at a time until you reach your desired consistency.

Serve with the coriander leaves and olive oil drizzled over and the carrot and red pepper batons to dip into.

Fearne By Swan

SERVES 4

SWEET POTATO HUMMUS

INGREDIENTS

1 large sweet potato

1 x 400g tin chickpeas, drained and rinsed

2 garlic cloves, peeled 100g tahini

Zest and juice of half a lemon

3 tbsp extra virgin olive oil, plus extra to drizzle over

1/2 tsp ground cumin, plus extra to sprinkle over

1/2 tsp ground coriander

1 tsp sea salt

1 tbsp flat leaf parsley leaves, roughly chopped

PREP TIME: 15 MINS

COOKING TIME: 45 MINS

METHOD

Preheat the oven to 200°C / 180°C fan / gas mark 6.

Wrap the sweet potato in foil and roast for 40 – 50 minutes until completely tender. Remove, cut in half lengthways, scoop out the flesh and leave to cool completely. Discard the skin.

In the Fearne by Swan food processor blitz together the sweet potato flesh and the remaining ingredients, apart from the parsley, until completely smooth. Thin with one tablespoon of water at a time until you reach your desired consistency.

Taste and adjust the seasoning if necessary with a little more salt. Serve in a bowl with a little ground cumin and parsley scattered over and some olive oil drizzled on top.

SERVES 4

LENTIL WINTER WARMER SOUP

INGREDIENTS

1 tbsp olive oil
2 onions, finely chopped
2 tsp ground cumin
4 garlic cloves, crushed
1 litre vegetable stock
2 potatoes, diced
1 carrot, peeled and diced
200g baby plum tomatoes
120g red lentils
Sea salt and pepper
1 tbsp extra virgin olive oil
1 tbsp flat leaf parsley,
roughly chopped

PREP TIME: 10 MINS

COOKING TIME: 40 MINS

METHOD

Put the oil into a large pot set over a medium heat. Add in the onion and cumin and sauté for 5 minutes. Add in the garlic and sweat out for another 5 minutes until the onion is translucent. Season well with salt and pepper.

Add in the stock, potato, carrot, tomatoes and lentils and bring to a boil. Skim off any foam that rises to the surface. Reduce the heat and simmer for 30 - 35 minutes until the vegetables and lentils are cooked through. Taste and adjust the seasoning with salt and pepper if necessary. This will depend on the quantity of salt in the vegetable stock you used, so make sure to add a little at a time, tasting as you go.

Using the Fearne by Swan 3-in-1 stick blender, process the soup until completely smooth. Divide between bowls, drizzle over a little extra virgin olive oil and scatter with parsley.

Serve immediately with flaked almonds and a little sea salt.

1500W STAND MIXER CARE & USE INSTRUCTIONS

MAKES 16

CORN FRITTERS WITH HONEY YOGHURT

INGREDIENTS

120g white spelt flour

1/2 tsp baking powder

100ml milk

1 egg, lightly beaten

100g onion, very finely chopped

400g corn, drained and rinsed

15g parsley, finely chopped

20g mint, finely chopped

1.5 tsp ground cumin

Sea salt and pepper

Olive or vegetable oil to fry

250g Greek yoghurt

2 tbsp honey

PREP TIME: 15 MINS

COOKING TIME: 10 MINS

METHOD

Place the flour and baking powder in a large bowl, using either the Fearne by Swan hand mixer or stand mixer slowly whisk in the milk and beaten egg, until well combined with no lumps. Add in the onion, corn, parsley, half the chopped mint, ground cumin, 1 tsp sea salt and a few grindings of black pepper. Stir everything together to combine.

Place 1 tbsp of olive or vegetable oil in a large, non-stick frying pan and set over a medium-high heat. Once hot, add on 2 level tbsp's of batter for each fritter and flatten into little rounds. Fry in batches, without over crowding the pan, for about 3 minutes on each side, until they are golden brown and cooked through.

Combine together the yoghurt, honey and remaining mint and season with salt and pepper. Plate up a little stack of fritters (about 4 per person) and serve with the yoghurt on the side for dipping into.

SERVES 8 - 10

SPELT AND SEED LOAF

INGREDIENTS

500g wholegrain spelt flour

1 tsp baking powder

1 tsp bicarbonate of soda

1 tsp sea salt

100g sunflower seeds

20g chia seeds

60g raisins

1 tbsp maple syrup

550ml tepid water

PREP TIME: 5 MINS

COOKING TIME: 60 MINS

METHOD

Preheat the oven to 200° C / 180° C fan / 400° F / gas mark 6. Lightly grease a 1kg loaf tin and line with baking parchment.

Add all the dry ingredients to the bowl of the Fearne by Swan stand mixer fitted with a dough hook, and mix everything together on a low speed. Add in the maple syrup and water and mix on a slightly higher speed until just combined.

Pour into the loaf tin and bake in the oven for 50 minutes, then carefully remove the loaf from its tin and continue to bake for a further 10 minutes.

Remove the loaf from the oven and leave to cool. Once cool cut into slices and enjoy with butter or coconut oil and jam.

Fearne By Swan

SERVES 8 - 10

NUT & SEED ENERGY BAR

INGREDIENTS

300g dark chocolate, min 70%
130g jumbo oats
130g raw cashew nuts
200g pitted dates
4 tbsp brown rice syrup
60g almond, cashew or peanut butter
3 tbsp pumpkin seeds
3 tbsp sunflower seeds
2 tbsp linseeds
3 tbsp coconut oil, melted

EQUIPMENT

24cm x 16cm baking tray or Tupperware box, lined with cling film.

PREP TIME: 15 MINS

PLUS COOLING TIME

METHOD

Preheat the oven to 180° C / 160° C fan / 350° F / gas mark 4.

Roast the oats and cashew nuts for 8 - 10 minutes until a shade darker and aromatic. Remove and leave to cool completely.

Place the dates, brown rice syrup and almond butter into the Fearne by Swan food processor and process down to a paste.

Add in the oats, cashew nuts, seeds and melted coconut oil and pulse on and off until the nuts and seeds are roughly chopped and all the mixture has come together.

Transfer the mixture to the lined baking tray and flatten out with the back of a wet spoon until well compacted and smooth. Cover and refrigerate for 2 hours or until very well chilled.

When ready to serve, slice into bars. Store in an airtight container for up to a week.

SERVES 8 - 10

BANANA BREAD

INGREDIENTS

120g coconut oil or unsalted butter, at room temperature

200g coconut palm sugar

2 eggs, beaten

4 very ripe bananas, peeled and mashed with a fork

2 tbsp rice milk

350g white or wholegrain spelt flour

1/2 tsp fine sea salt

1 tsp baking powder

1 tsp bicarbonate of soda

60g walnuts, roughly chopped

PREP TIME: 15 MINS

COOKING TIME: 70 MINS

METHOD

Preheat the oven to 180° C / 160° C fan / 350° F / gas mark 4. Grease a 20cm x 10cm loaf tin and line with baking parchment.

In the bowl of the Fearne by Swan stand mixer fitted with a paddle beater, cream together the coconut oil or butter and sugar until light and fluffy, then gradually beat in the eggs, mashed banana and milk until well combined.

In another bowl combine together the remaining ingredients. Gradually mix this in, until it has just come together.

Transfer the mixture to the lined loaf tin and bake for about 55-65 minutes, until a skewer comes out clean. If the top is browning too quickly, cover with tinfoil. Cool in the tin for 10 minutes, then turn out onto a wire rack to cool completely. Serve in slices as it is, or with a little butter.

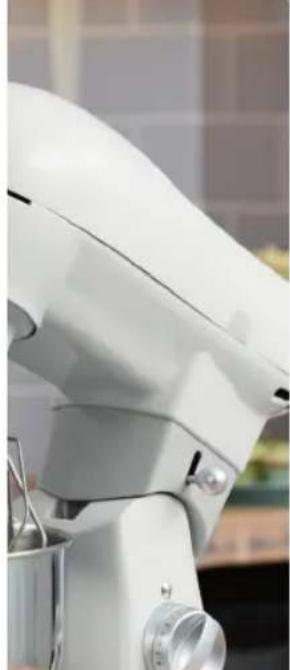

1500W STAND MIXER CARE & USE INSTRUCTIONS

SERVES 12

CHOCOLATE AND ALMOND CAKE

INGREDIENTS

300g dark chocolate, min 70% cocoa solids

225g coconut oil or unsalted butter

100g pitted medjool dates 6 eggs

100g ground almonds

200g coconut palm sugar

1 tsp vanilla extract

1/4 tsp sea salt, plus extra to serve

Cocoa powder to dust

2 tbsp flaked almonds

PREP TIME: 15 MINS

COOKING TIME: 45 MINS

METHOD

Preheat the oven to 160° C / 140° C fan / gas mark 3 and grease and line a 22cm round spring form tin.

Melt 250g of the chocolate and coconut oil or butter in a heatproof bowl over barely simmering water.

Meanwhile, add the medjool dates and 2 of the eggs to the Fearne by Swan food processor and blitz until the dates are very finely chopped, transfer to the bowl of the Fearne by Swan stand mixer with a whisk attachment.

Whisk in the remaining 4 eggs, ground almonds, coconut palm sugar, vanilla and salt. Increase the speed to high and whisk in the melted chocolate and coconut oil until everything has come together, resulting in a thick, shiny mixture.

Pour the mixture into the cake tin and bake for 35-45 minutes, or until the cake is set but with a little wobble in the centre. Cover with foil if the top is browning too quickly. Leave the cake to cool completely, then remove from the tin.

To serve, dust the cake with cocoa powder and sprinkle over the flaked almonds and a little sea salt.

MAKES 8 - 10

BLUEBERRY SCONES

INGREDIENTS

350g white spelt flour, plus extra for rolling

1/2 tsp sea salt

1 tsp baking powder

1 tsp bicarbonate of soda

90g coconut oil

or unsalted butter

150g blueberries

50ml maple syrup

120ml rice milk

1/2 tsp apple cider vinegar

1 tsp vanilla extract

1 egg, beaten

TO SERVE

Salted butter or coconut oil Jam or almond butter

EQUIPMENT

5cm plain or fluted pastry cutter

PREP TIME: 15 MINS

METHOD

Preheat the oven to 220° C / 200° C fan / gas mark 7 and line a baking tray with parchment paper.

In a bowl combine together the flour, salt, baking powder and bicarbonate of soda. Rub in the butter or coconut oil until it looks like breadcrumbs. Stir in the blueberries.

In a separate bowl combine together the maple syrup, rice milk, apple cider vinegar and vanilla extract. Add the dry and wet mixture to the Fearne by Swan stand mixer fitted with a dough hook and combine together quickly. Bring the dough together into a ball using your hands.

Turn the dough out onto a heavily floured work surface and roll or pat out (with floured hands) to a thickness of about 4cm. Dip the pastry cutter into flour and stamp out as many scones as possible. Gather up the remaining dough, roll out again and stamp out the remaining scones, you should have 8-10. Arrange on the baking tray, brush the tops with beaten egg and place in the centre of the oven, bake for 15 - 18 minutes until golden brown in colour and a skewer comes out clean. Cover with foil if browning too quickly.

Remove to a wire rack and leave to cool a little. Serve warm with your favourite jam, almond butter and some coconut oil or butter. Store in an airtight container and consume within 2 days.

Fearne By Swan

Affix your store receipt for safe keeping.

We love what we do

We're proud of our quality

NOTES

The device complies with the European Directives 2014/35/EU, 2014/30/EU and 2009/125/EC.

At the end of its service life, this product may not be disposed of in the normal household waste, but rather must be disposed of at a collection point for recycling electrical and electronic devices. The materials are recyclable according to their labelling. You make an important contribution to protecting our environment by reusing, recycling or utilising old devices in other ways. Please ask the municipal administration where the appropriate disposal facility is located.

AND ALL THINGS FEARNE, GO TO:

www.fearnebyswan.co.uk

BAKE HAPPY WITH FEARNE ONLINE:

Team by Swan

www.fearnebyswan.co.uk

HELPLINE: 0333 220 6074

EMAIL: [e-mail]

Copyright © 2017

Swan Products Ltd. PO Box 3117,

Stoke-on-Trent ST4 9GD
