USER MANUAL LNFD55T18 Logik

55cm Total Frost Free Fridge Freezer with Water Dispenser

Installation / Instruction Manual

LNFD55W18 / LNFD55X18 / LNFD55T18

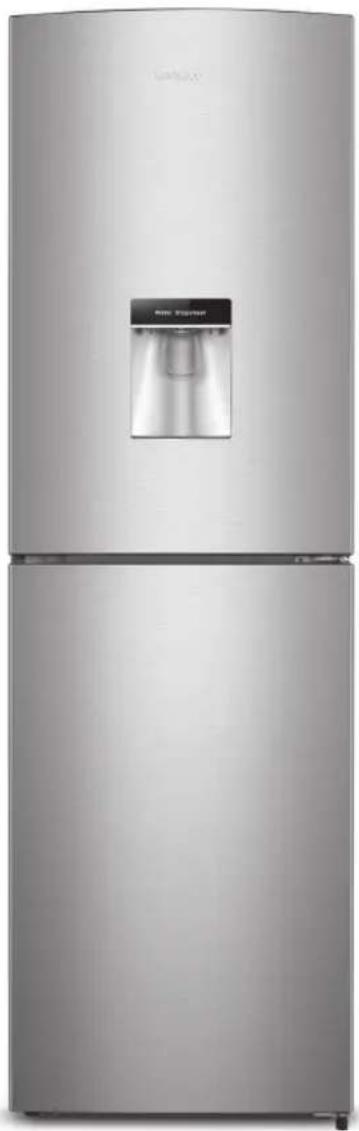

Exterior view of a modern stainless steel refrigerator with a water dispenser on top (no visible text or symbols)

Contents

Safety Warnings....4

Unpacking....6

Installation....7

Location 7

Levelling the Unit 7

Free Space Requirements....7

Reversing the Door Swing....8

Cleaning Before Use 11

Before Using Your Unit.... 11

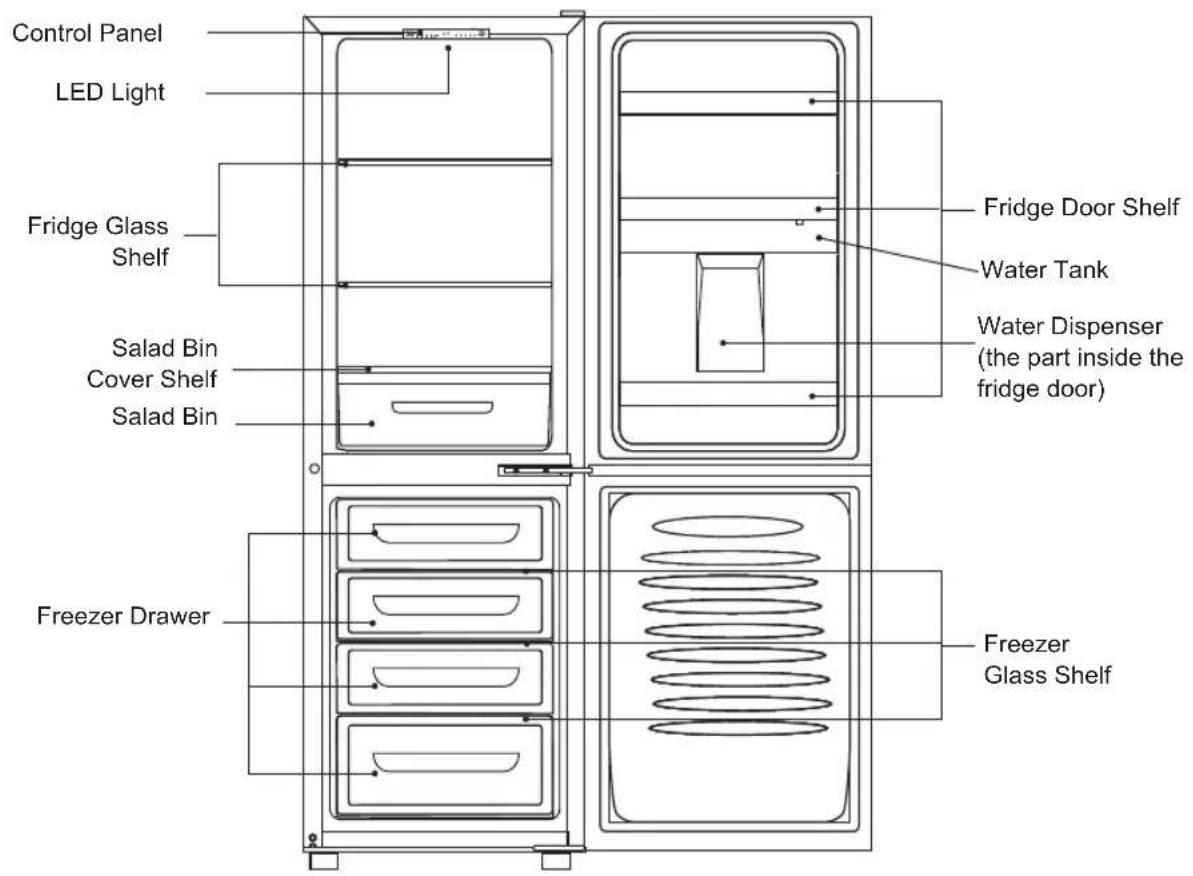

Product Overview....12

Operation....13

Switching On Your Unit 13

Super Freeze Mode 13

Holiday Mode....13

Before Using the Water Dispenser....14

Filling the Water Tank....15

Receiving Water from the Water Dispenser 15

Noises Inside the Unit! 16

Tips for Keeping Food in the Unit....16

Preparations for Freezing....16

Defrosting Frozen Food....17

Cleaning the Interior and the Exterior of the Unit....17

Cleaning the Water Tank and Water Dispenser....17

Maintenance ....18

Changing the Internal LED Light 18

Care When Handling / Moving Your Unit 18

Servicing 18

Switching Off for Long Periods of Time 18

Condensation....18

Disposal....18

Specifications....19

Product Fiche 19

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.
• This appliance is intended for indoor household use and similar applications such as:

- farm houses and by clients in hotels, motels and other residential type environment;

• bed and breakfast type environment;
• catering and similar non-retail applications.

- Ensure that the plug is easily accessible to enable disconnection from the mains supply.

- If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.

- Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.

• The unit must be manoeuvred by a minimum of 2 persons.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the unit.

- If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment. (If applicable)

WARNING

• Keep ventilation openings in the unit enclosure or in the built-in structure clear of obstructions.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.
• Do not damage the refrigerant circuit (The refrigerant is a very environmental-friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Thank you for purchasing your new product.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Salad Bin Cover Shelf
Freezer Glass Shelf x 3

Fridge Glass Shelf x 2

Simple line drawing of a two-tier refrigerator with a square top and front panel (no text or symbols)

Main Unit

Upper Fridge Door Shelf x 2

Lower Fridge Door Shelf

Salad Bin

Small Freezer Drawer x 2

Large Freezer Drawer x 2

Egg Tray x 2

Ice Tray

Door Stopper x 2 (left side)

Upper Hinge Cover (left side)

Instruction Manual

If items are missing or damaged please contact Partmaster (UK only).

Tel: [phone] for assistance.

Installation

Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 10°C and 43°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit.

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

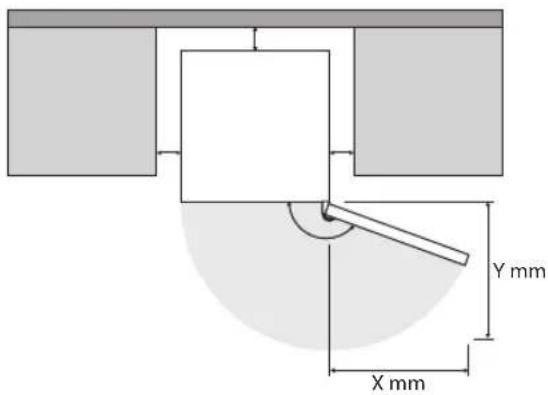

Free Space Requirements

When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear of the unit and 25 mm at the top of the unit. The door can be opened to the right or the left, depending on which best suits the location.

Please ensure there is more than twice the width and depth distance space of the unit to fully open the door to a maximum angle.

Installation

Reversing the Door Swing

Tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

• Ensure the unit is unplugged and empty.
- To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. a chair just below the top panel.
• All parts removed must be saved to do the reinstallation of the door.
- Do not lay the unit flat as this may damage the coolant system.
• We recommend that 2 people handle the unit during assembly.
- If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.

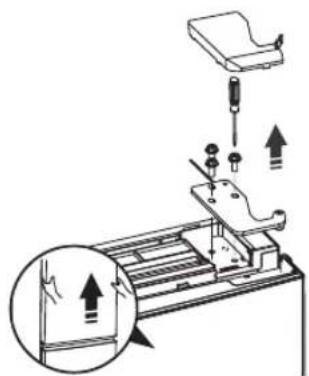

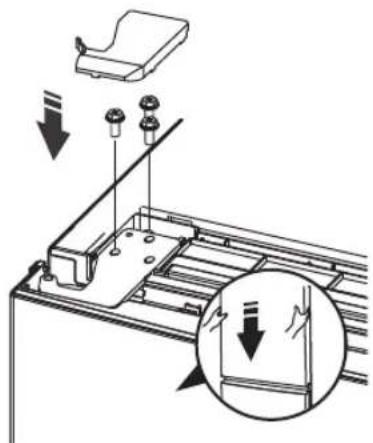

1. Remove the water tank and door shelves. Remove the upper hinge cover, screws and upper hinge. Lift the upper door and place it on a padded surface to prevent from being scratched. Remove the screw hole cover from the opposite side and move to cover the hole here.

Upper hinge cover has left and right side. The upper hinge cover packed as an accessory is for the left side.

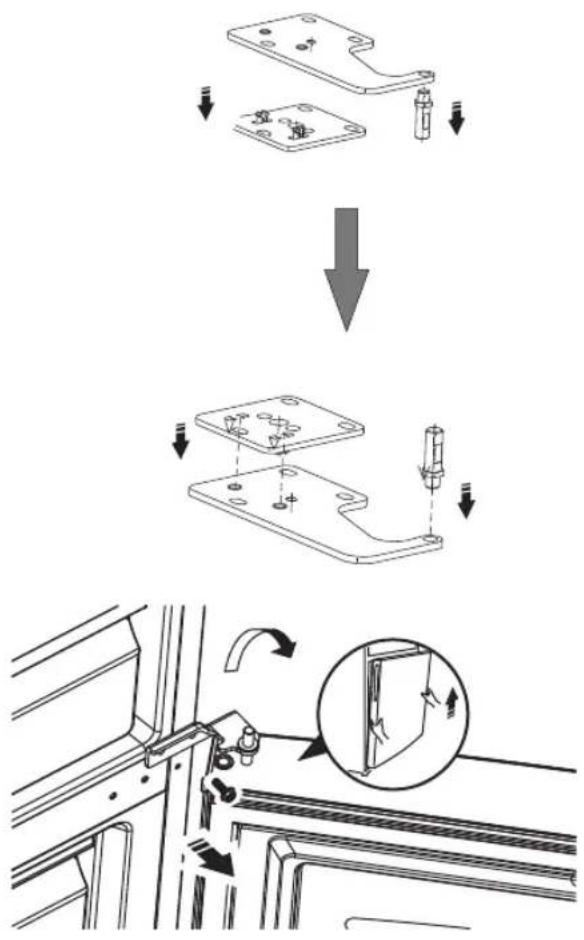

1. Remove the screw and stop block from the bottom of the upper door and move it to the opposite side. Remove also the door stopper and keep it for future use. For the opposite side, use the door stopper for left side. Screw tightly.

Door stopper has left and right side. The door stopper packed as an accessory is for the left side.

Diagram showing a device being processed with arrows indicating motion (no text or symbols)

Installation

1. Loosen the hinge pin, reverse it and put it back to the hole, tighten into position. Take down the gasket and change its position.

2. Remove the middle hinge. Lift the lower door and place it on a padded surface to prevent from being scratched.

3. Remove the screw and stop block from the bottom of the lower door and move it to the opposite side. Remove also the door stopper and keep it for future use. For the opposite side, use the door stopper for left side. Screw tightly.

Door stopper has left and right side. The door stopper packed as an accessory is for the left side.

Diagram showing a device being processed with a tool, illustrating the process from external to internal processing (no text or symbols present)

Installation

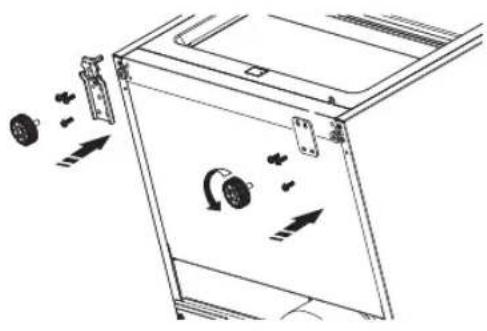

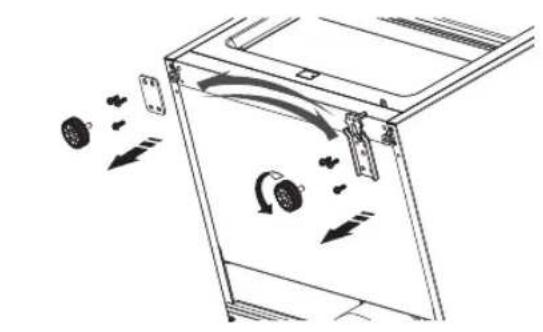

1. Lay down the unit. Remove both levelling feet, levelling feet fix board and bottom hinge. Swap the position of the levelling feet fix board with the bottom hinge.

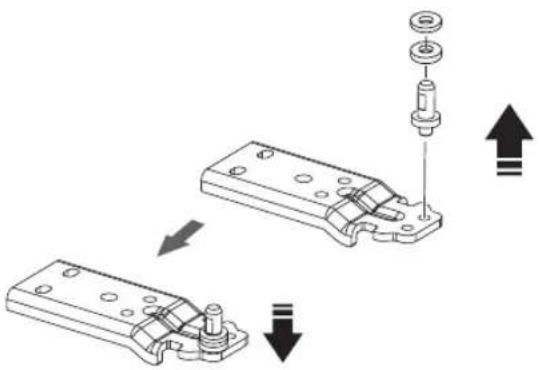

2. On the bottom hinge, move the position of the bottom hinge pin to the other hole. Tighten the pin securely.
3. Screw the levelling feet fix board, bottom hinge and levelling feet tightly on their new position.
4. Stand the unit. Remove the middle hinge hole covers and swap their position with the middle hinge. Reverse the middle hinge.

Diagram of a refrigerator interior showing wheels and directional arrows indicating movement (no text or symbols)

Diagram of a door frame with mechanical components and directional arrows indicating movement (no text or symbols)

Mechanical assembly diagram showing a bracket being adjusted to form a pin (no text or symbols present)

Installation

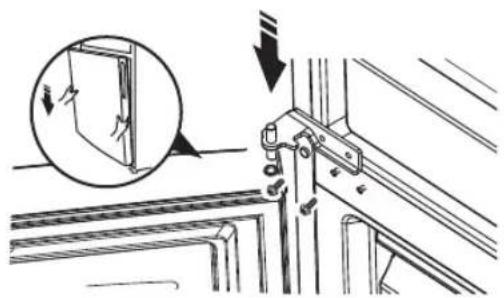

1. Place the bottom hole of the lower door onto the bottom hinge pin. Insert the middle hinge pin into the upper hole of the lower door. Tighten the pin securely. Screw the middle hinge tightly. Cover the remaining holes with the hole covers.

Ensure the lower door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the hinge.

1. Place the bottom hole of the upper door onto the middle hinge pin. Reverse the upper hinge. Insert the upper hinge pin into the upper hole of the upper door. Tighten the pin securely. Screw the upper hinge tightly. Cover the upper hinge with the upper hinge cover for left side.

Ensure the upper door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the pin.

Technical diagram showing a door hinge mechanism with an inset magnified view of the handle (no text or symbols)

Technical diagram showing mechanical assembly with arrows indicating force or movement (no text or symbols present)

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wipe completely dry before replacing the shelves, drawers and salad bin. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the unit.
• Before Turning On!
Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

Two technical line drawings of a tray with circular indentations, one plain and one patterned (no text or symbols)

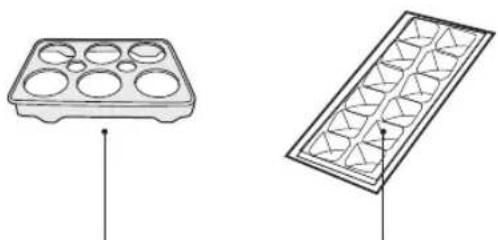

Egg Tray Ice Tray

Switching On Your Unit

1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by an electronic control panel.

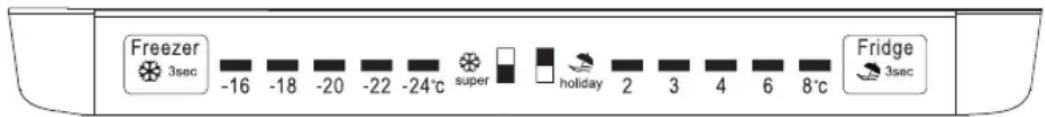

2. Press Fridge button repeatedly to set temperature for the fridge compartment (2 to 8°C) and press Freezer button repeatedly to set temperature for the freezer compartment (-16 to -24°C).

1. The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the doors often.
2. To ensure that the unit is cool enough to sufficiently chill your food, wait 24 hours before filling it with food.

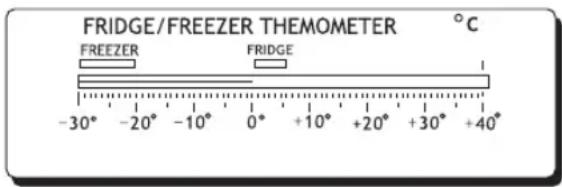

3. If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops. Place the thermometer in either the fridge or freezer compartment and leave overnight. The correct temperature for the fridge compartment should be at the recommended 0-8°C. The correct temperature for the freezer compartment should be -18°C or lower.

Super Freeze Mode

• Press and hold Freezer button for 3 seconds to activate the super freeze mode. Ⓧ will light up. Temperature in the freezer compartment will be quickly lowered.
• To switch off, press and hold Freezer button for 3 seconds, and the freezer temperature will resume to the previous setting. Otherwise, super freeze mode will also automatically deactivate after 26 hours, and the freezer temperature will resume to the previous setting. ✉ light will extinguish.

Holiday Mode

- If you will be away for a period of time, you can set the fridge to holiday mode. Press and hold Fridge button for 3 seconds to activate the holiday mode. Will light up. Temperature in the

fridge will automatically set to 15^ C. Do not store any food in the fridge during holiday mode.

- To switch off, press and hold Fridge button for 3 seconds, and the fridge temperature will resume to the previous setting. 🚗 light will extinguish.

Before Using the Water Dispenser

Before using the water dispenser, clean the water tank first.

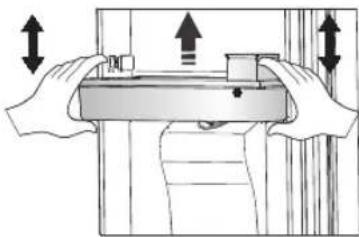

1. Take out the middle door shelf.
2. Take out the water tank by gripping it tightly on both sides, then keep pulling it upward and downward with some force until removed.
3. Take off the water tank cover, and wash the water tank, valve and its cover. After washing, drain the water from inside the tank and replace the cover.

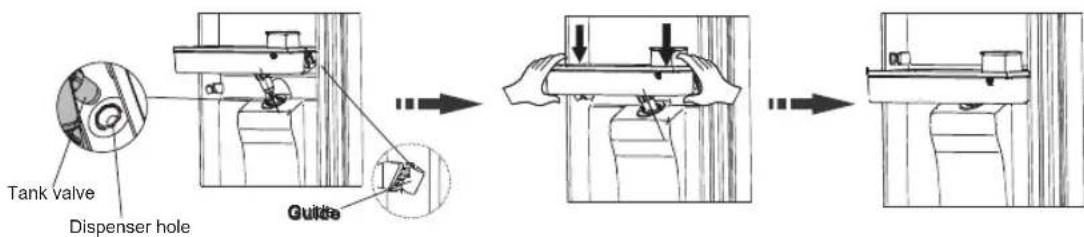

4. Insert the water tank valve into the water dispenser hole first.

Illustration of hands holding a rectangular object with upward arrows indicating motion or force (no text or symbols)

Be careful not to press on the tank valve.

1. Fit the water tank along the guides on the door. Press down on both sides of the water tank.
2. When a click is heard, that means the installation is completed.
3. Replace the middle door shelf on top of the water tank.

Filling the Water Tank

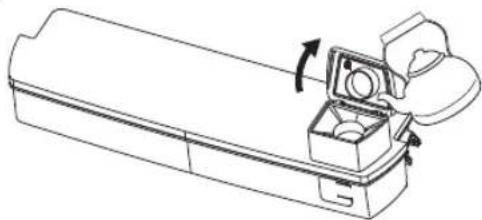

Open the small tank cover. Fill drinking water into the water tank through the hole. Close the cover after filling.

Line drawing of a device with an open box and lid, showing internal components and directional arrows (no text or symbols)

• Do not fill above the level, otherwise, it may overflow.
• Before filling with water, ensure that the water tank is steady and in a correct position.
• Apart from drinking water, other beverages (such as milk, juice, carbonated beverage, etc) are not suggested to be used, especially beverages that include grain must not be used (may result in blockage and damage).
• Hot water must not be filled into the water tank directly.
• Do not touch other parts of the unit when filling water, it may lead to leakage.

Receiving Water from the Water Dispenser

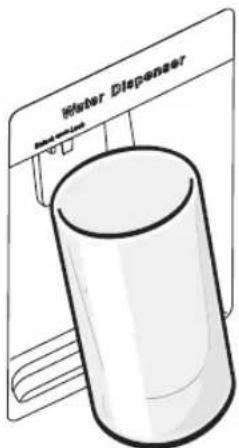

- Before you dispense the water, make sure the lock device is at "Unlock" position.

• Ensure to slide to "Lock" position after each use to prevent children from playing with the lever.
• When at "Lock" position, do not push on the lever with force. It will damage the mechanism.

- You should use the type of container that can fit under the water dispenser. Place the container properly underneath and push on the lever for water to flow.

Noises Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Tips for Keeping Food in the Unit

• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.
• Leave space around your food, to allow air to circulate inside the compartments. Ensure all parts of the unit are kept cool.
• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
• Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
• To prevent cold air escaping from the unit, try to limit the number of times you open the doors. We recommend that you only open the doors when you need to put food in or take food out.

Preparations for Freezing

• Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better.
• Leave cooked food to cool completely. Chill food before freezing if possible.
• Consider how you will want to cook the food before freezing it.
• Don't freeze food in metal containers if you may want to microwave it straight from the freezer.
• Use special freezer bags, freezer film, polythene bags, plastic containers, and aluminium foil (heavy duty grade only). If in doubt, double wrap your food. Don't use aluminium foil for acidic foods, e.g. citrus fruits. Don't use thin cling film, glass, or used food containers without cleaning.

- Exclude as much air from the container as possible. You could buy a special vacuum pump which sucks excessive air out of the packaging.

- Leave a small amount of air space when freezing liquids to allow expansion.

- You can use the space in the freezer most efficiently if you freeze liquids (or solids with liquids, e.g. stew) in square blocks. This is known as "Preforming". Pour the liquid into a polythene bag which is inside a square sided container. Freeze it, and then remove it from the container and seal the bag.

- Label your frozen foods as they will look the same when in frozen state.

Use special freezer tapes, labels and pens with different colours. This allows you to easily organise and to effectively use the freezer. Write the contents and date; otherwise the frozen food might exceed the storage time and this could cause food poisoning. Please refer to your food packaging for the recommended storage time.

Line drawing of a hand pouring liquid from a container into a container with a spoon (no text or symbols)

- You may also add the weight and cooking notes, e.g. "defrost first", "cook from frozen" and keep a separate log of what is in each drawer. This will save opening the door and searching around unnecessarily.

Defrosting Frozen Food

1. Take the frozen food out from the freezer compartment and uncover the frozen food. Let it defrost at room temperature. Don't forget that defrosting in a warm area encourages the growth of bacteria and low temperature cooking may not destroy dangerous bacteria.
2. Drain off and throw away any liquid lost during defrosting.
3. Always make sure there are no ice-crystals in the food before cooking, particularly with meat. These crystals indicate that the food has not fully defrosted.
4. Cook food as soon as possible after defrosting.
5. Many microwaves and ovens have a defrost setting. To avoid bacterial build up, only use these if you intend to cook the food immediately afterwards.

Never re-freeze anything that has been defrosted unless you cook it again, to kill off harmful bacteria. Never re-freeze defrosted shellfish. Re-seal packs properly after removing items. This prevents drying or freezer-burn and a build up of frost on any remaining food.

Cleaning the Interior and the Exterior of the Unit

• Remove all the shelves and drawers.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves, drawers and salad bin.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the doors are closed to avoid the polish getting on the magnetic door seals or inside the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

Cleaning the Water Tank and Water Dispenser

• Remove the water tank. Wash the tank, tank cover and valve lightly under water.
  • After cleaning, dry them thoroughly before installing back in the fridge.
• Wipe the receiving base of the water dispenser with dry towel regularly to avoid overflowing.

Changing the Internal LED Light

The internal light is an LED panel that cannot be changed by the user. Please contact a qualified service agent.

Care When Handling / Moving Your Unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

Condensation

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the door as a safeguard.

Specifications

Rated Voltage	220-240V~, 50 Hz
Rated Current	0.6 A
Overall Dimension (H x W x D)	1850 x 550 x 600 mm

Features and specifications are subject to change without prior notice.

Product Fiche

Brand	Logik
Model	LNFD55W18 / LNFD55X18 / LNFD55T18
Household Appliance Category	7
Energy Efficiency Class	A+
Energy consumption 284 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Fridge Storage Volume	172 L
Freezer Storage Volume	91 L
Total frost free
Temperature Rise Time	13 hours
Freezing Capacity	12 kg/24 hrs
Climate Class	SN, N, ST, TThis appliance is intended to be used at an ambient temperature between 10°C and 43°C to achieve the claimed Energy Consumption and Grading.
Airborne Acoustical Noise	41 dB(A) re 1 pW

Illustration of four people sitting at a desk with computers and a speaker (no text or symbols)

Team Knowhow

Help with all life's kit™

For general information about this appliance and handy hints and tips, please visit: www.TeamKnowhow.com/discover or call 0344 561 1234

Partmaster \_\_\_\_.co.uk

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only) Calls charged at National Rate.

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.
