Product Type	Freestanding Fridge
Brand	Logik
Model	LUR55S13
Energy Class	A+
Overall Dimensions (H x W x D)	850 x 550 x 600 mm
Net Weight	35 kg
Power Supply	220-240 V / 50 Hz
Climate Class	N / ST / T
Total Gross Capacity	140 L
Refrigerator Capacity	100 L
Freezer Capacity	40 L
Defrost Type	Manual (Freezer) / Auto (Fridge)
Noise Level	42 dB(A)
Adjustable Thermostat	Yes
Number of Shelves	3 (glass)
Door Storage	2 (bottles) + 1 (dairy)
Crisper Drawer	1
Ice Cube Tray	Yes
Reversible Door	Yes
Refrigerant	R600a
Spare Parts Availability	Available from authorized service centers
User Manual	PDF download available

Frequently Asked Questions - LUR55S13 Logik

What is the ideal temperature setting for the fridge?

The recommended temperature for the fridge compartment is between 3°C and 5°C. Use the thermostat dial to adjust.

How to defrost the freezer?

To defrost the freezer, unplug the fridge, remove all food, and allow ice to melt naturally. Clean and dry before restarting.

How to clean the refrigerator?

Unplug the appliance and use a soft cloth with mild detergent and warm water. Avoid abrasive cleaners. Dry thoroughly.

Why is my fridge making a loud noise?

Normal operating sounds include compressor humming, refrigerant flow, and occasional clicks. If excessively loud, check leveling and ensure clearance from walls.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the user manual for step-by-step instructions or contact a qualified technician.

How to change the interior light bulb?

Unplug the fridge, remove the light cover (if applicable), and replace with a bulb of the same type (usually 15W or LED). Consult manual.

What should I do if the fridge is not cooling?

Check power supply, thermostat setting, and ensure vents are not blocked. If problem persists, contact customer service.

How to save energy with this fridge?

Keep the fridge away from heat sources, avoid opening the door frequently, and ensure the door seals are clean and airtight.

Where can I find the model number?

The model number is on the rating plate inside the fridge compartment, usually on the left side wall.

Is the refrigerant environmentally friendly?

This fridge uses R600a (isobutane), a natural refrigerant with low global warming potential, but it is flammable. Ensure proper disposal.

USER MANUAL LUR55S13 Logik

Exterior view of a modern gray and black refrigerator with 'LOGIK' branding on the front panel (no additional text or symbols visible)

Safety Warnings....4

Unpacking....5

Installation 6

Location....6

Reversing the Door Swing....6

Space Requirements....9

Levelling the Unit....9

Cleaning Before Use....9

Before Using Your Unit 9

Interior Accessories....9

Product Overview....10

Operation 11

Switching On Your Unit....11

Adjusting the Temperature....11

Noise Inside the Unit! 11

Tips for Keeping Food in the Unit 11

Cleaning 12

Defrosting the Fridge Compartment....12

Defrosting the Freezer Compartment....12

Cleaning the Interior and the Exterior of the Unit 12

Cleaning Tips 12

Maintenance 13

Changing the Internal Light....13

Care When Handling / Moving Your Unit....13

Servicing 13

Switching Off for Long Periods of Time 13

Disposal....13

Specifications....14

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.
• Keep ventilation openings in the appliance enclosure clear of obstructions.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.

- If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.

- Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.

- Young children should be supervised to ensure that they do not play with the unit.

- Do not damage the refrigerant circuit (applicable only for appliances with refrigeration circuits which are accessible to the user).

• The unit must be maneuvered by a minimum of 2 persons.

- This unit is not intended for use by persons (including children) with reduced sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instructions concerning the use of the unit by a person responsible for their safety.

- If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.

- Do not store volatile or flammable substances in the unit.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Line drawing of a simple rectangular appliance with a lid and side compartments (no text or symbols)

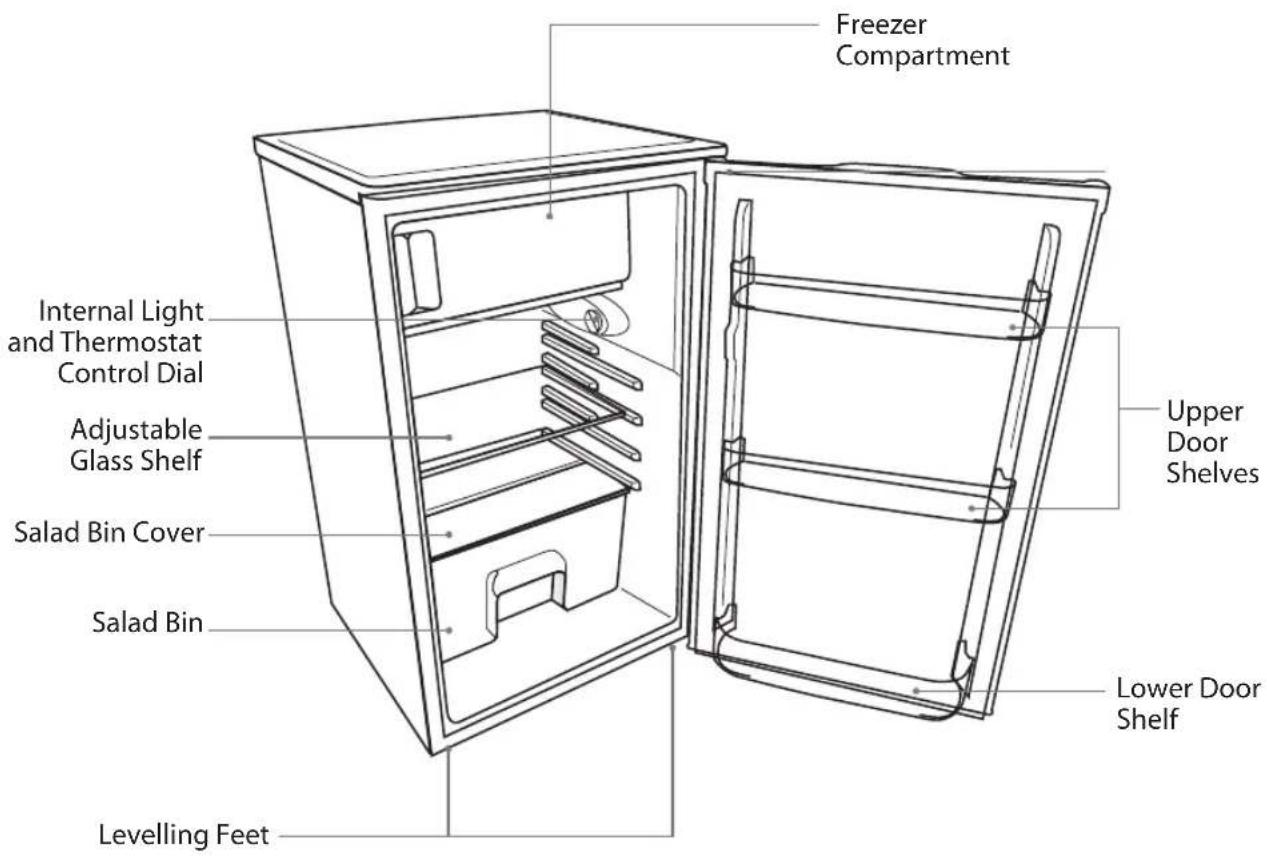

The Main Unit

Adjustable Glass Shelf Salad Bin Cover

Upper Door Shelf x 2

Simple line drawing of a cylindrical object with two side protrusions (no text or symbols)

Lower Door Shelf

Line drawing of a 3D rectangular box with internal cutouts (no text or symbols)

Salad Bin Egg Tray

Isometric line drawing of a rectangular grid structure with internal triangular divisions (no text or symbols)

Ice Tray

If items are missing or damaged please contact Partmaster (UK only). Tel: [phone] for assistance.

* All images in this instruction manual are for indication only; please refer to your individual unit for details.

Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16^ C and 38^ C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

When installing the unit, ensure that 40 mm of free space is left at both sides, 15 mm at the rear and 20 mm at the top of the unit. The door can be opened to the right or the left, depending on what better suits the location. Please ensure there is adequate space for the door to fully open.

Reversing the Door Swing

Tools required: Phillips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

• If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.
  • Ensure the unit is unplugged and empty.
• Adjust the two levelling feet to their highest position.
• To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
• All parts removed must be saved to do the reinstallation of the door.

• Do not lay the unit flat as this may damage the coolant system.
  • We recommend that 2 people handle the unit during assembly.

• Tilt the unit slightly towards the rear and prop it securely. Two people are required to tilt the unit during the door reversal process.

Two workers carrying a large cardboard box, no text or symbols present

INSTALLATION

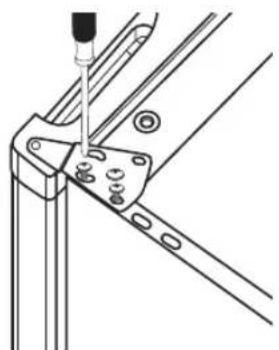

1. Remove the 2 screw covers first, then undo the screws underneath.
2. Remove the 2 screws on the back.

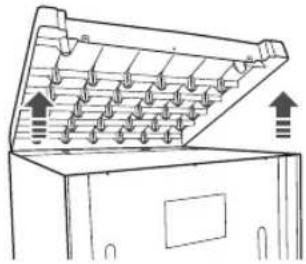

3. Lift the top cover away from the fridge.

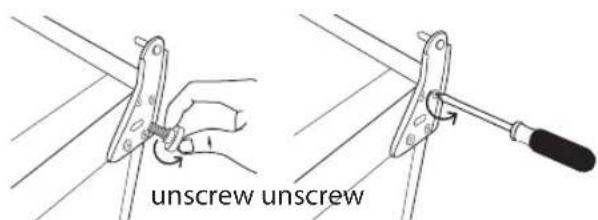

4. Remove the three screws, then remove the upper hinge that hold the door in place. Lift the door and place it on a padded surface to prevent it from scratching.
5. Swap the bottom bushing and bottom bushing cap of the upper door. The bottom bushing key must be in the correct position to allow it to be inserted correctly.
6. Remove the lower screws, hinge bracket and adjustable feet from the unit bottom.

Simple line drawing of a screwdriver on a flat surface (no text or symbols)

Simple line drawing of a mechanical clamp or lever (no text or symbols)

Diagram of a roof structure with mounting holes and upward arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical bracket assembly with mounting holes and a screwdriver (no text or symbols)

Simple line drawing of a book with a magnified inset showing a small object (no text or symbols)

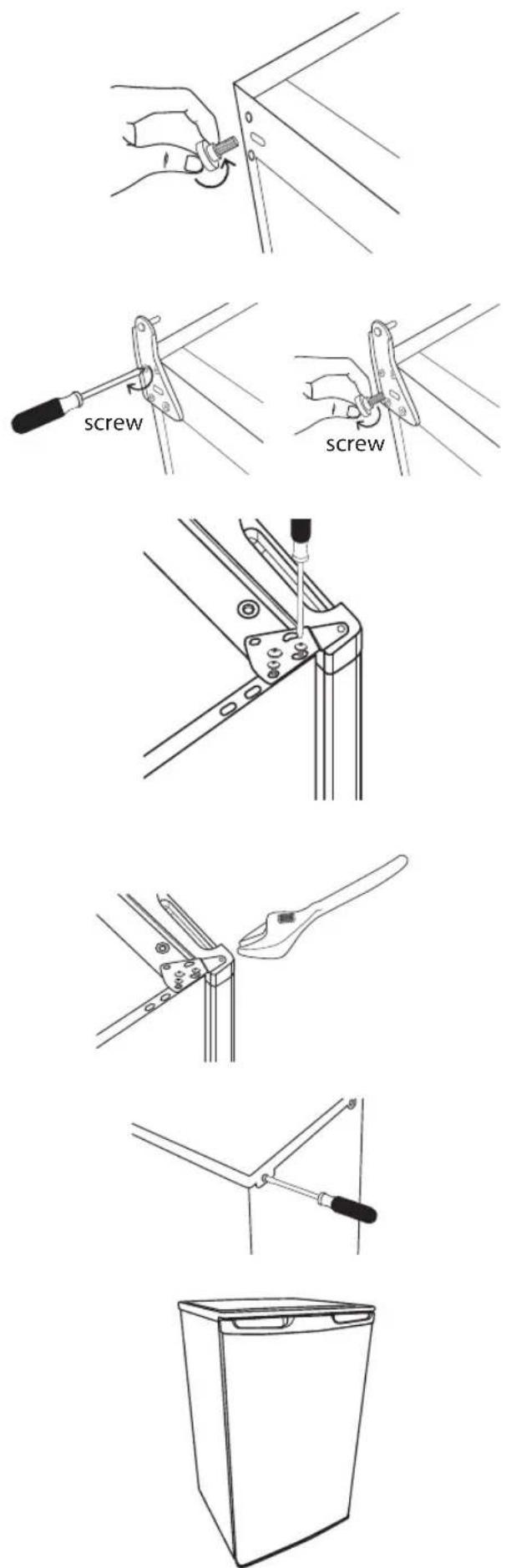

INSTALLATION

1. Remove the screw-type adjustable feet from another side of the unit bottom and transfer it to the corresponding position on the opposite side of the unit bottom.
2. Reattach the two lower screws, hinge bracket and adjustable feet to the opposite side of the unit bottom. Loosely secure.
3. Carefully set the upper door back into place. Ensure the fridge door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.

Insert the hinge bracket and screw it to the top of the unit.

1. Use a spanner to tighten it if necessary.
2. Put the top cover back and fix it in place with the screws.
3. With the door closed, check that the door is aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. Re-adjust the levelling feet as needed.

Space Requirements

The unit's door must be able to open fully as shown.

Simple geometric diagram showing a rectangle with a dashed rectangle and a curved line segment (no text or symbols)

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the door and magnetic seal alignments will not be covered properly.

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wash the shelves and salad bin in warm soapy water and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

• Before Plugging in YOU MUST

Check that you have a socket which is compatible with the plug supplied with the unit.

• Before Turning On!

Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

Interior Accessories

Various glass or plastic storage shelves are included with your appliance – different models have different combinations.

You should always slide one of the full size glass storage shelves into the lowest set of guides, above the fruit and vegetable containers, and keep it in this position. To do this, pull the storage shelf forward until it can be swivelled upwards or downwards and removed.

Please do the same in reverse to insert the shelf at a different height.

In order to make the most of the volume of the fresh food storage compartment and frozen-food storage compartment, the user can remove one or more shelves, drawers, out of the appliance, according to your daily use.

Isometric line drawing of a rectangular grid structure with triangular cutouts (no text or symbols)

Ice TrayEgg Tray

Switching On Your Unit

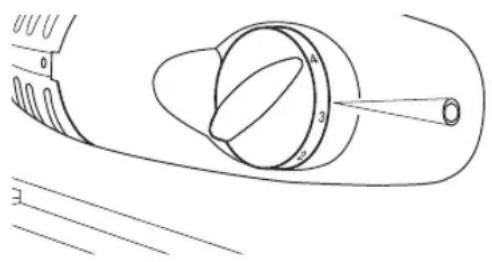

1. Before connecting the unit to the mains supply make sure that the thermostat control dial is set at position OFF. This is located on the right side of the cabinet. Connect the mains cable to the mains socket.
2. Adjust the thermostat control dial to the desired position, bear in mind that the higher the number, the lower the temperature. Position 4 is the recommended setting when operating at normal room temperature (between 16°C and 38°C).
3. The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the door often.
4. To ensure that the unit is cool enough to sufficiently chill your food, wait 24 hours before filling it with food.
5. If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops.

Place the thermometer in the centre of the unit, where it can be read easily. Leave overnight, the temperature in the unit should be an average of 5^ C.

Technical line drawing of a mechanical component with numbered parts (0, 1, 2, 3) and no visible text or symbols

Adjusting the Temperature

The internal temperature of the unit is controlled by a thermostat. The recommended position is between 1 to 4 for colder working environments (i.e. during winter) and between 5 to 6 for hotter environments. Please adjust according to the environment.

Noises Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Tips for Keeping Food in the Unit

• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.
• Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the unit are kept cool.
  • To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
  • Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
  • To prevent cold air escaping from the unit, try to limit the number of times you open the door. We recommend that you only open the door when you need to put food in or take food out.

Defrosting the Fridge Compartment

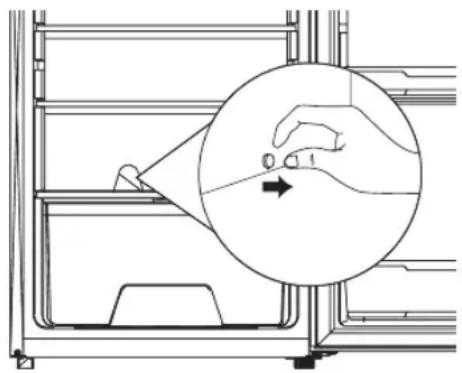

Frost may accumulate on the inner rear surface of the appliance which will automatically defrost during the off cycle of the compressor.

Water is channelled via the drain hole to the collection tray above the compressor where it will evaporate.

Please ensure the drain hole is checked and cleaned on a regular basis so water can exit the storage compartment.

Diagram showing a hand pressing down on a mechanical component with an inset magnified view of the handle (no text or symbols)

Defrosting the Freezer Compartment

Frost might build up in the unit after it has been used for a period of time. Scrape away the frost using a plastic scraper (not included).

Do not use a metal or sharp instrument to scrape away the frost, nor should you use any electrical appliances to aid defrosting.

We recommend that defrosting should be carried out when the frost layer builds up to 3mm (\~1.18"). Choose a time when the stock of frozen food is low, follow these procedures:

1. Take out the food, turn the unit off at the mains supply and leave the door open. Ideally, the frozen food should be put into another freezer. If this is not possible, wrap the food in several sheets of newspaper or large towels and then a thick blanket to keep it cool. A rise in temperature of your frozen food could shorten the storage life.
2. Place a dry towel on the edge of the compartment shelf. Scrape away the frost using the plastic scraper. Defrosting the remaining frost can be speeded up by placing a bowl of hot water inside the freezer compartment cabinet and closing the door. As the solid frost loosens, scrape it away with the plastic scraper and remove. And wring out the soaked towel as needed.
3. When defrosting is complete, clean your unit's interior and exterior.

Cleaning the Interior and the Exterior of the Unit

• Remove all the shelves and the salad bin. To remove the salad bin first remove the lower door shelf.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a 'wrung-out' sponge or cloth. Wipe completely dry before replacing the shelves and salad bin.
• Use a damp cloth to clean the exterior. Make sure that the door is closed to avoid getting the cleaning solution on the magnetic door seal or inside the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

Cleaning Tips

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Changing the Internal Light

1. Before carrying out the bulb replacement always adjust the thermostat control dial to Position 0FF, then disconnect the mains supply.
2. While holding the lamp cover place coin between lamp cover lip and internal wall of the refrigerator and twist the coin.
3. Remove the lamp cover.
4. Remove the old bulb by unscrewing in an anti-clockwise direction.
5. Replace with a new bulb (10W SES). Please make sure that it is secure in the bulb cover.
6. Refit the light bulb cover and reconnect the unit to the mains supply and switch on.

Simple line drawing of a hand holding a circular object with an arrow pointing to it (no text or symbols)

Simple line drawing of a curved object with a circular base and an arrow indicating rotation (no text or symbols)

Care When Handling / Moving Your Unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in your unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the door as a safeguard.

Model LUR55S13
Fresh Food Storage Compartment Volume	97L
Frozen Food Storage Volume 16L	* * * *
Storage Temperature	Freezer: ≤ -18°CFridge: 0°C - 8°C Average: ≤ 4°C
Energy Consumption 0.47kwh / 24hr
Energy consumption 172 kwh per year, based on standard test results for 24 hours.Actual energy consumption will depend on how the appliance is used and where it is located.
Household Appliances Category Category 7 (Refrigerator Freezer)
Energy Grading A+
EU Ecolabel N/A
Fridge Auto Defrost
Freezer Compartment Manual Defrost
Climate Class N / ST
This appliance is intended to be used at an ambient temperature between 16°C and 38°C.
Airborne Acoustical Noise 42 dB
Temperature Rise Time 15 hours
Freezing Capacity	2kg / 24hr
Rated Voltage	220 - 240V
Rated Current	0.57 A
Overall Dimension (W x D x H)	545 mm (W) x 574 mm (D) x 845 mm (H)

Features and specifications are subject to change without prior notice.

For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0844 5611234.

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver

direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only). Calls charged at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.
