Product Type	Freestanding Refrigerator with Freezer Compartment
Brand	Logik
Model	LFC50B19
Total Capacity	Approx. 120 Liters
Refrigerator Capacity	Approx. 95 Liters
Freezer Capacity	Approx. 25 Liters
Energy Efficiency Class	F (Typical for this class)
Annual Energy Consumption	Approx. 180 kWh
Climate Class	N-ST
Noise Level	Approx. 40 dB
Dimensions (H x W x D)	Approx. 85 x 55 x 55 cm
Weight	Approx. 25 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	Approx. 80 W
Temperature Range (Fridge)	0°C to 8°C
Temperature Range (Freezer)	-18°C to -12°C
Defrost Type	Manual (Freezer), Auto (Fridge)
Number of Shelves	3 Glass Shelves
Door Reversibility	Yes
Interior Light	Yes (LED)
Refrigerant	R600a
Cleaning Instructions	Use mild detergent, avoid abrasive cleaners
Spare Parts Availability	Contact Logik service center for spare parts

Frequently Asked Questions - LFC50B19 Logik

How do I adjust the temperature in my Logik LFC50B19 fridge?

Use the thermostat dial inside the fridge compartment. Turn it to a higher number for colder temperatures. Typically, setting 3-4 is recommended for normal use.

How often should I defrost the freezer?

Defrost the freezer when ice buildup reaches about 5 mm. Unplug the appliance, remove food, and allow ice to melt. Do not use sharp objects to remove ice.

What is the energy efficiency of the LFC50B19?

The Logik LFC50B19 has an energy efficiency class of F (typical for compact fridges). Annual consumption is approximately 180 kWh.

Can I reverse the door opening direction?

Yes, the door is reversible. Consult the user manual for step-by-step instructions on reversing the door hinges.

Why is my fridge making noise?

Normal operating sounds include a humming from the compressor, gurgling from refrigerant, and clicking from defrost timers. If unusual noises persist, check if the fridge is level.

How do I clean the fridge interior?

Unplug the fridge. Remove all shelves and drawers. Wipe interior with a solution of warm water and mild detergent. Rinse and dry thoroughly. Avoid abrasive cleaners.

What should I do if the fridge is not cooling?

Check if the power cord is plugged in. Ensure the thermostat is not set to 0. Clean the condenser coils at the back. If problem persists, contact customer service.

Where can I find spare parts for the LFC50B19?

Spare parts can be ordered through Logik's customer service or authorized service centers. Refer to the user manual for part numbers.

What type of refrigerant does the LFC50B19 use?

It uses R600a (isobutane), an environmentally friendly refrigerant. Do not damage the cooling circuit.

Is the Logik LFC50B19 suitable for garage use?

This fridge is rated for climate class N-ST, which means it operates best in ambient temperatures between 16°C and 38°C. Extreme temperatures may affect performance.

USER MANUAL LFC50B19 Logik

Exterior view of a modern white refrigerator with two doors and a side door (no visible text or symbols)

Contents

Safety Warnings....4

Unpacking......6

Location 7

Levelling the Unit 7

Free Space Requirements ....7

Reversing the Door Swing....8

Cleaning Before Use 11

Before Using Your Unit....11

Product Overview....12

Operation....13

Switching On Your Unit 13

Adjusting the Temperature....13

Noises Inside the Unit! 13

Tips for Keeping Food in the Unit....14

Preparations for Freezing....14

Defrosting Frozen Food....15

Cleaning 16

Defrosting 16

Cleaning the Interior and the Exterior of the Unit....16

Maintenance ....17

Changing the Internal Light 17

Care When Handling / Moving the Unit....17

Servicing 17

Switching Off for Long Periods of Time....17

Condensation....17

Disposal....17

Specifications....18

Product Fiche 18

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.

• This appliance is intended for indoor household use and similar applications such as:

• farm houses and by clients in hotels, motels and other residential type environment;

• bed and breakfast type environment;
• catering and similar non-retail applications.

- Ensure that the plug is easily accessible to enable disconnection from the mains supply.

- If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.

- Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.

• The unit must be manoeuvred by a minimum of 2 persons.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the unit.

- If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment. (If applicable)

WARNING

• Keep ventilation openings in the unit enclosure or in the built-in structure clear of obstructions.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.
• Do not damage the refrigerant circuit (The refrigerant is a very environmental-friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)
• When positioning the appliance, ensure the supply cord is not trapped of damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Thank you for purchasing your new product.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

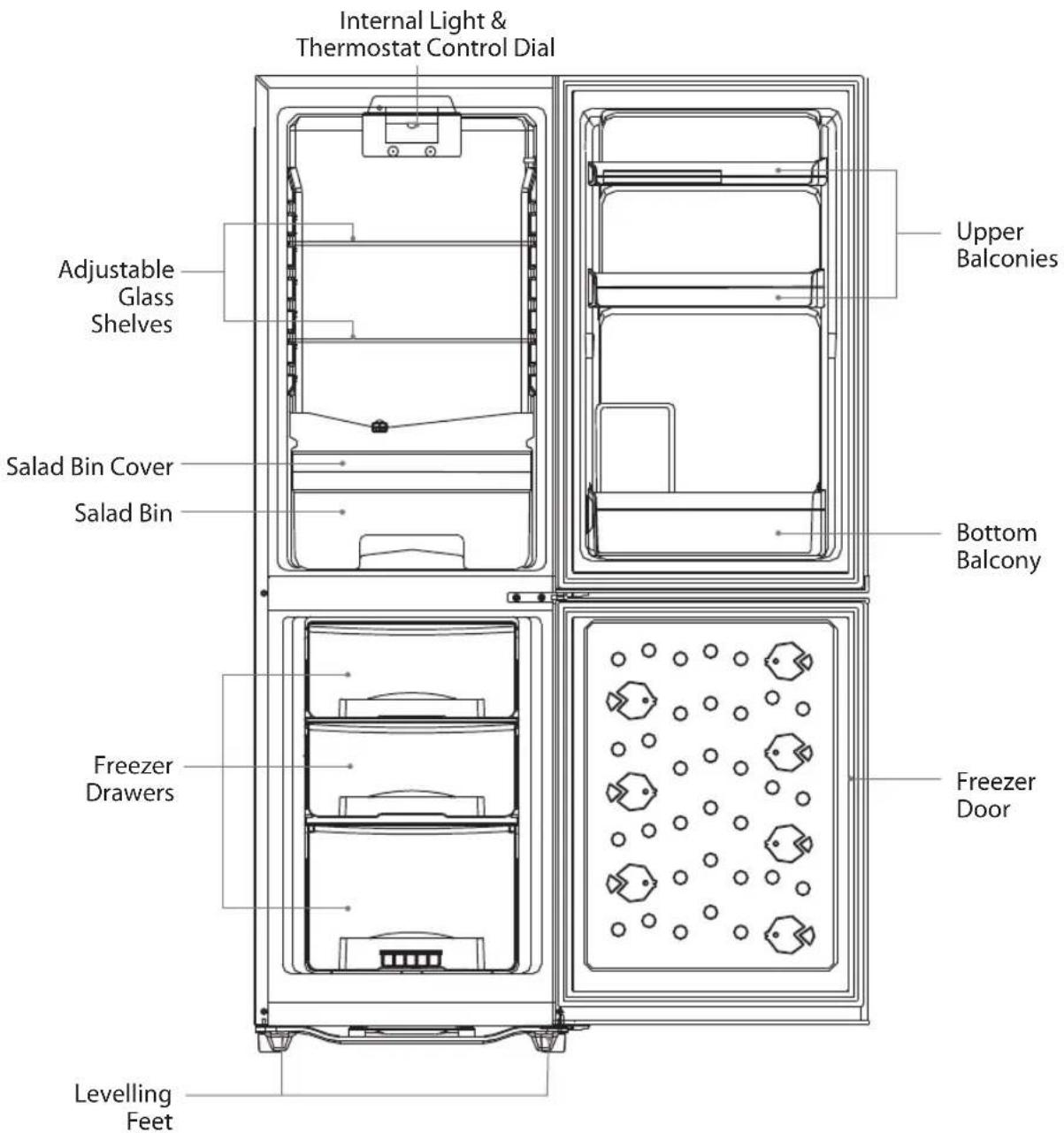

The following items are included:

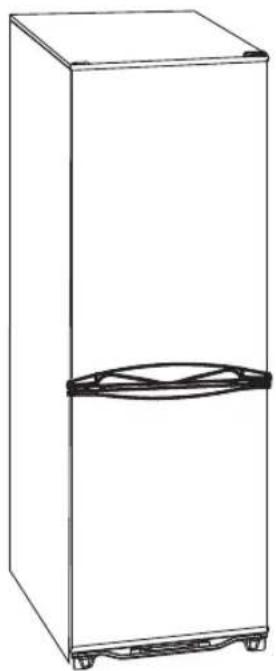

Line drawing of a two-tier refrigerator with a side panel and wheels (no text or symbols)

Main Unit

Salad Bin Cover Salad Bin

Adjustable Glass Shelf x 2

Large Freezer Drawer

Small Freezer Drawer x 2

Ice Tray

Egg Tray

Instruction Manual

Upper Balcony x 2 Bottom Balcony

If items are missing or damaged please contact Partmaster (UK only).

Tel: [phone] for assistance.

INSTALLATION

Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16^ C and 38^ C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Free Space Requirements

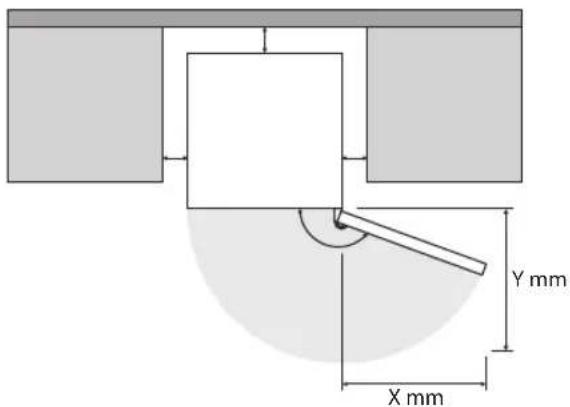

When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear and 25 mm at the top of the unit. The door can be opened to the right or the left, depending on what better suits the location.

Please ensure there is more than twice the width and depth distance space of the unit to fully open the door to a maximum angle.

Reversing the Door Swing

Tools required: Philips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

• Ensure the unit is unplugged and empty.
- To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. a chair just below the top panel.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
• We recommend that 2 people handle the unit during assembly.
- If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.

1. Remove the 2 screws on the back.

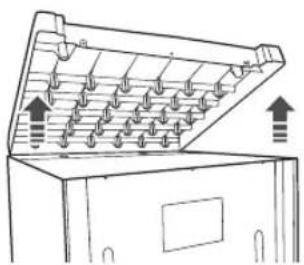

2. Lift the top cover away from the fridge.

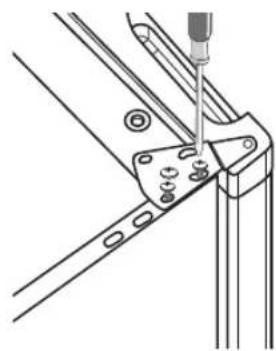

3. Remove the three screws, then remove the upper hinge that hold the door in place. Lift the upper door and place it on a padded surface to prevent it from scratching.

4. Move the bottom bushing and bottom bushing cap of the upper door to the other side. The bottom bushing key must be in the correct position to allow it to be inserted correctly.

If there is a door stop, add it in.

Simple line drawing of a mechanical clamp or bracket with no text or symbols

Diagram of a mechanical device with multiple pins and directional arrows indicating movement or force (no text or symbols)

Technical line drawing of a mechanical bracket assembly with mounting holes and a screwdriver (no text or symbols)

Simple line drawing of a book with a magnified inset showing a small object (no text or symbols)

INSTALLATION

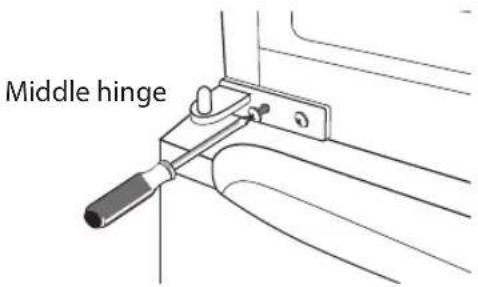

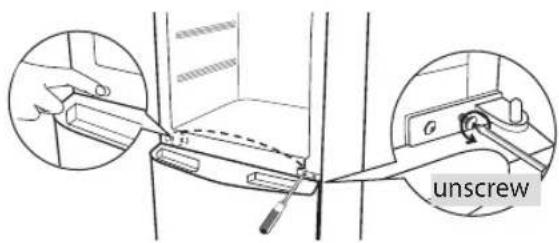

1. Take off the middle hinge by removing the screws. Lift the lower door and place it on a padded surface to prevent it from scratching.

Remove the screws' covers and place them to the opposite side.

1. Move the bottom bushing and bottom bushing cap of the lower door to the opposite side. The bottom bushing key must be in the correct position to allow it to be inserted correctly.

Diagram of a flat-screen monitor with an inset showing a small object near its base (no text or symbols)

Add the door stop if there is one.

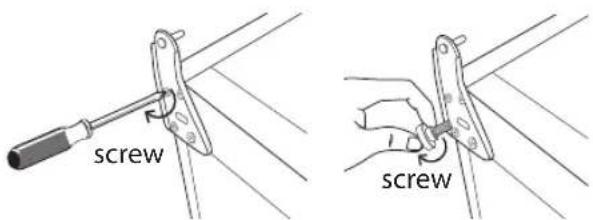

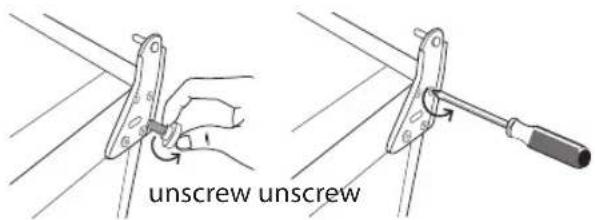

1. Remove the lower screws, hinge bracket and levelling feet from the unit bottom.

1. Remove the levelling feet from another side of the unit bottom and transfer it to the corresponding position on the opposite side of the unit bottom.

Line drawing of a hand holding a small object with an arrow indicating rotation (no text or symbols)

1. Re-attach the two lower screws, hinge bracket and levelling feet to the opposite side of the unit bottom. Loosely secure. Carefully set the lower door back into place, sliding it onto the bottom hinge.

INSTALLATION

1. After placing the freezer door, screw the middle hinge back onto the opposite side of the unit.

Ensure the freezer door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the hinge.

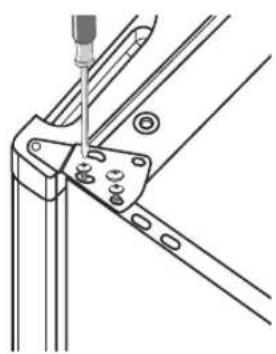

1. Carefully set the upper door back into place. Ensure the fridge door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.

Insert the hinge bracket and screw it to the top of the unit.

1. Use a spanner to tighten it if necessary.

2. Put the top cover back and fix it in place with the screws.

3. With the doors closed, check that the doors are aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. Re-adjust the levelling feet as needed.

Technical line drawing of a mechanical joint or bracket assembly with a screwdriver inserted (no text or symbols)

Line drawing of a hand using a pliers to cut or adjust a metal bracket (no text or symbols present)

Simple line drawing of a mechanical clamp or lever (no text or symbols)

Line drawing of a two-tier refrigerator with a closed lid (no text or symbols)

In some cases, the door seal may be crushed after prolonged storing pressure, resulting to the door seal not able to close properly when reversed.

Follow the steps below to solve the issue:

• Peel off the door seal from the upper or lower corner and warm it with a hairdryer; the warmth can allow the door seal to return to its original form. Do not blow directly on the unit as the warmth may damage other parts of the unit.
• Rotate the door seal upside down so that the side originally with the hinge stay with the hinge.
• Insert the door seal back into the door from the upper or lower corner.

• If the issue still occurs, contact your local service centre for assistance.

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves, drawers and salad bin. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the unit.
• Before Turning On!

Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

Pure technical line drawing of a rectangular grid pattern with no text or symbols

Switching On Your Unit

1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by a thermostat. There are seven settings, of which position 7 is the coldest and position 0 turns the unit off.

2. Adjust the thermostat control dial to the desired position, bear in mind that the higher the number, the lower the temperature. Position 4 is the recommended setting when operating at normal room temperature (between 16^ and 38^ ).

3. The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the doors often.

4. To ensure that the unit is cool enough to sufficiently chill and freeze your food, wait 24 hours before filling it with food.

5. If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops. Place the thermometer in the centre of either the fridge or freezer compartment and leave overnight. The correct temperature for the fridge compartment should be an average of 5^ C. The correct temperature for the freezer compartment should be -18^ C or lower.

Simple line drawing of a bowl with a central oval and three numbered segments (4, 5, 6) inside, no text or symbols present.

Adjusting the Temperature

The internal temperature of the unit is controlled by a thermostat. The recommended position is between 1 to 4 for colder working environments (i.e. during winter) and between 5 to 7 for hotter environments. Please adjust according to the environment.

Noises Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Tips for Keeping Food in the Unit

• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.
• Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the unit are kept cool.
• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
• Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.
• To prevent cold air escaping from the unit, try to limit the number of times you open the door. We recommend that you only open the door when you need to put food in or take food out.

Preparations for Freezing

• Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better.
• Leave cooked food to cool completely. Chill food before freezing if possible.
• Consider how you will want to cook the food before freezing it.
• Don't freeze food in metal containers if you may want to microwave it straight from the freezer.
• Use special freezer bags, freezer film, polythene bags, plastic containers, and aluminium foil (heavy duty grade only). If in doubt, double wrap your food. Don't use aluminium foil for acidic foods, e.g. citrus fruits. Don't use thin cling film, glass, or used food containers without cleaning.
• Exclude as much air from the container as possible. You could buy a special vacuum pump which sucks excessive air out of the packaging.

- Leave a small amount of air space when freezing liquids to allow expansion.

- You can use the space in the freezer most efficiently if you freeze liquids (or solids with liquids, e.g. stew) in square blocks. This is known as "Preforming". Pour the liquid into a polythene bag which is inside a square sided container. Freeze it, and then remove it from the container and seal the bag.

- Label your frozen foods as they will look the same when in frozen state. Use special freezer tapes, labels and pens with different colours. This allows you

Line drawing of a hand pouring liquid from a container into a cup (no text or symbols)

to easily organise and to effectively use the freezer. Write the contents and date; otherwise the frozen food might exceed the storage time and this could cause food poisoning. Please refer to your food packaging for the recommended storage time.

- You may also add the weight and cooking notes, e.g. "defrost first", "cook from frozen" and keep a separate log of what is in each drawer. This will save opening the door and searching around unnecessarily.

Defrosting Frozen Food

1. Take the frozen food out from the unit and uncover the frozen food. Let it defrost at room temperature. Don't forget that defrosting in a warm area encourages the growth of bacteria and low temperature cooking may not destroy dangerous bacteria.
2. Drain off and throw away any liquid lost during defrosting.
3. Always make sure there are no ice-crystals in the food before cooking, particularly with meat. These crystals indicate that the food has not fully defrosted.
4. Cook food as soon as possible after defrosting.
5. Many microwaves and ovens have a defrost setting. To avoid bacterial build up, only use these if you intend to cook the food immediately afterwards.

Never re-freeze anything that has been defrosted unless you cook it again, to kill off harmful bacteria. Never re-freeze defrosted shellfish. Re-seal packs properly after removing items. This prevents drying or freezer-burn and a build up of frost on any remaining food.

Defrosting

The freezer compartment of this unit is frost-free. With proper use, there should not be any frost accumulated.

However, in case of improper use of the freezer compartment, frost might build up in the freezer compartment after the unit has been used for a period of time. Scrape away the frost using a plastic scraper (not included).

Do not use a metal or sharp instrument to scrape away the frost, nor should you use any electrical appliances to aid defrosting.

We recommend that defrosting should be carried out when the frost layer builds up to 3mm. Choose a time when the stock of frozen food is low, follow these procedures:

1. Take out the food, turn the unit off at the mains supply and leave the door open. Ideally, the frozen food should be put into another freezer. If this is not possible, wrap the food in several sheets of newspaper or large towels and then a thick rug or blanket to keep it cool.
2. Place a dry towel on the edge of the compartment shelf. Scrape away the frost using a plastic scraper. Defrosting the remaining frost can be speeded up by placing a bowl of hot water inside the freezer compartment and closing the door. As the solid frost loosens, scrape it away with the plastic scraper.
3. When defrosting is complete, clean your unit's interior and exterior.

Cleaning the Interior and the Exterior of the Unit

• Remove all the shelves and drawers.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a sponge or cloth. Wipe completely dry before replacing the shelves and drawers.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the door is closed to avoid the polish getting on the magnetic door seal or inside the unit.
• The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

Changing the Internal Light

The internal light is an LED light. It cannot be changed by the user; please contact your service agent.

Care When Handling / Moving the Unit

Hold the unit around its sides or base when moving it.

Servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the unit, leaving the door ajar to prevent unpleasant smells.

Condensation

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in the unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the doors as a safeguard.

Rated Voltage 220-240V~, 50 Hz
Rated Current 0.4A
Rated Power Defrost: 140 W
Dimension (H x W x D) 1520 x 501 x 560 mm

Features and specifications are subject to change without prior notice.

Product Fiche

Brand Logik
Model LFC50B19 / LFC50W19 / LFC50S19
Household Appliance Category 7
Energy Efficiency Class A+
Energy consumption 215 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Fridge Storage Volume 119 L
Freezer Storage Volume 53 L (4-star)
Frost Free for the freezer compartment.
Temperature Rise Time 15 hours
Freezing Capacity 2.5 kg / 24h
Climate Class	N, STThis appliance is intended to be used at an ambient temperature between 16°C and 38°C.
Airborne Acoustical Noise 45 dB(A) re 1	pW

Illustration of four people interacting with computers and devices (no text or symbols)

Team Knowhow

Help with all life's kit™

For general information about this appliance and handy hints and tips, please visit:

www.TeamKnowhow.com/discover or call 0344 561 1234

Partmaster

.CO.UK

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the

very next day. Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only) Calls charged at National Rate.

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

DSG Retail Ltd. (co. no. 504877)

1 Portal Way, London, W3 6RS, UK
