S42SWLH13 - Loudspeaker Sandstrøm - Free user manual and instructions

Product Type	Soundbar with wireless sub-woofer
Soundbar Dimensions (W x D x H)	900 x 48.5 x 113 mm
Sub-woofer Dimensions (W x D x H)	182 x 305.7 x 345 mm
Soundbar Net Weight	1.29 kg
Sub-woofer Net Weight	5.23 kg
Soundbar Power Supply	100-240V ~ 50/60Hz (via adapter, output 27.0V 2.5A)
Sub-woofer Power Supply	220-240V ~ 50/60Hz
Soundbar Power Consumption	30 W
Sub-woofer Power Consumption	30 W
ECO Standby Power	< 0.5 W
Bluetooth Version	Bluetooth 2.0 (A2DP)
Bluetooth Range	Approx. 10 m
Connectivity Inputs	HDMI IN 1, HDMI IN 2, AUX (L/R), MP3 LINK (3.5 mm), OPTICAL, COAXIAL
HDMI Output	HDMI OUT (ARC)
Audio Modes	AUX, MP3, Bluetooth, COAXIAL, OPTICAL, HDMI 1, HDMI 2
EQ Presets	Optimiser, Flat, Pop, Jazz, Rock
Bass Control	On/Off via remote
Remote Control Battery	CR2032 3V Lithium (included)
Wall Mountable	Yes (bracket and screws included)
Automatic Standby	Yes, after approx. 15 minutes of idle
NFC Pairing	Yes
Frequency Response (Soundbar)	200 Hz – 20 kHz
Frequency Response (Sub-woofer)	20 Hz – 200 Hz
Signal-to-Noise Ratio	> 70 dB

Frequently Asked Questions - S42SWLH13 Sandstrøm

How do I pair my Bluetooth device with the soundbar?

Press SOURCE button repeatedly or press the Bluetooth button on the remote to select Bluetooth mode. On your device, search for "S42SWLH13" and select it. If asked, enter password "0000". Once paired, the blue LED will stay solid.

How can I reset the wireless sub-woofer connection?

First, press STANDBY on the soundbar to go to standby. Then press and hold MUTE on the remote until the red LED blinks. Next, press and hold the RESET button on the back of the sub-woofer until its LED blinks red/green. Wait for the sub-woofer LED to become solid green.

What should I do if there is no sound from the sub-woofer?

Try these steps: 1) Press STANDBY to switch soundbar off and back on. 2) Unplug both soundbar and sub-woofer, then plug them in again. 3) Re-pair the units manually as described in the manual.

Can I mount the soundbar on the wall?

Yes, the soundbar is wall-mountable. Use the supplied wall bracket and screws. Drill two parallel holes 110 mm apart, insert dowels and screws, leaving 5 mm gap. Lift the unit onto the screws. Ensure the wall can support the load.

How do I replace the remote control battery?

Press and slide the back cover off the remote. Replace the old battery with a CR2032 3V lithium battery, positive side up, then close the cover.

What input sources are available?

The soundbar supports HDMI 1, HDMI 2, AUX (L/R), MP3 LINK (3.5mm), OPTICAL, and COAXIAL. Use the SOURCE button or remote to switch.

How do I clean the soundbar?

Unplug the unit. Use a slightly moist, lint-free cloth to wipe the case. Do not use alcohol, ammonia, or abrasive cleaners. Never spray liquids directly on the unit.

Why is the remote control not working?

Check: 1) Point the remote at the sensor on the soundbar. 2) Use it within 8 meters and 60° angle. 3) Replace the battery if needed. 4) Remove obstacles between remote and unit.

Does the soundbar have equalizer presets?

Yes, press the EQ button on the remote to cycle through presets: Optimiser, Flat, Pop, Jazz, and Rock.

What is the power consumption in standby?

The ECO standby power is less than 0.5 W. The soundbar automatically enters standby after about 15 minutes of inactivity when volume is low or muted.

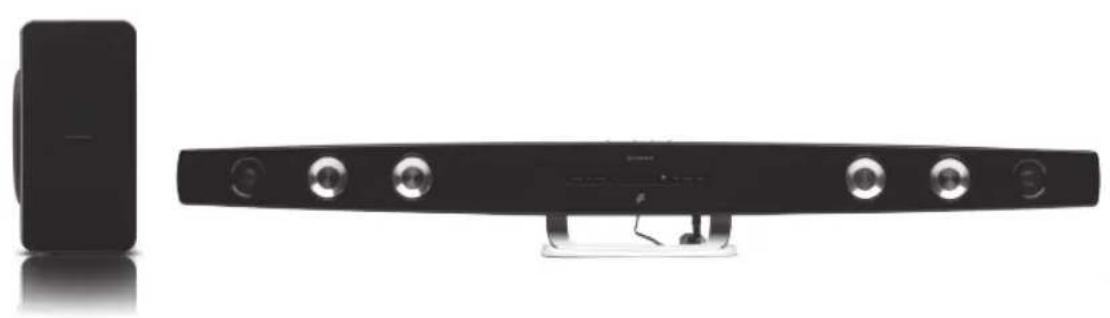

USER MANUAL S42SWLH13 Sandstrøm

Soundbar with wireless sub-woofer

S42SWLH13

Black and white photo of a modern audio streaming device with speakers and buttons (no visible text or symbols)

Bluetooth®

Sandstrøm

Contents

Safety Warnings....4

Unpacking......6

Product Overview....7

The Main Unit 7

Rear View of Sub-woofer 8

Remote Control....9

Remove the Plastic Strip from the Remote Control....10

Battery Replacement for the Remote Control....10

Remote Control Operation Range....11

Installing the Stand Base 12

Wall Mounting 13

Connections 16

Using the HDMI Connection 16

Using the AUX Connection....16

Using the MP3 LINK Connection....17

Using the OPTICAL Connection 17

Using the COAXIAL Connection....17

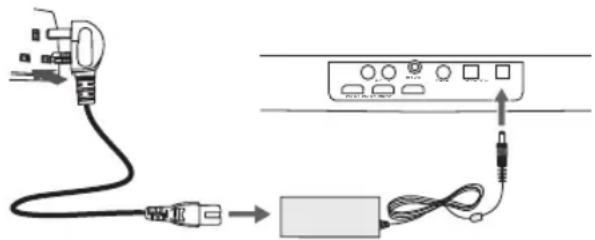

Connecting to the Mains Supply 18

Pairing the Wireless Sub-Woofer with the Soundbar 18

Manual Pairing 18

General Operation....19

Selecting Modes....19

Adjusting the Volume 19

EQ (Equaliser)....19

BASS....19

LINE IN Operation....20

Bluetooth® Operation ....20

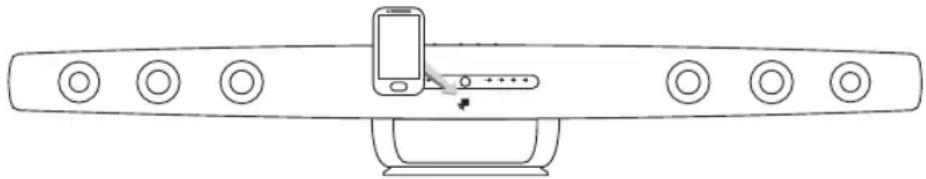

NFC (Near Field Communication) Operation....21

Maintenance 21

Cleaning the Unit 21

Hints and Tips ......22

Specifications....23

Safety Warnings

• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.

Damage

• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult your dealer.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
  • This unit is designed for indoor use only.

Temperature

• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires.
• Avoid exposure to direct sunlight and other sources of heat.

Naked Flames

- Never place any type of candle or naked flame on the top of or near the unit.

Moisture

• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

Ventilation

• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
- A minimum distance of 5cm around the unit should be maintained to allow for sufficient ventilation.
- Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure the unit is well ventilated.

Safety

• Always disconnect the unit from the mains supply before connecting/disconnecting other devices or moving the unit.
- Unplug the unit from the mains socket during a lightning storm.
- In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains plug from the mains socket.

Mains Cable

• Make sure the unit or unit stand is not resting on top of the mains cable, as the weight of the unit may damage the mains cable and create a safety hazard.
• If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Mains Adapter Cable

- Make sure the unit or unit stand is not resting on top of the mains adapter cable, as the weight of the unit may damage the cable and create a safety hazard.

Mains Adapter

- The mains adapter will continue to draw electricity from the mains supply when plugged in the mains socket. In the interests of safety and to avoid unnecessary energy consumption, never leave the adapter plugged in the mains socket while unattended for long periods of time. Disconnect the adapter from the power supply.

Interference

- Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely affect the operating performance of the unit, and cause a distorted picture or sound.

Batteries

• Batteries used in the remote control for this unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the remote control. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.

Supervision

• Children should be supervised to ensure that they do not play with the unit and the remote control.
- Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the unit's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

Service

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.

Maintenance

• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.
  • Do not use liquids to clean the unit.

Thank you for purchasing your new Sandstrøm Soundbar.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

Main Unit Remote Control

(battery included)

Sub-woofer

Wall Bracket x 1

Mains Cable x 2

Mains Adapter

L-shaped Adapter

Screw A x 2

Non-slip Feet x 4

Stand Base

Audio L/R Cable

Screw B x 3
Dowels x 3

Quick Start Guidelnstruction Manual

If items are missing, or damaged please contact Partmaster (UK only).

Tel: [phone] for assistance.

Product Overview

The Main Unit

Front View

1. Speakers

2. Remote Control Sensor

Receives signal from the remote control.

3. Status LED Indicators

• Lights up red when the unit is in STANDBY mode.
  • Lights up blue in Bluetooth mode.
  • Lights up amber in AUX, MP3, COAXIAL, OPTICAL and HDMI modes.

4. NFC (Near Field Communication) Sensor

Pairs with Bluetooth device.

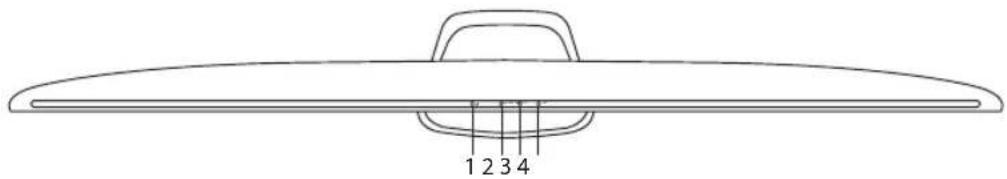

Top View

Line drawing of a curved object with four labeled parts (1, 2, 3, 4) and a handle-like top (no text or symbols on the object itself)

1. ⏻ STANDBY Button Switches the unit between ON and STANDBY modes.

2. VOL - Button Decreases the volume.

3. SOURCE Button Selects the input source.

4. VOL + Button Increases the volume.

Rear View

1. AUX (L/R) Sockets
2. MP3 LINK Socket
3. COAXIAL Socket

4. OPTICAL Socket

5. DC IN Socket

6. HDMI IN 1 Socket
7. HDMI IN 2 Socket
8. HDMI OUT Socket

Rear View of Sub-woofer

Front view of a computer chassis panel with two labeled ports (1 and 2), showing internal circuitry and no readable text or symbols.

1. Reset Button Resets the sub-woofer.
2. AC\~ Power Socket

Remote Control

1. Button Switches the unit between ON and STANDBY modes.
2. AUX/MP3 Button Switches to AUX or MP3 mode.
3. VOL + Button Increases the volume.
4. EQ Button Switches between preset equalisers.
5. VOL - Button Decreases the volume.
6. COAXIAL Button Connects to devices with coaxial output.
7. HDMI 1 Button Connects to devices with HDMI output.
8. Ⓧ Button Selects Bluetooth mode.
9. MUTE Button Mutes your Soundbar or resumes the sound.
10. Bass Button Switches bass on or off.
11. OPTICAL Button Connects to devices with optical output.
12. HDMI 2 Button Connects to devices with HDMI output.

Remove the Plastic Strip from the Remote Control

Remove the plastic strip from the battery if the battery is being used for the first time. It is located at the bottom rear of the remote control.

Illustration of a hand pressing down on a curved object with an arrow indicating motion (no text or symbols)

Battery Replacement for the Remote Control

The remote control requires a CR2032, 3V Lithium battery (included).

1. Press and slide the back cover to open the battery compartment of the remote control.

Line drawing of a remote control device with directional arrows indicating movement (no text or symbols)

1. Replace the old battery with a new one, with the positive polarity (+) facing upward.

Diagram of a remote control panel with a circular component and an arrow indicating rotation (no text or symbols)

1. Close the battery compartment cover.

Handling the Battery

• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property.
• Install the battery correctly in the battery compartment. Normally the battery's positive polarity (+) will face up.
• When the battery is exhausted, the remote control will not function.
• Only use the battery type indicated in this manual.
• Do not dispose of the used battery as domestic waste. Dispose of it in accordance with local regulations.
• Small button cell batteries such as the one used in the remote control are easily swallowed by young children and this is dangerous. Keep loose button cells away from young children and make sure that the battery is secure in the remote control. Seek medical advice if you believe a battery cell has been swallowed.

Handling the Remote Control

• Do not drop the remote control.
• Do not allow the remote control to suffer any impact.
- Do not spill water or any liquid on the remote control.
- Do not place the remote control on a wet object.
- Do not place the remote control under direct sunlight or near sources of excessive heat.
- Remove the battery from the remote control when not in use for a long period of time, as corrosion or battery leakage may occur and result in physical injury, and/or property damage, and/or fire.

Remote Control Operation Range

• The remote control sensor on the front unit is sensitive to the remote control's commands up to a maximum of 8 metres away and within a maximum of a 60^ arc.
• Please note that the operating distance may vary depending on the brightness of the room.

Installing the Stand Base

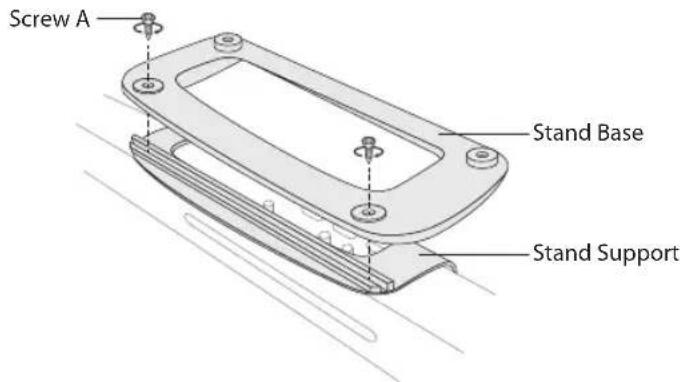

1. Attach the stand base to the stand support, using 2 screws A to screw the holes of the stand base to the groove of the stand support.

1. Stick the 4 non-slip feet onto the bottom side of the stand base.

Wall Mounting

Assembly is required. Installation must be carried out by qualified personnel only. Incorrect assembly can result in severe personal injury and property damage (if you intend to install this product yourself, you must check for installations such as electrical wiring and plumbing that may be buried inside the wall). The supplied wall bracket is only for use on vertical walls constructed from solid brick, solid concrete, solid wood, solid wooden battens, drywall, plaster wall and lath wall. It is the installer's responsibility to verify that the wall will safely support the total load of the Soundbar and wall bracket. Additional tools (not included) are required for the installation. Do not overtighten screws. Keep this instruction manual for future reference.

Ensure all cables to the main unit are disconnected before installing or removing the base stand.

1. Remove the base stand from the unit.

1. Attach the wall bracket to the unit with the 2 screws removed from the base stand following the diagram below.

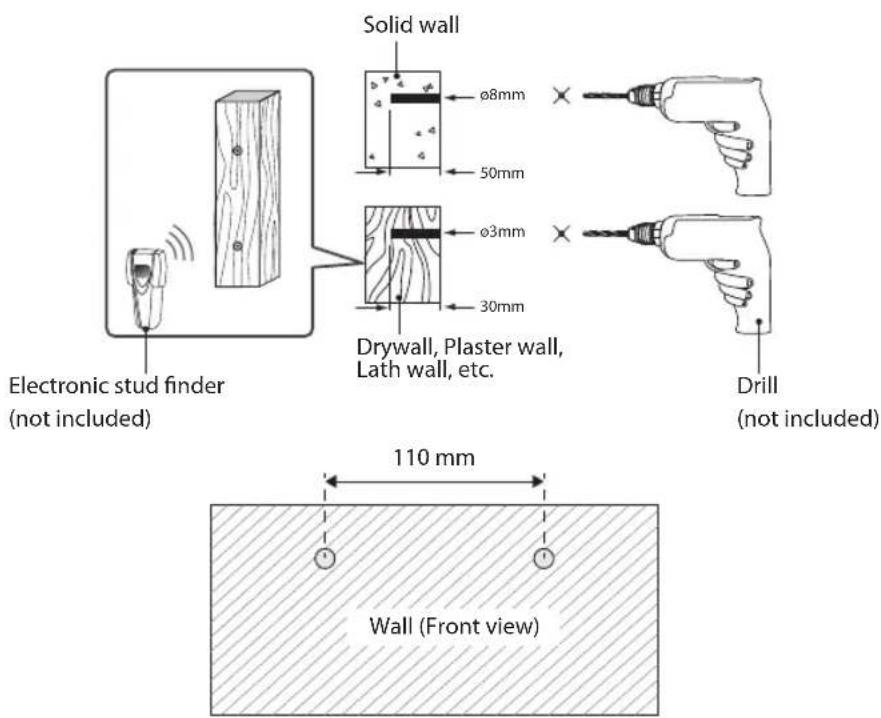

Use an electronic stud finder to check the wall type before drilling and mounting.

1. Drill 2 parallel holes ( 3-8 mm each according to wall type) in the wall. The distance between the holes should be 110 mm.

1. Firmly fix 1 dowel into each hole in the wall.

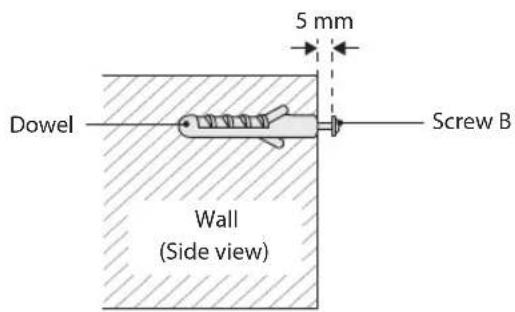

1. Insert 1 screw B into each dowel. Be sure to leave a 5mm gap between the wall and the screw's head.

1. Lift the unit with the attached wall bracket over the heads of the screws and slot into place.

Connections

Using the HDMI Connection

Use an HDMI cable (not included) to connect an AV device's HDMI OUT socket to the unit's HDMI IN 1 or HDMI IN 2 socket.

Use another HDMI cable (not included) to connect a visual device's HDMI IN socket to the unit's HDMI OUT socket.

Use the L-shaped adapter (if necessary) in areas with insufficient space to connect the HDMI cable.

Using the AUX Connection

Use the audio L/R cable to connect an audio or visual device's AUX OUT sockets to the unit's AUX (L/R) (input) sockets.

Using the MP3 LINK Connection

Use 3.5mm to 3.5mm stereo audio cable (not included) to connect a mobile device's earphone socket to the unit's MP3 LINK (3.5mm stereo audio input) socket.

Using the OPTICAL Connection

Use an optical cable (not included) to connect an audio device's OPTICAL OUT socket to the unit's OPTICAL (input) socket.

Using the COAXIAL Connection

Use a coaxial cable (not included) to connect an audio or visual device's COAXIAL OUT socket to the unit's COAXIAL (input) socket.

Connecting to the Mains Supply

• The Soundbar and sub-woofer are designed to operate with the supplied mains adapter and mains cables.
• Connecting the Soundbar to any other power source may damage the unit. Unwind the mains adapter and mains cable to their full length. Connect the mains adapter to the DC IN socket of the unit, then connect the mains cable to the mains adapter and into a mains socket.
• Connect the mains cable to the AC\~ socket of the sub-woofer and then into a mains socket.
• Make sure the mains cables are firmly inserted into the mains sockets. The Soundbar and the sub-woofer are now connected and ready to use.
• To switch the Soundbar and the sub-woofer off completely, remove the mains plugs from the mains sockets.

Ensure all audio connections of the Soundbar are connected before connecting to the mains power socket.

To the mains socket
To the mains socket

Diagram showing cable connection to a device panel with connectors and cables (no text or symbols)

Diagram showing a device with two panels connected to a cable, no text or symbols present

Pairing the Wireless Sub-Woofer with the Soundbar

The Sub-Woofer and Soundbar should automatically pair when both units are plugged into the mains socket and turned on. There is no cable needed to connect the two.

Manual Pairing

If both units fail to pair, please follow the steps below:

1. Press ⏻ STANDBY to switch the Soundbar to standby mode.

2. Press and hold MUTE on the remote control until the red LED indicator on the Soundbar blinks.

3. Press and hold the RESET button on the back of the Sub-Woofer until the LED indicator on the Sub-Woofer blinks, alternating between red and green.

4. The LED indicator on the Sub-Woofer will rapidly blink when pairing and will become solid green when successful. The LED indicator on the Soundbar will become solid red.
   • If the pairing fails, the LED indicator on the Sub-Woofer will keep blinking in red.

5. If the Sub-Woofer does not turn on with the Soundbar, unplug both units from the mains, then plug them in again and turn on the Soundbar.

General Operation

• During STANDBY mode, the STANDBY indicator will light up red. Press Ⓧ STANDBY on the main unit or Ⓛ on the remote control to turn the unit on.
• Press ⏻ STANDBY to switch the unit back to STANDBY mode.
• Disconnect the mains plug from the mains socket if you want to switch the unit off completely.

When the unit volume is close to mute or is idle for approximately 15 minutes, it will automatically switch to standby.

Selecting Modes

When the unit is on, press SOURCE on the unit repeatedly to select AUX / MP3 / BLUETOOTH / COAXIAL / OPTICAL / HDMI 1 / HDMI 2 modes. The relative status indicator will light up. Alternatively, press AUX / MP3, ^® , COAXIAL, OPTICAL, HDMI1 or HDMI2 on the remote control.

Adjusting the Volume

• Press VOL +/- to adjust the volume.
• If you wish to turn off the sound, press MUTE on the remote control. Press MUTE again, or press VOL +/- to resume normal playback.

Pressing the volume buttons when the unit is muted will restore the sound.

EQ (Equaliser)

Press EQ on the remote control to switch between preset equalisers to suit individual preference.

Cycle through the preset equalisers to select the preferred sound ambience. Standard settings are Optimiser / Flat / Pop / Jazz / Rock.

BASS

Press BASS on the remote control to turn the bass ON or OFF.

• To add more bass, press BASS.
• To switch off bass, press BASS again.

LINE IN Operation

There are AUX, MP3 LINK, COAXIAL, OPTICAL and HDMI (input) sockets located at the rear of the unit. Analogue audio sound signals from other sources can be connected to the unit through these sockets.

1. Before connecting to the mains socket:

2. Use an optical cable (not included) to connect the audio device's OPTICAL OUT socket to the unit's OPTICAL (input) socket.

3. Use the audio L/R cable to connect the device's audio output sockets to the unit's AUX L/R (input) sockets.
4. Use an HDMI cable (not included) to connect the device's HDMI OUT socket to the unit's HDMI IN 1 or HDMI IN 2 socket.
5. Use a coaxial cable (not included) to connect the device's COAXIAL OUT socket to the unit's COAXIAL (input) socket.

6. Use a 3.5mm to 3.5mm stereo audio cable (not included) to connect the device's earphone socket to the unit's MP3 LINK (3.5mm stereo audio input) socket.

7. Press SOURCE repeatedly on the unit or AUX/MP3/®/COAXIAL/OPTICAL/HDMI 1/HDMI 2 on the remote control to switch between AUX, MP3, COAXIAL, HDMI and OPTICAL modes.

8. Operate your audio device directly for playback features.
9. Press VOL +/- to adjust the volume.

Bluetooth® Operation

You can listen to tracks from a media device if it is connected to the unit via Bluetooth.

Line drawing of a smart speaker with a smartphone above it, showing sound waves and control buttons (no text or symbols)

• The operational range between the unit and the device is approximately 10 metres.
- Before connecting a Bluetooth device to the unit, ensure you know the device's capabilities.
- Compatibility with all Bluetooth devices is not guaranteed.
- Obstacles between the device and the unit can reduce operational range.
- If the signal strength is weak, your Bluetooth receiver may disconnect, but it will re-enter pairing mode automatically.

To connect your device to the unit via Bluetooth, follow the steps below:

1. Press SOURCE repeatedly on the unit or press Ⓧ on the remote control to select Bluetooth mode. Bluetooth indicator will flash until it pairs.

2. Activate your Bluetooth device and select the search mode.

3. "S42SWLH13" will appear on your Bluetooth device.

4. Select "S42SWLH13" and enter "0000" for password if necessary.
5. On successful pairing, the unit will beep and the blue LED will light up solidly.

NFC (Near Field Communication) Operation

NFC is a one touch way of pairing your NFC device via Bluetooth to your Soundbar. Your Soundbar will pair to most NFC-enabled mobile devices.

Line drawing of a smart speaker with a smartphone connected to a display stand (no text or symbols)

1. Activate NFC on your mobile device.
2. Press SOURCE repeatedly on the unit or press Ⓞ on the remote control to select Bluetooth mode.
3. Place the mobile device over the 📋 icon on the front of the Soundbar until 'Connected S42SWLH13' is displayed on your mobile device. Your device's Bluetooth will be activated.

- On pairing for the first time, the mobile device will ask for 'Permission to pair with S42SWLH13'; when permission is granted, 'Connected S42SWLH13' is displayed on your mobile device.

1. Operate your mobile device directly for playback features.
2. Place your device over the 📋 icon again to disconnect from the Soundbar.

'Disconnected S42SWLH13' will be displayed on your mobile device, and the Bluetooth will be deactivated.

This function only works with mobile devices that support NFC technology. If some NFC-enabled mobile devices cannot pair directly with the unit via NFC, please try the following solution:

• Activate Bluetooth on your mobile device and pair manually first, then deactivate Bluetooth and place your device over the 📋 icon on the soundbar.
• Your NFC device may not be supported. Simply pair via Bluetooth.

Maintenance

Cleaning the Unit

Ensure the unit is fully unplugged from the mains socket before cleaning.

• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
- Do not use any cleaning fluids containing alcohol, ammonia or abrasives.
• Do not spray aerosol at or near the unit.

Hints and Tips

If a problem does occur, it may often be due to something very minor. The following table contains various tips.

Problem Solution
No power.	· Ensure the mains cable is connected securely at both ends.· Make sure that the ON mode is selected.
The remote control does not function.	· Use the remote control near the unit.· Point the remote control at the remote control sensor on the unit.· Replace the battery in the remote control with a new one.· Remove any obstacles between the remote control and the unit.
Loud hum or noise is heard.	· The plugs and sockets are dirty. Wipe them with a cloth slightly moistened with an appropriate non-abrasive cleaning solution.
The unit does not respond when pressing any buttons.	· The unit may freeze up during use. Switch the unit off and then on again at the mains socket to reset the unit.
I cannot find “S42SWLH13” on my Bluetooth device.	· Ensure the Bluetooth function is activated on your Bluetooth device.· Re-pair the unit with your Bluetooth device.
Some NFC-enabled mobile devices cannot pair directly with the unit via NFC.	Please try either one of the solutions below:· Download and install NFC reader apps into your NFC-enabled mobile device. Please refer to your mobile device’s guidebook for more details.· Pair with the unit via Bluetooth first, then tap again on the icon.· Simply pair with the unit via Bluetooth.
No sound from the sub-woofer.	Please try either one of the solutions below:· Pres STANDBY to switch the soundbar to standby mode. Then press STANDBY again to switch the soundbar on.· Unplug both the soundbar and the sub-woofer from the mains socket, then plug them again. Switch on the soundbar.· The soundbar may have lost connection with the sub-woofer. Re-pair the units by following the steps on page 17 “Wireless Pairing the Soundbar and the Sub-woofer”.

If any functional abnormality is encountered, unplug the unit from the mains socket and reconnect it again.

Specifications

Model S42SWLH13
Power Supply Input: 100-240V ~ 50/60Hz, 1.35AOutput: 27.0V, 2.5A
ECO Standby Power < 0.5W
Soundbar
Output Power 50W x 2
Power Consumption 30W
Frequency Response 200Hz - 20kHz
Bluetooth Bluetooth 2.0 (A2DP)
Signal to Noise Ratio > 70dB
AUX Input 1V ± 200mv
Net Weight 1.29kg
Dimension 900mm(W) x 48.5mm(D) x 113mm(H)
Sub-woofer
Power Supply 220-240V ~ 50/60Hz
Output Power 100W
Power Consumption 30W
Frequency Response 20Hz - 200Hz
Speaker Impedance 4 ohm
Net Weight 5.23kg
Dimension 182mm(W) x 305.7mm(D) x 345mm(H)

Features and specifications are subject to change without prior notice.

For general information about this appliance and handy hints and tips, please visit

www.knowhow.com/knowledgebank or call 0844 5611234.

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the

very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.

Notes for battery disposal

The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not dispose of batteries with normal household waste.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth® SIG, Inc. and any use of such marks by DSG Retail Limited is as an Affiliate under the License held by DSG International Sourcing Ltd. Other trademarks and trade names are those of their respective owners and all rights are acknowledged.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

All trademarks are the property of their respective owners and all rights are acknowledged.

DSG Retail Ltd. (co. no. 504877)

Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK

IB-S42SWLH13-130801V4
