WBC12DZ - Wine cellar Campomatic - Free user manual and instructions

Product Type	Wine Cellar
Brand	Campomatic
Model	WBC12DZ
Capacity	12 to 18 standard bottles
Temperature Range	5°C to 18°C (41°F to 64°F)
Installation Type	Freestanding
Dimensions (H x W x D)	500 x 450 x 450 mm (19.7 x 17.7 x 17.7 inches)
Weight	Approximately 15 kg (33 lbs)
Power Supply	220-240 V, 50 Hz
Energy Consumption	0.5 kWh/24h (estimated)
Energy Class	A+
Noise Level	≤ 38 dB(A)
Cooling System	Compressor with vibration reduction
Temperature Control	Digital thermostat with LED display
Interior Light	LED, on/off switch
Door Features	Tempered glass, reversible hinge
Shelves	2 to 3 chrome wire shelves
UV Protection	Tinted glass door reduces UV rays
Defrost Type	Manual defrost required
Maintenance	Clean condenser coils annually; clean interior with mild soap
Safety Features	Adjustable leveling feet; stable base
Spare Parts Availability	Contact Campomatic or authorized dealers for replacements
Repair Index	Estimated 6.5/10 (based on common wine cellar designs)

Frequently Asked Questions - WBC12DZ Campomatic

What is the ideal temperature for storing red wine in this wine cellar?

The Campomatic WBC12DZ allows you to set temperatures between 5°C and 18°C. For red wine, a range of 12°C to 18°C is recommended, with 14-16°C being optimal for most varieties.

Can I install this wine cellar in a built-in cabinet?

The WBC12DZ is designed as a freestanding unit. For proper ventilation, leave at least 10 cm clearance at the back and sides. Built-in installation is not recommended unless adequate airflow is ensured.

How many bottles can I store inside?

This model holds approximately 12 to 18 standard 750ml wine bottles, depending on bottle shape and shelf configuration.

How often do I need to defrost the wine cooler?

Defrosting is required when frost buildup exceeds 3-5 mm. Depending on humidity and usage, this may be every 2 to 4 months. Turn off the unit, remove bottles, and let ice melt naturally.

Why is my wine cellar making a noise?

Normal operating sounds include the compressor and fan. A low hum is expected. If noise is excessive, ensure the unit is level and not touching walls or cabinets. The noise level is rated at ≤38 dB(A).

Can I adjust the door hinge to open from the other side?

Yes, the door is reversible. Follow the instructions in the manual to move the hinge to the opposite side. You may need a screwdriver and assistance to hold the door.

What maintenance is required for long-term performance?

Clean the condenser coils every 6-12 months with a soft brush or vacuum. Wipe the interior with a mild soap solution. Avoid abrasive cleaners. Check the door seal for proper closure.

Does this wine cellar have a lock?

The WBC12DZ does not come with a built-in lock. For security, you can add an external padlock if the handle design allows, or store in a private area.

What should I do if the digital display shows an error code?

Common error codes include E1 (sensor malfunction) or E2 (temperature alarm). Refer to the manual for specific codes. Often, unplugging and waiting 5 minutes may reset the system. If persistent, contact Campomatic support.

Can I store both red and white wine together?

Yes, but set a compromise temperature around 12-13°C, which is acceptable for both. Alternatively, use separate zones if available (this model has a single zone).

USER MANUAL WBC12DZ Campomatic

Interior view of a stainless steel double-free refrigerator with multiple circular pendant lights and a digital display (no visible text or symbols)

INSTRUCTION MANUAL

Contents:

1. Your Wine Cooler
2. Technical Data
3. Important Safety Instructions
4. Installation Instructions
5. Electrical Connection
6. Operation
7. Care and Maintenance
8. Troubleshooting

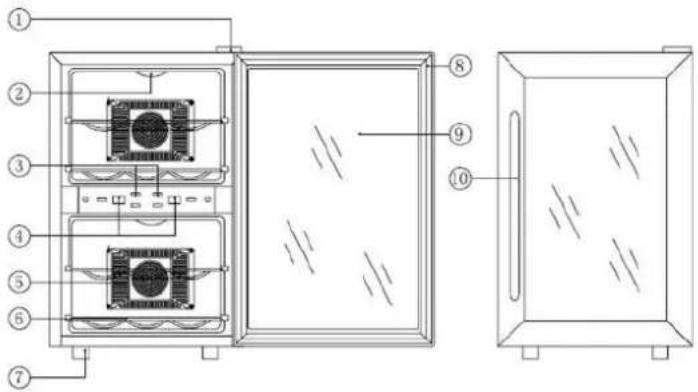

Your Wine Cooler

1. HINGE

2. LIGHT

3. TEMPERATURE CONTROLLER

4. TEMPERATURE DISPLAY

5. FAN MASK

6. SHELF

7. FOOT

8. DOOR FRAME

9.GALSS

1. HANDLE

Technical Data

Model no.	WBC12DZ
Capacity	33L(1.17 cuff)
Voltage	220V
Current	1A(25°C)
Protection class	I
Climate class	SN;N
Input power	140W(25°C)
Power Consumption(KW.h/24h)	0.73(15°C)
Max Temperature Difference	>18°C
Temperature Control Range	7-18°C
Net weight	14KG
Gross weight	15.6KG
Shape size(W×H×D)	34x53.4x51 CM
Packing size(W×H×D)	38.2x55.7x55 CM

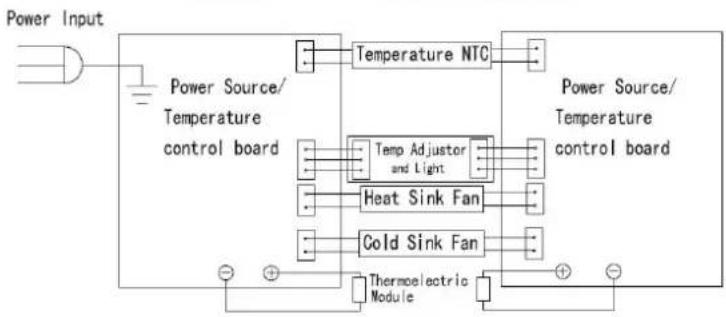

Electro circuit Control Diagram

Important Safety Instructions

WARNING

To reduce the risk of fire, electrical shock, or injury when using your appliance, follows these basic precautions;

• Read all instructions before using the wine cooler
  ● Never allow children to operate or play with the cooler
  ● Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.
• Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.

Save these instructions

Installation Instructions

Before using your wine cooler

• Remove the exterior and interior packing
• Check to be sure the following parts are included:

◆ 4 Slide out shelves
◆ 1 Instruction manual

- Before connecting the appliance to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

● Clean the interior surface with lukewarm water using a soft cloth.

- Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded. To level your appliance, adjust the front legs at the bottom of the appliance.

● The handle installing

The wine cooler comes with 1 metal stainless steel handle. To install simply screw them to the door with the supplied screws

● Installation should be done away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold or hot ambient temperatures may also cause the appliances not to perform properly.
● Designed for indoor use only

Electrical Connection

Warning

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Products service center.

This unit should be properly grounded for your safety. The power cord of this unit is equipped with a 2-pin plug which matches with 2-pin wall outlets to minimize the possibility of electrical shock. Do not under any circumstances cut or remove the ground wire from the power cord supplied.

Use of extension cords is not recommended.

This unit requires a standard 220V-50HZ electrical outlet with 2-pin plug.

The cord should be secured behind the wine refrigerator and not let exposed or dangling to prevent accidental injury.

Operation

It is recommended that you install the wine cooler in a place where the ambient temperature is between 10-26° C (50° F -80° F). If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected.

The temperature may fluctuate depending on whether or not the interior light is on or off or whether the bottles are located on the upper, middle or lower section.

How to use the press-buttons on the Display Panel:

You can set the temperature as your desire by pressing the button. There are three press-button on the panel “▲” and “▼” to adjust the temperature by 1° C among 7-18° C.

You can turn the interior light on or off by pressing the "Light" button.

Care and Maintenance

Cleaning your wine cooler

● Unplug the wine cooler and remove the bottles.
- Wash the inside with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
● The outside of wine refrigerator should be cleaned with mild detergent and warm water.
● Draw out the water box at the bottom, and wash.

Moving your wine cooler

• Remove all the bottles.
• Securely tape down all loose items inside your wine refrigerator.
  ● Turn the leveling legs up to the base to avoid damage.
• Tape the door.
• Be sure the wine refrigerator stays in the upright position during transportation.

Troubleshooting

You can solve many common wine cooler problems easily, saving you the cost of a possible service call. Try the suggestion below to see if you can solve the problem before calling the service center.

PROBLEM	POSSIBLE CAUSE
Wine cooler does not operate	Not plugged in using different voltage. The circuit breaker tripped or a blown fuse.
Wine cooler is not cold enough	Check the temperature control setting.External environment may require a higher setting.The door is open too often.The door is not closed completely.The door seal does not seal properly.The wine cooler does not have the correct clearance.
The light does not work	Check the service center.
Vibrations	Check to assure that the wine cooler is level.
Too noisy	Check to assure that the wine cooler is level.Check the fan.
The door will not close properly	Check to assure that the wine cooler is level.The doors were reversed and not properly installed.The seal is weak.
LED does not display	Main control board does not work.PCB Problem.There is some problem with the plug.
