Product Type	FM Transmitter
Brand	Caliber
Model	MAU 201
Dimensions	5 x 2 x 1 cm (approx.)
Weight	50 g (approx.)
Power Supply	12V DC (car cigarette lighter)
Transmission Frequency	87.5 - 108.0 MHz
Range	Up to 10 meters
Audio Input	Bluetooth & 3.5 mm aux
Functions	Stream music from phone to car radio, hands-free calling
Usage	Car use
Cleaning	Wipe with dry cloth
Safety	Avoid water, use only specified power source
Repairability	Not user-serviceable; contact Caliber support
Spare Parts	Not available separately

Frequently Asked Questions - MAU 201 CALIBER

How do I set the FM frequency on the MAU 201?

Turn on the transmitter and tune your car radio to an unused FM frequency between 87.5 and 108.0 MHz. Then press the up/down buttons on the MAU 201 to match that frequency.

Why is there static noise when using the FM transmitter?

Static usually occurs if the chosen frequency has interference. Try a different unused frequency on both the transmitter and radio. Also ensure the device is fully charged or plugged in.

Can I use the MAU 201 with any audio device?

Yes, it works with any device that has Bluetooth or a 3.5 mm audio jack, such as smartphones, tablets, or MP3 players.

Does the MAU 201 support hands-free calling?

Yes, it has a built-in microphone for hands-free calls. When a call comes in, the music pauses and you can talk via the car speakers.

How do I connect my phone via Bluetooth?

Enable Bluetooth on your phone, search for devices, and select 'MAU 201'. If prompted, enter 0000 as the PIN. The transmitter will show a solid blue light when connected.

What should I do if there is no sound?

Check that both devices are on the same FM frequency, the volume on your phone is up, and the transmitter is properly plugged into the lighter socket. Also verify that the aux cable is fully inserted if using wired mode.

Is the MAU 201 compatible with all car models?

It is compatible with any car that has a 12V cigarette lighter port and an FM radio receiver. Most cars built after 2000 meet these requirements.

How do I clean the MAU 201?

Use a soft, dry cloth to wipe the exterior. Do not use any liquids or cleaning agents, as they may damage the electronics.

Can I charge my phone through the MAU 201?

Some models include a USB charging port. If your MAU 201 has a USB port, you can charge your phone while using it. Check the product specifications for details.

How do I change the FM frequency?

Press the CH- or CH+ buttons on the transmitter to cycle through frequencies. Then retune your car radio to the new frequency for a clear signal.

USER MANUAL MAU 201 CALIBER

MAU 201

Splash proof USB connection with 5V/2.1A output

• Input: 12\~24V DC
  • Output: 1x 5V/2.1A

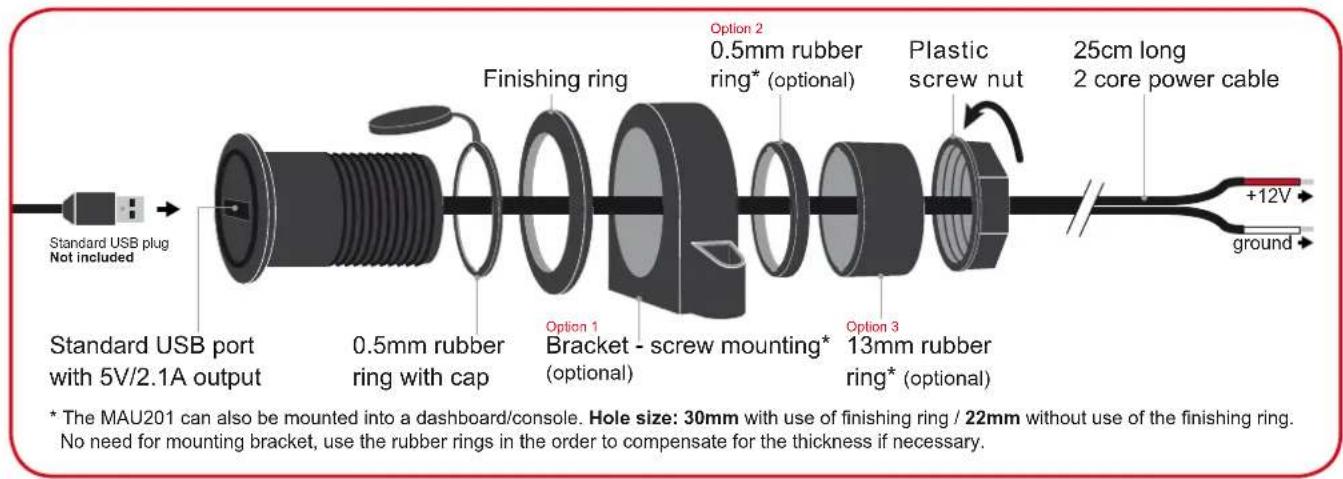

• Mounting through bracket or directly into the dashboard/console (Hole size: with finishing ring 30mm / without finishing ring 22mm )
