Product Type	Vented Utility Shelf
Brand	Middle Atlantic
Model	U1V
Material	Steel
Finish	Black (presumed)
Ventilation	Vented design for airflow
Mounting	Rack-mountable (standard 19-inch)
Included Accessories	Three (3) Rear L Brackets
Optional Accessories	Clamping Bars (Part #C), 15A 8-Outlet Surge-Protected Power Strip (PD-815SC-PBSH)
Warranty	Lifetime
Warranty Coverage	Defects in material or workmanship
Installation	Simple assembly with included brackets
Supported Components	AV equipment requiring ventilation
Manufacturer	Middle Atlantic Products, Inc.
Country of Origin	USA
Certification	ISO 9001 Registered Company

Frequently Asked Questions - U1V Middle Atlantic

What is the U1V shelf made of?

The U1V Vented Utility Shelf is constructed from steel for durability.

Does the shelf come with mounting hardware?

Yes, it includes three Rear L Brackets that can be mounted in four different ways to prevent components from sliding back.

Can I secure components to the shelf?

Yes, optional Clamping Bars (Part #C) are available, featuring rubber bumpers to grip components without scratching.

Is the shelf ventilated?

Yes, the shelf has a vented design to allow airflow and help cool AV equipment.

What is the warranty period?

The U1V shelf comes with a lifetime warranty against defects in material or workmanship.

Can I add a power strip to this shelf?

Yes, a 15 Amp 8 Outlet Slim Surge-Protected Power Strip (PD-815SC-PBSH) is available separately with a tool-less two-position mounting bracket.

How do I install the Rear L Brackets?

The brackets can be mounted in four different positions to accommodate various component depths. Refer to the assembly diagram.

What is the weight capacity of the shelf?

While not explicitly stated, the steel construction supports standard rack-mount AV equipment; for heavy items, use the optional Clamping Bars for added security.

Is the shelf compatible with standard 19-inch racks?

Yes, the U1V is designed for standard 19-inch rack mounting.

How do I clean the shelf?

Wipe the shelf with a dry, soft cloth. Avoid using solvents or abrasive cleaners.

USER MANUAL U1V Middle Atlantic

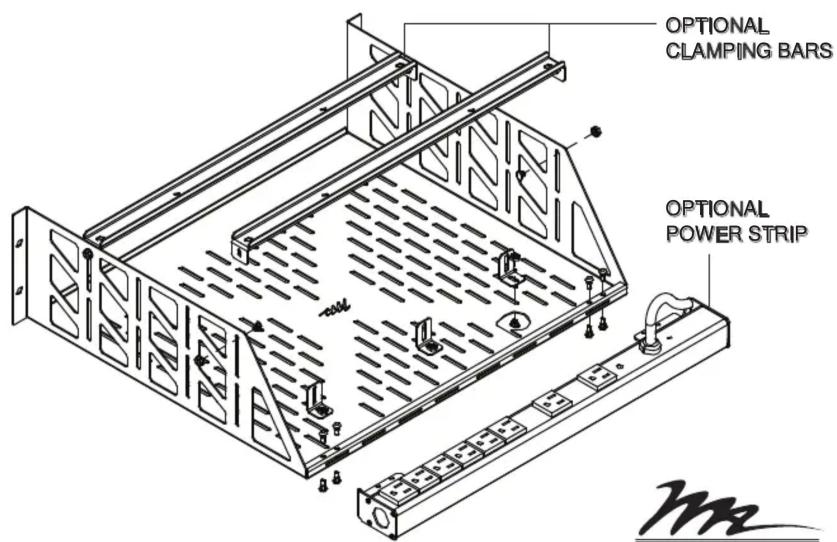

Isometric line drawing of a metal shelving unit with ventilation grilles and mounting hardware (no text or symbols)

ASSEMBLY

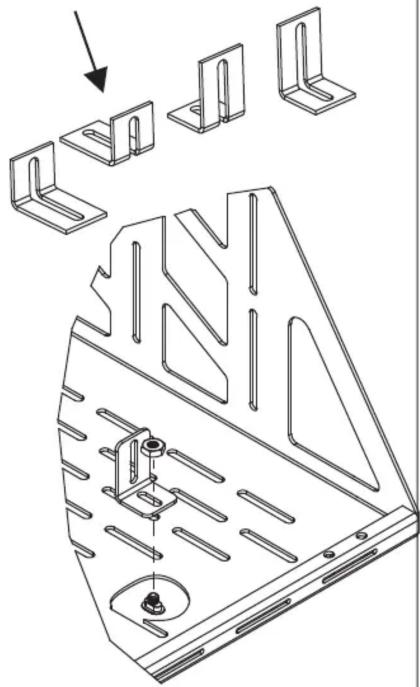

Three (3) Rear "L" Brackets are provided to prevent the component from sliding back, and can be mounted four (4) different ways.

Technical line drawing of a mechanical bracket assembly with mounting holes and internal components (no text or symbols)

OPTIONS (SOLD SEPARATELY)

• A 15 Amp 8 Outlet Slim Surge-Protected Power Strip with Tool-Less, Two-Position Mounting Bracket. Part Number PD-815SC-PBSH.
• The Clamping Bars are available for securing components to the shelf. The bars have rubber bumpers to maintain a tight grip while keeping components scratch-free. Part Number - C.

I-00314
Rev A

WARRANTY

Middle Atlantic Products, Inc. (the "Company") warrants the UxV Vented Utility Shelf to be free from defects in material or workmanship under normal use and conditions for the lifetime of the product.

The Company's entire liability to the purchaser, and the purchaser's (or any other parties) sole and exclusive remedy, under this warranty shall be limited, at the Company's option, to either (a) return of and refund of the price paid for, or (b) repair or replacement at the Company's factory of the products purchased, or any part or parts thereof, which the Company has determined to be defective after inspection thereof at the Company's factory.

This warranty does not cover damage due to acts of God, accident, misuse, abuse or negligence by parties other than the Company, or any modification or alteration of the products. In addition, this warranty does not cover damage due to improper handling, assembly, installation or maintenance.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF THE PRODUCTS PURCHASED, EVEN IF THE COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE COMPANY'S LIABILITY TO THE PURCHASER (OR ANY OTHER PARTY) HEREUNDER, IF ANY, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCTS PAID TO THE COMPANY.

Corporate Headquarters

Corporate Voice 973-839-1011 - Fax [phone]

International Voice [phone] - Fax [phone]

middleatlantic.com - [e-mail]

Middle Atlantic Canada

Voice 613-836-2501 - Fax [phone]

middleatlantic.ca - [e-mail]

Factory Distribution

USA: NJ - CA - IL Canada: ON - BC

At Middle Atlantic Products we are always listening. Your comments are welcome.

Middle Atlantic Products is an ISO 9001 Registered Company.
