USER MANUAL GDH-DEH16E DIMPLEX

Line drawing of a portable air conditioner unit with ventilation slots and control panel (no text or symbols)

CONTENTS

Description of components/function 1

Operating Instruction s 2

Continuous Drainage Feature 3

Cautions 4

Maintenance 5

Specifications Last Page

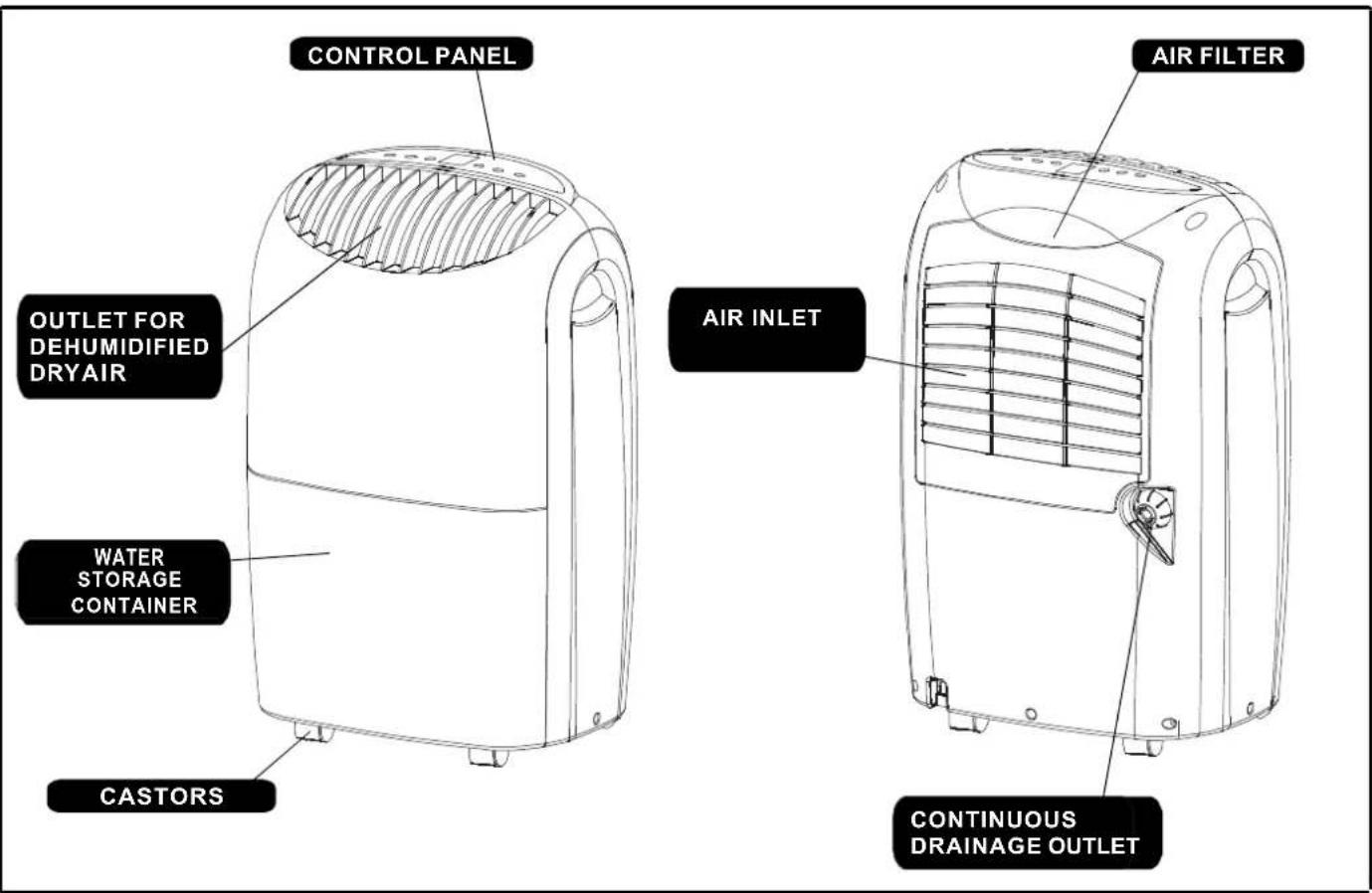

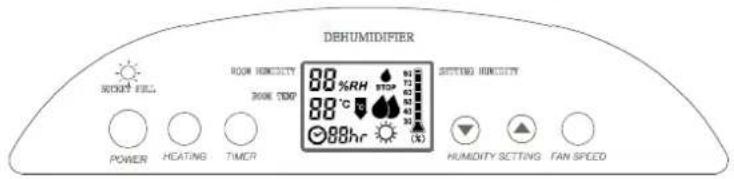

DESCRIPTIONOFCOMPONENTS

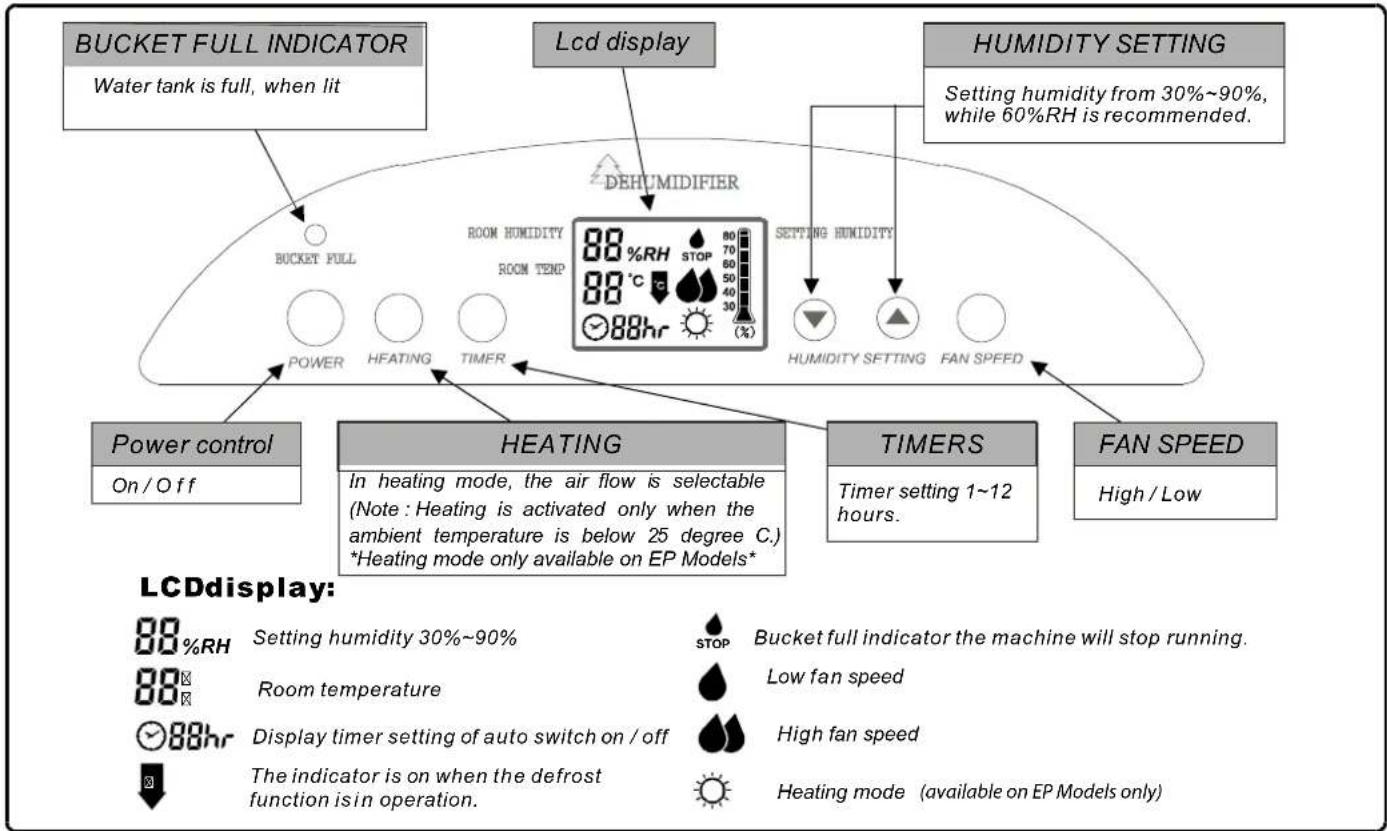

FUNCTIONEXPLANATION

OPERATIONINSTRUCTIONS

1) Make sure the plug is firmly plugged into the socket.

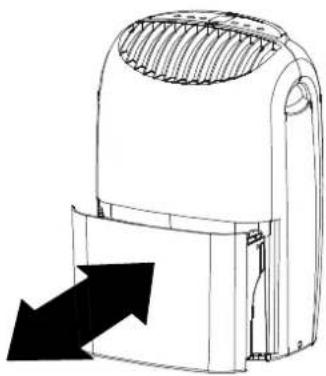

2) Make sure the water tank is placed in correct position. (When using the dehumidifier for the first time, if the full tank lamp is lit up, just pull out the water tank then push it back into the correct position.)

Technical line drawing of a mechanical device with a black arrow pointing to a component (no text or symbols present)

3 Full Tank Indicator

When the water tank is full, the indication lamp will light up, the dehumidifier will stop operating. Remove the water in the tank, then place the water tank back to it's proper position the machine will start operating again.

Illustration of hands using a mechanical device to lift or lift material (no text or symbols visible)

Remove the water in the water tank with two hands

4 DEFROST

When operating in low temperatures (less than 12^ C) the surface of the evaporator will accumulate frost and effect the efficiency of the dehumidifier. When this happens the machine will go into periodic defrost mode automatically. This is quite normal. Defrost lamp will come on. Model (GDH-DEH16E) will operate in temperatures down to 5^ C. Defrost time may vary. If the dehumidifier freezes up, turn off at power supply and restart unit. If the temperature remains at a very low level, continuously outside the operational range off the dehumidifier, 5^ C to 35^ C, the unit should be switched off.

CONTINUOUSDRAINAGE

ContinuousDrainageFeature

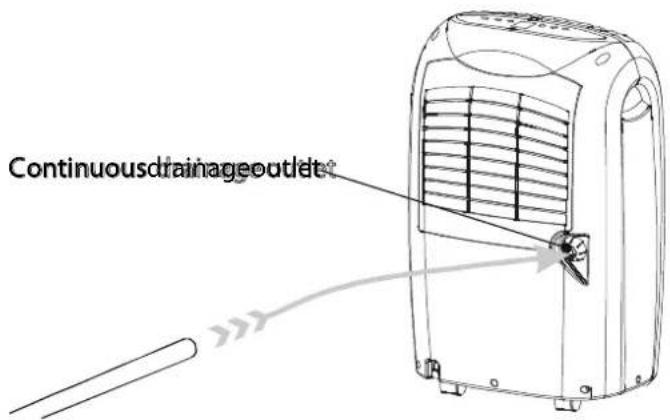

1) Put the PVC hose into the back of the closed hole, then connect the PVC hose to the front. PVC hose is not sold with this unit, but is readily available from your local hardware store.

1. Prepare PVC hose to drain out water(The hose requires an inner dia of 13mm)2. Take out the bung of the drainage outlet.	For drainage [6kDW] Back of the unit
3. Take out the soft cover, put it and tube bung into the bucket for storage.
4. Connect the PVC hose with the drainage outlet.
5. Place the bucket in its original location.	Drainage PVC hose Push bucket back into the unit toward the direction as the arrow points to←Bucket

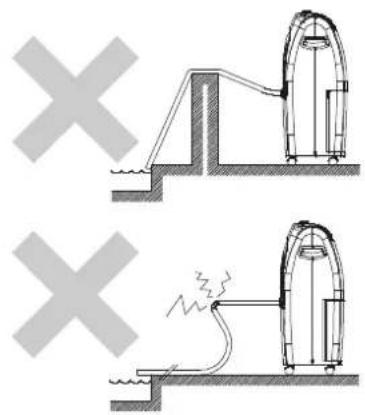

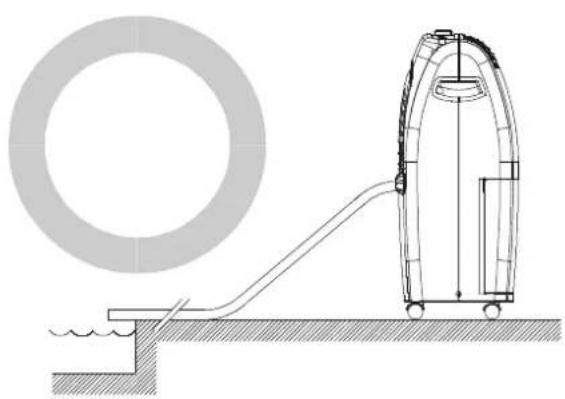

The Proper Way To Place The Water Drainage PVC Hose When using continuous drainage, the PVC hose most be placed below the drainage hole.

Technical line drawing of a mechanical device with a circular component and a curved housing (no text or symbols)

Do not pull the plug out with the cord

Do not place the machine on an uneven surface

Line drawing of a portable air conditioner unit with a gray X symbol above (no text or labels)

Do not put objects in the machine

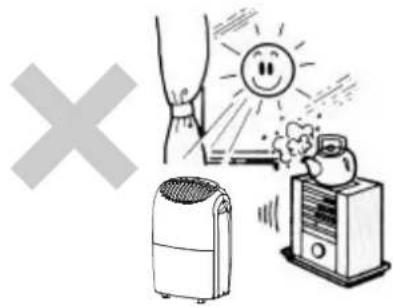

Keep the machine away from Extreme heat

Do not spray insect repellent, oil or paint spray near the machine

Illustration of a spray gun emitting smoke next to an air purifier with a cross symbol (no text or labels)

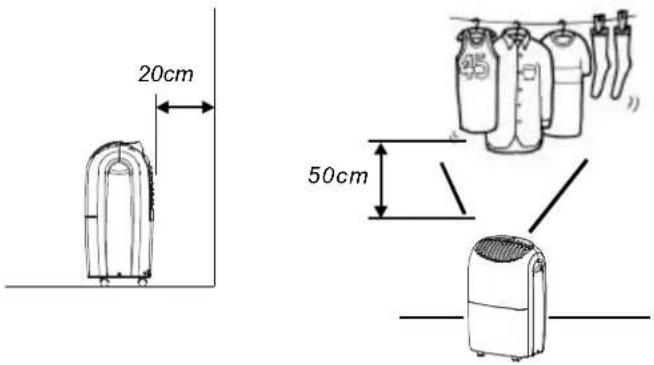

Keep the unit 20 cm away from the wall to dissipate the heat properly. Hang clothing at least 50 cm above the machine

Close windows and doors when in use.

Simple line drawing of a refrigerator with an air conditioner unit and a wall-mounted picture (no text or symbols)

When moving or storing, Keep dehumidifier upright

Top-down schematic of a vehicle or road with directional arrows and circular markers (no text or symbols)

MAINTENANCE

For safety reasons please make sure the dehumidifier is unplugged before cleaning.

Hand holding a plug inserted into an electrical outlet (no text or symbols visible)

1) Cleaning the Casing

A. Wipe the casing using soft and clean cloth.
B. Use mild detergent and a damp cloth to clean
C. Do not submerge unit in water

2) Cleaning the Air Filter

The purpose of the air filter is to filter dust or other materials in the air. clean the filter every two weeks.

Cleaning Steps

A. Pull out the filter gently.

Line drawing of a portable air conditioner unit with ventilation grilles and control knobs (no text or symbols)

B. Clean the filter by using a vacuum cleaner or washing with clean water. Then dry the filter with a cloth

Illustration of a hand using a vacuum cleaner to brush a tool over a grid-patterned tray (no text or symbols)

C. Place the filter back to it's position.

If a problem occurs, unplug the machine and contact your Dimplex Service Center immediately on 0800 6662824. Do not tamper with the internal workings of the unit.

SPECIFICATIONS

MODEL	GDH-DEH16E
POWER	220-240V /50Hz
MOISTURE REMOVAL	16L/D (30 80%RH)
POWER INPUT	360W
SIZE OF SHELL(WHDX)	362*582*270 mm
WEIGHT	17.5 kg
OPERATING TEMPERATURE	5°C 35 °C

- If the power cord on this unit is damaged it must be replaced by the manufacturer, a service agent or qualified persons in order to avoid ahazard.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
