LUC50S12 - Refrigerator Logik - Free user manual and instructions

Product Type	Refrigerator
Brand	Logik
Model	LUC50S12
Total Gross Capacity	Approx. 140 L
Refrigerator Capacity	Approx. 120 L
Freezer Capacity	Approx. 20 L (ice box)
Energy Class	F (EU Energy Label)
Annual Energy Consumption	Approx. 200 kWh/year
Noise Level	Approx. 40 dB(A)
Climate Class	N-ST (16°C - 38°C)
Voltage / Frequency	220-240 V / 50 Hz
Dimensions (H x W x D)	Approx. 850 x 500 x 550 mm
Weight	Approx. 30 kg
Number of Shelves	3 glass shelves + 1 door shelf
Number of Door Bins	3 (including egg tray)
Crisper Drawer	1 vegetable drawer
Ice Cube Tray	1
Interior Light	LED
Thermostat Type	Rotary dial, inside refrigerator
Defrost Type	Manual (refrigerator) / automatic (freezer? no, manual for both)
Reversible Door	Yes
Refrigerant	R600a
Compressor Warranty	5 years (depends on region)

Frequently Asked Questions - LUC50S12 Logik

How do I adjust the temperature in my Logik LUC50S12 fridge?

Turn the thermostat dial located inside the fridge compartment. A higher number means colder temperature. Usually, setting 3-4 is recommended for normal use. Wait 24 hours for full effect.

Why is my fridge making a loud noise?

Common causes include the fridge not being level (adjust feet), items inside vibrating, or the compressor starting up. Normal operating noise includes humming, gurgling (refrigerant flow), and occasional clicks.

How do I defrost my fridge?

The LUC50S12 requires manual defrost. Unplug the fridge, remove food, and leave the door open. Place towels to catch water. Do not use sharp objects to remove ice. Clean and dry before restarting.

How can I reverse the door opening direction?

Reverse the door by relocating hinges and handles to the opposite side. Refer to the user manual for specific steps. You'll need a screwdriver and possibly a spanner. Keep door closed upright to avoid damage.

What is the recommended temperature setting for the fridge?

For optimal food preservation, set the thermostat between 3 and 4. This maintains an internal temperature around 4-5°C in the fridge compartment.

How do I clean the interior of my fridge?

Unplug the fridge. Remove all food and shelves. Wash interior with a mild detergent and warm water. Rinse and dry thoroughly. Do not use abrasive cleaners. Leave door open until fully dry before restocking.

What should I do if the fridge is not cooling?

First, check power supply and thermostat setting. Ensure the door is sealing properly (clean gaskets). Wait 24 hours after plugging in. If still not cooling, the compressor or refrigerant may have failed; contact a technician.

Can I store hot food in the fridge?

No, allow food to cool to room temperature before placing it in the fridge. Placing hot food raises internal temperature, wastes energy, and can spoil other food. Divide into small portions for faster cooling.

How do I save energy with this fridge?

Keep fridge away from heat sources (oven, direct sunlight). Ensure good ventilation around the back. Set thermostat to recommended 3-4. Defrost regularly and keep door closed as much as possible.

Where can I find spare parts for the Logik LUC50S12?

Contact Logik customer service or an authorized service center. Parts like shelves, door bins, and light bulbs are available. Use only original parts for safety and performance.

USER MANUAL LUC50S12 Logik

50cm Silver Undercounter Fridge Freezer

LUC50S12

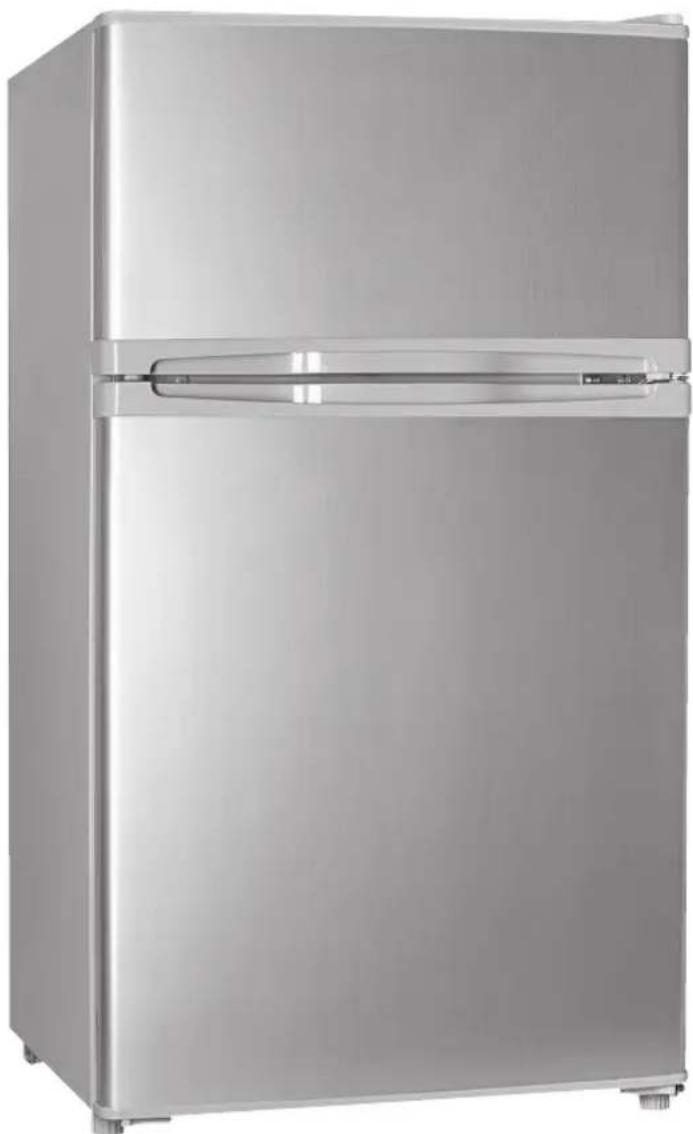

Exterior view of a modern stainless steel refrigerator with front and back panels (no visible text or symbols)

Safety Warnings....4

Unpacking....6

Installation....7

Location 7

Levelling the Unit 7

Free Space Requirements....7

Reversing the Door Swing......8

Cleaning Before Use 12

Before Using Your Unit....12

Product Overview....13

Operation 14

Switching On Your Unit 14

Adjusting the Temperature....14

Noises Inside the Unit! 14

Tips for Keeping Food in the Unit....14

Preparations for Freezing....15

Defrosting Frozen Food....15

Cleaning 16

Defrosting 16

Cleaning the Interior and the Exterior of the Unit....16

Maintenance 17

Changing the Internal Light 17

Care When Handling / Moving the Unit 17

Servicing....17

Switching Off for Long Periods of Time....17

Condensation....17

Disposal....17

Specifications....18

Safety Warnings

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

• Read all instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party, make sure to include this manual.

• This appliance is intended for indoor household use and similar applications such as:

• farm houses and by clients in hotels, motels and other residential type environment;

• bed and breakfast type environment;

• catering and similar non-retail applications.

• Ensure that the plug is easily accessible to enable disconnection from the mains supply.

• If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.
• Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.
  • The unit must be manoeuvred by a minimum of 2 persons.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the unit.
• If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment. (If applicable)

WARNING

• Keep ventilation openings in the unit enclosure or in the built-in structure clear of obstructions.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.
• Do not damage the refrigerant circuit (The refrigerant is a very environmental-friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)

WARNING

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

Thank you for purchasing your new Logik Fridge Freezer.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking

Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

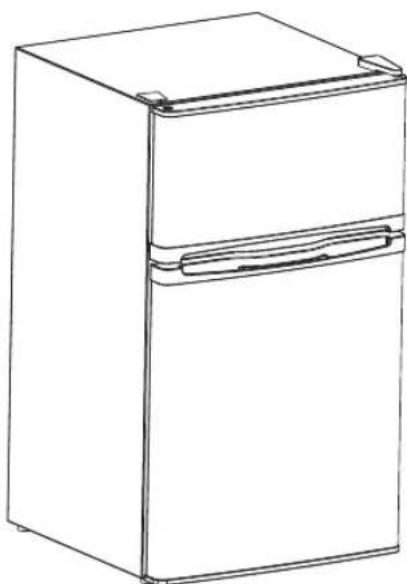

Line drawing of a two-door refrigerator with lid and frontrest (no text or symbols)

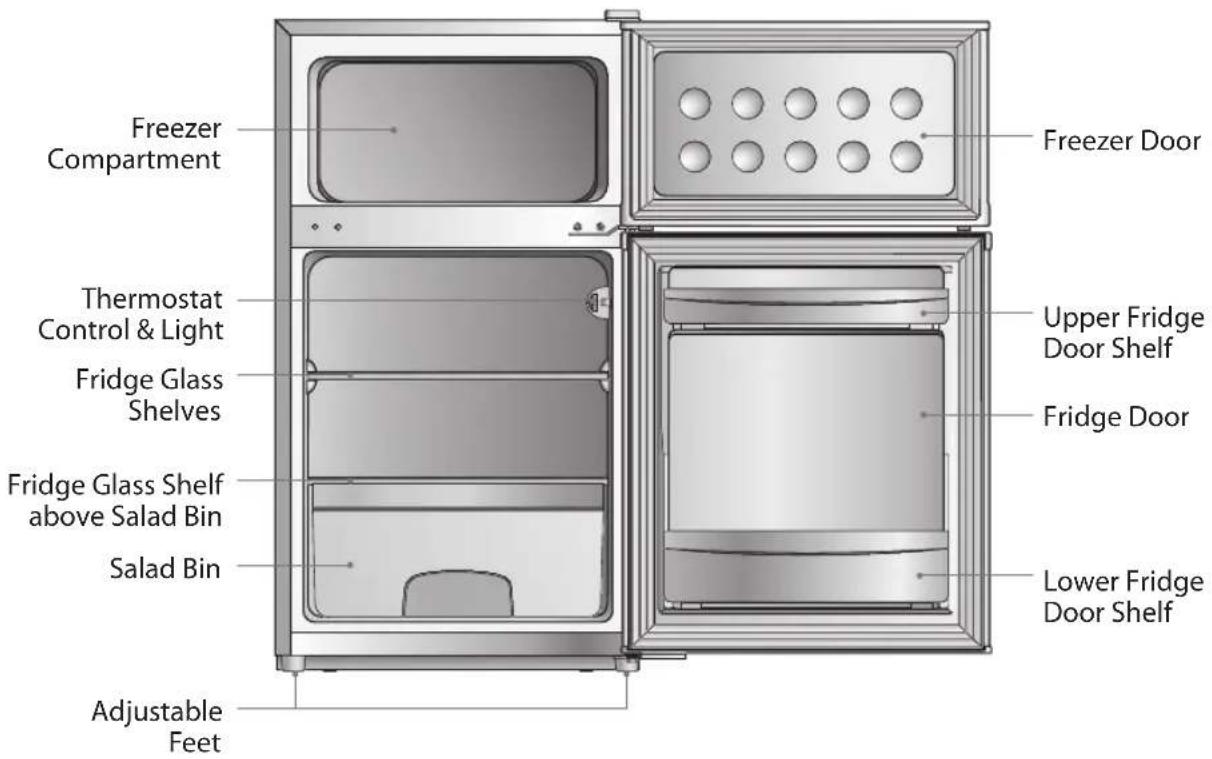

The Main Unit

Fridge Glass Shelf

Salad Bin Cover Shelf

Salad Bin Upper Fridge Door

Shelf

Rear Spacer x 2

Lower Fridge Door Shelf

Instruction Manual

If items are missing, or damaged please contact Partmaster (UK only).

Tel: [phone] for assistance.

Location

When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16^ C and 32^ C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not drape the unit with any covering.

Levelling the Unit

To do this adjust the two levelling feet at the front of the unit.

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Free Space Requirements

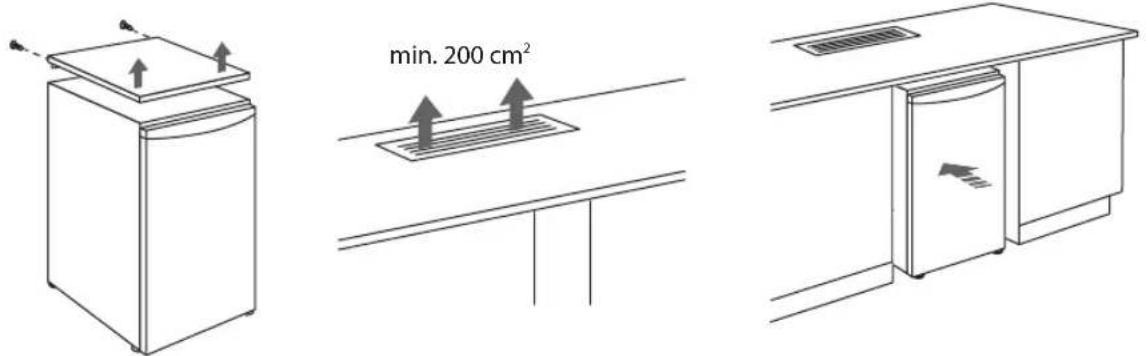

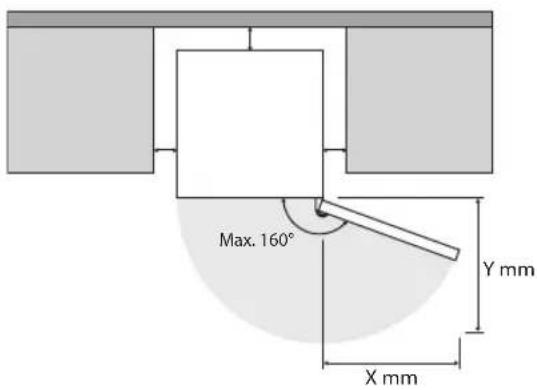

When installing the unit, ensure that 25 mm of free space is left at both sides, 50 mm at the rear of the unit and 25 mm at the top of the unit. The door can be opened to the right or the left, depending on which best suits the location.

Please ensure there is more than twice the width and depth distance space of the unit to fully open the door to a maximum angle of 160^ .

If the appliance is placed under a continuous worktop, the appliance lid (if applicable) may be removed and a ventilation grille of at least 200 cm ^2 (available from DIY shops or specialist retailers) should be installed to the worktop above the rear of the appliance to increase ventilation.

INSTALLATION

Benefits of increased ventilation:

• Lowered power consumption

• Improved cooling performance

- Reduce running costs

Prolong product life span

Reversing the Door Swing

Tools required: Phillips style screwdriver / Flat bladed screwdriver / Hexagonal spanner

• Ensure the unit is unplugged and empty.
• To take the door off it is necessary to tilt the unit backwards. You should rest the unit on something solid, e.g. a chair just below the top panel.
  • All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
  • We recommend that 2 people handle the unit during assembly.

• If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so.

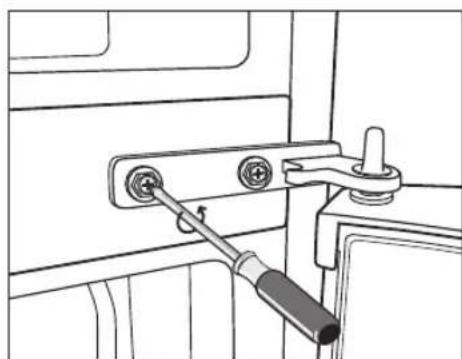

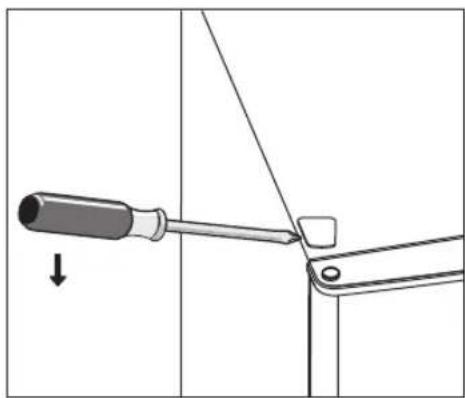

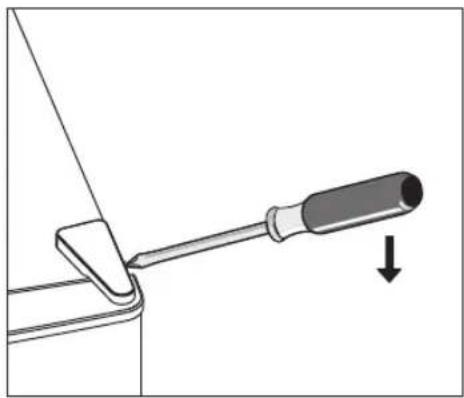

• Remove the top right hinge cover.

Diagram of a tool interacting with a mechanical component, showing a handle and a downward arrow (no text or symbols)

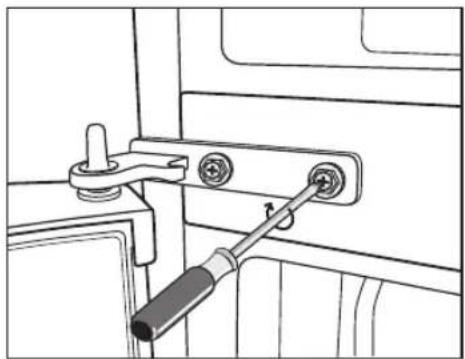

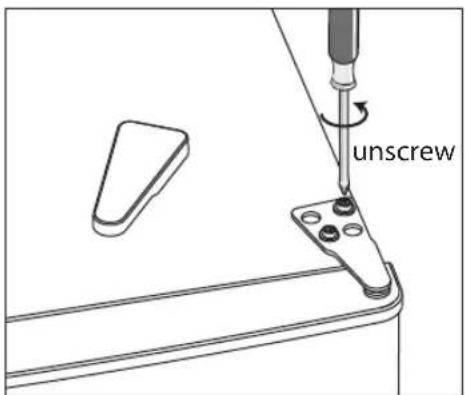

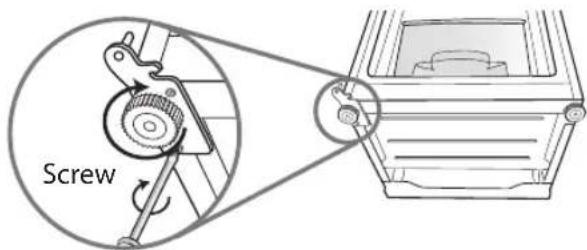

1. Undo the screws. Then remove the hinge bracket.

INSTALLATION

1. Remove the top left screw cover.

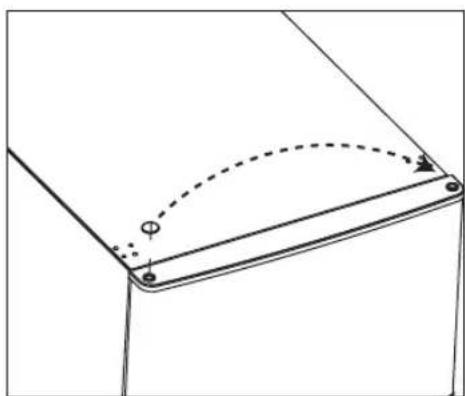

2. Move the core cover from left side to right side. And then lift the upper door and place it on a padded surface to prevent it from scratching.

3. Take off the middle hinge by removing the screws. And then lift the lower door and place it on a padded surface to prevent it from scratching.

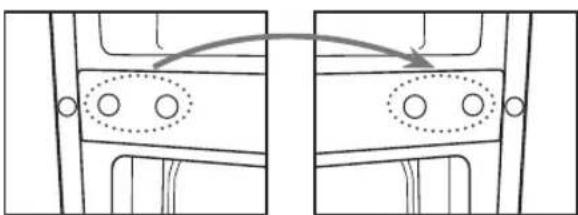

4. Remove the screws' covers and place them to the opposite side.

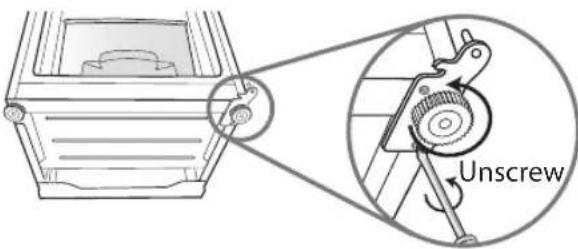

5. Remove the screws and bottom hinge. Then remove the adjustable feet from both side.

Diagram of a tool being inserted into a bracket, showing a screwdriver and handle (no text or symbols)

Pure technical diagram showing a curved dashed line and circular markers on a rectangular base (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram showing two identical mechanical components with circular features and directional arrows, no text or symbols present.

INSTALLATION

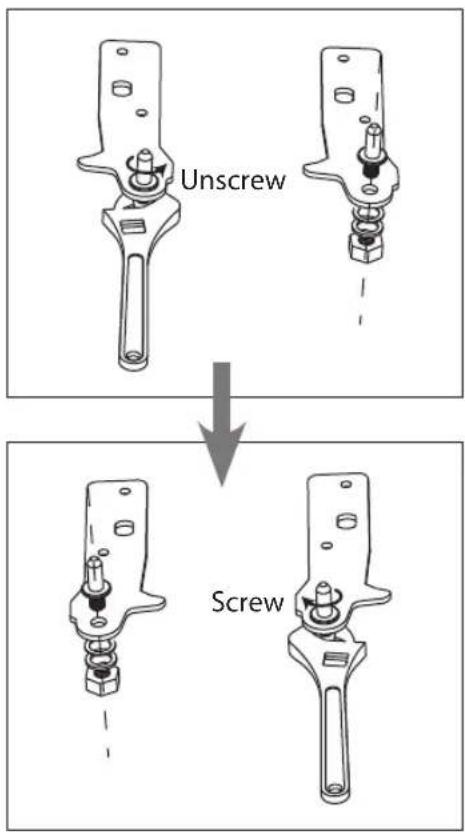

1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

1. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet. Transfer the lower door to the property position.

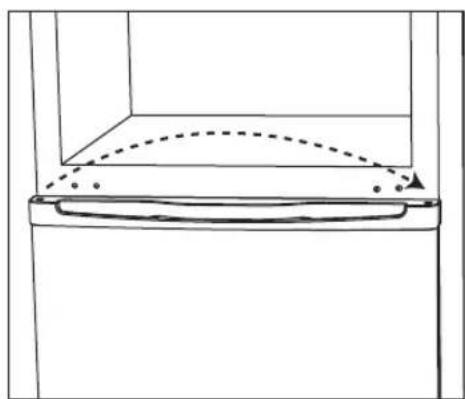

1. Move the hinge hole cover of lower door from left side to right side.

Simple line drawing of a 3D object with a curved dashed line and dotted markers, no text or symbols present.

INSTALLATION

1. Make the middle hinge reverse the direction 180^ C , then transfer it to the left property position. Make the middle hinge pin in the upper hole of the lower door, then tight the bolts.

Ensure the freezer door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the hinge.

1. Place the upper door back on. Ensure the fridge door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.

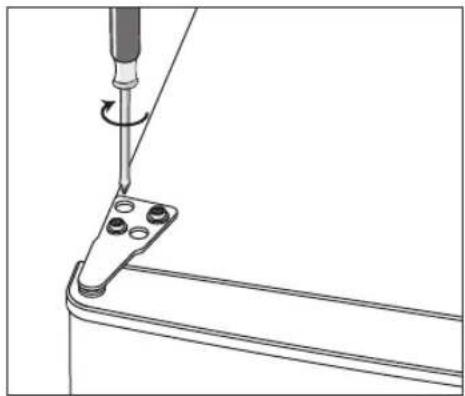

2. Insert the hinge bracket and screw it to the top of the unit.

3. Use a spanner to tighten it if necessary.

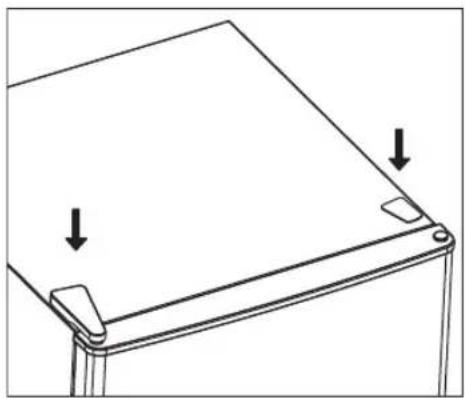

4. Put the hinge cover and the screw cover back.

5. With the doors closed, check that the doors are aligned horizontally and vertically and that the seals are closed on all sides before finally tightening the bottom hinge. Re-adjust the levelling feet as needed.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and bracket (no text or symbols)

Line drawing of a flat-panel object with two downward arrows indicating measurement or alignment (no text or symbols)

Line drawing of a two-door refrigerator with lid and front panel (no text or symbols)

Cleaning Before Use

Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wash the shelves and salad bin in warm soapy water and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

• Before Plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the unit.
• Before Turning On!
Do not turn on until two hours after moving the unit. The coolant fluid needs time to settle.

Before Using Your Unit

Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.

Switching On Your Unit

1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by a thermostat. There are eight settings, of which position 7 is the coldest and position 0 turns the unit off.

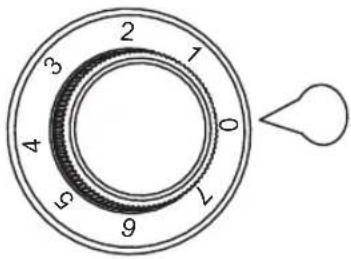

2. Adjust the thermostat control dial to the desired position, bear in mind that the higher the number, the lower the temperature. Position 3 or 4 is the recommended setting when operating at normal room temperature (between 16°C and 32°C).

3. The unit may not operate at the correct temperature if it is in a particularly hot or a particularly cold room, or if you open the doors often.

4. To ensure that the unit is cool enough to sufficiently chill and freeze your food, wait 24 hours before filling it with food.

5. If you are concerned that your unit is not being kept cold enough and wish to check the temperature, you will need a special fridge/freezer thermometer. These are available from most supermarkets and hardware shops. Place the thermometer in either the fridge or freezer compartment and leave overnight. The correct temperature for the fridge compartment should be an average of 5^ C. The correct temperature for the freezer compartment should be -18^ C or lower.

Adjusting the Temperature

The internal temperature of the unit is controlled by a thermostat. The recommended position is between 1 to 4 for colder working environments (i.e. during winter) and between 5 to 6 for hotter environments. Please adjust according to the environment.

Noises Inside the Unit!

You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them!

These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your unit. This is the compressor motor working, as it pumps the refrigerant around the system.

Tips for Keeping Food in the Unit

• Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.
• Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the unit are kept cool.

• To prevent transfer of flavours and drying out, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.

• Always let pre-cooked food cool down before you put in the unit. This will help to maintain the internal temperature of the unit.

• To prevent cold air escaping from the unit, try to limit the number of times you open the door. We recommend that you only open the door when you need to put food in or take food out.

Preparations for Freezing

• Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better.
• Leave cooked food to cool completely. Chill food before freezing if possible.
• Consider how you will want to cook the food before freezing it.
• Don't freeze food in metal containers if you may want to microwave it straight from the freezer.
• Use special freezer bags, freezer film, polythene bags, plastic containers, and aluminium foil (heavy duty grade only). If in doubt, double wrap your food. Don't use aluminium foil for acidic foods, e.g. citrus fruits. Don't use thin cling film, glass, or used food containers without cleaning.
• Exclude as much air from the container as possible. You could buy a special vacuum pump which sucks excessive air out of the packaging.
• Leave a small amount of air space when freezing liquids to allow expansion.
• You can use the space in the freezer most efficiently if you freeze liquids (or solids with liquids, e.g. stew) in square blocks. This is known as "Preforming". Pour the liquid into a polythene bag which is inside a square sided container. Freeze it, and then remove it from the container and seal the bag.
• Label your frozen foods as they will look the same when in frozen state. Use special freezer tapes, labels and pens with different colours. This allows you to easily organise and to effectively use the freezer. Write the contents and date; otherwise the frozen food might exceed the storage time and this could cause food poisoning. Please refer to your food packaging for the recommended storage time.

You may also add the weight and cooking notes, e.g. "defrost first", "cook from frozen" and keep a separate log of what is in each drawer. This will save opening the door and searching around unnecessarily.

Defrosting Frozen Food

1. Take the frozen food out from the unit and uncover the frozen food. Let it defrost at room temperature. Don't forget that defrosting in a warm area encourages the growth of bacteria and low temperature cooking may not destroy dangerous bacteria.
2. Drain off and throw away any liquid lost during defrosting.
3. Always make sure there are no ice-crystals in the food before cooking, particularly with meat. These crystals indicate that the food has not fully defrosted.
4. Cook food as soon as possible after defrosting.
5. Many microwaves and ovens have a defrost setting. To avoid bacterial build up, only use these if you intend to cook the food immediately afterwards.

Never refreeze anything that has been defrosted unless you cook it again, to kill off harmful bacteria. Never re-freeze defrosted shellfish. Re-seal packs properly after removing items. This prevents drying or freezer-burn and a build up of frost on any remaining food.

Defrosting

Frost might build up in the freezer compartment after it has been used for a period of time.

Scrape away the frost using a plastic scraper.

Do not use a metal or sharp instrument to scrape away the frost, nor should you use any electrical appliances to aid defrosting.

We recommend that defrosting should be carried out when the frost layer builds up to 10mm (\~0.39"). Choose a time when the stock of frozen food is low, follow these procedures:

1. Take out the food, turn the unit off at the mains supply and leave the door open. Ideally, the frozen food should be put into another freezer. If this is not possible, wrap the food in several sheets of newspaper or large towels and then a thick rug or blanket to keep it cool.

2. Place a shallow bowl or pan below the freezer compartment. Scrape away the frost using the plastic scraper (not included). Defrosting the remaining frost can be speeded up by placing a bowl of hot water inside the freezer compartment cabinet and closing the door. As the solid frost loosens, scrape it away with the plastic scraper and remove.

Line drawing of a stylized tool or scraper (no text or symbols)

1. When defrosting is complete, clean your unit's interior and exterior.

Cleaning the Interior and the Exterior of the Unit

• Remove all the shelves and salad bin before cleaning. To remove the salad bin first remove the lower fridge door shelf.
• Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with warm water using a 'wrung-out' sponge or cloth. Wipe completely dry before replacing the shelves and salad bin.
• Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make sure that the doors are closed to avoid the polish getting on the magnetic door seals or inside the fridge/freezer compartments.
• The grille of the condenser at the back of the unit and the adjacent components can be vacuumed using a soft brush attachment.

Changing the Internal Light

1. Before carrying out the bulb replacement always adjust the thermostat control dial to Position OFF, then disconnect the mains supply.
2. Use a flat bladed screwdriver and gently prise off the light bulb cover.
3. Remove the old bulb by unscrewing in an anticlockwise direction.
4. Replace with a new bulb (10W SES).
5. Refit the light bulb cover and reconnect the unit to the mains supply and switch on by adjusting the thermostat.

Technical line drawing of a mechanical component with no visible text or symbols

Care When Handling / Moving the Unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Servicing

The unit should be serviced by an authorised engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off for Long Periods of Time

When the unit is not in use for a long period of time, disconnect it from the mains supply, empty all food and clean the unit, leaving the door ajar to prevent unpleasant smells.

Condensation

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact a qualified technician for assistance.

Disposal

Old units still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. The refrigerant used in the unit and insulation materials require special disposal procedures. Ensure that none of the pipes on the back of the unit are damaged prior to disposal.

Up to date information concerning options of disposing of your old unit and packaging from the new one can be obtained from your local council office.

When disposing of an old unit break off any old locks or latches and remove the doors as a safeguard.

Model LUC50S12
Appliance Category Category 7 (Refrigerator - Freezer)
Overall Dimension (H x W x D) 850 x 480 x 520 mm
Fresh Food Storage Compartment Volume	60L
Frozen Food Storage Volume	25L ✦ ✦ ✦
Defrosting Type Manual Defrost
Climate Class N
This appliance is intended to be used at an ambient temperature between 16°C and 32°C.
Storage Temperature	Freezer: ≤-18°CFridge: 0-8°C, average ≤4°C
Energy Consumption 0.450 kWh / 24 h
Energy consumption 164 kWh per year, based on standard test results for 24 hours.Actual energy consumption will depend on how the appliance is used and where it is located.
Airborne Acoustical Noise 42dB(A)
Energy Grading A+
EU Ecolabel N/A
Temperature Rise Time 15hrs
Freezing Capacity 2 kg / 24 h
Rated Voltage	220-240V~
Rated Current	0.60A

Features and specifications are subject to change without prior notice.

For general information about this appliance

and handy hints and tips, please visit

www.knowhow.com/knowledgebank or call 0344 5611234.

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct

to your door the very next day. Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only) Calls charged at National Rate.

The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.
