Coffee station - Water heater TAURUS - Free user manual and instructions

Product Type	Water Heater / Coffee Station
Brand	Taurus
Model	Coffee Station
Dimensions (W x D x H)	30 x 25 x 40 cm
Weight	3.2 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	1500 W
Water Tank Capacity	1.5 L
Maximum Pressure	15 bar
Functions	Water heating, coffee brewing, hot water dispense
Control Type	Push-button with indicator lights
Material	Plastic housing, stainless steel heating element
Safety Features	Auto shut-off, boil-dry protection, overheat protection
Maintenance	Descaling every 2-3 months with descaling solution
Cleaning	Wipe exterior with damp cloth; removable drip tray and tank
Spare Parts Availability	Replacement carafe, filter basket, drip tray
Repairability Index	7.0 / 10
Certifications	CE, RoHS

Frequently Asked Questions - Coffee station TAURUS

How do I descale the Taurus Coffee Station?

Use a descaling solution mixed with water. Fill the tank, run a cycle without coffee, then rinse with fresh water. Repeat every 2-3 months.

What type of coffee can I use?

This machine is designed for ground coffee. Use medium grind for best results. Do not use instant coffee.

Why is the water not heating?

Check if the power cord is plugged in and the on/off button is pressed. If still not heating, it may need descaling or there is a safety shut-off activated.

How often should I clean the drip tray?

Empty and rinse the drip tray after each use to prevent mold. Wash it weekly with mild soap.

Can I use the hot water function without coffee?

Yes, you can dispense hot water by pressing the hot water button without adding coffee grounds. Ideal for tea or instant soups.

What does the auto shut-off feature do?

The auto shut-off turns off the machine after 30 minutes of inactivity to save energy and prevent accidents.

How do I replace the carafe?

Purchase a replacement carafe from Taurus or authorized dealers. Simply lift the old one and insert the new one; no tools required.

Why is there coffee ground in my cup?

Ensure the filter basket is properly inserted and that you are using a paper filter (size #4) if your model requires one. Also check for cracks in the basket.

Is the machine safe to leave unattended?

Yes, it has boil-dry protection and auto shut-off, but it is always best to switch off and unplug when not in use.

Where can I find the user manual?

You can download the manual for free from notice-facile.com in PDF format. It covers all instructions and troubleshooting.

USER MANUAL Coffee station TAURUS

READ ALL THE INSTRUCTIONS BEFORE ASSEMBLE AND USE OF PRODUCT.

KEEP INSTRUCTIONS FOR FUTURE USE.

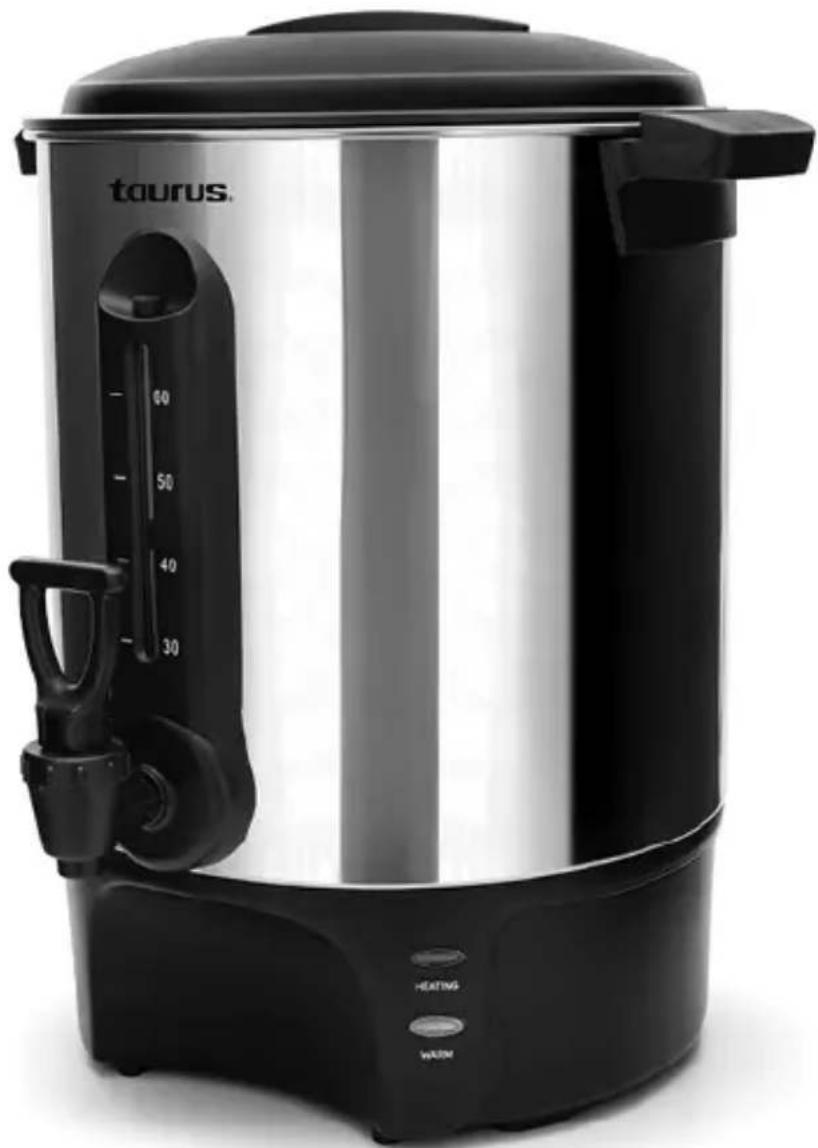

Exterior view of a taurus coffee maker with black and silver casing (no visible text or symbols)

www.taurus.com.mx

Thank you for purchasing a TAURUS® appliance. Its technology, design and functionality will give you total satisfaction for a long time.

TAURUS® actively participates in the preservation of the environment by using recyclable packaging materials in all of its appliances. Whether you wish to get rid of them you can put them on those properly indicated public recyclable trash containers.

IMPORTANT

• Please read carefully this entire instructions manual before ensemble this unit together and before using it for the first time.
• Before plugging this household to the electric power supply socket, make sure it carries the indicated voltage for this appliance which is 127 V -.
• Remove all packaging materials away from the appliance.
• Follow cleaning instructions before first time use.

LET'S GET STARTED!

Your new coffee maker has many benefits:

1. Does not require paper filters, which will result in money saving while you take care of the environment.
2. 60 cup capacity ideal for feasts and meetings.
3. The location of its dispenser tap allows to serve into any kind of mug.

SAFETY GUIDELINES AND ADVICES

PLEASE READ CAREFULLY THIS INSTRUCTIONS MANUAL BEFORE PUTTING TOGETHER AND START OPERATING THIS PRODUCT. PLEASE KEEP THIS INSTRUCTIONS MANUAL IN A SAFE AND WELL KNOWN PLACE FOR FUTURE REFERENCE.

KEEP THIS HOUSEHOLD AWAY FROM WATER. DO NOT USE IT EITHER NEAR THE SINK OR ANY OTHER LIQUID CONTAINERS.

PLEASE SET YOUR HOUSEHOLD ON A FLAT STEADY SURFACE. DO NOT SET THIS UNIT EITHER ON OR NEAR AN ELECTRIC OR GAS STOVES.

WARNING: AS ANY OTHER ELECTRIC POWERED HOUSEHOLD, THIS ONE CONTAINS PARTS WHICH DRIVE ELECTRICAL POWER WHILE CONNECTED, EVEN WHEN THE UNIT IS TURNED OFF.

WARNING: ELECTRICAL SHOCK DANGER

Recommendations:

1. Use exclusively a grounded outlet.
2. Do not use any external cords, adapters or timers.
3. Do not overcharge the electrical power socket where you plug this appliance.
4. Always set the appliance on a dry, flat and steady surface. Do not handle this appliance with wet or damp hands. Before you connect the appliance to the electrical power, make sure that the connection and the cord are completely dry.
5. Do not submerge on water or any other liquid. DO NOT USE THE APPLIANCE IF IT FELL INTO WATER.

IMPORTANT SAFETY GUIDELINES

- Before using for the first time, please clean all the components which might be in contact with food in accordance with the cleaning part from this instructions manual.

- Please keep away from the children. Please keep both cable and plug away from them.

- Please do not allow this appliance to be operated either by children or by any other person who might have a physical or mental disability, or by people who has not received the proper guidance or training in the use of this appliance or this instructions manual.

- Special supervision is required when children or people with any disability are near when this appliance is under use. Make sure to keep this appliance away from them.

• This appliance is not a toy. Do not allow children to play with this appliance.

- In order to avoid any electrical shock accident never use this appliance with wet hands. Neither submerge this appliance in water nor set over spilled liquids.

- Do not leave the electrical cord hanging, nor allow it to be in touch with hot surfaces, nor sharp objects.

- Do not keep this appliance near any edge where it can falls into the sink or tub or any other liquid container.

- If this appliance accidentally falls into water, unplug from the electrical power immediately. NEVER TRY TO REACH WITH YOUR BARE HANDS TRYING TO GET THE APPLIANCE OUT OF THE WATER.

- Do not use this nor other electrical appliance if the electrical cord or the plug are in any way damaged. As well as whether this appliance is not working properly or any of its components is damage. Do not use if it has any leaks or if it accidentally fell into water or any other sort of liquid substance. If that is the case take this appliance to your nearest authorized service center so that this can be check and/or fix.

- Use this coffee maker strictly as the way it is described on this instructions manual, so that it is described here the way it was intended. Do not use other accessories which are not recommended by the manufacturer.

- Do not set this coffee maker neither over the stove, whether it is gas or electrical fed, nor near the oven.

- Do not use this appliance outdoors. Do not operate under 0^ .

- This appliance has been designed exclusively for domestic use.

- Warning: please turn off this appliance before cleaning, as well as when any accessory will be changed or when this appliance is being put away.

- Please remember always to unplug your appliance after using it.

- To avoid any electrical shock risk, never try to reach any internal cavity of this appliance.

- If any cover from the appliance appears tore, unplug immediately from electrical power in order to avoid a possible electric shock.

- Do not force the electrical cord. Never pull the cable in order to unplug, raise or move this appliance.

- Never twist the electric cord around your appliance. Please keep constantly checking your electrical cord appearance, since electrical cords in bad shape or tangled may result in electrical shock risk. Please always keep the cord from twisting or tangle.

· DO NOT INTRODUCE STRANGE OBJECTS INSIDE THE COFFEE MAKER WHILE WORKING. Once the appliance is unplugged from the electric power supply and properly

turned off, you can be able to introduce cleaning ware inside, make sure to remove them before operating the unit again.

• MAKE SURE TO USE EXCLUSIVELY ROOM TEMPERATURE DRINKING WATER, OTHERWISE ANY MALFUNCTION OCCASIONED WILL NOT BE CONSIDERED BY THE WARRANTY.
• Make sure to turn off the coffee maker between every working cycle and allow the appliance to cool off for 5 minutes at least.
• The manufacturer will not be responsible for any damage resulting from wrong use of the appliance.
• KEEP THE APPLIANCE AWAY FROM WATER ALL THE TIME. Make sure to clean any spilling in order to avoid an electric hazard.
• Please make sure your appliance rest over a plain secure surface before you start it.
• Please make sure every connection is clear and dry.
• Please make sure the lid is properly closed before turn the appliance on. NEVER open while in operation.
• Do not touch the hot surfaces of the coffee maker. Always manipulate the appliance by the handles.
• Never plug nor turn on the coffee maker if the urn is empty, the appliance will cutoff automatically until manually reset (check use instructions for further information).
• Do not fill up the urn above the maximum level of 9,5 l (321 oz).
• Keep your face, hands and arms and any other sensitive part of your body away from the steam which may flow out from the appliance while operating or when you open the lid. Never leave the appliance unattended.
• Do not move nor turn the appliance while operating, when it contains fluid inside or while plugged to the electric power supply.
• Do not use the appliance with a timer or any other automatic "ON/OFF" device.
• Before plugging the appliance to the electric power supply, make sure it is correctly turn off.
• Please always remember to turn off and unplug from the power source before handling the appliance, switching any component or move away from the pouring base.

ANY BREACH OF THIS SAFETY GUIDELINES, WARNINGS OR INSTRUCTIONS MAY REPRESENT A MISUSE WHICH NOT ONLY WILL VOID THE GUARANTEE BUT ALSO MAY REPRESENT A HAZZARD FOR THE USER.

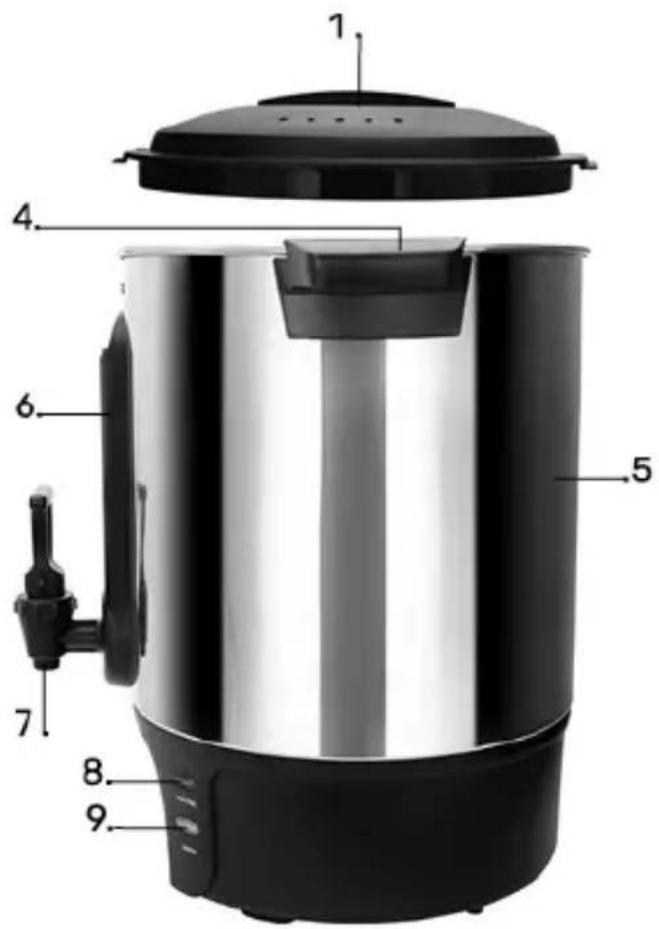

PARTS OF YOUR COFFEE MACHINE

1. Lid.

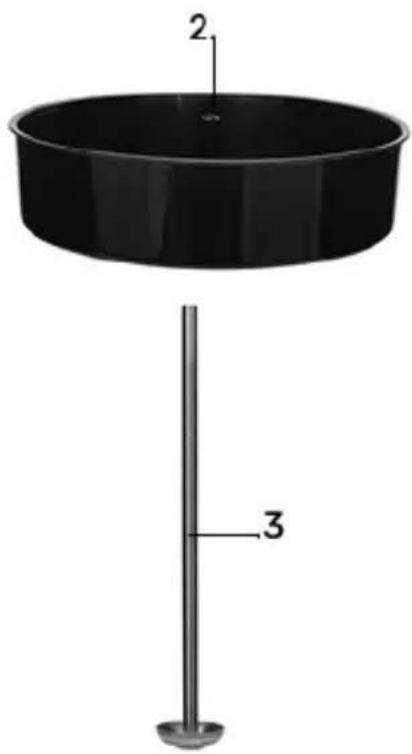

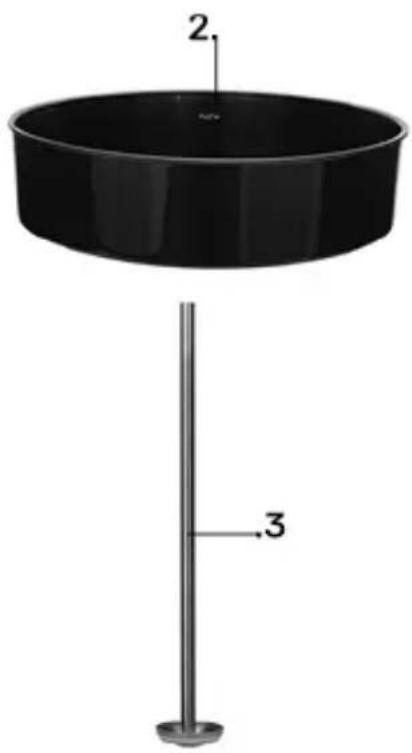

2. Coffee filter.
3. Water pipe.
4. Insulating handles.
5. Stainless steel urn.

6. Water level window.

7. Coffee dispenser.

8. Heating indicator light.
9. Keep warm indicator light.

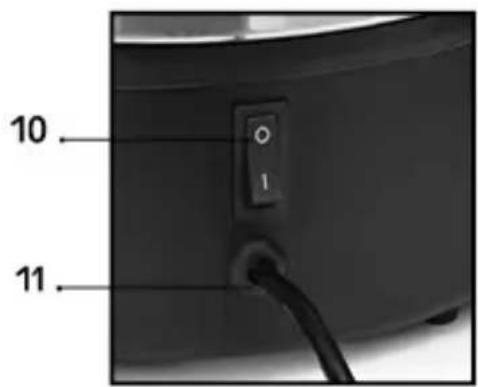

10. On/off switch.
11. Cord.

OPERATION INSTRUCTIONS

Use and care

• Remember to untangle the electric cord before using your appliance every time.
• Do not use your appliance if every accessory is not correctly ensemble.
• Do not turn on the appliance if the water urn is empty.
• Do not use the appliance if the "ON/OFF" function is not working.
• Do not move or turn the appliance when in use or plugged.
• Do not fill up the urn above the maximum level of 9.5 l (321 oz).
• Remember always to turn off and unplug your coffee maker from the electric power source whenever is not in use, before you remove or change any accessory and before you clean your appliance.
• Please take extreme precautions while handling the appliance, since the stainless steel um can get extremely hot, always use the handles to manipulate.
• Never leave your appliance unattended and plugged to the power source; not only you will make your coffee maker last longer but also you will save energy.
• Make sure to dry any remaining liquid drops which could have spilled, before plugging to the electric power supply.

IT IS EXTREMELY IMPORTANT NEVER TO FILL UP THE WATER DEPOSIT OVER ITS MAXIMUM CAPACITY OF 9,5 l (321 oz), SINCE WATER CAN BE SPILLED AND CAUSE ANY ELECTRIC HAZARD.

HOW TO USE

Before using for the first time:

- Clean the appliance as indicated at the cleaning part of this manual.

Coffee brewing:

• Set the coffee maker on a steady, completely dry and high temperature resistant surface.
• Turn the lid clockwise and lift.
• Fill up the coffee urn with room temperature water according to the number of cups you want to brew. Make sure not to over fill the indicated water deposit maximum level and to fill above the minimum level Use room temperature water exclusively.
• Insert the water pipe and the filter inside the urn. At the bottom of the coffee maker there is a hole to insert the water pipe in it.
• Fill the coffee filter up with ground coffee, the recommended amount of ground coffee is one coffee scoop for each 150 ml (5 oz) of water used, however the coffee amount depends on user preferences.
• Plug the appliance to the electric power supply and turn it on by pushing the "ON/OFF" switch, the heating indicator light will turn on.
• Once the coffee is ready to drink, the keep warm indicator light will turn on.
  • After use, turn off your coffee maker by pushing the on switch to the off position, unplug and wait the coffee maker to cool off before cleaning, storage or using it again.

CLEANING

Before first use

1. Remove all packaging materials.
2. Wash the filter, water pipe and lid with a soft sponge, water and soap.
3. Clean the unit's urn with a lightly wet cloth. Never pour water directly nor submerge for cleaning. Dry perfectly before every use.

Regular cleaning

Make sure to unplug from the electric power supply and wait for the appliance to cool off before cleaning..

A. Filter, water pipe and lid cleaning.
1. Wash with liquid soap and a soft sponge.
2. Wash the filter with a brush, water and liquid soap.
B. Coffee maker body cleaning (stainless steel urn).
1. Clean the coffee maker with a lightly wet cloth. NEVER SUBMERGE ON WATER.

Make sure all the elements are perfectly dry before ensemble them together.

CARE AND MANTEINANCE

This appliance requires very little maintenance and do not contain parts which can be repaired. Do not try to repair them yourself. In case that your appliance fails take it to an authorized service center.

STORAGE

Before you store your coffee machine, be sure it is off and unplug it from the electric source. Clean your coffee machine as described on the "Regular cleaning" part. Be sure it is completely dry and store your coffee machine in a clean, dry place away from the reach of children or people with any disability.

FAILURES AND REPAIR

If the power cord is damaged in any way, it should be replaced by the manufacturer, by any technician at an authorized service center or by a qualified trained person, in order to avoid any personal damage. Never try to repair by yourself. Follow this procedure whether any other failure appears.

SPECIAL RECOMMENDATIONS

TAURUS-ESPAÑA S.A. de C.V. will not be responsible for any failure caused by a wrong use or interpretation of the text on this instructions manual. If you need further assistance on this matter, please contact your seller directly.

GUARANTEE

This "coffee maker" is guaranteed by TAURUS-ESPAÑA S.A. de C.V. for a 2 years lapse, starting from the purchase date.

TERMS

In order to apply the guarantee, you will only be asked to present the product itself and this policy, properly filled and sealed along with the actual date when this appliance was purchased, by the place where it was originally acquired or any authorized service center you are able to find through the directory attached within.

Our guarantee includes repair, replacement or the physical change of the product or any attachment or spare part free of charge, this includes the labor as well as the shipping cost.

The time spent to repair this unit will be a thirty working day period starting from the date when the unit was received by the authorized by the manufacturer service center where this guarantee can be claimed.

The customer can claim the guarantee directly through the place where the appliance was purchased, as well.

Please note that if this guarantee is in misplaced or lost the customer can always go to supplier in order to ask for new guarantee policy by presenting his purchase ticket or invoice.

VOID OF THE GUARANTEE

This guarantee does not cover:

1. Any situation derivate of operating this product differently from the normal conditions.
2. Any situation derivate of operating this product differently from those guidelines mentioned in this instructions manual.
3. When this product had been disarmed, repaired or modify by non-authorized by TAURUS-ESPAÑA S.A. de C.V. personnel.

No other guarantee, either verbal or print different from his one will be accepted by TAURUS-ESPAÑA S.A. de C.V.

Original spare parts or attachments can directly be acquired through any of the authorized service centers mentioned on the directory attached within.

In order to claim the guarantee of this product:

1. Take the appliance along with this policy properly filled, sealed and dated by the place where his unit was purchased, to the nearest authorized service center. You can find the nearest to your home on the directory attach within or at our web page: https://www.taurus.com.mx/atencion-al-cliente/

2. If there is not an authorized service center near you call 800 777 81 62 where someone will guide you on how to claim the guarantee.

Producto/Product: Cafetera percoladora / coffee urn

Marca/Brand : TAURUS

Modelo/Model : COFFEE STATION 60

Nombre del Distribuidor/Name of the distributor : ____

/ Electric specifications

127 V\~ 60 Hz 1500 W
