CF1064WHY - Wall socket Panduit - Free user manual and instructions

Product Type	Wall Socket (Duplex Outlet)
Brand	Panduit
Model	CF1064WHY
Color	White
Material	Thermoplastic
Dimensions (H x W x D)	4.5 x 2.75 x 1.2 inches (114 x 70 x 30 mm)
Weight	0.15 lbs (68 g)
Voltage Rating	125 VAC
Current Rating	15 A
Number of Outlets	2 (Duplex)
Grounding	3-wire grounding (NEMA 5-15R)
Operating Temperature	-20°C to 60°C
Installation Type	Flush wall mount
Compatibility	Standard NEMA 5-15R plugs
Safety Certifications	UL Listed, CSA Certified
Flame Rating	UL 94 V-0
Terminal Connection	Screw terminals (side and back wiring)
Included Accessories	Wall plate and mounting screws
Usage Location	Indoor
Warranty	Limited lifetime

Frequently Asked Questions - CF1064WHY Panduit

How do I install the Panduit CF1064WHY wall socket?

Ensure power is off. Connect wires to screw terminals: black (hot) to brass, white (neutral) to silver, green/bare (ground) to green screw. Mount into box and attach faceplate.

What is the voltage and amperage rating of this socket?

It is rated for 125 VAC and 15 A, compatible with standard NEMA 5-15R plugs.

Can I use this socket for outdoor applications?

No, it is designed for indoor use only. For outdoor, use a weather-resistant cover.

How do I remove the socket from the wall?

Turn off power, remove the faceplate screw, unscrew the socket from the box, disconnect wires, and remove.

Is the CF1064WHY compatible with screwless wall plates?

Yes, it fits standard wall plates; the included faceplate is screwless or screw-on depending on design.

What tools are needed for installation?

You need a screwdriver (Phillips or slotted), wire stripper, and voltage tester. Always turn off power at the breaker.

What is the material of the socket?

It is made of thermoplastic with a UL 94 V-0 flame rating for safety.

Does it come with a warranty?

Yes, Panduit offers a limited lifetime warranty against defects.

Can I use this socket for aluminum wiring?

It is designed for copper wiring. For aluminum, use appropriate connectors or consult an electrician.

How do I clean the socket?

Wipe with a dry cloth. Do not use water or cleaning solvents. Ensure power is off before cleaning.

USER MANUAL CF1064WHY Panduit

Technical line drawing of a rectangular mechanical component with mounting flanges and a central cutout (no text or symbols)

CFG1**

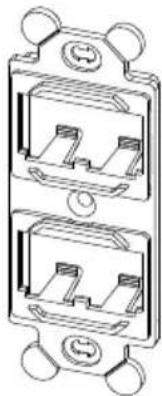

Technical line drawing of a dual-panel electrical connector (no text or symbols)

CFG2**

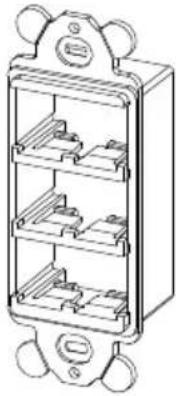

Technical line drawing of a three-tier electrical enclosure or switch (no text or symbols)

CFG4**

Technical line drawing of a multi-tiered electrical enclosure or enclosure unit (no text or symbols)

CFG6**

Pure electrical circuit lines without any symbols

CF1062**Y

Technical line drawing of a dual-chamber electrical switch or connector (no text or symbols)

CF1064**Y

INSTALLATION

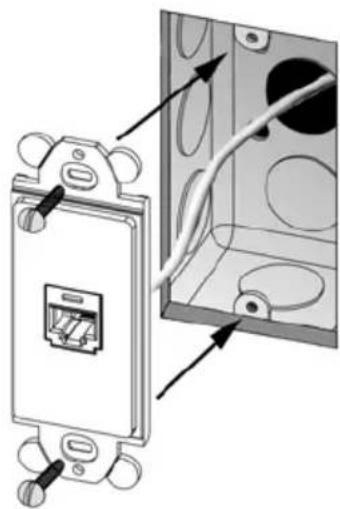

Diagram showing a wall-mounted electrical socket connected to an open electrical outlet with visible wiring (no text or symbols)

REMOVAL

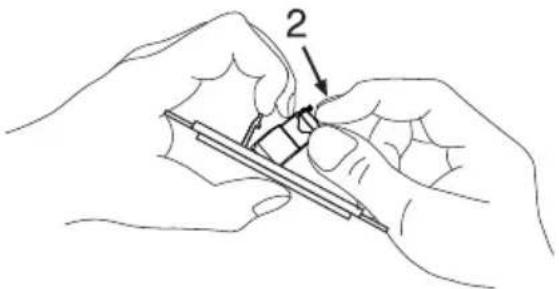

Line drawing of a hand holding a pen and a small object, with no visible text or symbols

Line drawing of two hands holding a pen and eraser, with no text or symbols present

** Denotes color

For Instructions in Local Languages and Technical Support:

www.panduit.com/resources/install_maintain.asp

www.panduit.com

E-mail:
