| Product Type | Portable Air Conditioner |
| Model | K-AC12TP |
| Brand | Kalley |
| Cooling Capacity | 12000 BTU/h |
| Air Flow | 400 CFM |
| Power Supply | 115V ~ 60Hz |
| Power Consumption (Cooling) | 1200 W |
| Current Draw | 10 A |
| Dimensions (W x D x H) | 17.5 x 14.5 x 28.3 inches |
| Weight | 65 lbs |
| Refrigerant Type | R-410A |
| Efficiency (EER) | 10.0 |
| Noise Level (Low/High) | 50 / 58 dB |
| Fan Speeds | 3 speeds (Low, Medium, High) |
| Thermostat Control | Digital, 62°F – 86°F |
| Remote Control | Included |
| Timer | 24-hour on/off timer |
| Air Filter | Washable, reusable mesh filter |
| Installation Type | Window kit included, venting hose required |
| Maintenance | Clean filter every 2 weeks; wipe exterior with damp cloth |
| Safety Features | Overheat protection, auto restart, tip-over switch |
| Spare Parts Available | Remote, filter, hose kit available from manufacturer |
| Repairability | User-serviceable filter and remote; other repairs by professional |
Frequently Asked Questions - K-AC12TP Kalley
How do I install the K-AC12TP air conditioner?

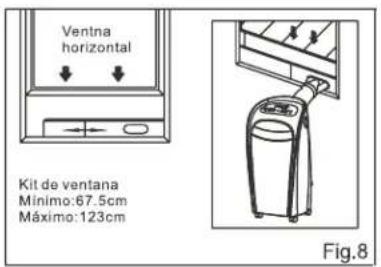

Place the unit near a window or sliding door. Attach the exhaust hose to the back of the unit and the window kit to the hose. Extend the window kit to fit your window opening and close the window to secure it. Plug the unit into a grounded outlet.
How often should I clean the air filter?
Clean the washable mesh filter every two weeks under normal usage. More frequently if used in dusty conditions. A dirty filter reduces efficiency.
What does the error code E1 mean?
Error code E1 indicates a room temperature sensor failure. Try turning the unit off and unplugging it for 5 minutes. If the code reappears, contact Kalley support.
Can I use an extension cord with the unit?
No. Use a dedicated 115V outlet with the proper amperage. Extension cords may cause voltage drop, overheating, or fire.
How do I use the timer function?
Press the Timer button on the remote or control panel. Use + or - to set the desired time (0.5-24 hours). Press Timer again to activate. The unit will turn on/off after the set time.
Why is the unit blowing warm air?
Check that the unit is in Cool mode and the set temperature is lower than room temperature. Ensure the exhaust hose is properly vented outside and not blocked. Clean the air filter if dirty.
How do I reset the unit?
Unplug the unit from the power outlet, wait 5 minutes, then plug it back in. This clears temporary errors. If issues persist, refer to the manual.
What is the recommended room size for this AC?
For a 12000 BTU unit, it's suitable for rooms up to 550 sq ft (51 m²) under standard conditions. Actual coverage depends on insulation, sun exposure, and ceiling height.
Can I use the unit without the exhaust hose?
No. The exhaust hose is essential for removing hot air. Using without it will cause the unit to recirculate hot air and drastically reduce cooling performance.
What spare parts are available for the K-AC12TP?
Replacement parts include the remote control, air filter, exhaust hose, and window kit. Contact Kalley customer service or check the official website for availability.
