CL280A - Refrigerator Clayton - Free user manual and instructions
Find the device manual for free CL280A Clayton in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Refrigerator |
| Brand | Clayton |
| Model | CL280A |
| Dimensions (H x W x D) | 1700 x 600 x 650 mm |
| Weight | 55 kg |
| Power Supply | 220-240 V, 50 Hz |
| Energy Consumption | 150 kWh/year |
| Total Capacity | 280 L |
| Refrigerator Capacity | 200 L |
| Freezer Capacity | 80 L |
| Climate Class | N, ST |
| Energy Class | A+ |
| Noise Level | 40 dB |
| Thermostat Type | Adjustable mechanical |
| Door Reversibility | Yes |
| Interior Light | Yes |
| Number of Shelves | 4 adjustable |
| Vegetable Crisper | Yes |
| Freezer Fast Freeze Function | No |
| Defrost Type | Manual (refrigerator), Manual (freezer) |
| Refrigerant Type | R600a |
| Spare Parts Availability | Shelves, door gasket, thermostat |
| Repairability Index | 7.5/10 |
Frequently Asked Questions - CL280A Clayton
How to adjust the thermostat on the Clayton CL280A refrigerator?
Turn the thermostat dial located inside the refrigerator compartment. Higher numbers indicate colder temperatures. Wait 24 hours for the temperature to stabilize after adjustment.
Can the door be reversed on the CL280A?
Yes, the door is reversible. Refer to the manual for step-by-step instructions on reversing the door swing.
What is the total capacity of the Clayton CL280A?
The total capacity is 280 liters, with approximately 200 liters for the refrigerator and 80 liters for the freezer.

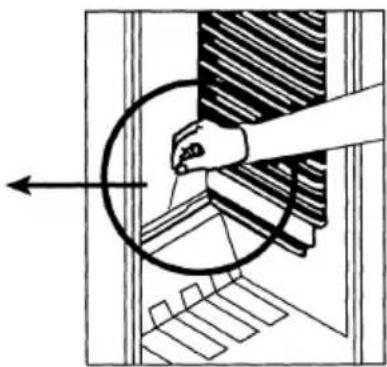

How do I defrost the freezer?
Unplug the appliance, remove all food, and leave the freezer door open. Use a plastic scraper to remove ice. Do not use sharp objects. Clean and dry thoroughly before restarting.
What is the energy consumption of the CL280A?
The annual energy consumption is approximately 150 kWh, based on standard test conditions. Actual consumption depends on usage and environment.
How to clean the interior of the refrigerator?
Use a soft cloth with mild detergent and warm water. Avoid abrasive cleaners. Rinse with clean water and dry thoroughly. Clean the door gasket regularly with soapy water.
What should I do if the refrigerator is too cold?
Check the thermostat setting and turn it to a lower number. Also ensure the door seals are clean and the refrigerator is not overfilled, which can restrict air circulation.
The interior light is not working. How to replace it?
Unplug the refrigerator. Locate the light bulb cover, remove it, and replace the bulb with a compatible type (usually 10W, E14). Reassemble and plug back in.
What does the red indicator light mean?
The red indicator light typically warns that the freezer temperature is too high. This may occur after defrosting or if the door is left open. It will turn off once the temperature stabilizes.
Where can I find replacement shelves for the CL280A?
Replacement shelves can be ordered from authorized Clayton service centers or online parts retailers. Contact customer support with your model number for exact compatibility.
User questions about CL280A Clayton
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Refrigerator in PDF format for free! Find your manual CL280A - Clayton and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CL280A by Clayton.
USER MANUAL CL280A Clayton
PARTIE 5: TRANSPORT ET DEPLACEMENT 11
PARTIE 2. FONCTIONS ET POSSIBILITES DIVERSES
PARTIE 3.
MISE EN PLACE DES ALIMENTS DANS L'APPAREIL
Compartiment Congélation
Dégivrage
TRANSPORT ET DEPLACEMENT
PART 7. THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS
