Product Type	Integrated tumble dryer
Brand	Caple
Model	TDI100
Overall Dimensions (H x W x D)	86.5 – 89 cm x 59.5 cm x 53 cm
Maximum Dry Weight (Cotton/Linen)	6.0 kg
Maximum Dry Weight (Synthetics)	2.0 kg
Electrical Connection	13 amp fuse, earthed, individual socket
Vent Hose Length	Approx 2.4 m (8 ft)
Wall Vent Diameter	100 mm
Heat Settings	Half heat and full heat
Timer	Selectable drying time
Start Button	Yes
Filter Cleaning	Clean after each cycle; wash occasionally with detergent
Door Reversal	Yes, left or right hanging
Decor Door Compatible	Yes
Safety Features	Thermal cut-out, cool down cycle, child supervision advised
Compliance	EEC regulations, IEE 17th edition, WEEE Directive 2002/96/EC
Fuse Rating	13 amp
Venting Requirement	Must be vented through wall or floor level; front vent must not be blocked
Recommended Load	Do not overload; mix small and large articles

Frequently Asked Questions - TDI100 Caple

How do I clean the lint filter?

Pull the filter upwards, remove fluff by hand or soft brush, slide back. Wash occasionally in detergent solution and brush to remove small particles.

What should I do if clothes are not dry after normal drying time?

Check that the filter is clean, the correct heat setting is used, the vent hose is not blocked, and the timer is not in a cool down period.

Can I reverse the door on this dryer?

Yes, the door can be hung on the left or right. Follow the illustrations in the user manual to change the door position.

What items should not be dried in the tumble dryer?

Items that have been in contact with flammable substances (dry cleaning fluid, petrol, cooking oil, etc.), foam rubber, shower caps, waterproof textiles, and rubber backed articles should not be dried.

How do I vent the dryer?

Use the provided vent hose (approx 2.4 m) and vent through a 100 mm diameter wall hole. Alternatively, position the hose at floor level through an adjacent side panel. Ensure the front air vent is never covered.

What does the cool down cycle do?

The final part of the drying cycle occurs without heat to ensure items are not damaged. Never stop the dryer before the end of the drying cycle unless items are quickly removed and spread out to dissipate heat.

What is the maximum capacity for cotton and synthetics?

Maximum dry weight is 6.0 kg for cotton/linen and 2.0 kg for synthetics.

How do I reset the thermal cut-out?

If your dryer has a red button on the right side at the back, press it. You will hear a sharp click if it has operated. Ensure the filter and vents are clear before restarting.

Can I install the dryer next to an oven or cooker?

No, the dryer should not be placed directly next to ovens or cookers as performance may be affected.

What electrical requirements are needed?

The dryer must be earthed and connected to its own individual socket with a 13 amp fuse. Do not use extension leads or multi-way adapters.

USER MANUAL TDI100 Caple

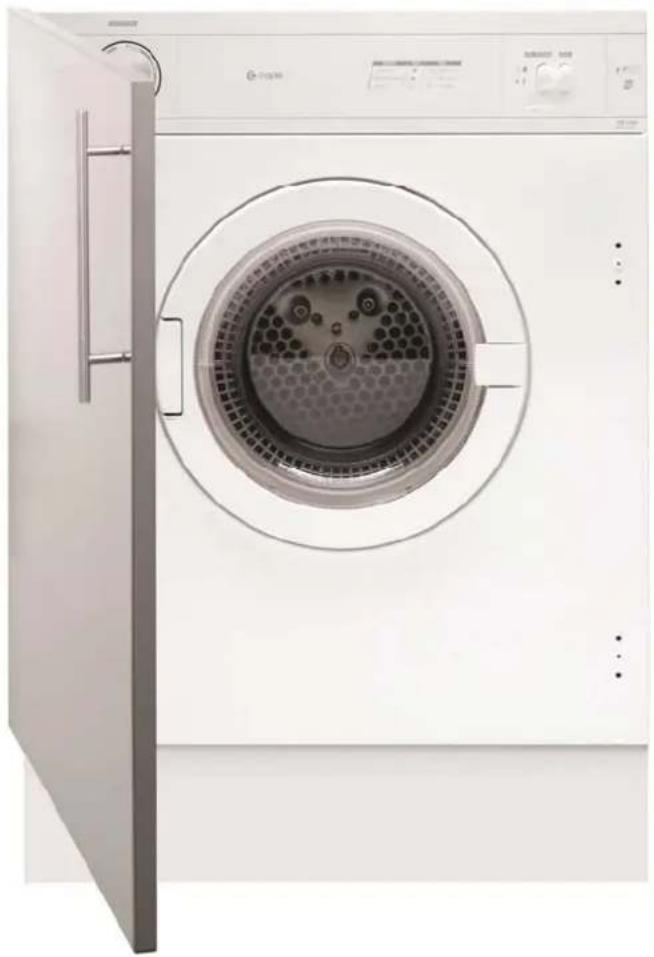

Instruction manual for integrated tumble dryer

Model code: TDI100

Front view of a white industrial washing machine with a circular vent and internal filter (no visible text or symbols)

CONTENTS

User Information

Installation

The Filter

Control Panel

Operation

Door Reversal & Decor Door

Technical Data & Problem Guide

IMPORTANT USER INFORMATION

These notes are provided in the interest of safety. You must read them carefully before installing or using this appliance.

• Children should not be allowed to tamper with the controls and should be supervised to ensure they do not play with the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance responsible for their safety.

- This tumble dryer is intended for domestic use only.

- The room must be adequately ventilated to avoid back flow of gases into the room from appliances burning gas or any other fuels. This includes open fires.

- Any electrical work required to install the appliance should be carried out by a qualified person.

- This tumble dryer should be serviced by an appointed service organization and only genuine spare parts used.

- It is dangerous to alter or modify the product in any way, other than fitting authorized accessories.

- It is important to clean the lint filter after each drying cycle.

- Under no circumstances should anything other than the recommended articles be placed in the tumble dryer. These can cause fires.

- Do not place articles which have been in contact with dry cleaning fluid, petrol, cooking oil, fat, hair lacquer or other flammable substances in the tumble dryer.

- Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

- Do not place articles which have been in contact with dry cleaning fluid or other flammable substances in the tumble dryer.

- Remove all objects from pockets such as lighters and matches.

- Do not attempt to dry dripping wet articles.

- Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

- Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

- Do not dry unwashed items in the tumble dryer.

- Do not use the tumble dryer if you suspect that it is damaged in any way. Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause serious injury.

- We recommend that the appliance is switched off each time after use. It should be disconnected from the electricity supply if it is to be unattended for long periods, (i.e. weekends or holiday etc).

- DO NOT use a two-way or multi-way adapter, or extension lead. The dryer must be connected to its own individual socket.

- The special mains cable and plug assembly must be replaced with a genuine part from the manufacturer or his service agent.

- When installing, position the appliance so that that the plug is accessible.

- This appliance must be earthed.

- Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

INSTALLATION

The tumble dryer is fully compatible with any 600mm deep kitchen units and complies with stringent EEC regulations.

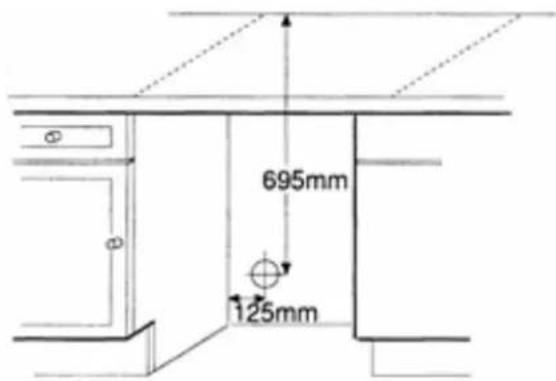

Your dryer is provided with a vent hose which will extend to approx 2.4m (8ft). We strongly recommend that this is vented through the wall with the attachment provided. The position of the hole (100mm diameter) for the vent directly behind the tumble dryer is shown in the diagram.

If the through the wall vent is to be positioned other than behind the dryer, the vent hose should be positioned at floor level and through adjacent side panel to a relevant position. The plinth must be cut-out to accommodate the air vent grill at the bottom front of the tumble dryer.

IMPORTANT

The air vent at the front of the appliance must never be covered or blocked in any way as this will cause the dryer to overheat.

The dryer should not be placed directly next to ovens or cookers, as the performance of the dryer may be affected.

ELECTRICAL CONNECTIONS: We strongly recommend that any electrical work is carried out by a qualified person complying with the IEE 17^th addition of the electrical regulations.

IMPORTANT

Please remember that the tumble dryer must be capable of being switched off,

(disconnected from the supply), when fitted in position

THE FILTER

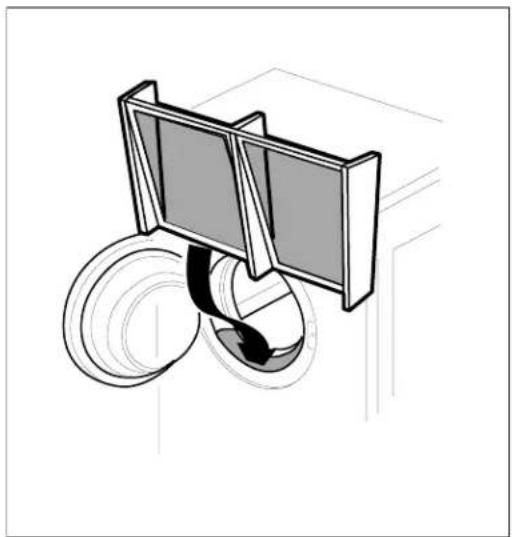

The filter is found, as seen from the diagram, by opening the door and must always be in position when drying items in the appliance. To allow the dryer to operate efficiently it should be cleaned after each drying cycle. Do not be alarmed by the amount of fluff deposited on the mesh. It is not due to excessive wear caused by the dryer but more an indication of it's efficient operation.

All fabric loses fluff when drying but it goes unnoticed into the air. In a tumble dryer it simply collects in the filter.

Diagram of a mechanical assembly with two components, one suspended and one partially enclosed, showing curved arrows indicating motion (no text or symbols)

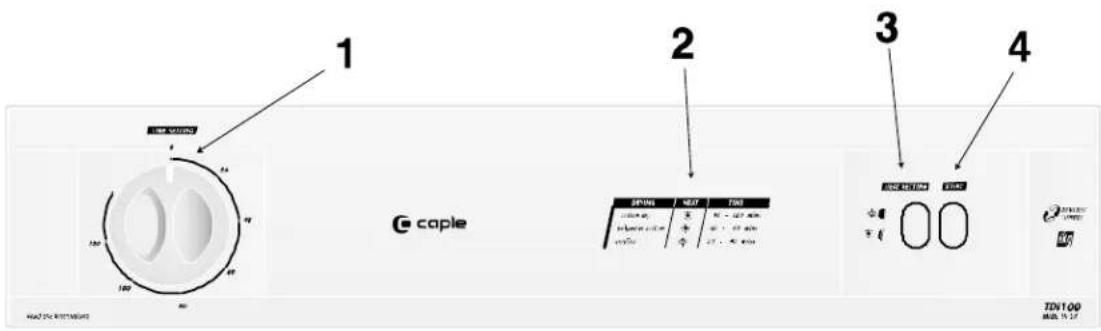

CONTROL PANEL GUIDE

1. The Timer

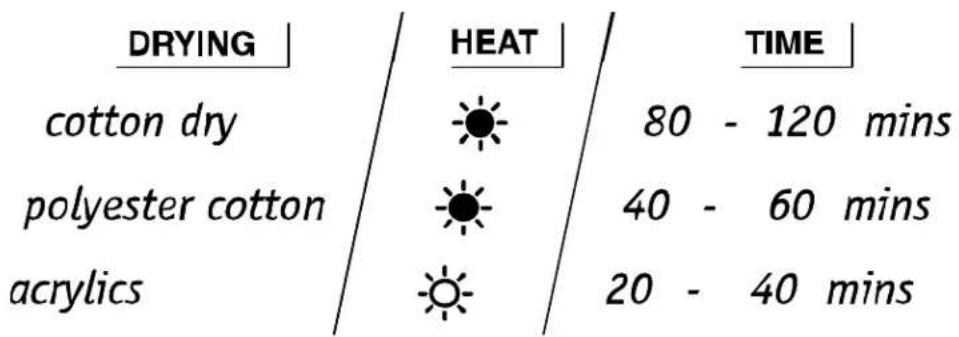

Select the drying time from the recommendations shown on the control panel (3). Turn the timer knob to the required drying time.

1. Heat Setting

Select half ⚙ or full heat ⚙ as recommended on the control panel.

1. Control Panel

See below

1. Start

Press the start button after selecting the required drying time.

OPERATION

Sort out the clothes into groups of similar fabrics and colours. Check the care label inside the garment. We suggest that a fabric conditioner be used to reduce static electricity.

Delicate articles e.g. tights should be placed inside a pillowcase. It is better to dry small and large articles together.

Open the door.

Load clothes loosely into the drum.

Load sheets first starting with one corner.

Close the door.

Dry your hands.

Check the timer is in the '0' position.

Switch on the machine.

Select correct heat position (See programme chart on facia panel).

Set the timer to the correct position (See programme chart on facia panel).

Press the start button.

The drum will now begin to rotate and stop when the timer automatically reaches the '0' position.

Should the clothes become dry before the cycle has finished the thermostat will automatically switch off the heater and prevent overdrying and save energy although the drum will still rotate.

When drying large items such as sheets, we suggest you stop the dryer to redistribute the load.

To stop the machine during the middle of a programme simply open the door: the drum will stop rotating automatically and reset when you close the door. To lengthen or shorten the programme, turn the timer knob.

After removing the dried clothes clean the filter as follows:

Pull the filter upwards.

Remove any threat of fluff by hand or with a soft brush.

Slide the filter back.

Wash the filter occasionally in detergent solution and with a soft brush remove small particles.

Switch off the electricity supply.

The final part of the drying cycle occurs without heat (cool down cycle) to ensure that the items will not be damaged.

CARE LABELS YOU

MAY FIND ON YOUR FABRICS

'Tumble drying beneficial'

'Do not tumble dry'

'Dry flat'

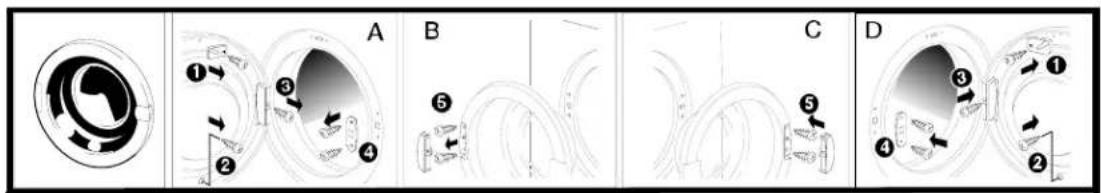

DOOR REVERSAL

APPLIANCE DOOR

The door on the dryer can be positioned either with the left or right hand hanging.

Please follow illustrations below to change the door position.

Two technical illustrations: a screwdriver and a welding torch, both without any text or symbols.

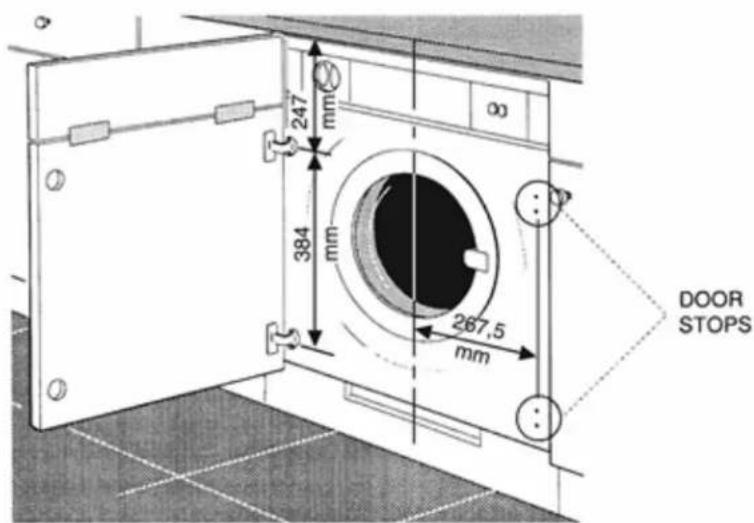

THE DECOR DOOR

The hinges can be fastened through the pre-drilled holes on either the left or right hand with the door stops being fitted on the other side.

TECHNICAL DATA

Overall dimensions : height 86.5 – 89cm width 59.5cm depth 53cm

Maximum dry weight of cotton, linen 6.0kg synthetics 2.0kg.

For electrical ratings see plate on rear of machine.

This product is manufactured to comply with the radio interference requirements of the

Council directive 89/336/EEC, 2004/108/EC.

Fuse rating: 13amp.

DON'TS'.

Do not – Overload the dryer.

Do not – Dry articles singly as they tend to roll up and so increase drying time.

Do not – Dry woolen or wool mixture articles unless the article is labeled as suitable. This should avoid shrinkage.

Do not – Allow venting hose (where applicable) or filter to become blocked.

Do not – Allow fluff to accumulate around the tumble dryer.

NEVER SWITCH THE DRYER OFF AND LEAVE A HOT LOAD IN THE DRUM – RISK OF FIRE

WARNING: Never stop a tumble dryer before the end of a drying cycle unless all items are quickly removed and spread out so the heat is dissipated.

ANY PROBLEMS

If the clothes are not dry after normal drying time:

• Check that the filter is clean.
• Check that you used the correct heat setting.
• Check that the venting hose is not blocked (sometimes a strong wind may cause a back pressure).
• Check that you have not set the timer within a cool down period.

If your machine does not work, check the following points before contacting the Free – phone service number.

• Check that there is a supply of electricity.
• Check that the machine is switched on and the door properly closed.
• Some machines are fitted with a resetable cut-out. Check this has not operated. If your dryer has a red button on the right hand side at the back if your dryer, press it. If it has operated the sharp "click" will be heard. This cut-out only operates if the airflow is severely restricted so make sure the filter is clean and that all other restrictions are removed before restarting.
• Check the fuse in the moulded plug.

This label positioned on the rear of your dryer, indicates the surface is hot when in operation – avoid touching.

CAUTION HOT SURFACE

Symbol of a trash bin crossed with no text or labels

This appliance is marked according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a Europen wide validity of return and Recycling on Waste Electrical and Electronic Equipment.
