USER MANUAL C39AW White Knight
INSTRUCTIONS FOR USE
TUMBLE DRYER
White Knight
IMPORTANT: PLEASE READ THESE
INSTRUCTIONS THOROUGHLY BEFORE USING
THIS APPLIANCE. KEEP THEM IN A SAFE PLACE FOR FUTURE REFERENCE.
IMPORTANT USER INFORMATION
These notes are provided in the interest of safety.
You must read them before installing or using the appliance.
- This tumble dryer is intended for NORMAL DOMESTIC USE ONLY.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.
-Adequate ventilation must be provided to avoid back flow of gases into the room from appliances burning other fuels, including open fires.
- Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuel.
- Please note it is not recommended that the dryer is placed directly next to ovens or cookers as the performance of the dryer may be affected.
- The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
- The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.
- A carpet must not obstruct the ventilation openings in the base of the dryer.
- Do not stack the tumble dryer on top of other appliances without the correct stacking kit.
- Any electrical work required to install the appliance should be carried out by a qualified person.
- It is important to clean the lint filter after each drying cycle or the restrictions to airflow will extend drying times and could cause the safety cut-out to trip.
- Under no circumstances should anything other than the recommended articles be placed in the tumble dryer.
- The tumble dryer should be serviced by an appointed service organisation and only genuine parts used.
- It is dangerous to alter or modify the product in any way other than fitting authorized accessories.
- We recommend that the appliance is unplugged each time after use. It should always be disconnected from the electricity
supply for long periods (i.e. weekends, if it is to be left unattended for holidays etc.)
- The rear of the dryer gets quite hot during use. Position the dryer so that the back is not accessible while in operation, but ensure that the sides have a space available to allow airflow.
- The special mains cable and plug assembly must only be replaced with a genuine part by the manufacturer or his service agents in order to avoid a hazard.
- It is important to clean fluff from the window of the dryer and around the door seal after each drying cycle. Failure to do so could result in water leaking.
WARNING: Never stop a tumble dryer before the end of a drying cycle unless all items are quickly removed and spread out so that heat is dissipated.
Remove all objects from pockets such as lighters and matches.
DO NOT use a two-way adaptor, or extension lead. The dryer must be connected to its own socket.
DO NOT block the air inlets at the base and side of your dryer.
DO NOT allow fluff to accumulate around the tumble dryer. Risk of fire
DO NOT exceed the recommended maximum load.
DO NOT dry unwashed items in the tumble dryer
DO NOT place articles in the dryer if anything other than a water solution has been used in the cleaning process.
DO NOT attempt to dry dripping wet articles.
DO NOT use the tumble dryer if you suspect that it is damaged in any way. Under no circumstances should you
attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause serious injury. Consult your local appointed service engineer and insist on genuine spare parts.
WARNING: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.
ADDITIONAL INFORMATION
Many outlets sell “universal” tumble dryer accessories. These may not fit satisfactorily and could impair the efficient operation of your tumble dryer and may even cause air-flow restrictions not covered by our guarantee. Crosslee always obtains test house approval for dryer accessories so use this order form to obtain genuine authentic accessories.
INSTALLATION
Position the tumble dryer so that the plug remains accessible after installation. Do not block the vent at the side or base of the dryer, as this will impair the working of the machine.
TUMBLE DRYER VENTING
Your tumble dryer may be supplied with a vent hose (If not, one is available as an accessory).
A vent hose allows you to direct the warm, damp air expelled from the rear of the dryer to an open door or window.
The best solution is to make a permanent connection through either a wall or a window. This is particularly recommended for small, cool rooms and a kit for this purpose is available as an accessory.
The vent hose must be at least 10cm (4 ins) in diameter.
No more than three right-angled bends should be allowed when positioning the vent hose.
Do not distort or constrict the vent hose as this will reduce the airflow.
When drying, the vent hose must always be extended to an open door or window.
The vent hose must not be shared with other appliances, for example, a cooker hood outlet.
Note: Do not obstruct or add a mesh to the vent hose outlet during use and ensure that it cannot be blocked or bent sharply which may obstruct the airflow.
It is recommended that the interior of the hose be periodically inspected and cleaned if necessary.
FINAL INSTALLATION

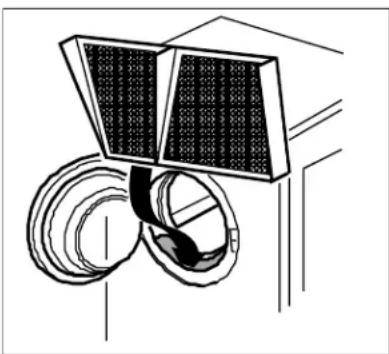

Push the filter into its operating position as shown in the diagram. Remove any dust by wiping the drum and door with a damp cloth. Any initial smell of burning will be caused by dust on the heater and will quickly disappear.


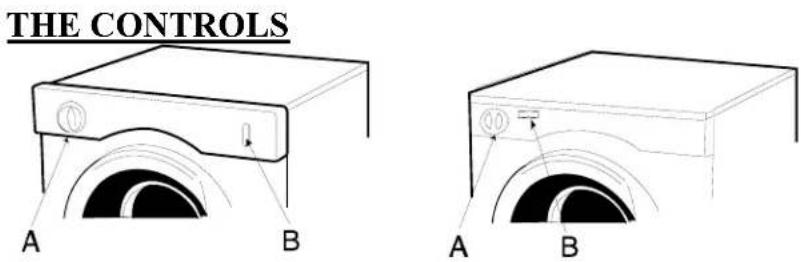

A. THE TIMER Turn the timer knob clockwise to select the required drying time based on the recommendations on the control panel.
B. HEAT SWITCH Select the required heat setting based on the recommendations on the control panel.
PREPARATION
Check care labels inside the garments.
CARE LABELS YOU MAY FIND ON YOUR FABRICS
| Suitable for tumble drying | |
| Tumble dry using full heat | |
| Tumble dry using half heat | |
| Do not tumble dry |
Do not tumble dry woollen or wool mixture articles unless the article is labelled as being suitable. This should avoid shrinkage.
Place delicate articles, e.g.tights, scarves, inside a pillowcase.
To avoid the need to iron easycare polyester/cotton items it is better to only dry small loads (i.e. half fill drum) It is better to dry small and large articles together.
Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
Do not overload the dryer or dry large bulky items such as duvets or sleeping bags as it is important that the airflow through the dryer is not obstructed.
The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
OPERATION
Open the door.
Load clothes loosely into the drum.
Load sheets first, starting with one corner.
Close the door.
Dry your hands.
Check that the timer is in the '0' position.
Plug in the machine.
Select correct heat position, (see programme chart on control panel for recommendations).
The standard cotton programme is suitable to dry normal wet cotton laundry. It is the most efficient programme in terms of energy consumption for drying wet cotton laundry.
Your appliance is a reversing type, a full load will typically take 127 minutes and will use approximately 2.56kWh of electricity. A half load will typically take 66 minutes and will use approximately 1.19 kWh of electricity.
The power consumption of the off-mode and the left-on mode is zero.
Turn the timer knob clockwise to select the required drying time (see programme chart on control panel for recommendations).
For energy labeling purposes (EN61121:2005) for a cotton dry load, use the maximum load weight for cotton and set the timer to the recommended drying time for cotton dry as specified on the control panel.
The drum will begin rotating. Reversing drum models will stop periodically to rotate in the reverse direction for a short time.
Should the clothes become dry before the cycle has finished, or if an excessive programme time has been selected, the drum will continue to rotate while the thermostat will automatically switch the heater off to reduce the risk of over drying and save energy.
If the door is opened during a cycle the dryer will stop. To restart your machine, close the door. When drying large items such as sheets, we suggest you periodically stop the dryer to redistribute the load, and restart it immediately afterwards.
To lengthen or shorten a timed programme, reset the timer knob.
There is an automatic 12 minute cool down period at the end of every cycle, during which the heater is switched off. This helps to minimize creasing, and must always be used fully to avoid the risk of fire.
NEVER SWITCH THE DRYER OFF AND LEAVE A HOT LOAD IN THE DRUM. RISK OF FIRE. ALWAYS CLEAN THE FILTER AFTER EACH USE. Failure to do so could cause the safety
cut-out to operate.
- Pull the filter upwards and away from the appliance.
- Remove any threads or fluff by hand or with a soft brush.
- Slide the filter back.
- Wash the filter occasionally in detergent solution using a soft brush to remove small particles.
- If your filter becomes damaged, replace it to ensure no damage is caused to the dryer.
TECHNICAL DATA OVERALL DIMENSIONS:
Height: 67 cm
Width: 50 cm
Depth: 47 cm
MAXIMUM DRY WEIGHT LOADS:
Cotton 3.5kg
'Easycare' polyester/cotton 3.5kg
(For minimum creasing 1.5kg)
Delicates 3.5kg
For electrical ratings see plate on back of dryer.
For Model No. see serial plate inside door (needed when requesting service).
Room temperature range 5°C to 30°C. (Drying performance decreases as room temperature falls).
Your washing machine should have a spin speed of not less than 1000rpm for maximum efficiency.
THIS APPLIANCE MUST BE EARTHED

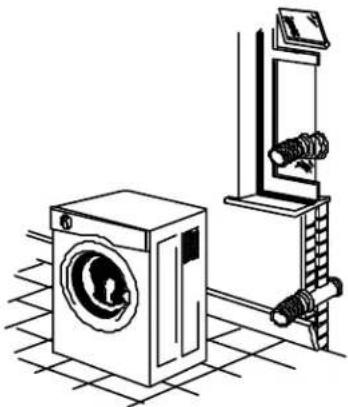

798 Wall / Window Vent Kit
Note: To make a remote connection e.g. more than 30cm (12ins.) from the dryer you will require the vent hose CL001. S.


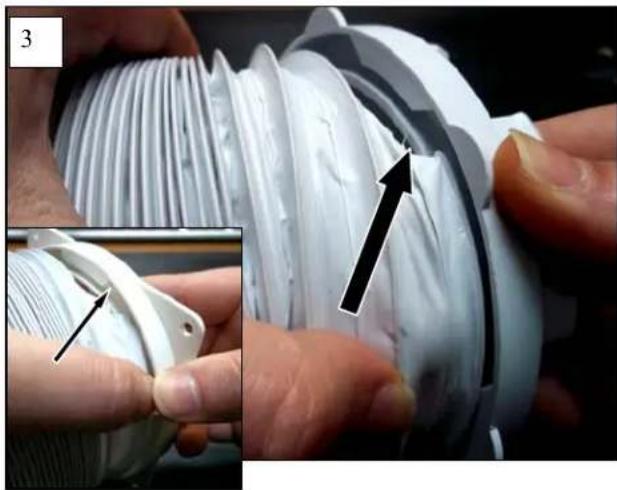

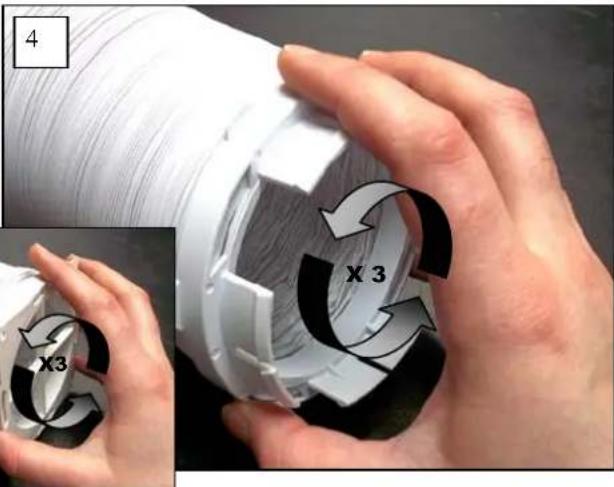

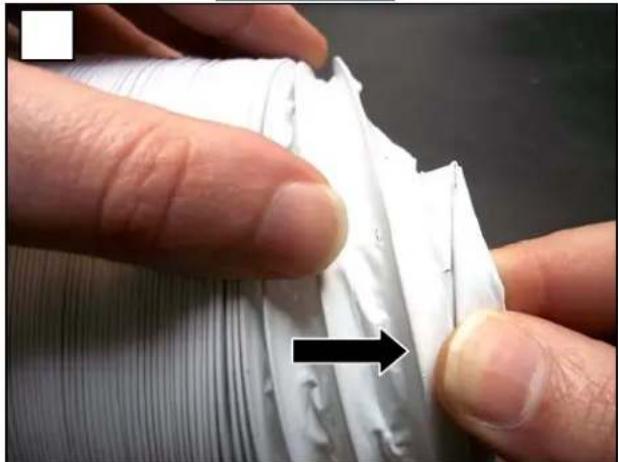

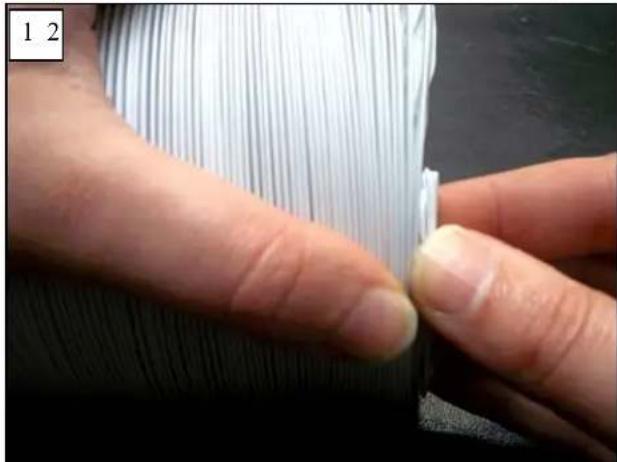

VENT HOSE ASSEMBLY
(A) (B) - Not supplied with all models
One end of the vent hose is fitted with an adaptor (A) which can be pushed into the exhaust outlet at the bottom rear of the tumble dryer. The free end should be led to a suitable outlet. It may simply be hung through an open window or a more permanent connection made using the four holes in the hose adaptor flange. (B), if supplied.
CUSTOMER ADVICE – BEFORE CALLING FOR ASSISTANCE
If the clothes are not dry after normal drying time:
—Check that you used the correct heat setting.
-Check that you have not set the timer within a cool down period.
- Check that the lint filter has been cleaned. A blocked filter will restrict the airflow.
- Check that your dryer is heating - below the door to the left side, should feel warm to the touch after the first 10-15 minutes of its programme.
Failure to heat may indicate the safety cut-out has operated. To reset, simply press the red button at the rear of the machine. If it has operated then a sharp “click” will be heard.
This cut-out only operates if the airflow is severely restricted so make sure the filter is clean, the air inlets and outlets at the side and back are not blocked, and that all other restrictions are removed before re-starting.
If the cut-out continues to operate after checking the above points, you should contact your service agent.
Check that the machine has the correct weight load in the drum before starting the appliance.
If your machine does not work check the following before calling a service engineer:-
- Check that there is a supply of electricity.
- Check that the door has been properly closed and the machine is switched on.
- Check the fuse in the moulded plug.
A call out charge will be applied for a service visit, if the call could have been avoided by following these instructions.
ESSENTIAL CONTACT INFORMATION FOR “IN GUARANTEE” AND “OUT OF GUARANTEE” REPAIRS.
If problems continue after checking the above points you should contact our service agent. Please ensure that you have your serial number and model number to hand when you make the call. To locate the serial number on your dryer, open the door and look for a white label inside the door opening. This will indicate the appliance model number along with the serial number.
APPROVED SERVICE AGENTS: UK & SOUTHERN IRELAND
Call White Knight ON 0800 988 1323 (calls are free from landlines however calls from mobiles may be charged at your network provider's rates) OR 0344 8797422 (Calls charged at basic rate.)
OR
APPROVED SERVICE AGENT: NORTHERN IRELAND
Call: Service Network 2000 ON 028 90365222 (Daytime calls cost up to 17p plus 10.5p per minute from BT lines Monday-Friday. Mobile and other providers' charges may vary).
| Compact SDO Rev | |
| Suppliers name or trade mark WHITE KNIGHT | |
| Model identifier C38AW/C39AW/C39AS | |
| Rated capacity at full load 3.5kg | |
| Appliance type Air Vented | |
| Energy efficiency class C | |
| Energy consumption of the appliance* 284kWh | |
| The figures above is based on 160 drying cycles of the standard cotton programme at full and partial load and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used. | |
| Automatic/non-automatic | Non-automatic |
| EU Ecolabel N/A | |
| E_dry 2.56kWh | |
| E_dry% 1.19kWh | |
| E_g_dry N/A | |
| E_g_dry% N/A | |
| E_g_dry,a N/A | |
| E_g_dry%a N/A | |
| Off mode power ( P_o ) | 0W |
| Left on mode power ( P_l ) | 0W |
| Duration of left-on mode N/A | |
| The standard cotton programme used at full and partial load is the standard drying programme to which the information in the label and the fiche relates. This programme is suitable for drying normal wet cotton laundry. It is the most efficient programme in terms of energy consumption for cotton. | |
| T_t 92mins | |
| T_dry | 127mins |
| T_dry% | 66mins |
| Condensing efficiency class | N/A |
| C_t | N/A |
| C_dry | N/A |
| C_dry% | N/A |
| Sound power level | 64dBA |
| Built in/not built in | This appliance is not intended to be built in. |
ACCESSORY ORDER FORM – Compact (3.5kg dryer)
Item Number Description Price
| CL.001.s | Vent Hose 1.8m (6ft) long (Approx) | £17.21 |
| 798 | Wall/Window Vent Kit | £28.18 |
| 793 | Wall Mounting Kit | £17.21 |
| 004 | Alpha Tumble Dryer Stack Kit | £24.08 |
| 009 | Dryer Balls | £8.98 |
You can cancel this order within 14 days of receipt of the goods. The item/s should be returned within 14 days at your cost. A refund for the initial purchase price will be given although a deduction may be made if the goods have been used.
Prices quoted above are correct at time of printing. Postage, packing and V.A.T. are included.
Cheques or Postal Orders should be made payable to: CROSSLEE p.l.c.
For Access or Visa payments please indicate your card number
Security code ☐☐☐ (Last 3 digits on signature line) Expiry Date* ....
* The expiry date must be completed for the order to be accepted.
Signature:
Name:
Address:
......
......
Postcode:
Your daytime telephone No. in case of query: ....
| Quantity | Item No. | Price |
| CL.001S | ||
| 798 | ||
| 793 | ||
| 004 | ||
| 009 | ||
| TOTAL |
Please allow 14 days for delivery
CROSSLEE p.l.c.
Spares Department
Hipperholme, HALIFAX
West Yorkshire, HX3 8DE
Tel: 01422 203963
Email: spares@crosslee.co.uk
To order online please visit our website Spares can be ordered from www.whiteknightspares.co.uk or by calling 01422 203963
- INSTRUCTIONS FOR USE
- TUMBLE DRYER
- White Knight
- IMPORTANT: PLEASE READ THESE
- INSTRUCTIONS THOROUGHLY BEFORE USING
- THIS APPLIANCE. KEEP THEM IN A SAFE PLACE FOR FUTURE REFERENCE.
- IMPORTANT USER INFORMATION
- These notes are provided in the interest of safety.
- You must read them before installing or using the appliance.
- ADDITIONAL INFORMATION
- INSTALLATION
- TUMBLE DRYER VENTING
- FINAL INSTALLATION
- PREPARATION
- CARE LABELS YOU MAY FIND ON YOUR FABRICS
- OPERATION
- NEVER SWITCH THE DRYER OFF AND LEAVE A HOT LOAD IN THE DRUM. RISK OF FIRE. ALWAYS CLEAN THE FILTER AFTER EACH USE. Failure to do so could cause the safety
- SAFETY CUT-OUT
- TECHNICAL DATA OVERALL DIMENSIONS:
- MAXIMUM DRY WEIGHT LOADS:
- THIS APPLIANCE MUST BE EARTHED
- Wall / Window Vent Kit
- VENT HOSE ASSEMBLY
- CUSTOMER ADVICE – BEFORE CALLING FOR ASSISTANCE
- ESSENTIAL CONTACT INFORMATION FOR “IN GUARANTEE” AND “OUT OF GUARANTEE” REPAIRS.
- APPROVED SERVICE AGENTS: UK & SOUTHERN IRELAND
- OR
- APPROVED SERVICE AGENT: NORTHERN IRELAND
Brand : White Knight
Model : C39AW
Category : Tumble dryer
