Product Type	Integrated Tumble Dryer
Brand	White Knight
Model	ITD60T
Overall Dimensions (H x W x D)	86.5 - 89 cm x 59.5 cm x 53 cm
Maximum Dry Load (Cotton/Linen)	6.0 kg
Maximum Dry Load (Synthetics)	6.0 kg
Energy Efficiency Class	C
Annual Energy Consumption	459 kWh
Energy Consumption Full Load (Standard Cotton)	3.92 kWh
Energy Consumption Half Load (Standard Cotton)	2.08 kWh
Drying Time Full Load (Standard Cotton)	115 minutes
Drying Time Half Load (Standard Cotton)	66 minutes
Sound Power Level	62 dBA
Vent Type	Air Vented (with hose)
Control Type	Timer
Heat Settings	High / Low
Door Reversal	Yes (left or right hinging)
Filter Cleaning	After each drying cycle
Installation Type	Built-in compatible (600 mm deep kitchen units)
Fuse Rating	13 A
Power Supply	230 V ~ 50 Hz (typical, check rating plate)
Safety Features	Thermal cut-out, door switch, cool-down cycle
Warranty / Service	Contact approved service agents (UK & Ireland)

Frequently Asked Questions - ITD60T White Knight

How often should I clean the lint filter?

You should clean the lint filter after every drying cycle. Failure to do so restricts airflow, increases drying times, and may cause the safety cut-out to trip.

Can I reverse the door opening direction?

Yes, the door can be hinged on either the left or right side. Follow the door reversal instructions in the manual to change the hinge position.

What should I do if clothes are not dry after normal drying time?

Check that the filter is clean, the correct heat setting is selected, the venting hose is not blocked, the timer is not in a cool-down period, the machine is switched on, and the door is properly closed. Also check the resetable cut-out (red button at the back).

Can I place the dryer next to an oven or cooker?

It is not recommended to place the dryer directly next to ovens or cookers, as the performance of the dryer may be affected.

What items should not be dried in this tumble dryer?

Do not dry items soiled with flammable substances (cooking oil, acetone, petrol, etc.), foam rubber, shower caps, waterproof textiles, rubber-backed articles, or items that have been in contact with dry cleaning fluid.

How do I vent the dryer?

Use the vent hose (approx. 2.4 m) provided to exhaust air through a wall (100 mm diameter hole) or through adjacent side panel. Ensure the front air vent is never blocked.

What is the maximum load capacity?

The maximum dry weight for cotton/linen is 6.0 kg and for synthetics also 6.0 kg. Do not exceed the recommended load.

Can I stop the dryer mid-cycle?

Yes, simply open the door. The drum stops automatically and resets when you close the door. You can also turn the timer knob to adjust the programme.

What does the cool-down cycle do?

The final part of the cycle runs without heat to cool items down, preventing damage and reducing the risk of fire. Never stop the dryer before the cycle ends unless items are quickly removed and spread out.

How can I reduce static electricity in clothes?

Use a fabric conditioner as specified by the instructions. Also avoid overdrying and dry small and large articles together.

USER MANUAL ITD60T White Knight

INSTRUCTIONS FOR USE

INTEGRATED TUMBLE DRYER

IMPORTANT: PLEASE READ THESE

INSTRUCTIONS THOROUGHLY BEFORE

USING THIS APPLIANCE. KEEP THEM IN A SAFE PLACE FOR FUTURE REFERENCE.

IMPORTANT USER INFORMATION

These notes are provided in the interest of safety.

You must read them before installing or using the appliance.

—This tumble dryer is intended for NORMAL DOMESTIC USE ONLY.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Children of less than 3 years should be kept away unless continuously supervised.

- Adequate ventilation must be provided to avoid back flow of gases into the room from appliances burning other fuels, including open fires.

- Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuel.

—Please note it is not recommended that the dryer is placed directly next to ovens or cookers as the performance of the dryer may be affected.

—A carpet must not obstruct the ventilation openings in the base of the dryer.

-Do not stack the tumble dryer on top of other appliances without the correct stacking kit.

—Any electrical work required to install the appliance should be carried out by a qualified person.

—It is important to clean the lint filter after each drying cycle or the restrictions to airflow will extend drying times and could cause the safety cut-out to trip.

—Under no circumstances should anything other than the recommended articles be placed in the tumble dryer.

—It is dangerous to alter or modify the product in any way other than fitting authorized accessories.

- We recommend that the appliance is unplugged each time after use. It should always be disconnected from the electricity supply for long periods (i.e. weekends, if it is to be left unattended for holidays etc.)

—The rear of the dryer gets quite hot during use. Position the dryer so that the back is not accessible while in operation, but ensure that the sides have a space available to allow airflow.

—The special mains cable and plug assembly must only be replaced with a genuine part by the manufacturer or his service agents in order to avoid a hazard.

- It is important to clean fluff from the window of the dryer and around the door seal after each drying cycle. Failure to do so could result in water leaking.

- Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

WARNING: Never stop a tumble dryer before the end of a drying cycle unless all items are quickly removed and spread out so that heat is dissipated.

- Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

- Do not place articles which have been in contact with dry cleaning fluid or other flammable substances in the tumble dryer.

- Do not attempt to dry dripping wet articles.

- Remove all objects from pockets such as lighters and matches.

- Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

These machines are unsuitable for use with an external time clock.

DO NOT block the air inlets at the base and side of your dryer.

DO NOT allow fluff to accumulate around the tumble dryer. Risk of fire

DO NOT exceed the recommended maximum load.

DO NOT dry unwashed items in the tumble dryer

DO NOT place articles in the dryer if anything other than a water solution has been used in the cleaning process.

DO NOT use the tumble dryer if you suspect that it is damaged in any way. Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause serious injury. Consult your local appointed service engineer and insist on genuine spare parts.

- DO NOT use a two-way or multi-way adapter, or extension lead. The dryer must be connected to its own individual socket.

- When installing, position the appliance so that that the plug is accessible.

WARNING: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

INSTALLATION

The tumble dryer is fully compatible with any 600mm deep kitchen units and complies with stringent EEC regulations.

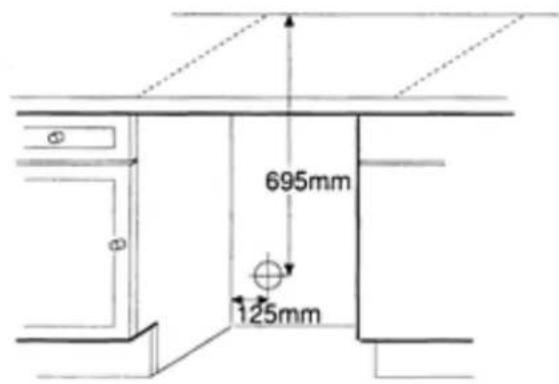

Your dryer is provided with a vent hose which will extend to approx 2.4m (8ft). We strongly recommend that this is vented through the wall with the attachment provided. The position of the hole (100mm diameter) for the vent directly behind the tumble dryer is shown in the diagram.

If the through the wall vent is to be positioned other than behind the dryer, the vent hose should be positioned at floor level and through adjacent side panel to a relevant position. The plinth must be cut-out to accommodate the air vent grill at the bottom front of the tumble dryer.

I M P O R T A N T

The air vent at the front of the appliance must never be covered or blocked in any way as this will cause the dryer to overheat.

The dryer should not be placed directly next to ovens or cookers, as the performance of the dryer may be affected.

ELECTRICAL CONNECTIONS: We strongly recommend that any electrical work is carried out by a qualified person complying with the IEE 17^th addition of the electrical regulations.

IMPORTANT

Please remember that the tumble dryer must be capable of being switched off, (disconnected from the supply), when fitted in position

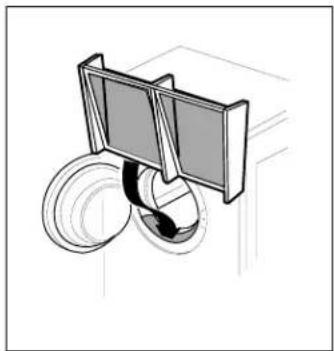

THE FILTER

The filter is found, as seen from the diagram, by opening the door and must always be in position when drying items in the appliance. To allow the dryer to operate efficiently it should be cleaned after each drying cycle. Do not be alarmed by the amount of fluff deposited on the mesh. It is not due to excessive wear caused by the dryer but more an indication of its efficient operation. All fabric loses fluff when drying but it goes unnoticed into the air. In a tumble dryer it simply collects in the filter.

Illustration of a mechanical device with wheels and a frame (no text or symbols)

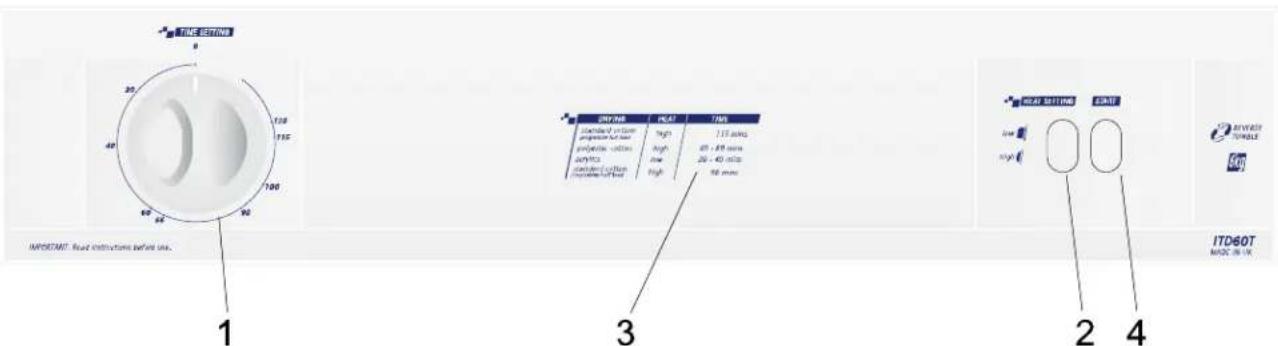

CONTROL PANEL GUIDE

1. The Timer

Select the drying time from the recommendations shown on the control panel (3). Turn the timer knob to the required drying time.

1. Heat Setting

Select half or full heat as recommended on the control panel.

1. Control Panel

See below

1. Start

Press the start button after selecting the required drying time.

DRYING	HEAT	TIME
standard cottonprogramme-full load	high	115 mins
polyesler cotton	high	40 - 60 mins
acrylics	low	20 - 40 mins
standard cottonprogramme-half load	high	66 mins

OPERATION

Sort out the clothes into groups of similar fabrics and colours. Check the care label inside the garment. We suggest that a fabric conditioner be used to reduce static electricity. Delicate articles e.g. tights should be placed inside a pillowcase. It is better to dry small and large articles together.

Open the door.

Load clothes loosely into the drum.

Load sheets first starting with one corner.

Close the door.

Dry your hands.

Check the timer is in the'0' position.

Switch on the machine.

Select correct heat position (See programme chart on facia panel).

The standard cotton programme is suitable to dry normal wet cotton laundry. It is the most efficient programme in terms of energy consumption for drying wet cotton laundry.

Your appliance is a reversing, small door opening dryer. A full load will typically take 115 minutes and will use approximately 3.92kWh of electricity. A half load will typically take 66 minutes and will use approximately 2.08kWh of electricity.

Set the timer to the correct position (See programme chart on facia panel).

For energy labeling purposes (EN61121:2005) for a cotton dry load, use the maximum load weight for cotton and set the timer to the recommended drying time for cotton dry as specified on the control panel.

Press the start button.

The drum will now begin to rotate and stop when the timer automatically reaches the '0' position.

Should the clothes become dry before the cycle has finished the thermostat will automatically switch off the heater and prevent overdrying and save energy although the drum will still rotate.

When drying large items such as sheets, we suggest you stop the dryer to redistribute the load.

To stop the machine during the middle of a programme simply open the door: the drum will stop rotating automatically and reset when you close the door. To lengthen or shorten the programme, turn the timer knob.

The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.

After removing the dried clothes clean the filter as follows:

Pull the filter upwards.

Remove any threat of fluff by hand or with a soft brush.

Slide the filter back.

Wash the filter occasionally in detergent solution and with a soft brush remove small particles.

Switch off the electricity supply.

CARE LABELS YOU MAY FIND ON YOUR FABRICS

	'Tumble drying beneficial'
	'Do not tumble dry'
	'Dry flat'

DOOR REVERSAL

APPLIANCE DOOR

The door on the dryer can be positioned either with the left or right hand hinging.

Please follow illustrations below to change the door position.


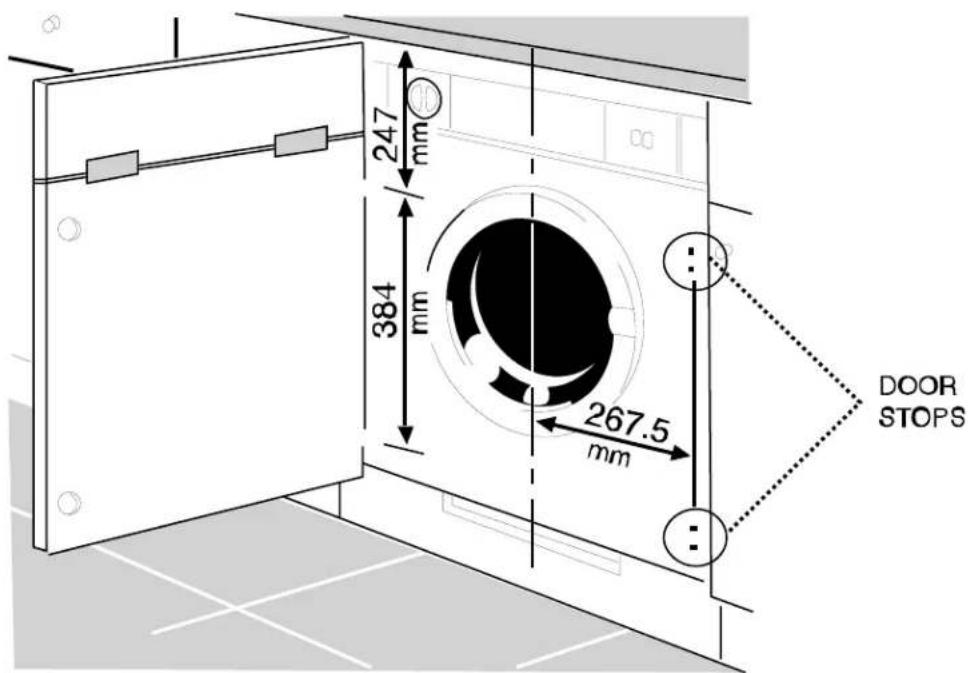

THE DECOR DOOR

The hinges can be fastened through the pre-drilled holes on either the left or right hand with the door stops being fitted on the other side.

TECHNICAL DATA

Overall dimensions: height 86.5 - 89cm width 59.5cm depth 53cm

Maximum dry weight of cotton, linen 6.0kg synthetics 6.0kg.

For electrical ratings see plate on rear of machine.

This product is manufactured to comply with the radio interference requirements of the Council directive 89/336/EMC, 2004/108/EC/2014/30/EU.

Fuse rating: 13amp.

DON'TS....

Do not – Overload the dryer.

Do not - Dry articles singly as they tend to roll up and so increase drying time.

Do not – Dry woolen or wool mixture articles unless the article is labeled as suitable. This should avoid shrinkage.

Do not – Allow venting hose (where applicable) or filter to become blocked.

Do not – Allow fluff to accumulate around the tumble dryer.

NEVER SWITCH THE DRYER OFF AND LEAVE A HOT LOAD IN THE DRUM – RISK OF FIRE.

ANY PROBLEMS

If the clothes are not dry after normal drying time:

- Check that the filter is clean.

- Check that you used the correct heat setting.

- Check that the venting hose is not blocked (sometimes a strong wind may cause a back pressure).

• Check that you have not set the timer within a cool down period.
• Check that there is a supply of electricity.
• Check that the machine is switched on and the door properly closed.
• Some machines are fitted with a resetable cut-out. Check this has not operated. If your dryer has a red button on the right hand side at the back if your dryer, press it. If it has operated the sharp “click” will be heard. This cut-out only operates if the airflow is severely restricted so make sure the filter is clean and that all other restrictions are removed before restarting.
• Check the fuse in the moulded plug.

APPROVED SERVICE AGENTS: UK & SOUTHERN IRELAND

Call ON 0800 988 1323 (calls are free from landlines however calls from mobiles may be charged at your network provider's rates) OR 0344 8797422 (Calls charged at basic rate.)

OR

APPROVED SERVICE AGENT: NORTHERN IRELAND

Call: Service Network 2000 ON 028 90365222 (Daytime calls cost up to 17p plus 10.5p per minute from BT lines Monday-Friday. Mobile and other providers' charges may vary).

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or disposal (no text or labels)

This appliance is marked according to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a Europen wide validity of return and Recycling on Waste Electrical and Electronic Equipment.

LAV SDO Rev

Suppliers name or trade mark CROSSLEE

Model identifier ITD60T

Rated capacity at full load 6kg

Appliance type Air Vented

Energy efficiency class C

Energy consumption of the appliance* 459kWh

The figures above is based on 160 drying cycles of the standard cotton programme at full and partial load and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.

Automatic/non-automatic	Non-automatic
EU Ecolabel N/A
E_dry	3.92kWh
E_dry1/2	2.08kWh
Eg_dry	N/A
Eg_dry1/2	N/A
Eg_dry,a	N/A
Eg_dry1/2,a	N/A
Off mode power ( P_o )	0W
Left on mode power ( P_l )	0W
Duration of left-on mode N/A

The standard cotton programme used at full and partial load is the standard drying programme to which the information in the label and the fiche relates. This programme is suitable for drying normal wet cotton laundry. It is the most efficient programme in terms of energy consumption for cotton.

T_t	86mins
T_dry	115mins
T_dry12	66mins
Condensing efficiency class N/A
C_t	N/A
C_dry	N/A
C_dry12	N/A
Sound power level 62dBA
Built in/not built in Model ITD60T is intended on being

built in.
