ITD70T - Tumble dryer White Knight - Free user manual and instructions

Product Type	Tumble Dryer
Brand	White Knight
Model	ITD70T
Type	Air Vented
Capacity (Cotton)	7 kg
Dimensions (Height)	86.5 - 89 cm
Dimensions (Width)	59.5 cm
Dimensions (Depth)	53 cm
Energy Efficiency Class	C
Annual Energy Consumption	519 kWh (based on 160 cycles)
Energy Consumption Full Load	4.48 kWh
Energy Consumption Half Load	2.32 kWh
Drying Time Full Load	130 min
Drying Time Half Load	75 min
Heat Settings	High / Low
Control Type	Timer (manual)
Drum Type	Reversing
Door Reversal	Yes (left/right hinge)
Built-in Compatible	Yes (600mm deep kitchen units)
Lint Filter	Clean after each cycle
Sound Power Level	62 dBA
Electrical Supply	230 V ~ 50 Hz
Fuse Rating	13 A
Safety Features	Thermal cut-out, auto shut-off
Included Accessories	Vent hose (2.4 m), wall vent kit

Frequently Asked Questions - ITD70T White Knight

What is the maximum load capacity of the White Knight ITD70T tumble dryer?

The maximum dry weight capacity is 7 kg for cotton/linen and synthetics. Do not overload to ensure efficient drying and avoid safety risks.

How do I clean the lint filter?

After each drying cycle, pull the filter upward, remove fluff by hand or soft brush, then slide it back. Wash occasionally with detergent solution and a soft brush.

Can the dryer door be reversed?

Yes, the door can be hinged on either the left or right side. Follow the illustration in the manual to reposition the hinges and door stops.

What are the drying times for different loads?

Full load (7 kg) takes approximately 130 minutes, half load (3.5 kg) takes 75 minutes on high heat. Times vary based on fabric type and moisture.

How should I vent the dryer?

Use the provided vent hose (extending up to 2.4 m) and vent through an exterior wall using the included wall vent kit. Ensure the vent is not blocked and the air inlet at the front is unobstructed.

What energy efficiency class is the ITD70T?

The dryer is energy efficiency class C with an annual consumption of 519 kWh based on 160 drying cycles of the standard cotton programme.

Is it safe to dry wool or delicate items?

Only dry wool if the garment label specifies 'tumble dry suitable'. Use low heat for delicates. Place small items like tights in a pillowcase to protect them.

What should I do if the dryer stops or clothes are not dry?

Check the lint filter, heat setting, and vent hose for blockages. Ensure the timer is not in a cool-down period. If the safety cut-out tripped, press the red reset button on the back (right side) after removing restrictions.

Can I install the dryer under a counter or in a cupboard?

Yes, it is designed to fit 600 mm deep kitchen units. Ensure adequate ventilation: do not block the front air vent or base openings. The plinth may need to be cut to accommodate the vent grill.

What electrical requirements does the dryer need?

It requires a 230 V ~ 50 Hz supply with a 13 A fuse. Do not use extension leads or adaptors; plug directly into a dedicated socket. The plug must remain accessible after installation.

USER MANUAL ITD70T White Knight

INSTRUCTIONS FOR USE

INTEGRATED TUMBLE DRYER

IMPORTANT: PLEASE READ THESE

INSTRUCTIONS THOROUGHLY BEFORE

USING THIS APPLIANCE. KEEP THEM IN A SAFE

PLACE FOR FUTURE REFERENCE.

IMPORTANT USER INFORMATION

These notes are provided in the interest of safety.

You must read them before installing or using the appliance.

—This tumble dryer is intended for NORMAL

DOMESTIC USE ONLY.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Children of less than 3 years should be kept away unless continuously supervised.

- Adequate ventilation must be provided to avoid back flow of gases into the room from appliances burning other fuels, including open fires.

- Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuel.

—Please note it is not recommended that the dryer is placed directly next to ovens or cookers as the performance of the dryer may be affected.

—A carpet must not obstruct the ventilation openings in the base of the dryer.

- Do not stack the tumble dryer on top of other appliances without the correct stacking kit.

—Any electrical work required to install the appliance should be carried out by a qualified person.

—It is important to clean the lint filter after each drying cycle or the restrictions to airflow will extend drying times and could cause the safety cut-out to trip.

—Under no circumstances should anything other than the recommended articles be placed in the tumble dryer.

—The tumble dryer should be serviced by an appointed service organisation and only genuine parts used.

- It is dangerous to alter or modify the product in any way other than fitting authorized accessories.

- We recommend that the appliance is unplugged each time after use. It should always be disconnected from the electricity supply for long periods (i.e. weekends, if it is to be left unattended for holidays etc.)

—The rear of the dryer gets quite hot during use. Position the dryer so that the back is not accessible while in operation, but ensure that the sides have a space available to allow airflow.

—The special mains cable and plug assembly must only be replaced with a genuine part by the manufacturer or his service agents in order to avoid a hazard.

- It is important to clean fluff from the window of the dryer and around the door seal after each drying cycle. Failure to do so could result in water leaking.

- When installing, position the appliance so that that the plug is accessible.

WARNING: Never stop a tumble dryer before the end of a drying cycle unless all items are quickly removed and spread out so that heat is dissipated.

Remove all objects from pockets such as lighters and matches.

DO NOT use a two-way adaptor, or extension lead. The dryer must be connected to its own socket.

DO NOT block the air inlets at the base and side of your dryer.

DO NOT allow fluff to accumulate around the tumble dryer. Risk of fire

DO NOT exceed the recommended maximum load.

DO NOT dry unwashed items in the tumble dryer

DO NOT place articles in the dryer if anything other than a water solution has been used in the cleaning process.

DO NOT attempt to dry dripping wet articles.

DO NOT use the tumble dryer if you suspect that it is damaged in any way. Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause serious injury.

Consult your local appointed service engineer and insist on genuine spare parts.

WARNING: The appliance must not be supplied through an external switching device, such as a timer, or

connected to a circuit that is regularly switched on and off by a utility.

INSTALLATION

The tumble dryer is fully compatible with any 600mm deep kitchen units and complies with stringent EEC regulations.

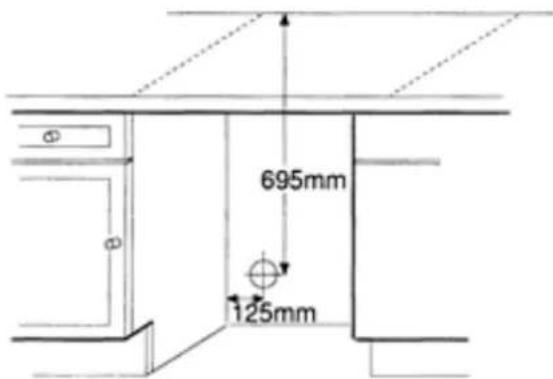

Your dryer is provided with a vent hose which will extend to approx 2.4m (8ft). We strongly recommend that this is vented through the wall with the attachment provided. The position of the hole (100mm diameter) for the vent directly behind the tumble dryer is shown in the diagram.

If the through the wall vent is to be positioned other than behind the dryer, the vent hose should be positioned at floor level and through adjacent side panel to a relevant position. The plinth must be cut-out to accommodate the air vent grill at the bottom front of the tumble dryer.

IMPORTANT

The air vent at the front of the appliance must never be covered or blocked in any way as this will cause the dryer to overheat.

The dryer should not be placed directly next to ovens or cookers, as the performance of the dryer may be affected.

ELECTRICAL CONNECTIONS: We strongly recommend that any electrical work is carried out by a qualified person complying with the IEE 17 ^th addition of the electrical regulations.

IMPORTANT

Please remember that the tumble dryer must be capable of being switched off, (disconnected from the supply), when fitted in position

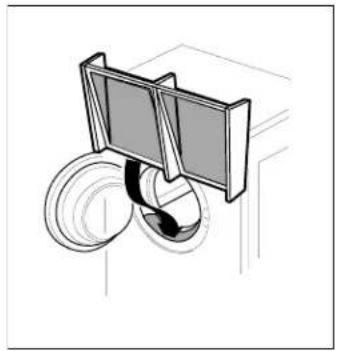

THE FILTER

The filter is found, as seen from the diagram, by opening the door and must always be in position when drying items in the appliance. To allow the dryer to operate efficiently it should be cleaned after each drying cycle. Do not be alarmed by the amount of fluff deposited on the mesh. It is not due to excessive wear caused by the dryer but more an indication of its efficient operation. All fabric loses fluff when drying but it goes unnoticed into the air. In a tumble dryer it simply collects in the filter.

Diagram of a mechanical device with a curved arm and circular base (no text or symbols)

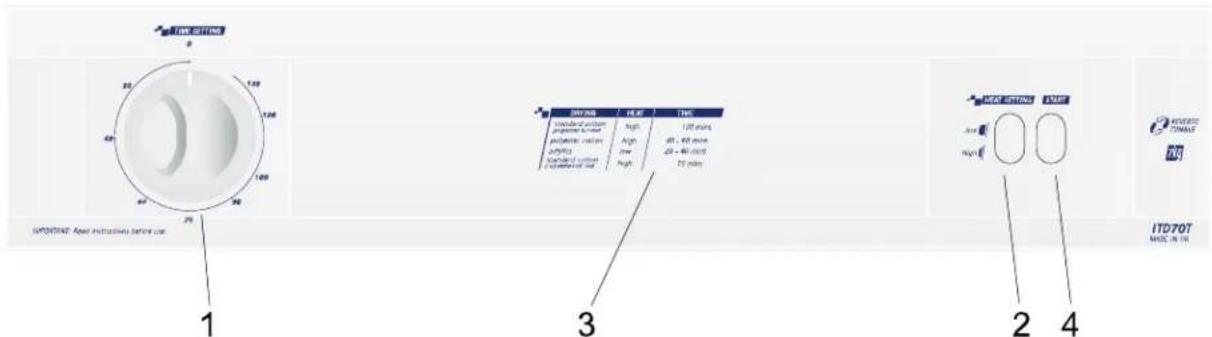

CONTROL PANEL GUIDE

1. The Timer

Select the drying time from the recommendations shown on the control panel (3). Turn the timer knob to the required drying time.

1. Heat Setting

Select half or full heat as recommended on the control panel.

1. Control Panel

See below

1. Start

Press the start button after selecting the required drying time.

DRYING	HEAT	TIME
standard cottonprogramme-full load	high	130 mins
polyester cotton	high	40 - 60 mins
acrylics	low	20 - 40 mins
standard cottonprogramme-half load	high	75 mins

OPERATION

Sort out the clothes into groups of similar fabrics and colours. Check the care label inside the garment. We suggest that a fabric conditioner be used to reduce static electricity. Delicate articles e.g. tights should be placed inside a pillowcase. It is better to dry small and large articles together.

Open the door.

Load clothes loosely into the drum.

Load sheets first starting with one corner.

Close the door.

Dry your hands.

Check the timer is in the '0' position.

Switch on the machine.

Select correct heat position (See programme chart on facia panel).

The standard cotton programme is suitable to dry normal wet cotton laundry. It is the most efficient programme in terms of energy consumption for drying wet cotton laundry.

Your appliance is a reversing, small door opening dryer. A full load will typically take 130 minutes and will use approximately 4.48kWh of electricity. A half load will typically take 75 minutes and will use approximately 2.32 kWh of electricity.

Set the timer to the correct position (See programme chart on facia panel).

For energy labeling purposes (EN61121:2005) for a cotton dry load, use the maximum load weight for cotton and set the timer to the recommended drying time for cotton dry as specified on the control panel.

Press the start button.

The drum will now begin to rotate and stop when the timer automatically reaches the '0' position.

Should the clothes become dry before the cycle has finished the thermostat will automatically switch off the heater and prevent overdrying and save energy although the drum will still rotate.

When drying large items such as sheets, we suggest you stop the dryer to redistribute the load.

To stop the machine during the middle of a programme simply open the door: the drum will stop rotating automatically and reset when you close the door. To lengthen or shorten the programme, turn the timer knob.

The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.

After removing the dried clothes clean the filter as follows:

Pull the filter upwards.

Remove any threat of fluff by hand or with a soft brush.

Slide the filter back.

Wash the filter occasionally in detergent solution and with a soft brush remove small particles.

Switch off the electricity supply.

CARE LABELS YOU

MAY FIND ON YOUR FABRICS

'Tumble drying beneficial'

'Do not tumble dry'

'Dry flat'

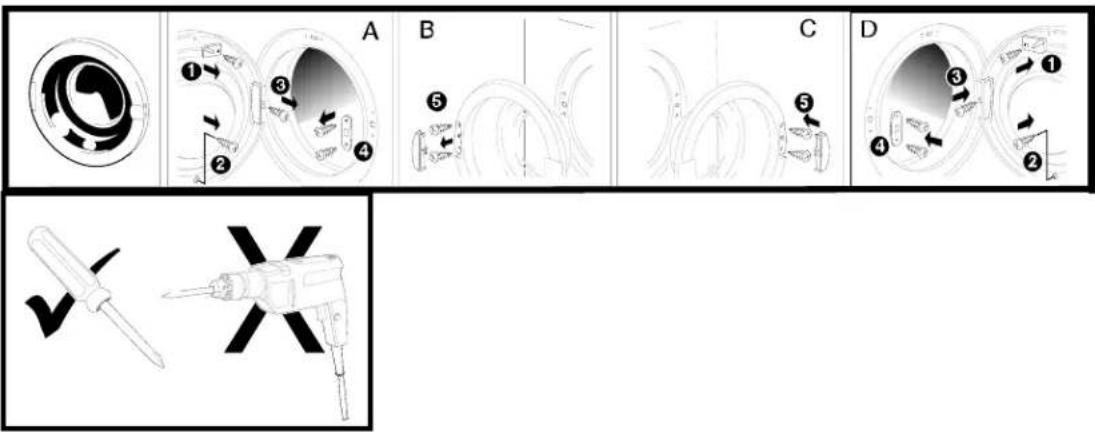

DOOR REVERSAL

APPLIANCE DOOR

The door on the dryer can be positioned either with the left or right hand hinging. Please follow illustrations below to change the door position.


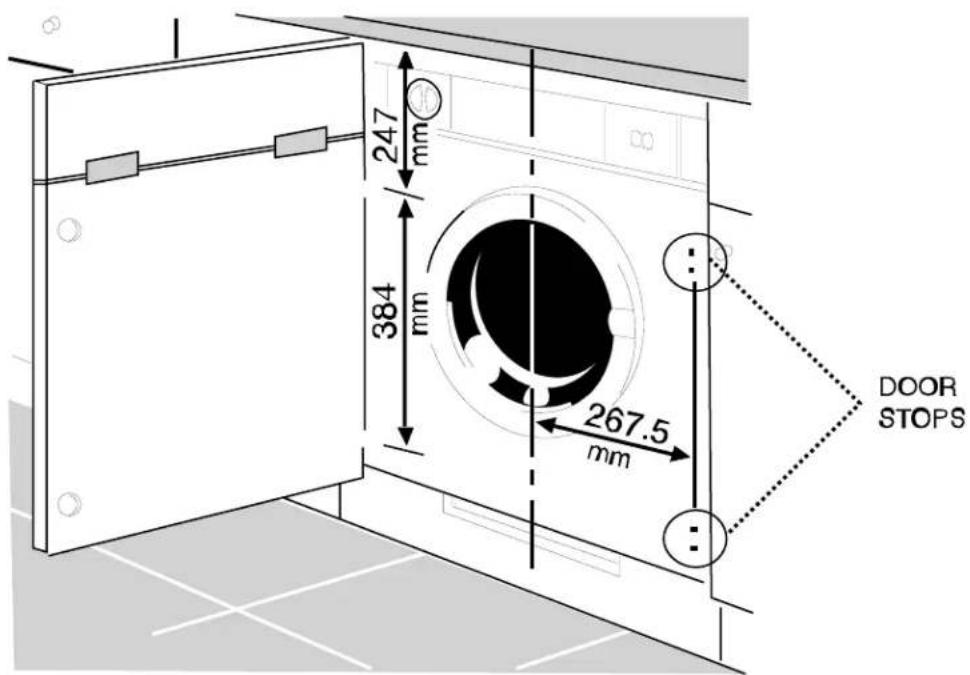

THE

DECOR DOOR

The hinges can be fastened through the pre-drilled holes on either the left or right hand with the door stops being fitted on the other side.

TECHNICAL DATA

Overall dimensions: height 86.5 – 89cm width 59.5cm depth 53cm

Maximum dry weight of cotton, linen 7.0kg synthetics 7.0kg.

For electrical ratings see plate on rear of machine.

This product is manufactured to comply with the radio interference requirements of the Council directive 89/336/EMC, 2004/108/EC/ EMC 2014/30/EU.

Fuse rating: 13amp.

DON'TS....

Do not - Overload the dryer.

Do not - Dry articles singly as they tend to roll up and so increase drying time.

Do not – Dry woolen or wool mixture articles unless the article is labeled as suitable. This should avoid shrinkage.

Do not - Allow venting hose (where applicable) or filter to become blocked.

Do not - Allow fluff to accumulate around the tumble dryer.

NEVER SWITCH THE DRYER OFF AND LEAVE A HOT LOAD IN THE DRUM – RISK OF FIRE.

WARNING: Never stop a tumble dryer before the end of a drying cycle unless all items are quickly removed and spread out so the heat is dissipated.

ANY PROBLEMS

If the clothes are not dry after normal drying time:

• Check that the filter is clean.
• Check that you used the correct heat setting.
• Check that the venting hose is not blocked (sometimes a strong wind may cause a back pressure).
• Check that you have not set the timer within a cool down period.

APPROVED SERVICE AGENTS: UK & SOUTHERN IRELAND

Call ON 0800 988 1323 (calls are free from landlines however calls from mobiles may be charged at your network provider's rates) OR 0344 8797422 (Calls charged at basic rate.)

OR

APPROVED SERVICE AGENT: NORTHERN IRELAND

Call: Service Network 2000 ON 028 90365222 (Daytime calls cost up to 17p plus 10.5p per minute from BT lines Monday-Friday. Mobile and other providers' charges may vary).

• Check that there is a supply of electricity.
• Check that the machine is switched on and the door properly closed.
• Some machines are fitted with a resetable cut-out. Check this has not operated. If your dryer has a red button on the right hand side at the back if your dryer, press it. If it has operated the sharp “click” will be heard. This cut-out only operates if the airflow is severely restricted so make sure the filter is clean and

that all other restrictions are removed before restarting.

- Check the fuse in the moulded plug.

Symbol of a trash bin crossed out by two crossed lines, representing waste sorting or disposal (no text or labels)

This appliance is marked according to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

This guideline is the frame of a European wide validity of return and Recycling on Waste Electrical and Electronic Equipment.

LAV SDO Rev
Suppliers name or trade mark UNBRANDED
Model identifier IDT70T/I
Rated capacity at full load 7kg
Appliance type Air Vented
Energy efficiency class C
Energy consumption of the appliance* 519kWh
The figures above is based on 160 drying cycles of the standard cotton programme at full and partial load and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.
Automatic/non-automatic	Non-automatic
EU Ecolabel N/A
E_dry 4.48kWh
E_dry12 2.32kWh
E_g_dry N/A
E_g_dry12 N/A
E_g_dry,a N/A
E_g_dry12,a	N/A
Off mode power ( P_o )	0W
Left on mode power ( P_i )	0W
Duration of left-on mode	N/A
The standard cotton programme used at full and partial load is the standard drying programme to which the information in the label and the fiche relates. This programme is suitable for drying normal wet cotton laundry. It is the most efficient programme in terms of energy consumption for cotton.
T_t	99mins
T_dry	130mins
T_dry12	75mins
Condensing efficiency class	N/A
C_t	N/A
C_dry	N/A
C_dry12	N/A
Sound power level	62dBA
Built in/not built in	Model 432 is intended on being built in. All other models are not intended on being built in.
