Type of product	Fridge-Freezer
Colour	White
Energy efficiency class	A+
Total net capacity	250 L
Fridge net capacity	180 L
Freezer net capacity	70 L
Freezing capacity	4 kg/24h
Noise level	42 dB
Climate class	N-ST
Dimensions (W x D x H)	540 x 550 x 1700 mm
Weight	55 kg
Power supply	220-240 V, 50 Hz
Current	0.5 A
Annual energy consumption	250 kWh
Defrost system	Automatic (No Frost)
Refrigerant	R600a
Number of shelves	4
Door reversible	Yes
Warranty	2 years
Spare parts availability	7 years

Frequently Asked Questions - BFFF55152W BUSH

How do I set the temperature for the fridge and freezer?

Use the temperature control panel inside the fridge compartment. Recommended settings are 4°C for the fridge and -18°C for the freezer.

What should I do if the alarm on the fridge sounds?

The alarm indicates a temperature rise. Check if the door is closed properly and if there is a power cut. If the alarm persists, contact customer service.

How do I defrost the freezer?

This model features No Frost technology, so manual defrosting is not required. However, if ice builds up, check the door seal and ensure proper usage.

How to clean the fridge inside?

Unplug the appliance first. Use a solution of warm water and mild detergent. Avoid abrasive cleaners. Dry with a soft cloth.

Why is there water at the bottom of the fridge?

Likely due to a blocked defrost drain. Clean the drain hole with a cotton swab and rinse with warm water.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the instruction manual for step-by-step guidance. You may need a screwdriver.

What is the recommended temperature for the fridge compartment?

The ideal fridge temperature is between 2°C and 5°C. Set the thermostat to 4°C for optimal food preservation.

How long does it take for the fridge to cool down after first use?

It may take up to 24 hours to reach the set temperature. Avoid loading large amount of food immediately.

What does the energy efficiency class A+ mean?

A+ indicates that the appliance consumes less energy than standard models. It helps reduce electricity bills and environmental impact.

Where can I find spare parts for this model?

Spare parts are available from authorized Bush service centers and online retailers. Use the model number BFFF55152W for accurate parts.

USER MANUAL BFFF55152W BUSH

BUSH – Fridge Freezer

Installation & User Instructions – Please keep for future reference

141/9566

ABUSH

Real Life Technology

108/2034

129/1667

Line drawing of a double refrigerator with front and back panels (no text or symbols)

Important – Please read these instructions fully before installing or using

These instructions contain important information which will help you get the best from your appliance and ensure safe and correct installation, use and maintenance.

If you need help or have damaged or missing parts, call the Customer Helpline: 0345 600 4632

Safety Information 2

Parts 3

Installation 4-6

Transportation	4
Installation	4

Door Reverse 5

Electrical

Connection

6

User Instructions 7-8

Before

first

use

7

Using your appliance 7

Useful

information

8

Care and Maintenance 9-10

General

9

Light bulb replacement 9

Power	failure
Moving	your	applianca0

Trouble Shooting

11

Technical Specifications 12

Disposalmationinf

12

Guarantee

13

9

Line drawing of a refrigerator with front panel and side legs (no text or symbols)

Product codes

BFFF55152B - Black

BFFF55152S – Silver

BFFF55152W - White

Before use During use

The installation of this appliance is best carried out by 2 people.

• Dispose of all packaging carefully and responsibly.
• The appliance is designed for indoor use only and must be protected from rain, moisture and extreme temperature variations.
• This appliance is designed for household use. Do not use the appliance for industrial and commercial use, or any other purpose.
• The appliance MUST be positioned on a firm level base.
• Do not splash water on the appliance. It may cause electrical parts to fail and result in an electric shock.
• Leave the appliance in its intended place of installation and in its correct orientation for at least 4 hours before switching on to allow the cooling system to settle before first use or after any transportation.
• Your appliance is an environmental friendly product and it contains non CFC / HFC gas substances in the cooling system (Called R600a) and in the insulation (Called cyclopentane) which are potentially flammable if exposed to fire. Therefore, take care not to damage, the cooling circuit / pipes of the appliance in transportation and in use. In case of damage do not expose the appliance to fire, potential ignition source and immediately ventilate the room where the appliance is situated.
• Do not sit, stand or place any other heavy objects on top of the appliance. This could result in injury or damage to the appliance.
• Do not allow children to play with the appliance to avoid the risk of entrapment and suffocation.

• Keep ventilation opening, in the appliance enclosure or in the built-in structure, clear of obstruction.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure that they do not play with the appliance.
• Do not use mechanical, electrical or chemical way to speed up the defrost process not recommended by the manufacturer.
• Do not use or place other electrical products inside the appliance not recommended by the manufacturer.
• Do not store liquids in glass containers in the freezer compartment as these may shatter.
• Do not store flammable materials such as alcohol, gasoline, LP gas or glue etc in the appliance.
• In case there is an inflammable gas leaking, open the window for air circulation and do not pull out the plug or turn the temperature knob. Do not touch the appliance until the valve of gas is turned off. Otherwise, sparks may happen.
• Do not store products that contain inflammable propellant gas, e.g. dispensers, spray cans, or explosive substances.
• Do not attempt to repair the appliance yourself. Contact the Customer Helpline: 0345 600 4632.

Please familiarize yourself with the parts and accessories listed below

1. Thermostat
2. Adjustable Storage Shelf
3. Drain port

4. Crisper cover

5. Crisper drawer

6. Freezing trays

7. Compressor (at the back side)
8. Adjustable front feet

9. Door Shelves

10. Bottle Shelves

Accessories included

Instructions x 1

Installation

Transportation

Caution: 2 people are required to k and handle the appliance, it is mended that gloves are worn.

• The appliance should be transported only in an upright position. Do not tilt the appliance greater than 45°. The packaging as supplied must be intact during transportation.
• After transporting the appliance, leave it for at least 4 hours before switching on to allow the cooling system to settle. Failure to comply could result in damage to the appliance.
• Do not move the appliance by pulling the door or handle as it may damage your flooring and wall coverings etc.
• Empty any water in the drain tray before moving.
• Make sure that the defrost water pipe at the back of the product is fixed to the plastic evaporating pan on the top of the compressor, to avoid defrost water spillage on the floor.
• Ensure the supply cable is not caught under the appliance during and after moving.
• Carefully remove all packaging materials including the foam base, dispose of correctly.

Installation

• Ensure sufficient spacing is provided for the appliance to be installed. Leave space on both sides (15cm), back (20cm) and above the appliance (30cm) to ensure proper ventilation.
• Screw in the two spacers (provided) at the back of the appliance.
• Do not place the appliance near a heat source or in direct sunlight.
• Do not put any heavy objects on top of the appliance. It will damage the appliance.
• Do not install the appliance in moist and wet place.
• Adjust the feet at front to level the appliance. It should be installed on a smooth surface to avoid excessive vibration and noise.
  • Each appliance has a climate class (shown on the rating plate) where it indicates the temperature range of the appliance operation in place. The appliance may not work properly if it is left for a long period at a temperature outside the specified range.
• Refer to section "Care and Maintenance" to prepare your appliance for use.

Climate Class	Amb. T. (°C)	Amb. T. (°F)
SN	10 ~ 32°C	50 ~ 90°F
N	16 ~ 32°C	61 ~ 90°F
ST	16 ~ 38°C	61~ 100°F
T	16 ~ 43°C	61~ 110°F

Door Reverse

Warning: Remove the main plug before reversing the door. 2 people may be required to reverse the door.

1. Remove the screws (1) holding the top panel (2) to the unit. Remove the top panel.
2. Remove the two screws (3) holding the top hinge (4) (right side) to the frame. Remove the top hinge (4).
3. Lift the door off the middle hinge pin and place it on a non-scratching surface.
4. Remove the two screws (5) holding the middle hinge (6). Remove the middle hinge (6).
5. Lift the lower door off the bottom hinge pin and place it on a non-scratching surface.
6. Remove the two screws (7) holding the bottom hinge (8). Remove the bottom hinge (8).
7. Remove the left front feet (9) and transfer it to the right side.
8. Before replacing the bottom hinge (8), remove the hinge pin (10) and reverse the direction of the hinge (8). Reassemble the bottom hinge (8) on the left hand side using the two screws (7).
9. Refit the hinge pin (10) into the bottom hinge (8).
10. Lower the door onto the bottom hinge pin (10).
11. While holding the lower door in the closed position, reassemble the middle hinge (6) on the left hand side using the two screws (5). Do not tighten the screws (5) until the top of the lower door is level with the counter top.
12. Before replacing the upper hinge (4), remove the hinge pin (11) and reverse the direction of the hinge (4). Refit the hinge pin (11) into the upper hinge (4).
13. Lower the upper door onto the middle hinge pin.
14. While holding the upper door in the closed position, reassemble the upper hinge (4) on the left hand side using the two screws (3). Do not tighten the screws (3) until the top of the upper door is level with the counter top.
15. Refit the top panel (2) using the screws (1).

Door opening from left side fig. I

Door opening from right side fig. 2

Electrical connection

Any electrical work that is required to this appliance MUST be carried out by ified electrician.

Warning: THIS APPLIANCE MUST BE HED

Before making any electrical connections, ensure that:

• Electrical safety is only guaranteed when the earth system of your house is in accordance with the related local regulations.
• Do not damage the refrigerant circuit.
• Do not bend, stretch or pull the supply cable to avoid electric shock.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Ensure the power socket is suitable for the maximum power of the machine (fuses in the power circuit must be 13 amp).
• The supply voltage should be the same as that indicated in the technical specifications and the appliance rating plate.
• The appliance should be earthed and in compliance with the applicable law.
• When installed, the power socket must be within easy reach.
• If the socket outlets in your home are not suitable for the plug supplied with this unit check with a qualified electrician for replacement.
• The use of adapters, multiple connectors or extension cables are not recommended.
• The appliance must be connected to a 220-240 volt 50Hz AC supply by means of a three pin socket, suitably earthed and protected by a 13 amp fuse.
• Should the fuse need to be replaced, a 13 amp fuse approved to BS1362/A must be used.
• The plug contains a removable fuse cover that must be refitted when the fuse is replaced. If the fuse cover is lost or damaged, the plug must not be used until a replacement cover has been fitted or the plug is replaced.
• A damaged plug should be cut off as close to the plug body as possible, the fuse should be removed and the plug disposed of safely.

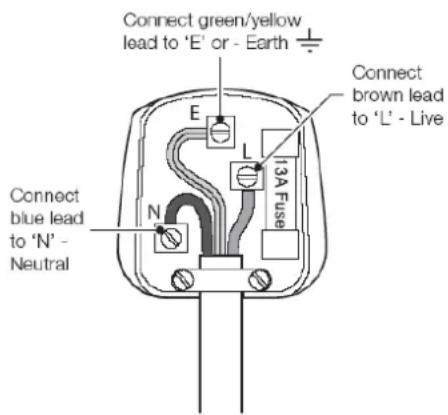

Plug replacement (UK & Ireland only)

Should you need to replace the plug; the wires in the power cable are coloured in the following way:

Blue – Neutral 'N'

Brown – Live 'L'

Green & Yellow – Earth 'E'

As the colours of the wires in the power cable may not correspond with the coloured markings identifying the terminals in your plug, and proceed as follows:

The green & yellow wire must be connected to the terminal in the plug that is marked with the letter E or by the earth symbol.

The blue wire must be connected to the terminal that is marked with the letter N.

The brown wire must be connected to the terminal that is marked with the letter L.

If power supply cord is damaged, it must replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.

User Instructions

Before first use

Final checks before operating the appliance

1. Good air circulation around the appliance positioned.
2. The feet have been adjusted for perfect levelling.
3. Clean the compartment per recommendation in section "Care and Maintenance".
4. Plug in the appliance and interior light will come on when the door is open.

The compressor starts up and in operation may produce some background noise and it is normal, not a defect.

Using your appliance

1. Temperature adjustment

• The compartment temperature can be set by the temperature knob between “1” and “7” (coldest setting). We recommend setting the temperature knob midway first.
• To ensure the compartment is maintained at the desired temperature, it is advised to monitor the temperature periodically by a thermometer and adjust the temperature knob accordingly.
• Load the appliance after switch on for a while to allow the temperature reach the desired setting.

2. Storing fresh food

• Use the fridge compartment to store fresh food and drinks.
• Do not exceed the food capacity that the appliance able to handle.
• Do not put warm food to the appliance immediately as it may cause excessive cooling of the compartment.
• Set the temperature knob at medium position for storing fresh food.
• Do not mix already frozen food and fresh food.

3. Storing frozen food

• The freezer compartment is 4 Star rated and suitable for the freezing and storage of pre frozen food.
• Check the food packaging for ** suggestion before storage.

Useful information

The following guidelines and recommendations are suggested to obtain the best results and storage hygiene.

• Frequent door openings can cause internal temperature rise so the door shall be closed as soon as possible after use.
• For hygiene reasons, it is always a good practise to pack, wrap and cover the food before storing.
• Use a polythene bag to store raw meat and place on the lowest shelf. Avoid contact with cooked food to prevent contamination. For safety reason, store raw meat for two to three days only.
• Cooked dishes must be stored in airtight covered containers.
• Food and beverages shall cool to room temperature before storing.
• Most vegetables should be blanched and chilled before freezing.

User Instructions

• Bottles can be placed in the door section.
• Some fruits and vegetables like pineapples, melons, tomatoes, and cucumbers shall be wrapped in polythene bags.
• Do not leave frozen food at room temperature to thaw. You could defrost the food by putting it in the fridge to thaw slowly. Make sure you avoid defrosting food or food juices drip onto other food.

Energy saving tips

• Place your fridge away from direct sunlight, your oven or any other heat sources. Allow 20 cm clear space on both sides and above, and at least 5 cm behind.
• Cover all food stored, and arrange it so that cold air can circulate freely.
• Higher cold setting will use more energy. Do not set to maximum cold if it is not necessary.
• Cool the hot/warm food to room temperature before put them into your fridge.
• Frequently open and close door would cause internal temperature rise and it will consume more energy.
• Close the door(s) properly, and make sure the seals and hinges are airtight. Check the seals by putting a sheet of paper between the door and the main body of the fridge. If the paper moves, your seals need replacing.
• Defrost regularly if your refrigerator is not a frost-free or cyclic defrost model. Accumulated ice layer should not be more than 5 mm thick.
• The pre-set combination of drawers, baskets and shelves have already set in the most efficient use of this product.

Defrosting

Fridge Compartment

• The fridge compartment defrosts automatically. The defrosting water runs through the drain port to the drain tray at the back of the appliance.
• In case, the some droplets may remain inside the compartment and re-freeze, after the defrosting cycle, this is normal. Do not use pointed or sharp objects, i.e. knives or forks, to remove the droplets which have frozen.
• Check the collection channel to ensure that no food particle have blocked the drain channel.

Freezer Compartment

- The freezer compartment defrosts automatically.

The fan inside the freezer compartment circulates cold air. Never any object through the holes for circulation. Do not cover the hole ny material which may obstruct air circulation.

Pure electrical circuit lines without any symbols

Care and Maintenance

General

Important: Always unplug the appliance from the power socket during cleaning and tenance.

• Never use any sharp instruments or abrasive substances, soap, household cleaner, detergent or wax polish for cleaning.
• Use luke warm water to clean the cabinet of the appliance and wipe it dry.
• Never clean the appliance with flammable fluids. It could cause a damage and fire hazard.
• Clean the exterior of the appliance and door seal with a damp cloth and dry it through.
• Avoid water goes in the temperature control box. Clean with a dry cloth only.
• Clean the condenser (located at the back of the appliance) with a vacuum cleaner. It is suggested to remove the dust every year.
• Shelves are all removable for cleaning purpose.

Important: Care must be taken while cleaning/carrying the appliance not to touch the bottom of condenser metal wires at the back of the appliance, as this could cause injury to fingers and hands.

Light bulb replacement

This appliance is equipped with LED light bulb. It can be used for long time. In case, the LED bulb is blown, it must be replaced by the qualified person to avoid any hazard. Contact the service agent at 0845 600 4632.

Power failure

In case there is a power failure, you should contact the electricity supply company and take the following actions:

If it is last within 24 hours, keep the doors closed. This will allow the stored food to stay cold as long as possible.

If it is last more than 24 hours, it is advised to empty the freezer compartment and temporarily store the food in a portable freezer or using artificial ice packs. Try to use up the food which is more easily perishable.

Remarks: Full appliance will stay cold longer than a partially filled one.

If ice crystals are still visible on the food, it may be frozen again, although flavour and aroma may be affected. If food is found to be in a poor condition, it is best to throw it away.

Short vacation

There is no need to disconnect the appliance from the mains if you will be away for two to three weeks. Use up the perishable food.

Care and Maintenance

Power failure

Long vacation

Remove all the food if you are away for three weeks or more. Unplug the appliance and leave the doors open to provide air circulation to prevent odour and mould.

Moving your appliance

Moving

Refer to section "Transportation" under "Installation"

Trouble Shooting

In the unlikely event of difficulties with your appliance please follow the trouble shooting guide below. If the problem persists, contact the retailer if the machine is still under guarantee. If the machine is out of guarantee, contact an approved service agent on 0345 600 4632.

Problem Possible cause Solution
Appliance does not start	The mains plug is not plugged in.Protection devices or fuses of the electrical system at home open	Insert the mains plug.Check the protection devices and fuses.
Light does not work	Failure bulb	Replace the bulb per section “Care and Maintenance”
Appliance not cool enough	Cooling system not settle after transportationDoors not close properlyFrequently doors openLoading food too muchLow temperature settingDoor seal dirty or sticky	Leave the appliance at least 4 hours before switching onCheck any food blockageReduce the frequencyReduce the food quantityAdjust the temperature knobClean per section “Care and Maintenance”
Food frozen in fridge compartment	High temperature setting	Adjust the temperature knob
Noisy applianceNot position on even surfaceAppliance is touching objects aroundBottles and containers are contacting with each other	Install on even surface and leveling the applianceEnsure spacing at both sides and above the applianceSeparate them

Technical Specifications

Model	BFFF55152BBFFF55152SBFFF55152W
Energy efficiency class A+ +
Energy consumption – Kwh/year 226
Net storage – volume fresh food (litres) 133
Net storage – volume frozen food (litres) 50
Total net storage (litres) 183
Frozen food compartment rating	4 Star * * * *
Climate class N/ST
Operating noise level dB(A)	43

We apologise for any inconvenience caused by any minor inconsistencies in these instructions, which may occur as a result of product improvements and development.

This appliance complies with the following EEC directives: 2006/95/EEC Low voltage directive 2004/108/EEC EMC directive

Disposal information

The symbol on the product or its packaging indicates that this product may not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling this product, please contact your local council office, your household waste disposal service or the shop where the product was purchased.

Remember: Old fridges must be disposed of carefully - older models contain CFC gases that are harmful - if in doubt, contact your local council for details on how to dispose of an old fridge.

PRODUCT GUARANTEE

This product is guaranteed against manufacturing defects for a period of

Year

This product is guaranteed for twelve months from the date of original purchase.

Any defect that arises due to faulty materials or workmanship will either be replaced, refunded or repaired free of charge where possible during this period by the dealer from whom you purchased the unit.

The guarantee is subject to the following provisions:

• The guarantee does not cover accidental damage, misuse, cabinet parts, knobs or consumable items.
• The product must be correctly installed and operated in accordance with the instructions contained in this manual.
• It must be used solely for domestic purpose.
• The guarantee will be rendered invalided if the product is re-sold or has been damaged by inexpert repair.
• Specifications are subject to change without notice.
• The manufacturer disclaims any liability for the incidental or consequential damages.
• The guarantee is in addition to, and does not diminish your statutory or legal rights.
• In the event of a problem with the product within the guarantee period call the Customer Helpline on 0345 600 4632.

Guarantor: Argos Ltd

489 - 499 Avebury Boulevard

Central Milton Keynes

MK9 2NW
