Product Type	Built-in Dishwasher
Brand	Caple
Model	Di477
Width	59.6 cm
Height	81.5 cm
Depth	55.0 cm
Weight	39.5 kg
Power Supply	220-240 V, 50 Hz
Energy Consumption	0.95 kWh per cycle
Water Consumption	9.5 L per cycle
Number of Place Settings	13
Noise Level	44 dB(A)
Programs	Auto, Eco, Intensive, Normal, Quick, Rinse
Drying System	Condensation drying
Control Type	Electronic push buttons
Display	LED indicators
Water Protection System	AquaStop
Rinse Aid Indicator	Yes
Salt Indicator	Yes
Cutlery Basket	Yes, removable
Height Adjustable Rack	Yes, upper rack
Self-Cleaning Filter	Yes, automatic
Energy Efficiency Class	E
Repairability Index	7.3 / 10

Frequently Asked Questions - Di477 Caple

How do I start a wash cycle?

Load the dishes, add detergent, close the door, select a program using the button panel, and press Start. The LED will indicate the cycle is running.

What should I do if the dishwasher does not drain?

Check the drain hose for kinks or blockages. Clean the filter under the bottom spray arm. Ensure the sink drain is not clogged. If problem persists, consult the manual.

How often should I clean the filter?

Clean the filter after every 5-10 cycles. Remove the lower rack, unscrew the filter assembly, rinse under running water, and reinstall securely.

My dishes are not drying properly. What can I do?

Ensure rinse aid is topped up. Select a program with drying phase. Avoid overloading. Open the door slightly after cycle end for steam release.

Can I use ordinary dish soap?

No, use only dishwasher detergent (powder, gel, or tablets). Ordinary soap will cause excessive foaming and damage the machine.

How do I reset the dishwasher?

Press and hold the Start/Reset button for 5 seconds. The machine will drain and reset. Then you can select a new program.

What does the salt indicator light mean?

It means the water softener needs regeneration salt. Refill the salt container according to the manual. Use coarse dishwasher salt only.

The dishwasher is leaking water. What should I check?

Check door gasket for debris or damage. Ensure the hose connections are tight. Inspect the water inlet and drain hose for cracks.

How do I install the dishwasher?

The installation must be done by a qualified technician. Ensure leveling, secure water and drain hoses, connect power supply, and run a test cycle.

Where can I find spare parts?

Spare parts are available from Caple authorized service centers or online retailers. Use the model number Di477 to order compatible parts.

USER MANUAL Di477 Caple

Instruction manual for integrated dishwasher

Model code: Di475

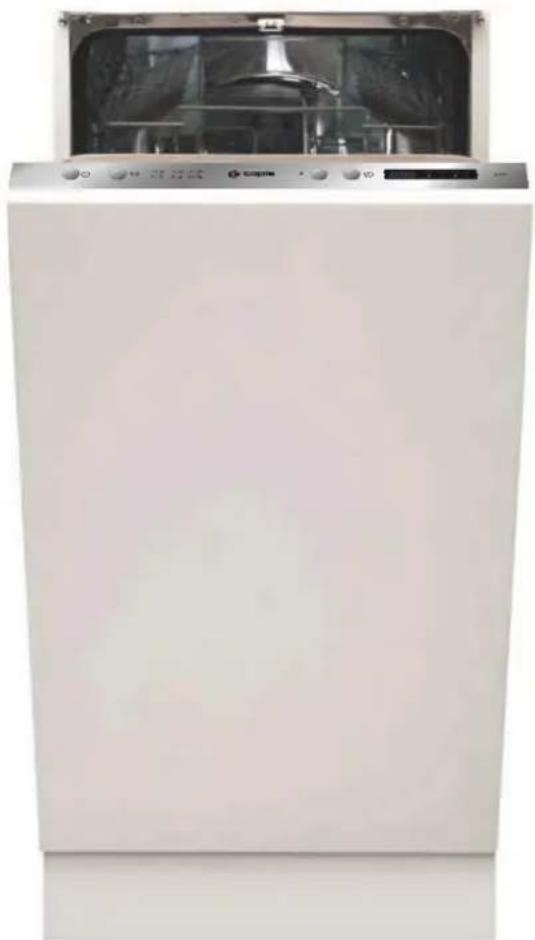

Front view of a white stainless steel multi-level dishwasher with open lid and control buttons (no visible text or symbols)

Quick operation guide

Fordetailedoperatingmethodreadthecorrespondingcontentontheinstructionmanual.

Switch on the appliance

Open the door, press the On/Off button to switch on the appliance.

Mechanical indicator C.

Electricindicatoroncontrolpanel(ifprovided).

Checktheregeneration saltlevel

(Onmodelswithwatersoftenersystemonly.)

Electricindicatoroncontrolpanel(ifprovided).

Ifthereisnosaltwarninglightinthecontrolpanel

(forsomemodels),youcanestimatewhentofillthesaltinto

thesoftenerbythenumberofcyclesthedishwasherhasrun.

Loadthebaskets

Scrapeoffanylargeamountofleftoverfood. Softenremnantsofburntfoodinpans,

then load the baskets. Refer to the dishwasher loading instructions.

Selectaprogramme

PresstheProgrammeButtonuntil theselectedprogrammelightsup.

( See the section entitled "Operation instruction" )

Runningthedishwasher

Turnonthewatertap,closethedoor.Themachinewillstartworkingafterabout1

- Changingtheprogramme

• 1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent may have already been released and the water already drained. If this is the case, the detergent dispensermustberefilled.
     2.Pressthe ProgrammeButton formorethan3secondstocanceltherunningprogramme.
     3.Selectanewprogramme.
     4.Restartthedishwasher.

- Addforgottendishesinthe dishwasher.

• 1. Openthodooralittletostopthedishwasher.

1. Afterthesprayarmsstopworking, you can open the door completely.
   3.Addtheforgottendishes.
2. Close the door, the dishwasher will start running again after 10 seconds.

- If the appliance is switched off during a wash cycle.

- Iftheapplianceisswitchedoffduringawashcycle,whenswitched

on again, please re-select the washing cycle and operate the dishwasher according to the original Power-onstate).

WARNING!

Openthedoorcarefully. Hotsteammayescape when the door is opened!

Switchofftheappliance

Whentheworkingcyclehasfinished,thebuzzerof the

dishwasherwillsound8times,thenstop

TurnofftheapplianceusingtheOn/OffButton.

Turnoffthewatertap, unloadthebaskets

Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and moresusceptibletobreak.

They will also dry better.Unload the appliance, starting from the lower basket.

Read this Manual

DearCustomer,

This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-farmhouses;

-by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments.

Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.

- Keep for future reference.

Passitonto any subsequent owner of the appliance.

This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.

Before Calling for Service

To review the section on troubleshooting Tips will help you to solve some common problems by yourself.

If you can not solve the problems by yourself, please ask for the help of professional technicians.

NOTE:

The manufacturer, following a policy of constant product development, may make modifications without giving prior notice.

1) Safety Information....1

2) Disposal....2

3) Operating Instructions....3

Controlpanel....3

Dishwasherfeatures....3

4) Prior using for the first time....4

A、Water softener....4

BLoading the salt into the softener....5、

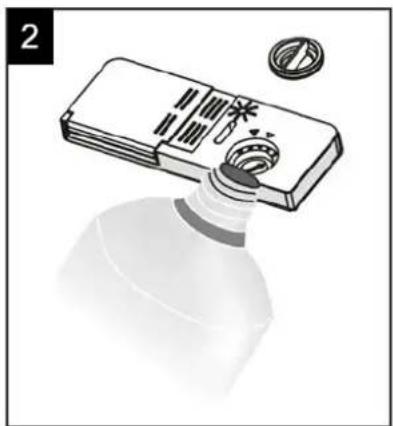

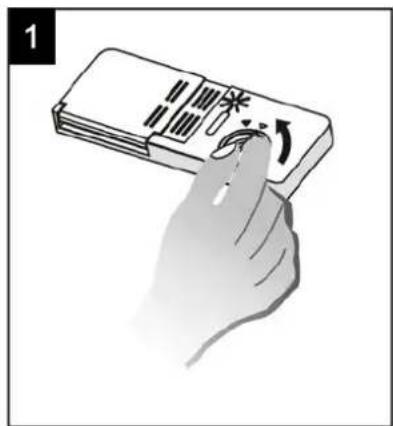

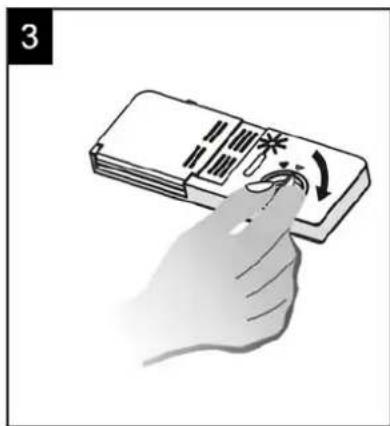

C、Fill the rinse aid dispenser....5

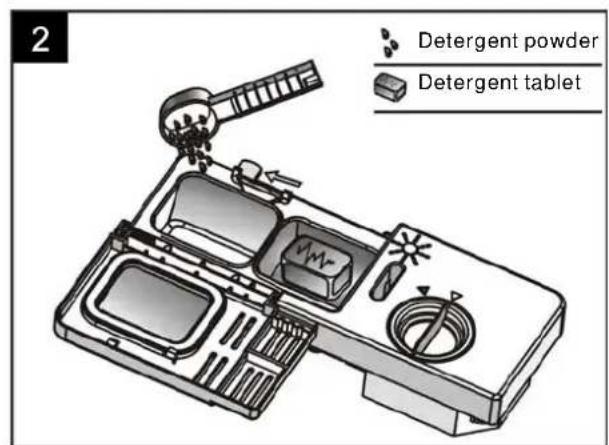

D、Function of detergent 6

5) Features....8

6) Loading the Dishwasher Basket....9

Before or after loading the dishwasher baskets .....9

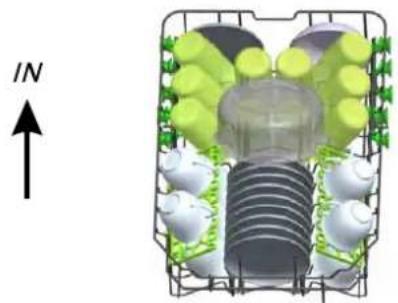

Loading the upper basket....10

Loading the lower basket....10

7) Starting a washing programme....11

Washcycletable....11

Turning on the appliance....11

Change the programme....12

Atthe end of the wash cycle....12

8) Maintenance and cleaning....13

Filteringsystem....13

Caring for the dishwasher....14

9) Installation instruction....15

Installation preparation.... 15

Furniture door dimensions and installation.....16

Tension adjustment of the door spring....18

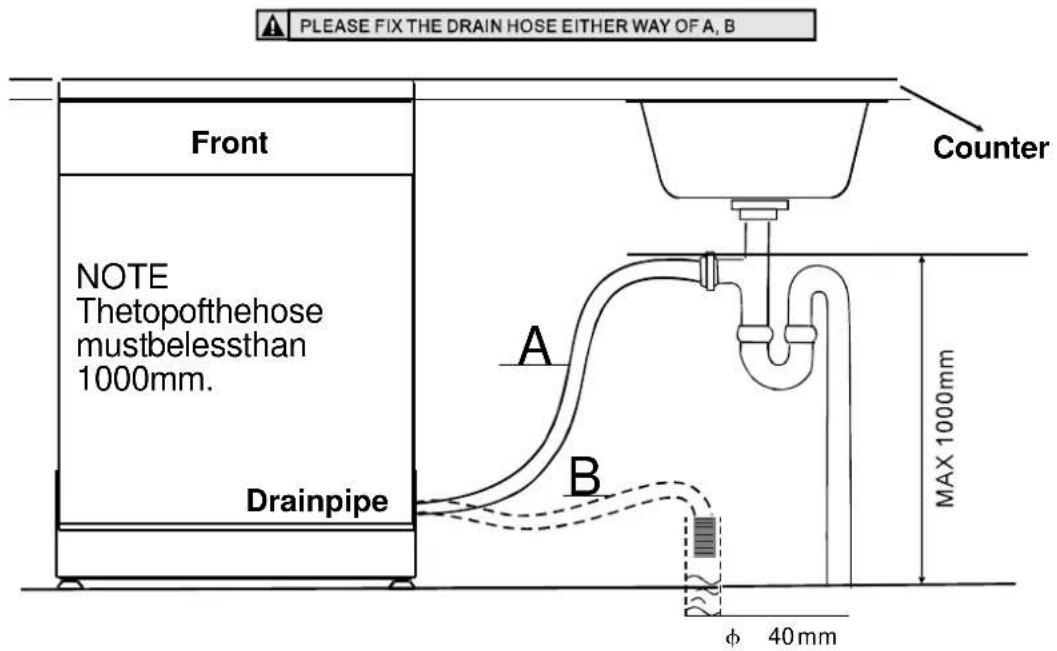

Connection of drain hoses.... 18

Dishwasher installation steps.... 19

Electrical connection 20

Coldwaterconnection....21

10) Troubleshooting Tips....22

Before calling for service....22

Errorcodes....23

Technical information....24

Loading the baskets according to En50242....26

1. IMPORTANT SAFETY INFORMATION READ ALL OF THE INSTRUCTIONS BEFORE USING

WARNING! When using your dishwasher, follow the precautions listed below:

GROUNDING INSTRUCTIONS

Thisappliancemustbegrounded. Intheeventofa malfunctionorbreakdown, groundingwillreduce theriskofanelectricshockbyprovidingapathof leastresistanceofelectriccurrent. Thisappliance isequippedwithacordhavinganequipment-groundingconductorandagroundingplug.
Theplugmustbepluggedintoanappropriateoutlet thatisinstalledandgroundedinaccordancewith alllocalcodesandordinances.

▲ WARNING!

■ Improperconnectionoftheequipment-grounding conductorcanresultintheriskofanelectricshock.
■ Checkwithaqualifiedelectricianorservice representativeifyouareindoubtwhetherthe applianceisproperlygrounded.Donotmodifythe plugprovidedwiththeappliance;Ifitdoesnotfit theoutlet.Haveaproperoutletinstalledbya qualifiedelectrician.

WARNING! PROPER USE

■ Donotabuse, siton, or standardthedo rackofthedishwasher.
■ Donottouchtheheatingelementduringor immediatelyafteruse. (Thisinstructionisonlyapplicabletomachines withavisualheatingelement.)
■ Donotoperateyourdishwasherunlessall enclosurepanelsareproperlyinplace.Open thedoorverycarefullyifthedishwasheris operating,thereisariskofwatersquirtingout.
■ Donotplaceanyheavyobjects onorstandothe doorwhenitisopen.Theappliancecouldtip forward.
■ When loading items to be washed: 1) Locatesharpitemssothattheyarenotlikely todamagethedoorseal;
2) Warning: Knives and other utensils with sharppointsmustbeloadedinthebasket withtheirpointsdownorplacedina horizontalposition.
■ When using your dishwasher, you should prevent plastic items from coming into contact with the heating element. (This instruction is only applicable to machines with a visual heating element.)
- Check that the detergent compartment is empty after completion of the wash cycle.
■ Donotwashplasticitemsunlesstheyaremarked dishwashersafeortheequivalent.Forplasticitems notsomarked,checkthemanufacturer's recommendations.
■ Use only detergent and rinse additives designed for an automatic dishwasher.
■ Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of children.

Keep children away from detergent and reinseaid, keep child away from the open door of the dishwasher, there could still besomed detergent left inside.
This appliance is not intended for use by persons (including children with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
■ Childrenshouldbesupervisedtoensurethattheydo notplaywiththeappliance.
■ Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.
■ The door should not be left open, since this could increase the risk of tripping.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
■ Removethedoortothewashingcompartmentwhen removinganolddishwasherfromserviceordiscardingit.
■ Please dispose of packing materials properly.
■ Usethedishwasheronlyforitsintendedfunction.
■ During installation, the powersupply must not be excessively or dangerously bent or flattened. Donottamperwithcontrols.
■ The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not bereused.
■ The maximum number of place settings to be washed is 10.
■ The maximum permissible inlet water pressure is 1Mpa.
■ The minimum permissible inlet water pressure is 0.04Mpa.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY KEEP THESE INSTRUCTIONS

2.Disposal

Dispose of the dishwasher packaging material correctly.

All packaging materials can be recycled.

Plastic parts are marked with the standard international abbreviations:

■ PE——for polyethylene, e.g. sheet wrapping material
■ PSforpolystyrene, e.g. padding material
■ POM — polyoxymethylene, e.g. plastic clips
■ PP — polypropylene, e.g. Salt filler
■ ABS — Acrylonitrile Butadiene Styrene, e.g. Control Panel.

WARNING!

■ Packaging material could be dangerous for children!
For disposing of package and the appliance please go to a recycling centre. Therefore cut off the powersupplyable and makethedoorclosing device unusable.
■ Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
■ By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

3. Operation Instruction

IMPORTANT To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

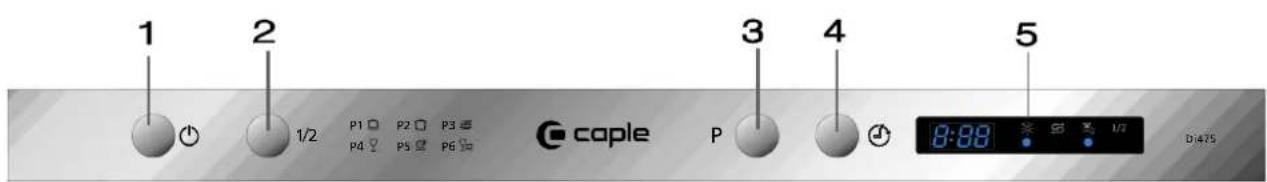

Control Panel

1. On/Off Button: To turn on/off the power supply.
2. HalfloadfunctionsButton: ToselectHalfload functions. (With this Half load function you can only use it when you have only about or less than 6 placesettingdishwave, and you will see less water and energy consumption, can only be used with Intensive, Normal, Eco, Glass and 1 hour programme.)
3. Programme Button : Press the button to select a washprogramme.

4. Delay Button: Press the button to delay.

5. Display screen: Shows the error code, delay time etc.

6. Rinse Aid indicator: * Indicates when the dispenser needs to be refilled.

7. Addsaltindicator: Indicates when the dispenser needs to be refilled.
8. Delay time, programme indicators or error codes indicator: 88
   • Half load functions indicator: 1/2
9. Water supply warning light: 📞 Illuminates when the water supply is switched off.

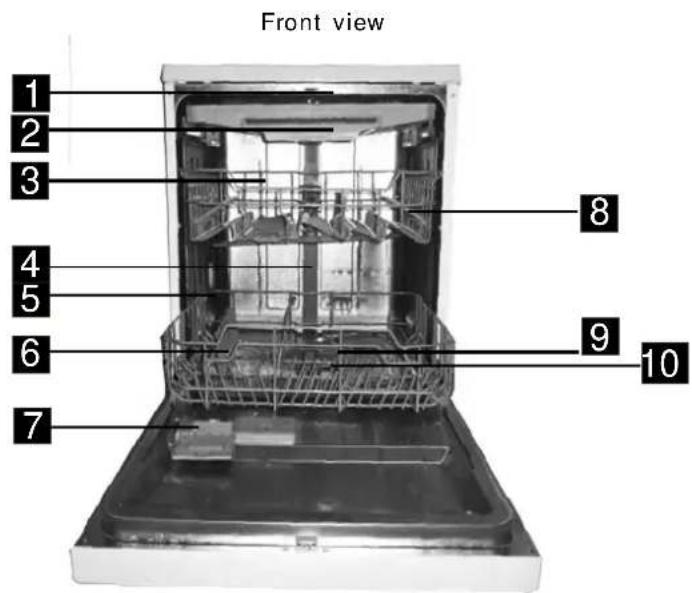

Dishwasher Features

Back view of a device with curved white cables inside a black frame, labeled 11 and 12 (no text or symbols on the diagram itself)

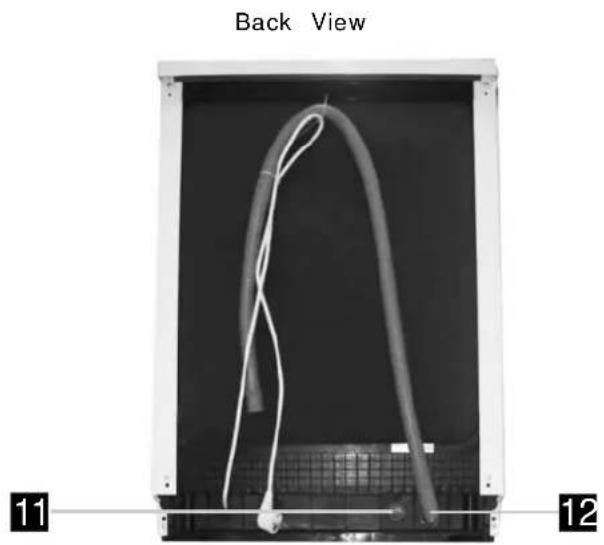

1 Topsprayarm
2 Cutlerytray
3 Upperbasket

4 Innerpipe
5 Lowerbasket
6 Saltcontainer

7 Dispenser
8 Cup shelf
9 Sprayarms

10 Filterassembly
11 Inlet pipe connector
12 Drainpipe

4. Prior using for the first time

Before using your dishwasher for the first time:

A. Setthewatersoftener

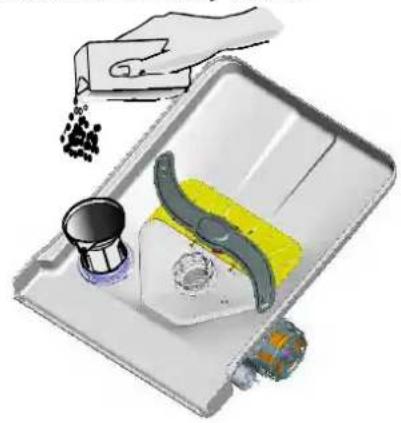

B. Add 1.5Kg dishwasher salt and then full fill the salt container with water
C. Fill the rinse aid dispenser
D.Add detergent

A. Water Softener

The water softener must be set manually, using the water hardness dial.

The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance.

The higher the content of these minerals and salts, the harder your water is.

The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

Adjusting Salt Consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption.

Please follow the steps below for adjustment in salt consumption.

1. Open the door, Switch on the appliance;
2. Within 60 seconds of turning the appliance on, press and hold the programme button for 5 seconds to enter the water softener settings mode (the salt and rinse aid warning lights will illuminate when in this mode);
3. Press the programme button to select the correct setting according to your water hardness, the sets will change in the following sequence: H1->H2->H3->H4->H5->H6;
4. Press the Power button to end the setup model.

WATERHARDNESS				Softenersetting	Saltconsumption(gram/cycle)
^ dH	^ fH	Clarke	mmol/l
0~5	0~9	0~6	0~0.94	H1	0
6-11	10-20	7-14	1.0-2.0	H2	9
12-17	21-30	15-21	2.1-3.0	H3	12
18-22	31-40	22-28	3.1-4.0	H4	20
23-34	41-60	29-42	4.1-6.0	H5	30
35-55	61-98	43-69	6.1-9.8	H6	60

Note:1

1 dH=1.25Clarke=1.78fH=0.178mmol/l

DH: German degree

fH: Frenchdegree

Clark: British degree

Note:2

The factory setting is: H4 (EN 50242)

Contact your local water board for information on the hardness of your water supply.

NOTE: If your model does not have any water softener, you may skip this section.

WATERSOFTENER

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water.

B. Loading the Salt Into the Softener

Always use the salt intended for use with dishwasher.

The salt container is located beneath the lower basket and should be filled as explained in the following:

Attention!

■ Only use salt specifically designed for the use in dishwashers! Every other type of salt not specifically designed for the use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused.
■ Only fill with salt just before starting one of the complete washing programmes. This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

1

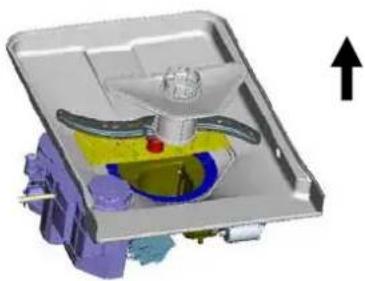

3D mechanical component diagram showing a highlighted yellow component with a purple and gray arrow labeled 'Open' (no text or symbols beyond the label)

2

Illustration of a hand pouring granular material into a tray with a yellow brush and a small container (no text or symbols)

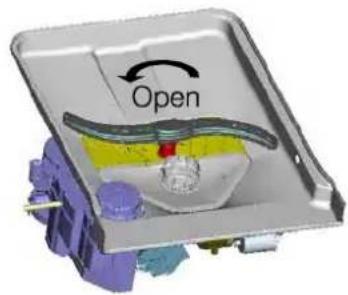

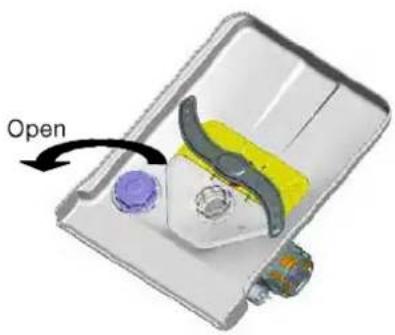

A After the lower basket has been removed, unscrew and remove the cap from the salt container.
B Place the end of the funnel (supplied) into the hole and introduce about 1.5kg of dishwasher salt.
C Full fill the salt container with water, It is normal for a small amount of water to come out of the salt container.
D After filling the container, screw the cap tightly back clockwise.
EThe salt warning light will stop being after the salt container has been filled with salt.
F Immediately after filling the salt into the salt container, a washing programmes should be started (Wesuggesttouseashort programme). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is outofwarranty.

NOTE:

1. The salt container must only be refilled when the salt warning light in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled.
   If there is no salt warning light in the control panel (for some Models), you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run.
2. If there are spills of the salt, a soak or a rapid programme should be run to remove the excessive salt.

C. Fill the Rinse Aid Dispenser

RinseAidDispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed touseliquidrinseaids. The rinseaid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

FunctionofRinseAid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to Refill the Rinse Aid Dispenser

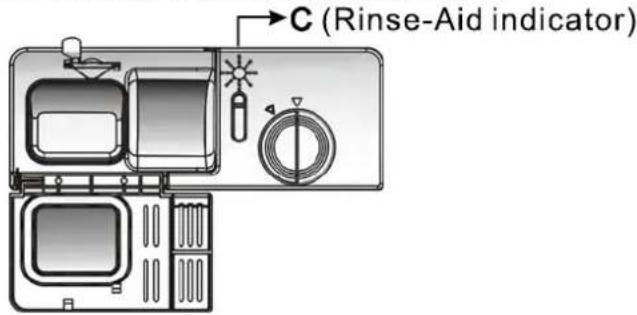

If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour of the optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid level fall 1/4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full
3/4full
1/2full
1/4 full-Should refill to eliminate spotting
Empty

Illustration of a bottle with a plastic bulb and a paper tube, no text or symbols present

1 To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
2 Pour the rinse aid into the dispenser, being careful not to overfill.
3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

NOTE: Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming during thenextwash. Don't forget to replace the cap before you close dishwasher door.

Adjusting Rinse Aid Dispenser

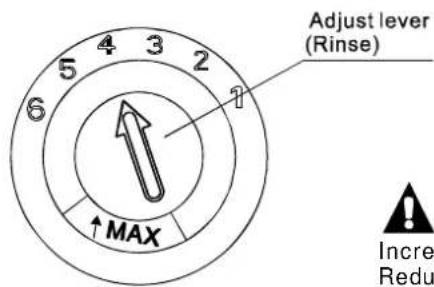

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or show spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".)

NOTE:

Increase the dose if there are drops of water or limespots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knifeblades.

D. Function of Detergent

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

Attention!

ProperUseofDetergent

Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.

Don't put powdered detergent into the dispenser until you're ready to wash dishes.

Detergents

There are 3 sorts of detergents

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 °dH. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a programme with a higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split into two basic types:

■ conventional, alkaline detergents with caustic components
■ low alkaline concentrated detergents with natural enzymes

DetergentTablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programmes. Therefore please use long programmes when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than a Conventional dishwasher. Generally, only one tablespoon of detergent is needed for anormal wash load. Moreheavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

Amount of Detergent to Use

NOTE:

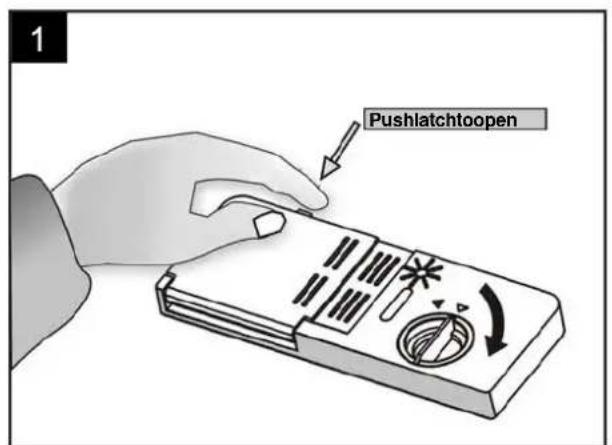

If the lid is closed: press release button. The lid will spring open.
■ Always add the detergent just before starting each wash cycle.
■ Only use branded detergent aid for dishwasher.

WARNING!

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

Fillin Detergent

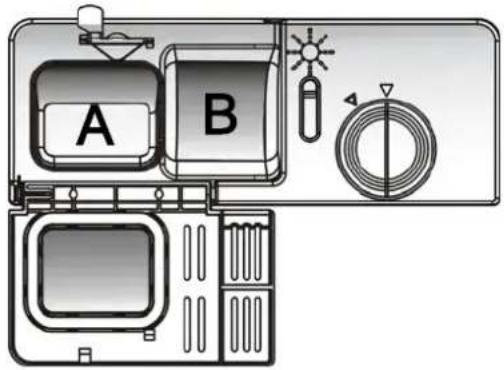

Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrated on the right:

A Forthemainwashcycledetergent.

B Forthepre-washcycledetergent.

Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.

Close the lid and press until it locks in place.

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE:

■ You will find information about the amount of detergent for the single programme on the last page.
■ Please be aware, that according to the level soiling and the specific hardness of water differences are possible.
■ Please observe the manufacturer's recommendations on the detergent packaging.

5.Features

Cutlery tray

The clever cutlery trays sit at the top of your dishwasher and frees up much more space in the lower basket. The centre tray is easily removed to speed the delivery of your perfectly clean cutlery to your drawer.

Delaytimer

The Delay timer allows the user to select the start time from 1 to 24 hours to most efficiently take advantage of convenient times and energy saving windows.

'Easy'adjustableupperbasket

This feature allows the height of the upper basket to be changed (even with full loads) with the simple release of 2 conveniently placed levers.

Internallight

A well placed light helps internal illumination, and looks great too!

AquaStop

This system will at the first sign of any leak automatically cut off the water supply helping to avoid costly water damaged.

Halfload

The Half load function is ideally suited to small loads, unlike traditional Half load programmes (which usually only utilise one basket) this uses both upper and lower baskets - with the benefit of reduced water and energy usage.

6. Loading the Dishwasher Baskets

Recommendation

■ Consider buying utensils which are identified as dishwasher-proof.
■ Useamild detergentthat is described as 'kindtodishes'. If necessary, seek further information from the detergent manufacturers.
■ For particular items, select a programme with as low atemperature as possible.
■ To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended.

For washing in the dishwasher the following cutlery/dishes

Are not suitable

■ Cutlery with wooden, hornchina or mother-of-pearlhandles

■ Plastic items that are not heat resistant

■ Oldercutlerywithgluedpartsthatarenot temperatureresistant

■ Bonded cutlery items or dishes

■ Pewterorcooperitems

■ Crystalglass

■ Steel items subject to rusting

■ Woodenplatters

■ Items made from synthetic fibres

Are of limited suitability

■ Some types of glasses can become dull after alargenumberofwashes
■ Silver and aluminum parts have a tendency to discolour during washing
■ Glazed patterns may fade if machine washed frequently

Attention before or after loading the Dishwasher Baskets

(For best performance of the dishwasher, follow these loading guidelines.

Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans.

It is not necessary to rinse the dishes under running water.

Place objects in the dishwasher in following way:

1. Items such as cups, glasses, pots/pans, etc. are faced downwards.
2. Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.

NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
  ■ Dishes and itemsof cutlery must not lie inside one another, or cover each other.
  ■ To avoid damage to glasses, they must not touch.
  ■ Load large items which are most difficult to clean into the lower basket.
  ■ The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and teacups
  ■ Long bladed knives stored in an upright position are a potential hazard!
  ■ Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
  ■ Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

Removing the Dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

Loading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and teacups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookwares that they will not get moved by the spray of water.

3D diagram of a mechanical or electrical component with internal components and directional arrow (no text or symbols)

Loading the Lower Basket

We suggest that you place large items and the most difficult to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

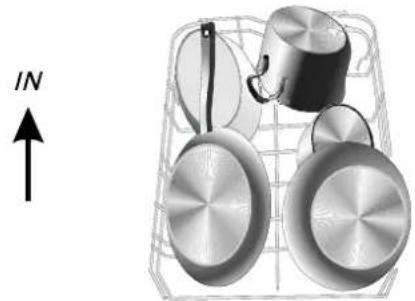

Illustration of kitchen utensils and a pan in a grid, with an upward arrow labeled 'IN' (no text or symbols on the objects themselves)

Pleaseberemindedthat:

Pots, serving bowls, etc, must always be placed top down.
- Deep pots should be slanted to allow water to flow out.
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.

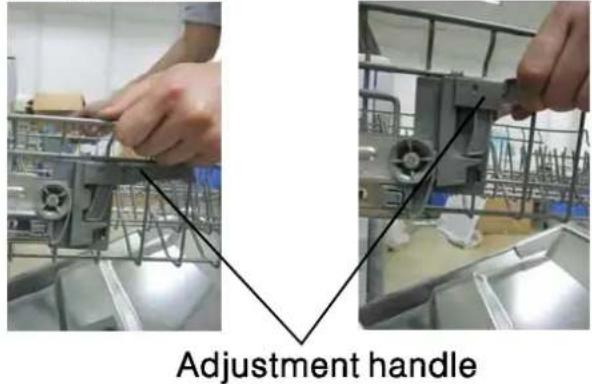

Adjusting the Upper Basket

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper /lower basket. The height of the upper basket can be adjusted to the upper position by lifting the basket up until it clicks into place. Pull upwards on the handle to lower the upper basket, see the picture below:

Lift the basket for upper position

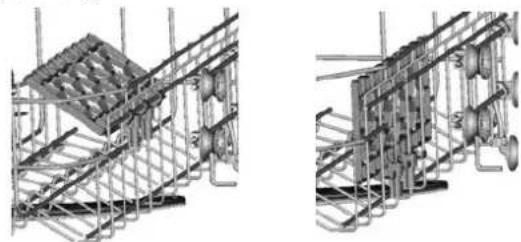

Foldingbackthecupshelves

Forbetterstackingofpotsandpans, theshelvescanbefoldeddownas showinthepictureright.

Technical line drawings of mechanical components and structural elements (no text or symbols)

FoldingSpikesofLowerBasket

Forbetterstackingofpotsandpans, thespikescanbefoldeddownas showninthepicturetotheright.

Cutlery Basket

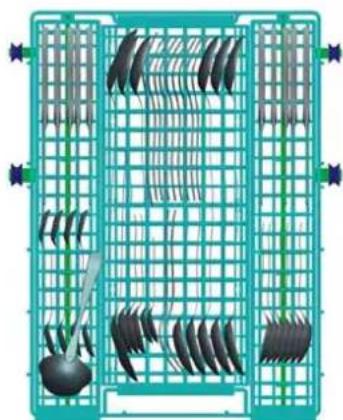

Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions, and do make sure the utensils do not nest together, this may reduce the cleaning performance.

For a top quality cleaning, place the silverware in the basket makingsurethat:

■ Theydonotnesttogether.
■ Silverwareispositionednottoholdwater.
■ Longutensilsinthemiddle.

Diagram of a grid-based device with black components and directional arrows, no visible text or symbols

7. Starting a washing program

Wash Cycle Table

NOTE: (★) Means: need to addrinse aid into the Rinse-Aid Dispenser.

Water consumption doesn't include regeneration water.

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (L)	Rinse Aid
Intensive	Forheaviestsoiledcrockery, andnormally soiledpots、pansdishesetcwithdried onsoiling.	Pre-wash(50°C)Wash(65°C)RinseRinseRinse(55°CDrying)	3/22g(or3in1)	130	1.2	16
Normal[4H4B]	For normally soiled loads, such as pots, plates,glasses and lightly soiled pans.	Pre-wash(45°C)Wash(55°C)RinseRinse(65°C)Drying	3/22g(or3in1)	155	1.07	13
[768D]ECO[*EN30242]	This is Standard programme, it is suitable to clean normally soiled tableware and isthemost efficient programmeinteamsofits combined energy and water consumption for that type of tableware.	Pre-washWash(50°C)Rinse(65°CDrying)	25g(or3in1)	175	0.83	9
[7TWCY]S[IMAGE]	For lightly soiledcrockery and glass	Pre-washwash(40°C)RinseRinse(60°C)Drying	25g	110	0.7	13
[1XDC]1 hour[4TO2]	For lightly soiled loads that do not need excellent drying efficiency.	Pre-wash(50°C)Wash(60°C)Rinse(55°C)Drying	3/22g	60	0.85	9
[1YK7Z]id[KOWH]——	Ashorter wash for lightly soiled loads and quick wash.	Wash(40°C)RinseRinse(45°C)	20g	40	0.45	10

NOTE:

*EN 50242 : This programme is the test cycle. The information for comparability test inaccordancewithEN50242, asfollows:

■ Capacity: setting
■ Position Upper basket: upper wheels on rails
■ Rinseaidsetting:6
PI:0.49w; Po:0.45w.

Turning On the Appliance

Starting acyclewash

1 Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one (see the section entitled "Loading the Dishwasher").

2 Pour in the detergent (see the section entitled "Salt, Detergent and Rinse Aid").

3 Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.

4 Open the door, press the ON/OFF Button, and the display windows will light.

5 Press the programme Button, the wash programme will be changed as follows: P1->P2->P3->P4->P5->P6;

If a programme is selected, the LED will light. Then close the door, to start the dishwasher.

Changing the programme

A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the Detergent").
Open the door ,press the programme button for morethan3seconds , the machine will be in standby state, then you can change the programme to the desired cycle setting (see the section entitled " Starting a washcycle...").

NOTE:

If you opened the doorduring a washcycle, the machine will pause. The programmelight will stop flashing and the buzzer will sound every minute unless you closethedoor. After you closethedoor, the machine will continue after 10 seconds.

Forgot to Add a Dish?

Aforgottendishcanbeaddedanytimebeforethedetergentcupopens.

1 Openthedooralittle.

4 Closethedoor

2 Afterthesprayarmsstopworking,youcanopenthedoor completely.

5 Thedishwasherwillrunafter10seconds.

3 Addforgottendishes.

At the End of the Wash Cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

■ Switchoffthedishwasher

The programme light is on but is not blinking, only in this case the programme has ended.

1. Switch off the dishwasher by pressing the ON/OFF button.

2. Turnoff the watertap!

■ Openthedoorcarefully.

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance. Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

■ Unloadingthedishwasher

It is normal that the dishwasher is wet inside.

Empty the lower basket first and then the upper one. This will avoid water dripping from the upper basket onto the dishes in the lower one.

WARNING!

It is dangerous to open the door when washing, because the hot water may scald you.

8. Maintenance and Cleaning

Filtering System

The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed.

The filter system consists of a coarse filter, a flat (Main filter) And a microfilter(Fine filter).

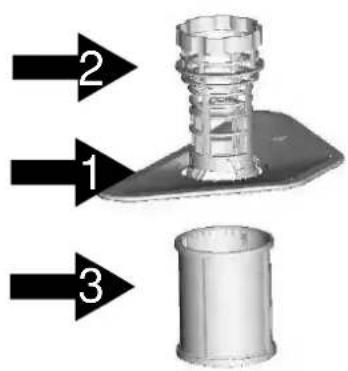

Mainfilter 1

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

Coarsefilter 2

Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and liftout.

Finefilter 3

Thisfilter holds soil and food residues in the sumparea and prevents it from being redeposit on the dishes during wash cycle.

Filterassembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction.

WARNING!

■ The dishwasher must never be used without the filters.
■ Improper replacement of the filter may reduce the performance level of the appliance and damaged dishes and utensils.

1

Step 1: Turn the filter in anti-clockwise direction,

2

3D mechanical assembly diagram showing internal components and a directional arrow (no text or symbols)

Step2 lift the filter assyup

NOTE: When following this procedure from step 1 to step 2, the filters system will be removed;

whenfollowingitfromStep2toStep1, thefiltersystemwillbeinstalled.

Remarks:

• Inspect the filters for blocking after every time the dishwasher has been used.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters underrunning water.

NOTE: The entire filter assembly should be cleaned once a week.

Cleaning the Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.

WARNING!

When cleaning the filters, don't knock them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth.

After cleaning, make sure to dry it thoroughly.

For the exterior, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning The Door

Interior view of a rectangular electronic device with internal components and a black arrow pointing to a section (no visible text or symbols)

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use aspraycleanerofanykind.

WARNING!

■ Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
■ Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

ProtectAgainstFreezing

Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows :

1. Cutoff the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE: If your dishwasher cannot work because of the ice, please contact professional service persons.

CleaningtheSprayArms

It is necessary to clean the spray arms regularly for hard waterchemicalswillclogthesprayarmjetsandbearings.

To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it.

Toremovethelowerspray arm, pull out the spray arm upward.

Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

How to Keep Your Dishwasher in Shape

■ After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

■ RemovethePlug

Before cleaning or performing maintenance, always remove the plug from the socket.

■ No Solvents or Abrasive Cleaning

Toclean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little vinegar, or a cleaning product made specifically for dishwashers.

■ WhennotinUseforaLongTime

It is recommend that you run a washcycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seal to last longer and prevent odours from forming within the appliance.

■ MovingtheAppliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odourstoform in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

9. Installation instruction

▲Attention:

The installation of the pipes and electricalequipments should be done by professionals.

Warning

ElectricalShockHazard Disconnect electrical power before installing dishwasher.

Failure todosocan resultindeathor electricalshock.

• Installationpreparation

The installation position of dishwasher should be near the existing inlet and drain hoses and powercord.

One side of the cabinetsink should be chosen to facilitate the connection of drain hoses of the dishwasher.

Note: please check the accompanying installation accessories(hook for the furniture door, screw)

Please carefully read the installation instruction.

Illustrations of cabinet dimensions and installation position of the dishwasher Preparations should be made before moving the dishwasher to the final locatio

1 Choose a place near the sink to facilitate the installation of inlet and drain hoses (seefigure1).
2 If dishwasher is installed at the corner of the cabinet, allow for some space (illustrated in figure2) when the door is opened.

【 】

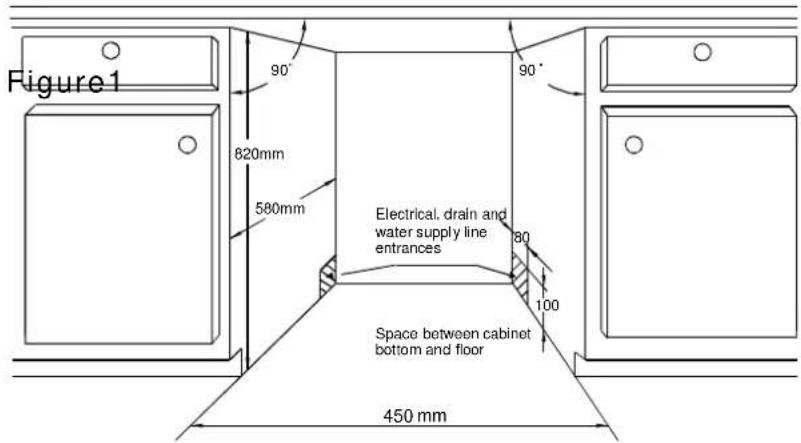

Cabinetdimensions Lessthan5mm betweenthetop ofdishwasher and cabinet and the outerdooraligned to cabinet.

【 】

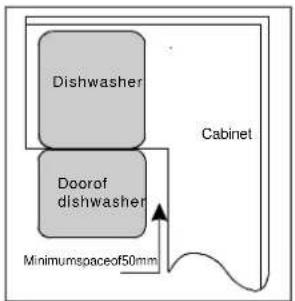

Minimumspace when thedoorisopened

Figure2
    note right of B "Minimumspaceof50mm"

dimensions and installation Furniture door

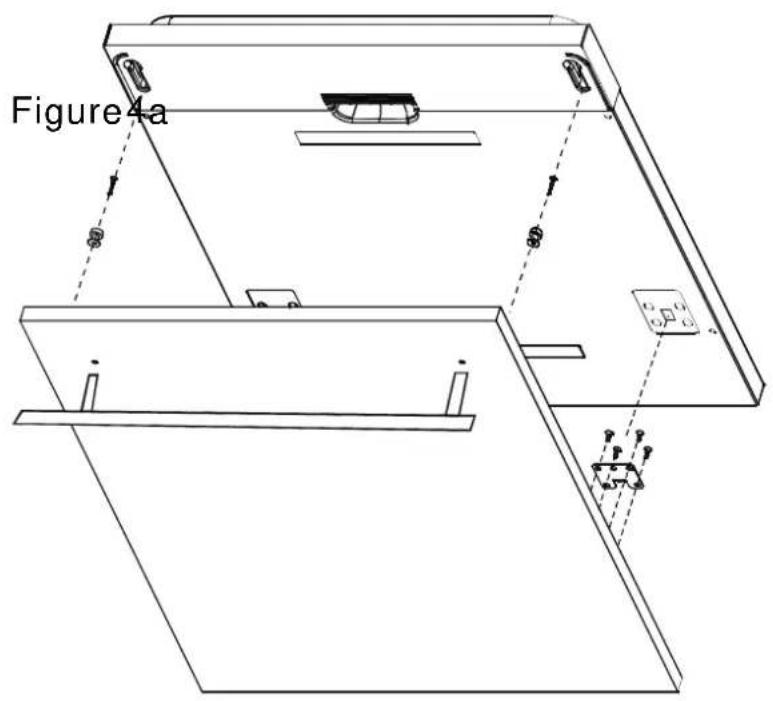

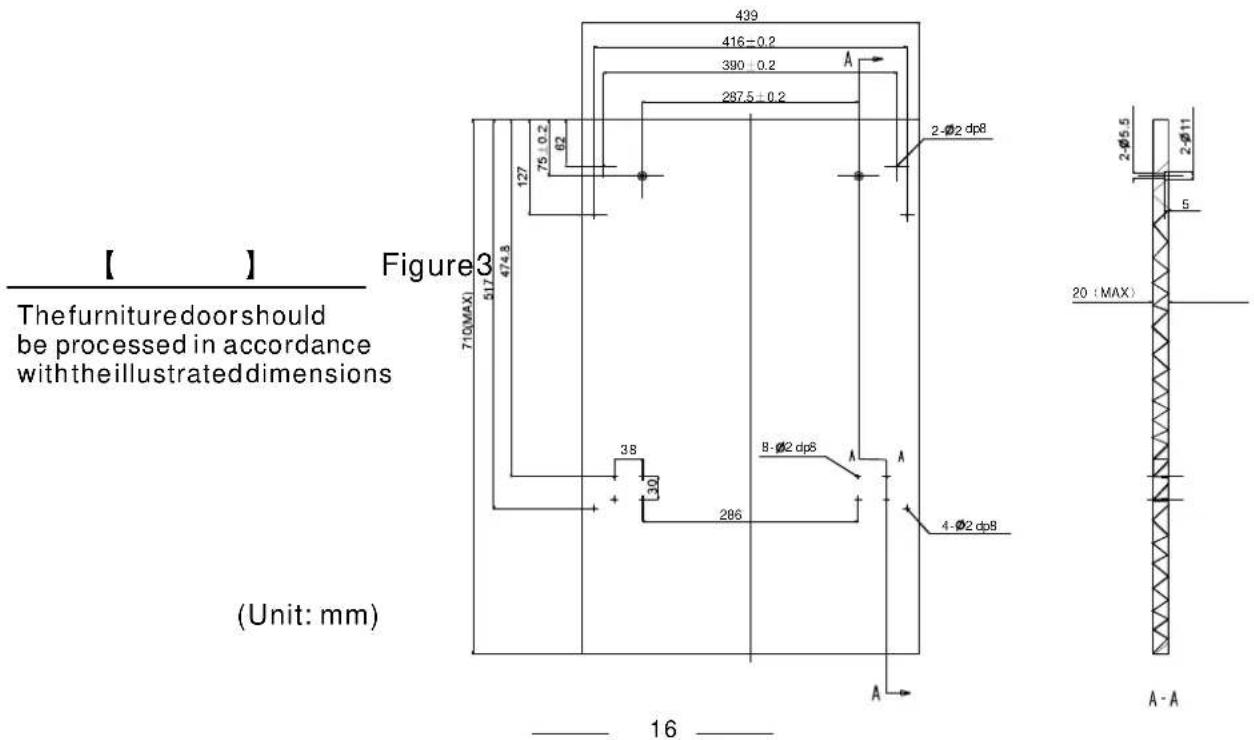

1 The furniture door could be processed according to the Figure 3.

2 Install the hook on the furniture door and put the hook into the slot of the outer door of dishwasher(see figure 4a). After positioning of the panel, fix the panel onto the outer door by screws and bolts(See figure 4b).

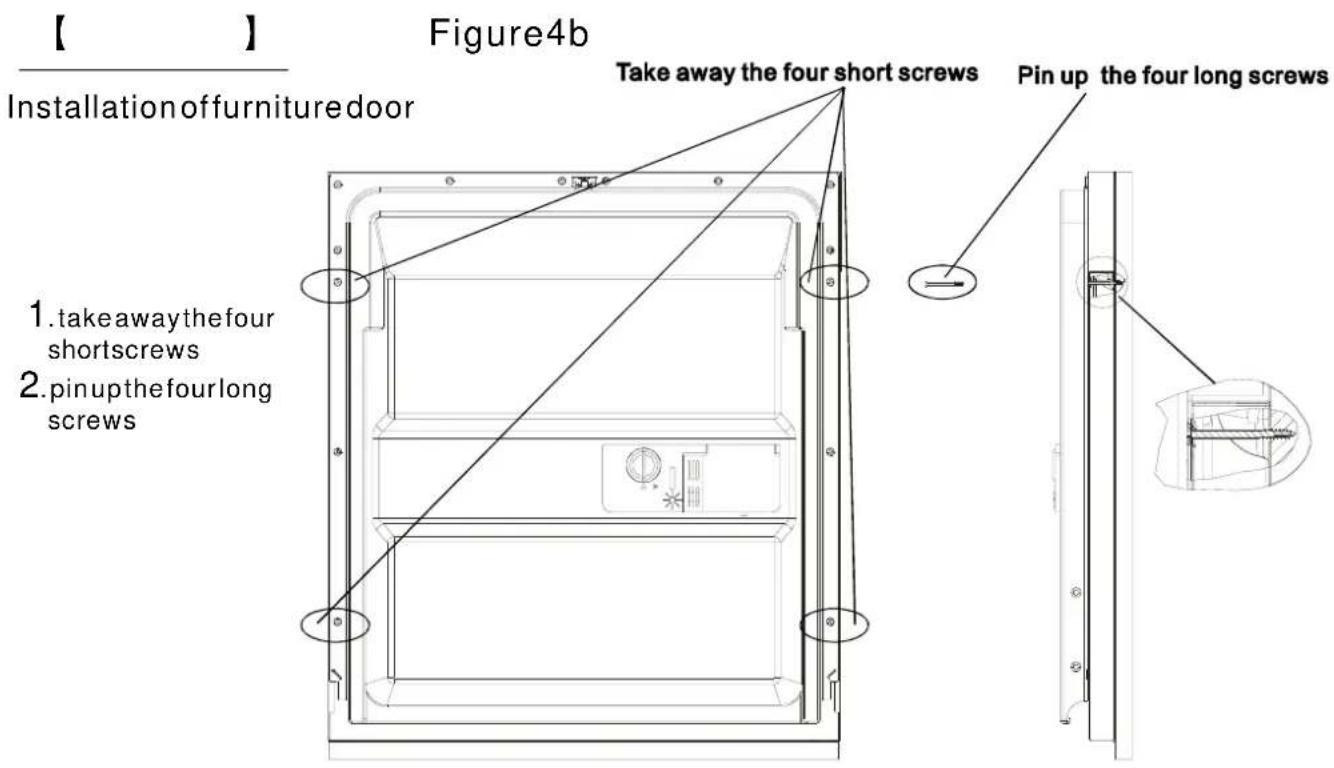

【 】 Installation of furnished door

- Tension adjustment of the doorspring

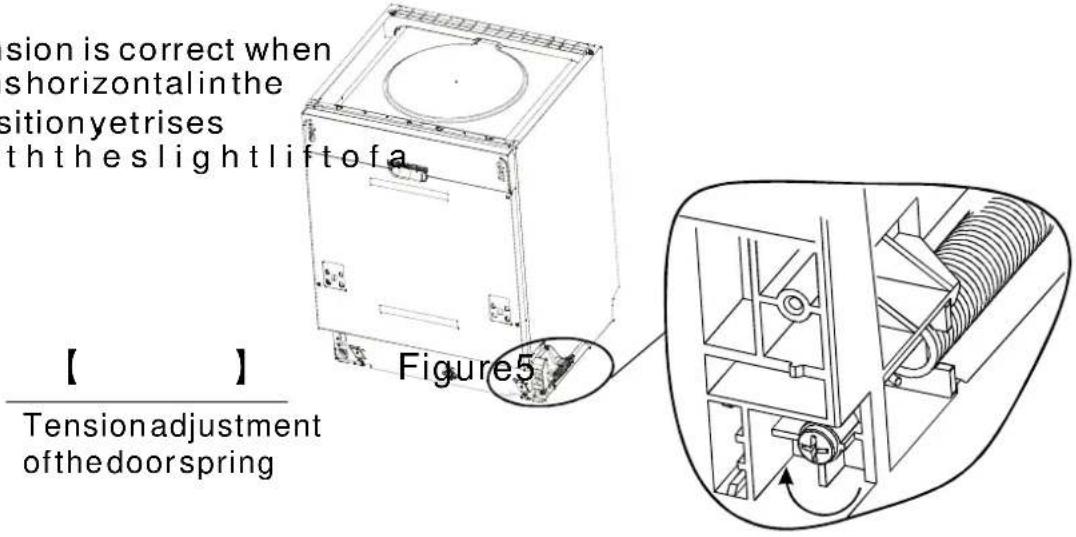

The doorsprings are set at the factory to the propertension for the outerdoor. When the furniture door is installed, you will have to adjust the doorspring tension. Rotate the adjusting screw to drive the adjustorto strain or relax the steel cable (see figure 5).

Door spring tension is correct when the door remains horizontal in the fully opened position yet rises to a close with the slight lift finger.

【 】

Tension adjustment of the doorspring

- Connectionofdrain hoses

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm high.

- Dishwasherinstallationsteps

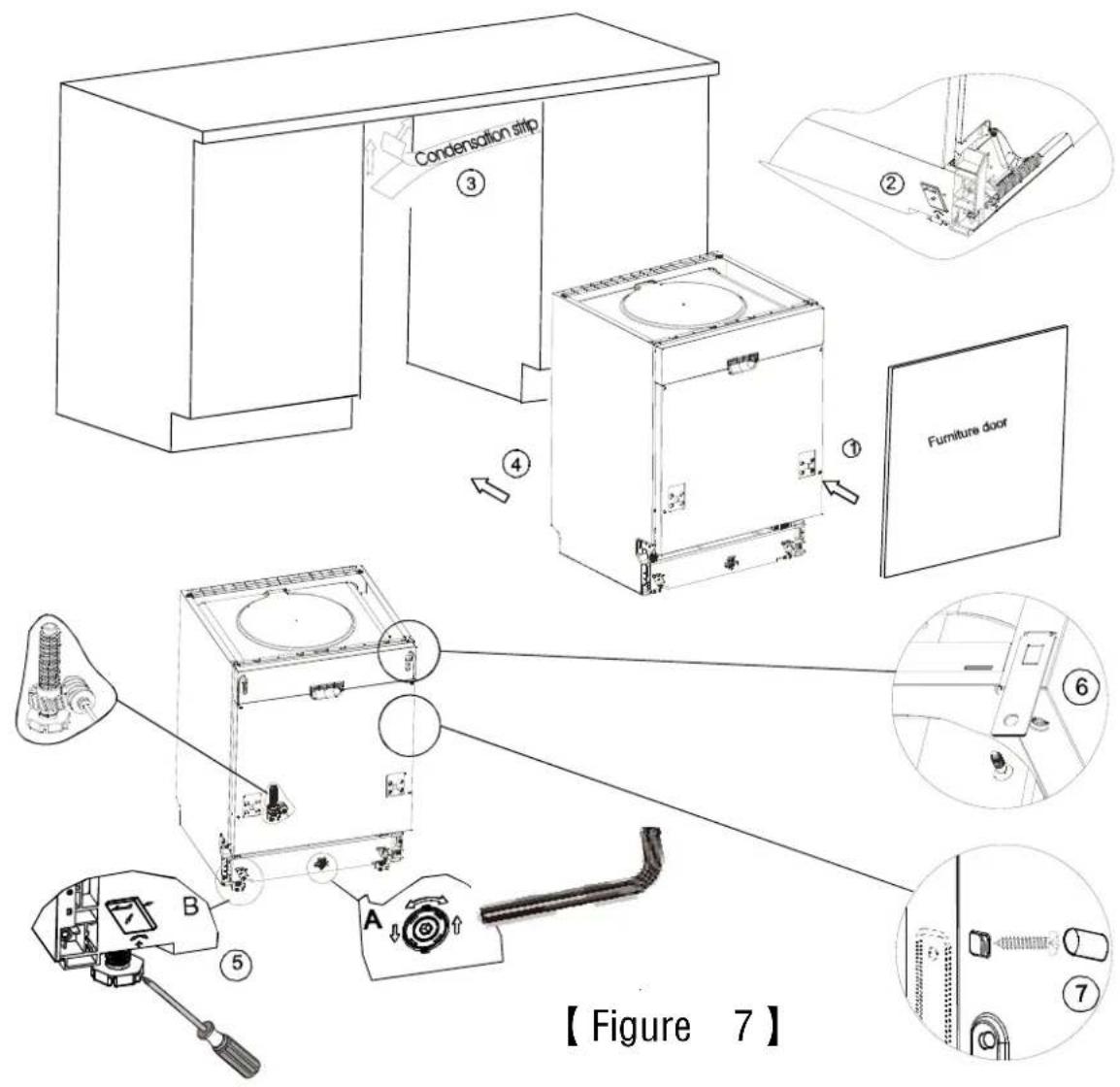

1 Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the template for positioning of the brackets.

2 Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to tighten the left and right doors springs. Failure to do this could cause damage to your dishwasher (Illustration 2).

3 Connect the inlet hose to the cold water supply.

4 Connect the drain hose. Refer to diagram. (Figure 6)

5 Connectthepowercord.

6 Affix the condensation strip under the work surface of cabinet. Please ensure the condensation strip is flush with hedge of worksurface.

7 Place the dishwasher into position.(Illustration 4)

8 Level the dishwasher. The rear feet can be adjusted from the front of the dishwasher by turning the Allen screw in the middle of the base of dishwasher use an Allen key (Illustration 5A). To adjust the front feet, use a flatscrew driver and turn the front feet until the dishwasher is level (Illustration 5B).

9 The dishwasher must be secured in place. There are two ways to do this:

A. Normal work surface: Put the installation hook into the slot of the side plane and secure it to the work surface with the wood screws (Illustration 6).

B. Marble or granite work top: Fix the side with Screw. (Illustration 7).

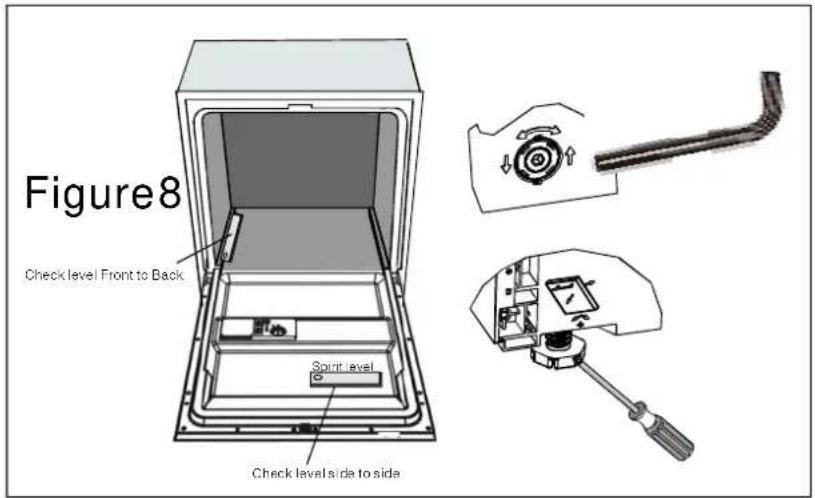

The dishwasher must be level for proper dish rack operation and wash performance.

1 Placeaspiritlelondoorandracktrackinsidethetubasshowntocheckthatthe dishwasherislevel.
2 level the dishwasher by adjusting the three levelling legs individually.
3 When levelling the dishwasher, please pay attention not to let the dishwashertipover.

【 】

Illustration of feet adjustment

NOTE:

The maximum adjustment height of the feet is 50 mm.

Electrical Connection

Forpersonalsafety: DONOTUSEANEXTENSIONCORDORANADAPTERPLUGWITHTHISAPPLIANCE. DONOT,UNDERANYCIRCUMSTANCES,CUTORREMOVETHEEARTHING CONNECTIONFROMTHEPOWERCORD.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

Electrical Connection

⚠ Ensure proper ground exists before use

Ensure the voltage and frequency of the power corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

GROUNDING INSTRUCTIONS

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of electric shock by providing a pathofleast resistance for the electric current. This appliance is equipped with a cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local standards and requirements.

▲WARNING!

Improper connection of the equipment-grounding conductor can result in the risk of an electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; If it is not fit for the outlet. Have a proper outlet installed by a qualified electrician.

How to Connect the safety supply hose

Line drawing of a hand using a tool to lift a mechanical component (no text or symbols)

The appliance must be connected to the water mains using new hose-sets.

Theoldhose-setsshouldnotbereused.

Waterpressuremustbebetween0,04MPaand1MPa.Ifthepressureisbelowtheminimum consultourServiceDepartment foradvice.

1. Pull Thesafetysupplyhosescompletelyoutfromstoragecompartmentlocatedatrearof dishwasher.
2. Fixthehosetothewatersupplyconnectionwitha3/4inchthread.
3. Turnwaterfullyonbeforestartingthedishwasher.

About the safety supply hose.

The safety supply hose consists of the double walls. The hose's system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and the air space between the supply hose itself and the outer corrugated hose is full of water.

WARNING!

A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.

How to Disconnect the safety supply hose

1. Turnoffthewater.
2. Releasethewaterpressurebydepressingthepressurereleasebutton. Thisrelieveswaterpressureandprotectsyou, andtheroom, fromseveresplashing.
3. Unscrew Thesafetysupplyhose from the connection.

Cold water connection

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damagetheappliance.

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

How to Drain Excess Water From Hoses

If the sink is 1000mm higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

WaterOutlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks.

Ensure that the water drain hose is not linked or squashed.

Extension Hose

If you need a drain hose extension, make sure to use a similar drain hose.

It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

SyphonConnection

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm from the floor.

Starting the Dishwasher

The following things should be checked before starting the dishwasher.

1 The dishwasher is level and fixed properly
2 The inlet valve is open
3 Is there a leakage at the connections of the conducts
4 The wires are tightly connected
5 Thepowerisswitchedon
6 The inlet and drain hoses are not knotted
7 All packing materials and printings should be taken out of the dishwasher

Attention:

After installation, please make sure to keep this manual.

The content of this manual is very helpful to the users.

10. Troubleshooting Tips

Before Calling for Service
Review the following charts to help resolve common issues before calling Caple Service.

Technical problems	Problem	Possible Causes What To Do
	Dishwasher doesn't start	Fuseblown,orthe circuitbreakeracted	Replacefuseorresetcircuitbreaker.Removeanyother appliancessharingthesamecircuitwiththedishwasher
		Powersupplyisnot turnedon	Makesurethedishwasheristurnedonandthedooris closedsecurely.Makesurethepowercordisproperlypluggedintothe wallsocket.
		Waterpressureislow	Checkthatthewatersupplyisconnectedproperlyand thewateristurnedon.
		Doorofdishwasher notproperlyclosed.	Makesuretoclosethedoorproperlyandlatchit.
	water not pumped form dishwasher	Kinkindrainhose	Checkdrainhose.
		Filterclogged	Checkcoarsethefilter"Clean(seg3s#f#t#ttled)
		Kitchensinkclogged	Checkthekitchensinktomakesureitisdrainingwell.Iftheproblemisthekitchensinknotdraining,youmay needaplumberratherthanaservicemanfordishwashers.
General problems	Suds in the tub	Improperdetergent	Useonlythespecialdishwasherdetergenttoavoidsuds.Ifthisoccurs,openthedishwasherandletsudsevaporate.Add1gallonofcoldwatertothetub.Closeandlatchthe dishwasher,thenselectanycycle.Dishwasherwilldrain outthewateratthefirststep.Openthodoorafterdraining isstopandcheckifthesudsisdisappeared.Repeatifnecessary.
		Spilledrinse-aid	Alwayswipeuprinse-aidspillsimmediately.
	Stained tub interior	Detergentwith colourantwasused	Makesurethatthedetergentistheonewithout colourant.
	White film on inside surface	Hardwaterminerals	Tocleantheinterior,useadampspongewith dishwasherdetergentandwearrubbergloves.Neveruseanyothercleanerthandishwasher detergentfortheriskoffoamingorsuds.
	There are rust stains on cutlery	Theaffecteditemsare notcorrosionresistant.
		Aprogrammewasnot runafterdishwasher saltwasadded.Tracesofsalthave gottenintothewashcycle.	Alwaysrunthequickwashprogramme.withoutanycrockeryinthedishwasherand withoutselectingtheTurbofunction(ifpresent),afteraddingdishwashersalt.
		Thelidothesoftener isloose	Checkthelip.Ensurethefixisfine.
Noise	Knocking noise in the wash cabinet	As p a y a r m i s knockingagainst aniteminabasket	Interrupttheprogramme,andrearrangetheitems whichareobstructingthespayarm.r
	Rattling noise in the wash cabinet	Itemsofcrockery arelooseinthe washcabinet	Interrupttheprogramme,andrearrangetheitemsofcrockery.
	Knocking noise in the water pipes	Thismaybecaused byon-siteinstallation orthecross-sectionof thepiping.	Thishasnoinfluenceonthedishwasherfunction.ifindoubt,contactasuitablyqualifiedplumber.
	Problem	Possible Causes	What To Do
Unsatis-factory washing result	The dishes are not clean	Thedisheswerenot loadedcorrectly.	Seenotesin"LoadingtheDishwasherBaskets".
		Theprogrammewas notpowerfulenough.	Selectamoreintensiveprogramme.See"WashCycleTable."
		Notenoughdetergent wasdispensed.	Usemoredetergent,orchangeyourdetergent.
		Itemsareblocking thepathofspayarms.r	Rearrangetheitemssothatthespaycanrotatefreely.r
		Thefiltercombination in the base of wash cabinetisnotcleanor isnotcorrectlyfitted. Thismaycause thespayarmjets togetblocked.	Cleanand/orfitthefiltercombinationcorrectly.Cleanthespayarmjets.See"CleaningtheSpray Arms".
	Cloudiness on glassware	Combinationofsoft waterandtoomuch detergent.	Uselessdetergentifyouhavesoftwaterandselect ashortestcycletowashtheglasswareandtoget themclean.
	Black or gray marks on dishes	Aluminumutensils haverubbedagainst dishes.	Useamildabrasivecleanertoeliminatethosemarks.
	Detergent left in dispenser cups	Dishesblock detergentcups.	Re-loadingthedishesproperly.
Unsatis-factory drying result	The dishes are not drying	Improperloading	Loadthedishwasherassuggestedinthedirections.
		Toolittlerinse-aid	Increasetheamountofrinse-aid/refilltherinse-aid dispenser.
		Dishesareremoved toosoon	Donotemptyyourdishwasherimmediatelyafter washing.Openthedoorslightlysothatthesteamcan escape.Beginunloadingthedishwasheronlyonce thedishesarebarelywarmtothetouch.Emptythelow basketfirst.Thispreventswaterformdroppingoff dishesintheupperbasket.
		Wrongprogram hasbeenselected	Inshortprogrammethewashingtemperatureislower. Thisalsolowerscleaningperformance.Choose aprogramwithalongwashingtime.
		Useofcutlerywith alow-qualitycoating	Waterdrainageismoredifficultwiththeseitems.Cutleryordishesofthistypearenotsuitablefor washinginthedishwasher.

Error Codes

If a malfunction appears, the appliance will display error codes to warn you:

Codes	Meanings	Possible Causes
E1	Longerinlettime.	Watersupplyisnoton,orwaterintakeis restricted,orwaterpressureistoolow.
E4	Overflow.	Someelementofthedishwasherisleaking.

WARNING!

■ If overflow occurs, turn off the main water supply before calling for service.
■ If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

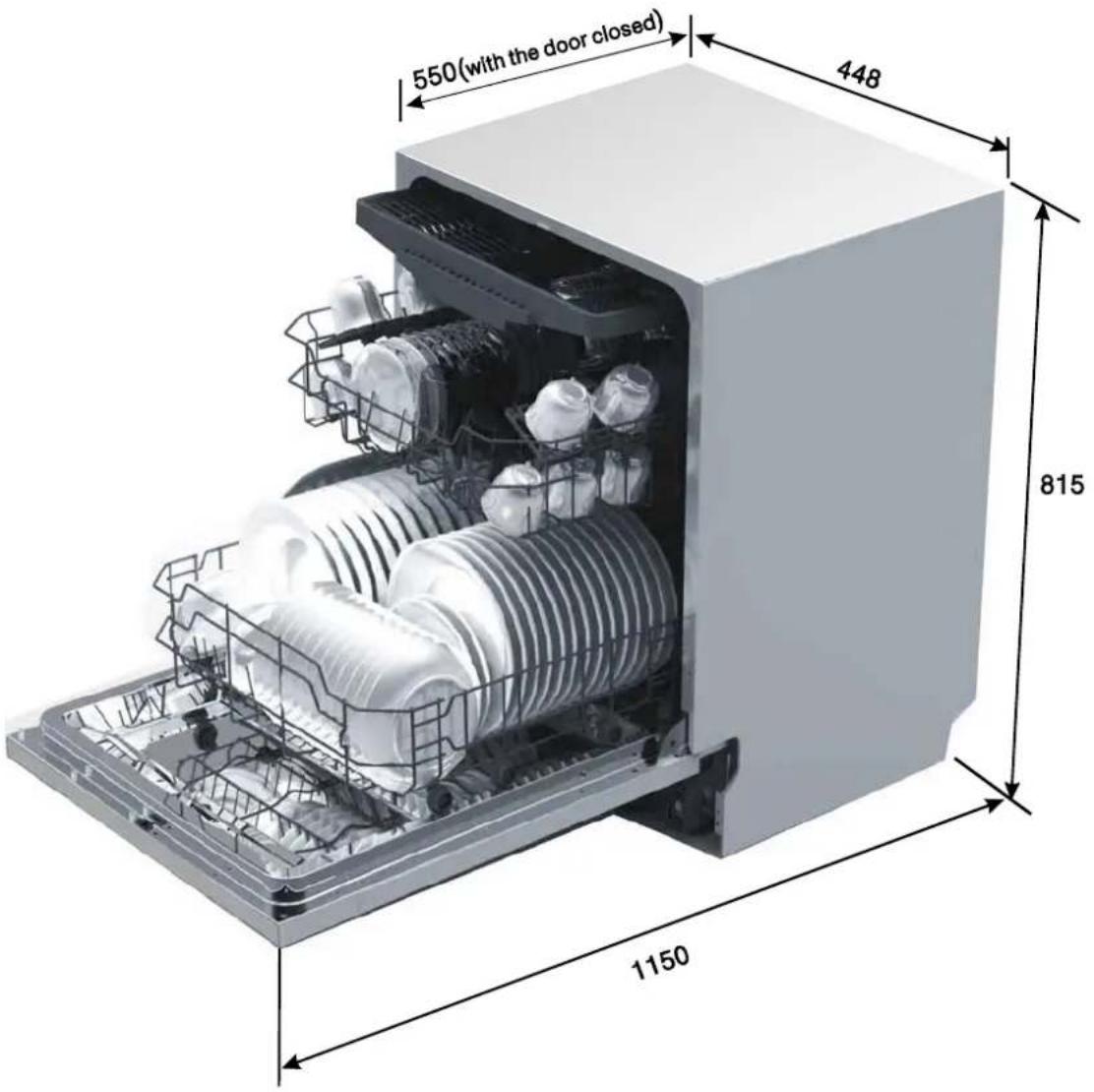

Height:815mm
Width:448mm
Depth:550mm	(withthedoorclosed)
Powersupply:seerating label
Capacity:10placesettings

Technical Data Sheet

Sheet of household dishwasher according to EU Directive 1059/2010:

Manufacturer	CAPLE
Type/Description	Di475
Standardplacesettings	10
Energy efficiency class 1	A+
Annual energy consumption 2	238kWh
Energy consumption of the standard cleaning cycle	0.83kWh
Power consumption of off-mode	0.45W
Power consumption of left-on mode	0.49W
Annual water consumption 3	2520 litre
Dryingefficiencyclass 4	A
Standardcleaningcycle 5	ECO50 °C
Programmedurationofthestandardcleaningcycle	175min
Noise level	49dB(A)re1pW
Mounting	Buildunder
Could be built-in	Yes
Height	81.5cm
Width	44.8cm
Depth (with connectors)	55cm
Power consumption	1930W
Rated voltage/frequency	230V~50Hz
Water pressure (flow pressure)	0.4-10bar=0.04-1MPa

NOTE:

1 A+++ (highest efficiency) to D (lowest efficiency)
② Energy consumption “238” kWh per year, based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.
3 Water consumption “2520” litres per year, based on 280 standard cleaning cycles. Actual water consumption will depend on how the appliance is used.
4 A(highest efficiency) to G(lowest efficiency)
5 This programme is suitable for cleaning normally soiled tableware and that it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.

The device meets the European standards and the directives in the current version at delivery:

-LVD2006/95/EC

-EMC2004/108/EC

-EUP2009/125/EC

-LVD2006/95/EC -EMC2004/108/EC -EUP2009/125/EC

The above values have been measured in accordance with standards under specified operating conditions. Results may vary greatly according to quantity and pollution of the dishes, water hardness, amountofdetergent, etc.

The manual is based on the European Union's standards and rules.

Loading the baskets according to En50242:

1. Upper basket:


1. Lower basket:

3.Cutterly basket:

Saucers

Glasses

Small serving bowl

Medium serving bowl

Large serving bowl

Dessert dishes

Dinner plates

Soup plates

Oval platter

1 Soup spoons

5 Dessert spoons
6 Serving spoons
7 Serving forks
8 Gravyladles

5 Dessert spoons
6 Serving spoons
7 Serving forks
8 Gravyladles

5 Dessert spoons
6 Serving spoons
7 Serving forks
8 Gravyladles

5 Dessert spoons
Information for comparability tests in accordance
with EN 50242
Capacity: 10 place settings
Position of the upper basket: lower position
Programme: ECO
Rinse aid setting: 6
Softener setting: H4

Position of the upper basket: lower position

Programme: ECO

Rinse aid setting: 6

Softener setting: H4

Oval platter

Oval platter

Oval platter
