L614WMS12 - Washing machine Logik - Free user manual and instructions

Product Type	Freestanding Washing Machine
Brand	Logik
Model	L614WMS12
Capacity (kg)	6 kg
Maximum Spin Speed (rpm)	1400 rpm
Energy Efficiency Class	A+
Wash Performance Class	A
Spin Drying Class	B
Annual Water Consumption (L)	9900 L (approx)
Annual Energy Consumption (kWh)	176 kWh (approx)
Noise Level Wash (dB)	76 dB
Noise Level Spin (dB)	72 dB
Dimensions (H x W x D) (cm)	85 x 60 x 50
Width (cm)	60 cm
Height (cm)	85 cm
Depth (cm)	50 cm
Weight (kg)	65 kg
Power Consumption (W)	2000 W
Voltage (V)	220-240 V
Frequency (Hz)	50 Hz
Control Type	Electronic with LED Display
Number of Programs	15
Delayed Start	Yes, up to 24 hours
Half Load Detection	Yes
Child Lock	Yes
Self-Cleaning	No
Maintenance	Clean filter regularly; descale every 3 months
Spare Parts Availability	Available from authorized service centers
Reparability	Repairable with common tools

Frequently Asked Questions - L614WMS12 Logik

How to clean the filter?

Turn off the machine, open the filter cover at the bottom front, unscrew the filter and clean it under running water. Ensure the drum is empty before removing the filter.

What do error codes mean?

Common codes: E01 (door not closed), E02 (drain problem), E03 (overfill). Refer to the manual for full list.

How to install the machine?

Remove transit bolts, level the machine by adjusting feet, connect water inlet hose to cold water tap, and plug into a grounded socket. Do not use extension cords.

What is the recommended detergent?

Use low-sudsing, high-efficiency detergent suitable for automatic washing machines. Amount depends on load size and water hardness.

How to use the delay start?

Press the Delay Start button repeatedly to set the desired delay time (1-24 hours). Then press Start/Pause to begin the countdown.

Why is the machine not spinning?

Check if the load is unbalanced; redistribute clothes. Also ensure the drain filter is not clogged and the machine is not in a pause or delay mode.

How to resolve a draining issue?

Clean the drain filter and check the drain hose for kinks. If still not draining, the pump may be faulty; contact service.

What is the child lock function?

Press and hold the Child Lock button for 3 seconds to lock the control panel. Repeat to unlock. This prevents unintended button presses during operation.

How to balance an unbalanced load?

Open the door, redistribute heavy and light items evenly in the drum. Machine will automatically detect and adjust spin speed.

How to descale the machine?

Run an empty hot wash (90°C) with a descaling agent or white vinegar once every 3 months to remove limescale buildup.

USER MANUAL L614WMS12 Logik

Front view of a white LOGIK washing machine with control panel and digital display (no visible text or symbols on the device itself)

Gradient grayscale transition from white to dark gray, no text or symbols present

Unpacking 5

Installing Your Washing Machine 6

Choosing the Right Location for Your Washing Machine 6

Moving and Installing 7

Removing the Transit Bolts 7

Moving the Washing Machine from One Location to Another....7

Hose and Cable Lengths 8

Levelling the Washing Machine 8

Water Supply Hose....8

Water Drain Hose....9

Connecting to the Mains Supply 9

Product Overview....10

The unit 10

The Control Panel ....11

Preparation 12

Organising Laundry....12

Preparing Laundry 12

Adding Detergent and Softener 12

Selecting the Programme (For Model L812WM12)....13

Selecting the Programme (For Model L614WMS12)....14

Wash Setting 15

First Time Use 15

Standard Washing 15

Manual Soaking 15

Optional Functions 16

Program ending....16

Removing Laundry....16

Switching Off 16

Important Information....17

Washing Delicates....17

Adding Delicate Laundry Items to the Drum....17

Which Detergent to Use....17

Tips for Hanging Delicate Items to Dry....17

If Clothing Shrinks in the Wash....17

Maintenance – Cleaning the Washing Machine 18

Cleaning the Drum....18

Cleaning the Exterior of your Washing Machine....18

Cleaning the Detergent Drawer....18

Cleaning the Door Seal and Window 19

Cleaning the Drain Filter 19

Preventing a Frozen Water Supply Hose....19

Cleaning the Filter Net of the Water Supply Hose 19

Hints and Tips ...... 20

Troubleshooting 22

Error Code 22

Specifications....24

Product Fiche (For Model L812WM12)....25

Product Fiche (For Model L614WMS12)....26

Safety Warnings....27

Thank you for purchasing your new Logik Washer Machine.

We recommend that you spend some time reading this installation/instruction manual so that you fully understand all the operational features it offers.

Read all the safety instructions carefully before use and keep this installation/instruction manual for future reference.

Unpacking

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

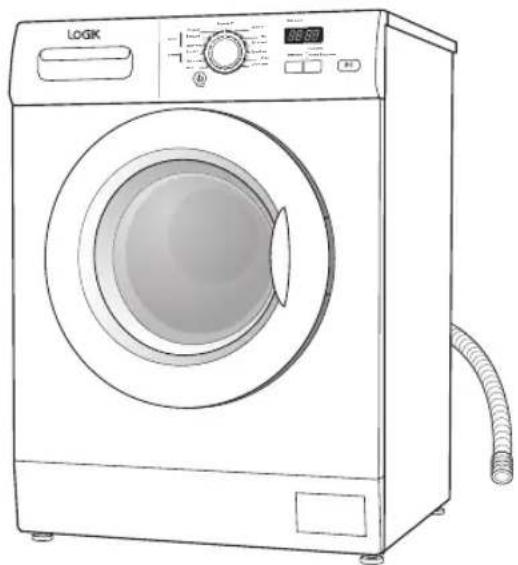

Line drawing of a white LOGK washing machine with control panel and buttons (no text or symbols on the device itself)

The Main Unit

Simple geometric shape with four corner dots, no text or symbols present

Noise Protection Board (For L614WMS12)
P.N.: 0020501889A

Simple geometric diagram of a square with four corner dots, no text or symbols present.

Noise Protection Board (For L812WM12)
P.N.: 0020501896

This product has been wet tested to ensure correct operation. As a result some water may remain inside the unit. This is normal and safe. Remove any water droplets from the exterior if necessary.

Water Supply Hose
P.N.: 0020300158A

U-Shape Holder
P.N.: 00221123015002

Cover Cap x 4
P.N.: 0020202911

Instruction Manual
P.N.: L812WM_614WMS12-004

If items are missing or damaged please contact Partmaster (UK only).

Tel: [phone] for assistance.

Installing Your Washing Machine

Please read and follow the instructions carefully.

• In addition to the instructions mentioned here, special regulations of the relevant water and power supply companies may apply. If in doubt, have the washing machine connected by a qualified technician.
• The washing machine is heavy - caution when lifting it. Do not lift by projecting components (e.g. washing machine door).
• Warning: Frozen hoses may tear/burst. Do not install washing machine in outdoor areas or where there is a risk of frost.
• Lay hoses and cables in such a way that there is no risk of tripping over them.

An additional space of (240mm) is required at the rear of the washing machine. This is to allow enough space for the water hose and drain hose.

Choosing the Right Location for Your Washing Machine

• Make sure there's enough space for your washing machine.
  • Install your washing machine on a flat, stable surface to avoid excessive vibrations and noise.
• Don't install your washing machine in direct sunlight or in a place where temperatures reach freezing.

×Slaping surface
Unstable Bumpy surface

Two or more people are required to carry the washing machine.

• Start by tilting the washing machine backwards.
• One person should stand behind it, holding the rear of the top panel. The other person should grip the bottom feet at the front.
• Don't touch the door opening button while holding.
• Check that you have all the required accessories for installation.
• Entrust the installation of the washing machine to a qualified technician.

Moving and Installing

Two or more people are required to carry the washing machine and for any installation work.

Fix the Noise Protection Board onto the bottom of the machine BEFORE removing the transit bolts.

Installing the Noise Protection Board

To reduce the noise produced by the washing machine, install the noise protection board.

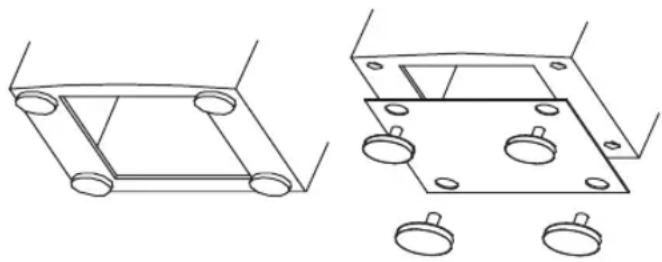

1. Lay down the machine. Unscrew the four feet.
2. Fit the board onto the bottom of the machine. The four holes in the board should correspond to the screw holes of the levelling feet.
3. Screw the four levelling feet back on to fix the noise protection board to the machine.
4. Stand the machine upright.

The L812WM12's Noise Protection Board comes with a felt layer. When installing, this felt layer must face the inside of the unit.

Technical line drawing of two mechanical components with mounting holes and a base plate (no text or symbols)

Removing the Transit Bolts

Four (4) transit bolts keep the interior of the washing machine in place while it is being moved.

They need to be removed before installation. Use a spanner (not included) and follow the instructions detailed below.

Do not run the washing machine without removing the bolts, as this can cause excessive vibrations.

To remove the transit bolts:

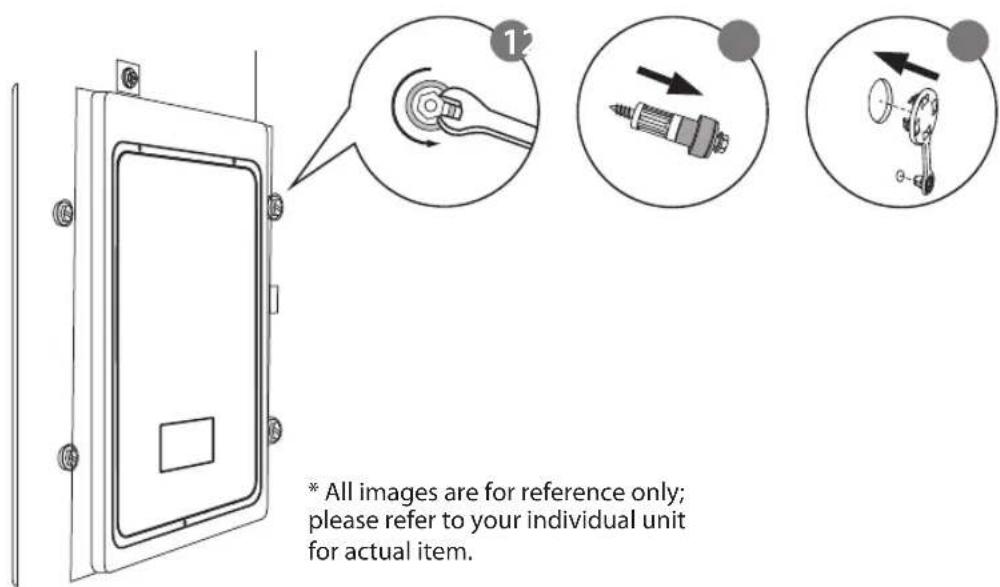

1. Use a spanner to loosen the four transit bolts. They are located at the rear side of the washing machine.

2. Pull the bolts out horizontally. Make sure the entire bolt is removed.

3. Push the four cover caps (included with your accessories) into the respective bolt holes.

You'll need the transit bolts again if you move the washing machine, so make sure you keep them in a safe place.

Moving the Washing Machine from One Location to Another

Before you move the washing machine:

• Shut off the tap and run the washing machine to drain the water. Drain any remaining water from the pump hose.
  • Disconnect the mains cable.
• Attach the transit bolts.

Make sure transit bolts are fixed prior to moving the washing machine.

Hose and Cable Lengths

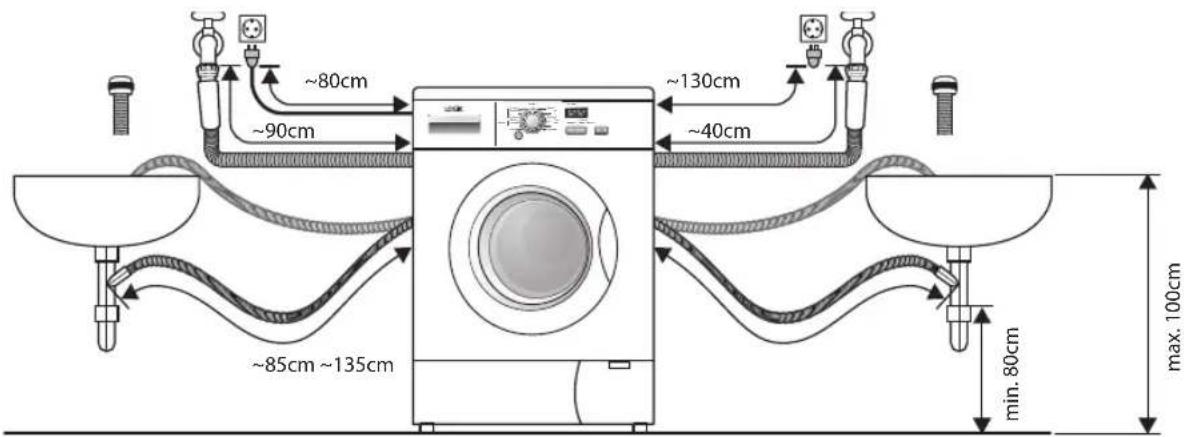

How to connect from the left side How to connect from the right side

Levelling the Washing Machine

There are 4 levelling feet on the underside. They must be adjusted to make sure the washing machine is level.

1. On each stand, loosen the lock nut by turning it clockwise with a spanner.

2. Adjust all four feet in this way.

3. Use a spirit level to ensure the washing machine is level.

4. Tighten each lock nut by turning them anti-clockwise (towards the washing machine body), again using a spanner.

Simple line drawing of a mechanical assembly with a threaded base and a U-shaped component (no text or symbols)

Ensure all four lock nuts are tightened securely. Check the feet are still bolted to the washing machine - if they're unbolted, the washing machine will move around.

Water Supply Hose

Points to remember

• Follow the instructions in this section to avoid water leaks.
- Don't connect the hose to a combination tap.
- Don't twist, squash, modify or cut the hose.
- Optimum water pressure in the main pipe is 0.03 MPa - 1.0 MPa. If the water pressure is set higher than this, you will need to install a depressurising valve. Water-flow from the tap should be more than 5 litres per minute. If you're unsure, ask a qualified technician to connect the hose.
• This unit must only be connected to the cold water mains using the new water inlet hose provided.

Connecting the Water Supply Hose

1. Attach the hose to a tap, and tighten the plastic joint by hand.
2. Open the tap slowly and check that there are no leaks around the joint.

The joint is subject to water pressure.

* All images are for reference only; please refer to your individual unit for actual item.

Water Drain Hose

Points to remember:

• Don't twist, pull out or bend the drain hose.
• Your washing machine should be no more than 250cm from the drain outlet.

Draining to a sink or wash-basin

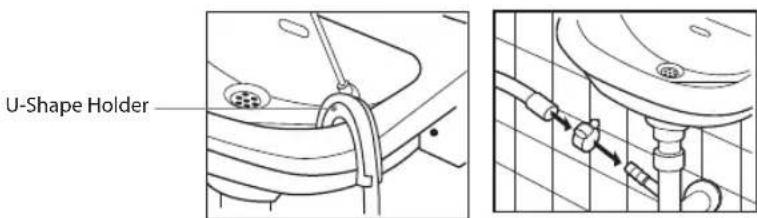

• Secure the drain hose in position, so it can't drop out of the basin.
• Don't block the basin's drain outlet, and make sure that the drainage through it is sufficient.
• Don't let the tip of the drain hose dip into the drained water, as this can cause the water to flow back into the washing machine.

Draining to a wash-basin Draining to a drain hose

Connecting to the Mains Supply

For your safety:

• Do not use a mains plug adapter or extension cable.
- If the mains cable or mains plug are damaged, stop using them and call a qualified technician for assistance.

Installation Check List

By now, you should have installed the washing machine.

Let's go through the checklist to ensure that the installation has been done correctly!

Questions Checkbox
Transit bolts - Have you removed them and attached the cover caps properly?
4 levelling feet	Four Adjustable Stands - Are they bolted securely to the washing machine?
	Four Stand Cushions - Are they standing flat?
Power supply - Is the household dedicated mains socket, fully rated at AC220V to 240V independently?
Location - Is your washing machine on a flat, stable surface? Does it run without vibrating?
Water Supply Hose - Is it free from leaks and is the water supply normal?
Water Drain Hose - Is it free from leaks and is it draining normally?

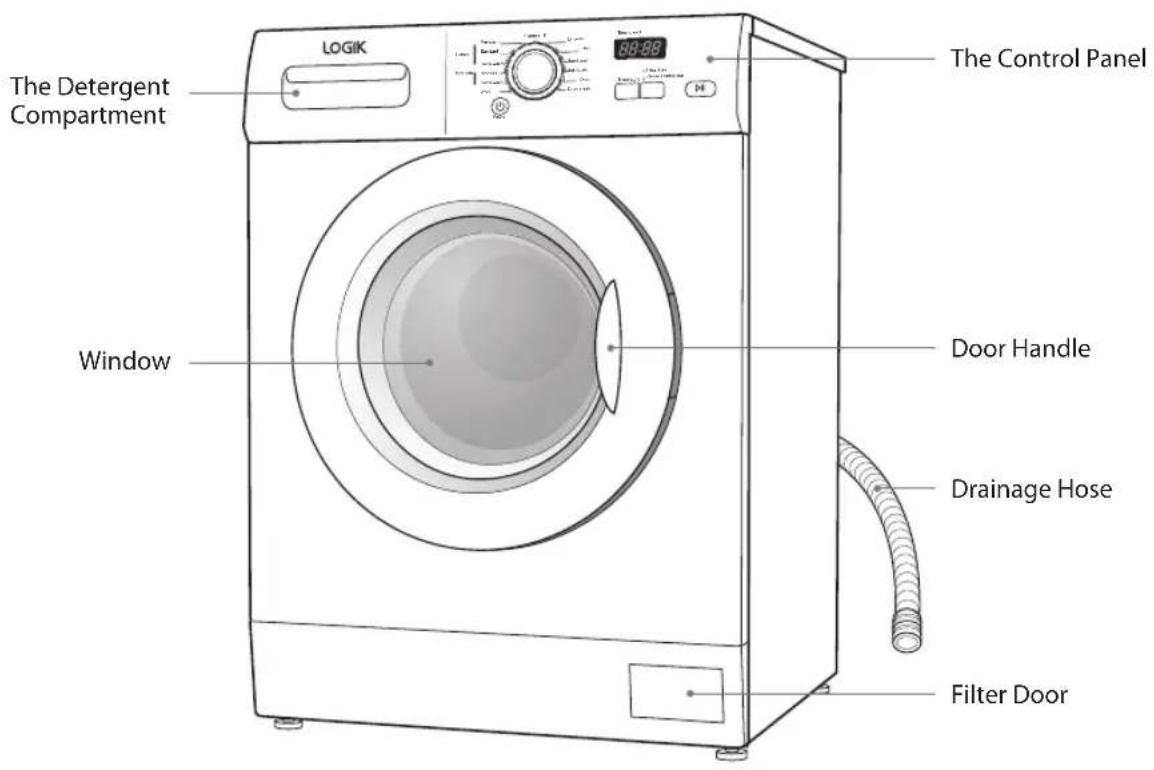

The unit

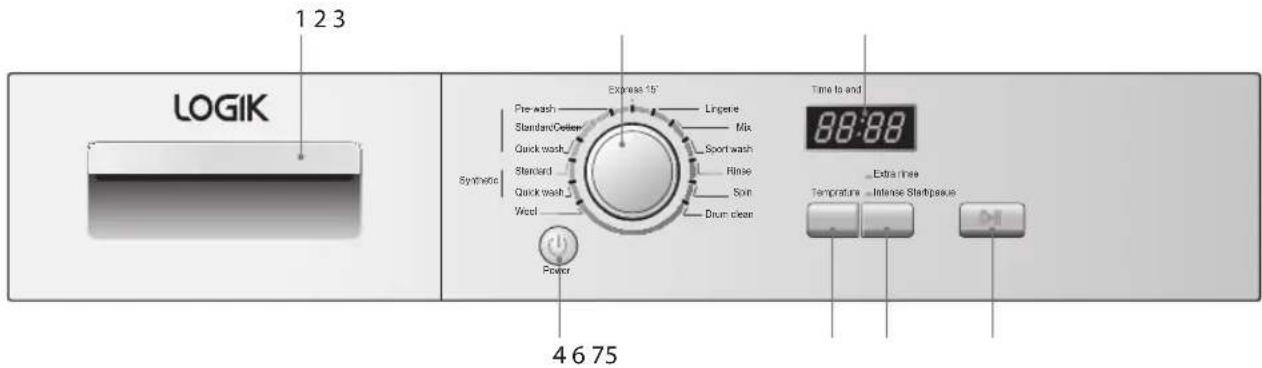

The Control Panel

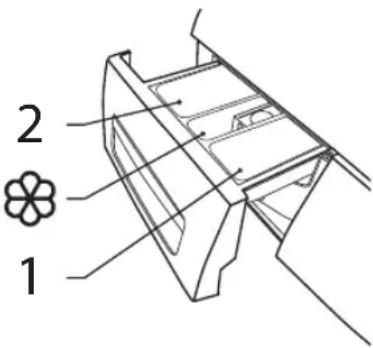

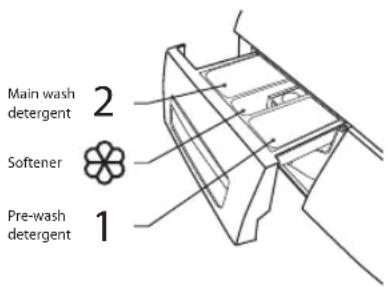

1. The Detergent Compartment

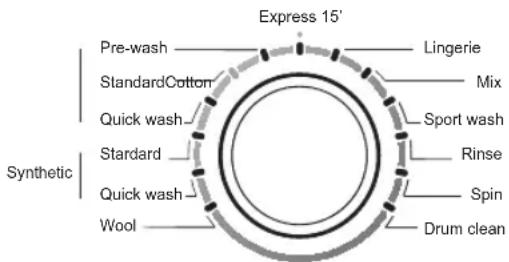

2. Programme Dial

- Different wash programmes can be selected according to your wash requirements.

3. Display Window

- Displays the wash programme's finishing time, temperature or speed setting messages.

4. Power Button

• Switches the washing machine On or Off.

5. Temperature Button

- Selects the required washing temperature.

6. Extra Rinse / Intense Button

• Activates additional rinse operation.
• Activates intense operation.

7. Start/Pause Button

• Press to start/resume your wash.
- Press while in operation to pause your wash.

Read the following to understand how best to prepare your laundry for washing.

Organising Laundry

• Read the washing label on each garment to help you sort your washing into different loads.
• Sort the laundry by colour, type of fabric and by how soiled it is.

This will help you choose the correct programme and temperature for each wash.

• Do not exceed the maximum load!
- Be careful not to trap any items of clothing.

Preparing Laundry

• Treat stains before washing.
- Some items should to be put into a cleaning net before going into the washing machine. i.e. bras with metal wires, tights and lace clothing to prevent damage. Check that pockets do not contain any objects which may damage your clothes and the washing machine.
- Tie up any loose strings on laundry, close zippers and reverse clothing with zips inside out.
- Remove any surplus hair, animal fur, sand, and other materials with a brush before washing.
• If clothes have raised fabric turn them inside out.
• Clothes that are not colour fast should be washed separately.
- Insert your clothes into the washing machine. Close the washing machine door. Ensure that you do not trap any items of clothing between the loading door and the rubber seal.

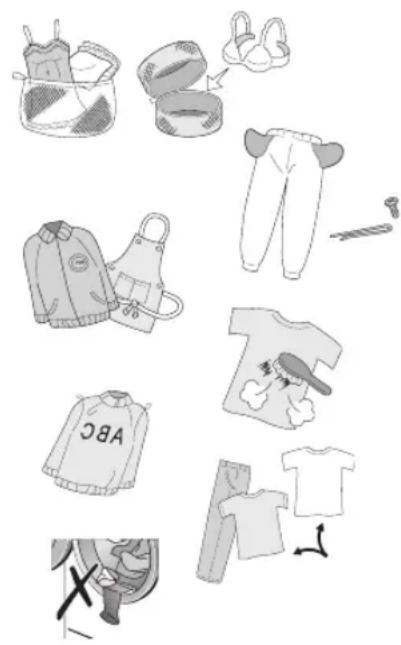

Illustration of various clothing and apparel items including bags, shoes, T-shirts, and accessories (no text or symbols)

Adding Detergent and Softener

• Add detergent into the appropriate dispenser.
• Apply softener before you start washing to prevent static.
• Apply detergent and softener according to the washing amount, the soiling level, the water hardness in your area and the manufacturer's instructions of these products.

Main wash detergent

Softener

Pre-wash detergent

Dilute viscous fabric softener and fabric conditioner with water. Prevent blockage of the overflow. Do NOT exceed the MAX. level mark.

• Do not use the washing machine when the detergent drawer is removed. It may cause a water leak or it may not work normally.
• If you forget to add detergent, you can drain the washing machine by running a drain only programme. Then you can add detergent and start the programme again. Detergent only reaches the drum when water flushes through the detergent drawer.
• To prevent powder detergent staying in the drawer, dry the inside of the drawer with a cloth. Make sure the powder isn't lumpy when you add it into the drawer.
• If the rinse cycle isn't removing all the detergent from your wash, use less detergent.
• Softener should not exceed the MAX level in the compartment.
• Wash out unused softener with a splash of water or a damp cloth after the programme has finished.

Selecting the Programme (For Model L812WM12)

Here are the available programmes, additional functions and option settings.

Spin speed can be selected separately for certain programmes.

	Programme Description 1 2			※		Preset Setting			Max. Load
						Temperature	Default Spin (rpm)	Approximate Time (h)
	Express 15'	Cold to 40°C	Heavy soiled laundry.	X		✓	20°C 800 0:15		4 kg
Cotton	Pre-wash	Cold to 90°C	Heavy soiled laundry.	✓		✓	60°C 1200 2:03		8 kg
	Standard	Cold to 90°C	For average soiled cottons, household linens and work / play clothes.	X		✓	60°C 1200 1:58		8 kg
	Quick Wash	Cold to 40°C	For average soiled cottons, household linens and work / play clothes. No prewash or spin cycle.	X		✓	40°C 800 0:48		4 kg
Synthetic	Standard	Cold to 60°C	For average or lightly soiled garments for mixed cotton, linen and man-made fabrics.	X		✓	40°C 800 1:00		4 kg
	Quick Wash	Cold to 40°C	For average soiled cottons, household linens and work / play clothes. No prewash or spin cycle.	X		✓	Cold 800 0:30		4 kg
	Wool	Cold to 40°C	For machine washable woolens and other items marked with hand wash care label.	X		✓	Cold 600 0:45		1 kg
Lingerie		Cold to 90°C	For fabric and linen textile clothes.	X		✓	60°C 800 1:41
Mix		Cold to 60°C	For dirty or very dirty, stain, cotton, coloured and linen textile clothes.	X		✓	60°C 1200 1:31
Sport wash		Cold to 60°C	For sport clothes.	X		✓	60°C 1200 1:46
Rinse Cold S		Operate rinse procedure.		X	X	X	Cold 800 0:23
Spin Cold S		Operate spin procedure.		X	X	X	Cold 1200 0:12
Drum clean		90°C	Cleans the unit on first use, and after standing a long time without use.	X	X	✓	90°C 400 1:00

• When a programme is running, you cannot change the wash temperature.
  • To change the programme, turn the washing machine off and on again.
• You'll hear the buttons sound when you press them. This is to help make sure you've chosen the right settings.
• Times depend on the programme and temperature settings selected.
• Times may be longer if the laundry in the drum needs to be balanced.

Selecting the Programme (For Model L614WMS12)

Here are the available programmes, additional functions and option settings.

Spin speed can be selected separately for certain programmes.

	Programme Description 1 2			☒		Preset Setting			Max. Load
						Temperature	Default Spin (rpm)	Approximate Time (h)
	Express 15'	Cold to 40°C	Heavy soiled laundry.	X		✓	20°C 800 0:15		3 kg
Cotton	Pre-wash	Cold to 90°C	Heavy soiled laundry.	✓		✓	60°C 1400 2:03		6 kg
	Standard	Cold to 90°C	For average soiled cottons, household linens and work / play clothes.	X		✓	60°C 1400 1:58		6 kg
	Quick Wash	Cold to 40°C	For average soiled cottons, household linens and work / play clothes. No prewash or spin cycle.	X		✓	40°C 800 0:48		3 kg
Synthetic	Standard	Cold to 60°C	For average or lightly soiled garments for mixed cotton, linen and man-made fabrics.	X		✓	40°C 800 1:00		3 kg
	Quick Wash	Cold to 40°C	For average soiled cottons, household linens and work / play clothes. No prewash or spin cycle.	X		✓	Cold 800 0:30		3 kg
	Wool	Cold to 40°C	For machine washable woolens and other items marked with hand wash care label.	X		✓	Cold 600 0:45		1 kg
Lingerie		Cold to 90°C	For fabric and linen textile clothes.	X		✓	60°C 800 1:41
Mix		Cold to 60°C	For dirty or very dirty, stain, cotton, coloured and linen textile clothes.	X		✓	60°C 1400 1:31
Sport wash		Cold to 60°C	For sport clothes.	X		✓	60°C 1400 1:46
Rinse Cold Se		Separate	rinse procedure.	X	X	X	Cold 800 0:23
Spin Cold Se		Separate	spin procedure.	X	X	X	Cold 1400 0:12
Drum clean		90°C	Cleans unit on first use, and after a long time without use..	X	X	✓	90°C 400 1:00

• When a programme is running, you cannot change the wash temperature.
  • To change the programme, turn the washing machine off and on again.
• You'll hear the buttons sound when you press them. This is to help make sure you've chosen the right settings.
• Times depend on the programme and temperature settings selected.
• Times may be longer if the laundry in the drum needs to be balanced.

First Time Use

When first using the washing machine, use "Drum Clean", and let it run unloaded for one programme to prevent the laundry from being tainted by oil or dirty water from the washing machine.

Standard Washing

1. Pull the door handle and put the laundry in the drum. Make sure no laundry gets caught in the door.
2. Close the door. Press the Power button to switch on the washing machine. Turn the Programme Dial to select your wash programme. The washing finishing time will be displayed.
3. Select any Optional Functions.
4. Add detergent into the detergent drawer. The quantity of detergent will depend on the amount of laundry, the degree of soiling and the water hardness. Use the amount of detergent suggested on the packaging.

• For pre-wash programme, detergent should be added to both compartments 1 and 2.

• For other programmes, DO NOT add detergent to compartment 1.

• Press the Start/Pause button to start the washing.

• The washing machine will sound and the display window will show "End" when the programme is complete.

If the door is locked and you switched the washing machine off - or if there's a power cut - it will stay locked for 1 minute until you turn it back on again.

Illustration of three different types of containers: a box, a plastic bottle, and a clear plastic bottle (no text or symbols present)

Manual Soaking

To manually soak your laundry, press the Start/Pause button after 10 minutes of the wash programme. The washing machine will suspend the laundry to soak it in the water. After your desired soaking time, press the Start/Pause button, the machine will continue the previous wash.

When you start the washing machine, the indicator flashes to confirm the function is in progress. Once the washing machine has started, you can't change the programme.

Optional Functions

Depending on the programme you select, you can combine different optional functions. You may need to press the function buttons more than once to get all the functions you want.

Optional Function When you want to How it works
Water temperature(Press the Temperature button)	Adjust the water temperature.	It increases / decreases the water temperature.
Extra Rinse(Press the Extra rinse / Intense button)	Extra Rinse. An additional rinse operation will be activated.
Intense(Press the Extra rinse / Intense button)	Extra Intense. An additional intense operation will be activated.

Programme ending

• Your machine will automatically stop when the programme you have selected ends.
  • The programme end light will be on.

The door will be unlocked approximately two minutes after the programme ends.

Removing Laundry

1. Open the washing machine door and remove your laundry.
2. Remove any foreign objects to avoid risk of rusting.
3. Leave the door and detergent drawer open so that residual water can evaporate.

Be careful not to burn yourself while handling your clothes or touching the inside of the drum after a high temperature wash.

Switching Off

Press the Power button to for 2 seconds to switch off the washing machine.

Washing Delicates

These programmes rock the drum gently for best results on delicate laundry.

• Tips for Wool programme:

Approximate Weights:

- Wool sweater (400g)

- Blouse / Lingerie (200g)

- Trousers (400g)

Line drawings of four different clothing items: sweater, jacket, dress, and skirt (no text or symbols)

Adding Delicate Laundry Items to the Drum

- Close zips and buttons.

- Add items one by one on top of each other.

- Don't overload the drum as it may cause excessive vibrations or damage the washing machine.

Diagram showing a cylindrical pipe with internal layered structure and an arrow indicating rotation (no text or symbols)

Which Detergent to Use

• For woolen items, use a mild liquid detergent. Other detergents may damage your woolen clothes.
- With Wool or Silk programmes, you may need to use an extra rinse cycle to remove excess detergent from your clothes. This depends on the amount of detergent you use, and the amount of foam that develops in the main wash cycle.
- To do this, once the programme has finished, select the "Wool" programme using the Programme Dial and press the Start/Pause button to rinse again.

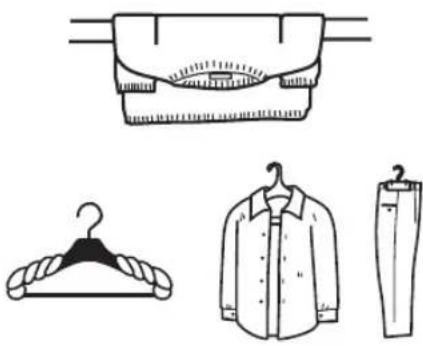

Tips for Hanging Delicate Items to Dry

• Hang white or light colour clothes, and woolen and nylon clothes away from direct heat or sunlight.
• After washing, smooth creases and folds out of woolen and nylon clothes and return them to their normal shape before hanging in the shade.
• Use a hanger for shirts, blouses and trousers. You can wrap a towel around the hanger to fit the shoulder width of your clothes, so they retain their shape as they dry.
• Spread woollen items such as sweaters out to dry.

If Clothing Shrinks in the Wash...

- You can spread the item out to its original size on an ironing board, and use dress pins to hold the size and shape. Then use an iron to steam the item and leave it to dry.

Illustration of four different clothing items: a knitted garment, a hanger, a collared shirt, and a pair of jeans (no text or symbols present)

Illustration of three different household items: a jacket, a plate with a bag, and a landscape scene (no text or symbols)

Maintenance – Cleaning the Washing Machine

Cleaning the Drum

Any rust left inside the drum by metal articles must be removed immediately with chlorine-free detergent. Never use steel wool.

Also there is a Drum Clean function:

1. Add a little detergent. Close the door. Press the Power button to switch on the washing machine.
2. Select "Drum Clean" programme and press the Start/Pause button.
3. When finished, turn the power off.

Don't put laundry in the washing machine during the drum cleaning.

Cleaning the Exterior of your Washing Machine

• Clean the outside of your washing machine with a soft cloth and mild detergent such as kitchen detergent.
• Don't splash water over the washing machine.
  • Do not use cream cleansers, thinners or products containing alcohol or kerosene.

Hand cleaning a wooden frame with a cloth (no text or symbols visible)

Cleaning the Detergent Drawer

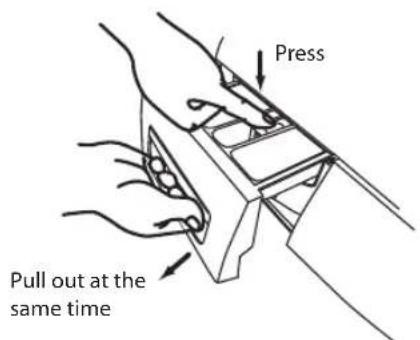

1. Remove the detergent drawer by slightly lift up and pulling the main wash detergent compartment.
2. Wash out old detergent from the drawer with water. (Use a cloth to clean the washing machine.) Residue detergent soon builds up if you don't clean the drawer regularly, and can develop mould.

Cleaning the Door Seal and Window

Be careful not to burn yourself while handling your clothes or touching the inside of the drum after a high temperature wash.

• Wipe the window and seal after each wash to remove lint and stains. If lint builds up, it can cause leaks.
• Remove any coins, buttons and other objects from the door seal after each wash.

Cleaning the Drain Filter

Before cleaning the drain filter, switch off and unplug the washing machine.

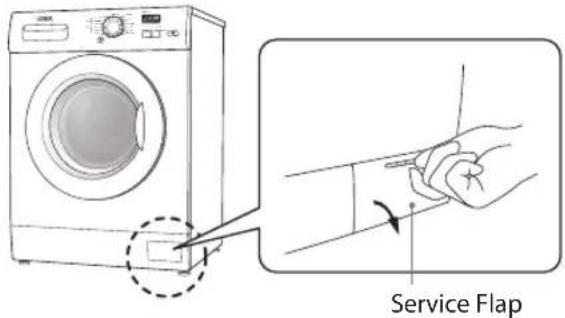

1. Use a coin to open the Service Flap.

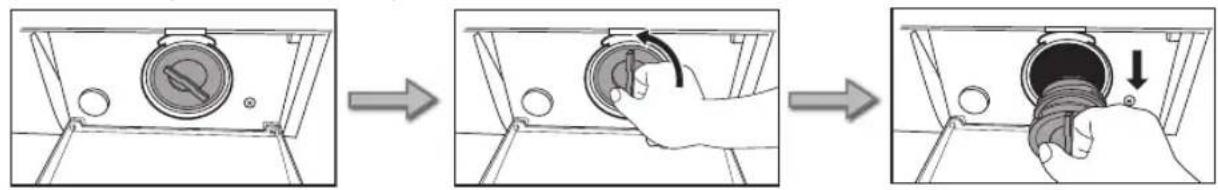

Three-step diagram showing a hand turning a circular component into a container, with no text or symbols present.

1. Carefully loosen the drain filter. Water may drain out - this is normal.
2. Turn it anticlockwise, unscrew the filter and remove it.
3. Remove any lint and debris before carefully replacing the filter.
4. Turn it clockwise and screw the filter back in place.

Preventing a Frozen Water Supply Hose

If your washing machine is delivered in freezing weather conditions, leave it at room temperature for 24 hours after you've set it up before using it. This ensures there's no frozen water blocking the water supply hose. To check that the drain hose is free from blockage, add 2 or 3 litres of warm water to the drum. Then run a "Spin" only programme.

Cleaning the Filter Net of the Water Supply Hose

1. Turn the water supply off at the tap.
2. Close the washing machine door, Press the Power button and select "Drain" programme and press the Start/Pause button.
3. When finished, turn the power off. Loosen the water supply hose and remove it from the washing machine.
4. Use a small brush, e.g. a toothbrush to clean the filter of the water supply hose.
5. Re-connect the water supply hose to the washing machine and turn the tap back on, checking for leaks.

Problems Solutions
Buttons don't work • Key lock is activated. Deactivate the key lock function.The washing machine is operating a wash programme.TheProgramme Dialwas turned to a different programme.
Door doesn't open • Door lock may be active.The water temperature or level could be too high.
Unusual odour • Rubber parts may give off a smell when you first start using the washing machine, but this goes away over time.You should wash the drum once a month.
You can't see any water This is normal: The water level is below the window.
There's no water going into the washing machine	The water tap might be turned off.The water hose or water-supply hose may be frozen.Your water supply may be disrupted.The water-supply valve filter may be clogged.
There's only a small amount of water	If you have paused the programme and you restart, the washing machine may drain some water.Don't pour water in through the door.
Water adds up during washing	This is normal: water is supplied automatically as the level lowers, and with heavy loads the water may fill up repeatedly.
Water drains away during washing	This is normal: water often drains and refills to wash off excess foam.(This is called foam detection.)
There's no water going into the washing machine during rinse operation	Before rinsing, the washing machine spins to drain water remaining from the wash. The water will fill up after that.
Rinsing begins before the spinning finishes	If your laundry has collected to one side of the drum, rinsing will start automatically to correct the imbalance.If there's excess foam after washing, water may drain and refill to wash it off. (This is called foam detection.)
During the spin-dry, the drum stops and rotates several times	This is normal. The washing machine has detected an unbalanced load and is trying to correct it.
Foam and water remain in the door or door seal	Although foam and water may remain, it does not have any influence on the performance of a rinse.
Spin starting is repeated. This is normal. Although spin starting may be repeated, it is a function made to spin quietly.
There's not much foam • This can happen if you've put powder detergent directly into the drum – you must put it in the detergent drawer.The amount of foam can vary, depending on the temperature, level and softness of your water.You may not be using enough detergent.You may be using a reduced-foam type of detergent.Heavily soiled laundry can reduce the amount of foam.Larger loads of laundry can also reduce the amount of foam.
There's a lot of foam • The amount of foam can vary depending on the temperature, level and softness of your water. • You may have used too much detergent. • The type of detergent you use could cause excess foam.
There's no foam • This can happen if you've put powder detergent directly into the drum – you must put it in the detergent drawer. • If your laundry has collected to one side of the drum, water will be supplied automatically to correct the imbalance – and this will prevent the foam wash. • The amount of foam can vary, depending on the temperature, level and softness of your water.
Fabric softener overflows • You may have exceeded the MAX level in the softener drawer. • You may have spilt the liquid by closing the softener drawer too sharply.
There's a residue of powder detergent at the end of the wash This can happen if you've put powder detergent directly into the drum – you must put it in the detergent drawer.
There's an unusual noise or vibration • Check there's nothing metal in the drum. • Make sure the transit bolts used in transportation have been removed. • Check the washing machine is on a flat, stable surface.
There's a noise when the water drains away This is normal, it's the pump starting and stopping.
The electricity supply cuts out while the washing machine's on The washing machine will stop, and won't start by itself when the power comes back on. You'll need to select a programme and start it again.
A circuit breaker trips the electricity supply • The washing machine will stop, and won't start by itself when you reset the breaker. • You'll need to find out what caused the breaker to trip, and put this right. Then reset the breaker, turn your electricity supply back on, and start the washing machine again.
The water supply is disrupted When the water comes back on, it may be impure at first. You'll need to disconnect the water-supply hose and drain any impure water through the tap before using your washing machine again. Remember to re-connect the water supply hose first.

Troubles Reason Solution
Washing machine cannot start up		Check that the door is closed tightly.Check that the power plug is inserted correctly.Check that the water supply tap is open.Check that thePowerbutton is pressed.Check that theStart/Pausebutton is pressed.
Water leakage	The connection between inlet pipe or outlet hose and tap or washing machine is not tight.Drain pipe in the room is blocked.	Check and fasten water hose connections.Clean up drain hose and ask a qualified technician to repair it if necessary.
Water overflows from the bottom of the machine	The inlet pipe is not connected firmly.Outlet hose has water leakage.	Fix the inlet hose.Replace the drain hose.
Indicator or display does not light	Power is disconnected or the unit is turned off.	Check that the power is shut off and the power plug is connected correctly.Check the mains plug and fuse.Check that the washing machine is turned on.
Washing effects are not good	The clothes are too dirty.Insufficient detergent quantity.	Select a proper wash programme.Add the proper detergent quantity according to the instructions on your detergent packaging.

Error Code

When the error code is on, the washing machine will sound. If a fault cannot be rectified or a repair is required, then:

• Press the Power button to switch off the washing machine and then pull out the mains plug.
  • Turn off the tap and call for service.

Display Fault What to do:
	Locking door function malfunction.	Re-close the door.
	Draining malfunction.	Rinse the filter of draining pump, examine whether the drainpipe is blocked.
	Temperature pickup malfunction.	Ask a qualified technician to repair it.
	Heating malfunction (display after procedure operation).	Ask a qualified technician to repair it.
	Water intake malfunction.	Check the water pressure is too low or water supply is cut off.
	There is a lot of foam in the washing machine or motor failure.	Select and run a programme to fill and then drain the washing machine or ask a qualified technician to repair it.
	Water overflow. Ask a qualified technician to repair it.
Model L812WM12 L614WMS12	Washing machine has an unbalanced load protection function.When unbalanced weight is greater than allowable maximum, the washing machine will not spin and will run at a low speed to avoid abnormal vibration and noise.	In case washing 1 piece of laundry (carpet, bed sheet, table sheet, etc) make it symmetrical inside the drum.Lower the wet weight of laundry pieces by wringing manually and placing them back in the drum in symmetrical position.Take out and then reposition the laundry pieces inside the washing machine in a more balanced position on the inner wall of the drum.Add 1 or 2 pieces of laundry into the drum to reduce the unbalanced load effects.Restart the spin cycle by choosing Spin programme.In case the failure persists, please ask a qualified technician to repair it.
Rated Voltage 220 - 240 V ~
Rated Frequency 50Hz
Maximum Energy Rated Power Input 2000W
Heating Energy Rated Power Input 1800W
Dimensions (H x D x W mm) 850 x 650 x 595 850 x 510 x 595
Weight of the Product 72 kg 65 kg
Pressure of Tap Water (0.03 ≤ p ≤ 1) MPa

Features and specifications are subject to change without prior notice.

Model: L812WM12

Rated capacity: 8 kg

Energy efficiency class: A+++

Energy consumption is 185 kwh per year based on 220 standard washing cycles for cotton programmes set at 60°C and 40°C, with full and partial loads, and set at low-power modes.

Actual energy consumption will depend on how the appliance is used.

Energy consumption of:

• Standard Cotton programme, 60°C, with a full load: 0.873 kwh
• Standard Cotton programme, 60°C, with a partial load: 0.9 kwh
• Standard Cotton programme, 40°C, with a partial load: 0.64 kwh

Power consumption when appliance is:

• Turned off: 0.56 W
- Left on: 0.56 W

Water consumption is 11400 litres per year based on 220 standard washing cycles for cotton programmes set at 60^ C and 40^ C, with full and partial loads, and set at low-power modes.

Actual water consumption will depend on how the appliance is used.

Spin-drying efficiency class is "B", on a scale of A (most efficient) to G (least efficient).

Maximum spin speed: 1200 rpm

Standard washing cycle programmes are the Standard 60° C Cotton Programme and the Standard 40° C Cotton Programme. These cycles are suitable for cleaning naturally-soiled laundry and are the most efficient washing cycles in terms of combined energy and water consumption.

Time required:

• Standard Cotton programme, 60°C, with a full load: 178 mins
• Standard Cotton programme, 60°C, with a partial load: 178 mins
• Standard Cotton programme, 40°C: 158 mins

Airborne acoustical noise (spinning): 73 dB

Airborne acoustical noise (standard 60°C): 59 dB

Model: L614WMS12

Rated capacity: 6 kg

Energy efficiency class: A+

Energy consumption is 176 kwh per year based on 220 standard washing cycles for cotton programmes set at 60^ C and 40^ C, with full and partial loads, and set at low-power modes.

Actual energy consumption will depend on how the appliance is used.

Energy consumption of:

• Standard Cotton programme, 60°C, with a full load: 0.682 kwh
• Standard Cotton programme, 60°C, with a partial load: 0.888 kwh
• Standard Cotton programme, 40°C, with a partial load: 0.557 kwh

Power consumption when appliance is:

• Turned off: 0.56 W
- Left on: 0.56 W

Water consumption is 9438 litres per year based on 220 standard washing cycles for cotton programmes set at 60°C and 40°C, with full and partial loads, and set at low-power modes.

Actual water consumption will depend on how the appliance is used.

Spin-drying efficiency class is "B", on a scale of A (most efficient) to G (least efficient).

Maximum spin speed: 1400 rpm

Standard washing cycle programmes are the Standard 60° C Cotton Programme and the Standard 40° C Cotton Programme. These cycles are suitable for cleaning naturally-soiled laundry and are the most efficient washing cycles in terms of combined energy and water consumption.

Time required:

• Standard Cotton programme, 60°C, with a full load: 191 mins
• Standard Cotton programme, 60°C, with a partial load: 186 mins
• Standard Cotton programme, 40°C: 164 mins

Airborne acoustical noise (spinning): 73 dB

Airborne acoustical noise (standard 60°C): 58 dB

For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below.

WARNING!

- If you will not be using the washing machine for a while such as when you go on holiday, turn off the water supply to the washing machine. This is particularly important if there is no drainage around the washing machine.

If the water supply is left on, water pressure may build up and cause a leak.

General Use

• Do not install your washing machine anywhere that is damp or exposed to the weather. If you do, it may cause an electric shock, fire, failure or deterioration.
• Do not pour water directly onto any part of the washing machine. It may cause a short circuit or electric shock.
• Keep burning objects such as candles or cigarettes, away from the washing machine. They may cause a fire or damage.
• Keep flammable substances well away from the washing machine – for example kerosene, gasoline, benzene, paint thinner and alcohol, or clothing soaked with these. They may cause an explosion or a fire.
  • This washing machine is only suitable for washing textiles labelled washing machine washable.
• Transit bolts are used to transport the washing machine. You should remove these using a spanner or similar tool before you install the washing machine. If you do not, it will cause strong vibrations when the washing machine is spinning.
• Do not connect the washing machine to hot water. The washing machine works with cold water.
• Before you start using the washing machine, turn the tap on to check that the hose is properly connected. If it's not, there may be a water leak.
• Do not apply pesticide, hair spray or deodorant to the washing machine.
• Do not put any electrical equipment near the washing machine – for example a TV, radio or battery charger.
• Do not put too much laundry or detergent into the washing machine. It may cause washing machine troubles.
• Be careful not to get your laundry caught in the door when you close it. This could cause a water leak or damage your laundry.

Power Source and Cable

• Use an independent household dedicated mains socket, fully rated at AC 220V to 240V. If the washing machine is plugged in with other appliances, it may overheat and cause a fire.
• Make sure the mains plug is pushed firmly in the socket. A loose connection may overheat and cause electrical shock or a fire.
• Check the mains lead and mains plug for any damage. If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • Unplug the mains lead when cleaning the washing machine.
• Do not touch the mains lead or mains plug with wet hands. It may cause an electric shock.
• Check the mains plug regularly for dirt. If dirt accumulates on the mains plug, it could cause a fire. To prevent this, unplug the cable and clean the mains plug with a dry rag.
• If you disconnect the mains plug, hold onto the mains plug not the cable. Pulling the cable may cause an electric shock or a fire.
• Do not use a mains plug adaptor or extension cable. It may overheat and cause a fire.
• Make sure your home voltage matches the voltage displayed on the washing machine. If you are not sure, contact an electrician.

To Prevent Injury

• Do not climb on the washing machine. You may hurt yourself or damage the washing machine.
- When opening and closing the door ensure you keep fingers away from the door hinge, or this could lead to injury.
- Check your washing for objects such as nails, pins, coins, clips etc. They could damage your laundry or the washing machine.
- Do not wash, rinse or spin water-proof sheets or clothing. These may cause vibration or washing machine failure during spin-drying, which could lead to injury, damage to the washing machine or damage due to water leaking.
- Be careful when draining hot water or any detergent from the drum. To prevent an injury.
- Do not dismantle, repair or modify the washing machine. The washing machine could malfunction and cause a fire or injury.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
- Do not touch the laundry inside the washing machine, until the drum has completely stopped. Even if the drum is spinning at low speed it can cause an injury. Take particular care of children in this respect.
- The appliance is to be connected to the water mains using new hose-sets and that old hose-sets should not be reused.
• The ventilation openings in the base of washing machine must not be obstructed by a carpet.

IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.

TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers:
Replacement Part Part Number
Water Supply Hose 0020300158A
Noise Protection Board 0020501896 (L812WM12)0020501889A (L614WMS12)
U-Shape Holder 00221123015002
Cover Cap 0020202911

Partmaster \_\_co.uk

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct

to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only). Calls charged at National Rate.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

Factory Code: 0020505574AK

Gradient grayscale transition from white to dark gray, no text or symbols present
