KC320 - Alarm clock radio HITACHI - Free user manual and instructions

Type	Alarm clock radio
Brand	Hitachi
Model	KC320
Dimensions (approx)	15 x 10 x 8 cm
Weight (approx)	0.5 kg
Power Source	AC adapter (included) or 2x AAA batteries (backup)
Alarm Type	Radio or buzzer
Snooze Function	Yes, 9-minute snooze
Sleep Timer	Yes, up to 90 minutes
Radio Bands	FM (87.5-108 MHz), AM (530-1700 kHz)
Display	LED, adjustable brightness
Clock	12/24 hour format, manual set
Backup Battery	Keeps time and alarm during power outage
Speaker	Single 3-inch, 2W output
Headphone Jack	3.5mm (not included)
Warranty	1 year limited
Cleaning	Wipe with soft dry cloth
Safety	Keep away from water and heat sources
Spare Parts	Contact Hitachi customer service
Repairability	Not user-serviceable; refer to professional
General Information	Designed for bedside use

Frequently Asked Questions - KC320 HITACHI

How do I set the alarm time?

Press and hold the Alarm button until the time flashes, then use the + and - buttons to adjust.

Can I use batteries only without AC power?

Yes, the radio can run on 2x AAA batteries, but the backlight and radio will not work; only the clock and alarm buzzer function.

How do I switch between radio and buzzer alarm?

Press the Alarm Mode button repeatedly to toggle between buzzer, radio, or off.

What should I do if the display is too bright?

Use the Dim button to cycle through brightness levels (high, medium, low).

How do I set the clock?

Press and hold the Clock button until the hour flashes, rotate the tuning knob or press +/- to set, then press Clock again to set minutes.

Why is my radio not receiving stations?

Ensure the antenna is fully extended and try relocating the clock radio away from electronic interference.

How long does the backup battery last?

The backup battery preserves clock and alarm settings for approximately 24 hours during a power outage.

Can I use headphones?

Yes, plug headphones into the 3.5mm jack on the side to listen privately; the built-in speaker will mute.

How do I clean my clock radio?

Unplug the unit and wipe with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.

What is the warranty period?

Hitachi provides a 1-year limited warranty from the date of purchase. Keep your receipt for service.

USER MANUAL KC320 HITACHI

Design DAB & FM RDS Clock Radio With iPod Docking

iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

Safety Precautions

To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate the unit, this will assure you years of faithful, trouble free performance and listening pleasure.

Important Notes

• This safety and operating instruction should be retained for future reference.
- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.
- Avoid installing the unit in locations described below:

- Places exposed to direct sunlight or close to heat radiating appliances such as electric heaters.

• On top of other stereo equipment that radiate too much heat.
• Places blocking ventilation or dusty places.

• Places subject to constant vibration.
  o Humid or moist places.

• No naked flame sources such as lighted candles should be placed on or near the unit;

• Make sure not to obstruct the ventilation openings, minimum 10cm should be kept around the apparatus for ventilation.
• The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table-cloths, curtains, etc.
• Only use the apparatus in moderate climates.
• Operate turning controls and switches as instructed in the manual.
• Before turning on the power for the first time, make sure the power cord is properly installed.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel.

Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside, refer all servicing to qualified service personnel.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK), NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

DANGEROUS VOLTAGE

Dangerous voltages, that may be of sufficient magnitude to constitute a risk of electric shock to persons is present within this product's enclosure.

ATTENTION

The owner's manual contains important operating and maintenance instructions, for your safety, it is necessary to refer to the manual.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO DRIPPING OR SPLASHING.

Note: This unit will become warm when used for a long period of time. This is normal and does not indicate a problem with the unit.

Safety Information

Some Do's And Don'ts On the Safe Use Of Equipment

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.

DO read the operating instructions before you attempt to use the equipment.

DO ensure that all electrical connections (including the mains plug, extension leads and inter-connections between the pieces of equipment) are properly made and in accordance with the manufacturer's instructions. Switch off and withdraw the mains plug before making or changing connections.

DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

DON'T remove any fixed cover as this may expose dangerous voltages.

DON'T obstruct the ventilation openings of the equipment with items such as newspapers, tablecloths, curtains, etc.

Overheating will cause damage and shorten the life of the equipment.

DON'T allow electrical equipment to be exposed to dripping or splashing, or objects filled with liquids, such as vases, to be placed on the equipment.

DON'T place hot objects or naked flame sources such as lighted candles or nightlights on, or close to equipment. High temperatures can melt plastic and lead to fires.

DON'T use equipment such as personal stereos or radios so that you are distracted from the requirements of traffic safety.

DON'T listen to headphones at high volume, as such use can permanently damage your hearing.

DON'T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation. Switch off using the switch on the equipment and make sure that your family knows how to do this. Special arrangements may need to be made for infirm or handicapped people.

DON'T continue to operate the equipment if you are in any doubt about it working normally or if it is damaged in any way, switch off, withdraw the mains plug and consult your dealer.

Caution: The power adapter has a removable plug, please handle with care.

Caution: The power adaptor will still be supplying power to the unit when connected, even if the unit appears to be off. The power adaptor must be removed from the mains socket to power off completely.

ESD Remark: In case of malfunction due to electrostatic discharge just reset the product (reconnection of power source may be required) to resume normal operation.

Table of Contents

Safety Precautions 2

Safety Information....3

Table of Contents 4

Package Content 5

Controls Overview 6

Getting Started....8

DAB Mode 8

1. Autoscan 8

2. Add new stations....9

3. Autoselect....9

4. Manual Tune 9

Changing the DAB Station Information 10

DAB Menu Controls 11

Setting DAB/FM Station Presets.... 12

Selecting a Preset DAB/FM station.... 12

FM Mode....13

How to tune in FM Radio Stations 13

1. Stereo detection (changing Auto type)-Auto/Off 13

2. Tuning mode 13

-Freq (searching FM Radio Stations Manually) 13

-Seek (searching FM Radio Stations Automatically).... 14

Changing the FM Station Information 15

FM Menu Controls....16

iPod Mode....17

Docking and playing your iPod....17

Docking your iPod 17

Clock Mode....18

1. Clock settings.... 18

2. Brightness 18

3. System 19

Setting Alarm 20

Setting Alarm 1....20

Snooze Function 21

Alarm Off 21

Night Mode 22

Sleep Mode....22

Specification 23

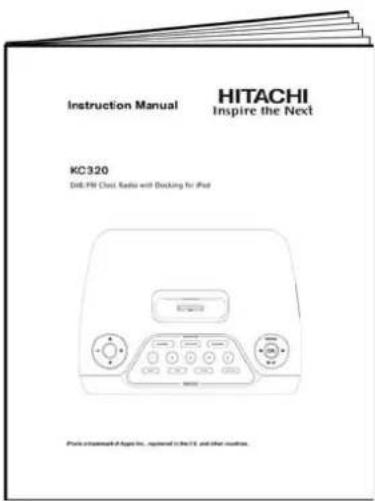

Package Content

AC/DC Adapter	Part Number: KSS12_065_1800B
Instruction manual	Part Number: HS_ezCLOCK_08070-0-00
DAB/FM Radio
iPod dock adaptors	Part Number:3,8,9,10,11,13,14 (For Part number details, please refer to the item list on the last page.)

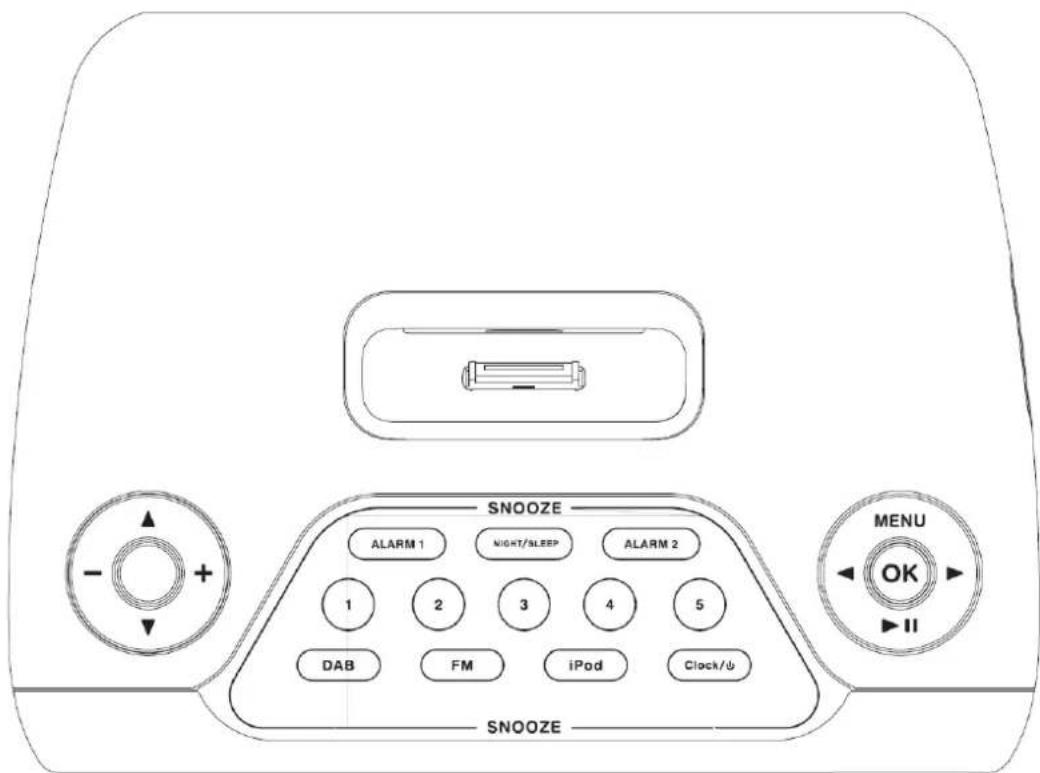

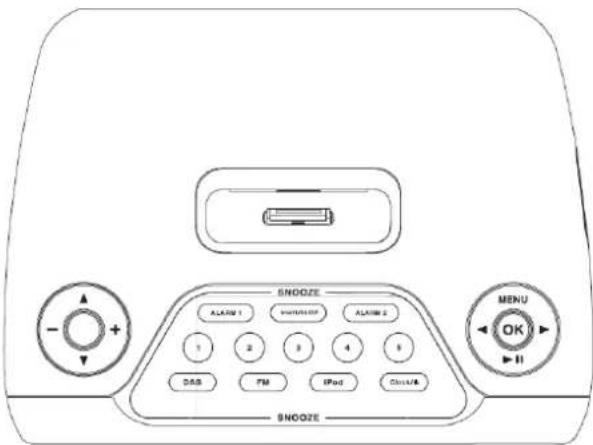

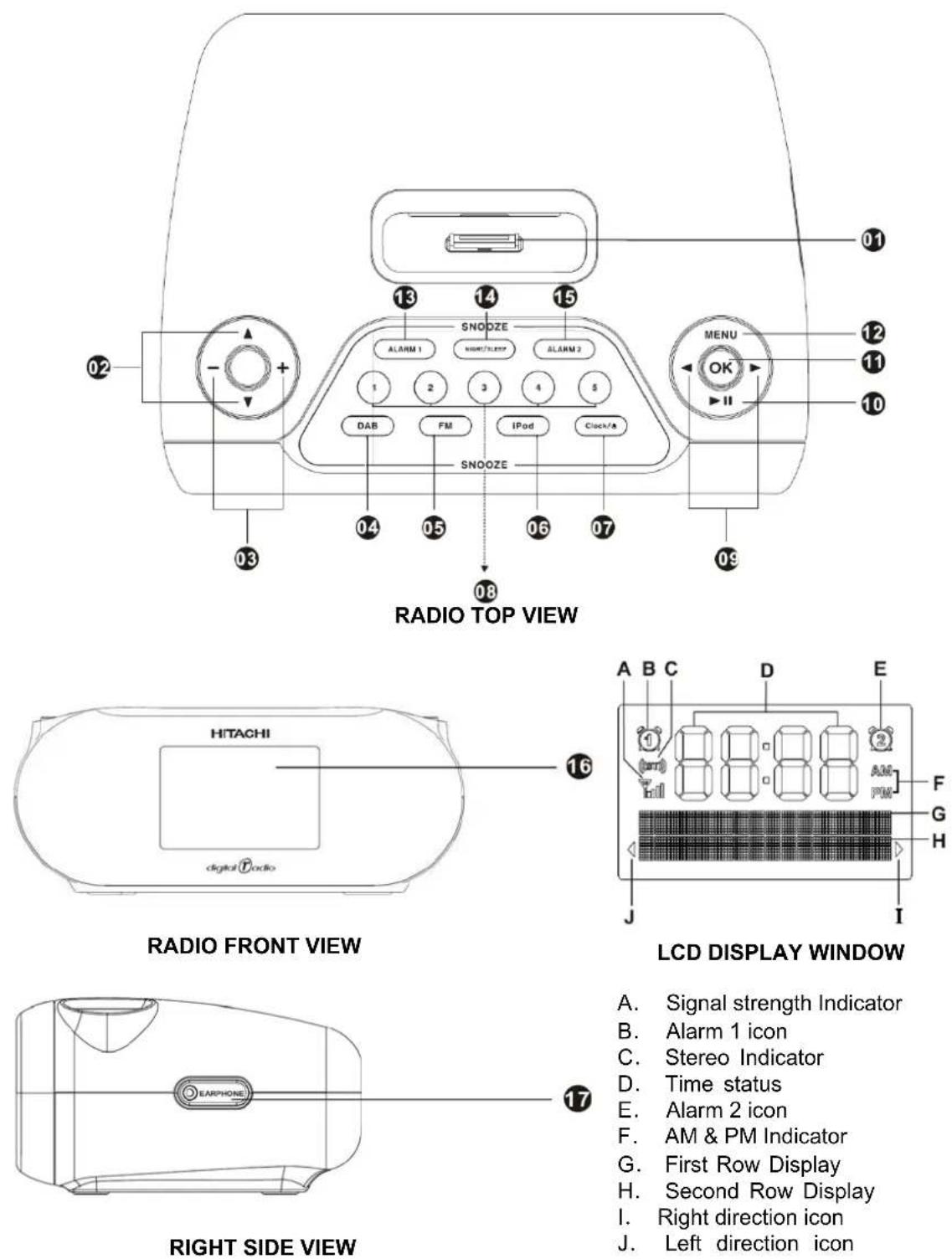

Controls Overview

A. Signal strength Indicator
B. Alarm 1 icon
C. Stereo Indicator
D. Time status
E. Alarm 2 icon
F. AM & PM Indicator
G. First Row Display
H. Second Row Display
I. Right direction icon
J. Left direction icon

01		iPod Dock Designed for connecting to your iPod
02		Scroll up/down button	Press to upward or downward in the menu setup
03		Volume up/Down button	Press to Increase or decrease the volume during audio playback
04		DAB function touch pad	Touch to enter DAB mode
05		FM function touch pad	Touch to enter FM mode
06		iPod function touch pad	Touch to enter iPod mode
07		Clock function touch pad	Touch to enter clock mode (Standby mode)
08		Preset 1-5 touch pad	DAB/FM mode: Touch and hold to save preset station 1-5; Tag to load preset station 1-5
09		Next/ previous button	DAB/Clock/iPod mode: Press ▲ to previous page; press ▲ to next page FM mode: Press to change Frequency
10		Play/pause button	DAB/FM mode: Press to browse\,etc iPod mode: Press to Play/pause
11	OK	OK button Press to confirm selection
12	MENU	MENU button	Press to directly enter the menu directory, press once more to exit
13		Alarm 1 touch pad	Touch and hold to set alarm1, and touch to check Alarm1 status When it is activated, press any button to temporarily deactivate the alarm
14		NIGHT/SLEEP touch pad	DAB/FM/iPod mode: Touch to enter set ‘sleep settings’ Clock mode: Touch to set ‘night mode’
15	[4ZW7]	Alarm 2 touch pad	Touch and hold to set alarm 2, and touch to check Alarm2 status When it is activated, press any button to temporarily deactivate the alarm
16		Display screen A window shows info of your radio
17		Earphone socket	Designed for connecting to your earphone

Getting Started

Connect the unit to the power outlet, it will automatically enter the clock mode.

DAB Mode

Touch to enter the DAB mode.

Scanning for DAB Radio Stations

1. For initial use in DAB mode, your radio will now scan for DAB stations in your area and store them in memory. A slide bar is displayed on the LCD, indicating the progress of the scan.
2. Once the scanning is completed, the DAB stations will be displayed in alphanumeric order. The first station in the list will be selected.

1. Autoscan

(a) To perform an Autoscan scan, press MENub OK select Autoscan and start scanning. A progressing slide bar is displayed on the LCD until the autoscan finished.

Note: In DAB mode, you may press ◀ or ▶ to browse , , and .
(b) Once the scanning is completed, the station name list will be displayed in alphanumeric order.
(c) You may press ◀ or ▶ to select your desired station, then press Ⓞ to confirm.

Note:

a. You can move back to the previous screen at any time by pressing the button.
b. If no DAB signal is found in your area, it may be necessary for you to relocate your radio. Alternatively, visit http://www.ukdigitalradio.com/coverage to check that DAB coverage is available in your area.

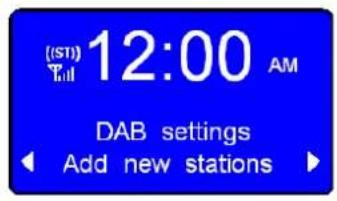

2. Add new stations

1. Press MENU, and then press ▶ and to select Add new stations.

2. Your radio will scan the DAB channels with a progressive slide bar displayed on the LCD. Any new stations available will be added to the station list.

3. Autoselect

1. Press MENU and then press ▶ and Ⓞ to select Autoselect.

2. Press ◀ and OK to select ON. Then you can explore the found stations by pressing ◀ or . The station will be automatically selected when the button is released and the name of the station will be displayed.

3. If autoselect is set to OFF when you are exploring the stations by pressing ▶ or , then you have to press to switch to that station when the display shows your desired station, otherwise it will revert back in a few seconds.

4. Manual Tune

1. Press MEMOn, and then press and to select Manual Tune.

2. Press ◀ or ▶ change DAB channels, the LCD will show "5A to 13F" and their associated frequencies. When a station group on one of the DAB channels is located, the name of the station group will be displayed on the LCD, press ▶ to browse. Press OK to select that station group, the first station in that station group will be displayed on the LCD.

3. Press ◀ or ▶ find the station in the station group. Press OK when desired station is located.

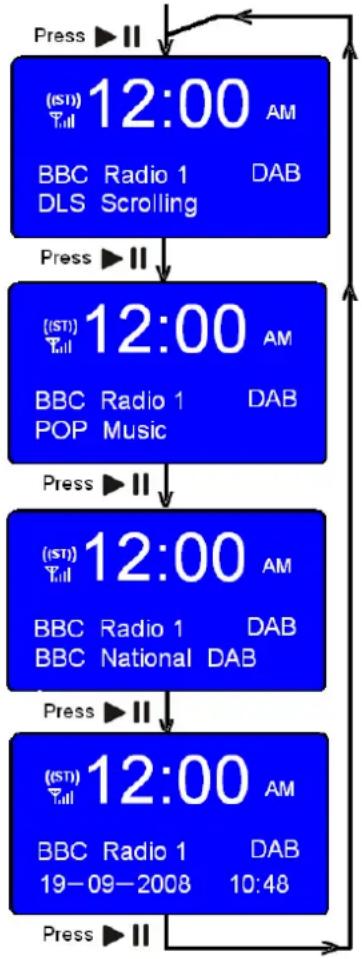

Changing the DAB Station Information

It is possible to change the information that is displayed on the second line of the display when listening to a DAB station. There are five types of information available as listed below with examples on the right.

To change the information displayed press the ▶ II button repeatedly, the display will cycle through the follow display modes.

Dynamic Label Segment (DLS):

This is scrolling text information supplied by the DAB station. It may comprise information on music titles or details of the program and is provided by the broadcaster.

Program Type (PTY):

This is a description of the type of program provided by the DAB station and is provided by the broadcaster.

Multiplex Name:

This will show the multiplex that is broadcasting the program you are listening to.

Time and Date:

This displays the time and date and is provided by the roadcaster so will be accurate. b

Secondary Services

You may see a ">" symbol after the name of the station, this indicates that there are secondary services available to that station. These secondary services contain extra services that are related to the primary station. E.g. A sports station may want to add extra commentaries. The secondary services are inserted directly after the primary station in the station list. To select the secondary station, press OK when the "> " appears in the LCD before the station name. When the secondary service ends, the radio will automatically switch back to the primary station.

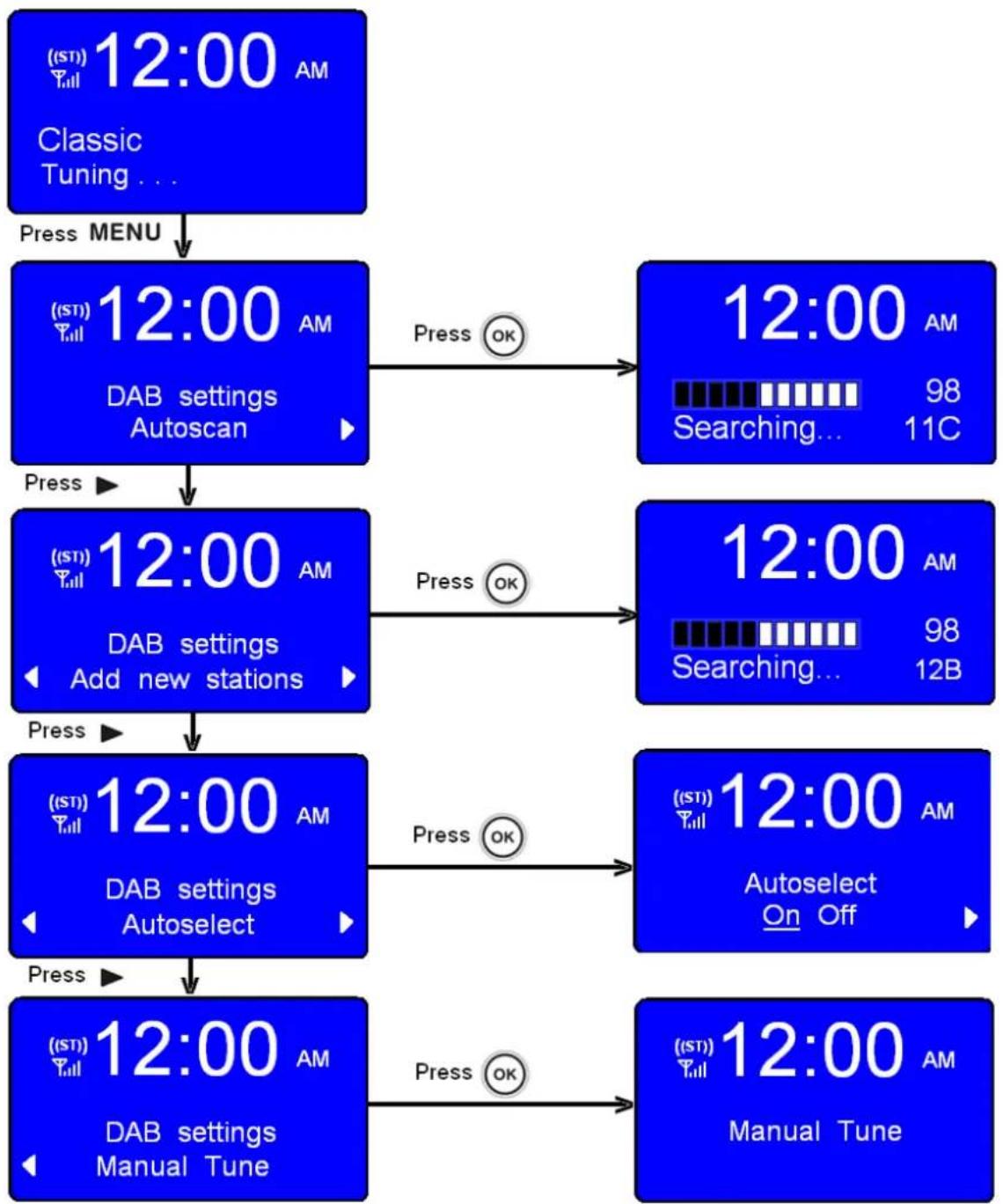

DAB Menu Controls

Setting DAB/FM Station Presets

Your radio can store 5 DAB station presets and 5 FM station presets, this will enable you to get direct access to your favourite stations.

To store the current station:

1. Touch and hold one of preset touch pad

until Preset # stored displayed on the LCD.

1. You may repeat step 1 until all 5 presets are full.

Or

Selecting a Preset DAB/FM station

1. To select a stored DAB/FM station, first enter corresponding mode by touching DAB or FM

2. Then touch the corresponding preset touch pad that you have stored.

1. If the preset has not been allocated a station, Preset # empty will be displayed on the LCD.

FM Mode

How to tune in FM Radio Stations

To listen to FM radio stations switch your radio on and touch to enter the FM Mode.

12:00 AM FM Mode

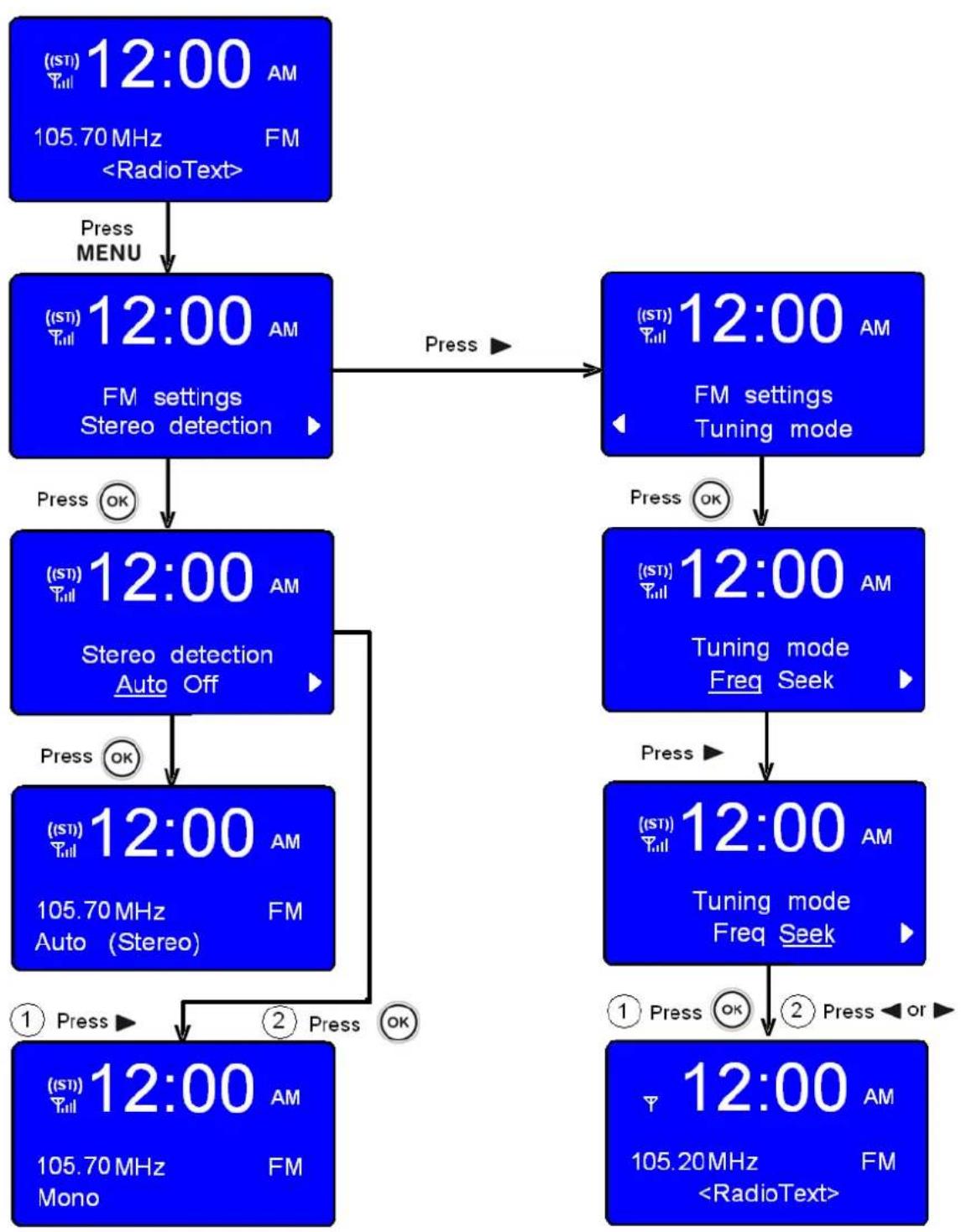

1. Stereo detection (changing Auto type)-Auto/Off

1. Press MENU button, and then press OK to select Stereo detection.

(EST) 12:00 AM FM settings Stereo detection

1. In stereo detection, press OK to select Auto.

(ST) 12:00 AM Stereo detection Auto Off

1. Or you may press ▶ and Ⓞ to select Off.

(S1) 12:00 AM 105.70 MHz FM Mono

2. Tuning mode

- Freq (searching FM Radio Stations Manually)

1. Press MENU button, and then press ▶ and Ⓞ to select Tuning mode.

((ST) Full 12:00 AM FM settings Tuning mode

1. In tuning mode, press ◀ and Ⓞ to select Freq.

(151) 12:00 AM Tuning mode Freq Seek

1. Press ◀ or to ▶ increase or decrease the frequency

0.05MHz per step manually until the desired frequency is reached, then your radio will immediately tune to that station.

- Seek (searching FM Radio Stations Automatically)

1. In tuning mode, press OK to select Seek.
2. Press or to automatically scan up or down the frequency band.
3. When the frequency of a strong signal station is detected, your radio will automatically tune to that station, and stop scanning.
4. To find the next strong signal repeat step 2. When it scans to the end of the frequency range, it will restart searching at the beginning.

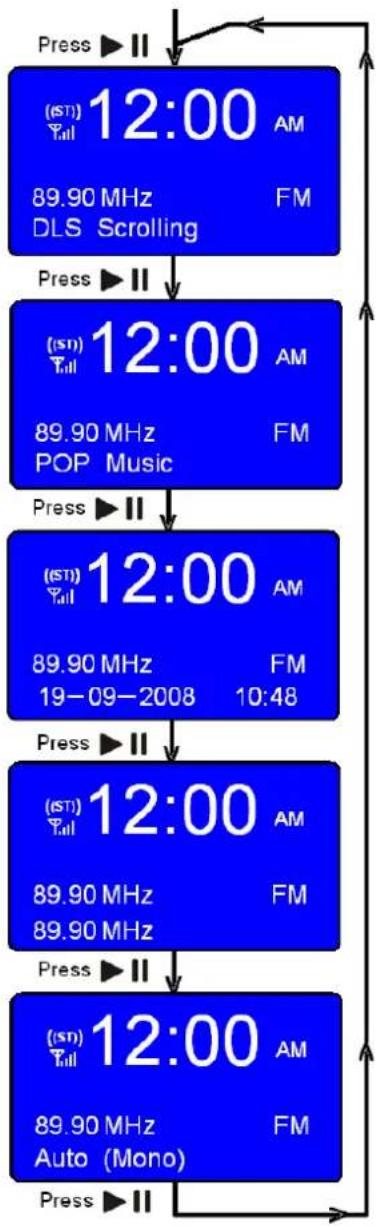

Changing the FM Station Information

To change the information displayed press the button repeatedly, the display will cycle through the follow display modes.

Radio text:

This is scrolling text information supplied by the FM station. It may comprise information on music titles or details of the program and is provided by the broadcaster.

Program Type (PTY):

This is a description of the type of program provided by the FM station and is provided by the broadcaster.

Time and Date:

This displays the time and date and is provided by the broadcaster so will be accurate.

Frequency:

This displays the transmission Frequency of current listening station. I

Audio type:

This displays the current audio type < Auto (Mono), or Mono>.

Press ▶ II again, back to 'radio text' info.

FM Menu Controls

iPod Mode

Docking and playing your iPod

This unit can play music files stored on your iPod through the stereo speakers

Docking your iPod

Dock Adapters

Insert the Dock Adapter that fits your iPod model, then plug in your iPod. The adapter number is marked at the back or side of each dock adapter.

iPod Adaptor No.	iPod Description Capacity
3 iPod mini	4GB, 6GB
8 iPod nano	(1stgeneration) 1GB, 2GB, 3GB
9	iPod (5thgeneration-video)	30GB
	iPod classic 80GB
10	iPod (5thgeneration-video) 60GB, 80GB
	iPod classic 160GB
11 iPod nano	(2ndgeneration) 2GB, 4GB, 8GB
13 iPod nano	(3rdgeneration - video) 4GB, 8GB
14 iPod touch	8GB, 16GB, 32GB

1. Insert your iPod into the iPod docking on the top of the unit. This unit Dock will begin to charge your iPod if necessary. Charging will stop when the iPod is fully charged (check the iPod screen).

Note: 1st to 3rd generation iPod cannot be charged by this unit.

1. Touch iPod to enter iPod mode, the LCD will display "Connected" when iPod is docked.

2. Press MENU on the unit to go back to previous menu in iPod

3. Press Ⓞ on the unit to confirm any selection.

4. Press ▲ or ▼ to select the up and down title on the menu. Press ◀ or ▶ to select the next or previous track.

1. Press ▶ II on the unit to start the playback, press ▶ II again to pause and press ▶ II once more for to resume playback.

Clock Mode

1. Touch Clock to enter into CLOCK mode;

1. Clock settings

- Clock format

(a) Press MENU button, press OK to select Clock settings.

Note: In clock menu, you may press ◀ or ▶ to browse, and .

(b) In Clock settings, press OK to select Clock format.

(c) Press ▲ or ▼ to select 12 or 24 hour basis display and then press OK to confirm.

- Set date & time

(a) In Clock settings, press ▶ and then press OK to select Set date & time.

(b) The flashing digits can be changed by pressing ▲ or ▼, Press ▶ to the next. Press Ⓞ to confirm after both date and time are set.

Note: Digits represent as DD-MM-YYYY HH:MM D:Day H:Hour M:Month M:Minute Y:Year

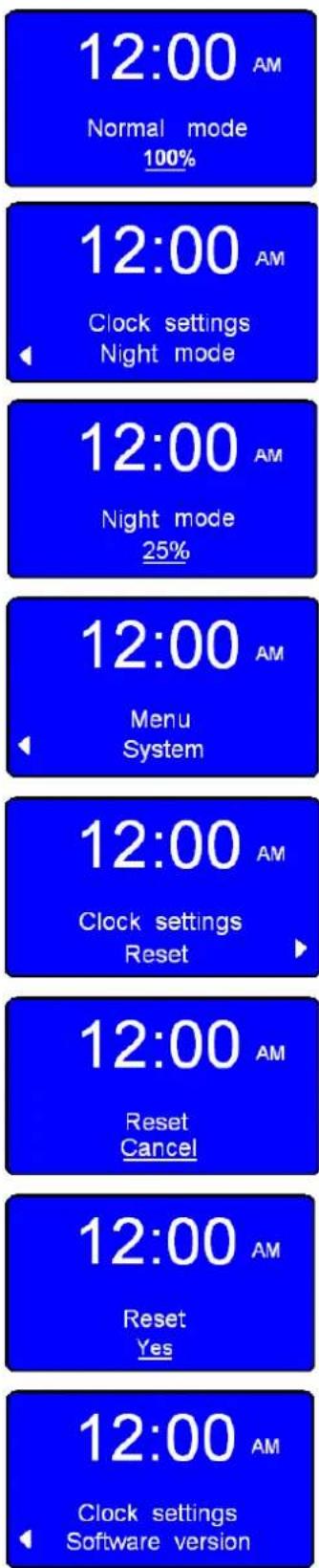

2. Brightness

The backlight in normal mode has three settings (100%/50%/OFF), whereas night mode has three settings as (25%/50%/OFF), you may adjust the setting that best suits your personal preference.

1. In clock mode, press MENU button, and then press to 'Brightness'.

- Normal mode

(a) Press OK to select Normal mode.

(b) Press ▲ or ▼ to select 100%/50%/OFF and then press to confirm.

- Night mode

(a) In Brightness, press ▶ and then Ⓞ to select to Night mode.

Note: This setting is activated when 'Night mode' is set to 'On'.

(b) Press ▲ or to select 25%/50%/OFF and then press to confirm.

3. System

1. In clock mode, press MENU button press ▶ and then press OK to select System.

- Reset

(a) In system, press OK to select Reset.

(b) Select Cancel to cancel the operation.

(c) Press ▲ to Select Yes, the unit will enter DAB mode again. All presets will be erased and the set will revert back to its factory default settings.

- Software version

(a) In system, press ▶ and then Ⓞ to select Software version.

(b) Information of software version will be displayed.

Setting Alarm

Notes: a. Clock must be set before setting alarms.
b. Alarm can be set only in the Clock mode.

- Setting Alarm 1

1. Touch and hold ALARM 1 for 3 seconds, Alarm 1 will be shown and Off is flashing.
2. Press ▶ and then press Ⓞ to select On.
3. Press ▲ or ▼ to set the hours, press □ to enter minutes setting.
4. After setting hours and minutes of the alarm, press OK to confirm.
5. Press ▲ or ▼ to select one time only/ Daily/ Weekdays/ Weekend/Monday/ Tuesday/Wednesday/Thursday/Friday and press OK to confirm.
6. Press ▲ of to select Beep/DAB/ FM/ iPod and press OK to confirm.
7. Press ▲ or ▼ to set the alarm volume level which ranges as 1-20, and press OK to confirm.

1. Press ▲ or ▼ to set snooze period which ranges from 1-30 minutes, and press OK to confirm.

Alarm 1 setting is now finished, and the Alarm 1 icon will appear on the LCD display.

1. To check the setting status of Alarm 1, touch ALARM 1.

Note: Procedure of setting Alarm 2 will be exactly the same as setting Alarm 1, except using ALARM 2.

- Snooze Function

1. When the Alarm is activated, you may temporarily deactivate the alarm by pressing any key.

2. The LCD displays Silence or Off, and the alarm will be activated again when the snooze time counted down to zero.

- Alarm Off

1. To cancel the snooze function, press OK to select Silence. It will then be back to the clock mode with the Alarm 1 icon being displayed on the LCD, and it will be activated according to the alarm setting for the next time.

2. To cancel the alarm, press ▶ and Ⓞ to select Off. The alarm is switched off. The unit is now back to the clock mode and the Alarm 1 icon will disappear from the LCD.

3. To cancel the alarm alternatively, touch and hold ALARM 1 for 3 seconds and select Off. The unit is now back to the clock mode and the Alarm 1 icon will disappear from the LCD.

Night Mode

Night mode is designed to help user stay at an environment avoiding light disturbance from radio, you may select ON to active it, or select OFF to disable it.

1. Touch Clock to enter CLOCK mode, otherwise, it will enter 'sleep setting'.

12:00 AM

19-09-2008

1. Touch NIGHT/SLEEP once, night mode is On.

12:00 AM

Night Mode On

1. Press NIGHT/SLEEP again to set it Off.

12:00 AM

Night Mode Off

Sleep Mode

This function allows you to program the unit to switch off automatically after the set period of time. The sleep time can only be set in DAB/FM/iPod mode.

1. Touch DAB FM or iPod to enter corresponding mode.

2. Touch NIGHT/SLEEP repeatedly to select the sleep time in the sequence of 60/45/30/15mins/Off on every touch.

3. The sleep time will be displayed on the LCD and will automatically turn off when the sleep time counted down to zero.

Note: Radio will now automatically put itself into clock mode after it has elapsed.

1. To cancel sleep function, touch repeatedly to select the sleep time Off.

(STI) 12:00 AM

Sleep setting 60 mins

((ST) Yall) 12:00 AM

105.70 MHz FM Sleep 58:10

Specification

General:	Design DAB & FM RDS Clock Radio With iPod Docking
Audio Output:	2W rms X 2
Frequency Ranges:	DAB Band III (174 - 240 MHz)FM (87.5 - 108 MHz)
Input Connectors:	DC power socket
Output Connectors:	3.5mm stereo jack headphone socket (32 ohm)
LCD Display:	High resolution display
Power Supply:	6.5V dc 1800mA (AC/DC adaptor supplied)
Dimension:	148mm x 200mm x 80mm

Partmaster .co.uk

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call

0870 6001 338

(UK customers only) Calls charged at National Rate.

If you require a replacement for any of the items listed below, please quote their corresponding part numbers:
Replacement Part Part Number
AC/DC Adapter KSS12_065_1800B
Instruction Manual HS_ezCLOCK_08070-0-00
iPod adaptor No. 3 CA_P_iPodA_#3_BK
iPod adaptor No. 8 CA_P_iPodA_#8_BK
iPod adaptor No. 9 CA_P_iPodA_#9_BK
iPod adaptor No. 10 CA_P_iPodA_#10_BK
iPod adaptor No. 11 CA_P_iPodA_#11_BK
iPod adaptor No. 13 CA_P_iPodA_#13_BK
iPod adaptor No. 14 CA_P_iPodA_#14_BK

The mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE). The mark indicates the requirement NOT to dispose the equipment including any spent or discarded batteries as unsorted municipal waste, but use the return and collection systems available.

If the batteries or accumulators included with this equipment, display the chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of more than 0.0005% Mercury, or more than 0.002% Cadmium or more than, 0.004% Lead.
