Product Type	Television
Brand	Magnavox
Model	40MF401B
Screen Size	40 inches (diagonal)
Display Type	LED-backlit LCD
Resolution	1920 x 1080 (Full HD)
Refresh Rate	60 Hz
Aspect Ratio	16:9
Connectivity	2 x HDMI, 1 x USB, 1 x Component, 1 x Composite, 1 x RF, 1 x Ethernet, 1 x Optical Audio Out
Built-in Tuner	ATSC / NTSC
Speakers	2 x 8W stereo
Power Consumption	70W (typical), 0.5W (standby)
Power Supply	AC 120V, 60Hz
Dimensions (with stand)	36.1 x 23.0 x 7.9 inches (WxHxD)
Dimensions (without stand)	36.1 x 21.1 x 3.1 inches
Weight (with stand)	17.6 lbs
Weight (without stand)	16.5 lbs
VESA Mount Pattern	200 x 200 mm
Remote Control Model	MAGNAVOX 40MF401B Remote (included)
Manual Language	English (EN)
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use liquid cleaners or abrasives.
Safety Warnings	Do not expose to rain or moisture. Avoid extreme temperatures. Unplug during lightning storms.
Spare Parts Availability	Contact Magnavox customer service for replacement remote, stand, or power cord.
Repairability Index	Not rated; standard consumer electronics repair recommended by qualified technician.

Frequently Asked Questions - 40MF401B MAGNAVOX

How do I connect my Magnavox 40MF401B to a cable box?

Connect the cable box to the TV using an HDMI cable. Plug one end into the HDMI OUT on the cable box and the other into one of the HDMI ports on the TV (usually HDMI 1). Then, use the TV remote to select the corresponding HDMI input.

What should I do if the TV does not turn on?

First, check the power cord connection and ensure the outlet is working. Try a different outlet. If the TV still doesn't power on, unplug it for 1 minute and plug it back in. If the issue persists, contact Magnavox support.

How can I adjust the picture settings?

Press the Menu button on the remote, navigate to Picture settings. You can adjust Brightness, Contrast, Color, Tint, and Sharpness. You can also choose preset modes like Standard, Vivid, or Movie.

Does the Magnavox 40MF401B support wall mounting?

Yes, the TV is VESA compatible with a 200 x 200 mm pattern. Use a wall mount kit designed for this size and weight. Ensure the mount is securely attached to a stud and the TV is properly fastened.

How do I perform a factory reset?

Go to Menu > Settings > System > Reset & Admin > Factory Reset. Enter the PIN (default is 0000 if prompted). Confirm to reset all settings to original defaults.

Why is there no sound from the TV speakers?

Check if the mute button is active on the remote. Ensure the volume is turned up. If using external speakers or soundbar, check the connection. Go to Menu > Audio and verify TV Speaker is selected.

Can I use a universal remote with this TV?

Yes, the Magnavox 40MF401B works with most universal remotes. Use code 1001 or 1160 for programming. Follow the universal remote's instructions to pair.

How do I update the TV's firmware?

This model does not support online firmware updates. Check the Magnavox website for any available updates via USB. If found, download the file, save it to a USB drive, insert it, and follow the on-screen instructions in Menu > Support > Software Update.

What is the correct way to clean the TV screen?

Turn off the TV and unplug it. Use a soft, dry microfiber cloth to gently wipe the screen in a circular motion. Do not use water, alcohol, or any chemical cleaners as they may damage the screen.

How do I connect a gaming console?

Connect the console to the TV using an HDMI cable into any HDMI port. Set the TV input to that HDMI channel. For optimal performance, enable Game Mode in the TV's picture settings to reduce input lag.

USER MANUAL 40MF401B MAGNAVOX

Thank you for choosing Magnavax.

Need help fast?

Read your Owner's Manual first for quick tips that make using your Magnavox product more enjoyable. If you have read your instructions and still need assistance, you may access our online help at www.magnavox.com/support or call 1-866-341-3738 while with your product (and Model / Serial number)

Return your Product Registration Card or register online at www.magnavox.com/support today to get the very most from your purchase.

Registering your model with MAGNAVOX makes you eligible for all of the valuable benefits listed below, so don't miss out. Complete and return your Product Registration Card at once, or register online at www.magnavox.com/support to ensure:

\*Product Safety Notification

By registering your product, you'll receive notification - directly from the manufacturer - in the rare case of a product recall or safety defect.

\*Additional Benefits

Registering your product guarantees that you'll receive all of the privileges to which you're entitled, including special money-saving offers.

Know these

safety symbols

This “bolt of lightning” indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The “exclamation point” calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING: To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

Visit our World Wide Web Site at www.magnavox.com/support

Wall Mount Bracket Kit

Recommended Wall Mount Bracket Kit:

Brand: Sanus Vuepoint Model #: F55

Recommended Screw dimension when purchased:

M8×1.575" (40mm)

• The recommended Wall Mount Bracket Kit (sold separately) allows the mounting of the TV on the wall.
• For detailed information on installing the wall mount, refer to the Wall Mount Instruction Book.
• Funai is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV Wall Mount Bracket or mount the TV onto the Bracket on your own.
  • Wall Mount Bracket Kit is sold separately and is not supplied.
  • The Wall Mount Bracket must be installed by experts.

Funai not liable for these types of accidents or injury noted below.

• Install the Wall Mount Bracket on a sturdy vertical wall.
- If installed onto a ceiling or slanted wall, the TV and Wall Mount Bracket may fall which could result in a severe injury.
- Do not use screws that are longer or shorter than their specified length. If screws too long are used this may cause mechanical or electrical damage inside the TV set. If screws too short are used this may cause the TV set to fall.
- Do not fasten the screws by excessive force; this may damage the product or cause the product to fall, leading to an injury.
- For safety reasons use 2 people to mount the TV onto a Wall Mounting Bracket.
- Do not mount the TV onto the Wall Mounting Bracket while your TV is plugged in or turned on. It may result in an electrical shock injury.

When installing the unit on the wall, allow this much space.

Top:	11.8 inches (30cm)
Left and right side:	5.9 inches (15cm)
Bottom:	3.9 inches (10cm)

IMPORTANT SAFETY INSTRUCTIONS

Read before operating equipment

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong. The wide blade or third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:

A. The power supply cord or the plug has been damaged; B. Objects have fallen, or liquid has been spilled into the appliance;

C. The appliance has been exposed to rain D. The appliance does not appear to operate normally or exhibits a marked change in performance;

E. The appliance has been dropped, or the enclosure damaged.

1. Tilt/Stability - All televisions must comply with recommended international global safety standards for tilt and stability properties of its cabinet design.
2. Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.
   • Also, do not endanger yourself, or children, by placing electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.
3. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
4. Power Lines - An outdoor antenna should be located away from power lines.
5. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure below.
6. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
7. Battery Usage CAUTION - To prevent battery leakage that may result in bodily injury, property damage, or damage to the unit:
8. Install all batteries correctly, with + and - aligned as marked on the unit.
9. Do not mix batteries (old and new or carbon and alkaline, etc.).
10. Remove batteries when the unit is not used for a long time.

Note to the CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Example of Antenna Grounding as per NEC - National Electric Code

FCC WARNING

This apparatus may generate or use radio frequency energy. Changes or modifications to this apparatus may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this apparatus if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This apparatus has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This apparatus generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this apparatus does cause harmful interference to radio or television reception, which can be determined by turning the apparatus off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.
2) Increase the separation between the apparatus and receiver.
3) Connect the apparatus into an outlet on a circuit different from that to which the receiver is connected.
4) Consult the dealer or an experienced radio/TV technician for help.

DECLARATION OF CONFORMITY

Trade Name: MAGNAVOX Responsible Party: FUNAI CORPORATION, Inc.

Model:40MF401B

Address: 19900 Van Ness Avenue, Torrance, CA 90501 U.S.A.

Telephone Number: 1-866-341-3738

This Class B digital apparatus complies with Canadian ICES-003. Standard Television Receiving Apparatus, Canada BETS-7/NTMR-7

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. WARNING: Batteries (battery pack or battery installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Disconnect the mains plug to shut off when find trouble or not in use. The mains plug shall remain readily operable.

This apparatus should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. Make sure to leave a space of 4 inches (10cm) or more around this apparatus.

WARNING: To prevent injury, this apparatus must be securely attached to the wall in accordance with the instructions.

Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.

Like all LCD products, this set contains a lamp with Mercury, please dispose of according to all Local, State and Federal laws. For the disposal or recycling information, contact: www.mygreenelectronics.com or www.eiae.org

NOTE ABOUT RECYCLING

• This unit's packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.
• Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

WHEN CARRYING THIS UNIT

• At least 2 people are required when carrying this unit.
• Make sure to hold the upper and bottom frames of the unit firmly as illustrated.

TO AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE

• Do not handle the AC power cord with wet hands.
• Do not pull on the AC power cord when disconnecting it from an AC outlet. Grasp it by the plug.
• Do not put your fingers or objects into the unit.

LOCATION AND HANDLING

• Do not install the unit in direct sunlight or in a place subject to dust or strong vibration.
• Avoid a place with drastic temperature changes.
• Install the unit in a horizontal and stable position. Do not place anything directly on top or bottom of the unit. Depending on your external devices, noise or disturbance of the picture and / or sound may be generated if the unit is placed too close to them. In this case, please ensure enough space between the external devices and the unit.
• Depending on the environment, the temperature of this unit may increase slightly. This is not a malfunction.
• Be sure to unplug the AC power cord from the AC outlet before moving or carrying the unit.

Two silhouettes of two people holding a large rectangular object (no text or symbols visible)

Trademark Information

HDMI®

HIGH-DEFINITION MULTIMEDIA INTERFACE

- HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

DOLBY.

DIGITAL

- Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

- ENERGY STAR is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy helping us all save money and protect the environment through energy efficient products and practices.

Consumer Notice:

This TV has been set to maximize energy efficiency while delivering the best possible picture using the factory installed home mode settings. Changing or enabling other features in this TV (e.g. brightened backlighting) will possibly increase energy consumption beyond the original ENERGY STAR ^® qualified limits.

- The American Academy of Pediatrics discourages television viewing for children younger than two years of age.

CHILD SAFETY:

It Makes A Difference How and Where You Use Your Flat Panel Display

Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind:

Black and white circular sign with a diagonal line crossing over a building, no text or symbols present.

THE ISSUE

• The home theater entertainment experience is a growing trend and larger flat panel displays are popular purchases. However, flat panel displays are not always supported on the proper stands or installed according to the manufacturer's recommendations.
• Flat panel displays that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests or carts may fall over and cause injury.

THIS MANUFACTURER CARES!

- The consumer electronics industry is committed to making home entertainment enjoyable and safe.

TUNE INTO SAFETY

• One size does NOT fit all. Follow the manufacturer's recommendations for the safe installation and use of your flat panel display.
• Carefully read and understand all enclosed instructions for proper use of this product.
• Don't allow children to climb on or play with furniture and television sets.
• Don't place flat panel displays on furniture that can easily be used as steps, such as a chest of drawers.
• Remember that children can become excited while watching a program, especially on a "larger than life" flat panel display. Care should be taken to place or install the display where it cannot be pushed, pulled over, or knocked down.
• Care should be taken to route all cords and cables connected to the flat panel display so that they cannot be pulled or grabbed by curious children.

WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS:

• Use a mount that has been recommended by the display manufacturer and/or listed by an independent laboratory (such as UL, CSA, ETI).
• Follow all instructions supplied by the display and wall mount manufacturers.
• If you have any doubts about your ability to safely install your flat panel display, contact your retailer about professional installation.
• Make sure that the wall where you are mounting the display is appropriate. Some wall mounts are not designed to be mounted to walls with steel studs or old cinder block construction. If you are unsure, contact a professional installer.
• A minimum of two people are required for installation. Flat panel displays can be heavy.

Prohibition sign showing a TV with a diagonal line through it, no text or symbols present.

INTRODUCTION

Contents

Important Safety Instructions 3

Trademark Information 4

Child Safety 5

INTRODUCTION

Features 6

Supplied Accessories 7

Symbols Used in this Manual 7

Attaching the Base 7

Mounting the Unit on Your Furniture 7

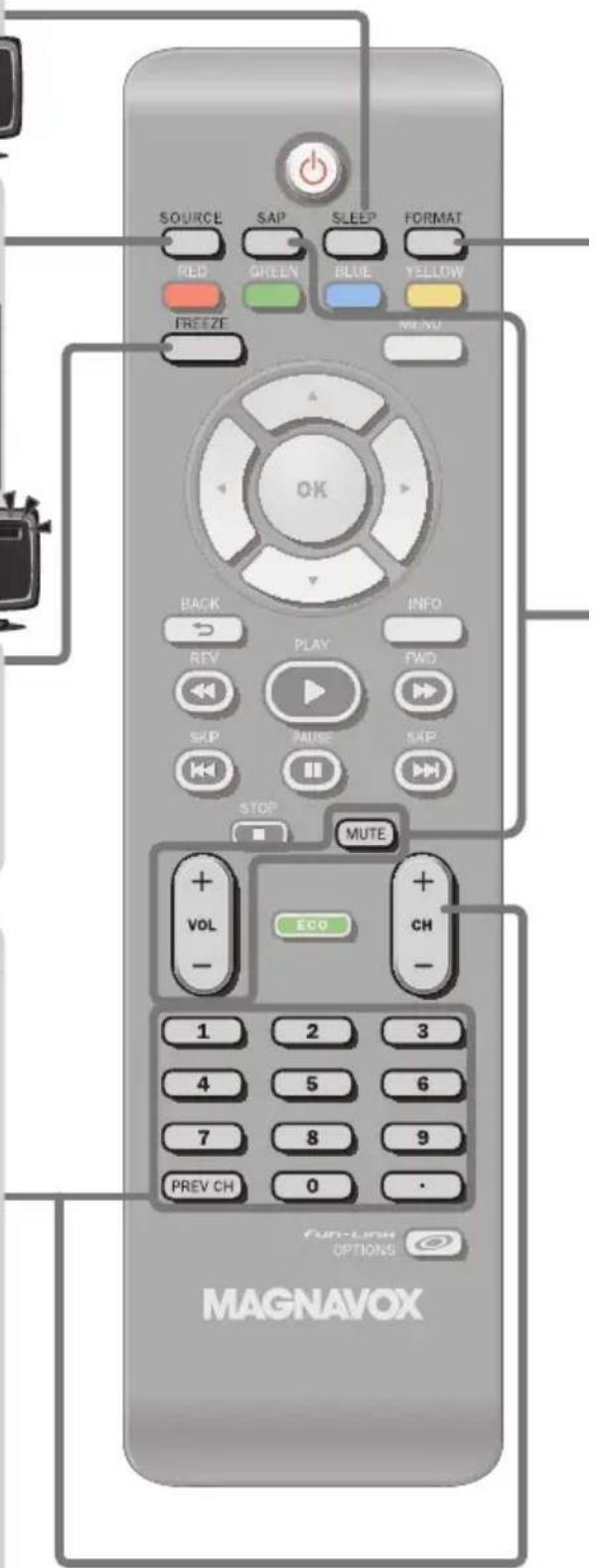

Remote Control Function 8

Installing the Batteries 8

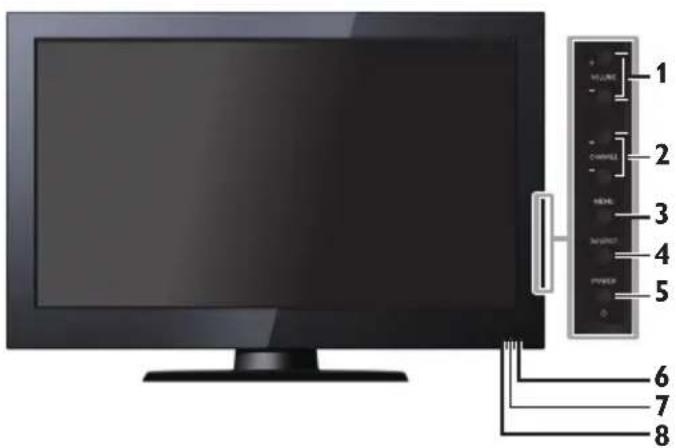

Control Panel 9

Terminals 9

PREPARATION

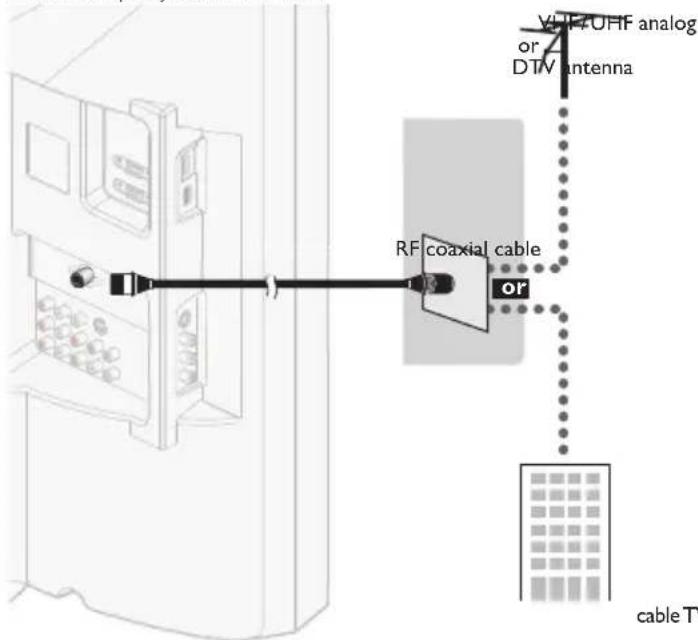

Antenna Connection 10

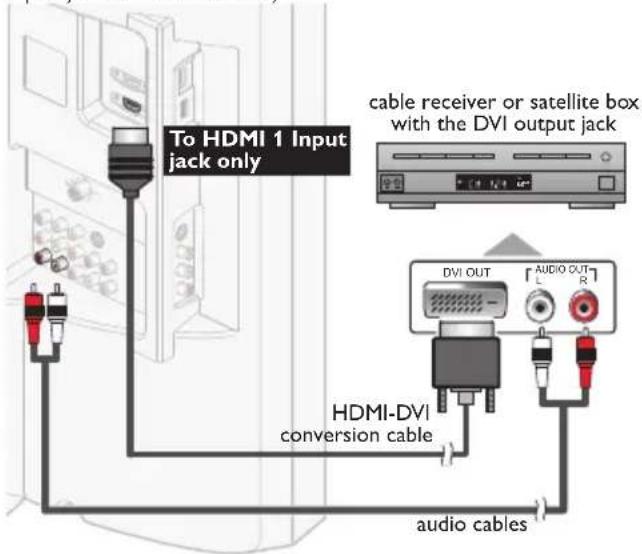

Connection to Cable Receiver or Satellite Box 10

Plug In the AC Power Cord 10

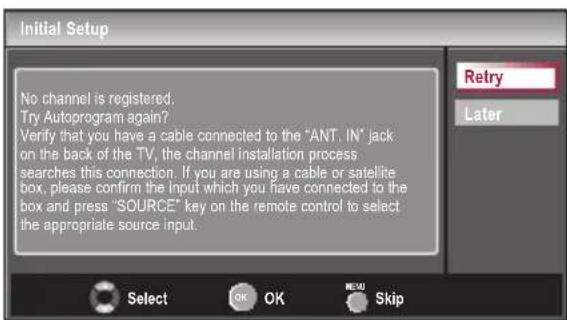

Initial Setup 11

WATCHING TV

Sleep Timer 12

Switching Each Input Mode 12

Freeze Mode 12

Channel Selection 12

TV Screen Display Mode 13

Sound Functions 13

TV Screen Information 14

ECO 14

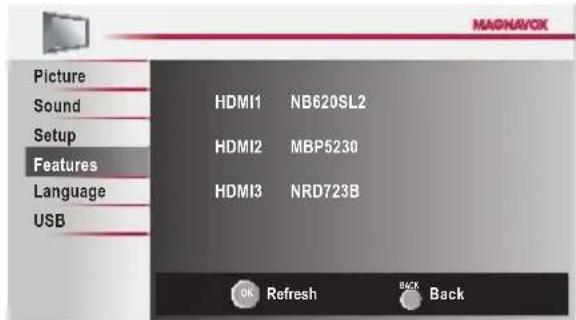

fun-Link Options 14

USING FUNCTIONS

Picture 16

Sound 16

Setup 17

Features 18

Language 23

USB 24

CONNECTING DEVICES

External Device Connection 25

Cable Management 27

USEFUL TIPS

FAQ 28

Troubleshooting Guide 28

INFORMATION

Glossary 30

Maintenance 30

General Specifications 31

Electrical Specification 31

Other Specifications 31

Limited Warranty 33

Features

- DTV/TV/CATV

You can use your remote control to select channels which are broadcast in digital format and conventional analog format. Also, cable subscribers can access their cable TV channels.

• Information Display (ATSC only)

You can display the title, contents and other information of the current DTV program on the TV screen.

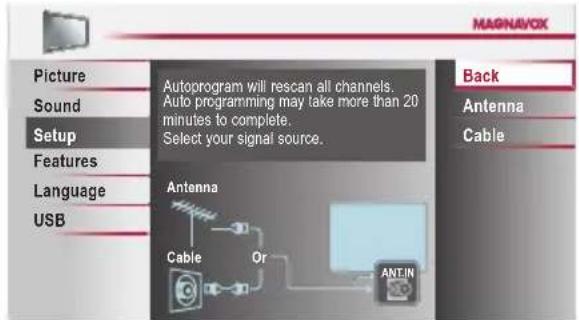

- Autoprogram

This unit automatically scans and memorizes channels available in your area, eliminating diffi cult setup procedures.

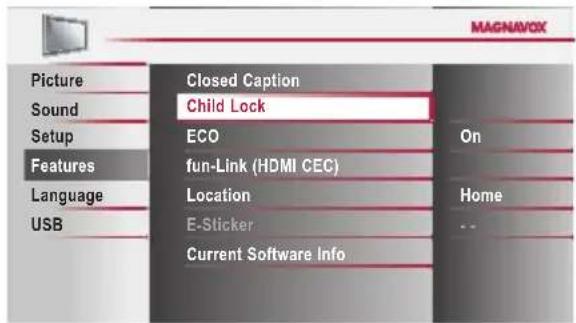

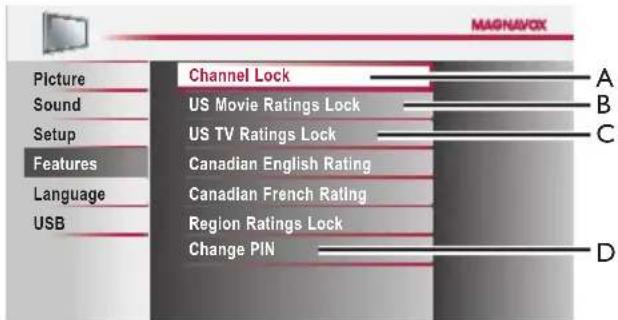

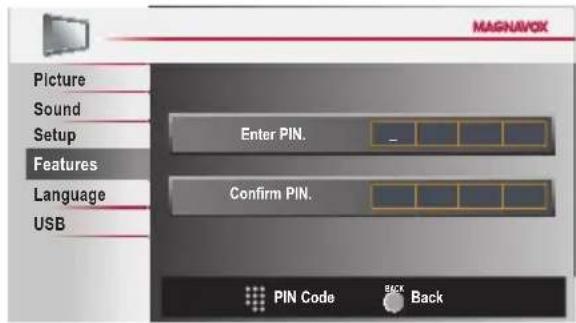

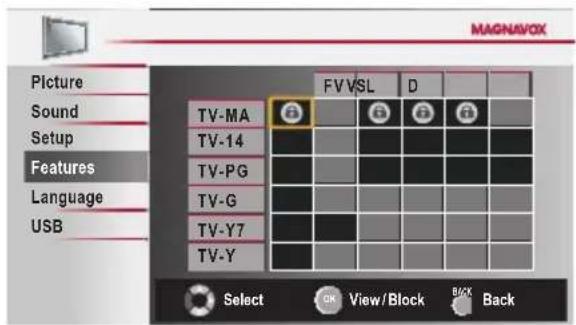

- Child Lock

This feature allows you to block children's access to inappropriate programs.

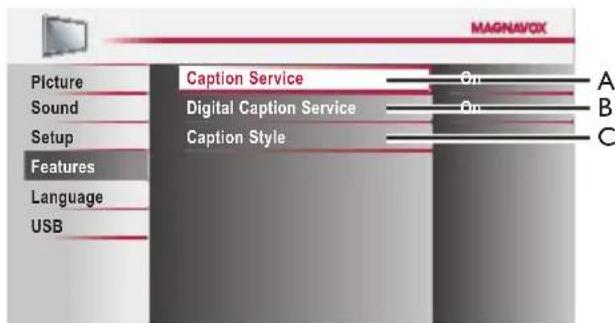

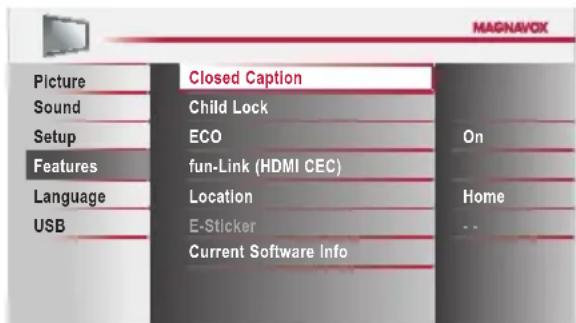

- Closed Caption Decoder

Built-in closed caption decoder displays text for closed caption supported programs.

- MTS/SAPTuner

Audio can be selected from the remote control.

- Auto Standby

If there is no input signal and no operation for 15 minutes, the unit will go into standby mode automatically.

- Sleep Timer

You can set the unit to go into standby mode after a specific amount of time.

- Choices for On-screen Language

Select your on-screen language:

English, Spanish or French.

- Stereo Sound Function

• PLL Frequency Synthesized Tuning

Provides free and easy channel selection and lets you tune directly to any channel using the number and decimal point “.” buttons on the remote control.

• Various Adjustment for Picture and Sound

Customizes image quality suitable for your room and sets your sound preference.

- fun-Link via HDMI Link

(HDMI Cable not Included)

fun-Link allows your other HDMI link devices to be controlled by the HDMI cable connected to your TV.

- HDMI Input

When using HDMI1 Input, you can enjoy this unit as a PC monitor if your PC has a DVI output terminal.

- HDMI-DVI Input

- Component Video Input

- S-Video Input

- AV Input

- USB Terminal

The JPEG picture files stored on a USB storage device can be played back on this unit.

• Digital Audio Output

- Analog Audio Output

© 2011 Funai Electric Co., Ltd.

All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed, downloaded or stored in any storage medium, in any form or for any purpose without the express prior written consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the obligation to notify any person or organization of such changes.

FUNAI with the design is a registered trademark of Funai Electric Co., Ltd. and may not be used in any way without the express written consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law.

MAGNAVOX is a registered trademark of Philips Electronics North America Corporation and is used by Funai Electric Co. Ltd. and Funai Corporation, Inc. under license from Philips Electronics North America.

Supplied Accessories

Owner's Manual Quick Start Guide

Registration card

Remote Control (NF805UD)
Batteries (AAA, 1.5V × 2)

Black remote control with two USB drive spines (no text or symbols visible)

TV base and 6 screws (M 5 x 12)

AC power cord

Note

• If you lose the screws, please purchase M 5×12 Phillips head screws at your local store.
• If you need to replace these accessories, please refer to the part No. with the illustrations and call our toll free customer support line found on the cover of this manual.

When using a universal remote control to operate this unit.

• Make sure the component code on your universal remote control is set to our brand. Refer to the manual accompanying your remote control for more details.
• We do not guarantee 100% interoperability with all universal remote controls.

Symbols Used in this Manual

The following is the description for the symbols used in this manual. Description refers to:

ATSC : Digital TV operation

NTSC : Analog/Cable TV operation

- If neither symbol appears, the operation is applicable to both.

Attaching the Base

You must attach the base to the unit to have it as a table top unit. Be sure the front and rear of the base match the proper direction. At least 2 people are required for these steps.

1 Check the text "FRONT" with "arrow" on the Base's bottom to ensure it is being installed in the correct direction. Spread a thick and soft cloth over a table as shown at step 2. Place the main unit face down onto it. Make sure not to damage the screen.

2 Insert 2 hooks under the bottom of the main unit into base holes. (shown by arrow①), then move the base in the direction as shown by arrow ② until it stops and the screw holes are aligned.

3 Drive Phillips head screws into the 6 threaded holes at the bottom of the base until they are tight.

To remove the base from this unit

- Unscrew the Phillips head screws in step 3. After the screws are removed, move the base in the opposite direction as shown by arrow in step 2, then pull the base up toward the rear of the unit. Be careful not to drop the base when you remove it.

Note

• When attaching the base, ensure that all screws are tightly fastened. If the base is not properly attached, it could cause the unit to fall, resulting in injuries as well as damage to the unit.
• Make sure to use a table which can support the weight of this unit and is larger than this unit.
  • Make sure the table is in a stable location.
• When attaching the base, ensure that "FRONT" with "arrow" written on the bottom of the base is downward. If it's not downward, the 2 hooks don't fit into the base.

Mounting the Unit on Your Furniture

Screw this unit on your furniture tightly using wood screw (not supplied) in the hole at the back of the base as shown.

- Recommended screw dimension: 3/16 × 3/4 inches (5.1 × 20 mm)

Note

- When you remove this unit make sure to unscrew the wood screw from your Wood Stand, Furniture and other wood item.

Remote Control Function

Installing the Batteries

Install the batteries (AAA, 1.5V × 2) matching the polarity indicated inside battery compartment of the remote control.

Close-up of a black electronic device with a rectangular component, circled in gray (no visible text or symbols)

Close-up of a black electronic component with two pins, enclosed in a circular frame (no visible text or symbols)

Close-up of a black electronic device with a circular frame and a white connector, no visible text or symbols.

Battery Precautions:

• Be sure to follow the correct polarity as indicated in the battery compartment. Reversed batteries may cause damage to the device.
• Do not mix different types of batteries together (e.g. Alkaline and Carbon-Zinc, or rechargeable batteries like ni-cad, ni-mh, etc) or old batteries with fresh ones.
• If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.
• Do not try to recharge batteries; they can overheat and rupture.

1 (power) p.11 Press to turn the unit on and go into standby mode. To completely turn off the unit, you must unplug the AC power cord.

2 SAP p.13 3 SOURCE p.12 4 FREEZE p.12 Press to freeze screen image.
5 OK p.11 6 ▲/▼/◄/► (cursor) p.11 7 BACK → p.14 8 VOL +/- p.13 9 PREV CH p.12 Press to return to previously viewed channel.
10 SLEEP p.12 11 FORMAT p.13 Press to select aspect ratio available for the TV scre
12 RED/GREEN/BLUE/YELLOW 🎯 p.22 Functionally useful for fun-Link.
13 MENU 14 INFO p.15 p.14
15 REV ◀◀/FWD ▶▶ p.22 Press to search backward or forward through the disc.

PLAY ▶ Press to begin the disc playback. p.22

SKIP I◀◀/SKIP ▶▶▶ p.22 Press to skip backward or forward chapters, t tracks of the disc.

PAUSE ■ Press to pause the disc playback. → p.22 STOP ■ Press to stop the disc playback. → p.22

16 MUTE p.13 17 CH +/- p.12 18 ECO p.14 Press to reduce power consumption.
19 Number buttons p.12 • (dot) Press to shift the subchannel from the main cl
20 fun-Link OPTIONS @ p.14, 22 Press to call up various menu from your fun-Link device connected through an HDMI cable.

Note

• Buttons in gray background ( ) are not available unless you are connected to devices that are compatible with fun-Link function.
• We do not guarantee 100% interoperability with other brands of HDMI link compliant devices.

Control Panel

Terminals

1 VOLUME +/- p.13

Press to adjust the volume up /down or move right (+)/left (−) through the main menu items.

2 CHANNEL +/- p.12

Press to select channels or move up (+)/down (−) through the main menu items.

3 MENU p.15

4 SOURCE p.12

5 POWER p.11

Press to turn the unit on and go into standby mode. To completely turn off the unit, you must unplug the AC power cord.

6 Infrared sensor window

Receives infrared rays transmitted from the remote control.

7 Standby indicator

Lights up red when the unit is in standby mode and fl ashes when the unit goes into standby mode.

8 Illuminance sensor window

Alters the brightness of the TV screen automatically by detecting your room lighting level. Do not block anything in front of its window to work properly.

Side Panel

9 HDMI 3 Input jack p. 10, 25

10 USB terminal p. 27

Use this terminal only to play back the JPEG picture file stored on a USB storage device, or when software update is needed.

11 S-Video / Composite Video / Audio (L/R) Input jacks for VIDEO 2 p. 26

Rear Panel

12 Cable management p. 27

13 AC power cord Inlet p. 10

14 HDMI 2 Input jack p. 10, 25

15 HDMI 1/HDMI-DVI Input jack p. 10, 25, 27 HDMI connection for HDMI or DVI device. When you connect your PC that has a DVI terminal, you can enjoy this unit as a PC monitor.

16 Antenna Input jack p. 10

17 S-Video / Composite Video / Audio (L/R) Input jacks for VIDEO 1 p. 26

18 Component Video / Audio (L/R) Input jacks p. 10, 25

19 Digital Audio Output jack p. 26

20 Analog Audio (L/R) Output jacks p. 26

21 Analog Audio (L/R) Input jacks for HDMI-DVI Input jacks p. 25, 27

Audio cable connection from a DVI device. When you connect your PC that has a DVI terminal, use a stereo mini plug conversion cable as well. (For HDMI 1 Input jack only)

Note for USB terminal

- User should not connect any devices to the USB terminal such as digital camera, keyboard, mouse, etc. (because these will not work)

- The software update is, in most cases, handled by an authorized service person or in some circumstances the user may be asked to do the software update themselves.

PREPARATION

No supplied cables are used with these connections:

- Please purchase the necessary cables at your local store.

Before you connect:

Be sure your antenna or other device is connected properly before plugging in the AC power cord.

Antenna Connection

Connect the RF coaxial cable on your home outlet to the antenna input jack of this unit.

Once connections are completed, turn on the unit and begin initial setup. Channel scanning is necessary for the unit to memorize all available channels in your area. [Initial Setup]

p.11

Note

• If you have any question about the DTV's antenna, visit www.antennaweb.org for further information.
• Depending on your antenna system, you may need different types of combiners (mixers) or separators (splitters) for HD TV signal the minimum RF bandpass on these devices is 2,000MHz or 2GHz.
• For your safety and to avoid damage to this unit, please unplug the RF coaxial cable from the antenna input jack before moving the unit.
• If you did use an antenna to receive analog TV, it should also work for DTV reception. Outdoor or attic antennas will be more effective than a set top or inside antenna.
  • To switch your reception source easily between antenna and cable, install an antenna selector.
• If you are not receiving a signal from your cable service, contact the Cable provider.

Connection to Cable Receiver or Satellite Box

Use an HDMI or Component Video cables to connect the HDMI or the Component Video Input jacks of the unit to the HDMI or the Component Video output jacks of the cable receiver/satellite box.

If you connect to the unit's Component Video Input jacks, connect Analog Audio cables to the Analog Audio L/R Input jacks right beside the Component Video connector jacks.

You can also connect this unit to the cable receiver or satellite box other than the HDMI or the Component Video output jacks or Composite Video output jack (p. 25, 26) because they might have different output jacks.

Required cables and connecting methods of the cable receiver / satellite box, or the availability channel for the clear QAM may differ depending on the cable / satellite provider or local TV broadcaster.

For more information, please contact your cable / satellite provider or local TV broadcaster.

Note

• Use an HDMI cable with the HDMI logo (a certified HDMI cable). High Speed HDMI cable is recommended for the better compatibility.

Plug In the AC Power Cord

Make sure that the AC power cord must be plugged to an AC outlet after all the necessary connections are made.

Caution:

• Do not connect the AC power cord to a power supply outside the indicated voltage of this unit (AC 120V).
  Connecting the AC power cord to a power supply outside of this range may result in fire or electrical shocks.

Note

• Each time you plug in the AC power cord, no operations will be performed for a few seconds. This is not a malfunction.

These operations are accessible by remote control. Some may also be accessible by controls on the main unit.

Initial Setup

This section will guide you through the unit's initial setting which includes selecting a language for your on-screen menu and autoprogram, which automatically scans and memorizes viewable channels.

Before you begin:

Make sure the unit is connected to antenna or cable.

1 After making all the necessary connections,

press ⏻ to turn on the unit.

• It may take a few moments to turn on the unit for the first time.
• [Initial Setup] menu appears automatically after the unit is turned on.

2 Use ▲/▼ to select the on-screen language from the choices (English / Español / Français) on the right side of the TV screen, then press OK.

3 Use ▲/▼ to select [Antenna] for TV channels or [Cable] for CATV channels, then press OK.

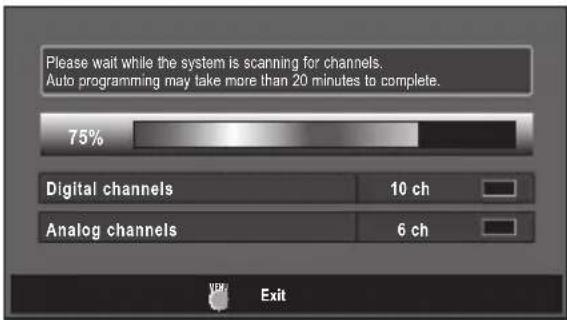

• [Autoprogram] will begin.

4 Use ◀/▶ to select the desired location setting, then press OK.

[Home] is ENERGY STAR ^® qualified setting.

• Select [Retail] store, the unit will be set up with predefined setting for retail displays. In this setting, the power consumption may possibly exceed the limited requirement of the ENERGY STAR® qualification.
• Select [Home], the unit is set to maximize the energy efficiency for home setting and it can be adjusted through a choice of picture and sound quality according to your preference. Use this setting to remove the E-Sticker if visible from the display. p. 23
• When the initial setup is completed, the lowest memorized channel with the confirmation message of the location setting will be displayed on the TV screen.
• You must set [Home] in step 4. Otherwise, [Picture] and [Sound] settings you adjusted will not be memorized after the unit goes into standby mode.

Note

• If you are not receiving a signal from your cable service, contact the Cable provider.
- If you press or MENU during autoprogram, this setup of TV channels will be canceled.
- The initial autoprogram function can be executed for either [Antenna] or [Cable] only once. When you change the connection (Antenna/Cable), set [Autoprogram] again. p. 17
- If there is no signal input from the antenna terminal and no operation for several seconds after you turn on the unit, helpful hints appears. Follow the instructions listed on the TV screen.

After an initial setup is completed...

• If you want to scan the channels automatically again. [Autoprogram] p. 17
• You can add the desired cable and analog channels unmemorized by autoprogram.
  [Add Channels] p. 18
• If you want to change to another language. [Language] p. 23
• If you want to change the location setting. [Location] p. 23

WATCHING TV

Sleep Timer

can set the unit to go into standby mode after an incremental period of time.

Press SLEEP repeatedly to change the amount of time (increases the time by 30 minutes up to 120 minutes).

Press SLEEP once to call up the display for checking the remaining time.

- To cancel sleep timer, press SLEEP repeatedly until [Sleep Off] is displayed.

Switching Each Input Mode can easily switch with the remote control between TV (ATSC or NTSC) and external devices when they are connected to the unit.

Press SOURCE or CH + repeatedly to cycle through the input modes.

- Pressing CH – reverses the direction of the input modes.

Freeze Mode can freeze the image shown on the TV screen for 5 minutes.

Press FREEZE to freeze the image.

• The sound output will not be paused.
• To cancel freeze mode, press any buttons except ⏻

Channel Selection

Select channels by using CH +/- or the Number buttons.

• To select the memorized channels,
use CH +/- or the Number buttons.

- To select the non-memorized channels, use the Number buttons.

To use the Number buttons

ATSC

- When selecting digital channel 11.1 Be sure to press • before entering the subchannel number.

NTSC

- When selecting cable or analog channel 11

Press PREV CH to return to the previously viewed channel.

Note

• [No Signal] will appear on the TV screen after the subchannel broadcast is over.
• [Audio only program] message will appear on the TV screen, when you receive only sound signal.

TV Screen Display Mode

5 types of display modes can be selected when the broadcasting station is sending 16:9 or 4:3 video signal. And 3 types of display modes can be selected for PC input signal.

Press FORMAT repeatedly to switch the TV aspect ratio.

For 16:9 video signal

Normal

4:3

Movie expand

Unscaled

Wide

Zoom

- [Unscaled] will be displayed only when the HDMI video signal is 1080i or 1080p.

For 4:3 video signal

Normal

16:9 Movie expand

Wide

Zoom

For PC input signal through HDMI1 Input mode

Normal Unscaledfull

Normal displays a 16:9 picture at its original size.

4:3 displays a 16:9 picture at a 4:3 size; the picture is shortened horizontally. Sidebars appear on both edges of the screen.

Movie expand displays a 16:9 picture that is vertically stretched to fill the screen. This only crops out the top of the picture.

Zoom displays a 16:9 picture at its maximum size without changing its horizontal and vertical ratio.

Wide displays a horizontally stretched picture. This crops out the left and right sides of the picture.

Unscaled displays a picture in its original size.

Normal displays a 4:3 picture at its original size. Sidebars appear on both edges of the screen.

16:9 displays a 4:3 picture at a 16:9 size; the picture is stretched horizontally to fill the screen.

Movie expand displays a 4:3 picture at a 16:9 size; the picture is stretched more vertically at the top of the screen. This crops out the top of the picture.

Zoom displays a 4:3 picture at a 16:9 size; at its maximum size that is more vertically stretched to fill the screen. This crops out the top and bottom of the picture.

Wide displays the picture with its center at the original size and the edges stretched horizontally to fill the screen.

Normal displays a proportionately stretched picture. Sidebars appear on both edges of the screen.

Full displays a picture that is stretched out of proportion horizontally to fill the screen.

Unscaled displays a picture in its original size.

Sound Functions

describe how to change the audio or the audio language as well as the volume.

Silence Mode

Press MUTE to turn off the sound temporarily.

will be is displayed for a few seconds.

- Press MUTE again or VOL +/- to recover the original volume.

Volume Adjustment

Use VOL +/- to adjust the volume.

will be displayed for a few seconds when adjusting the volume.

Illustration of a computer monitor with musical notes floating above it, surrounded by sound waves (no text or symbols)

Switching Audio Mode

ATSC

Press SAP repeatedly to cycle through the available audio languages.

• Available languages differ depending on the broadcast.
- [Other] is displayed when the audio language cannot be acquired, or the acquired languages are other than English, Spanish or French.

NTSC

Press SAP to display the currently selected audio mode. While receiving an MTS broadcast, press repeatedly to cycle through the available audio channel.

e.g.) When all audio are available

STEREO : Outputs stereo-audio
SAP : Outputs second audio program
MONO : Outputs mono-audio

TV Screen Information

You can display the currently selected channel or other information such as the audio mode on the TV screen. In the digital mode, the detailed broadcasting information for the current off the air channel such as program title and program guides are displayed.

1 Press INFO.

ATSC

NTSC

1 program title
2 program guide (The program guide added to broadcasting information is displayed to a maximum of 4 lines.)
3 broadcast station
4 channel number
5 audio language (ATSC) / audio mode (NTSC) [Switching Audio Mode] p. 13
6 effective scanning lines and scan mode
7 TV format
8 program's image aspect ratio
9 CC (not available if closed caption is set to [Off])
10 child lock rating

2 Press INFO or BACK ↩ to hide the information.

Note

• When the program guide consists of more than 4 lines, use ▲/▼ to scroll to the next / previous lines.
• [No description provided.] is displayed when the program guide is not provided.
• While the program guide is displayed, the closed caption function is interrupted.
• In external input mode, the following screen is displayed; e.g.) When an external device is connected to Video1 Input jack.

• The information display will automatically disappear in 1 minute.

ECO

You can turn on ECO Mode to conserve power. ECO mode: ON is ENERGY STAR ^® qualified setting.

Press ECO once to turn on ECO Mode and reduce power consumption.

Press ECO again to turn off ECO Mode.

On	Reduces power consumption
Off	Power consumption may exceed ENERGY STAR® qualification limits.

Note

- You must set [Home] in [Location]→ p. 23 Otherwise, the settings you adjusted will not be saved when the unit goes into standby mode.

fun-Link Options

If you have our brand products such as BD player or DVD recorder that are compatible with fun-Link functions, connect them to this unit via an HDMI cable so you can simply operate various items from this unit's remote control.

Before you begin:

You must set [On] in [Device Control] and [fun-Link Control]. ➞ p.22

Otherwise, fun-Link OPTIONS @ does not work even if you connected our brand devices to this unit.

To enjoy fun-Link, verified and recommended devices are as follows;

MAGNAVOX		SYLVANIA
MBP5230	MRD723B	NB620SL2
MBP2100	MRD410B	NB620SL1
MBP5120F		NB621SL1
MBP5130

1 Press fun-Link OPTIONS @ to display [fun-Link Options] menu.

Device-menu	This function allows you to control the menu of your connected fun-Link device.
Device-contents	This function allows you to control the top menu of your DVD or Blu-ray discs.
Device-favorite	This function allows you to control the pop-up menu of your Blu-ray discs.

2 Use ▲/▼/OK on this unit's remote control to operate the desired functions for your devices.

Note

• Some of fun-Link functions may not be available depending on your fun-Link devices or discs.
• We do not guarantee 100% interoperability with other brands of HDMI link compliant devices.

USING FUNCTIONS

This section describes the overview of the main menu displayed when you press MENU.

The main menu consists of the function setting items below.

2

Use ▲/▼ to select a desired menu and an item, then press OK to determine the setting.

3

When the setting is completed, press MENU to exit.


Before you begin:

You must set [Home] in [Location]. p.23

Otherwise, the settings you adjusted will not be memorized after the unit goes into standby mode.

1 Use ▲/▼ to select the item you want to adjust, then press OK.

2 Adjust the following items.

Smart Picture

Use ▲/▼ to select the desired setting, then press OK. ([Personal], [Standard], [Sports], [Movie], and [Game])

Brightness, Contrast, Color, Tint, Sharpness, Color Temperature

You can only adjust the following options when you set to [Personal] in [Smart Picture].

Use ▲/▼ to select the desired setting, then press OK. Then use ◀/▶ to adjust the setting.

	Cursor ◀ Cursor ▶
Brightness to decrease brightness to increase brightness
Contrast to decrease contrast to increase contrast
Color	to decrease color intensity	to increase color intensity
Tint to add red to add green
Sharpness to soften to sharpen
Color Temperature	to add warm colors	to add cool colors

Noise Reduction

Reduces the noise of the picture.

Use ▲/▼ to select the desired option, then press OK.

On	Reduces noise in an image.
Off	Sets noise reduction to off.

Note

- This function is disabled when PC input is selected. (Setting will be in gray.)

Sound

Before you begin:

You must set [Home] in [Location]. p.23

Otherwise, the settings you adjusted will not be memorized after the unit goes into standby mode.

1 Use ▲/▼ to select the item you want to adjust, then press OK.

2 Adjust the following items.

Smart Sound

Use ▲/▼ to select the desired setting, then press OK. ([Personal], [Standard], [Movie], [Music], and [News])

Equalizer

Adjust tonal quality for each frequency.

Use ◀/▶ to select the specific frequency and use ▲/▼ to adjust the level, then press OK.

Virtual Surround Sound

Virtual surround sound gives you the stereophonic virtual space through your existing 2-channel stereo system.

Use ▲/▼ to select the desired option, then press OK.

On	Emphasized effect.
Off	Natural effect.

Auto Volume Leveling

This function keeps a constant loudness differential between the TV commercials and the programs.

Use ▲/▼ to select the desired option, then press OK.

On	Reduces volume differences between the TV commercials and the programs.
Off	Removes the auto volume leveling.

TV Speakers

Select the audio output from the unit's speakers, or not. If your amplifier is HDMI link function compatible and connected by an HDMI cable to this unit, some sound operations such as volume up can be changed by using this unit's remote control. Make sure [fun-Link Control] is set to [On]. p.22

Use ▲/▼ to select the desired option, then press OK.

On The sound will be output from the unit's speakers.
Off	The sound will not be output from the unit's speakers.
Ext. Amp	You can control audio output from your connected HDMI link devices by using this unit's remote control.

Note

• We do not guarantee 100% interoperability with other brands of HDMI link compliant devices.
  • [Unmute] may be displayed on the TV screen when you recover the volume from your amplifier.

Primary MTS

You can set the output mode as a default for the sound mode (NTSC only).

This setting is not interlocked when you change the output mode by pressing SAP. [Sound Functions] p.13

Use ▲/▼ to select the desired option, then press OK.

Stereo Outputs stereo-audio.

Mono Outputs mono-audio.

SAP Outputs second audio program.

Before you begin:

Make sure the unit is connected to antenna or cable.

1 Use ▲/▼ to select the item you want to adjust, then press OK.

2 Adjust the following items.

Autoprogram

If you switch wires (e.g. between antenna and CATV) or if you move the unit to a different area after the initial setting, or if you restore the DTV channels you deleted, it is recommended to use Autoprogram to perform a new channel search.

1 Use ▲/▼ to select [Autoprogram], then press OK.
2 Use ▲/▼ to select an appropriate option, then press OK.

• When connected to VHF/UHF antenna, select [Antenna].
• When connected to CATV, select [Cable].
  • [Autoprogram] will begin.

- When the scanning and memorizing are completed, the lowest memorized channel will be displayed.

Note

• After setting [Autoprogram], using CH+/- on the remote control skips unavailable programs automatically.

• If you are not receiving a signal from your cable service, contact the Cable provider.

• If you press or MENU during autoprogram, the setup of TV channels will be canceled.

• Even if [Autoprogram] is completed, the channel setting will be lost if the AC power cord is unplugged before the unit goes into standby mode by pressing ⏻.
• The PIN code will be required once you set a PIN code in the [Child Lock]. p.20
• If you want to change your PIN code, follow the instruction of [Change PIN]. ➞ p.21

Channel List

The channels selected here can be skipped when selecting the channels using CH+/-.

Those channels can still be selected with the Number buttons.

1 Use ▲/▼ to select [Channel List], then press OK.
2 Use ▲/▼ to select the channel you want to remove, then press OK.

• The channel display for the removed channel darkens. You will not be able to select the channel again using CH + / - .
• To reactivate a removed channel, use ▲/▼ and press OK. The registered channels are highlighted.
• When you remove a main channel, its subchannels are removed as well.

Note

- The channel with the [DTV] indicated on the display is ATSC. Otherwise the channel is NTSC.

Add Channels

This function lets you add the off the air along NTSC or analog Cable channels that were not added by the autoprogram due to reception conditions at the initial setting.

1 Use ▲/▼ to select [Add Channels], then press OK.
2 Use the Number buttons to enter the number of the channel you want to add, then press OK.

Note

• If setup completes successfully, [Added to the channel list.] is displayed.
• If external input is used, it is not possible to register the channel and [Unavailable] will be displayed on the TV screen.
• By using CH + / - , you can select the memorized channels only.

Antenna Confir rmation

ATSC

This function lets you check the digital signal strength of each channel.

1 Use ▲/▼ to select [Antenna], then press OK.
2 Use the Number buttons or CH +/− to select the channel for which you want to check the digital signal strength.

Note

- If the channel is set to analog channel or external input, you cannot confirm the antenna condition.

1 Use ▲/▼ to select the item you want to adjust, then press OK.

2 Adjust the following items.

Closed Caption

You can view closed captioning (CC) for TV programs, movies and news. Closed caption refers to text of dialog or descriptions displayed on-screen.

Use ▲/▼ to select [Closed Caption], then press OK.

See the following description for setting each item.

A. Capitoun Service

1 Use ▲/▼ to select [Caption Service], then press OK.
2 Use ▲/▼ to select the desired closed caption, then press OK.

Off Select if you do not want caption service.
CC-1 and T-1	The primary caption and text services. The captioning or text is displayed in the same language as the program's dialog (up to 4 lines of script on the TV screen, where it does not obstruct relevant parts of the picture).
CC-3 and T-3	Serve as the preferred data channels.The captioning or text is often a secondary language.
CC-2, CC-4,T-2 and T-4	Rarely available and broadcasters use them only in special conditions, such as when [CC-1] and [CC-3] or [T-1] and [T-3] are not available.

• There are 3 display modes according to programs:

Paint-on mode	Displays input characters on the TV screen immediately.
Pop-on mode	Once characters are stored in memory, they are displayed all at once.
Roll-up mode	Displays the characters continuously by scrolling (max. 4 lines).

B. Digital Caption Service

ATSC

In addition to the basic closed caption, DTV has its own closed caption called digital caption service. Use this menu to change the settings for digital caption service.

1 Use ▲/▼ to select [Digital Caption Service], then press OK.
2 Use ▲/▼ to select the desired digital caption service, then press OK.

Off	Select if you do not want digital caption service.
CS-1 to CS-6	Select one of these before changing any other item in [Closed Caption] menu.Choose [CS-1] under normal circumstances.

Note

- [Digital Caption Service] that you can switch differs depending on the broadcast description.

ATSC

You can change the caption style such as font, color or size, etc.

1 Use ▲/▼ to select [Caption Style], then press OK.
2 Use ▲/▼ to select [User Setting], then press OK.
3 Use ▲/▼ to select [On], then press OK.
4 Use ▲/▼ to select an item, then press OK. Then use ▲/▼ to select the desired setting and press OK.

- Review your setting choice made below by looking in the upper right corner of the displayed setting box (not all selections show the differences selected).

Font	Font Style	Closed captioning font style, size, color and opacity can be changed.
	Font Size
	Font Color
	Font Opacity
Background	Background Color	Background color and opacity of the displayed caption can be switched.
	Background Opacity
Edge	Edge Color	Edge color and type of the displayed caption can be switched.
	Edge Type

Note

• Closed caption will not be displayed when you are using an HDMI connection.
• To show the closed caption on your TV screen, broadcast signal must contain the closed caption data.
• Not all TV programs and commercials have the closed caption or all types of the closed caption.
• Captions and texts may not exactly match the TV voice.
• Changing channels may delay the closed caption for a few seconds
• Adjusting or muting the volume may delay the closed caption for a few seconds.
• Abbreviations, symbols and other grammatical shortcuts may be used in order to keep pace with the on-screen action. This is not a malfunction.
• The caption or text characters will not be displayed while the main menu or functions display is shown.
• If a black box appears on the TV screen, this means that the closed caption is set to the text mode. To clear the box, select [CC-1], [CC-2], [CC-3], [CC-4] or [Off].
• If the unit receives poor quality television signals, the captions may contain errors, or there might be no captions at all. Some possible causes of poor quality signals are:
• Automobile ignition noise
• Electric motor noise
• Weak signal reception
• Multiplex signal reception (ghosts or screen fl utter)
• Data dropout and Pixelation (for DTV only)
• The unit retains the closed caption setting if the power fails.
• When the unit receives special effects playback signal (e.g. Search, Slow and Still) from a VCR's video output channel (ch3 or ch4), the unit may not display the correct caption or text.

Note

• When you select a rating and set it to [Block], the higher ratings will be blocked automatically. The lower ratings will be available for viewing.
• When you set the highest rating to [View], all ratings turn to [View] automatically.
  • To block any inappropriate programs, set your limits in [US Movie Ratings Lock], [US TV Ratings Lock] and [Region Ratings Lock].
• The child lock setting will be retained after a power failure or after the power is removed for longer than 10 seconds (except the PIN code reverts to 0000). [Child Lock] p.20
• If the rating is blocked, will appear.
• [Region Ratings Lock] will be available when the unit receives a digital broadcast using the new rating system.
• For the United States, the unit may download the Region Ratings Lock Table, if required.
  • The Canadian rating systems on this unit are based on CEA-766-A and CRTC policy.

Child Lock

Child lock reads the ratings for programs, then denies access to the programs which exceed the rating level you set. With this function, you can block certain programs inappropriate for children and any channels or external input modes can be invisible.

1 Use ▲/▼ to select [Child Lock], then press OK.

2 Use the Number buttons to enter the 4-digit numbers for your PIN code.

• When you have not set up your PIN code, enter 0, 0, 0, 0.
• When the PIN code is correct, [Child Lock] menu is displayed.

See the following description for setting each item.

Particular channels or external input modes can be invisible in this function.

1 Use ▲/▼ to select [Channel Lock], then press OK.
2 Use ▲/▼ to select the desired rating, then press OK repeatedly to switch between [View] and [Block].

US Movie ratings lock is the rating system created by MPAA.

1 Use ▲/▼ to select [US Movie Ratings Lock], then press OK.
2 Use ▲/▼ to select the desired rating, then press OK repeatedly to switch between [View] and [Block].

Rating Category
X Mature audience only
NC-17 No one under 17 admitted
R	Restricted; under 17 requires accompanying parent or adult guardian
PG-13 Unsuitable for children under 13
PG Parental guidance suggested
G General audience
NR No rating

1 Use ▲/▼ to select [US TV Ratings Lock], then press OK.
2 Use ▲/▼/◄/► to select the desired rating, then press OK repeatedly to switch between [View] and [Block].

Rating Category
TV-MA	Mature audience only	higher
TV-14	Unsuitable for children under 14
TV-PG	Parental guidance suggested
TV-G	General audience
TV-Y7	Appropriate for all children 7 and older
TV-Y	Appropriate for all children	lower

To set the sub ratings

As for TV-MA, TV-14, TV-PG, or TV-Y7, you can further set the sub ratings to block specific elements of programming. To set the sub ratings, follow the step below.

Use ▲/▼/◄/► to select the desired rating, then press OK repeatedly to switch between [View] and [Block].

Sub Rating	Category	Rating
FV	Fantasy Violence	TV-Y7
V	Violence	TV-MATV-14TV-PG
S	Sexual Situation
L	Coarse Language
D Suggestive Dialog TV-14, TV-PG

Note

• Blocked sub rating will appear beside the main rating category in [US TV Ratings Lock] menu.
• You cannot block a sub rating (D, L, S or V) if the main rating is set to [View].
• Changing the category to [Block] or [View] automatically changes all its sub ratings to the same ([Block] or [View]).

D. Change PIN

Although the default PIN code (0000) is supplied with the unit, you can set your own PIN code.

1 Use ▲/▼ to select [Change PIN], then press OK.
2 Press the Number buttons to enter the new 4-digit PIN code.

- Enter PIN code again in [Confirm PIN.] entry field.

Note

• Make sure new PIN code and confirm PIN code must be exactly the same. If they are different, the space is cleared for reentering.
• Your PIN code will be erased and returns to the default PIN code (0000) when a power failure occurs.
• If you forget the PIN code, unplug the AC power cord then wait for 10 seconds to plug the AC power cord in again.
  The unit will restore the PIN code to 0000 as the factory default.

ECO

You can turn on ECO Mode to conserve power. ECO mode: ON is ENERGY STAR® qualifi ed setting.

1 Use ▲/▼ to select [ECO], then press OK.
2 Use ▲/▼ to select the desired mode, then press OK.

On Reduces power consumption
Off	Power consumption may exceed ENERGY STAR® qualification limits.

Note

• You must set [Home] in [Location] p. 23 Otherwise, the settings you adjusted will not be saved when the unit goes into standby mode.
• You can also press ECO directly to switch the desired setting. → p. 14

fun-Link (HDMI CEC)

This function allows you to operate the linked functions between our brand devices with a fun-Link feature and this unit connecting through an HDMI cable.

1 Use ▲/▼ to select [fun-Link (HDMI CEC)], then press OK.

2 Use ▲/▼ to select the desired setting, then press OK.
3 Adjust the following items.

fun-Link Control

Set the fun-Link [On] or [Off].

The following additional settings will be grayed out when you set to [Off].

Use ▲/▼ to select the desired setting, then press OK.

On	Selects if you have connected an external device that is compatible with the fun-Link function.
Off Disables all fun-Link.

Auto Device Off

You can set your device to turn off by interlocking from this unit's power.

Use ▲/▼ to select the desired setting, then press OK.

On	Your connected fun-Link device turns off automatically when the unit goes into standby mode.
Off	Your connected fun-Link device stays on even if the unit goes into standby mode.

Auto TV On

This unit will turn on when the power on signal is sent from your connected fun-Link device.

Use ▲/▼ to select the desired setting, then press OK.

On	This unit turns on automatically when you turn on your connected fun-Link device.
Off	This unit stays in standby mode even if you turn on your connected fun-Link device.

Device Control

You can operate some functions such as disc playback or call up the menu of the connected devices, by using this unit's remote control.

Use ▲/▼ to select the desired setting, then press OK.

On	PLAY►/STOP ■/FWD►/REV◄◄/SKIP ►I/SKIP◄◄/PAUSE ||/fun-Link OPTIONS ▲▲/▼/◄/►/OK/BACK ⊃/the Number buttons/RED/GREEN/BLUE/YELLOW can be used tocontrol your connected fun-Link devices by this unit'sremote control.
Off Disables	the device control.

Device List

This function lets you see the product model number or name of connected devices.

Location

When you select [Retail] store, the power consumption may possibly exceed the limited requirement of the ENERGY STAR® qualification.

1 Use ▲/▼ to select [Location], then press OK.
2 Use ▲/▼ to select the desired location, then press OK.

Retail	The unit will be set up with predefined settings for retail displays. In this setting, the power consumption may possibly exceed the limit requirement of the ENERGY STAR® qualification.
Home	This setting is ENERGY STAR® qualified.The unit is set to maximize the energy efficiency for home setting and it can be adjusted through a choice of picture and sound quality according to your preference.

E-Sticker

When you select [Location] to [Retail] store, E-Sticker (Electronic Sticker) is displayed.

E-Sticker can be turned Off using procedure below.

1 Use ▲/▼ to select [E-Sticker], then press OK.
2 Use ▲/▼ to select [Off], then press OK.

Off You can turn off E-Sticker.

TopE-Sticker is displayed on top of the TV screen.

Bottom E-Sticker is displayed on bottom of the TV screen.

Note

- If you select [Home], E-Sticker will not be displayed.

Current Software Info

This function shows what version of the software currently used.

1 Use ▲/▼ to select [Current Software Info], then press OK.
2 Confirm the version of the software currently used.

Use ▲/▼ to select [English], [Español] or [Français], then press OK.

Note

- If you need the English menus instead of the Spanish or French menus, press MENU. Use ▲/▼ to select [Idioma] or [Langue], then press OK.

Use ▲/▼ to select [English], then press OK.

Press MENU to exit the main menu.

USB

This unit can play JPEG picture files.

Use the USB storage device that contains those fi les.

1 Insert the USB storage device into the USB terminal on this unit. The main menu appears automatically.
2 Use ▲/▼ to select [USB] and press OK.

The highlighted text will move to the name of your USB storage device, then press OK again.

3 Use ▲/▼ to select [Picture] and then press OK.

Use ▲/▼ to select the desired file, and then press OK.

• To toggle between [List] and [Thumbnails] press the Number 2 button each time.
• The unit goes to the slide show automatically. To pause/play the slide show, press OK.
• Use the Number buttons (1 through 4) to see the file detail (①) or change the following settings (②\~④) [see the description on the top of the next column].

Item Detail
1More detail	Press 1 to display file details below.[Name], [Album], [Date], [Size] and [Next].Press 1 again to remove file details.
4Start show	Press 4 or OK to start the slide show.While the slide show is on, the following 2 settings will be displayed.
2Transitions	Press 2, then use ▲/▼ to select the transition mode choosing from;[None], [Dissolve], [Wipe right], [Wipe left], [Wipe up], [Wipe down], [Box in] and [Box out].
3Slide time	Press 3, then use ▲/▼ to change the display time choosing from; [Short], [Medium] and [Long].
4Stop show	Press 4 or OK to stop the slide show.While the slide show is off, the following 2 settings will be displayed.
2Rotate	Every press on 2 will turn the picture clockwise by 90 degrees.
3Zoom	Press 3, then use ▲/▼ to select the zoom factor (1x, 2x or 4x). Press OK to set the zoom factor.

4 Press MENU to exit.

Note

• The unit recognizes only a USB storage device.
- Do not use a USB hub or an extension cable to connect an external hard disk drive to the unit. (Not supported.)
- A USB storage device is always inserted to this unit directly.
• A USB storage device is not supplied with this unit.
• We do not guarantee that all USB storage devices can be supported by this unit.

• Be sure to keep a backup copy of the original files on your device before you play them back on this unit. We have no responsibilities for damage or loss of your stored data.
• To protect your USB storage device files from being erased place the write protect sliding tab in the protect position.
• When you are ready to remove a USB storage device, at first turn the unit off so it will go into standby mode to avoid any damage to your data and the unit.

- A USB storage device that requires its own driver or the device with a special system such as fingerprint recognition are not supported.

• This unit is not allowed to use the USB storage device which requires an external power supply (500mA or more).
• Up to 2GB (FAT16) or 8GB (FAT32) capacity can be supported.
  • Only USB 2.0 is supported.

- Up to 10,000 files or 1,000 folders with 19 hierarchies can be recognized.

• Up to 255 English characters can be recognized.
• This unit does not support MTP(Media Transfer Protocol).

• This unit supports FAT16 and FAT32 file systems.

- If the file is not supported, an error message appears.

- When the USB storage device is not recognized, try reconnecting it again.

It is recommended that files to be played back in this unit are recorded under the following specifications:

• Upper limit : 24 Megapixel

CONNECTING DEVICES

No supplied cables are used with these connections:

- Please purchase the necessary cables at your local store.

Before you connect:

Be sure other device is connected properly before plugging in the AC power cord.

External Device Connection

HDMI Connection

HDMI connection offers the highest picture quality.

HDMI (High-Definition Multimedia Interface) transports high definition digital video and multi-channel digital audio through a single cable.

HDMI-DVI Connection

Use an HDMI-DVI conversion cable to connect the unit to external video devices equipped with DVI output jack. (Use HDMI 1 Input jack only and Audio L/R below HDMI 1 Input jack on rear of TV.)

Note

- Use an HDMI cable with the HDMI logo (a certifi ed HDMI cable) High Speed HDMI cable is recommended for the better compatibility.

For HDMI connection (use HDMI 1, 2 or 3 Input jack)

• The unit accepts 480i, 480p, 720p, 1080i and 1080p 24/30/60Hz of video signals, and 32kHz, 44.1kHz and 48kHz of audio signals.
- This unit accepts 5.1 channel audio signal (Dolby Digital) and 2 channel audio signal (LPCM).
• This unit accepts only signals in compliance with EIA861.

For HDMI-DVI connection

• The unit accepts 480i, 480p, 720p, 1080i and 1080p video signals.
- HDMI-DVI connection requires separate audio connections as well and the audio signals are converted from digital to analog.
- DVI does not display 480i image which is not in compliance with EIA/CEA-861/861B.

Component Video Connection

Component Video connection offers better picture quality for video devices connected to the unit.

If you connect to the unit's ComponentVideo Input jacks, connect Analog Audio cables to the Analog Audio L/R Input jacks right beside the ComponentVideo connector jacks.

Note

- The unit accepts 480i/480p/720p and 1080i of video signals for this connection.

S-Video Connection

S-Video connection offers good picture quality for video devices connected to the unit.

If you connect to the unit's S-Video Input jack, connect audio cables to the Audio L/R Input jacks below the Composite Video connector.

Composite Video Connection

Composite Video connection offers standard picture quality for video devices connected to the unit. If you connect to the unit's Composite Video Input jack, connect audio cables to the Audio L/R Input jacks right below the Composite Video connector jack. When the Audio is monaural, then only connect to the Audio L Input jack.

Digital Audio Output Connection

(for digital broadcasting only)

If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital broadcasting sound.

Use a digital audio coaxial cable to connect the unit to

Analog Audio Output Connection

(for both analog and digital broadcasting)

If you connect this unit to an external analog audio device, you can enjoy stereo (2-channel) audio.

Use audio cables to connect the unit to external analog audio devices.

PC Connection

This unit can be connected to your PC that has a DVI terminal. Use an HDMI-DVI conversion cable for this Video connection and it requires stereo mini plug conversion cable for Analog Audio signal as well.

If you connect this unit to your PC, you can use this unit as a PC monitor.

The following video signals can be displayed:

Format Resolution		Refresh rate
VGA	640 × 480		60Hz
SVGA	800 × 600
XGA	1,024 × 768
WXGA	1,280 × 768
	1,360 × 768
FHD	1,920 × 1,080

Other formats or non-standard signals will not be displayed correctly.

Note

• Please purchase the HDMI-DVI conversion cable that has a ferrite core.
  • The following operations may reduce noise.
• Attach a ferrite core to the AC power cord of your PC.
• Unplug the AC power cord and use the built-in battery of your PC.

Cable Management

Keep the cables through this holder to avoid tangling them.

Pure electrical circuit lines without any symbols

USB Storage Device

This unit offers easy playback of JPEG picture files. Insert the USB storage device into the USB terminal shown below. [USB] p.24

• The unit recognizes only a USB storage device.
- Do not use a USB hub or an extension cable to connect an external hard disk drive to the unit. (Not supported.)
• A USB storage device is always inserted to this unit directly.
• A USB storage device is not supplied with this unit.
• We do not guarantee that all USB storage devices can be supported by this unit.
- Be sure to keep a backup copy of the original files on your device before you play them back on this unit. We have no responsibilities for damage or loss of your stored data.
- To protect your USB storage device files from being erased place the write protect sliding tab in the protect position.
- When you are ready to remove a USB storage device, at first turn the unit off so it will go into standby mode to avoid any damage to your data and the unit.
- A USB storage device that requires its own driver or the device with a special system such as fingerprint recognition are not supported.
- This unit is not allowed to use the USB storage device which requires an external power supply (500mA or more).
- Up to 2GB (FAT16) or 8GB (FAT32) capacity can be supported.
- Only USB 2.0 is supported.
- Up to 10,000 files or 1,000 folders with 19 hierarchies can be recognized.
- Up to 255 English characters can be recognized.
• This unit does not support MTP(Media Transfer Protocol).
• This unit supports FAT16 and FAT32 file systems.
- If the file is not supported, an error message appears.
- When the USB storage device is not recognized, try reconnecting it again.

It is recommended that files to be played back in this unit are recorded under the following specifications:

• Upper limit : 24 Megapixel

FAQ

Question Answer
My remote control does not work. What should I do?	Check the antenna or cable connection to the main unit.Check the batteries of the remote control.Check if there is an obstacle between the infrared sensor window and the remote control.Test the signal output use [IR Signal Check]. p. 30If okay, then possible infrared sensor trouble.Aim the remote control directly at the infrared sensor window on the front of the unit.Reduce the distance to the unit.Re-insert the batteries with their polarities (+/- signs) as indicated.When there is an infrared-equipped device such as PC near this unit, it may interrupt the remote control signal of this unit.Move the infrared-equipped device away from this unit, change the angle of the infrared sensor or turn off the infrared communication function.
How come the Initial setup appears every time I turn on this unit?	Connect the RF coaxial cable to the unit directly and run the initial setup.Make sure to complete the channel scan before the unit goes into standby mode.
Why can I not watch some RF signal TV programs.	Make sure [Autoprogram] has been complete. p. 17Autoprogram must be completed when you set up the unit for the first time or move it to a location where previously unavailable channels are broadcast.The selected channel may not be broadcasting.When [Autoprogram] is interrupted and not completed, some channels will not be received. Make sure to complete the Autoprogram. p. 17The selected channel cannot be viewed by the [Child Lock] setting. p. 20The unit requires some kind of antenna input. An indoor antenna (VHF / UHF), an external antenna (VHF / UHF) or an RF coaxial cable from your wall cable/satellite box needs to be plugged into the unit.
How come there is no image from the connected external devices?	Check if the correct input mode is selected by pressing SOURCE or using CH +/- . [Switching Each Input Mode] p. 12Check the antenna or cable connection to the unit.When using the Component Video Connection check that the Green (Y), Blue (Pb/Cb) and Red (Pr/ Cr) connectors are connected to their corresponding colored jacks on the unit.
When I enter a channel number, it changes automatically.	Many digital channels have alternate channel numbers. The unit changes the numbers automatically to the ones signifying the broadcasting station channel number. These basic numbers used for previous analog broadcasts. (e.g., input ch# 30 auto changes to ch#6.1)
Why are captions not displayed entirely? Or, captions are delayed behind the dialog.	Captions that are delayed a few seconds behind the actual dialog are common for live broadcasts. Most captioning production companies can display a dialog to maximum of 220 words per minute. If a dialog exceeds that rate, selective editing is used to insure that the captions remain up-to date with the current TV screen dialog.
How can I set the clock ? · There is no clock function on this unit.
I cannot change the [Child Lock] setting because my PIN code no longer works.	If a Power failure occurs for longer than 10 seconds the child lock setting is retained, but the PIN code is set to the default code “0000”. [Child Lock] p. 20

Troubleshooting Guide

If the unit does not perform properly when operated as instructed in this manual,

check the following chart and all connections once before calling for service.

Symptom Remedy
No power	Make sure the AC power cord is plugged in.Make sure that the AC outlet supplies the proper voltage, plug another electrical appliance into the AC outlet to ensure that AC outlet operates normally.If a power failure occurs, unplug the AC power cord for 1 minute to allow the unit to reset itself.
Control button's do not work.	Press only one button at a time. Do NOT press more than one button at the same time.Ensure that no buttons on the remote control are depressed and move freely.
Power is ON but no screen image.	Check whether the connection of the antenna, cable receiver or satellite box is connected correctly.Check whether all the cables to the unit are connected to the correct output jack of your device like BD/DVD recorder.Make sure that the selected input mode is connected to the working input jack.Check if your computer is NOT in sleep mode when the input mode of this unit is in PC mode. Tap any key on the keyboard to wake up your computer.
No picture or sound	Check if the power is on.Check if the correct input mode is selected.Check whether all the cables to the unit are connected to the correct output jack of your device like BD/DVD recorder.View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.Unplug the AC power cord and wait for about 1 minute, then plug the AC power cord and turn on the unit again.Check whether the connection of the antenna, cable receiver or satellite box is connected correctly.Make sure that the selected input mode is connected to the working input jack.Check if your computer is NOT in sleep mode when the input mode of this unit is in PC mode. Tap any key on the keyboard to wake up your computer.Make sure that the sound is not muted. Press MUTE so that the volume bar and current volume level will appear on the TV screen.Make sure that the volume is NOT set to [0] or [Mute]. If so, use VOL +/- to adjust the desired volume.
No color	View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.Adjust [Color] in the main menu.
Adjusted [Picture] or [Sound] settings are not effective every time the unit is turned on.	You must set [Home] in [Location]. p.23Otherwise, the settings you adjusted will not be memorized after the unit goes into standby mode.
Sound OK, picture poor	Electrical interference from nearby appliances may affect picture quality.Adjust [Contrast] and [Brightness] in the main menu.View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.For the best picture quality, watch "High Definition" wide screen programs.If the HD content is not available, watch "Standard Definition" programs instead.
Picture OK, sound poor	View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.Check if the audio cable is connected in correctly.
You see a distorted picture or hear an unusual sound.	You may be getting interference from electrical appliances, automobiles, motorcycles or fluorescent lights.Try moving the unit to another location to see if this is the cause of the problem.
Ghosts, lines or streaks in picture	Electrical interference from nearby appliances may affect picture quality.View other TV channels. The problem might be limited to the broadcasting station or weak signal strength.
You see "noise" or "trash" on the screen.	When the capabilities of the unit exceed the capabilities of the digital broadcasting, the signal will be increased to match the capabilities of the display of the unit. This may cause noise or trash.
Different color marks on the TV screen	View other TV channels. The problem might be limited to the broadcasting station, missing data or pixelation.
You switch to a different input and the volume changes.	This unit will memorize the volume level from the last time you adjusted it.If the volume of the sound from another device is higher or lower, then the loudness will change.
You switch to a different input and the screen size changes.	This unit will memorize the viewing mode from the last time you used the particular input modes.
The display image does not cover the entire screen.	If you are watching TV or using the Composite Video, Component Video or HDMI with 480i Input, press FORMAT repeatedly to switch various screen modes.
Captions are displayed as a white box. No caption is displayed in the Closed Caption-supported program.	Interference from buildings or weather conditions may cause captioning to be incomplete.Broadcasting station may shorten the program to insert advertisement.The closed caption decoder cannot read the information of the shortened program.
Black box is displayed on the TV screen.	The text mode is selected for caption. Select [CC-1], [CC-2], [CC-3], [CC-4] or [Off].

Note

- The LCD screen is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a fixed point of blue, green or red.

This is not to be considered a defect in the LCD screen.

- Some functions are not available in specific modes, but this is not a malfunction. Read the description in this manual for more details on correct operations.

INFORMATION

Glossary

ATSC

Acronym that stands for Advanced Television Systems Committee and the name of the digital broadcasting standards.

Aspect Ratio

The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other words, the TV screen is almost square); widescreen models are 16:9 (the TV screen is almost twice as wide as its height).

CEC (Consumer Electronics Control)

This allows you to operate the linked functions between our brand devices with CEC feature and this unit. We do not guarantee 100% interoperability with other brands of CEC compliant devices.

Component Video

This is a video signal format that conveys each of 3 principal colors of light (red, blue and green) through different signal lines. This allows the viewers to experience picture colors as original as it is. There are several signal formats, including Y/Pb/Pr and Y/Cb/Cr.

Dolby Digital

The system developed by Dolby Laboratories to compress digital sound. It offers stereo sound (2ch) or multi-channel audio.

E-Sticker

E-Sticker is showing set features, technical information, etc on this TV set that is displayed on the TV screen. Previously the information was on a printed sticker that was put on the display.

HDMI (High-Definition Multimedia Interface)

Interface that supports all uncompressed, digital audio / video formats including set-top box, BD / DVD recorder or digital television, over a single cable.

HDTV (High Definition TV)

Ultimate digital format that produces high resolution and high picture quality.

NTSC

Acronym that stands for National Television Systems Committee and the name of analog broadcasting standards.

Off the air NTSC signals are no longer being sent by major broadcasting stations in the USA.

PIN code

A stored 4-digit number that allows access to parental control features.

SAP (Secondary Audio Program)

Second-audio channel delivered separately from main-audio channel. This audio channel is used as an alternate in bilingual broadcasting.

SDTV (Standard Definition TV)

Standard digital format that is similar to the NTSC picture quality.

Maintenance

Cabinet Cleaning

• Wipe the front panel and other exterior surfaces of the unit with a soft cloth.
• Never use a solvent or alcohol. Do not spray insecticide liquid near the unit. Such chemicals may cause damage and discoloration to the exposed surfaces.

Panel Cleaning

Wipe the panel of the unit with a soft cloth. Before cleaning the panel, disconnect the AC power cord.

Servicing

Should your unit become inoperative, do not try to correct the problem yourself. There are no user serviceable parts inside. Call our toll free customer support line found on the cover of this manual to locate an authorized service center.

IR Signal Check

If the remote control is not working properly, you can use a digital camera (including a cellular phone with built-in camera) to see if it is sending out an infrared signal.

Illustration of a remote control with signal waves and a camera display (no text or symbols)

With a digital camera

(including built-in cell phone cameras):

Point the Digital Camera towards the remote control infrared diode at the front of the remote control. Press any button on the remote control and look through the camera display. If the infrared pulsating light appears through the camera, the remote control is sending out an IR signal.

General Specifications

TV format ATSC/NTSC-M TV standard

Closed Caption system

§15.122/FCC (digital CC) §15.119/FCC (analog CC)

Channel coverage (ATSC / NTSC)

Terrestrial DTV (ATSC)

VHF 2\~13

UHF 14\~51 (each channel has e.g. 2.1\~2.9, 3.1\~3.9, etc.)

Terrestrial Analog (NTSC)

VHF 2\~13

UHF 14\~69

CATV 2\~13, A\~W,

W+1\~W+94 (analog W+1\~W+84), A-5\~A-1, 5A

Tuning system Channel frequency synthesized tuning system

Channel access Direct access keyboard, Programmable scan, and up / down

Electrical Specification

Audio Output

10W, 8Ω × 2

Other Specifications

Terminals

Antenna Input VHF/UHF/CATV 75 Ω unbalanced (F-type)

Audio Input RCA jack (L/R) × 8 500mV rms

Composite Video Input

RCA jack × 2

S-Video Input Mini DIN 4pin jack x 2 Y 1V p-p (75 Ω)

Component Video Input

RCA jack × 3

1V p-p (75 Ω)

Y 1V p-p(75Ω)

C 286mV p-p (75Ω)

Y 1V p-p(75Ω)

Pb/Cb 700mV p-p (75Ω)

Pr/Cr 700mV p-p (75Ω)

HDMI Input HDMI 19 pin x 3

USB Input USB × 1

Digital Audio Output (coaxial)

RCA jack × 1

500mV p-p (75 Ω)

Analog Audio Output

RCA jack (L/R) × 2

500 mV rms

Remote control

Digital encoded infrared light system

Operating temperature

41 °F (5 °C) to 104 °F (40 °C)

Power requirements

120V\~AC+/-10%,60Hz+/-0.5%

Power consumption (maximum)

200 W

LCD 40 inches full HD panel

Dimensions

Width 39.2 inches (994.0 mm) 39.2 inches (994.0 mm)

Height 25.1 inches (637.0 mm) 27.2 inches (690.0 mm)

Depth 4.8 inches (120.5mm) 11.1 inches (280.0mm)

Weight 33.07 lbs. (15.00 kg) 37.48 lbs. (17.00 kg)

• Designs and specifications are subject to change without notice and without our legal obligation.
• If there is a discrepancy between languages, the default language will be English.

LIMITED WARRANTY

NINETY (90) DAY LABOR / ONE (1) YEAR PARTS

WARRANTY COVERAGE:

This warranty obligation is limited to the terms asset forth below.

WHO IS COVERED:

Thisproductwarrantyisissuedtotheoriginalpurchaserorthe personreceivingtheproductasagiftagainstdefectsinmaterials andworkmanshipasedonthedateoforiginalpurchase ("WarrantyPeriod")fromanAuthorizedDealer.Theoriginal salesreceiptshowingtheproductnameandthepurchasedate fromanauthorizedretailerisconsideredsuchproof.

WHAT IS COVERED:

Thiswarrantycoversnewproductsifadefectinmaterialor workmanshipoccursandavalidclaimisreceivedwithinthe WarrantyPeriod.Atitsoption,thecompanywilleither(1) repairtheproductatnocharge,usingneworrefurbished replacementparts,or(2)exchangetheproductwithaproduct thatisneworwhichhasbeenmanufacturedfromnew,orserviceableusedpartsandisatleastfunctionallyequivalentormost comparabletotheoriginalproductincurrentinventory,or(3) refundtheoriginalpurchasepriceoftheproduct. Replacementproductsorpartsprovidedunderthiswarrantyare coveredagainstdefectsinmaterialsandworkmanshipfromthe dateofthereplacementorrepairforninety(90)daysorforthe remainingportionoftheoriginalproduct'swarranty,whichever provideslongercoverageforyou.Whenaproductorpartis exchanged,anyreplacementitembecomesyourpropertyandthe replaceditembecomescompanyproperty.Whenarefundis given,yourproductbecomescompanyproperty.

Note: Any product sold and identified as refurbished or renewed carries a ninety (90) day limited warranty.

Replacement product can only be sent if all warranty requirements are met. Failure to follow all requirements can result in delay.

WHAT IS NOT COVERED - EXCLUSIONS AND LIMITATIONS:

This Limited Warranty applies only tonew company manufac- tured products that can be identified by the trademark, trade name, or logo affixed to it. This Limited Warranty does not apply toanyhardwareproductoranysoftware, even if packagedor sold with the product, as manufacturers, suppliers, or publishers may provide a separate warranty for their own product package with the bundled product.

The company is not liable for any damage to loss of any programs, data, or other information stored on any media contained within the product, or other additional product part not covered by this warranty. Recovery or installation of programs, data or other information is not covered under this Limited Warranty.

Thiswarrantydoesnotapply(a)todamagecausedbyaccident, abuse,misuse,neglect,misapplication,ornon-suppliedproduct, (b)todamagecausedbyserviceperformedbyanyoneotherthan companyapprovedAuthorizedServiceLocation,(c)toaproduct

or a part that has been modified without written company permission, or (d) if any serial number has been removed or defaced, or (e) product, accessories or consumable sold "ASIS" without warranty of any kind by including refurbished products sold "AS IS" by someretailers.

This Limited Warranty does not cover:

• Shippingchargestoreturndefectiveproduct.
- Laborchargesforinstallationorsetupoftheproduct,adjustmentofcustomercontrolsontheproduct,andinstallationor repairofantenna/signalsourcesystemsoutsideoftheproduct.
- Productrepairand/orpartreplacementbecauseofimproper installationormaintenance,connectionstoimpropervoltage supply,powerlinesurge,lightningdamage,retainedimagesor screen markings resulting from viewing fixed stationary contentforextendedperiods,productcosmeticappearanceitems duetonormalwearandtear,unauthorizedrepairorother causenotwithinthecontrolofthecompany.
• Damageorclaimsforproductsnotbeingavailableforuse,or forlostdataorlostsoftware.
• Damage from mishandled shipments or transit accidents when returning product.
- A product that requires modification or adaptation to enable ittooperateinanycountryotherthanthecountryforwhich itwasdesigned,manufactured,approvedand/orauthorized,or repair of products damaged by these modifications.
• Aproductusedforcommercialorinstitutionalpurposes (includingbutnotlimitedtorentalpurposes).
- Product lost in shipment and no signature verification receipt can be provided.
•FailuretooperateperOwner'sManual.

TO OBTAIN ASSISTANCE...

ContacttheCustomerCareCenterat: 1-866-341-3738

REPAIRORREPLACEMENTASPROVIDEDUNDERTHIS WARRANTYISTHEEXCLUSIVEREMEDYFORTHECONSUMER, WITH THE ISSUING COMPANY NOT LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACHOFANY EXPRESSOR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPTTITTHE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR APARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED INDURATION TO THE DURATION OF THIS WARRANTY.

Somestatesdonotallowtheexclusionsorlimitationofincidentalorconsequentialdamages,orallowlimitationsonhowlonganimpliedwarrantylasts,sotheabovelimitationsorexclusionsmaynotapplytoyou.

This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.

FUNAI CORPORATION, Inc. 19900 Van Ness Avenue, Torrance, CA 90501
