Product Type	Tumble Dryer
Brand	White Knight
Model	A Plus 96M7W
Energy Class	A+
Drying Capacity	6 kg
Dimensions (H x W x D)	85 x 60 x 58 cm
Weight	35 kg
Power Supply	220-240 V / 50 Hz
Power Consumption	1800 W
Noise Level	65 dB(A)
Drying System	Condenser (Self-condensing)
Drying Programs	Cotton, Synthetics, Delicates, Mix, Quick, Iron Dry, Cupboard Dry, Extra Dry
Special Features	Reverse Tumble, Cool Down Cycle, Delay Start, Anti-crease
Installation Type	Freestanding
Door Hinge	Left (reversible)
Color	White
Accessories Included	Drain hose, User manual
Filter Indicator	Yes
Water Tank Capacity	3.5 L
Warranty	2 years

Frequently Asked Questions - A Plus 96M7W White Knight

How do I clean the lint filter?

Open the door and pull the lint filter upward from the door recess. Remove lint by hand or with a soft brush, then rinse the filter under running water if needed. Dry thoroughly before reinserting.

What should I do if the dryer stops mid-cycle?

Check if the water tank is full (if condenser model) or the lint filter is clogged. Also ensure the door is properly closed and the program hasn't ended. If the problem persists, consult the manual for error codes.

Can I dry all fabrics in this dryer?

No. Check garment labels. Items labeled 'tumble dry low' or 'tumble dry' are suitable. Do not dry wool, silk, or delicate items unless a special program is selected. Always follow fabric care instructions.

How often should I empty the water tank?

Empty the water tank after each drying cycle, or when the indicator light turns on. If you use a drain hose, you can connect it directly to a sink drain for continuous drainage.

Why is my dryer taking longer than usual?

Possible causes: overloaded drum, clogged lint filter, damp clothes left in too long, or low room temperature. Clean the filter and reduce load size to improve drying time.

How do I reverse the door?

Unplug the dryer. Remove the door hinge screws, lift off the door, and relocate the hinges to the opposite side. Reattach the door and replace the screws. Refer to the manual for detailed steps.

Can I install the dryer in a cupboard?

Yes, but ensure adequate ventilation. The dryer requires airflow to operate efficiently. Leave at least 10 cm clearance on all sides and do not block the vent grilles.

What does the 'Delicate' program do?

The Delicate program uses lower heat and gentler tumbling action to dry sensitive fabrics like lingerie or synthetics. It extends drying time but helps prevent damage.

How do I reset the dryer after a power cut?

Simply turn the program dial to 'Off' and then select your desired program again. Press the 'Start' button. The dryer will continue from where it left off or restart the cycle.

Where can I find spare parts?

Spare parts can be ordered from authorized White Knight service centers or online retailers. Common parts include lint filters, door seals, and heating elements. Use the model number A Plus 96M7W to ensure compatibility.

USER MANUAL A Plus 96M7W White Knight

IMPORTANT: PLEASE READ THESE

INSTRUCTIONS THOROUGHLY BEFORE USING

THIS APPLIANCE. KEEP THEM IN A SAFE PLACE FOR FUTURE REFERENCE.

IMPORTANT USER INFORMATION

• This appliance is intended for NORMAL DOMESTIC USE ONLY.
• Please note it is not recommended that the dryer is placed directly next to ovens, cookers or other heating appliances as the performance of the dryer may be affected.
• Any electrical work required to install the appliance should be carried out by a qualified person.
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• It is important to clean the lint filter after each drying cycle and the heat exchanger every month or the restrictions to airflow will extend drying times and could cause the safety cut-out to trip.
• DO NOT allow lint to accumulate around the tumble dryer - risk of fire

- Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.

- DO NOT dry unwashed items in the tumble dryer.

- Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

- Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber-backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.

- Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

- The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.

- Remove all objects from pockets such as lighters and matches.

- WARNING: Never stop a tumble dryer before the end of a drying cycle unless all items are quickly removed and spread out so that heat is dissipated.

- A carpet must not obstruct the ventilation openings in the base of the dryer.

- Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

- The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.

- Do not stack the tumble dryer.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away from the appliance unless continuously supervised.

- The rear of the dryer gets quite hot during use. Position the dryer so that the back is not accessible while in operation, but ensure that the sides have a space available to allow airflow.

- WARNING: In the appliance enclosure or in the built-in structure, keep ventilation openings clear of obstruction.

- WARNING: Do not damage the refrigerant circuit.

- Under no circumstances should anything other than the recommended articles be placed in the tumble dryer.

- The tumble dryer should be serviced by an appointed service organisation and only genuine parts used.

- It is dangerous to alter or modify the product in any way other than fitting authorized accessories.

- We recommend that the appliance is unplugged each time after use. It should always be disconnected from the electricity supply during long periods of inactivity (i.e. weekends, holidays etc.)

- The special mains cable and plug assembly must only be replaced with a genuine part from the manufacturer or our appointed service agent.

- It is important to clean fluff from the window of the dryer and around the door seal after each drying cycle. Failure to do so could result in water leaking.

- DO NOT use a two-way adaptor, or extension lead. The dryer must be connected to its own socket.

- DO NOT block the air inlets at the front, base or rear of your dryer.

- DO NOT exceed the recommended maximum load.

- DO NOT place articles in the dryer if anything other than a water solution has been used in the cleaning process.

- DO NOT attempt to dry dripping wet articles.

- DO NOT use the tumble dryer if you suspect that it is damaged in any way. Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause serious injury. Consult your local appointed service engineer and insist on genuine spare parts.

- DO NOT tumble dry woollen or wool mixture articles unless the article is labelled as being suitable. This should avoid shrinkage.

- Place delicate articles e.g. tights, scarves, inside a pillowcase.

- To avoid the need to iron easycare polyester/cotton items it is better to only dry small loads (i.e. half fill drum). It is better to dry small and large articles together.

- DO NOT overload the dryer or dry large bulky items such as duvets or sleeping bags as it is important that the airflow through the dryer is not obstructed.

- To avoid uneven drying, it is recommended to remove large items (e.g. duvet covers) part way through the drying cycle and redistribute the load.

- This appliance is for indoor use only.

- DO NOT lay the appliance on its side, front or rear during use or maintenance.

- Your appliance is fitted with a sensing system that will periodically adjust the time remaining displayed dependant on the moisture remaining in the load. Please note that the drying time quoted by the appliance at the start of the drying cycle will default to the time taken to dry the maximum load weight for that particular program.

- Should the final dryness of the load for a particular program not be to your satisfaction, please select either a damper or drier setting.

THIS APPLIANCE MUST BE EARTHED

This label, positioned on the rear of your dryer, indicates the surface is hot when in operation – avoid touching

CAUTION HOT SURFACE

This appliance is marked according to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

At end of life this product should be recycled and not disposed in household waste. Contact your retailer, council or local authority for further information.

DRAINAGE OPTIONS

Your new appliance as delivered is setup such that the condensed water generated during drying is pumped into the water bottle. The bottle will then require emptying at the end of every drying cycle.

Alternatively, the appliance can be converted to allow the condensed water to be pumped to your household waste pipe. Connecting your dryer to a household waste pipe will mean you will not need to empty the water bottle:

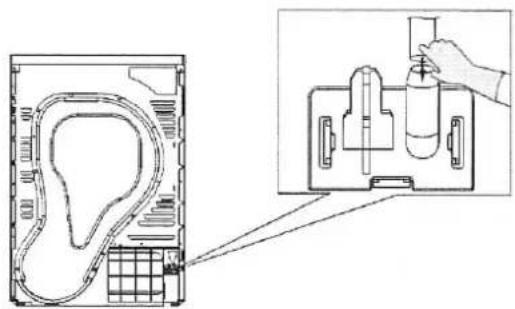

1 - Remove the integral drain hose from the connector.

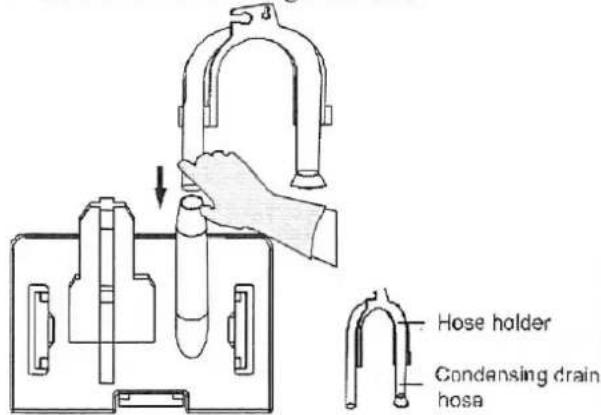

2 - Attach the condensing drain hose.

Technical line drawing of a device with internal components and a magnified inset showing a hand holding a cylindrical component (no text or symbols present)

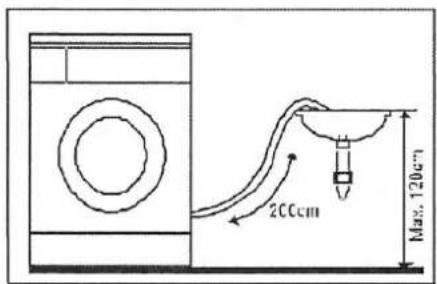

3 - Put the hose holder onto a wash basin, sink or waste pipe. Please note that 200cm is the maximum length without the hose holder. If the hose holder is used, the overall length of extension is reduced to 160cm .

Line drawing of a kitchen sink with faucet and chain (no text or symbols)

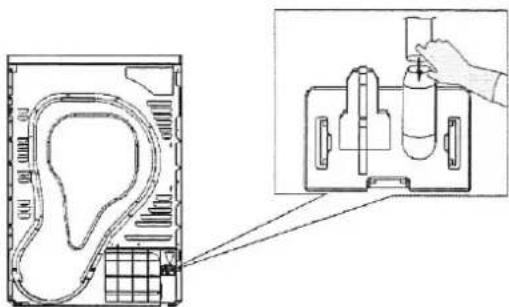

4 - To return the dryer to pump the condensed water into the water bottle, simply remove the condensing drain hose and re-attach the integral drain hose as per points 1 and 2 above.

Technical line drawing of a mechanical assembly with an inset showing a hand holding a cylindrical component (no text or symbols present)

DRYER INSTALLATION

Position the tumble dryer so that the plug remains accessible after installation. Do not block the vents at the front, rear or base of the dryer, as this will impair the working of the machine. This appliance must not be installed behind a lockable door, a sliding door or a door with hinges on the opposite side to that of the tumble dryer.

The tumble dryer requires a minimum width of 600mm in order to be installed. If a waste pipe or trap are behind the appliance, they must not obstruct the air inlet at the back of the dryer.

If the waste pipe is used by the dryer and a washing machine then its diameter must be large enough to contain both hoses - 1.5" bore (38mm) minimum.

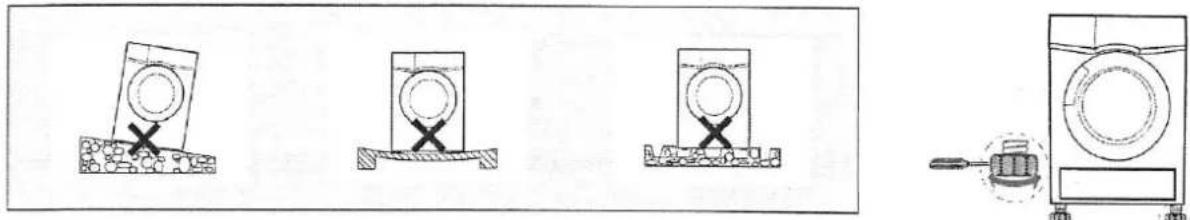

If the floor is uneven the machine will need to be leveled by adjusting the legs of the machine. These can be twisted to raise and lower the appliance.

Diagram showing four different mechanical or electrical setups with no visible text, numbers, or symbols.

CAUTION: Check that the filter cover is locked in place before use.

IMPORTANT: ONCE YOUR APPLIANCE IS INSTALLED, LEAVE IT TO STAND FOR 2 HOURS BEFORE FIRST USE.

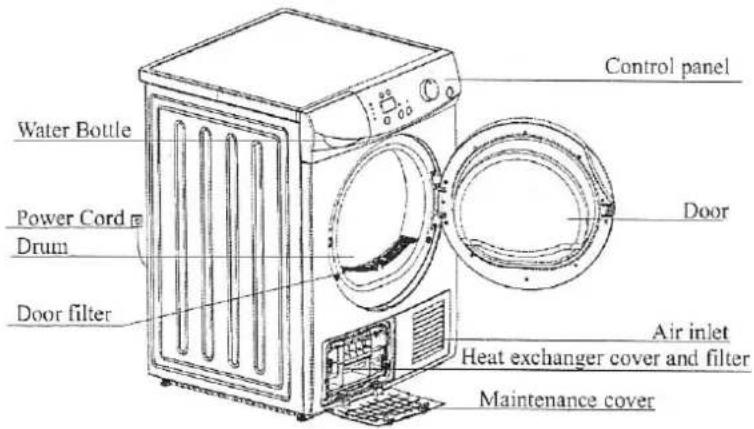

APPLIANCE FEATURES

There are two filters in your appliance; one fitted below the door and the other attached to the heat exchanger cover.

Push the door filter into the opening with the holes facing into the drum. The heat exchanger cover and filter assembly should be inserted into the opening and then locked in place prior to use.

Remove any dust by wiping the drum and door with a damp cloth.

ENSURE THAT YOUR FILTERS ARE CLEANED AFTER EVERY DRYING CYCLE

LOAD PREPARATION

Check care labels inside the garments to ensure that they are suitable for the appliance.

CARE LABELS YOU MAY FIND ON YOUR FABRICS:

Suitable for tumble drying

Tumble dry using full heat

Tumble dry using half heat

Do not tumble dry

NEVER SWITCH THE DRYER OFF AND LEAVE A HOT LOAD IN THE DRUM DUE TO THE RISK OF FIRE.

CLEANING THE FILTERS

ALWAYS CLEAN THE FILTERS AFTER EVERY DRYING CYCLE. Failure to do so could cause the safety cut-out to operate.

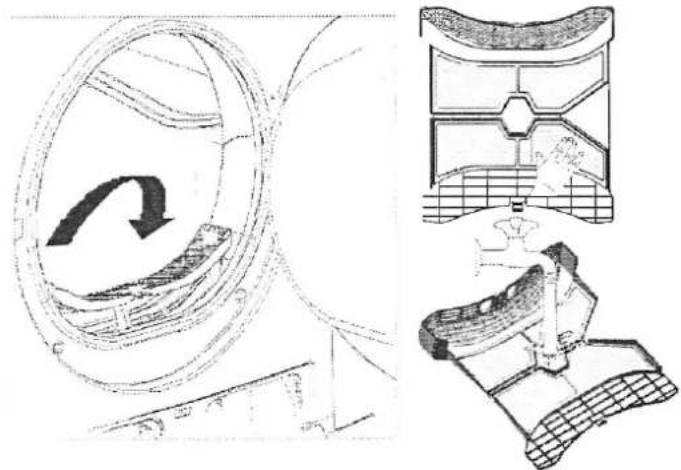

Door filter:

Technical illustration of a mechanical component with internal rotation and cross-sectional views (no text or symbols)

Pull the filter upwards and away from the appliance.

Open the filter by pulling apart in the centre and then gently pressing down to release the catches at the edges. Remove any threads or fluff by hand or with a soft brush.

Shut the filter and place back inside the appliance.

Wash the filter occasionally in detergent solution using a soft brush to remove small particles. Ensure that the filter is fully dry before next use.

If your filter becomes damaged, replace it to ensure no damage is caused to the dryer.

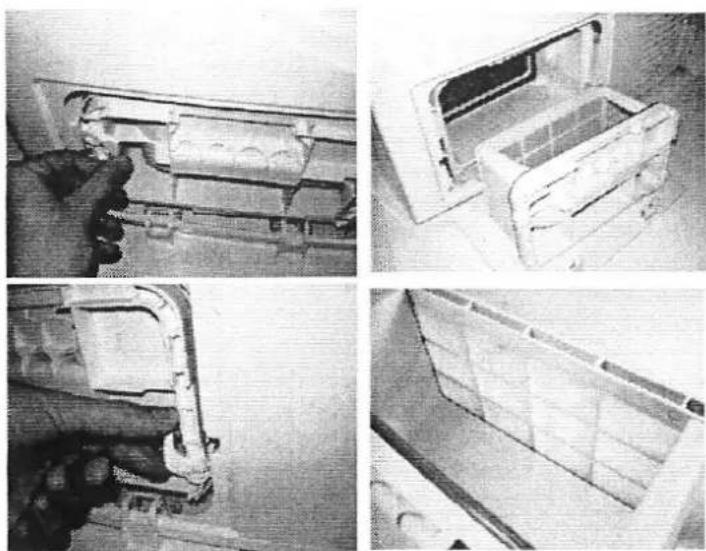

Heat exchanger cover and filter assembly:

Four-panel photo collage showing a hand assembling or cleaning a wall-mounted air conditioner unit, with no visible text or symbols.

Open the maintenance cover by pressing down on the two catches to reveal the heat exchanger cover and filter assembly.

Twist the two locking tabs inwards to allow the assembly to be removed from the appliance.

Remove the heat exchanger cover and filter assembly from the appliance. Clean the filter and remove any lint from the inside of the appliance.

Once clean, insert the heat exchanger cover and filter assembly into the appliance. Lock the tabs back in place.

Shut the maintenance cover.

Periodic maintenance:

Wash the filters occasionally in detergent solution using a soft brush to remove small particles. Ensure that the filter is fully dry before next use.

If either of your filtersbecomes damaged, replace it to ensure no damage is caused to the dryer.

Spares can be ordered from www.whiteknightrange.co.uk/whiteknight/accessories-WK.html or by calling 01422203963.

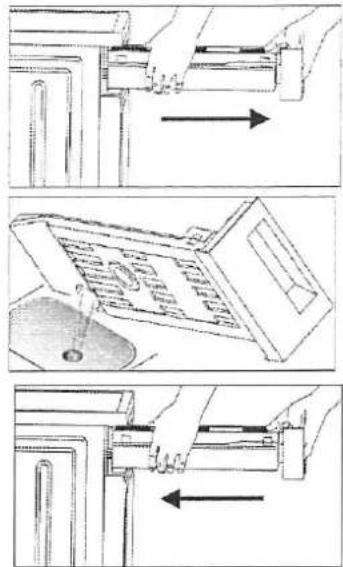

EMPTYING THE WATER BOTTLE

- Pull the bottle out from the dryer and empty at the end of the drying cycle.

- WARNING: Ensure that the bottle is kept level and the rear supported as it is removed from the dryer in order to prevent water leaking from the water in-feed hole at the rear of the bottle.

- Replace the bottle ensuring that it is pushed all the way in.

- If the dryer is connected to a drain there is no need to empty the bottle but it must be correctly fitted to the machine.

WARNING: Empty the water container after each use. The drying cycle will pause and the ≈ icon will flash if the bottle is full during the drying process. After the bottle has been emptied, the dryer can be restarted by pressing the Start/Pause button.

- WARNING: Do not drink the condensed water

CLEANING THE HEAT EXCHANGER

Technical line drawing of a mechanical device with no visible text or symbols

The Heat Exchanger and ducting should be cleaned monthly or more frequently if the dryer is in constant use.

Diagram of a computer monitor with scroll wheel and scroll wheel (no text or symbols)

CAUTION: For maximum efficiency, the plates are made from very thin aluminum and are easily damaged.

ACCESSING THE HEAT EXCHANGER

• Open the maintenance cover
• Twist both locking levers inwards to remove the heat exchanger cover and filter and reveal the heat exchanger
• Remove any lint from the heat exchanger using a sponge or soft brush. Please be aware that the fins are sharp and we advise to wear gloves whilst cleaning
• Clean the seals
• Lock the heat exchanger cover and filter back in place by twisting the locking levers
• Close the maintenance cover until it locks into position

Line drawing of a mechanical device with no visible text or symbols

IMPORTANT:

• Ensure all lint and fluff is removed from around the seals before closing or water may leak.
• The dryer may leak if the Heat Exchanger cover and filter assembly is not correctly re-installed and locked in place.

APPLIANCE FEATURES AND PROGRAMME OPTIONS

Programme selection – once the On/Off button has been pressed, rotate the programme knob to select the required program. Additional features of Delay, Buzzer and Anticerase (not available on Refresh or Wool programs) can also be selected. Once you have set the drying cycle, press Start/Pause button to begin the drying cycle.

End of drying cycle – the buzzer will sound at the end of the drying cycle (if this has been selected) indicating that the cycle is complete. Unload the laundry from the appliance and press the On/Off button to turn off the power. Unplug the power cable.

Moisture Sensor - this function automatically senses the moisture of clothes, and will automatically adjust the drying time according to the weight of clothes put in the dryer. This function will automatically activate during the drying procedure except for the Timed programme.

Timed programme – this can be set from 10 minutes to 120 minutes drying time by pressing the “Time” button. Please note that this is available on the Timed Programmesetting only.

Delay Start - all programs can be used in conjunction with the Delay Start feature. This function is used to delay the start of the drying cycle up to a maximum of 24 hours. Pressing the "Delay" button once increases the delay time by one hour. Pressing and holding the "Delay" button will scroll the display.

Once you have selected the delay time that you require, press the Start/Pause button and the "DELAY" arrow symbol will flash. The delay time selected will appear on the main display. After 1 minute, the delay display will turn off and the main display will show "-". During the delay period, the delay button can be pressed which will then show the program selected and then the delay time remaining. Pressing the time button during the delay period will show you the delay time remaining only. When the delay period is complete, the drying cycle selected will automatically start. To cancel delay, turn the appliance on and off.

Child safety lock - this machine incorporates a child safety lock, which can prevent children from activating the appliance's functions. Whilst the dryer is operating, press and hold the Anticrease and Buzzer buttons at the same time for 3 seconds to activate the child lock function. When the child lock function is activated, the display will light the "Child Lock" icon and pressing a button will not affect the dryer except the On/Off button. To release the child lock function, press and hold the Anticrease and Buzzer buttons at the same time for 3 seconds.

Anticrease – if selected, the drum will intermittently rotate at the end of the drying cycle in order to prevent creasing. Opening the door, pressing off or disconnecting from the mains will stop this function. This appliance has an automatic 30 minute Anticrease period at the end of the drying cycle. If Anticrease is selected, this period will increase to 120 minutes.

Buzzer – when selected, the buzzer will sound at the end of the drying cycle and when a button is pressed. The default state is off.

Drum Light – when the door of the appliance is opened, a light will come on for 1 minute.

PROGRAMME TABLE

Programme		Weight (max)	Programme Details
Cotton	For garments made of cotton and linen
	Extra Dry	7.0kg	Clothes are extra dry and can be put away
	Cupboard Dry		Clothes are dry enough to be put away
	Iron Dry		Clothes are slightly damp and are ready to be ironed
Synthetics	For garments made from synthetic and blended fabrics
	Extra Dry	3.5kg	Clothes are extra dry and can be put away
	Cupboard Dry		Clothes are dry enough to be put away
	Iron Dry		Clothes are slightly damp and are ready to be ironed
Silk		1.0kg	For drying silk using warmed air
Leisure		7.0kg	For leisure clothing such as jeans and sweatshirts
Refresh		1.0kg	For refreshing garments
Wool			For machine washable woollen garments. Remove and hang up to complete drying when cycle ends
Mix		3.0kg	For materials which are unknown in type

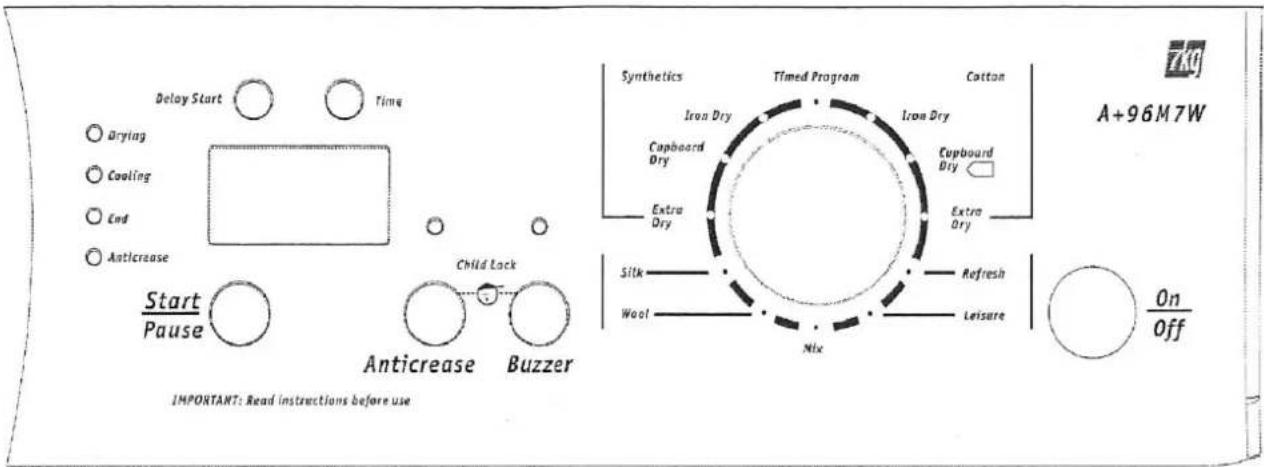

CONTROLS

Status displays (4 LED indicators labelled Drying, Cooling, End and Anticrease) – these indicate the status of the drying cycle. As the load dries, the indicators will step through indicating the progress through the drying cycle.

Delay button – this is used to select a delay time as detailed above for between 1 and 24 hours.

Time button – this is used to increase the drying time as per your requirements. Please note that this is only available on the Timed Programme setting.

Filter indicator – when ⚙ is flashing, please clean the filters. This indicator is in the bottom left hand corner of the main display.

Tank indicator – when ⏻ is flashing, please empty the water bottle. This indicator is between the filter indicator and child lock indicator on the main display.

Child lock indicator – the indicator lights when the child lock feature has been activated by pressing and holding the Anticrease and Buzzer buttons simultaneously for three seconds. The indicator is located in the bottom right hand corner of the main display.

Start/Pause button – allows the appliance to be switched between drying and paused.

Anticrease button – allows Anticrease to be selected which will then operate at the end of the drying cycle. Not available on Refresh, Cool or Warm tumble programme.

Buzzer button – allows for the buzzer to be selected.

Programme selector – rotate to select the programme you require.

On/Off switch - use to turn the appliance on and off as required.

PLEASE NOTE: The symbol adjacent to the "Cupboard Dry" programme indicates that this programme is the "Standard Cotton Programme" used at full and partial loads and is the standard drying programme to which the information on the label and the product fiche relate. This programme is suitable for drying normal wet cotton laundry and is the most efficient programme in terms of energy consumption for cotton.

OPERATION

A full load will typically take 160 minutes and will use approximately 2.34kWh of electricity. A half load will typically take 92 minutes and will use approximately 1.28kWh of electricity.

The power consumption of the off-mode is 0.01W and the left-on mode is 0.90W.

1. Open the door.

2. Load clothes loosely into the drum. Load sheets first, starting with one corner.

3. Close the door.

4. Dry your hands.

5. Press the On/Off button, then turn the programme selector knob and select a desired drying programme.

6. Select any other features that you require (e.g. Anticrease or Delay start)

7. After the Start/Pause button is pressed, the dryer will start the drying cycle. If delay start was selected, the drying cycle will be automatically performed when the delay time is over.

8. If you push the Start/Pause button again, the dryer will stop. If you push the Start/Pause button during the delay period, the delay function will pause.

9. If you want to cancel the delay time selected, press the On/Off button.

ALARM FUNCTIONS

Alarm Problem	Alarm Reason	Resolution
“” is flashing	Bottle full or pump error	Check the bottle is empty and pump is pumping
“” is flashing	Air flow blockage	Check that the filters and ducts are clean
“E32”	Humidity sensor problem	Please contact a service agent as per the contact details below.
“E33”	Temperature sensor problem

CUSTOMER ADVICE - BEFORE CALLING FOR ASSISTANCE

If the clothes are not dry after normal drying time:

• Check that you used the correct programme.
• Check that both lint filters have been cleaned. A blocked filter will restrict the airflow.
• Check that the Heat Exchanger is clean
• Check that the machine has the correct weight load in the drum before starting the appliance
  If your machine does not work correctly check the following before calling a service engineer:
• Check that there is a supply of electricity
• Check the fuse in the plug
• Check that the On/Off button has been pressed and that the Display is illuminated
• Check that the door has been properly closed and the machine is not in delay or pause mode
• Check that child safety lock has not been enabled

If problems continue after checking the above points you should contact our service agent. Please ensure that you have your serial number to hand when you make the call. To locate the serial number on your dryer, open the door and look for a white label inside the door opening or look on the rear of the dryer. This will indicate the appliance identification code along with the serial number.

Please be aware that a call out charge will be applied for a service visit, if the call could have been avoided by following these instructions.

WHIRLPOOL (0800 988 1323)

Calls are FREE from landlines however calls from mobiles may be charged at your network provider's rates.

0800 REPAIR (0344 879 7422)

Calls charged at local rate. Mobile and other providers' charges may vary.

Service Network 2000 - Northern Ireland only (028 90365222)

Daytime calls cost up to 14p plus 8p per minute from BT lines Monday-Friday. Mobile and other providers' charges may vary.

TECHNICAL DATA

OVERALL DIMENSIONS: Height: 84.5cm Width: 59.5cm Depth: 62.2cm

Refrigerant: 290g of refrigerant R134a

Contains fluorinated greenhouse gases covered by the Kyoto Protocol.

Hermetically sealed.

For electrical ratings see plate on back of dryer.

For Model No. see serial plate inside door or on the rear of the appliance (needed when requesting service).

Room temperature range 5°C to 35°C.

Your washing machine should have a spin speed of not less than 1000rpm for maximum efficiency.

www.whiteknightrange.co.uk

Spares can be ordered from www.whiteknightrange.co.uk/whiteknight/accessories-WK.html or by calling 01422 203963.

Energy labelling directive: 2010/30/EU - Product Fiche

1(a) Supplier's name or trade mark: White Knight

1(b) Model identifier: A+96M7W

1(c) Rated capacity at full load: 7kg

1(d) Appliance type: Condenser

1(e) Energy efficiency class: A+

1(f) The energy consumption of the appliance is 278kWh per year

The figures above are based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.

1(g) This appliance is automatic.

1(h) This appliance has not been awarded the EU Ecolabel award.

1(i)

Parameter	A+96M7W
E_dry	2.34kWh
E_dry1/2	1.28kWh
Eg_dry	Not applicable
Eg_dry1/2	Not applicable
Eg_dry,a	Not applicable
Eg_dry1/2,a	Not applicable

1(j) Off mode power ( P_o ): 0.01W

Left-on mode power ( P_1 0.90W

1(k) Duration of left-on mode: 10 minutes

1(1) The standard cotton programme used at full and partial load is the standard drying programme to which the information in the label and the fiche relates. This programme is suitable for drying normal wet cotton laundry. It is the most efficient programme in terms of energy consumption for cotton.

1(m)

Parameter	A+96M7W
T_t	120 minutes
T_dry	160 minutes
T_dry1/3	92 minutes

1(n) Condensing efficiency class: B

1(o)

Parameter	A+96M7W
C_t	80.1%
C_dry	80.1%
C_dry12	80.1%

1(p) Sound power level: 69dBA

1(q) This appliance is not intended to be built-in.
