Product Type	Tumble Dryer (Spin Dryer)
Brand	White Knight
Model	28007T
Voltage	230 V
Power Input	350 W
Fuse	13 A
Max Load (dry weight)	3.7 kg
Spin Speed	2800 rpm
Residual Water Content	40%
Safety Features	Lid safety lock, earth connection
Operating Control	Lever (ON/OFF)
Outlet Spout	Yes
Carrying Handle	Yes
Cable Storage	Yes
Intended Use	Household laundry spinning

Frequently Asked Questions - 28007T White Knight

How do I load the spin dryer correctly?

Place each article singly into the drum, distribute evenly, and press down firmly. Ensure there is a gap of at least 3 cm between the laundry and the top edge of the drum. Cover with a cloth and tuck ends inside to prevent items from being ejected.

How long should I spin my laundry?

For normal washing, spin for 3-5 minutes. For items requiring no ironing, spin for 15-30 seconds maximum. The residual moisture will be approximately 40%.

What should I do if water does not flow out?

Unplug the dryer and check if the outlet spout is blocked by a piece of laundry. Gently press the spin drum from inside against the outer casing to remove the obstruction.

Why does the spin dryer not reach full speed?

The dryer may self-correct minor imbalance, but if the unbalance is too great due to incorrect loading, it will not reach speed. Switch off, repack laundry evenly, and reload according to instructions.

How do I clean my spin dryer?

Always unplug before cleaning. Wipe the drum dry with a cloth after use. If dirty laundry was spun, rinse the drum with clean water. Clean the exterior with a damp cloth and mild detergent. Do not use abrasive cleaners or solvents.

Is it safe to spin clothes that have been treated with flammable substances?

No. Never spin items cleaned, washed, or sprayed with wax, paint, petrol, or inflammable liquids. Their vapours can cause fire or explosion. Hand wash such items and air dry outside first.

Can I open the lid while the drum is spinning?

No. A safety device prevents opening the lid until the drum has stopped completely. Never force the lid open.

What should I do if the motor does not function?

Check if the fuse has blown or if there is damage to the mains cable, plug, or socket. Unplug before inspection. Do not open the motor yourself; contact a qualified service engineer.

How should I dispose of the appliance at the end of its life?

Do not dispose as household waste. Follow local environmental regulations for WEEE. Cut off the mains cable before disposal and take it to a designated recycling collection point.

Where can I obtain service or support?

In the UK, contact Crosslee plc at Hipperholme, Halifax, HX3 8DE, telephone [phone], or email [e-mail]. For other regions, refer to your warranty card.

USER MANUAL 28007T White Knight

Abstract geometric logo with a white triangular shape and gray base on black background (no text or symbols)

White Knight

28007T

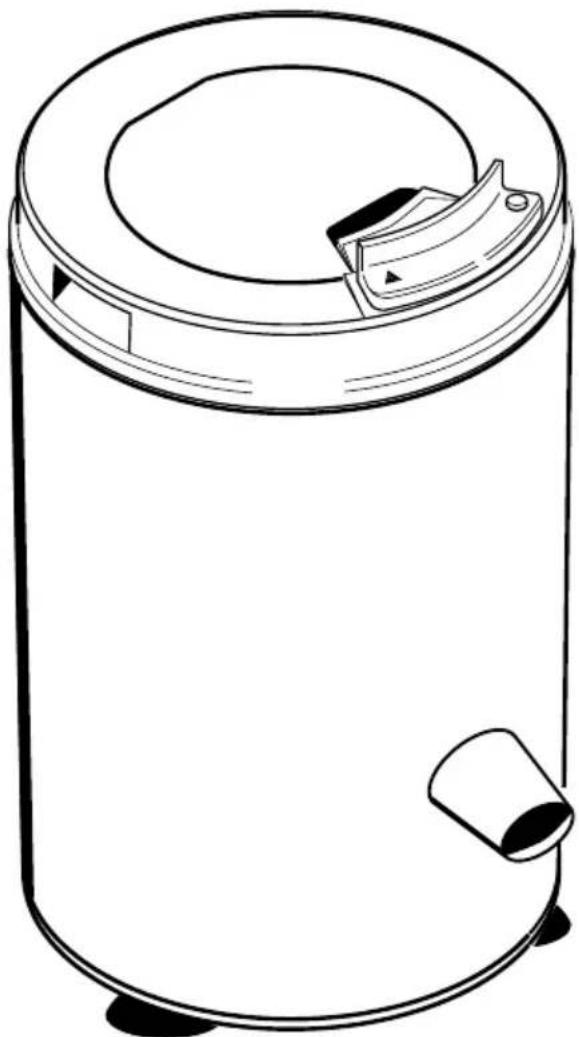

Line drawing of a cylindrical container with lid and side ports (no text or symbols)

IMPORTANT:

Please read the instructions before using your appliance.

Content Page

Points of Safety 3

Description of Parts 4

Operating Instructions 5/6

Maintenance and Care 7

If unexpected difficulties arise 7

Disposing of the Unit 7

Points of Safety

Please read through the information contained in this instructions booklet carefully. It gives important advice on the safety, assembly, use and maintenance of the White Knight Spin Dryer.

Retain the instructions booklet in a safe place for future reference and, if applicable, pass it on to the subsequent owner of the appliance. The manufacturer will not be liable if the instructions specified below are not observed. Do not put the White Knight Spin Dryer to improper use, i.e. Do not use the appliance other than for the purposes it is intended for. It is only intended for household use and for spinning items of laundry only.

• Before connecting the appliance, check that the details given on the rating plate correspond to the requirements of your electrical installation.
• Do not operate the appliance if:
  – the mains cable is damaged;
  – the appliance shows clear signs of damage.
• Check the appliance for any damage which may have occurred during transit.
• Dispose of the packaging in accordance with regulations.
• Remove the transport locking piece from inside the drum.
• The spin dryer is intended for use by adults only. Ensure that children or infirm persons do not play around with the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• Modifications to the appliance can endanger your safety and health. Therefore, repairs to the appliance should be carried out by an authorised engineer only.
• Never operate the appliance in rooms where inflammable materials are stored or where gases have formed.
• Never unplug the appliance by pulling on the cable, but only by removing the plug directly from the socket.

• Ensure that the mains cable is not exposed to either heat or chemical substances, nor that it is pulled across sharp edges or surfaces.

• If the mains cable becomes damaged, have it replaced immediately by an authorised repair agent.

• Do not touch or use the appliance with wet hands or when barefoot and standing on a wet floor.
• Do not expose the appliance to atmospheric effects, such as sun, rain, etc.
• The basic safety regulations must be strictly observed. In case of doubt, have a qualified engineer inspect the electrical installation of your house. Electrical security is only ensured when the appliance has been duly earthed, as described under the safety regulations for electrical connections. If the mains socket does not comply with the plug, the socket should be replaced by a suitable one.
• Never spin items of laundry which have been cleaned, washed, impregnated or sprayed with wax, paint, petrol or inflammable liquids. The vapours can constitute a fire hazard or cause an explosion. Always wash materials containing these substances by hand first and let them dry outside in the fresh air.
• Do not use the appliance as a footboard or load heavy items onto it.
• Do not reach into the drum while it is spinning.
• Do not store the spin dryer directly next to a hot stove or heater.
• Do not use a two-way or multi-way adaptor or extension lead. The spin dryer must be connected to its own individual socket.
• Pull out the plug
• if the appliance malfunctions during operation;
  – before cleaning and maintenance;
• after use.
• Operate the spin dryer only in an upright position on an even floor and maintain a distance of about 50 cm from the wall or other objects (Fig. B).
• During operation, do not lift, carry, hold, move or tip over the appliance.
• Never handle the operating lever and lid with force.
• Lift or carry the appliance by the carrying handles only.
• Before disposal of the spin dryer, cut off the mains cable. Ensure that the appliance is disposed of carefully and orderly.

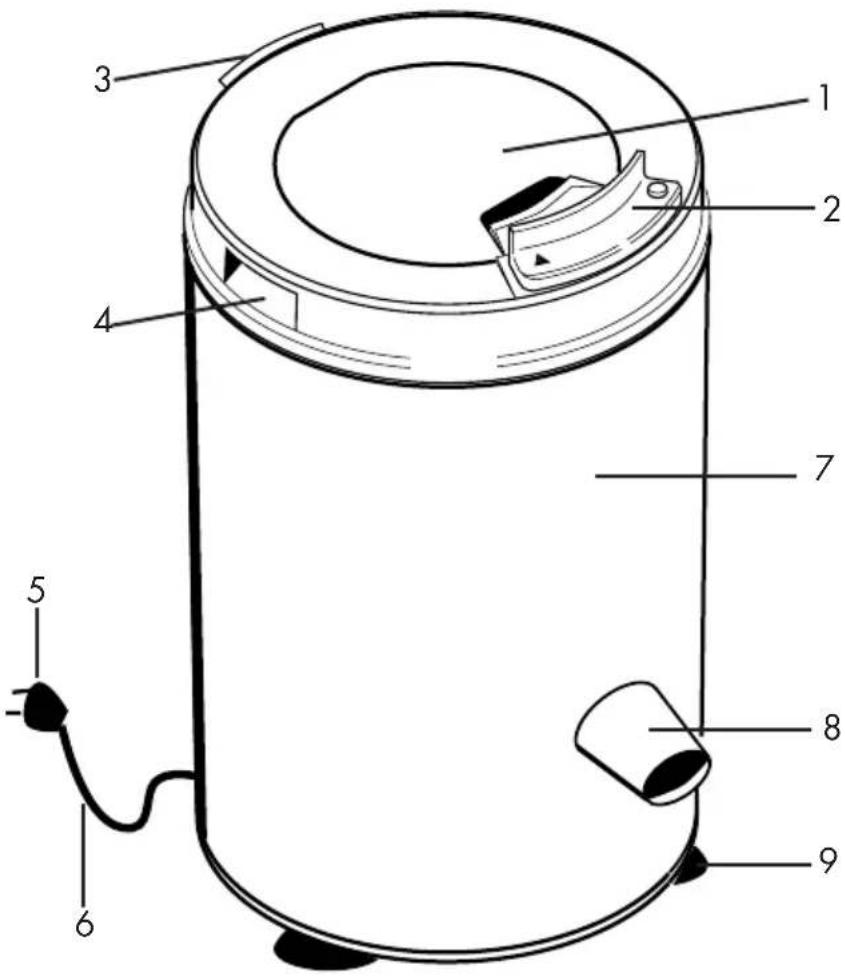

1 = Lid

2 = Operating Lever

3 = Cable Storage Fixture

4 = Carrying Handle

5 = Plug

6 = Mains Cable

7 = Outer Casing

8 = Outlet Spout

9 = Foot

Operating Instructions

Congratulations on your new purchase

We recommend that you read these instructions carefully in order to quickly become familiar with your new appliance.

A good appliance, which is used correctly, will serve you for many years.

Line drawing of hands washing a large appliance with a circular base, no text or symbols present

Unpacking the appliance

Dispose of packing materials in accordance with regulations.

Check the spin dryer for any transport damage which must be reported to your retailer within 24 hours.

Preparation for Use

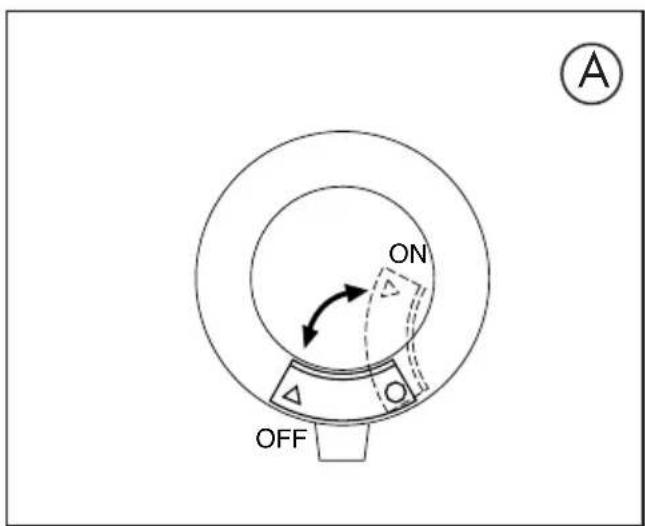

1. Put the operating lever in the "OFF" position. See diagram A.
2. Open the lid.
3. Remove the transport safeguard from inside the spin drum.
4. We recommend that the spin drum be washed out with a standard detergent before using for the first time.

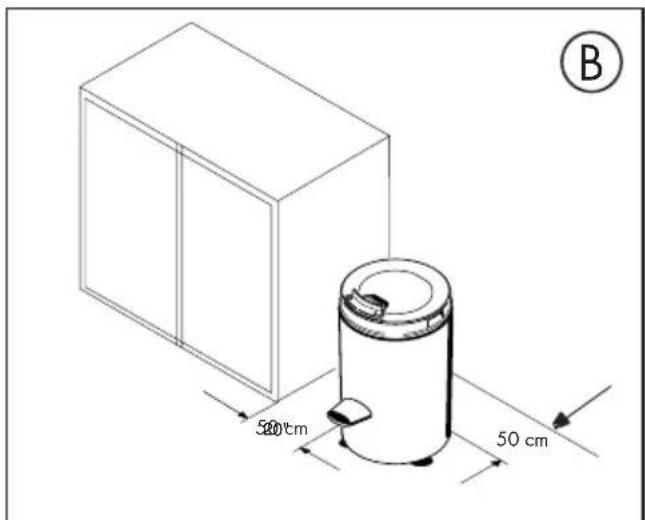

5. Place the spin dryer on a level floor at a distance of about 50 cm away from the wall or other objects. Never balance out irregularities in the floor surface by laying wood, paper or similar materials under the appliance. See diagram B.

Loading the machine

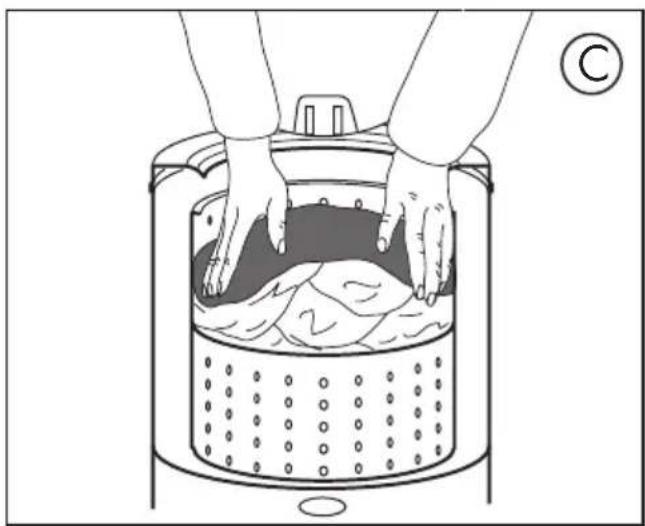

1. Place each article of laundry singly in the spin drum, Distribute the washing evenly in the drum and press down firmly, so as to avoid leaving empty spaces (and thus avoiding excessive vibration of the machine during operation). See diagram C.

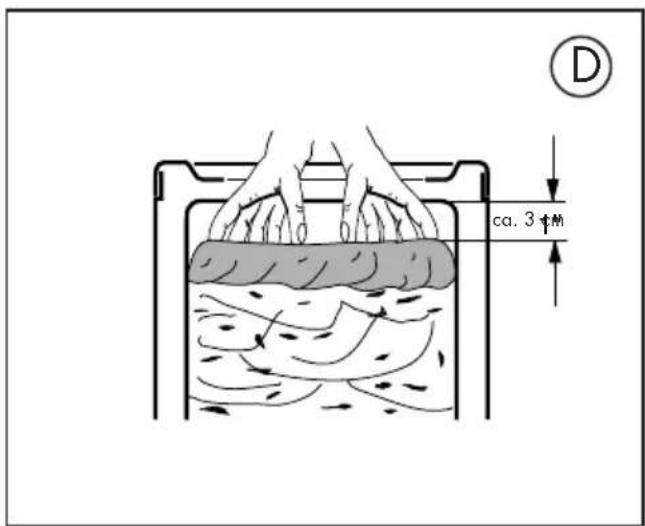

2. Press the loaded washing down, so that there is a gap of at least 3 cm between the washing and the top edge of the drum, lastly, cover the washing with a cloth, the ends of which should be tucked well down inside the drum, so as to avoid items of washing being catapulted out during operation. See diagram D.

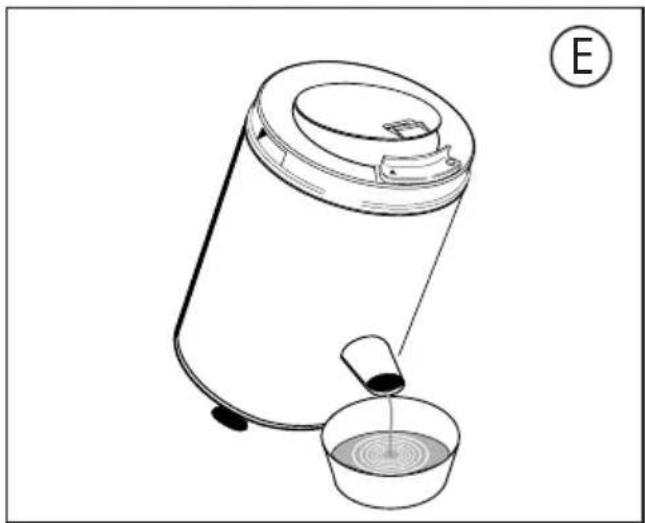

3. Place a sufficiently large container for excess water under the outlet spout. See diagram E. Do not tilt the dryer whilst in operation.

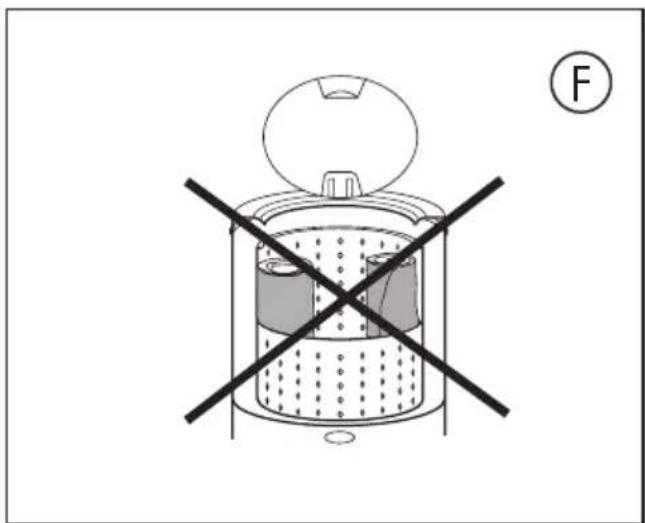

4. Do not place rolled up items of clothing (e.g. jeans) in the spin dryer. See diagram F.

Line drawing of a portable water dispenser with a small container and liquid, labeled E (no text or symbols on the device itself)

Switch on the appliance

Turn the operating lever to the right as far as it will go to the 'ON' position. See diagram A.

The spin dryer is now in operation and water flows out of the outlet spout.

Spin Drying Times

• For normal washing: 3-5 minutes.
• The residual moisture amounts to:
- approx 40% in machines with a spin speed of 2800 rpm;
- For washing which requires no ironing: 15-30 seconds max.

Switch off the appliance

When water ceases to flow out of the outlet spout, or when the spin process is to be terminated, turn the operating lever back to the left to the 'OFF' position.

When the drum has come to a standstill, open the lid. A special safety device prevents the lid being opened before the drum has stopped spinning.

Never force the lid open

Remove the laundry from the drum.

Gently tilt the spin dryer forward, so that any remaining water can flow out of the outlet spout.

See diagram E.

Pull out the plug

Maintenance and Care

• Always pull out the plug before cleaning the appliance.
  • After use, wipe the spin drum dry with a cloth.
• If dirty washing has been spun, it is necessary to rinse the drum out with clear water in order to avoid soiling the next load of washing.
• Clean the exterior of the spin dryer with a damp cloth and wipe it dry.
• Use standard detergents only to clean the appliance.
• Do not use abrasive cleaning agents.
• Never use petrol or other solvent liquids.
• The spin dryer requires no other maintenance.

Customer Service

If the spin dryer was purchased and is used in the UK and you require a service call, please contact the service agent named on the warranty card. Our customer service department can be contacted at:

Crosslee plc, Hipperholme, Halifax, HX3 8DE. Telephone [phone], or by emailing customer service at: [e-mail]

If unexpected difficulties arise

- Before contacting your dealer, check whether the fault is due to one of the following minor causes.

The motor does not function:

• Has the fuse blown?
• Is there damage to the mains cable, plug or socket? Pull out the plug before checking!
• Never open the motor yourself!

Water does not flow out:

• Pull out the plug! Check whether the outlet spout is blocked by a piece of washing.
• Press the spin drum from the inside against the outer casing with your hand and remove the piece of washing.

The spin dryer does not pick up spin speed:

• Please note that the spin dryer normally overcomes a certain amount of unbalance itself when picking up spin speed. The motor and spin drum are suspended flexibly for that reason.
• However, if the unbalance is too great (brought about by incorrect loading of the spin dryer), the machine cannot pick up spin speed.

The spin dryer "jumps":

1. Switch off the spin dryer immediately!
2. When the drum has come to a standstill, repack the washing evenly.
3. Reload the spin dryer in accordance with the instructions given on the previous page.

Model		28007 T
Power:
Voltage	[V]	230
Fuse	[A]	13
Power input	[W]	350
Performance:
Max. load (dry weight)	[kg]	3,7
Spin speed	[U/min]	2800
Residual water	[%]	40

Disposing of the Unit

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of

electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

GA 03.10 Br.
