Product Type	Warming Drawer
Brand	De Dietrich
Model	DWD914B
Installation	Built-in under counter
Capacity	1.7 cu ft (approx. 48 liters)
Weight	30 kg
Dimensions (H x W x D)	140 x 595 x 550 mm
Power Supply	220-240 V, 50/60 Hz
Power Consumption	1500 W
Temperature Range	30°C to 80°C
Control Type	Digital touch display with knob
Functions	Keep warm, slow cooking, plate warming, dough proofing
Material Interior	Stainless steel
Material Exterior	Stainless steel
Safety Features	Auto-off timer, child lock, overheat protection
Cleaning	Use stainless steel cleaner; removable wire rack
Accessories Included	1 wire rack, 1 baking tray
Energy Efficiency Class	A
Noise Level	<40 dB
Warranty	2 years
Repairability	Spare parts available; authorized service centers

Frequently Asked Questions - DWD914B DE DIETRICH

How do I install the De Dietrich DWD914B warming drawer?

The drawer is designed for built-in installation. Ensure the cutout dimensions match the unit (140 x 595 x 550 mm). Secure with provided screws and connect to a 220-240 V power outlet. Refer to the manual for detailed steps.

What temperature range does the DWD914B support?

It operates from 30°C to 80°C, ideal for keeping food warm, slow cooking, and proofing dough.

Can I use the warming drawer to cook food?

Yes, it can be used for slow cooking at low temperatures (e.g., 80°C for several hours), but it is not a full oven. Perfect for reheating and keeping dishes warm.

How do I clean the warming drawer?

Clean the stainless steel interior and exterior with a soft cloth and mild stainless steel cleaner. The wire rack is removable and can be washed by hand. Avoid abrasive pads.

Does the DWD914B have a child lock?

Yes, it includes a child lock function to prevent accidental operation. Activate it via the control panel.

What is the power consumption of the DWD914B?

It has a power rating of 1500 W. Energy efficiency class A.

Can I use metal pans in the warming drawer?

Yes, metal pans and oven-safe dishes are suitable. Avoid plastic or wooden containers that may melt or warp.

How long can I keep food warm?

The drawer can keep food warm for up to 4 hours with the auto-off timer. Set the desired time to avoid overcooking.

What are the dimensions of the DWD914B?

Exterior dimensions: 140 mm height, 595 mm width, 550 mm depth. Ensure your cabinet opening is slightly larger for proper ventilation.

Where can I find spare parts for the DWD914B?

Contact De Dietrich customer service or authorized dealers. Common spare parts like the heating element and control board are available.

USER MANUAL DWD914B DE DIETRICH

FR LE GUIDE D'UTILISATION DE VOTRE TIROIR CHAUFFANT
GB GUIDE FOR USING YOUR WARMING DRAWER
DE BENUTZERHANDBUCH FÜR IHRE WÄRMESCHUBLADE
NL HANDLEIDING VOOR UW VERWARMINGSLADE
DK BRUGERVEJLEDNING FOR VARMESKUFFEN
ES GUÍA DE USO DE SU CAJÓN CALIENTAPLATOS
PT MANUAL DE UTILIZAÇÃO DO AQUECEDOR DE LOIÇA
IT MANUALE D'USO DEL CASSETTO SCALDASTOVIGLIE

Tiroir chauffant DWD714X/729X

Warming drawer DWD714X/729X

Wärmeschublade DWD714X/729X

Verwarmingslade DWD714X/729X

Varmeskuffen DWD714X/729X

Cajón Calientaplatos DWD714X/729X

Modern minimalist living room interior with large windows, a modern chair, and built-in appliances (no visible text or symbols)

Instructions

GB

Protection of the environment 11

Editorial 12

Description of warming drawer 13

Safety tips 14

Installation 15

Encasement 16

Using your warming drawer 17

Cleaning and maintenance 20

PROTECTION OF THE ENVIRONMENT :

The packaging materials used for this appliance can be recycled. Take part in recycling and help protect the environment by discarding them in the appropriate waste bins provided by the municipal authorities.

The symbol ■ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Editorial

Dear Client,

You have just acquired a DE DIETRICH warming drawer; thank you for your purchase.

Our research teams have designed a new generation of appliances with you in mind. Their quality, design and state-of-the-art technology incorporate our unique know-how that makes these products exceptional.

Your new DE DIETRICH warming drawer will be an attractive addition to your kitchen, combining ease of use with effective performance for preheating your tableware.

DE DIETRICH products include a wide range of ovens, microwave ovens, glass-ceramic cook tops, vented hoods, built-in dishwashers and refrigerators that you can match to your new DE DIETRICH warming drawer.

Our consumer department is of course at your service, because we want to do our best to meet your expectations with regard to our products. We will be happy to respond to your questions or suggestions. (Please see the form for coordinating your questions at the end of this booklet).

These "new valuables" serve as landmarks in our daily lives – DE DIETRICH, a reference for excellence, extends an invitation to join a new art of living.

The DE DIETRICH trademark.

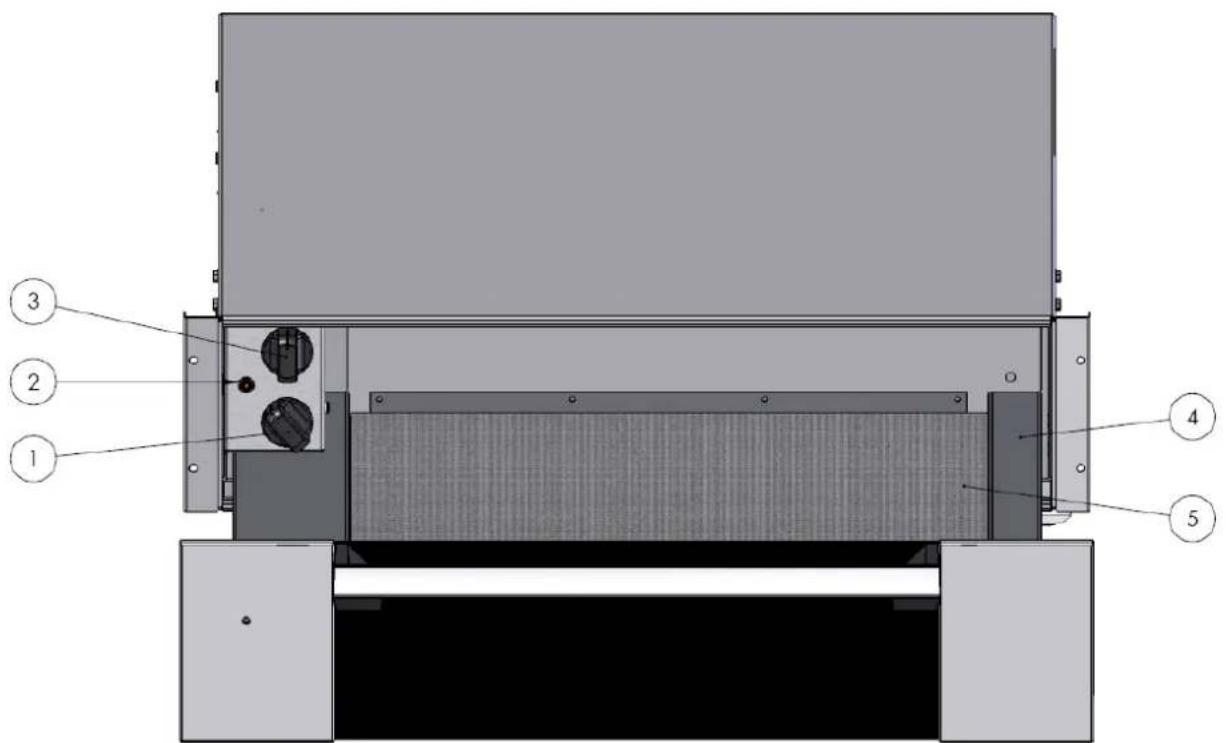

Description of warming drawer

1. Timer, stop/start switch
2. Signal light on the front showing that power is on
3. Temperature control
4. Drawer for dishes
5. Antiskid mat

Safety tips

Keep these instructions with your appliance. If the appliance should be sold or given to another person, be sure that these instructions are supplied with it.

Please read these recommendations before installing and using the warming drawer. They have been drafted for your safety and that of others.

This warming drawer has been designed for use by private persons in their homes. It is intended exclusively for warming dishes. Any other use is prohibited and could be dangerous. The manufacturer cannot be held liable in the event of non-complying use.

Do not use this appliance until it has been installed in the cabinet. Only full installation of the drawer prevents any risk of contact with powered components.

Never open the body of the appliance.

The inside of the drawer can heat up 70^ C depending on the temperature chosen and the duration of use. Use oven gloves or hot-pan holders to remove the hot dishes from the warming drawer.

Do not use the warming drawer to keep food or drinks hot or to reheat or cook food or drinks. The moisture in the food or drinks could cause corrosion of the appliance.

We do not advise standing or sitting on the open drawer; this would cause damage to the telescopic rails. The maximum load of the drawer is 20 kg.

We do not advise the use or storage of any plastic goods or inflammable objects in the appliance. They could melt or catch fire when the warming drawer is switched on.

The appliance is not intended for use by young children or infirm persons without supervision.

Young children should be supervised to ensure that they do not play with the appliance.

Installation

Before connecting the appliance to the power supply, check that the wires of your electric installation have sufficient diameter to supply power to the appliance normally. The fuse for the installation should be 10 amps.

It is necessary to provide a bipolar cut-off device in the power supply circuit, where the opening of the contacts is more than 3 mm.

The electric connection should be done before the appliance is set in the cabinet.

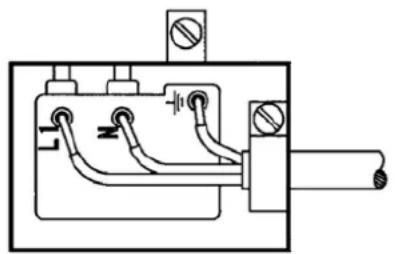

The drawer should be connected by a (standard) power cord with three 1 mm² couplers (1 single phase + 1 N + ground) to the 220-240 V single phase power supply via an electric circuit corresponding to the standard CEI 60083 or complying with the installation rules. The protective wire (green/yellow) corresponds to ground ⏻ on the appliance and should be connected to the ground of the installation.

In the case of a connection via an electric outlet, the outlet should be accessible after the installation of the appliance.

The neutral on the heating drawer (blue wire) should be connected to neutral on the power supply.

Pure electrical circuit lines without any symbols

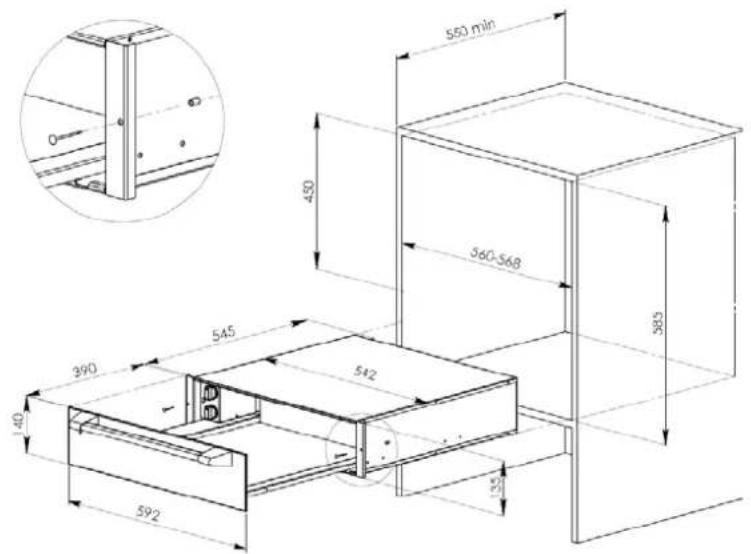

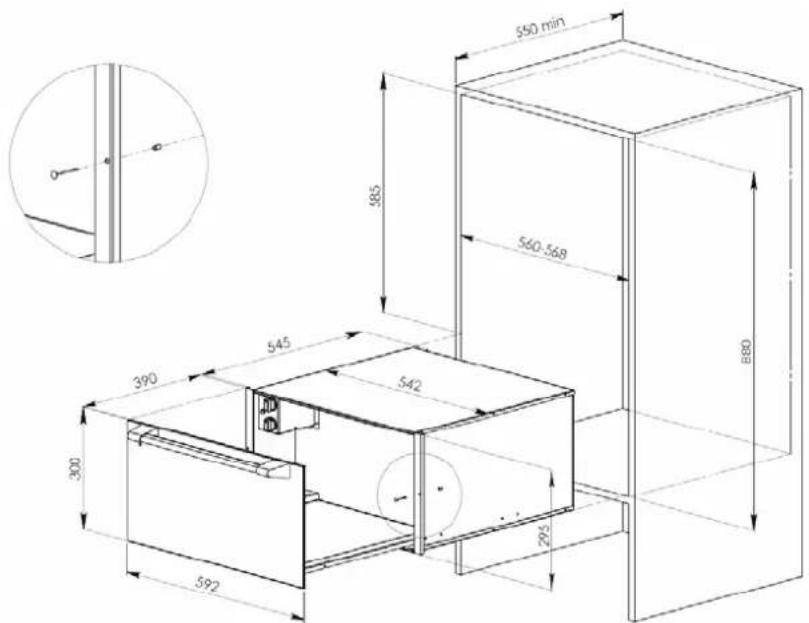

Encasement

Set the appliance into the niche in the cabinet. Make certain that the body of the appliance is positioned correctly.

Open the drawer and fasten the appliance to the sides of the cabinet with 2 screws and the 2 spacers delivered with the appliance.

DWD714X

DWD729X

Using your warming drawer GB

INFORMATION BEFORE USE:

The appliance should be used exclusively to preheat crockery.

The appliance uses a hot air system to heat the dishes. A fan distributes the heat from the resistor in the drawer. The dishes are heated rapidly and uniformly by circulation of hot air.

A protective grid prevents the dishes from coming into contact with the resistor or the fan.

The floor of the drawer is covered with an antiskid mat that prevents the dishes from sliding when the drawer is opened.

CONTROLS:

The controls include a temperature knob and a Start/Stop switch. These are only visible when the drawer is open.

When the drawer is closed, the signal light on the front of the drawer comes on when the appliance is running.

SETTING THE CONTROLS:

• Put the dishes in the drawer.
• Select the temperature.
• Set the timer (minimum 10 minutes).

The signal light shows that the power is on.

- Close the drawer

When the timer runs out, the hot air heating system stops and a bell rings.

To turn the bell off, turn the knob to 0.

Using your warming drawer

SELECTING THE TEMPERATURE:

The temperature knob adjusts the temperature between 30 and 70 °C.

The most appropriate temperatures for the types of dishes used are as follows :

• 40 °C: for cups or glasses. Hot drinks generally stay hotter for longer when poured into cups or glasses preheated to this temperature, without danger of burns when people drink from.
• 60 °C: for plates and dishes. Food served on preheated plates or dishes generally maintain their heat for longer and the dishes can be touched without burning the hands.

PREHEATING TIME:

Preheating time depends on several factors:

• the thickness of the dishes and the material they are made from
• the load
• disposal of the load
  ■ temperature selection

Therefore, we cannot give heating times that will correspond systematically.

However, as a guideline, here are a few hints :

For a temperature setting of 60 °C , heated evenly:

• dishes for a meal for six take approximately 30 min.
• dishes for a meal for twelve take approximately 40 min.

After using the drawer a few times, you will know for yourself how long it takes to heat your dishes.

CAPACITY:

This model comes in two heights.

■ DWD714X: height 135 mm.
■ DWD729X: height 295 mm.

Capacity depends on the height of the model, and the weight and size of your dishes.

The two models have maximum capacity of 20 kg.

The following examples are given as an indication only :

DWD714XQuantities are determined by volumeDishes for 6:6 dinner plates ∅ 28 cm6 soup plates ∅ 22 cm1 serving bowl ∅ 22 cm1 serving bowl ∅ 20 cm1 serving bowl ∅ 18 cm2 serving platters 36 cmor 16 large plates ∅ 28 cm+ 8 bowls ∅ 10 cmor 24 soup plates ∅ 22 cmor 40 bowls ∅ 10 cmor 60 cups ∅ 8 cmor ...

DWD729XQuantities are determined by weightDishes for 12:12 dinner plates ∅ 28 cm12 soup plates ∅ 22 cm2 serving bowl ∅ 22 cm2 serving bowl ∅ 20 cm2 serving bowl ∅ 18 cm2 serving platters 36 cmor 32 large plates ∅ 28 cm(± 600 g each)or 50 soup plates ∅ 22 cm(± 400 g each)or 60 bowls (± 330 g each) ∅ 10 cmor 132 cups (± 150 g each) ∅ 8 cmor ...

Cleaning and maintenance

Before any maintenance, turn off the appliance and let it cool.

Clean all surfaces with a sponge, dish washing soap and warm water. Then dry it off with a soft cloth.

Do not steam clean the alliance.

The use of scouring powders, alcohol or grease-cutting products is not recommended – they could damage the appliance.

The stainless front can be scratched. Use a special non-abrasive cleanser for stainless steel.

The antiskid mat can be removed to clean the bottom of the drawer.

The antiskid mat can be washed with warm water and detergent. Then dry it off and put it back in the drawer when it is completely dry.

Note: The antiskid mat can be cleaned in a washing machine on a synthetic cycle at 40 degrees.

EN After sales service

Any maintenance on your equipment should be undertaken by:

• either your dealer,
• or another qualified mechanic who is an authorized agent for the brand appliances.

When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to your equipment.

For UK after sales service information please contact:

www.dedietrich.co.uk

De Dietrich UK office – tel: [phone]
