| Product Type | Wine Cellar |
| Model | FWV451 |
| Dimensions (WxDxH) | 59.2 x 60.8 x 45.5 cm |
| Weight | 30 kg |
| Power Supply | 230-240 V / 50 Hz |
| Energy Efficiency Class | B |
| Annual Energy Consumption | 190 kWh/year |
| Storage Volume | 65 L |
| Climate Class | N (16 °C to 32 °C ambient) |
| Noise Level | 44 dB(A) |
| Defrosting Type | Automatic |
| Temperature Preset | 12 °C (54 °F) |
| Control Type | Electronic touch buttons (Power, Light, Up, Down) |
| Features | Dynamic Cooling mode, Silent mode, Sabbath mode, Door alarm, Humidity control |
| Interior Light | LED with Display mode (constant) or Energy saving mode (on door open) |
| Shelves | Removable (number not specified) |
| Door Reversibility | Yes |
| Installation Type | Built-in |
| Recommended Ventilation | Plinth vent of at least 200 cm² |
| Cleaning | Mild soapy water or bicarbonate of soda solution; do not use abrasives |
| Safety | Earthed, BS 1363A 13A fused plug, CE compliant |
| Warranty | Subject to correct installation and use; invalidated if misused |
Frequently Asked Questions - FWV451 CDA
User questions about FWV451 CDA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Wine cellar in PDF format for free! Find your manual FWV451 - CDA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FWV451 by CDA.
USER MANUAL FWV451 CDA
FWV451/FWV901/FWV1201
Manual for Installation, Use and Maintenance
|C|D|A|
Important
The CDA Group Ltd cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that CDA reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance or use in a commercial environment.
This appliance is not designed to be used by people (including children) with reduced physical, sensorial or mental capacity, or who lack experience or knowledge about it, unless they have had supervision or instructions on how to use the appliance by someone who is responsible for their safety.
Under no circumstances should any external covers be removed for servicing or maintenance except by suitably qualified personnel.
Do not use the appliance if the plug, the mains cord or the appliance itself is damaged. If the mains cord is damaged, you must have it replaced by the manufacturer, or an authorised service centre or similarly qualified persons in order to avoid a hazard.
Children should be supervised to ensure that they do not play with the appliance. Keep the mains cord out of the reach of children. Do not let the mains cord hang over the edge of the table or worktop on which the appliance stands.
Appliance information:
Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
CE Declarations of Conformity:
This appliance has been designed, constructed and marketed in compliance with safety requirements of EEC Directive 2006/95/EEC (Low voltage) and requirements of EMC Directive 2004/108/EEC.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.
Please render the appliance unusable before disposal. This includes removing the plug and breaking the door fixings to prevent children being trapped inside the appliance during play, or any other risk of injury.
At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is
marked with a crossed-out wheeled dustbin.
Before First Use
You must allow the appliance to settle for at least twenty four hours prior to switching the power on.
It is recommended that you remove all internal and external packaging and clean the interior of the appliance prior to first use, using a solution of bicarbonate of soda and warm water and then thoroughly dry the interior.
The appliance may have an odour to it at first use. This will disappear as the appliance cools.
Please note:
• The appliance will work continuously until it gets to the correct temperature.
- If the appliance is switched off, you should allow five minutes before switching it on again to prevent the risk of unnecessary damage to the compressor.
- The LED display may not show the selected temperature whilst the appliance first gets to the correct temperature. This is normal, and the display will be corrected automatically once the appliance has run for a few hours.
Use
• Only store wine in sealed containers.
- Do not overload the cabinet.
• Only open the door when necessary.
- Do not cover the shelves with aluminium foil or anything else that will prevent air from circulating around the cabinet.
• To prevent damage to the door seal, ensure the door is fully open before removing the shelves.
• This is a self-defrosting appliance. The compressor will not run during the thirty minute defrost cycle.
- Do not pull the shelves beyond the anti-stop position (approximately one third out) when fully loaded.
• This appliance is intended to be used exclusively for the storage of wine.
- In the event of a power failure, leave the door closed as much as possible to maintain the internal working temperature. Should the power failure continue for a prolonged period, you should take steps to protect the contents of the wine cooler against a rise in temperature. The wine cooler will remember the selected temperature settings and revert to these settings once the power is restored.
This appliance is suitable for use in an extended temperature climate (N) and has a normal operating ambient temperature of 16-32C. Use of the appliance below 10C may cause performance issues that are not indicative of a fault. Normal operation will resume once the appliance is within the specified range.
Use and Controls
FWV451

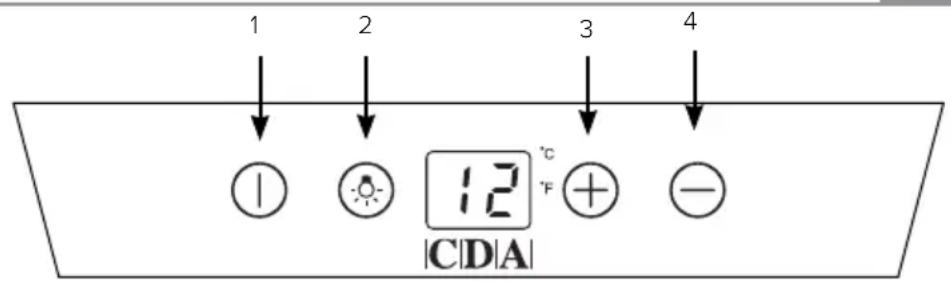

Key:
1 – Power button
2 - Light button
3 – Up button
4 – Down button
fig. 1
To switch the power on/off
Press and hold the power button for five seconds.
To change the temperature
- Press the up or down buttons until the required temperature is shown on the display.
• The preset temperature is 12^ C / 54^ F. - To change the temperature display from Fahrenheit to Celsius, or Celsius to Fahrenheit, press and hold the light button for five seconds.
- To view the set temperature, touch the up or down button at any time and the set temperature will flash in the LED display for five seconds.
• The display shows the current internal temperature when the wine cooler is on.
Optimal temperature selection
Whilst wine is best stored at temperatures between 13 and 15^ , your wine can also be stored at drinking temperature. For red wine this is between 15 and 17^ , and for white wine between 12 and 13^ .
To use the internal light
- Press the light button to switch the light on or off.
Use and Controls
FWV901/FWV1201
Key:
1 - Power button
2 – Upper Zone, up button
3 – Upper Zone, down button
4 - Lower Zone, up button
5 – Lower Zone, down button
6 - Light button
7 – Upper Zone
8 - Lower Zone
To switch the power on/off
Press and hold the power button for five seconds.
To change the temperature
- Press the up or down buttons for the appropriate zone until the required temperature is shown on the display.
- The preset temperature is 10^ / 50^ for upper zone and 16^ / 60^ for lower zone.
- To change the temperature display from Fahrenheit to Celsius, or Celsius to Fahrenheit, press and hold the light button for five seconds.
- To view the set temperature, touch the up or down button at any time and the set temperature will flash in the LED display for five seconds.
• The display shows the current internal temperatures when the wine cooler is on.
Optimal temperature selection
Whilst wine is best stored at temperatures between 13 and 15^ , your wine can also be stored at drinking temperature, for red wine this is between 15 and 17^ , and for white wine between 12 and 13^ .
To use the internal light
- Press the light button to switch the light on or off.
Please note:
The temperature in the lower zone must be set either the same or higher than the temperature in the upper zone. For optimal performance, the temperatures in the two zones should differ by at least 4^ C.
Use
Humidity Control
The wine coolers are equipped with a humidity control system to maintain optimal humidity within the wine cooler.
Fill the humidity reservoir approximately 3/4 full with water.
Place the reservoir on the runners on the top shelf as shown in fig. 5. Ensure it is located correctly to prevent water spillage.
Check the water level regularly and refill if required.
The temperature display will show the current internal temperature.
The display flashes:
- When a different temperature is being set
- If the internal temperature is +/- 5^ away from the set temperature. This serves as a warning to prevent damage to the contents of the appliance should the temperature be too high.
Dynamic Cooling and Silent modes
The appliance has two different running modes.
- Silent mode
Once the required temperature is reached, the appliance will run without the fan.. The wine cooler is factory set to silent mode.
To change to dynamic cooling mode, touch and hold the down key for approximately five seconds. The wine cooler will beep five times to confirm dynamic cooling is on.
• Dynamic cooling mode
The fan cycles on and off to circulate the air even after the required temperature is reached. This ensures consistent humidity and temperature distribution in the wine cooler, creating perfect conditions for long term storage.
Using the dynamic mode increases the level of noise in operation.
To change to silent mode, touch and hold the up key for approximately five seconds. The wine cooler will beep three times to confirm silent mode is on.
Sabbath mode
Sabbath mode is available for the observance of certain religious holidays. This will switch off the displays, interior light and audible alarms. The cooling process will continue.
To switch the Sabbath mode on, touch and hold the power and light keys simultaneously for five seconds. The indicator light will flash four times and confirm the Sabbath mode is on. Sabbath mode will switch off automatically after 96 hours, but to switch the Sabbath mode off at any time, touch and hold the power and light keys simultaneously for five seconds.
Door alarm
The wine cooler is equipped with an alarm that will sound if the door is left open for more than 60 seconds. To switch off the alarm, press Ⓐ. If the temperature has risen beyond the set temperature, the display will flash until the zone has returned to the required temperature.
Interior light
The wine cooler has two options for the interior lights. To change from one option to the other, press the Ⓞ.
- Display mode
This mode will leave the interior lights on constantly, allowing you to see the contents of the wine cooler at a glance at any time.
• Energy saving mode
This mode only switches on the interior light when the door is opened.
Care and Cleaning
Always disconnect the appliance from the mains electrical supply before any cleaning or maintenance.
- Do not use abrasive products or detergents. After washing, rinse and dry thoroughly.
- The exterior of the appliance and the door seal should be cleaned using mild soapy water and dried thoroughly.
- The interior cabinet should be cleaned using a solution of bicarbonate of soda and lukewarm water.
- Clean the shelves separately by hand using soap and water. Do not put them in the dishwasher.
- Ensure that the cloth is only moist when cleaning the control panel and electrical parts, and that all water is thoroughly dried off before reconnecting the power.
- Once cleaning is complete, reconnect the mains electrical supply.
- If the appliance is not to be used for prolonged periods of time, unplug and clean the appliance thoroughly. The door should be left slightly ajar to prevent the formation of odours or condensation.
Removing the shelves
To remove the shelves from the wine cooler, first remove all bottles from the shelf, then pull the shelf forwards until the groove on either side of the shelf is level with the plastic peg on either side of the cabinet (as shown in fig 4). Then lift the shelf up and pull forwards.
To replace the shelves, follow the steps above in reverse order.
Temperature alarm
If the temperature rises or falls outside the set temperature range, an alarm will sound and the display will flash.
- The wine cooler has not yet reached the set temperature (when first switched on).
• There has been a power failure.
• The wine cooler has been overloaded.
• The door is not closed properly.
If you have any problems with your appliance, you should check the troubleshooting guide prior to calling CDA Customer Care to prevent unnecessary service calls and potential cost.
If the appliance is not working, check
• There is power to the appliance
• The house fuses or circuit breakers are intact and the fuse in the plug has not blown.
- The plug socket is functioning correctly. To check this, plug another electrical appliance in to see if the socket is working.
• The ambient temperature is between 16^ to 38^ C.
The appliance is working, but not very well, check
• The appliance is not overloaded.
• The thermostat is set to an appropriate temperature.
• The door is closing properly.
• The door gasket is sealing properly
• There is enough ventilation at the side and rear walls.
• The ambient temperature is between 16^ to 38^ C.
The appliance is noisy, check
• The appliance is level and stable.
• The cooling gas will make some noise, even when the compressor is not running.
• During operation, it is normal for the fan to run, even when the compressor is not running.
The light does not work, check
• There is power to the appliance.
• The house fuses or circuit breakers are intact and the fuse in the plug has not blown.
• The light button is not set to off.
Please note:
The LED lighting cannot be replaced without a service call. If the light fails, contact CDA Customer Care.
The door will not close properly, check
• The appliance is level and stable.
• If the door has been removed, it may not have been correctly refitted.
• The door seal is dirty.
• The shelves are not positioned correctly.
The display show "E1" or "E2"
• The temperature sensor has failed.
Installing the Wine Cooler
This appliance is intended to be built in to a kitchen cabinet.
This appliance should be installed in a well ventilated, dry room.
This appliance must not be installed:
- In direct sunlight
- Adjacent to a heat source (oven or radiator)
- Below a hob unit
Place your wine cooler in a location which is strong enough to support its weight when fully loaded. To level the wine cooler, adjust the front levelling legs at the bottom of the wine cooler.
Ensure that there is an adequate flow of air at the rear of the cabinet, as shown in the diagram.
Please note that a plinth vent of at least 200 cm^2 is recommended to allow for sufficient ventilation. If a ventilation intake is provided elsewhere, the plinth vent may not be necessary.
Fitting advice
- Ensure the unit is located centrally in the aperture.
- Secure the wine cooler in position using two screws to fix the product to the underside of the top shelf.
IMPORTANT: Failure to follow the instructions regarding installation and ventilation may invalidate the warranty supplied with your appliance.
To ensure the proper functioning of the appliance, air vents should never be blocked or covered.
To install the handle
IMPORTANT: Do not overtighten the screws, and do not use power tools to install the handle.
- Carefully locate the handle over the fixing pins.
- Using the supplied allen key, tighten the securing grub screw to fix the handle.
IMPORTANT: Take care when installing the handle not to damage the door. Any damage caused may not be covered by the warranty supplied with your appliance.
| A B C | |||
| 45cm H | 44.1 45.5 45 | ||
| 88cm H | 87.1 88.5 87.3-87.8 | ||
| 122cm H | 122.0 | 123.4 | 122.2-122.7 |
Reversing the Door
It is possible to reverse the door on this appliance, if required.
To do so, follow the steps below:

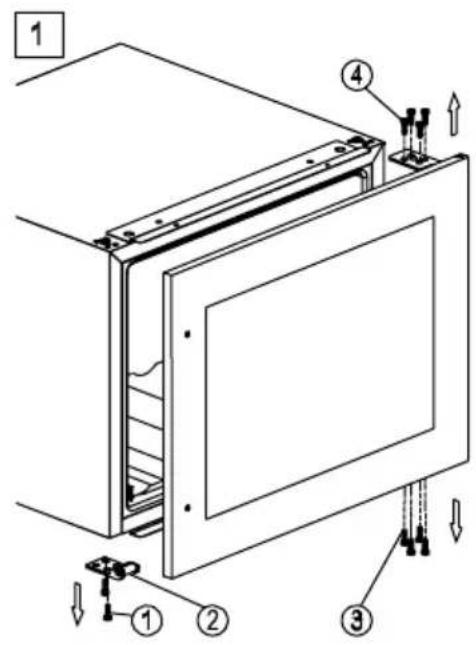

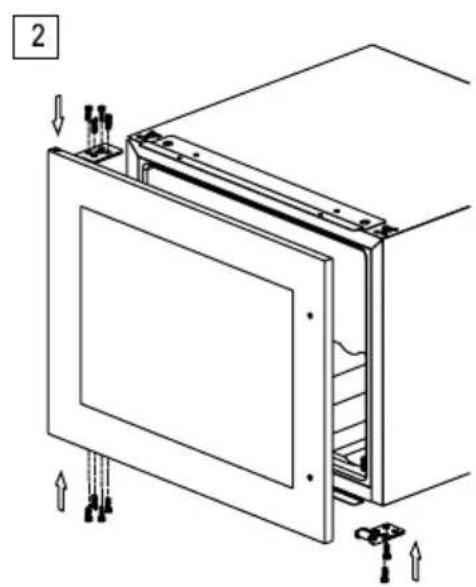

- Remove the glass door by removing the eight screws (3 and 4 in figure 6). Support the door as you do this to prevent damage.
- Gently remove the door and place on a padded surface to avoid the risk of damage.
- Unscrew the roller (2) and relocate it on the opposite side.
- Rotate the door 180^ and relocate it on the opposite side.
- Refit the eight screws (3 and 4), ensuring the door is level.
- Roller fixing screw
- Roller
- Hinge fixing screws
- Hinge fixing screws
fig. 6
Electrical Information
Warning! This appliance must be earthed.

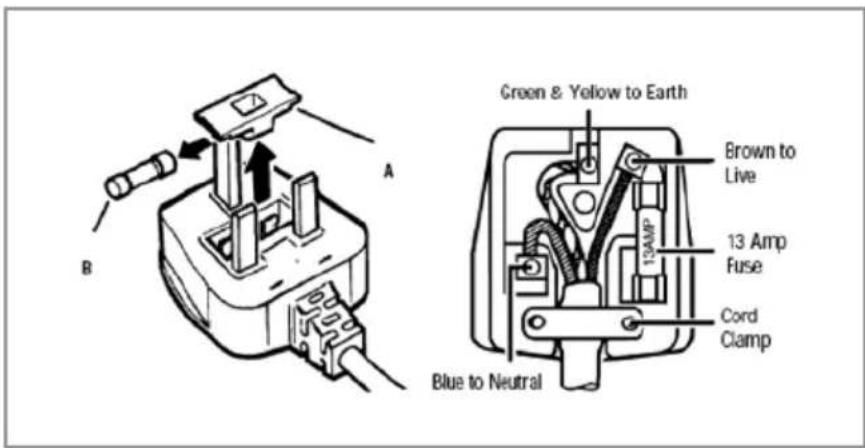

The mains lead of this appliance has been fitted with a BS 1363A 13 amp fused plug. To change a fuse in this type of plug, follow the steps below:
- Remove the fuse cover and fuse.
- Fit replacement 13A fuse, ASTA approved to BS 1362 type, into the fuse cover.
- Replace fuse cover.
Important: Do not use the appliance without the fuse cover in position.
How to connect an alternative plug
If the fitted plug is not suitable for your socket outlet, then it should be cut off and disposed of safely to avoid possible shock hazard. A suitable alternative plug of at least 13 Amp rating to BS 1363 should be used.
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:-
- The wire which is coloured GREEN and YELLOW must be connected to the terminal which is marked with the letter (E) or by the Earth symbol 12 or coloured GREEN and YELLOW.
- The wire which is coloured BLUE must be connected to the terminal which is marked with the letter (N), or coloured BLACK.
- The wire which is coloured BROWN must be connected to the terminal which is marked with the letter (L) or coloured RED.
If in doubt regarding the electrical connection of this appliance, consult a qualified electrician. Do not shorten the supply cable, the appliance may require removing for servicing.
N.B. Ensure that the plug socket is situated in an easily accessible place.
| Brand | CDA | |
| Model Identifier FWV451SS FWV | 901SS | |
| Category of the Household Refrigerating Appliance | 2 | |
| Voltage/Frequency | 230-240V~/50Hz | |
| Dimensions (WxDxH cm) 59.2x | 60.8x45.5 59.2x60.8x88.5 | |
| Weight (kg) 30 48 | ||
| Energy Efficiency Class B B | ||
| Annual Energy Consumption (AEc) (kWh/year) | 190 195 | |
| The energy consumption is based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located. | ||
| Storage Volume (l) 65 146 | ||
| Coldest Storage Temperature (°C) | 5 | |
| Defrosting Type | Automatic | |
| Climate Class | Climate class: N [climate class].This appliance is intended to be used at an ambient temperature between “16” [lowest temperature] °C and “32” [highest temperature] °C. | |
| Airborne Acoustical Noise Emissions in dB(A) re1 pW | 44 44 | |
| Installation Type | Built-in | |
| This appliance is intended to be used exclusively for the storage of wine. | ||
To contact our Customer Care Department, or for Service, please contact us on the details below.
- FWV451/FWV901/FWV1201
- |C|D|A|
- Important
- Appliance information:
- CE Declarations of Conformity:
- Before First Use
- Please note:
- Use
- Use and Controls
- FWV451
- Key:
- To switch the power on/off
- To change the temperature
- Optimal temperature selection
- To use the internal light
- FWV901/FWV1201
- Humidity Control
- Temperature display
- Dynamic Cooling and Silent modes
- Sabbath mode
- Door alarm
- Interior light
- Care and Cleaning
- Always disconnect the appliance from the mains electrical supply before any cleaning or maintenance.
- Removing the shelves
- Temperature alarm
- Troubleshooting
- If the appliance is not working, check
- The appliance is working, but not very well, check
- The appliance is noisy, check
- The light does not work, check
- The door will not close properly, check
- The display show "E1" or "E2"
- Installing the Wine Cooler
- Fitting advice
- To install the handle
- Reversing the Door
- Table of parts
- Electrical Information
- How to connect an alternative plug
- |C|D|A
Brand : CDA
Model : FWV451
Category : Wine cellar
