Product Type	Kitchen Sink
Brand	LEISURE
Model	LE95SB
Material	Stainless Steel
Installation Type	Drop-In (Self-Rimming)
Number of Bowls	Single Bowl
Overall Dimensions (L x W x H)	30 x 18 x 8 inches
Cutout Size (L x W)	28.5 x 16.5 inches
Weight	12.5 lbs
Drain Size	3.5 inches
Finish	Satin Brushed
Included Accessories	Drain assembly, mounting clips, template
Warranty	Limited Lifetime
Cleaning Instructions	Wipe with mild soap and non-abrasive cloth; avoid harsh chemicals
Sound Dampening	Sound deadening pads included
Undercoating	Sprayed on for condensation reduction

Frequently Asked Questions - LE95SB LEISURE

What is the cutout size required for the LE95SB sink?

The cutout size is 28.5 x 16.5 inches. Always verify with the included template before cutting.

Does the sink come with a drain assembly?

Yes, the package includes a drain assembly with a 3.5-inch strainer basket and mounting hardware.

Is the LE95SB sink suitable for undercounter installation?

No, this model is designed for drop-in (self-rimming) installation only. It is not meant for undermount use.

What material is the sink made of?

The sink is made from stainless steel with a satin brushed finish, providing durability and resistance to corrosion.

How do I clean and maintain the sink?

Clean with mild dish soap and a soft cloth. Avoid using abrasive cleaners, steel wool, or chlorine-based products that may damage the finish.

Can I install a garbage disposal with this sink?

Yes, the sink is compatible with standard 3.5-inch garbage disposals. Ensure the disposal unit fits the drain opening.

Does the sink have sound-dampening features?

Yes, it includes sound deadening pads and an undercoating to reduce noise and condensation.

What is the warranty on the LE95SB?

The sink comes with a Limited Lifetime Warranty against manufacturing defects. Refer to the manual for full terms.

Are mounting clips included?

Yes, the package contains mounting clips and a template for secure installation.

What is the sink's weight capacity?

The sink can typically support up to 150 lbs of distributed load, but heavy impact should be avoided.

USER MANUAL LE95SB LEISURE

Stainless Steel Inset Sinks with Fixed Position Clips

1. It is recommended that the inset sink is fitted to the worktop before being permanently fixed to the cabinet.

2. Place the sink upside down on worktop. Position the sink relative to the worktop as required, ensuring that the cabinet framework will be clear of all parts of the sink, or alternatively where provided use cut-out template found on sink wrapper.

1. Remove the sink and draw another line 10mm inside the outline of the sink top.

This is the cutting line for the aperture.

1. Drill as large a hole as possible inside the cutting line. Using a pad saw, jig saw or similar, cut out the aperture to the cutting line.

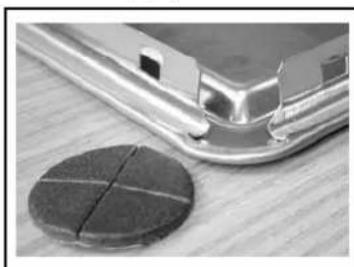

2. Remove the paper backing from the quadrant section and apply to all 4 corners of the sink.

Close-up of a metallic object with a circular dark object on a wooden surface (no text or symbols visible)

Close-up of a metallic mechanical component with visible surface grooves and a dark base (no text or symbols)

Remove the protective back from the main seal and stick to the underside of sink.

Close-up of a hand holding a dark, irregularly shaped object with a white tip, against a wooden surface (no text or symbols visible)

Close-up of a metallic object with a rectangular indentation on a textured surface (no text or symbols visible)

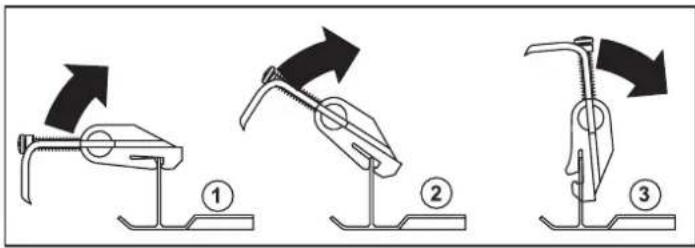

1. Attach the fi xing clips to the sink rail ensuring that the two 'prongs' of the clip face inwards. Open the hinge on the clip.

1. Turn the sink upside down and lay the worktop over the sink. Swing the clip into position. (This is the most effective method although if the worktop has been fixed to the cabinet, the sink can be placed in the aperture and the fixing effected from underneath).
2. Loosely tighten the corner fi xing clips to centralise the sink in the cut-out.
3. Tighten the fixing screws.

Technical line drawing of a mechanical assembly with no visible text or symbols

Do not overtighten the fi xing clamps once the sink is fully bedded in the sealing tape. Do not tighten fully at the fi rst attempt.

1. In certain circumstances it may not be possible to fit a clip to all the fixed positions; provided a good seal is achieved it is not detrimental to omit clips where diffi culty arises.

Recommended tightening sequence for sink fi xing clips

After Care Stainless Sinks

Day to Day Care

Routine cleaning of your stainless steel sink is easy if the following simple procedure is followed After use wipe the bowl and drainer with a soft damp soapy cloth, rinse with clean water. In hard-water areas, an application of Jif will avoid any build-up of dull fi lm of waterborne deposits. Although stainless steel is an extremely durable material and will withstand a great deal of hard use, it can be scratched by hard or sharp objects. If the surfaces are to be kept in a blemish free condition reasonable care should be taken when handling such items.

Discolouration and Heavy Staining

Staining of stainless steel in most cases is due to something being deposited on the steel rather than an attack on the material itself. The most common cause of staining is the build up of a thin fi lm of water borne deposits on the sink surface, often fi rst seen as a rainbow effect. The build up of such a fi lm can be avoided by drying the surface of the sink after use as described above. However, should such a fi lm appear, it can be readily removed with a soft damp cloth and Jif. To remove the fi lm, apply the Jif neat and rub vigorously with a damp cloth along the length of the sink surface. After cleaning rinse thoroughly with clean water and dry. Wire wool products and ferrous water supply pipes can leave minute ferrous particles adhered to the sink surface. Since stainless steel under normal conditions does not rust, these particles can cause the appearance of small brown rust stains. These stains can be removed using the procedure described above.

CAUTION :

Certain household products contain substances which will attack the stainless steel surface, they are :

1. Bleaches :

Most common domestic bleaches contain Chlorine in the form of a hypochlorite. Chlorine attacks the microscopic Chromium Oxide fi Im on the surface and can cause pitting of the surface. Bleaches should always be used in the prescribed strength specified by the manufacturers. Undiluted bleaches can cause pitting and staining of the surface and should be immediately rinsed off with plenty of clean water. All cleaning agents containing hypochlorites are unsuitable for use with stainless steel and, even highly diluted, can cause pitting under certain conditions. For this reason it is strongly recommended that the sink is not used for soaking clothes or cleaning clothes in hypochlorite solutions for long periods.

2. Silver Dip Cleaners :

These are particularly harmful since they contain strong acids which can cause discolouration and pitting. The first sign of this is an iridescent rainbow stain which turns an etched dull grey colour. Should any Silver Dip Cleaner come into contact with the surface of the sink it should be immediately rinsed off with plenty of clean water.

3. Corrosive Foodstuffs :

Fruit juices, damp salt, vinegar, readymade mustards, pickle and mayonnaise can cause pitting and corrosion if left in contact with the stainless steel surface for long periods.

4. Acids :

Sulphuric, Hydrochloric and other strong acids will cause pitting corrosion, as will photographic developing liquids. All should be immediately washed off with plenty of clean water if contact occurs.

Cleaning :

Always use a soft cloth. The use of coarse grit scouring powders or soap filled wire wool cleaning pads is not recommended, since both will mark the surface of the sink. Wire wool pads can leave tiny fragments of wire embedded in the surface and these can rust and leave small brown rust stains. Vigorous rubbing with a soft cloth, JIF, neat detergent, cleaning cream or liquid will remove these stains. Always remove wet cleaning aids (cloths, containers, etc.) from the sink surface after use in order to avoid the formation of water marks and rust stains.
