Product Type	Kitchen Sink
Brand	Leisure
Model	LN950
Material	Stainless Steel
Number of Bowls	Single Bowl
Mounting Type	Undermount
Overall Dimensions (L x W x D)	900 mm x 500 mm x 200 mm
Bowl Dimensions (L x W x D)	850 mm x 450 mm x 180 mm
Weight	12 kg
Drain Size	3.5 inches (90 mm)
Number of Faucet Holes	1
Finish	Satin Brushed
Sound Dampening	Yes, with undercoating
Included Accessories	Strainer, Mounting Hardware, Template
Installation	Professional installation recommended
Cleaning Instructions	Use mild detergent; avoid abrasive cleaners
Warranty	Limited Lifetime Warranty
Certification	cUPC, CSA, IAPMO
Country of Origin	China

Frequently Asked Questions - LN950 LEISURE

What are the dimensions of the Leisure LN950 kitchen sink?

The overall dimensions are approximately 900 mm length, 500 mm width, and 200 mm depth. The bowl measures about 850 mm x 450 mm x 180 mm.

Is the Leisure LN950 sink easy to install?

Yes, it comes with a mounting template and hardware for undermount installation. However, professional installation is recommended to ensure proper sealing and support.

What material is the LN950 sink made of?

It is constructed from high-quality stainless steel with a satin brushed finish, which resists stains and corrosion.

Does the sink include a drain?

Yes, a standard 3.5-inch (90 mm) strainer is included with the sink.

How do I clean and maintain the Leisure LN950 sink?

Clean with mild soap and water. Avoid abrasive pads or harsh chemicals. For shine, use a stainless steel cleaner following the grain.

What is the warranty on this sink?

Leisure offers a limited lifetime warranty against manufacturing defects. Normal wear and improper installation are not covered.

Can I install a garbage disposal with this sink?

Yes, the drain opening is compatible with standard garbage disposal units. Ensure proper support for the weight.

How many faucet holes does the sink have?

It comes with one pre-drilled hole for a standard faucet. Additional holes can be drilled if needed.

Is the sink soundproofed?

Yes, it has a sound-dampening undercoating that reduces noise from water and dishes.

What certifications does the Leisure LN950 have?

It is certified by cUPC, CSA, and IAPMO, meeting North American plumbing standards.

USER MANUAL LN950 LEISURE

Stainless Steel Inset Sinks with Fixed Position Clips

1. It is recommended that the inset sink is fitted to the worktop before being permanently fixed to the cabinet.
2. Place the sink upside down on worktop. Position the sink relative to the worktop as required, ensuring that the cabinet framework will be clear of all parts of the sink, or alternatively where provided use cut-out template found on sink wrapper.

With sharp soft pencil draw round sink as accurately as possible.

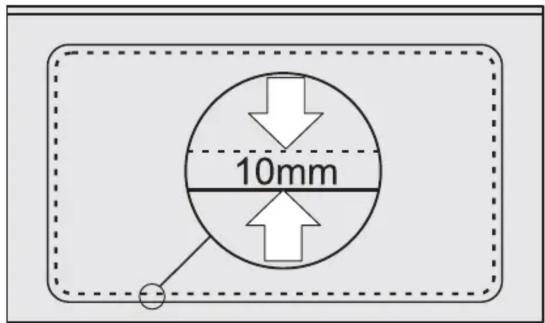

1. Remove the sink and draw another line 10mm inside the outline of the sink top.

This is the cutting line for the aperture.

1. Drill as large a hole as possible inside the cutting line. Using a pad saw, jig saw or similar, cut out the aperture to the cutting line.

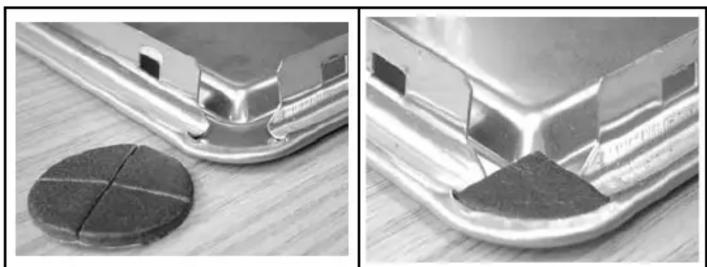

2. Remove the paper backing from the quadrant section and apply to all 4 corners of the sink.

Close-up of a metallic tool component with a circular feature, showing surface texture and edge details (no text or symbols visible)

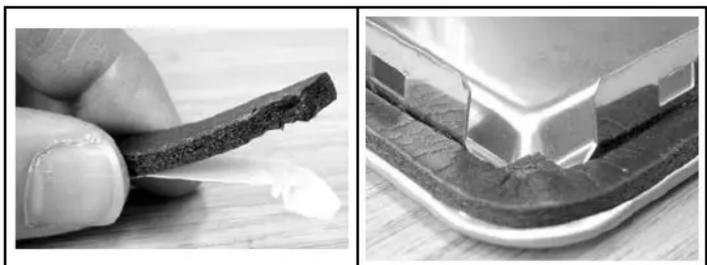

Remove the protective back from the main seal and stick to the underside of sink.

Close-up of a hand holding a damaged dark material with a white tip, alongside a close-up of a metallic object on a surface (no text or symbols visible)

1. Attach the fi xing clips to the sink rail ensuring that the two ‘prongs’ of the clip face inwards. Open the hinge on the clip.

1. Turn the sink upside down and lay the worktop over the sink. Swing the clip into position. (This is the most effective method although if the worktop has been fixed to the cabinet, the sink can be placed in the aperture and the fixing effected from underneath).
2. Loosely tighten the corner fixing clips to centralise the sink in the cut-out.
3. Tighten the fixing screws.

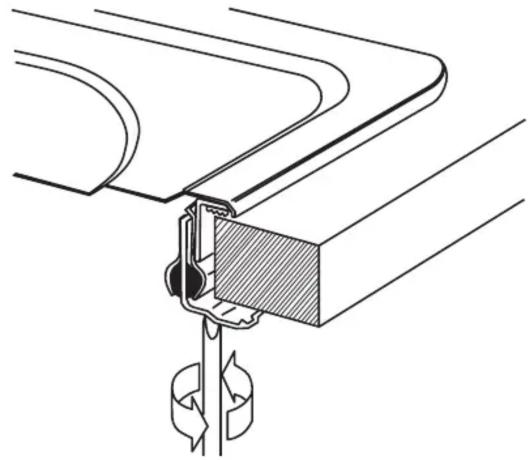

Technical line drawing of a mechanical assembly with no visible text or symbols

Do not overtighten the fi xing clamps once the sink is fully bedded in the sealing tape. Do not tighten fully at the fi rst attempt.

1. In certain circumstances it may not be possible to fit a clip to all the fixed positions; provided a good seal is achieved it is not detrimental to omit clips where diffi culty arises.

Recommended tightening sequence for sink fi xing clips

After Care Stainless Sinks

Day to Day Care

Routine cleaning of your stainless steel sink is easy if the following simple procedure is followed After use wipe the bowl and drainer with a soft damp soapy cloth, rinse with clean water. In hard-water areas, an application of Jif will avoid any build-up of dull fi lm of waterborne deposits. Although stainless steel is an extremely durable material and will withstand a great deal of hard use, it can be scratched by hard or sharp objects. If the surfaces are to be kept in a blemish free condition reasonable care should be taken when handling such items.

Discolouration and Heavy Staining

Staining of stainless steel in most cases is due to something being deposited on the steel rather than an attack on the material itself. The most common cause of staining is the build up of a thin fi lm of water borne deposits on the sink surface, often fi rst seen as a rainbow effect. The build up of such a fi lm can be avoided by drying the surface of the sink after use as described above. However, should such a fi lm appear, it can be readily removed with a soft damp cloth and Jif. To remove the fi lm, apply the Jif neat and rub vigorously with a damp cloth along the length of the sink surface. After cleaning rinse thoroughly with clean water and dry. Wire wool products and ferrous water supply pipes can leave minute ferrous particles adhered to the sink surface. Since stainless steel under normal conditions does not rust, these particles can cause the appearance of small brown rust stains. These stains can be removed using the procedure described above.

CAUTION :

Certain household products contain substances which will attack the stainless steel surface, they are :

1. Bleaches :

Most common domestic bleaches contain Chlorine in the form of a hypochlorite. Chlorine attacks the microscopic Chromium Oxide film on the surface and can cause pitting of the surface. Bleaches should always be used in the prescribed strength specified by the manufacturers. Undiluted bleaches can cause pitting and staining of the surface and should be immediately rinsed off with plenty of clean water. All cleaning agents containing hypochlorites are unsuitable for use with stainless steel and, even highly diluted, can cause pitting under certain conditions. For this reason it is strongly recommended that the sink is not used for soaking clothes or cleaning clothes in hypochlorite solutions for long periods.

2. Silver Dip Cleaners :

These are particularly harmful since they contain strong acids which can cause discolouration and pitting. The first sign of this is an iridescent rainbow stain which turns an etched dull grey colour. Should any Silver Dip Cleaner come into contact with the surface of the sink it should be immediately rinsed off with plenty of clean water.

3. Corrosive Foodstuffs :

Fruit juices, damp salt, vinegar, readymade mustards, pickle and mayonnaise can cause pitting and corrosion if left in contact with the stainless steel surface for long periods.

4. Acids :

Sulphuric, Hydrochloric and other strong acids will cause pitting corrosion, as will photographic developing liquids. All should be immediately washed off with plenty of clean water if contact occurs.

Cleaning :

Always use a soft cloth. The use of coarse grit scouring powders or soap filled wire wool cleaning pads is not recommended, since both will mark the surface of the sink. Wire wool pads can leave tiny fragments of wire embedded in the surface and these can rust and leave small brown rust stains. Vigorous rubbing with a soft cloth, JIF, neat detergent, cleaning cream or liquid will remove these stains. Always remove wet cleaning aids (cloths, containers, etc.) from the sink surface after use in order to avoid the formation of water marks and rust stains.
