2615 0220 JB - Hand tool DREMEL - Free user manual and instructions

Type of Tool	Rotary Multi-Tool
Brand	Dremel
Model	2615 0220 JB
Power Source	Corded Electric
Voltage	120 V
Amperage	1.2 A
Variable Speed	Yes, 5,000 – 35,000 RPM
Collet Size	1/32 in. to 1/8 in.
Weight	1.2 lbs (0.54 kg)
Dimensions	9.5 x 2.5 x 2.5 in (24 x 6.4 x 6.4 cm)
Cable Length	6 ft (1.8 m)
Keyless Chuck	No, wrench included
Cooling System	Fan-cooled motor
Soft Grip Body	Yes
Accessories Included	Grinding stone, sanding band, cutting wheel, wrench
Warranty	2 years limited
Cleaning Instructions	Unplug before cleaning; wipe with dry cloth; do not use solvents
Safety Features	Overload protection, double insulation
Spare Parts Availability	Collets, brushes, bearings available from Dremel

Frequently Asked Questions - 2615 0220 JB DREMEL

How do I change the collet on my Dremel 2615 0220 JB?

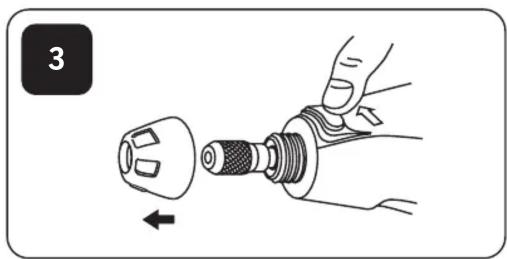

To change the collet, unplug the tool, press the shaft lock button, and use the wrench to loosen the collet nut. Remove the old collet, insert the new one, and tighten securely.

What accessories fit the Dremel 2615 0220 JB?

This tool accepts Dremel accessories with 1/32 in. to 1/8 in. shank diameters, including grinding stones, sanding bands, cutting wheels, and polishing bits.

How do I adjust the speed on the Dremel 2615 0220 JB?

The speed is controlled by the dial on the top of the tool. Turn it to the desired setting; higher numbers correspond to higher RPM.

Is the Dremel 2615 0220 JB corded or cordless?

It is a corded model, requiring a power outlet. It operates on standard 120V AC.

What is the maximum RPM of the Dremel 2615 0220 JB?

The tool has a variable speed range from 5,000 to 35,000 RPM.

How do I clean and maintain my Dremel rotary tool?

Always unplug before cleaning. Wipe the exterior with a dry cloth. Do not use harsh chemicals. Periodically check and replace carbon brushes if needed.

Can I use the Dremel 2615 0220 JB for wood carving?

Yes, with appropriate carving bits. Use low to medium speeds for best control.

What is the warranty on the Dremel 2615 0220 JB?

It comes with a 2-year limited warranty from Dremel covering manufacturing defects.

How do I replace the carbon brushes?

Unplug the tool, remove the brush caps on the sides, pull out old brushes, insert new ones, and replace caps. Ensure brushes are properly seated.

Why is my Dremel tool overheating?

Overheating may be due to blocked vents, dull accessories, or excessive load. Turn off and let cool. Clean vents and ensure proper usage.

USER MANUAL 2615 0220 JB DREMEL
