SP15020N - Coffee grinder SWAN - Free user manual and instructions

Product Type	Coffee Grinder
Brand	Swan
Model	SP15020N
Colour	Black/Silver
Dimensions (W x D x H)	12 x 12 x 20 cm
Weight	0.5 kg
Power Rating	150 W
Voltage	220-240 V ~ 50/60 Hz
Bean Capacity	50 g
Blade Material	Stainless Steel
Housing Material	Plastic
Grinding Mechanism	Stainless steel blades
Grind Settings	Pulse control for coarse or fine grind
Safety Features	Overload protection, non-slip base
Cord Length	0.8 m
Included Accessories	Measuring spoon, user manual
Cleaning	Detachable bowl, hand wash recommended
Warranty	2 years
Certifications	CE, RoHS

Frequently Asked Questions - SP15020N SWAN

How do I clean the coffee grinder?

Unplug the grinder and remove the bowl. Wipe the bowl and lid with a damp cloth. Do not immerse the motor base in water. Use a dry brush to remove coffee residue from the blades. Ensure all parts are dry before reassembling.

Can I grind spices or nuts in this grinder?

Yes, the Swan SP15020N can grind spices, nuts, and other dry ingredients, but it is primarily designed for coffee beans. Clean thoroughly between uses to avoid flavor transfer.

What is the maximum capacity for coffee beans?

The maximum capacity is 50 grams of coffee beans. Do not overfill to ensure even grinding and prevent motor strain.

How do I achieve a fine or coarse grind?

Hold the pulse button for shorter bursts for a coarse grind, or longer for a fine grind. The grind consistency depends on the duration of operation.

Is the grinder safe to use?

Yes, it features overload protection and a non-slip base. Always operate on a flat surface and do not leave unattended while in use.

Can I use the grinder continuously?

No, allow the motor to cool down after every minute of continuous use to prevent overheating. The grinder has a thermal cut-off for safety.

What is the noise level?

The grinder operates at a typical noise level of around 80 dB due to the blade mechanism. It is normal for coffee grinders.

How long is the warranty?

The Swan SP15020N comes with a 2-year warranty from the date of purchase. Keep your receipt for warranty claims.

Can I grind wet ingredients?

No, this grinder is designed for dry ingredients only. Grinding wet items may damage the motor and pose an electrical hazard.

Where can I find replacement parts?

Contact Swan customer service or visit the official website for spare parts such as the bowl or lid. Use only genuine parts for compatibility.

USER MANUAL SP15020N SWAN

SP15020N.indd 2-3

Swan designed for life

Multi Grinder
For model: SP15020N

v2.0

27/09/2012 10:41

Important Safeguards

When using any electrical appliance, basic safety precautions should always be followed including the following:

1. Always ensure that the voltage on the rating label corresponds to the mains voltage in your home
2. Incorrect operation and improper use can damage the appliance and cause injury to the user.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
4. Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it must be replaced by the manufacturer or qualified person in order to avoid an electrical hazard.
5. Do not use the appliance if it has been dropped or damaged in any way. In case of damage, take the unit in for examination and/or repair by an authorised service agent.
6. Never immerse the unit in water or any other liquid for cleaning purposes.
7. Remove the plug from the socket by gripping the plug. Do not pull on the cord to disconnect the appliance from the mains. Unplug the unit when not in use or before cleaning
8. The use of accessory attachments that are not recommended or supplied by the manufacturer may result in injuries, fire or electric shock.
9. Do not let the cord hang over the edge of a table or counter. Ensure that the cord is not in a position where it can be pulled on inadvertently.
10. Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric burner or in a heated oven.
11. Do not use the appliance on a gas or electric cooking top or over or

Helpline Number: 01733 404703 WWW.SWAN-BRAND.CO.UK

Important Safeguards

near an open flame.
12. Use of an extension cord with this appliance is not recommended. However, if it is necessary to use an extension lead, ensure that the lead is suited to the power consumption of the appliance to avoid overheating of extension cord, appliance or plug point. Do not place the extension cord in a position where it can be pulled on by children or animals or tripped over.
13. This appliance is not suitable for outdoor use. Do not use the appliance for anything other than its intended use.
14. Do not carry the appliance by the power cord.
15. Do not leave the appliance unattended during use.
16. Always operate the appliance on a smooth, even, stable surface. Do not place the unit on a hot surface.
17. The manufacture does not accept responsibility for any damage or injury caused by improper or incorrect use, or for repairs carried out by unauthorised personnel.
18. In case of technical problems, switch off the product and do not at tempt to repair it yourself. Return the appliance to an authorised service facility for examination, adjustment or repair. Always insist on the use of original spare parts. Failure to comply with the above mentions precautions and instructions, could affect the safe operation of this product.
19. Your appliance must never be switched on through an external timer or any kind of separate remote control system
20. Do not touch the cutting blades and do not insert any kind of object(knives, forks, spoons etc.) while the product is operating. A spatula may be used only when the product is not in operation, avoiding the risk of serious injury.

Helpline Number: 01733 404703 WWW.SWAN-BRAND.CO.UK

Specification

Model No. SP15020N

220-240V\~50Hz

150W

How to Use

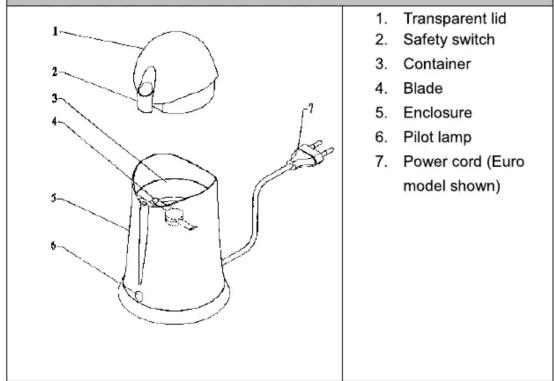

Parts

How to use your grinder

Grinding Coffee

Remove the transparent lid. Put a maximum of 36 grams of beans in the machine. Replace the lid ensuring that the switch is facing the front of the product. Connect the product to the mains supply. Hold the lid and press the switch down briefly before releasing, then repeat. This is the best method for grinding coffee beans – in a pulse action.

The maximum grinding time should be 20-30 seconds in total. The fineness of the grindings depend on the quality/quantity of beans and grinding time.

Swan designed for life

Helpline Number: 01733 404703 WWW.SWAN-BRAND.CO.UK

How to Use

Herbs and Spices

The technique for herbs and spices is pretty much the same and equally effortless as for grinding coffee above.

When grinding is complete, remove the plug from the mains and remove the transparent lid. Empty the grindings from the machine.

Please be careful of the blades – they are sharp!

Cleaning and Maintenance

• Remove mains plug. Clean the container and lid with a brush and the grinding chamber with kitchen towel – moistened with mild detergent solution if necessary. Dry thoroughly.
  • The lid may be washed in warm water
  • Wipe the casing with a damp cloth.
  • We do not recommend putting the transparent lid in the dishwasher as this can cause the transparent plastic to become cloudy over time.
  • NEVER IMMERSE ANY PART OF THE BASE UNIT IN WATER

Spares reference: SP15020N-01 = LID

Helpline Number: 01733 404703 WWW.SWAN-BRAND.CO.UK

Swan designed for life

BS Plug Wiring

The wires in the mains lead are coloured in accordance with the following code:

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

WARNING: THIS APPLIANCE IS DOUBLE INSULATED. DO NOT CONNECT ANY WIRE TO THE EARTH TERMINAL

WEEE Directive

Disposal of Unit

Disposal instructions for Swan items in accordance with the WEEE directive. Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recyclemore.co.uk, or www.recyclenow.co.uk for access to information about the recycling of electrical items. The WEEE directive, introduced in August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.

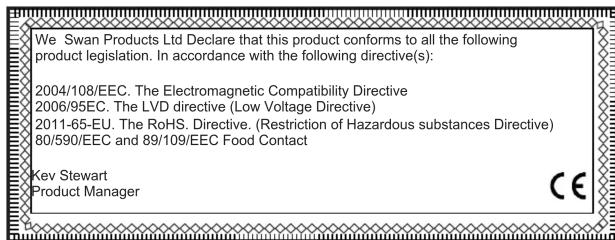

Declaration of EC Conformity

Helpline Number: 01733 404703 WWW.SWAN-BRAND.CO.UK

Two Year Warranty

This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty materials of workmanship the faulty products must be returned to the place of purchase. Refunds or replacement is at the discretion of the store.

The following conditions apply:

The product must be returned to the retailer with proof of purchase. The product must be installed and used in accordance with the instructions contained in this instruction guide. It must be used only for domestic purposes. It does not cover wear and tear, damage, misuse or consumable parts. Swan Products Ltd has limited liability for incidental or consequential loss or damage. This guarantee is valid in the UK and Eire Only.
