Rebel MC300 - Loudspeaker BOSS - Free user manual and instructions

Product Type	Portable Bluetooth Speaker
Brand	Boss
Model	Rebel MC300
Dimensions (W x H x D)	Approx. 12 x 8 x 15 cm
Weight	Approx. 0.5 kg
Power Source	Rechargeable lithium-ion battery, USB-C charging
Battery Life	Up to 10 hours at moderate volume
Charging Time	Approx. 3 hours
Connectivity	Bluetooth 5.0, 3.5mm AUX input
Wireless Range	Up to 10 meters
Speaker Configuration	Full-range mono driver with passive radiator
Output Power	5W RMS
Frequency Response	80 Hz – 20 kHz
Controls	Power, Volume +/- , Play/Pause, Bluetooth pairing button
Microphone	Built-in for hands-free calling
Water Resistance	IPX5 (splash resistant)
Material	Fabric mesh with rubberized base
Accessories Included	USB-C cable, user manual
Maintenance	Wipe with a soft dry cloth; do not use solvents
Safety Warnings	Do not expose to extreme heat or moisture; use only approved charger
Spare Parts & Repairability	Battery replacement by qualified service; not user-serviceable
General Information	Designed for portable use with rich sound for its size

Frequently Asked Questions - Rebel MC300 BOSS

How do I pair my Rebel MC300 with my phone?

Turn on the speaker. Press and hold the Bluetooth button until the indicator flashes. On your phone, go to Bluetooth settings and select Rebel MC300.

How long does the battery last?

The battery lasts up to 10 hours at moderate volume. Actual battery life varies with volume and content.

Can I use the speaker while charging?

Yes, you can use the speaker while it is connected to a power source via the USB-C cable.

Is the Rebel MC300 waterproof?

It is splash resistant with an IPX5 rating, meaning it can withstand light rain or splashes, but should not be submerged.

How do I reset the speaker?

If the speaker is unresponsive, press and hold the power button for 10 seconds to force a reset. You may need to re-pair your device.

Can I connect two Rebel MC300 speakers together?

This model does not support true wireless stereo pairing. Only one speaker can be used per device.

How do I clean the speaker?

Wipe the exterior with a soft, dry cloth. Do not use any abrasive cleaners or submerge in water.

What should I do if the speaker won't turn on?

First, charge the speaker for at least 30 minutes using the included USB-C cable. If still not powering on, press and hold the power button for 5 seconds. If the issue persists, contact support.

Does it have a microphone for calls?

Yes, the Rebel MC300 has a built-in microphone for hands-free phone calls. Answer or end calls via the play/pause button.

What is the warranty period?

Boss typically offers a 1-year limited warranty against defects. Check your local retailer for details.

USER MANUAL Rebel MC300 BOSS

Motorcycle/UTV Amplified Speaker System

User's Manual

BOSS

REBEL®

Congratulations on your purchase of a BOSS Audio Systems Off-road amplified speaker system. It has been designed, engineered and manufactured to bring you the highest level of performance and quality, and will afford you years of listening pleasure.

Thank you for making BOSS AUDIO SYSTEMS your choice for entertainment!

MC300 Motorcycle/UTV Amplified Speaker System

Contents

2 x Weatherproof, High Power Speakers with Built-in Amp

4 x Speaker Grilles

1 x Mounting Hardware

Features

• Weatherproof, High Power Speakers with Built-in Amp
• High-Impact, Hi-Temp ABS Exterior
• Extra Replacement Grilles (Optional Color Scheme 2)
• Stainless Steel brackets
• Weatherproof Wired Remote Volume Control
• 3.5mm Stereo Audio Input Jack
• Wired Remote Volume Control

Installation

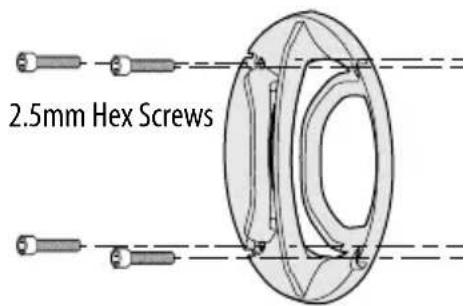

1. Changing the grilles (Optional) - Remove the screws in a criss-cross pattern. Be sure to install them the same way, do not overtighten.

2. Screw the brackets to the bottom of the speakers.

3. Find a safe, ideal mounting location and fit the brackets over the chosen mounting bars.

4. Fasten the mounting screws after you review the safety of the mounting location.

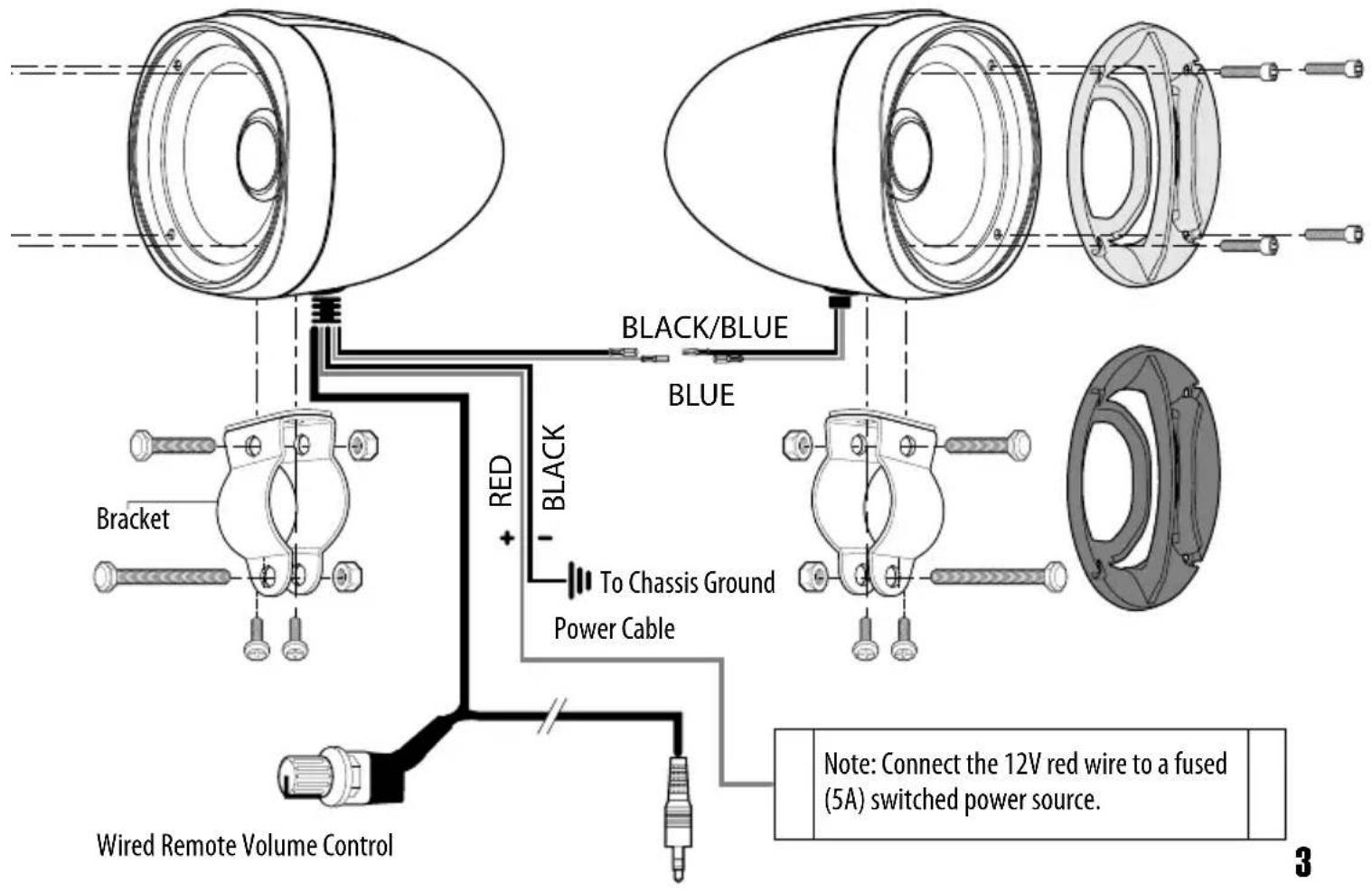

Wiring

1. Be sure to run the wiring securely and far away from any moving components.

2. Connecting the power cable to the power source: You will need to connect the 12V red wire to a (fused 5A) switched power source.

3. Use the 3.5mm stereo jack to connect to your entertainment source (MP3 player, etc).

4. Use your player device and wired remote volume controller to control your level of loudness.

Changeable Grille

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

MC300 Motorcycle/UTV Amplified Speaker System

MC300 Motorcycle/UTV Amplified Speaker System

Specifications

Operation Voltage.... 10-16V

THD....<0.1%

S/N..... >50dB

Channel Separation..... >50dB

Frequency Response.... 20Hz-20kHz

Sensitivity.... 150mv

Max Power 400 Watts

MC300 Motorcycle/UTV Amplified Speaker System

BOSS®

AUDIO SYSTEMS

BOSS Audio Systems

3451 Lunar Court • Oxnard, CA 93030

www.bossaudio.com

800.999.1236
