RJ25-4 - Oven Chefman - Free user manual and instructions

Product Type	Countertop Oven
Model Number	RJ25-4
Brand	Chefman
Dimensions (approx.)	17 x 12 x 9 inches
Weight (approx.)	10 lbs
Power Supply	120V AC, 60Hz
Wattage (estimated)	1200W
Functions	Toast, Bake, Warm
Controls	Temperature knob, Timer knob (mechanical)
Pilot Light	Yes
Door Type	Glass door
Rack Positions	2 (upper and lower tracks)
Accessories Included	Wire rack, Bake tray, Crumb tray
Crumb Tray	Drop-down, non-removable
Capacity	4 slices of toast
Preheat Required	Yes, 4-5 minutes for baking
Cleaning	Wipe exterior with damp sponge; wash rack, tray, pan in hot water
Safety Features	Polarized plug, short cord, auto shut-off (timer)
Warranty	1-year limited parts and labor
Customer Support	Toll-free: 1-888-315-6553, Email: [e-mail]

Frequently Asked Questions - RJ25-4 Chefman

How do I preheat the oven for baking?

Set the temperature knob to the desired temperature, then turn the timer knob to the Warm position. Allow 4-5 minutes for preheating before placing food inside.

Can I use aluminum foil in the oven?

No, do not cover any part of the oven with aluminum foil as it may cause a fire hazard.

How do I clean the crumb tray?

Ensure the oven is completely cool. Tilt the oven back, push the handle down to unlock the crumb tray, pull it down, and wipe with a damp cloth. Push back and lock. Note: the tray is not removable.

What should I do if the oven smokes during first use?

This is normal. During initial use, smoke and a slight odor may appear due to manufacturing residues. It will disappear after a few uses.

Can I bake frozen pizza or pastries?

Yes, use the bake function. Place frozen items on the wire rack or bake tray, and set the timer according to the package instructions. For glazed items, use the baking pan to prevent drips.

How do I set the timer for less than 10 minutes?

Turn the timer knob past the 10-minute mark first, then rotate back to the desired time. This ensures the timer starts correctly.

Is the oven suitable for toasting bagels?

Yes. Place the bagel with the cut side down on the wire rack. Select the Toast function and set the color control to a darker setting than for regular bread.

What type of cookware can I use?

Only use metal or glass containers. Do not use cardboard, plastic, paper, or similar materials. Oversized metal utensils should also be avoided.

How do I clean the exterior of the oven?

Unplug the oven and allow it to cool. Wipe the exterior with a damp sponge. Do not use abrasive cleaners or metal scouring pads.

What is the warranty period and how do I get service?

The oven comes with a 1-year limited warranty. For service, call 1-888-315-6553 or email [e-mail]. Proof of purchase is required.

USER MANUAL RJ25-4 Chefman

CHEFMAN® cooktop oven with roasted chicken on display, no visible text or symbols on the main subject.

Now that you have purchased a Chefman® product you can rest assured in the knowledge that as well as your 1-year parts and labor warranty you have the added peace of mind of dedicated helplines and web support.

AFTER SALES SUPPORT

888-315-6553

[e-mail]

MODEL: RJ25-4-BLACK-CL

|

一
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
|
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
一
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
一
|
[Non-Text]
[Non-Text]
[Non-Text]
一
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
(No text)
( x - 2x) t - xy^2 = ( x - 2x) f^ t
[Non-Text]
[Non-Text]
[Non-Text]
一
[Non-Text]
[Non-Text]
[Non-Text]
-
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
—
( x - 2x) t - xy^2 = ( x - 2x) f^ t
[Non-Text]
[Non-Text]
[Non-Text]
一
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]

[Non-Text]

|

[Non-Text]

Contents

1 Introduction
2 Important Safeguards
4 Features
5 Operating Instructions
6 User Maintenance
7 Terms and Conditions
8 Warranty Card

Congratulations!

You have made an excellent choice with the purchase of this quality Chefman® product. By doing so you now have the assurance and peace of mind which comes from purchasing a product that has been manufactured to the highest standards of performance and safety, supported by the high quality standards of Chefman®.

We want you to be completely satisfied with your purchase so this Chefman® product is backed by a comprehensive manufacturer's 1-year warranty and an outstanding after sales service through our dedicated Helpline.

We hope you will enjoy using your purchase for many years to come.

If you require technical support or in the unlikely event that your purchase is faulty please telephone our Helpline for immediate assistance. Faulty product claims made within the 1-year warranty period will be repaired or replaced free of charge provided that you have satisfactory proof of purchase (keep your receipt). This guarantee is in addition to your statutory rights. Your statutory rights are not affected. This limited warranty does not apply in cases of damage caused by accident, improper use, abuse and force majeure.

This limited warranty will be invalidated if the appliance is tampered with in any way whatsoever. In case of questions or technical problems please email [e-mail] or call the following toll-free help line number: 888-315-6553, Monday – Friday 9am to 5pm EST.

If the appliance has to be returned to us, it must be packed correctly as we cannot accept any responsibility for damage caused in transit.

IMPORTANT SAFEGUARDS

SAFETY INFORMATION

READ ALL INSTRUCTIONS.

THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY.

WARNING: When using electrical appliances especially when children are present, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions carefully.
2. Do not touch hot surfaces, Use handles or knobs.
3. Close supervision is necessary when any appliances are used by or near children.
4. To protect against electric shock, do not immerse cord, plug, or the oven in water or other liquid. Removable bake tray and wire rack may be washed.
5. Do not let cord hang over edge of table or counter, or touch hot surfaces.
6. Do not operate appliance with damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return the appliance to the nearest authorized service center for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by manufacturer may cause hazard or injury.
8. Do not place on or near a hot gas stove or electric burner, or in a heated oven or in a microwave oven.
9. When operating the oven keep at least four inches of space on all sides of the oven to allow for adequate air circulation.
10. Unplug from outlet when not in use and before cleaning. Allow cooling before putting on or taking off parts, and before cleaning.
11. To disconnect, turn the control to OFF, then remove the plug.
12. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
13. Do not cover any part of the oven with aluminum foil.
14. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.
15. Never leave the appliance unattended while in use.
16. Oversized foods or metal utensils must not be inserted into appliance as this may cause a fire or risk of electric shock.
17. A fire may result if the oven is covered or touching flammable material, including curtains, draperies, walls, and the like while in operation. Do not store any item on the oven during operation.
18. Extreme caution should be exercised when inserting containers made of anything other than metal or glass inside the oven.
19. Do not place any of the following materials in the oven: cardboard, plastic, paper, or similar materials.
20. Do not store any materials other than recommended accessories in this oven.
21. Always wear protective, insulated oven gloves when inserting or removing items from the hot oven.
22. Do not use outdoors.
23. Do not use appliance for other than intended use.
24. Always use appliance with crumb tray securely in place.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFEGUARDS (cont'd)

WARNING: This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

SHORT CORD INSTRUCTIONS

A short power supply cord is provided to reduce the hazards resulting from entanglement or tripping over a longer cord. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. If a longer detachable power-supply extension cord is used:

1. The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance, and:
2. The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

LINE CORD SAFETY TIPS

1. Never pull or yank on cord or the appliance.
2. To insert plug, grasp it firmly and guide it into outlet.
3. To disconnect appliance, grasp plug and remove it from outlet.
4. Before each use, inspect the line cord for cuts and/or abrasion marks. If any are found, this indicates that the appliance should be serviced and the line cord replaced. Please return it to an authorized service representative.
5. Never wrap the cord tightly around the appliance, as this could place undue stress on the cord where it enters the appliance and cause it to fray and break.

DO NOT OPERATE APPLIANCE IF THE LINE CORD SHOWS ANY DAMAGE OR IF APPLIANCE WORKS INTERMITTENTLY OR STOPS WORKING ENTIRELY.

CAUTION: To ensure continued protection against risk of electric shock, connect to properly grounded outlets only.

IMPORTANT: During the first few minutes of initial use, you may notice smoke and/or a slight odor. This is normal and should quickly disappear. It will not recur after appliance has been used a few more times.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

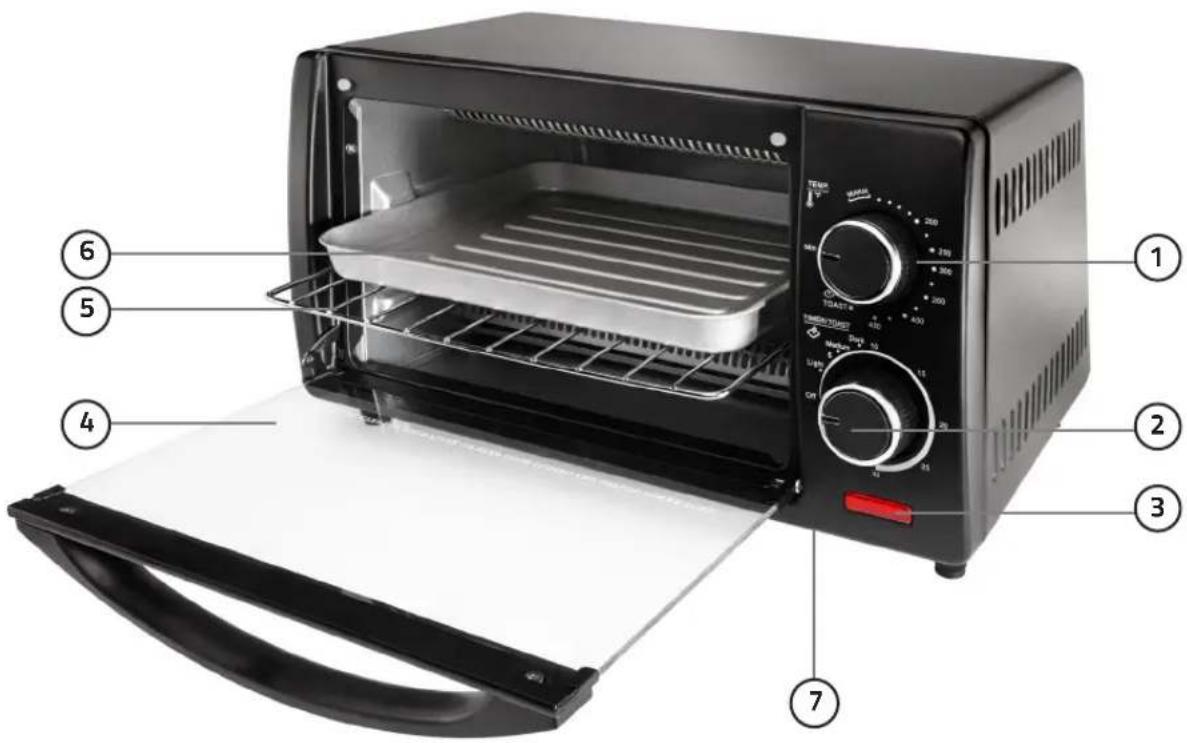

Features

1. Temperature control
2. Timer control
3. Pilot lamp
4. Glass door
5. Wire rack
6. Bake tray
7. Drop down crumb tray

Operating Instructions

WARNING: FIRE HAZARD

If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.

FOR TOAST

1. Place oven rack on higher track inside the unit. Place food item on rack.
2. Rotate temperature control knob to TOAST.
3. Rotate timer control knob past 10 and then back to desired toast color. A bell will sound when the toast cycle is complete.
4. When finished, rotate timer control knob to OFF and unplug.
   Caution: Remove with care as food is HOT.

FOR BAKING

1. Do not use oven cooking bags for baking as this can cause a fire hazard.
2. Always allow at least 1 inch between food and heating element to reduce the risk of fire.
3. Always unplug unit when not in use.
4. Place oven rack in lower track inside unit or use baking pan.
5. Rotate temperature control knob to desired temperature.
6. Set timer control knob to warm. Allow unit to preheat for 4-5 minutes prior to placing food in oven.
7. When ready to bake, rotate timer control knob to a desired time. To set time, rotate timer past 10 before setting any time below 10 minutes.
8. When finished, rotate timer control knob to OFF and unplug.

TOASTING TIPS

• To toast bagels or English muffins, place bread cut-side down. This will toast the cut side more than the outside. English muffins may need a darker setting than regular bread to achieve the same color.
• To toast frozen pastry or waffles, select a light color and toast directly on oven rack. If pastry has a glaze or frosting, use baking pan to prevent dripping.
• When toasting, condensation may form on oven door.
• At the end of the toast cycle, remove toast immediately or the heat remaining in the oven will dry out your food.

WARNING: ELECTRICAL SHOCK HAZARD

1. Failure to clean the oven interior regularly may result in fire.
2. It is important that you clean the appliance after each use to prevent an accumulation of grease and avoid unpleasant odors.
3. Unplug from outlet and allow the appliance to cool before cleaning.
4. Do not immerse appliance in water or wash in sink.
5. Removable wire rack, bake pan, crumb tray may be washed under hot water.
6. Clean exterior of appliance with a damp sponge.
7. Do not use abrasive cleaners or sharp utensils to clean as this may cause damage to the appliance.
8. Allow all parts and surfaces to dry thoroughly prior to plugging in and using this appliance.

TO CLEAN CRUMB TRAY

1. Ensure oven is completely cool.
2. Remove baking pan and wire rack from oven. Tilt oven back. Push handle down to unlock crumb tray.
3. Pull tray down. Gently wipe tray with a damp, clean cloth.
4. Push tray back and lock into place.
   Note: Crumb tray is not removable.

Terms and Conditions

CHEFMAN LLC warrants, subject to the conditions stated below, that from the date of purchase, this product will be free from mechanical defects for a period of ONE (1) year. CHEFMAN LLC, at its option, will repair or replace this product found to be defective during the warranty period. Should this product become defective by reason of improper workmanship or material defect during the specified warranty period, CHEFMAN LLC will repair or replace the same effecting all necessary parts replacements for a period of one year from the date of purchase. Transportation charges on parts, or products in whole, submitted for repair or replacement, under this warranty, must be borne by the purchaser.

This warranty is available to consumers only. You are a consumer if you own a CHEFMAN® 4 SLICE COUNTERTOP OVEN that was purchased at retail for personal, family or household use. Except as otherwise required under applicable law, this warranty is not available to retailers or other commercial purchasers or owners.

CONDITIONS: This warranty is valid for the original USA retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty service or replacement. Dealers, service centers, or retail stores do not have the right to alter, modify or in any way, change the terms and conditions of this warranty. Warranty registration is not necessary to obtain warranty on CHEFMAN LLC Products. Save your proof of purchase receipt.

ABOUT YOUR PRODUCT WARRANTY: Most warranty repairs are handled routinely, but sometimes requests for warranty service may not be appropriate. For example, warranty service would NOT apply if the product damage occurred because of misuse, lack of routine maintenance, shipping, handling, warehousing or improper installation. Similarly, the warranty is void if the manufacturing date or the serial number on the product has been removed or the equipment has been altered or modified. During the warranty period, the authorized service dealer, at its option, will repair or replace any part that, upon examination, is found to be defective under normal use and service.

NORMAL WEAR: This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product; improper voltage or current; use contrary to the operation instructions; deviation from instructions regarding storage and transportation; repair or alteration by anyone other than CHEFMAN LLC or an authorized service center. Further, the warranty does not cover Acts of God, such as fire, flood, hurricanes and tornadoes. CHEFMAN LLC shall not be liable for any incidental or consequential damages caused by the breach of any express or implied warranty. Except to the extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose is limited in duration to the duration of the above warranty. Some states, provinces or jurisdictions do not allow the exclusion or limitation of incidental of consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.

HOW TO OBTAIN WARRANTY SERVICE: If your CHEFMAN® 4 SLICE COUNTERTOP OVEN should prove to be defective within the warranty period, we will repair it, or if we think necessary, replace it. To obtain warranty service, simply email [e-mail] or call our toll-free number 1-888-315-6553 for additional information from our Customer Service Representatives, or send the defective product to Customer Service at Chefman, 873 Route 45, Suite 101, New City, NY 10956.

This warranty is effective for the time periods listed above and subject to the conditions provided for within this policy.

CHEFMAN is a registered trademark of PLUS ITS CHEAP, LLC.

CHEFMAN®

4 SLICE COUNTERTOP OVEN

Your details:

Model Number:

Full Name:

Address:

Email:

Date of Purchase*:

*We recommend you keep the receipt with this warranty card

Location of Purchase:

Description of Malfunction:

Return your completed warranty card to:

RJ Brands

873 Route 45

Suite 101

New City, New York

10956

AFTER SALES SUPPORT

888-315-6553

[e-mail]

MODEL: RJ25-4-BLACK-CL

Phone lines available Monday to Friday, 9am-5pm EST

1-YEAR LIMITED WARRANTY

To log-in to ClubChefman.com follow the below steps:

1. Enter www.clubchefman.com into your web browser.
2. Click on "Sign Up Now".
3. Fill in the required information as prompted.
   NOTE: "Place of Purchase" refers to the store at which you purchased your oven.
4. Sign in using your User Name and Password.

CLUB CHEFMAN ACCESS CODE: 2131262

CHEFMAN®

Follow Us

RJBRANDS.COM | CLUBCHEFMAN.COM | CHEFMAN.COM
