USER MANUAL PPM3306 PHILIPS

There may be certain differences between the content of this manual and your product. Please refer to the actual product. We reserve the right to update the product at any time without prior notice.

© 2023 AquaShield

All rights reserved

Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.

This product has been manufactured by and is sold under the responsibility of Guangdong Deerma Technology Company Limited and Guangdong Deerma Technology Company Limited is the warrantor in relation to this product.

Rev A MAR 23

PHILIPS

Neck and Shoulder Massager

Neck Massager

PPM3306

User Manual

Contents

1 Readme

Symbol Description

People Restricted or Prohibited from Use

Precautions for Use

Precautions for the Operation Place

Precautions for Maintenance

2 Product Features

3 Components

4 How to Use

Preparations Before Use

Operation

5 Maintenance

Cleaning

Disposal

6 Troubleshooting

7 Technical Parameters

8 Service Guide for Product Warranty

Warranty and Service

Warranty Card

9 Packing List

1 Readme

Please read this manual carefully before using the product and keep it properly. The manual is available at www.philips.com

Symbol Description

To avoid personal injury or property damage, be sure to observe the contents below.

- The following symbols are used to illustrate what you should observe.

Indicates prohibition

Indicates the actions that need to be subject to instructions

People Restricted or Prohibited from Use

The product should be used with caution by the following groups/ under the following circumstances

For those who are under the treatment at medical institutions or under some of the following conditions, please consult a doctor or a physical therapist for advice before use.

• Pregnant women or puerperae • People with hypertension • People whose back bones are abnormal • People who use the restorers

• People who have ever suffered from the cryogenic burns • People suffering from diseases related to vascular disorders • People suffering from body paresthesia • People suffering from spinal fractures and swelling of bones • People who have lost their skin temperature sensation • People suffering from lumbar disc herniation, spondylitis, etc. - People suffering from malignant tumors, people diagnosed with heart diseases, - People suffering from deformed arthritis, arthritis, and gout • People suffering from high nerve endings disorder caused by diabetes - People who have ever had skin trauma, people whose body temperature is above 38 degrees Celsius • People who have a pacemaker or other related medical electrical products implanted in their bodies - People who are easy to suffer from numbness of hands and feet, people who have difficulty with respirators - People suffering from lower back pain now or used to have pain in the head, waist, or feet

The product is not allowed to be used by the following groups/ under the following circumstances

People who are prohibited from doing exercises or stretching exercise as advised by their doctors

For example, people who suffer from thrombosis, severe aneurysm, acute venous aneurysm, all kinds of dermatitis, and all kinds of skin infections, are prohibited from using this Product, as these diseases can easily result in deterioration.

• People who are unable to express their will or who cannot operate the machine themselves to use the product.
• Please stop using immediately when you feel lower back pain, dizziness, vomiting, palpitation and other abnormal body reactions during use.
• This product is set for 15-minute timing at a time. Do not use it for no more than 15 minutes each time. After each use, stop the device for 30 minutes to ensure the extension of its service life.
• Do not use the product under the following circumstances:
• When you are severely tired
• Within one hour before and after meals
• When you are drunk

Precautions for Use

The appliance has a heated surface. Persons insensitive to heat must be careful when using the appliance. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. This appliance contains batteries that are only replaceable by skilled persons. Must be only supplied at safety extra low voltage corresponding to the marking on the appliance.

When this product is not in use, the USB charging cable must be unplugged. Charge the device with a 5V---1A adapter (purchased by yourself). Before use, check whether the power function button and the charging cable are in normal use. Check whether the product is intact before use. If any damage is found, regardless of its extent, stop using the product immediately. Remove the dust on the charger on a regular basis. The accumulated dust on the plug is likely to cause poor insulation due to humidity, and eventually lead to fire. If you cannot use it or feel abnormal, stop using it immediately and unplug the USB charging cable. In case of power cut, please unplug the USB charging cable. Do not remove the cover at the time of use of the device, for it is easy to cause an accident. Do not use the device when your body is wet, otherwise it is easy to get an electric shock. Do not pull the product with force, nor stab it with a knife or a sharp object. Do not stand on the device or use the device as a toy so as to avoid accidents. Do not load and ballast the USB charging cable or cause damage to it. Do not disassemble, modify or repair the product by yourself, nor unzip the product by yourself.

Precautions for the Operation Place

Do not cover the product with a towel or cloth during use. Do not use the product near a bathtub, shower, or washbasin containing water, or near other high-humidity vessels. Do not use the product near a stove, inside an electric heating quilt, or on an electric blanket or similar heating appliances, as this can easily cause fire or malfunction.

Precautions for Maintenance

Allow the device to cool down before storing. Be sure to unplug the USB charging cable during maintenance. Keep out of reach of children. Be sure to unplug the USB charging cable if the product is not in use for a long time. If the product is not in use for a long time, clean it first, then properly pack and store it. It is recommended to charge it once every month. Be sure to confirm whether the switch is normal before using it again if it has not been used for a long time. The product is equipped with a simple shockproof facility and is suitable for air, railway, road, and ship transportation. Keep away from rain and snow splashing, inversion, and collision during transportation. Check the device regularly for any signs of wear or damage. If such signs are present, or if the device has been misused, it should be returned to the supplier before reuse. Do not pour water on the product. Do not use it for two people at the same time. Do not exert great force on the product intentionally. Do not use the product in a bathroom or in places with high humidity. Do not use the product in places with room temperature above 35 °C or in places with direct sunlight. Do not drop the main unit or the charger. Do not strike it strongly. Do not use volatile oil, thinner, alcohol, strong alkaline detergent, bleach, or other cleaning agents for maintenance.

2 Product Features

This product vibrates the cervical region with micro-frequency through its four silicone massage nodes. Combined with its warm compress function, it can relieve stiff and sore neck muscles. It is suitable for different people for neck massage and care.

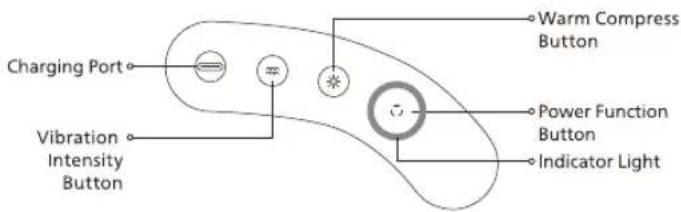

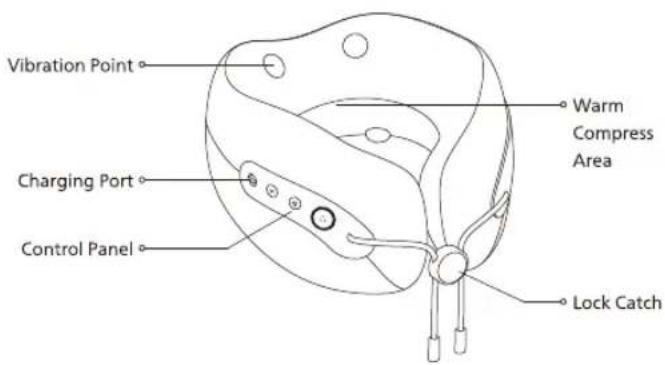

3 Components

4 How to Use

Preparations Before Use

1. Check if the device and its accessories are complete.
2. Remove pendants and accessories during use to avoid affecting the part to be massaged.
3. Wrap the neck massager around your neck (or other parts that need to be massaged) and fix it with the lock catch.

Operation

1. Power Function Button

① Press and hold the power function button for 2 seconds to start the device, then the device will enter Vibration Mode 1 (white light) by default. In this mode, the vibration intensity is low (green light), and the warm compress is working at low level (green light, and the buzzer rings once). ② Press and hold the power function button for 2 seconds to turn off the device, then both the vibration and the warm compress are turned off, and the indicator light is off (the buzzer keeps ringing). ③ Press the power function button to switch the vibration modes in cycle: - Mode 1: The indicator light turns white and the buzzer rings once - Mode 2: The indicator light turns ice blue and the buzzer rings twice - Mode 3: The indicator light turns dark blue and the buzzer rings three times.

2. Warm Compress Button

Under the power-on state, press the warm compress button to switch the levels for warm compress.

• Warm compress in low level (The indicator light turns green and the buzzer rings once).
• Warm compress in high level (The indicator light turns orange and the buzzer rings twice).
• Turn off the warm compress (The indicator light is off and the buzzer rings for 2 seconds).

3. Vibration Intensity Button

Under the power-on state, press the vibration intensity button to switch the vibration intensities.

• Low vibration intensity (The indicator light turns green and the buzzer rings once).
• High vibration intensity (The indicator light turns orange and the buzzer rings twice).
• Turn off the vibration (The indicator light is off and the buzzer keeps ringing).
• Charging Instructions

① In the charging state, the buttons will not function any more.

When the battery is low, both the vibration and warm compress functions will be turned off automatically, the blue indicator light will flash, and the buzzer will remind you to charge the product.

At the time of charging, the dark blue indicator light will be flashing slowly, other symbols will be off, and the product cannot be started. It takes about 4 hours to fully charge the product. When the product is fully charged, the dark blue indicator light remains on.

5 Maintenance

Cleaning

1. Remove the dust from the cloth cover of the product with a vacuum cleaner rather than by patting.
2. Wipe off the dirt on the surface with a clean rag.
3. For the heavy dirt, dampen a rag with the neutral detergent and then gently wipe it. Prevent the water from entering the product. Let it air dry.
4. Do not put it in places with direct sunlight or in places with high humidity after use. If the product is not used for a long time, remember to remove the dirt first, and then properly cover it with a cloth to avoid dust.
5. Disposal: In order to protect the environment, do not discard it at random. Please discard each part according to their disposal methods.
6. During the maintenance, the USB charging cable must be unplugged, but do not use a wet hand to unplug the cable.

Disposal

The lithium-ion battery used in this product is a valuable resource that can be recycled. Take out the lithium-ion battery when it is used up and discarded, and then hand it over to a professional institution that can recycle the rechargeable batteries for disposal.

Use an appropriate tool to pry open the metal parts of the bottom shell, and then pick up the electronic board assembly to take out the battery pack inside it (The battery cannot be replaced by users arbitrarily);

Steps to remove the battery:

1. Unzip on the bottom

1. Take the cloth cover apart and take out the battery box

1. Remove the top cover and take out the battery.

Precautions for Battery:

1. Be sure to remove the battery from the device before disposal;
2. The product must be powered off before the battery is removed;
3. The battery must be disposed of in a safe manner.

6 Troubleshooting

This chapter lists the most common problems to the product. If the problems you encounter are not included in the following tables, please call our service hotline or contact the authorized service center in your region.

Fault Description	Possible Cause	Solution
Product does not work	The power function button is not on	Press and hold the power function button to start
	The Product has just finished the 15-minute massage and automatically switched to shutdown mode	If you want to massage again, press and hold the power function button for 2 seconds to start
	Battery is under voltage when the product is not used for a long time	Plug in securely to charge the device
Product suddenly fails to heat when it is half used	Low battery	Charge the device
Product smokes	Short circuit of the electronic board	Stop using immediately and contact the service center
There is sound from the product (the vibrating sound of the massage head)	This sound is caused by the mechanical structure of the product	This sound is normal
If the product has been left unused for a long time, be sure to confirm that its functions are normal before using it again
Regular check	Check for the following faults	In the event of the above faults, stop using the device immediately and cut off the power supply to prevent accidents. Please send it to our maintenance center.
	Whether the charging cable or plug is hotWhether the power cord is deeply scratched or deformed, or has a burnt smellWhether there is abnormal sound or vibration during workWhether the product can work properly after switch onWhether there are other abnormalities or faults

Note:

If the fault cannot be eliminated or the product still cannot be operated satisfactorily, contact the after-sales service personnel, and do not disassemble or attempt to repair it by yourself.

7 Technical Parameters

Product Name	Philips Neck Massager
Product Model	PPM3306
Operating Voltage	3.7V==
Operating Power	5W
Charging Voltage	5V==
Charging Current	1A
Product Size	215×221×126mm
Product Net Weight	About 0.43kg
Battery Capacity	2000mAh
Charging Time	About 4 hours
Power Interface	Type-C

8 Service Guide for Product Warranty

Warranty and Service

If you need information or have any questions, please visit www.philips.com/support or contact consumer service center in your country/region. If there is no consumer service center in your country/region, please contact your local distributor.

Within two years from the date of purchase, you will receive free warranty service for any damage caused by manufacturing process problems, or any damage to components under normal use conditions confirmed by our maintenance service personnel.

Warranty service excludes frequently replaced consumables, auxiliary equipment, shipping cost and door-to-door service. Please show proof of purchase to service personnel when servicing.

Malaysia

Consumer Care: [phone]

Email: [e-mail]

Singapore

Consumer Care: [phone]

Email: [e-mail]

Philippines

Consumer Care: [phone]

Email: [e-mail]

Thailand

Consumer Care: [phone]

Email: [e-mail]

Indonesia

Consumer Care: +021-39715012 / +021-39715013

Email: [e-mail]

Vietnam

Consumer Care: [phone]

Email: [e-mail]

Warranty Card

Product Model			User Name
Sales Agency			Phone Number
Date of Purchase			Serial Number
Special Technical Service Center			User Address
Items of Maintenance		Date		Service Personnel

9 Packing List

Massager	1x	Storage Bag	1x
USB Charging Cable	1x	User Manual	1x
Quick Start Guide	1x
