Product Type	Powered Subwoofer
Brand	Dual
Model	SBX100
Driver Size	10 inches
Enclosure Type	Bass-Reflex (ported)
Frequency Response	30 Hz - 150 Hz
Amplifier Power	100 Watts RMS
Impedance	4 Ohms
Sensitivity	90 dB
Inputs	RCA Line Level, Speaker Level
Controls	Volume, Crossover Frequency (40-150 Hz), Phase Switch (0/180°)
Auto Standby	Yes
Dimensions (W x H x D)	12.0 x 12.0 x 12.0 inches (30.5 x 30.5 x 30.5 cm)
Weight	15 lbs (6.8 kg)
Power Supply	120V AC, 60 Hz
Material	MDF (Medium-Density Fiberboard)
Cleaning Instructions	Wipe with a dry, soft cloth. Do not use water or cleaning solvents.
Safety Precautions	Place on a stable, level surface. Keep away from moisture and heat sources. Do not block ventilation.
Repairability	Refer to qualified service personnel. No user-serviceable parts inside.

Frequently Asked Questions - SBX100 DUAL

How do I connect the SBX100 subwoofer to my receiver?

Use an RCA cable from the subwoofer output on your receiver to the Line In on the subwoofer. Alternatively, connect speaker wires to the Speaker Level Inputs if your receiver lacks a dedicated sub out.

Where should I place the subwoofer for best bass?

Place the subwoofer near a wall or corner to reinforce bass. Avoid exact center of room. Experiment with placement for optimal sound.

Why is my subwoofer not turning on?

Check that the power cord is securely plugged in and the power outlet is active. Ensure the Auto Standby feature is enabled; the subwoofer may be in standby if no signal is present.

How do I adjust the crossover frequency?

Turn the Crossover knob to match your main speakers' low-frequency cutoff (typically 80-120 Hz for most systems). Higher settings send more mid-bass to the sub.

What does the phase switch do?

The Phase Switch (0 or 180 degrees) adjusts timing alignment between the subwoofer and main speakers. Set to the position that yields the fullest bass at your listening position.

Can I use this subwoofer with a home theater system?

Yes, the SBX100 is compatible with most home theater receivers via the Line Level or Speaker Level inputs. It adds deep bass to movies and music.

How do I clean the subwoofer?

Use a dry, soft cloth to wipe the cabinet. Do not use water, chemical cleaners, or abrasive materials. Avoid getting moisture on the driver.

What is the warranty on the Dual SBX100?

Dual typically offers a one-year limited warranty from the date of purchase. Keep your receipt for warranty service.

Why is there a humming noise from the subwoofer?

Humming is often caused by a ground loop. Try connecting all audio equipment to the same power outlet. Use a ground loop isolator if needed.

What should I do if the subwoofer sounds distorted?

Reduce the Volume control on the subwoofer and/or your receiver. Ensure the crossover is set correctly. Distortion may indicate overdriving the subwoofer; lower the level to prevent damage.

USER MANUAL SBX100 DUAL

Limited One Year Warranty

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase.

Dual Electronics Corp. agrees, at our option, during the warranty period, to repair any defect in material or workmanship or to furnish an equal new, renewed or comparable product (whichever is deemed necessary) in exchange without charges, subject to verification of the defect or malfunction and proof of the date of purchase. Subsequent replacement products are warranted for the balance of the original warranty period.

Who is covered? This warranty is extended to the original retail purchaser for products purchased and used in the U.S.A.

What is covered? This warranty covers all defects in material and workmanship in this product. The following are not covered: installation/removal costs, damage resulting from accident, misuse, abuse, neglect, product modification, improper installation, incorrect line voltage, unauthorized repair or failure to follow instructions supplied with the product, or damage occurring during return shipment of the product.

What to do?

1. Before you call for service, check the troubleshooting guide in your owner's manual. A slight adjustment of any custom controls may save you a service call.

2. If you require service during the warranty period, you must carefully pack the product (preferably in the original package) and ship it by prepaid transportation with a copy of the original receipt from the retailer to an authorized service center.

3. Please describe your problem in writing and include your name, a return UPS shipping address (P.O. Box not acceptable), and a daytime phone number with your shipment.

4. For more information and for the location of the nearest authorized service center please contact us by one of the following methods:

• Call us toll-free at 1-866-382-5476

• E-mail us at [e-mail]

Exclusion of Certain Damages: This warranty is exclusive and in lieu of any and all other warranties, expressed or implied, including without limitation the implied warranties of merchantability and fitness for a particular purpose and any obligation, liability, right, claim or remedy in contract or tort, whether or not arising from the company's negligence, actual or imputed. No person or representative is authorized to assume for the company any other liability in connection with the sale of this product. In no event shall the company be liable for indirect, incidental or consequential damages.

Dual Electronics Corporation Toll Free:

1-866-382-5476

Monday-Friday, 9:00 a.m. to 5:00 p.m. (EST)

www.dualav.com

©2021 Dual Electronics Corp. All rights

reserved.NSA0521-V01

Printed in China

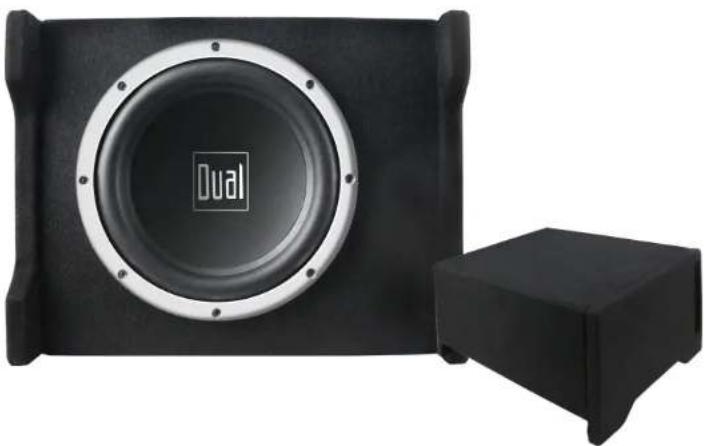

Black dual-tier speaker with a circular head and matching base, no visible text or symbols on the device itself.

SBX100

INSTALLATION/OWNER'S MANUAL

10" Subwoofer in Vented Enclosure

with Multiple Mounting Options

Installation

Thank you for purchasing the SBX100 10" Subwoofer in Vented Enclosure. Although Dual has attempted to make sure all of the information contained within this manual is accurate, please be aware that any part of it is subject to change without notice.

CAUTION

The following instructions should be used as a general guideline only. If you are unsure about performing any of the procedures listed below, please consult a professional car audio installation center.

Before installation, please follow these guidelines:

1. Be sure to carefully read and understand the instructions before attempting to install this product.
2. For safety, disconnect the negative terminal from the battery prior to beginning the installation of your amplifier.
3. Use the highest quality wire and connectors for a reliable installation and to minimize signal or power loss.
4. Use caution if you drill or cut! Be careful not to cut or drill into gas tanks, fuel lines, brake or hydraulic lines, vacuum lines or electrical wiring when working on any vehicle.
5. Never run wires underneath your vehicle. Running wires inside the vehicle provides the best protection from exhaust heat and environmental elements.
6. Avoid running wires over, near or through sharp edged surfaces. Use rubber grommets to protect any wires routed through metal.
7. When running wires from the amplifier, avoid running it near sources of high current

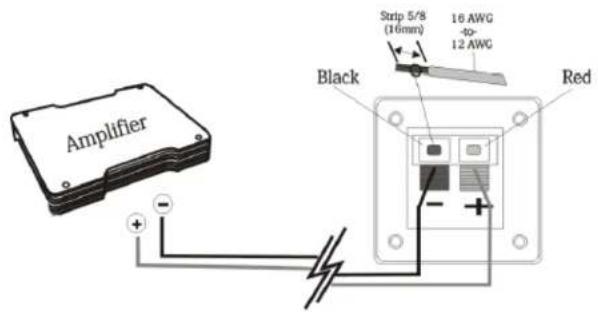

Connection Diagram

Strip 5/8" off the end of the wires, and connect the SBX100 to an amplifier as shown in the Connection Diagram below.

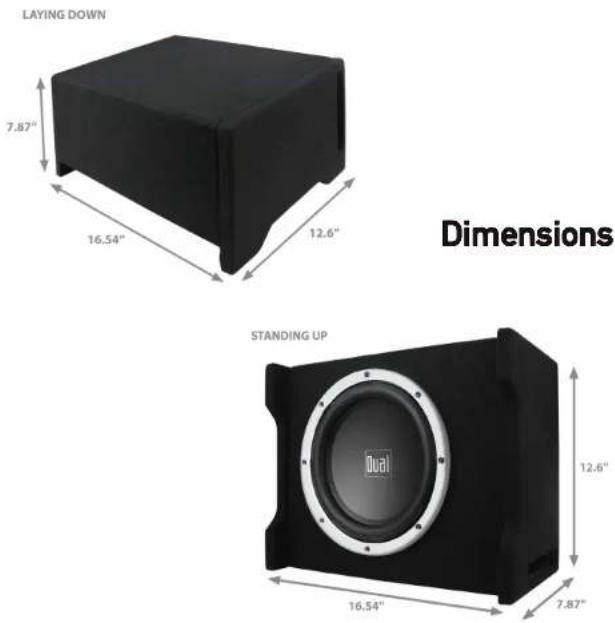

Installation Diagram

The below diagrams can to be used with the dimensions listed below to provide measurements for mounting the enclosure.

Design and specifications subject to change without notice.

Specifications

Sensitivity: 88dB

Frequency response: 25Hz-500Hz

Nominal impedance: 4 Ohm

RMS power output, 175 Watts

Peak power output: 500 Watts
