JV10091US-SL - Wine cellar COSTWAY - Free user manual and instructions

Product Type	Wine Cooler (Wine Cellar)
Brand	COSTWAY
Model	JV10091US-SL
Capacity	130 Liters (43 standard 750ml Bordeaux bottles)
Temperature Zones	Dual Zone (Top and Bottom)
Temperature Range (Top Zone)	5°C to 14°C (41°F to 57°F)
Temperature Range (Bottom Zone)	10°C to 18°C (50°F to 64°F)
Number of Shelves	8 wire shelves (each holds 5 bottles) + bottom storage (3 bottles)
Shelf Material	Wire shelves (max load 7.5kg / 16.5 lbs per shelf)
Door Type	Anti-UV darkened double glass door
Interior Light	LED interior light (on/off switch)
Control Type	Touch control panel with digital display
Display Settings	°C/°F selector, temperature set and actual display, key lock
Alarms	Door-open alarm (60 seconds), over-temperature alarm (>20°C for 12 hours)
Refrigerant	R600a (isobutane) – flammable
Climate Class	SN, N, ST, T (see manual for ambient temperature ranges)
Electrical Requirements	Standard US voltage (120V) – grounded outlet required
Power Cord	3-prong grounded plug
Cleaning Method	Interior: warm water and baking soda solution; shelves: mild detergent; exterior: mild liquid detergent
Leveling	Adjustable leveling leg at front
Installation Clearance	At least 50mm from back, 100mm from sides to wall
Usage	Indoor use only, not built-in, not for freezing
Repairability	Authorized service center only; use original spare parts
Safety Features	Grounding, child entrapment prevention (door removal after disposal), flammable gas warning
Compliance	Contains hydrocarbons, must be disposed of professionally

Frequently Asked Questions - JV10091US-SL COSTWAY

How do I set the temperature on my Costway JV10091US wine cooler?

Press the Setting (≡) button once to adjust the top zone temperature, or twice to adjust the bottom zone. Then use the UP (+) and DOWN (−) buttons to set the desired temperature. The display will show actual temperature after 10 seconds of inactivity.

How can I lock the control panel to prevent accidental changes?

The control panel locks automatically after 10 seconds of no key touches. To manually unlock, press and hold both the UP (+) and DOWN (−) buttons simultaneously for at least 3 seconds. A locked panel prevents unintended setting changes.

Why is my wine cooler beeping and how do I stop it?

The beeping is likely the door-open alarm if the door has been open for more than 60 seconds (beeps every 3 seconds). Close the door to cancel the alarm, or press any key to silence it. The over-temperature alarm beeps if the internal temperature exceeds 20°C (68°F) for 12 consecutive hours; long-press the Setting key for 3 seconds to cancel.

What should I do if the wine cooler is not cooling enough?

Check the following: 1) Ensure the temperature setting is correct; 2) Verify the ambient temperature is within the appliance’s climate class range; 3) Make sure the door is fully closed and not opened frequently; 4) Confirm there is at least 50mm (2 inches) clearance at the back and 100mm (4 inches) on each side for proper ventilation.

How do I clean the interior and shelves of my wine cooler?

First, unplug the appliance and remove all items and shelves. For the interior, use a solution of 2 tablespoons of baking soda mixed with one quart of warm water. Wipe shelves with a mild detergent solution. For the exterior, use warm water and mild liquid detergent. Avoid abrasive powders or detergents.

How do I level the wine cooler?

The appliance has an adjustable leveling leg at the front. Turn it manually or with a suitable spanner until the cooler sits firmly and evenly on the floor. This ensures proper door closure and reduces noise and vibration.

What is the proper way to remove wine bottles from the shelf?

Pull the shelf forward until it reaches the stop position. Then remove the bottle from the shelf. Finally, push the shelf back into its original position. This prevents the shelf from falling or bottles from tipping.

What do the error codes 'EL' and 'EH' mean on the display?

'EH' indicates a short-circuited temperature sensor or a reading above 50°C (122°F). 'EL' indicates an open-circuited sensor or a reading below -9°C (16°F). Contact an authorized service center for repair if these appear.

How should I handle a power failure?

Most power failures last only a few hours and won’t affect the cooler if you minimize door openings. For extended outages, remove all wine and unplug the appliance. Clean and thoroughly dry the interior, leaving the door open to prevent mold.

Can I use this wine cooler in a built-in installation?

No, this refrigerating appliance is not intended for built-in use. It requires free-standing installation with adequate ventilation: at least 50mm from the back and 100mm from each side to walls or cabinets.

USER MANUAL JV10091US-SL COSTWAY

With your inspiring rating, COSTWAY will be more consistent to offer you EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE!

DE

Technical line drawing of a multi-tiered cylindrical mechanical or electrical cabinet with no visible text or symbols

USER'S MANUAL

WINE COOLER

JV10091US

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION, PLEASE READ AND KEEP FOR FUTURE REFERENCE.

COSTWAY

COSTWAY

IMPORTANT SAFETY INSTRUCTIONS

It's most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can be acquainted with the functions of the appliance and the relevant warnings.

These warning are provided for safety. You must read them carefully before installing or using the appliance.

GENERAL SAFETY

The appliance is designed exclusively for domestic use. The appliance is intended to be used exclusively for the storage of the wine as explained in this instruction booklet.

WARNING

1. Risk of injury due to broken glass! The fragments have sharp edges and may cause serious injury. Take appropriate protective action.

2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

3. It is dangerous to alter the specifications or modify this product in any way.

4. Before any cleaning or maintenance work is carried out, be sure to switch off and unplug the appliance.

5. This appliance is heavy. Care should be taken when moving it.
6. Take utmost care when handling your appliance so as not to cause any damages to the cooling unit with consequent possible fluid leakage.
7. The appliance must not be located close to radiators or gas cookers.
8. Avoid prolonged exposure of the appliance to direct sunlight.
9. There must be adequate ventilation around the appliance and any damage to the refrigerant circuit must be avoided.
10. Do not use other electrical appliance(such as cream makers) inside of refrigerant appliance.
11. Do not store explosive substances such as aerosol cans containing flammable propellants in this appliance.
12. This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments such as hotel, motel and other apartment rooms.
13. Keep burning candles, lamps and other items with open flames away from the appliance to avoid setting the appliance on fire.

SERVICING

1. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

COSTWAY

1. This product should be serviced by an authorized Service Center, and only original spare parts should be used.
2. Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or more serious malfunctions. Refer to your local Service Center, and always insist on original spare parts.
3. If the power cord is damaged, it must be replaced by the manufacturer, its maintenance department or a professional in a similar department, in order to avoid danger.
4. This appliance contains hydrocarbons in its cooling unit. Maintenance and recharging must therefore only be performed by authorized technicians.

SERVICING NOTE

This appliance employs hydrocarbon Refrigerant type R600a. It is hazardous for anyone other than an Authorized Service Personnel to repair this appliance.

USE

1. The wine cooler is designed to be used specifically for the storage of the potable wine only.
2. This appliance performs well within the climate class showed in the table below. It may not work properly if being left at a temperature above or below the indicated range for a long period. Refer to the information specified on the rating label for the specific climate class.

COSTWAY

Class	Symbol	Ambient Temperature range
Sub-temperate	SN	+10°C/50°F~+32°C/89.6°F
Temperate	N	+16°C/60.8°F~+32°C/89.6°F
Subtropical	ST	+16°C/60.8°F~+38°C/100.4°F
Tropical	T	+16°C/60.8°F~+43°C/109.4°F

WARNINGS:

When the ambient temperature is not included in the range indicated by the climate class of this appliance, the following instructions must be observed: when the ambient temperature rises up the maximum level, the storage temperature in the refrigerator cannot be guaranteed, so it is advisable to use the food stored as soon as possible.

1. Do not put hot pot on the plastic parts of the appliance.
2. Do not store flammable gas and liquid in the appliance, because they may explode.
   5.Do not place wine directly against the rear wall of the compartment.
3. Strictly follow the storage recommendations of the manufacturer. Refer to the relevant instructions.
4. The inner lining of the appliance has channels through which the refrigerant passes. Should the channels be punctured the unit would be damaged beyond repair.

DO NOT USE SHARP INSTRUMENTS to scrape of frost or ice, Frost must be removed by using a scraper.

Under no circumstances should solid ice be forcibly removed from the liner. Solid ice should be allowed to thaw when defrosting the appliance.

COSTWAY

COSTWAY

INSTALLATION

IMPORTANT: For electrical connection carefully follow the instructions given in specific paragraphs.

1. Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. If any damage is found, contact our customer service immediately. In this case, please keep the packaging.
2. During normal operation, the compressor and/or condenser at the back of the appliance will heat up considerably. For safety reasons, minimum ventilation must meet the requirements in the instructions.

ATTENTION: Keep ventilation opening clear of obstruction.

1. Care must be taken to ensure that the appliance does not stand on the electrical supply cable.

IMPORTANT: If the supply cord is damaged, it must be replaced by a special cord or original components available from the manufacturer or its service agent.

1. If the appliance is transported horizontally, it is possible that the oil contained in the compressor flows in the refrigerant circuit. It is recommended to wait at least two hours before connecting the appliance to allow the oil to flow back in the compressor.

ELECTRICAL CONNECTION

1. Before plugging in, ensure that the voltage and frequency shown on the serial number plate correspond to your domestic power supply. Voltage can vary by ±6% of the rated voltage.

2. The appliance must be grounded. The power supply cable plug is provided with a contact for this purpose. The power socket must have a ground connection that complies with electrical safety regulations.

3. The manufacturer declines all responsibility if the above safety precautions are not followed.

CLEANING THE INTERIOR

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, and then dry naturally and thoroughly.

DO not use detergents or abrasive powders as these will damage finish.

INSTALLING YOUR APPLIANCE

Before using the appliance for the first time, you should be informed of the following tips.

This refrigerating appliance is not intended to be used as a built-in appliance.

This refrigerating appliance is not suitable for freezing foodstuffs.

WARNING: For proper installation, the appliance must be placed on a level surface of hard material that is the same height as the rest of the flooring. This surface should be strong enough to support a fully loaded appliance.

In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. For this reason, sufficient clear space should be available around the product.

COSTWAY

SUGGESTION: It is recommended to have a space of at least 50mm (2 inches) from the back to the wall, at least 100mm(4 inches) from the side to the wall. As shown below.

NOTES:

1. Avoid locating the appliance in damp areas. Excessive moisture in the air will cause rapid frosting on the evaporator.
2. Keep the appliance out of direct sunlight, rain or frost. Stand the product away from heat sources such as stoves, fires or heaters.
3. The glass door of the appliance is fragile. Frontal collision should be banned when you open it.
4. The opening angle of the door is between 90^ and 130^ , and the shelf can be properly pulled out at this angle. Do not open the door excessively to avoid damage to the door.
5. Plug the appliance into a dedicated, properly installed, grounded wall outlet. Under no circumstances should you cut or remove the third (ground) prong from the power cord. Any question concerning power and/or grounding should be directed towards a certified electrician or an authorized products service center.

COSTWAY

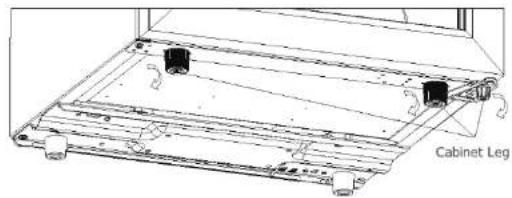

LEVELING OF APPLIANCE

For sufficient clearance and air circulation in the lower rear section of the appliance, the leveling leg may need to be adjusted. You can adjust them manually by hand or with a suitable spanner.

Technical line drawing of a cabinet leg assembly (no text or symbols)

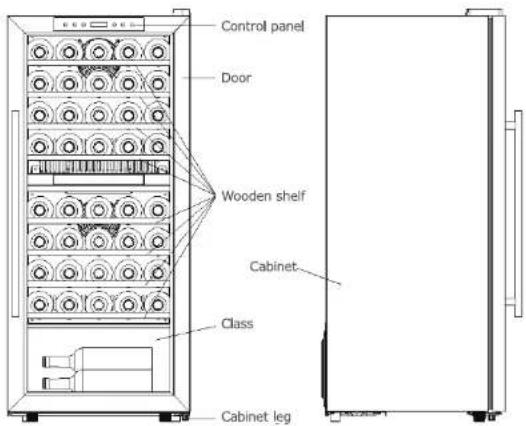

DESCRIPTION OF THE APPLIANCE

COSTWAY

COSTWAY

NOTES:

1.130L wine cooler can store 43 bottles of wine at the same time(Dual zone), please place wine bottles as shown above.
2. The bottle capacity described in this manual is based on BORDEAUX 750ml bottles and standard shelving.

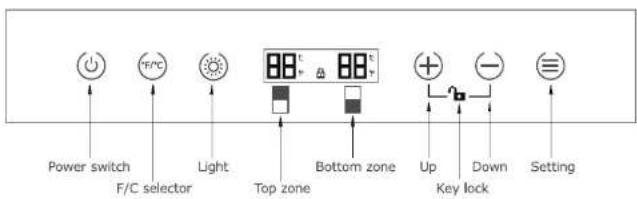

CONTROL PANEL

The control panel, as shown below, is arranged on the door.

You can use your appliance according to the following control guidelines.

Power switch

To turn on/off this appliance. To turn on the appliance, hold and press the ⏻ for 3 seconds.

°F/°C Selector

Choose to display temperature setting in Fahrenheit or Celsius.

Light

Top zone

To turn on/off the interior light.

To indicate the temperature of top zone.

Bottom zone

UP (+)

To indicate the temperature of bottom zone.

To increase the set temperature by 1^ C/ ^ F.

DOWN

To decrease the set temperature by 1^/^ .

Key lock

If no key is touched within 10 seconds, the control will be locked automatically. To release the lock, press and hold the “⊕” and “⊖” at the same time for at least 3 seconds.

Setting ≡

You can set the internal temperatures as desired by pressing the "UP" or "DOWN" buttons, but first you should press the Setting button (≡). Press once, you can set the "Top zone" temperature, press the second time to set the "Bottom zone" temperature.

1. Top zone: The temperature is recommended to be set at 5°C-14°C/41°F-57°F.
2. Bottom zone: The temperature is recommended to be set at 10^ C- 18^ C/50 T-64 T.
3. After 10 seconds of setting the temperature, the temperature display window ill display the actual internal temperature, not the set temperature.

Due to the product feature, when the temperature of the upper zone is set to the following table, the bottom zone temperature range will reach the set temperature in the following table.

COSTWAY

COSTWAY

Top zone Setting	Bottom zone Setting
	12	13	14	15	16	17	18
5	●	●	●
6	●	●	●	●
7	●	●	●	●	●
8	●	●	●	●	●	●
9	●	●	●	●	●	●	●
10		●	●	●	●	●	●
11			●	●	●	●	●
12				●	●	●	●

Alarm function

Door-open alarm function

If the door is not closed within 60 seconds, it will automatically alarm (the alarm sounds "Beep", once every 3 seconds). The alarm will be automatically cancelled after the door is closed (you can also press any key to cancel the alarm sound).

Over-temperature alarm function

When the door is closed, if the temperature inside the chamber is greater than 20 °C (68°F) for 12 consecutive hours, an over-temperature alarm prompts a "beep" sound, once every 3 seconds, and if the displayed temperature in the upper and lower temperature areas is less than or equal to the set temperature, the alarm is cancelled (you can also long press the setting key for 3 seconds to cancel the alarm sound).

NOTES:

1. When the appliance is used for the first time or restarted after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on this display. This is normal and it is due to the length of the inactivation time.

2. When you set a temperature, you set an average temperature for the whole cabinet. There may be a 3°C /37.4°F to 5°C/41°F variance between the top and bottom shelves of the appliance.

USING YOUR APPLIANCE

This section tells you how to use most of the useful features. We recommend that you read through them carefully before using the appliance.

PLACEMENT OF BOTTLES

The 130L wine cooler is equipped with 8 bottle shelves(Dual zone). Each shelf holds 5 bottles of wine. The wine bottles should be placed on the shelves, as shown in the figure. Three bottles of wine can be placed at the bottom of the appliance as shown.

Isometric line drawing of a row of cylindrical components mounted on a base plate (no text or symbols)

WARNING!

The maximum loading of each type of shelf is 7.5kg(16.5 lbs).

INSTRUCTION FOR FETCHING WINE BOTTLES

Line drawing of a mechanical device with cylindrical components inside a transparent housing (no text or symbols)

Refer to the above "Illustration for fetching wine" when need to fetch the wine. Firstly, pull the shelf forwards until the shelf①reaches the stop position, and then fetch the wine② from the shelf, and finally push the shelf①back to the original position.

Technical line drawing of a mechanical assembly with rollers and shafts (no text or symbols)

COSTWAY

COSTWAY

TIPS FOR KEEPING THE WINE

1. Keep the wine in the dark. The door is in anti-UV darkened double glass to protect the wine from the light in case the refrigerator is located in well-lit place.
2. Lay the bottles down in such a way that the corks do not dry.
3. Avoid switching the appliance light on too often or for too long. Wine keeps better in dark.
4. To avoid agitating the wine, handle the bottles with care.
5. Follow the recommendations and advice at the time of purchase or given in the technical documentation regarding the quality, duration and optimum storage temperature of the wine.
6. The storage of wine depends on the age, the type of grapes, the alcoholic content and the fructose and tannin content contained in it. At the time of purchase, check if the wine is already aged or if it will get better over time.
7. Do not store explosive substances such as aerosol cans containing flammable propellants in this appliance.

WINE STORAGE TEMPERATURE CHART

All wine mature at the same temperature, which is a constant temperature set between 12°C/53.6°F to 14°C/57.2°F, the below chart is an indicative temperature chart to indicate the best temperature for drinking purposes.

Types of wine	Recommended temperature
Champagne NV, Sparkling, Spumante	6°C/42.8°F
Dry white Semillon, Sauving Blanc	8°C/46.4°F
Champagne VintageDry White ChardonnayBarsac Ice Wine, Late Harvest	13°C/55.4°F
Sweet White Vintage	14°C/57.2°F
Red Pinot NoirRed Grenache, Syrah	16°C/60.8°F
Red vintage Pinot Noir	18°C/64.4°F

CARE AND MAINTENANCE

REMOVING SHELVES

Firstly, lift the rear of shelf upwards (see①), and then pull the shelf out of the cabinet (see②).

Technical line drawing of a mechanical assembly with no visible text or symbols

COSTWAY

COSTWAY

INSTALLING SHELVES

Follow the reverse operation of "REMOVING SHELVES".

CLEANING YOUR APPLIANCE

1. Turn off the power, unplug the appliance, and remove all items including shelves.
2. Wipe the interior with warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to one quart of water.
3. Wipe the shelves with a mild detergent solution.
4. Wipe the outside cabinet with warm water and mild liquid detergent. CAUTION: Failure to unplug the appliance could result in electric shock or personal injury.

PERMISSION POWER FAILURE

Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be out for an extended period of time, you need to take the proper steps to protect your content.

NORMAL PHENOMENA

1. External condensation: In a high-humidity environment, the condensation on the outer surface of the cabinet is a normal phenomenon, and it can be wiped off with a soft cloth.

2. When the Wine Cooler is started for the first time, the cooling time will be longer, that is because the temperature inside the cabinet is higher.

3. The temperature of the compressor surface will be higher when the compressor is working normally, which is a normal phenomenon. Do not touch the compressor surface with your hands. And the temperature for the external surface of the cabinet will rise because of the cooling and heat dissipation on it, which is also a normal phenomenon.

VACATION TIME

1. Short vacation: Leave the appliance operating during vacation of less than two days.
2. Long vacation: If the appliance will not be used for an extended period, remove all items and turn off the appliance. Clean and dry the interior thoroughly.

MOVING YOUR APPLIANCE

1. Remove all items inside the appliance.
2. Securely tape down all loose items(shelves) inside your appliance.
3. Turn the adjustable leg up to the base to avoid damage.

4. Tape the door shut.

5. Make sure the appliance stays secure in the upright position during transportation and protect the exterior of appliance with a blanket, or similar items.

TROUBLESHOOTING GUIDE

Most common problems can be resolved by referring to the troubleshooting suggestions listed blow.

COSTWAY

COSTWAY

Problem	Possible Cause
Wine Cooler does not operate.	Not plugged in.Power failure.The circuit breaker tripped or a blown fuse.
Wine Cooler is not cold enough.	Check the temperature control setting.The temperature of external environment is too high.The door is opened too often.The door is not closed completely.There is not enough space from the back and side of the cabinet to the wall.
Turns on and off frequently	The room temperature is hotter than normal.A large amount of contents has been added to the Wine Cooler.The door is opened too often.The door is not closed completely.The temperature control is not set correctly.There is not enough space from the back and side of the cabinet to the wall.

ENERGY SAVING TIPS

1. The appliance should be located in the coolest area of the room, away from heat producing appliance, and out of direct sunlight.
2. Ensure the appliance is adequately ventilated. Never obstruct the air vents.
3. Close the door tightly and do not open the appliance too frequently or for a long period of time.
   4.WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions. (For fixed appliances(built-in)).

The light does not work	Not plugged in.The circuit breaker tripped or a blown fuse.The light switch is "OFF"
Vibrations	Check to ensure that the Wine Cooler is level.
The Wine Cooler seems to make too much noise	The ratting noise may come from the flow of the refrigerant, which is normal. As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your Wine Cooler.Contraction and expansion of the inside walls may cause popping and crackling noises.The Wine Cooler is not level.
The door will not close properly	The Wine Cooler is not level.The door was reversed and not properly installed.The door sealing is dirty.The shelves are out of position.
Display "EL" or "EH"	The error code "EH" will be displayed when the sensor is short-circuited or the temperature displayed exceeds 50°C/122°F.The error code "EL" will be displayed when the sensor is open-circuited or the temperature displayed is lower than -9°C/16°F.

DISPOSAL OF THE APPLIANCE

It is prohibited to dispose of this appliance as household waste.

WARNING! When disposing of your appliance, use an authorized disposal site. Remove the plug and ensure that any locks or catches are removed, to prevent young children being trapped inside.

COSTWAY

PACKAGING MATERIALS

Packaging materials with the recycle symbol are recyclable. Dispose of the packing into a suitable waste collection container to recycle it.

BEFORE DISPOSAL OF THE APPLIANCE

1. Pull put the mains plug from the mains socket.
2. Disconnect the power cord and discard it with the power plug.

WARNING:

1. Since the refrigerant used in this equipment is a flammable gas (isobutane R600a), please pay special attention to ensure that the refrigerant circuit and pipeline are not damaged during transportation and installation.
2. If refrigerant circuits and pipeline are damaged, keep equipment away from sparks and ensure good ventilation in the room. Cut off the power supply and contact your dealer immediately.
3. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
4. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
5. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

DANGER: Risk of children entrapment. Before you throw away your old refrigerator or freezer: Take off the doors and Leave the shelves in place so that children may not easily climb inside.

RECYLE:

1. The equipment contains recyclable equipment. When recycling, please cut off the power supply and remove the door frame to prevent children from being hurt while playing.
2. Comply with recycling laws and regulations. When disposing of equipment, please contact the local resource technology department for advice on how to recycle and reuse such equipment.

NOTE: Please read the instruction carefully before use. The installation, operation safety and maintenance are detailed in the instruction. Please keep the instruction properly for future reference.

The light does not work	Not plugged in.The circuit breaker tripped or a blown fuse.The light switch is "OFF"
Vibrations	Check to ensure that the Wine Cooler is level.
The Wine Cooler seems to make too much noise	The ratting noise may come from the flow of the refrigerant, which is normal. As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your Wine Cooler.Contraction and expansion of the inside walls may cause popping and crackling noises.The Wine Cooler is not level.
The door will not close properly	The Wine Cooler is not level.The door was reversed and not properly installed.The door sealing is dirty.The shelves are out of position.
Display "EL" or "EH"	The error code "EH" will be displayed when the sensor is short-circuited or the temperature displayed exceeds 50°C/122°F.The error code "EL" will be displayed when the sensor is open-circuited or the temperature displayed is lower than -9°C/16°F.

COSTWAY

COSTWAY

DISPOSAL OF THE APPLIANCE

It is prohibited to dispose of this appliance as household waste. WARNING! When disposing of your appliance, use an authorized disposal site. Remove the plug and ensure that any locks or catches are removed, to prevent young children being trapped inside.

PACKAGING MATERIALS

Packaging materials with the recycle symbol are recyclable. Dispose of the packing into a suitable waste collection container to recycle it.

BEFORE DISPOSAL OF THE APPLIANCE

1. Pull put the mains plug from the mains socket.

2. Disconnect the power cord and discard it with the power plug.

WARNING! Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

WARNING:

1. Since the refrigerant used in this equipment is a flammable gas (isobutane R600a), please pay special attention to ensure that the refrigerant circuit and pipeline are not damaged during transportation and installation.

2. If refrigerant circuits and pipeline are damaged, keep equipment away from sparks and ensure good ventilation in the room. Cut off the power supply and contact your dealer immediately.

3. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

4. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

5. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

DANGER: Risk of children entrapment. Before you throw away your old refrigerator or freezer: Take off the doors and Leave the shelves in place so that children may not easily climb inside.

RECYLE:

1. The equipment contains recyclable equipment. When recycling, please cut off the power supply and remove the door frame to prevent children from being hurt while playing.

2. Comply with recycling laws and regulations. When disposing of equipment, please contact the local resource technology department for advice on how to recycle and reuse such equipment.

NOTE: Please read the instruction carefully before use. The installation, operation safety and maintenance are detailed in the instruction. Please keep the instruction properly for future reference.
