Product Type	Pool/Spa Equipment Control Panel with Time Switch
Brand	Intermatic
Model	T30401R
Series	T30000R Series
Application	Indoor/Outdoor Use, Suitable for Pool Equipment Control and Direct Connection of Underwater Lights
Dimensions (Approx.)	8.00 x 16.55 x 4.40 inches (from installation diagram)
Electrical Supply	120/240 VAC, 60 Hz, Single Phase
Number of Time Switches	One Heavy-Duty Industrial Grade Time Switch (can accommodate optional second)
Time Switch Type	24-hour dial with adjustable trippers for ON/OFF timing
Manual Override	Manual lever for temporary ON/OFF without affecting programmed schedule
Fireman Switch	Optional heater control; factory set to shut off heater 20 minutes before pump turns OFF
Enclosure Material	All-weather metal enclosure
Mounting	Wall-mount using included brackets, on flat vertical surface
Wiring	Copper conductors only; follow wiring diagram inside enclosure door
Safety Compliance	National and Local Electrical Codes; Article 680 (NEC) for pools
Ground Fault Protection	Test regularly; if fails to reset, do not use pool/spa
Installation Distance	Minimum 5 feet from inside edge of pool (3 meters in Canada)
Warranty	1 year from date of installation against defects in material or workmanship
Included Accessories	Mounting brackets, instruction manual

Frequently Asked Questions - T30401R INTERMATIC

How do I set the ON and OFF times on the time switch?

Hold the trippers against the edge of the clock-dial, pointing to the desired AM or PM time. Tighten the tripper screws firmly. Ensure the dial shows the correct time-of-day by pulling the dial outward, turning to align with the pointer.

What should I do if the time switch stops at an ON or OFF tripper?

Check if the tripper is loose or the dial is bent. If the tripper is loose, tighten or replace it. If the dial is bent, replace the mechanism. A defective clock motor may also cause this issue.

How do I operate the switch manually without affecting the schedule?

Move the manual lever below the clock-dial left or right as indicated by arrows. This temporary override will not affect the next automatic operation.

What is the fireman switch and how does it work?

The fireman switch is an optional heater protection mechanism that automatically shuts off the heater 20 minutes before the time switch turns off the filter pump. It is factory set and requires no adjustment.

Can I install this control myself?

No, this control must be installed by a qualified electrician in accordance with National and Local Electrical Codes. Improper installation can create electrical hazards.

What should I do in case of a power failure?

Reset the clock-dial to the correct time-of-day by pulling the dial outward, turning to align the exact current time with the pointer.

Why is the load ON all the time even though the dial is turning?

Possible causes include welded contacts, two ON trippers with no OFF tripper, or a defective mechanism. Check and replace trippers or the mechanism as needed.

What are the electrical ratings for this control?

The control is suitable for 120/240 VAC, 60 Hz single phase supply. Exact ratings are listed inside the enclosure door. Do not exceed the maximum ratings of components.

How do I test the ground fault protection?

Regularly test the ground fault protection by pressing the test button on the GFCI receptacle if installed. If the device fails to reset, do not use the pool or spa and contact a qualified service technician.

What does the warranty cover?

Intermatic warrants this product against defects in material or workmanship for one year from installation. It covers repair or replacement but not labor for removal/reinstallation or damage from misuse, unauthorized repair, or failure to follow instructions.

USER MANUAL T30401R INTERMATIC

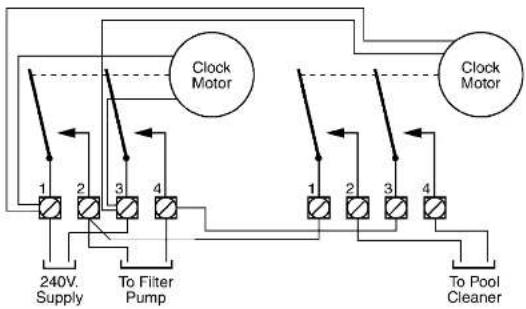

Filter and Cleaner Timer Inter-Connections

NOTES: 1. Grounding connections are not shown but must be provided. Refer to the National Electrical Code for details. 2. Diagrams above are only two of the many variations this Panel can accommodate.

WARRANTY

If within one (1) year from the date of installation, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace it free of charge.

The warranty does not cover labor for removal or reinstallation and does not apply to: (a) damage caused by accident, abuse, mishandling, or dropping; (b) a unit which has been subject to unauthorized repair; (c) units not used in accordance with directions; (d) damages exceeding the cost of the product. Some states do not allow a limitation of damages so the foregoing warranty may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

This warranty service is available, if the defective product or its defective component is returned with proof of purchase and date of installation, either (a) to the dealer from whom the unit was purchased or (b) by shipping prepaid to the Intermatic Incorporated/After Sales Service, 7777 Winn Rd., Spring Grove, IL 60081-9698/815-675-7000 http://www.intermatic.com

The quick brown fox jumps over the lazy dog.

dissess of our contributions to continuing research and innovations. Intensively, transparent measures the right in make ideas, without notice, in the specific means and material

INTERMATIC INCORPORATED, SPRING GROVE, IL 60081-9698

http://www.intermatic.com

158TP10425

NTERMATIC®

T30000R SERIES

POOL/SPA EQUIPMENT CONTROLS

INSTALLATION

OPERATION &

SERVICE MANUAL

CONTROL PANEL WITH TIME SWITCH FOR INDOOR/OUTDOOR USE

Suitable for Pool Equipment Control and for Direct Connection of Underwater Lights ELECTRICAL RATINGS: See inside Enclosure Door

DANGER! TO AVOID RISK OF INJURY:

...do not permit children to operate the Control Unit or use the Pool/Spa unless they are closely supervised at all times. ...test GROUND FAULT protection regularly. If it fails to reset, DD NOT USE THE POOL or SPA!

contact a qualified service technician. always disconnect electricity before servicing this control or the equipment connected to it.

READ, FOLLOW AND SAVE THIS INSTRUCTION MANUAL

GENERAL INFORMATION

Many of today's energy efficient pools and spas utilize the advantages of a single electrical panel, containing all the necessary controls for the safe, efficient and automatic operation of the pool/spa equipment. In addition, this Panel can also be used to control any outdoor equipment, sign or pump within its rated capacity.

The all-weather enclosure contains none one or two heavy-duty, industrial grade Time Switches. Also, it has provisions to install switches or a GPCI receptacle on the side as well as the inside. The Time Switch can also accommodate an optional heater control (fireman) switch.

The Control is designed to operate any pump, within its rated capacity. However, if protection to prevent dry start is required by the pump manufacturer, it must be provided in addition to this Control. Contact pump manufacturer if not sure and/or for more details.

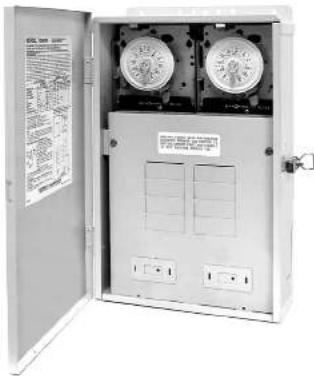

Interior view of an open electrical control cabinet with two dials and labeled buttons (no readable text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

When installing and operating this Product and other associated equipment, basic safety precautions should always be followed, including the following:

1. Read and follow all instructions.

2. This Control must be installed by a qualified electrician, according to National and Local Electrical Codes.

3. Install this control not less than 5 feet (3 meters in Canada) from inside edge of pool. USE COPPER CONDUCTORS ONLY.

4. Do not exceed the maximum ratings of individual components, wiring devices, and current carrying capacity of conductors.

5. For Control grounding, bonding, installing and the wiring of underwater lights, refer to Article 680 of the National Electrical Code or Article 68 of the Canadian Electrical Code.

6. The Control should not operate any equipment which would cause bodily injury or property damage should it be activated unexpectedly.

READ, FOLLOW AND SAVE THIS INSTRUCTION MANUAL

INSTALLATION

1. Remove the four #10 hex head screws from the back of the enclosure and attach mounting brackets to enclosure.

2. Select the proper location for the Control and hang enclosure on a flat vertical surface or other support, using hardware suitable for the purpose.

3. Prepare the necessary conduit runs, terminate them at both ends and pull in the conductors as specified by the installation layout.

4. Refer to Figure 1 below; note that this enclosure contains one or two Time Switch(es). To wire the panel, follow the wiring diagram located inside the enclosure door. Make sure that connections to time switch terminals are tight (25 lb.-in. minimum) and insulation clears the pressure plate - see illustration.

5. If required by the heater manufacturer, install fireman switch kit 15614042A (not furnished) on Time Switch Plate and make the fireman switch connections. Use at least #18 AWG wiring with insulation rated 300 Volt or higher. Place heater ON/OFF switch on heater to ON (see Figure 2). Some heaters may require a special connecting harness, contact heater manufacturer for details.

6. For direct wiring of underwater lights, refer to 1999 NLC 680-21(b), 2002 NLC 680-24(b) or CEC 680-060, 062 and 066 for further details.

7. To install additional wiring devices inside the enclosure, first remove rectangular knock-out(s) in dead front. Next, remove hex head screws in back of enclosure and install stand-offs ^4 in place of screws. Attach wiring device to stand-offs.

- Stand-offs are not furnished. Order 21T156A for a set of four (4) stand-offs and mounting hardware.

1. If external bonding is required, install a bonding lug at bottom of enclosure and bond installation according to code requirements.

2. Testing of the installation is optional and recommended only if pump is securely in place and will not be damaged by this test:

a. Turn the manual lever of the Time Switch to OFF. b. Turn ON power at breaker panel.

c. Move the manual lever of Time Switch to the right (ON). Pump should start and run on full speed. In case of unsatisfactory results, turn OFF power. check your wiring, refer to Troubleshooting on Page 3.

1. Install front panel over wiring compartment. The control is now ready for programming. see OPERATION section on Page 3.

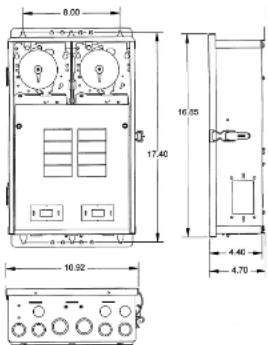

Figure 1

OPERATION

TO SET FILTER PUMP TIME SWITCH, follow instructions on the right. The length of the daily filtration/heating cycle depends on many variables such as size, shape, geographic location of the pool, water chemistry, type of pool equipment, usage and season of year. If not sure, contact your local pool service professional for advice.

THE FIREMAN SWITCH (Heater Protection Mechanism), if required, is factory set and shuts OFF the heater 20 minutes before the Time Switch turns OFF the filter pump. The Fireman Switch requires no setting or service.

WARNING: Do not disconnect high limit or pressure switches.

TIME SWITCH OPERATING INSTRUCTIONS

1. TO SET "ON" AND "OFF" TIMES: Hold TRIPPERS against edge of CLOCK-DIAL, pointing to time (AM or PM) when ON and OFF operations are desired. Tighten tripper screws firmly.

2. TO SET TIME-OF-DAY:

Pull CLOCK-DIAL outward. Turn in either direction and align the exact time-of-day on the CLOCK-DIAL (the time now, when switch is being put into operation) to the pointer.

- TO OPERATE SWITCH MANUALLY: Move MANUAL LEVER below CLOCK-DIAL left or right as indicated by arrows. This will not affect the next operation.

• FOR MORE THAN ONE DAILY ON-OFF OPERATION: Place additional tripper pairs on CLOCK-DIAL (order 156T1978A).

• IN CASE OF POWER FAILURE: Reset CLOCK-DIAL to proper time of day. See step 2 above.

TROUBLESHOOTING

SYMPTOM	CAUSE(S)	CORRECTIVE ACTION
1. Time Switch will not keep time but dial is turning.	1a.Frequent power outages1b.Wrong voltage/cycle1c.Loose clock motor connections	Reset dialChange clock motorCheck connections
2. Time Switch Dial stops at ON or OFF tripper.	2a.Loose tripper2b.Bent dial2c.Defective motor	Check/change tripperCheck/change mechanismChange clock motor
3. Dial stops after switch turns OFF.	3a.LINE leads are connected to LOAD terminals	Reverse LINE and LOAD connections
4. Load is ON at all times - dial is turning.	4a.Welded contacts4b.Two ON trippers and no OFF tripper on dial4c.Defective mechanism	Change mechanismChange tripperChange mechanism
5. Dead clock motor. (Clock motor gears do not rotate).	5a.Defective clock motor(open coil due to lightning or surge)5b.Loose clock motor connections5c.Wrong voltage	Change clock motorCheck connectionsChange clock motor
