Product Type	Blank Wall Plate
Model	AAP 104
Brand	Extron
Gang Size	1-Gang
Material	Aluminum
Color	Black
Dimensions (H x W x D)	4.5 x 4.5 x 0.25 inches (114.3 x 114.3 x 6.4 mm)
Weight	0.2 lbs (90 g)
Mounting Type	In-wall, requires junction box and plaster ring
Recommended Junction Box	Raco 4S, 3-1/2" deep (part 256) or equivalent
Recommended Plaster Ring	Raco 4S plaster ring, 1-gang, 5/8" raised (part 768) or equivalent for 5/8" wall thickness
Operating Temperature	32°F to 122°F (0°C to 50°C)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Humidity	10% to 90% noncondensing
Compliance	Safety and Regulatory Compliance per Extron guide
Warranty	3 years

Frequently Asked Questions - AAP 104 Extron

What junction box is recommended for the AAP 104?

The recommended junction box is a Raco 4S, 3-1/2" deep (part number 256) or equivalent. Ensure it fits inside the wall cavity.

What plaster ring should I use for 1/2" drywall?

For 1/2" wall thickness, use a Raco 4S plaster ring with 1/2" raised depth: 1-gang (part 772) or 2-gang (part 778) as needed.

Can I mount the AAP 104 without a plaster ring?

No. The product cannot mount directly to the Raco 4S junction box without a plaster ring. A plaster ring is required for proper installation.

What is the depth requirement for the junction box?

Check the product specification for total depth requirement. For most Extron products, a 3-1/2" deep box is recommended. Use a shallow 2-1/8" deep box only for shallow products.

Are there installation instructions available?

Yes, refer to www.extron.com for installation instructions of Extron JB Series junction boxes and Extron MR Series mud rings.

What is the part number for a 1-gang plaster ring for 5/8" wall?

The part number is Raco 4S plaster ring, 1-gang, 5/8" raised (part 768) or equivalent.

Can the AAP 104 be used with shallow junction boxes?

Yes, but only for shallow products and where in-wall space is limited. Use a Raco 4S 2-1/8" deep box (part 232) or Extron JB 125/225 boxes.

Where can I find safety guidelines for the AAP 104?

See the Extron Safety and Regulatory Compliance Guide on the Extron website for safety, regulatory, EMI/EMF, and accessibility information.

What is the purpose of the AAP 104?

The AAP 104 is a blank wall plate used to cover in-wall junction boxes and provide a clean, professional finish for Extron products.

Does Extron provide mud rings?

Yes, Extron offers MR Series mud rings ideal for retrofit applications where building code allows. Refer to www.extron.com for details.

USER MANUAL AAP 104 Extron

Recommended Junction Boxes for In-wall Installation of Extron Products

This reference guide lists US-standard junction boxes and plaster rings that can be used to mount Extron products within a wall.

ATTENTION:

Check the specification of each product to verify the total depth requirement for installation.

Raco 4S junction box, 3-1/2" deep (part number 256) or equivalent	Recommended for most Extron products. Ensure this box fits inside the wall cavity.
Raco 4S junction box, 2-1/8" deep (part number 232)Extron JB 125/225 boxes or equivalent	Recommended for shallow products only and where there is in-wall space limitations.
Extron MR Series mud rings Ideal for retrofit applications and	where building code allows.

Refer to www.extron.com for installation instructions of Extron JB Series junction boxes and Extron MR Series mud rings.

Plaster Rings for Raco 4S Junction Boxes

The recommended Raco 4S junction boxes must use a plaster ring that is appropriate for the drywall thickness and width of product being installed. The product cannot mount directly to the Raco 4S junction box without the plaster ring.

Raco 4S plaster ring, 1-gang, 5/8" raised (part# 768) or equivalent	Use with 5/8" wall thicknesses
Raco 4S plaster ring, 2-gang, 5/8" raised (part# 769) or equivalent	Use with 5/8" wall thicknesses
Raco 4S plaster ring, 1-gang, 1/2" raised (part# 772) or equivalent	Use with 1/2" wall thicknesses
Raco 4S plaster ring, 2-gang, 1/2" raised (part# 778) or equivalent	Use with 1/2" wall thicknesses

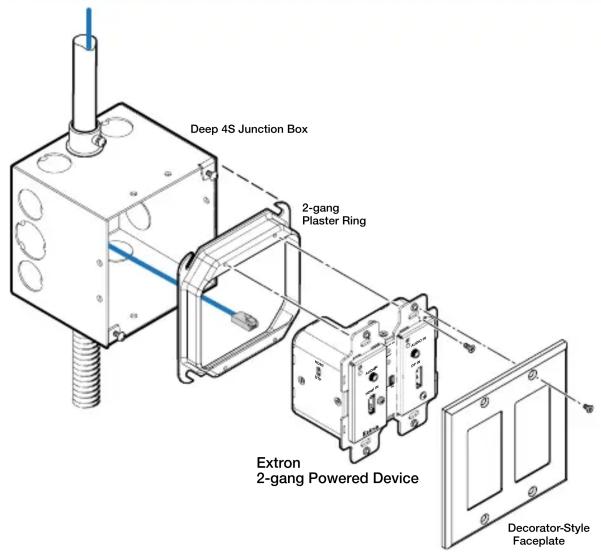

Figure 1. Mounting Vertically into Junction Box and 2-gang Plaster Ring

Figure 2. Mounting Horizontally to Junction Box and 1-gang Plaster Ring

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide on the Extron website.
