20CH1Q - Monitor AOPEN - Free user manual and instructions
Find the device manual for free 20CH1Q AOPEN in PDF.
| Product Type | LCD Monitor |
| Brand | AOpen |
| Model | 20CH1Q |
| Display Size | 19.5 inches (approx) |
| Native Resolution | 1366 x 768 (WXGA) |
| Refresh Rate | 60 Hz |
| Input Connectors | VGA (D-Sub), HDMI (optional) |
| Power Supply | External AC Adapter (100-240V) |
| Power Consumption (On) | Typical 16W (estimated) |
| Power Saving Mode | Standby < 0.5W (estimated) |
| Tilt Adjustment | -4° to +14° |
| VESA Mount | Not specified (likely 100x100mm) |
| Features | Eco modes (Standard, Text, Internet, Game, Movie, Sports), Blue Light Filter, DCR, DDC/CI, Auto Adjust |
| OSD Languages | English (default) and others |
| Weight (Net) | Approx. 2.5 kg (estimated) |
| Dimensions (with base) | 466 x 365 x 185 mm (estimated) |
| Cleaning Instructions | Unplug, use soft cloth; no liquids |
| Safety Certifications | CE, FCC, RoHS |
Frequently Asked Questions - 20CH1Q AOPEN
User questions about 20CH1Q AOPEN
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Monitor in PDF format for free! Find your manual 20CH1Q - AOPEN and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 20CH1Q by AOPEN.
USER MANUAL 20CH1Q AOPEN
Copyright © 2020. AOPEN Smartview Incorporated. All Rights Reserved.
AOPEN LCD Monitor User Guide Original Issue: 11/2020
Changes may be made periodically to the information in this publication without obligation to notify any person of such revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose.
Record the model number, serial number, purchase date and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your computer. All correspondence concerning your unit should include the serial number, model number and purchase information.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronically, mechanically, by photocopy, recording or otherwise, without the prior written permission of AOPEN Smartview Incorporated.
AOPEN LCD Monitor User Guide
Model number: ____
Serial number: ____
Date of purchase: ____
Place of purchase: ____
AOPEN and the AOPEN logo are registered trademarks of AOPEN Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies.
Special notes on LCD monitors
The following are normal with the LCD monitor and do not indicate a problem.
- Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the power switch and then turn it on again to make sure the flicker disappears.
- You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
- The LCD screen has 99.99% or more effective pixels. It may include blemishes of 0.01% or less such as a missing pixel or pixel lit all the time.
- Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the power switch for a few hours.
Information for your safety and comfort
Safety instructions
Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product.
Cleaning your monitor
Please carefully follow these guidelines when cleaning the monitor:
• Always unplug the monitor before cleaning.
- Use a soft cloth to wipe the screen and cabinet front and sides.
Connecting/disconnecting the device
Observe the following guidelines when connecting and disconnecting power from the LCD monitor:
- Make sure the monitor is attached to its base before connecting the power cord to the AC power outlet.
- Make sure both the LCD monitor and the computer are turned off before connecting any cable or unplugging the power cord.
- If the system has multiple sources of power, disconnect power from the system by unplugging all power cords from the power supplies.
Accessibility
Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power from the equipment, be sure to unplug the power cord from the electrical outlet.
Safe listening
To protect your hearing, follow these instructions.
- Gradually increase the volume until you can hear it clearly and comfortably and without distortion.
• After setting the volume level, do not increase it after your ears have adjusted. - Limit the amount of time listening to music at high volume.
- Avoid turning up the volume to block out noisy surroundings.
- Turn the volume down if you can't hear people speaking near you.
Warnings
- Do not use this product near water.
- Do not place this product on an unstable cart, stand or table. If the product falls, it could be seriously damaged.
- Slots and openings are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.
- Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product.
- To avoid damage of internal components and to prevent battery leakage, do not place the product on a vibrating surface.
- Never use it under sporting, exercising, or any vibrating environment which will probably cause unexpected short current or damage internal devices.
Using electrical power
- This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.
- Do not allow anything to rest on the power cord. Do not locate this product where
people will walk on the cord.
- If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.
- Do not overload a power outlet, strip or receptacle by plugging in too many devices. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip's input rating.
- This product's power cord is equipped with a three-wire grounded plug. The plug only fits in a grounded power outlet. Make sure the power outlet is properly grounded before inserting the power cord plug. Do not insert the plug into a non-grounded power outlet. Contact your electrician for details.
Warning! The grounding pin is a safety feature. Using a power outlet that is not properly grounded may result in electric shock and/or injury.
Note: The grounding pin also provides good protection from unexpected noise produced by other nearby electrical devices that may interfere with the performance of this product.
- Use the product only with the supplied power supply cord set. If you need to replace the power cord set, make sure that the new power cord meets the following requirements: detachable type, UL listed/CSA certified, type SPT-2, rated 7 A 125 V minimum, VDE approved or its equivalent, 4.6 meters (15 feet) maximum length.
Product servicing
Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.
Unplug this product from the wall outlet and refer servicing to qualified service personnel when:
• the power cord or plug is damaged, cut or frayed
• liquid was spilled into the product
• the product was exposed to rain or water
• the product has been dropped or the case has been damaged
- the product exhibits a distinct change in performance, indicating a need for service
- the product does not operate normally after following the operating instructions
Note: Adjust only those controls that are covered by the operating instructions, since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.
Potentially explosive environments
Switch off your device in any area with a potentially explosive atmosphere and obey all signs and instructions. Potentially explosive atmospheres include areas where you would normally be advised to turn off your vehicle engine. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Switch off the device near gas pumps at service stations. Observe restrictions on the use of radio equipment in fuel depots, storage and distribution areas; chemical plants; or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often, but not always, marked. They include below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), and areas where the air contains chemicals or particles such as grain, dust or metal powders.
Additional safety information
Your device and its enhancements may contain small parts. Keep them out of the reach of small children.
IT Equipment Recycling Information
AOPEN is strongly committed to environmental protection and views recycling, in the form of salvaging and disposal of used equipment, as one of the company's top priorities in minimizing the burden placed on the environment.
We at AOPEN are very conscious of the environmental effects of our business and strive to identify and provide the best working procedures to reduce the environmental impact of our products.
Disposal of Waste Equipment by Users in Private Household in the European Union
This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
AOPEN monitor is purposed for video and visual display of information obtained from electronic devices.
LCD pixel statement
The LCD unit is produced with high-precision manufacturing techniques. Nevertheless, some pixels may occasionally misfire or appear as black or red dots. This has no effect on the recorded image and does not constitute a malfunction.
This product has been shipped enabled for power management:
- Activate display's Sleep mode within 5 minutes of user inactivity.
- Wake the monitor when it is in Active Off mode, move the mouse or press any keyboard key.
Tips and information for comfortable use
Computer users may complain of eyestrain and headaches after prolonged use. Users are also at risk of physical injury after long hours of working in front of a computer. Long work periods, bad posture, poor work habits, stress, inadequate working conditions, personal health and other factors greatly increase the risk of physical injury.
Incorrect computer usage may lead to carpal tunnel syndrome, tendonitis, tenosynovitis or other musculoskeletal disorders. The following symptoms may appear in the hands, wrists, arms, shoulders, neck or back:
- numbness, or a burning or tingling sensation
• aching, soreness or tenderness
• pain, swelling or throbbing
• stiffness or tightness
• coldness or weakness
If you have these symptoms, or any other recurring or persistent discomfort and/or pain related to computer use, consult a physician immediately and inform your company's health and safety department.
The following section provides tips for more comfortable computer use.
Finding your comfort zone
Find your comfort zone by adjusting the viewing angle of the monitor, using a footrest, or raising your sitting height to achieve maximum comfort. Observe the following tips:
• refrain from staying too long in one fixed posture
- avoid slouching forward and/or leaning backward
- stand up and walk around regularly to remove the strain on your leg muscles
Taking care of your vision
Long viewing hours, wearing incorrect glasses or contact lenses, glare, excessive room lighting, poorly focused screens, very small typefaces and low-contrast displays could stress your eyes. The following sections provide suggestions on how to reduce eyestrain.
Eyes
• Rest your eyes frequently.
- Give your eyes regular breaks by looking away from the monitor and focusing on a distant point.
- Blink frequently to keep your eyes from drying out.
Display
- Keep your display clean.
- Keep your head at a higher level than the top edge of the display so your eyes point downward when looking at the middle of the display.
- Adjust the display brightness and/or contrast to a comfortable level for enhanced text readability and graphics clarity.
-
Eliminate glare and reflections by:
-
placing your display in such a way that the side faces the window or any light source
- minimizing room light by using drapes, shades or blinds
• using a task light - changing the display's viewing angle
• using a glare-reduction filter -
using a display visor, such as a piece of cardboard extended from the display's top front edge
-
Avoid adjusting your display to an awkward viewing angle.
- Avoid looking at bright light sources, such as open windows, for extended periods of time.
Developing good work habits
Develop the following work habits to make your computer use more relaxing and productive:
• Take short breaks regularly and often.
• Perform some stretching exercises.
- Breathe fresh air as often as possible.
• Exercise regularly and maintain a healthy body.
Declaration of Conformity
We,
AOPEN Smartview Incorporated
7F.-5, NO. 369, FUXING N. RD., SONGSHAN DIST., TAIPEI CITY 10541, Taiwan
And,
Acer Italy s.r.l.
We, AOPEN Smartview Incorporated., hereby declare under our sole responsibility that the product described above is in conformity with the relevant Un ion harmonization legislations as below Directive and following harmonized standards and/or other relevant standards have been applied:
EMC Directive: 2014/30/EU
EN 55032:2015+AC:2016 Class B
EN 55024:2010+A1:2015
EN 61000-3-2:2014 Class D
EN 61000-3-3:2013
LVD Directive: 2014/35/EU
EN 62368-1: 2014+ A11: 2017
RoHS Directive: 2011/65/EU
EN 50581:2012
☒ ErP Directive: 2009/125/EC
(EU) 2019/2021;EN 50564:2011
Year to begin affixing CE marking: 2020.
NuJaw
Federal Communications Commission Declaration of Conformity
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
The following local Manufacturer /Importer is responsible for this declaration:
Product: LCD Monitor
Brand: AOPEN
Model Number: 20CH1Q
SKU Number: 20CH1Q xxxxxxx ("x" = 0\~9, a \~ z, A \~ Z or Blank)
Name of Responsible Party: Acer America Corporation
Address of Responsible Party: 333 West San Carlos St.
Suite 1500
San Jose, CA 95110
U.S.A.
Contact Person: Acer Representative
Phone No.: 254-298-4000
Fax No.: 254-298-4147
Special notes on LCD monitors iii
Information for your safety and comfort iii
Safety instructions iii
Cleaning your monitor iii
Connecting/disconnecting the device iii
Accessibility iv
Safe listening iv
Warnings iv
Using electrical power iv
Product servicing v
Additional safety information vi
IT Equipment Recycling Information vi
Disposal of Waste Equipment by Users in Private
Household in the European Union vi
LCD pixel statement vii
Tips and information for comfortable use vii
Declaration of Conformity ix
Unpacking 1
Attaching the base (for selected models) 2
Screen position adjustment 3
Connecting the adapter and AC Power cord 3
Power saving 3
Display Data Channel (DDC) 4
Connector pin assignment 4
15-pin color display signal cable 4
19-pin color display signal cable 4
Standard timing table 5
Installation 6
Users controls 7
External controls 7
Using the Shortcut Menu 8
Modes Selection 11
Luminance 11
Image Setup 12
Color Setup 13
Color Boost 14
Picture Boost 15
OSD Setup 16
Extra 17
Troubleshooting
VGA Mode
HDMI Mode (Optional) 19
18
18
Unpacking
Please check that the following items are present when you unpack the box, and save the packing materials in case you need to ship or transport the monitor in the future.
LCD monitor Quick start guide AC Adapter
HDMI cable (Optional)
Note: Remove the monitor and monitor base from its packaging. Carefully place the monitor face-down on a stable surface -- use a cloth to avoid scratching the screen.
2 Align the release button at the bottom of the monitor with the corresponding slot at the bottom of the base. A clicking sound signifies that the monitor has been securely attached to the base.
Note: Take care when performing the installation to avoid injuring yourself.
Screen position adjustment

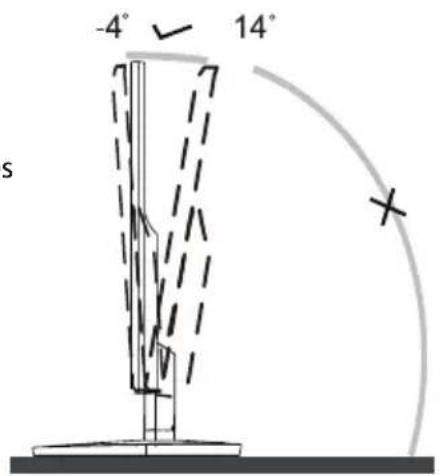

To optimize the viewing position, you can adjust the monitor tilt, using both of your hands to hold the edges of the monitor. The monitor can be adjusted to 14 degrees up or 4 degrees down.
Connecting the adapter and AC Power cord
- The monitor has a universal power supply that allows operation in either 100/120 V AC or 220/240 V AC voltage area. No user-adjustment is required.
- Insert the power cable of adapter into the power port at the back of the Monitor, then plug the adapter into a nearby electrical outlet
Power saving
The monitor will be switched to "power saving" mode by the control signal from the display controller, as indicated by the red light.
Mode LED light
On Green
Standby/Power saving Red
The power saving mode will be kept until a control signal has been detected or the keyboard or mouse is activated. The recovery time from "power saving" mode back to "on" is around 3 seconds.
Display Data Channel (DDC)
To make installation easier, so long as your system supports the DDC protocol, the monitor is able to plug-and-play. The DDC is a communication protocol through which the monitor automatically informs the host system about its capabilities; for example, supported resolutions and corresponding timing. The monitor supports the DDC2B standard.
Connector pin assignment
15-pin color display signal cable
| PIN No. Description PIN No. Description |
| 1 Red 9 +5 V |
| 2 Green 10 Logic ground |
| 3 Blue 11 Monitor ground |
| 4 Monitor ground 12 DDC-serial data |
| 5 DDC-return 13 H-sync |
| 6 R-ground 14 V-sync |
| 7 G-ground 15 DDC-serial clock |
| 8 B-ground |
19-pin color display signal cable
| PIN No. | Description | PIN No. | Description |
| 1 | TMDS Data2+ 2 | TMDS Data2 Shield | |
| 3 | TMDS Data2- | 4 TMDS Data1+ | |
| 5 | TMDS Data1 Shield | 6 TMDS Data1- | |
| 7 | TMDS Data0+ 8 | TMDS Data0 Shield | |
| 9 | TMDS Data0- 10 | TMDS Clock+ | |
| 11 | TMDS Clock Shield | 12 TMDS Clock- | |
| 13 | CEC | 14 Reserved (N.C. on device) | |
| 15 | SCL | 16 SDA | |
| 17 | DDC/CEC Ground | 18 +5V Power | |
| 19 | Hot Plug Detect | ||
Standard timing table
| No. Mode Resolution Refresh Rate | ||||
| 1 | VGA | 640x480 60 | Hz | |
| 2 | MAC | 640x480 | 67 | Hz |
| 3 | VGA | 640x480 | 72 Hz | |
| 4 | VGA | 640x480 | 75 Hz | |
| 5 | VESA | 720x400 | 70 Hz | |
| 6 | SVGA | 800x600 | 56 Hz | |
| 7 | SVGA | 800x600 | 60 Hz | |
| 8 | SVGA | 800x600 | 72 Hz | |
| 9 | SVGA | 800x600 | 75 Hz | |
| 10 | MAC | 832x624 | 75 Hz | |
| 11 | XGA | 1024x768 | 60 Hz | |
| 12 | XGA | 1024x768 | 70 Hz | |
| 13 | XGA | 1024x768 | 75 | Hz |
| 14 | VESA | 1280x720 | 60 | Hz |
| 15 | VESA | 1280x960 | 60 | Hz |
| 16 | SXGA | 1280x1024 | 60 | Hz |
| 17 | SXGA 1280x1024 | 75 | Hz | |
| 18 WXGA | 1366x768 | 60 | Hz | |
Installation
To install the monitor on your host system, please follow the steps below:
Steps
1 Turn off your monitor and unplug your computer's power cord.
2 2-1 Connect VGA Cable (Only VGA-input model)
a Make sure both the monitor and computer are powered-OFF.
b Connect the VGA cable to the computer.
2-2 Connect HDMI Cable (Only HDMI-input model)
a Make sure both the monitor and computer are powered-OFF.
b Connect the HDMI cable to the computer.
3 Insert the power cable of adapter into the power port at the back of the Monitor, then plug the adapter into a nearby electrical outlet.
4 Turn on the monitor first, then the computer. This sequence is very important.
5 If the monitor does not function properly, please refer to the troubleshooting section to diagnose the problem.
In order to prevent damage to the monitor, do not lift the monitor by its base.
Users controls
External Controls
| No. | Icon | Item | Description |
| 1 AUTO Source/ | Auto / Exit | If the OSD is active, press Auto to exit the OSD. Once the OSD is inactive, press Auto and the monitor will automatically optimize the display position, phase, and clock of your display. | |
| 2 | -/◀ | Eco mode/ Minus | If the OSD isn't active, continuous press the Minus button to choose the different Eco model.If the OSD is active, press the Minus button to toggle between the OSD options. |
| 3 | +/▶ Image ratio/ Plus | If the OSD isn't active, press the Plus button to change 4:3 or wide image ratio.If the OSD is active, press the Plus button to toggle between the OSD options. | |
| 4 MENU Menu/ | Option | Press to activate the OSD menu, then use it as directional key to highlight the desired function. Press it again to enter a selection. | |
| 5 POWER Power button | button | Turns the monitor on/off.Green indicates power on. Red indicates standby/power saving mode. |
Using the Shortcut Menu
Note: The following content is for general reference only. Actual product specifications may vary.
The OSD (on-screen display) can be used to adjust the settings of your LCD monitor.
Press the MENU key to open the OSD. You can use the OSD to adjust the picture quality, OSD position and general settings.
For shortcut settings, please refer to following page:
Press the function button to open the shortcut menu. The shortcut menu lets you quickly select the most commonly accessed settings.
Input Source Select Menu/Auto Adjust Menu
For single input model.
Press AUTO button to active auto adjust function.
For multi-input model.
Press AUTO button to open source select menu. Press AUTO button again to select available source and press MENU button to execute.
Press AUTO button continuously about 3 second to active auto adjust function.
ECO Menu
1) Press -/◄button to open ECO mode menu
2) Press +/► button to check current ECO mode, then press ◀/► button to select mode( Standard, Text, Internet, Game, Movie, Sports).
3) Default setting is "Standard".
Image Ratio Menu
1) Press +/▶ button to open Image Ratio Function menu.
2) Press +/▶ button again to check current mode, then press ◀/▶ key to change image ratio (Wide, 4:3).
3) Default setting is "Wide".
Note: If monitor with normal panel(4:3 or 5:4) and have not audio function, +/-Right hot key may be not used when OSD is closed.
Main Page
1) Press the Menu button to activate the OSD window.
2) Press + or - to navigate through the functions. (Press "-" key: the item will move to the forward item; Press "+" key: the item will move to the next item), (Once the desired function is highlighted, press the MENU-button to activate it. If the function selected has a sub-menu, press + or - again to navigate through the sub-menu functions. Once the desired function is highlighted, press MENU-button to activate it.
3) Press + or - to change the settings of the selected function. To exit and save, select the exit function. If you want to adjust any other function, repeat steps 2-3.
Modes Selection Luminance

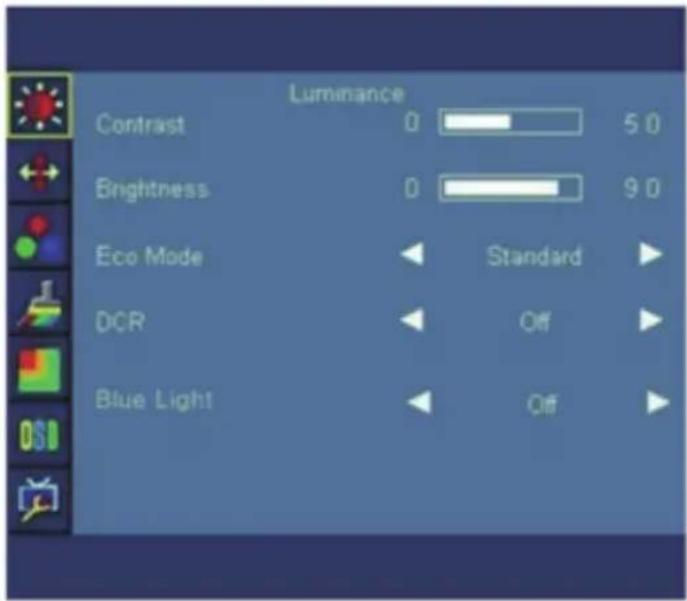

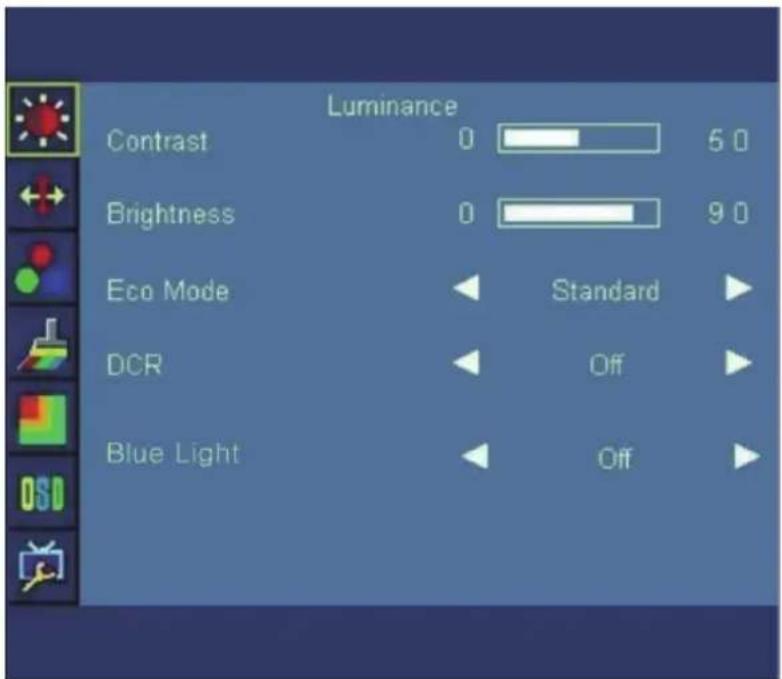

| Main Menu Item | Sub Menu Item | Sub Menu Description |
Luminance  | Contrast 0~100 | Contrast Adjustment |
| Brightness 0~100 | Backlight Adjustment | |
| Eco Mode | Standard Standard Mode | |
| Text Text Mode | ||
| Internet Internet Mode | ||
| Game Game Mode | ||
| Movie Movie Mode | ||
| Sports Sports Mode | ||
| DCR On/Off D | sable or enable dynamic contrast ratio | |
| Blue Light | Off Off blue light | |
| 50% Blue light: 50% | ||
| 60% Blue light: 60% | ||
| 70% Blue light: 70% | ||
| 80% Blue light: 80% |
Image Setup

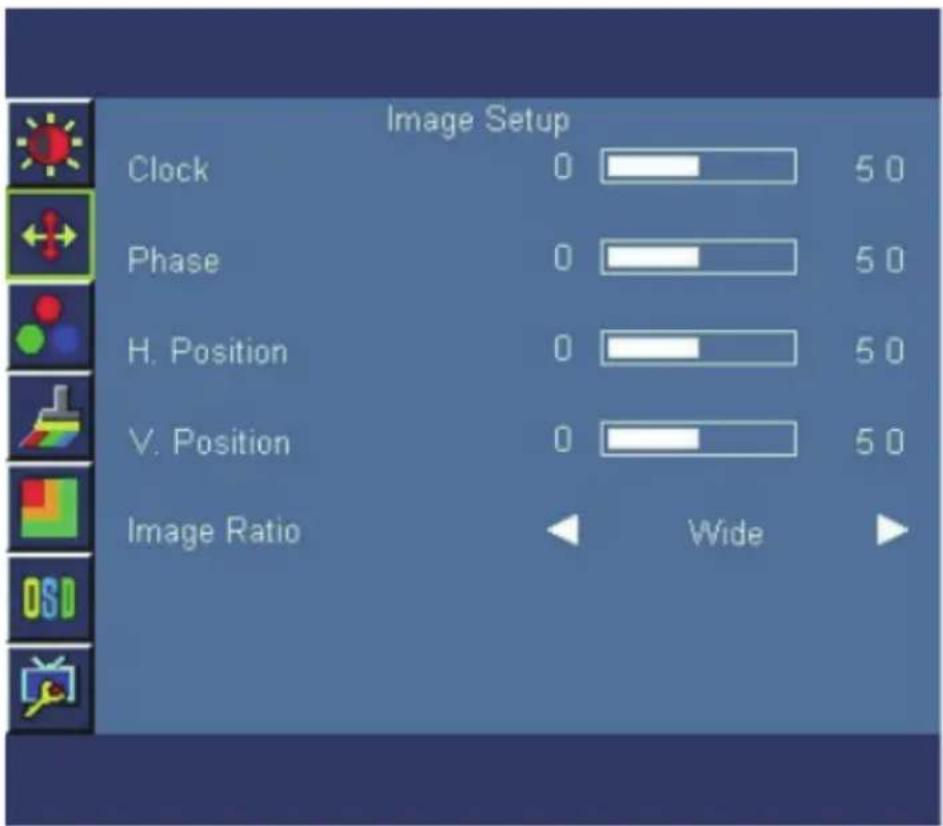

| Main Menu Item | Sub Menu Item | Sub Menu | Description |
Image setup | Clock 0~100 | Adjust picture Clock to reduce Vertical-Line noise. | |
| Phase 0~100 | Adjust Picture Phase to reduce Horizontal-Line noise. | ||
| H.Position 0~100 | Adjust the horizontal position of the picture. | ||
| V.Position 0~100 | Adjust the vertical position of the picture. | ||
| Image Ratio Wide/ 4:3 Select wide or 4:3 format for display | |||
Note:
If the product screen size is 4:3 or input signal resolution is wide format, the item of "Image Ratio" is disabled to adjust.
Color Setup
| Main Menu Item | Sub Menu Item | Sub Menu | Description |
Color Temp. | Warm Recall Warm Color Temperature. | ||
| Normal Recall Normal Color Temperature. | |||
| Cool Recall Cool Color Temperature. | |||
| sRGB Recall sRGB Color Temperature. | |||
| USER | Red Red Gain from Digital-register. | ||
| Green Green Gain from Digital-register. | |||
| Blue Blue Gain from Digital-register. | |||
Color Boost
| Main Menu Item | Sub Menu Item | Sub Menu | Description |
Color Boost  | Full Enhance On/Off Disable or Enable Full Enhance Mode | ||
| Nature Skin On/Off Disable or Enable Nature Skin Mode | |||
| Green Field On/Off Disable or Enable Green Field Mode | |||
| Sky-blue On/Off Disable or Enable Sky-blue Mode | |||
| Auto Detect On/Off Disable or Enable Auto Detect Mode | |||
| Demo On/Off Enhance Area in the left half of screen. | |||
Picture Boost
| Main Menu Item | Sub Menu Item | Sub Menu Description | |
Picture Boost  | Frame Size | 14,29,43,57,71,86,100 | Adjust the Size of the Frame |
| Contrast 0-100 | Contrast Adjustment for Enhance Area | ||
| Brightness 0-100 | Brightness Adjustment for Enhance Area | ||
| H. Position 0-100 | Adjust the horizontal position of the Bright Frame. | ||
| V. Position 0-100 | Adjust the vertical position of the Bright Frame. | ||
| Bright Frame On/Off Enhance | Area function | ||
OSD Setup

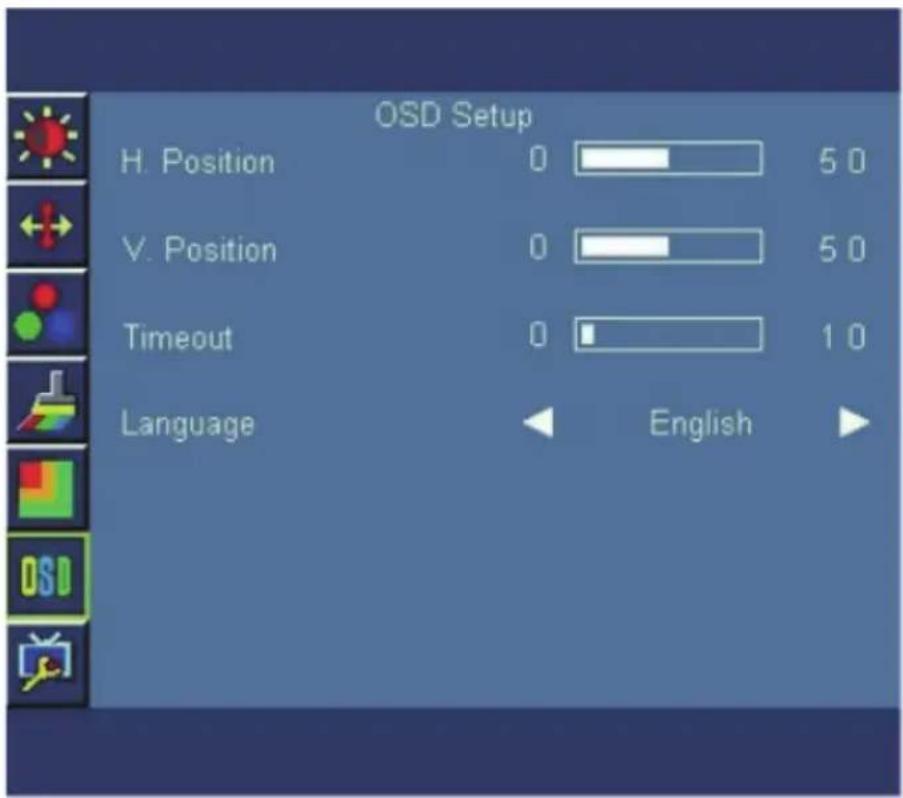

| Main Menu Item | Sub Menu Item | Sub Menu | Description |
OSD Setup | H. Position 0-100 | Adjust the horizontal position of the OSD.each step will increase/decrease value by 5 | |
| V. Position 0-100 | Adjust the vertical position of the OSD.each step will increase/decrease value by 5 | ||
| Timeout | 5-100 | Adjust the OSD timeout.each step will increase/decrease value by 5 | |
| Language | Select the OSD language.(English is default setting ) |
Extra
| Main Menu Item | Sub Menu Item | Sub Menu | Description |
| Extra | Input Select | AUTO D-SUB HDMI | Select input source |
| DDC/CI On/Off | Select DDC/CI on or off | ||
 | Off Timer 00~24H | Select DC | Off Time |
| Reset Yes/ No | Set Monitor to | default status. | |
| Information | Show the resolution, H/V frequency of current input timing. | ||
Input Select
DDC/CI
Off Timer
Reset
Information
Resolution:
H. Frequency:
V. Frequency:
Auto
On
00
No
$$ 1 3 6 6 (H) \times 7 6 8 (V) $$
$$ 4 8 \mathrm{KHz} $$
$$ 6 0 \mathrm{Hz} $$
Troubleshooting
Before sending your LCD monitor for servicing, please check the troubleshooting list below to see if you can self-diagnose the problem.
VGA Mode
| Problem LED status Remedy | ||
| No picture visible Green Using the OSD menu, adjust brightness and contrast to maximum or reset to their default settings. | ||
| Off Check the power switch. | ||
| Check if the power cord is properly connected to the monitor. | ||
| Red Check if the video signal cable is properly connected at the back of monitor. | ||
| Check if the computer system is switched on and in power saving/standby mode. | ||
| Unstable picture Green | Check if the specification of graphics adapter and monitor is in compliance which may be causing the input signal frequency mismatch. | |
| Abnormal picture (Image is missing, off-center, too large or too small on the screen) | Green | Using the OSD menu, adjust focus, clock, H-position and V-position with non-standard signals. |
| Check the display setting on your system. In case of a missing image, please select another resolution or vertical refresh rate. | ||
| Wait for a few seconds after adjusting the size of the image before changing or disconnecting the signal cable or switching off the monitor. | ||
HDMI Mode (Optional)
Problem LED status Remedy
| No picture visible Green Using the OSD menu, adjust brightness and contrast to maximum or reset to their default settings. | |
| Off Check the power switch. | |
| Check if the AC power cord is properly connected to the monitor. | |
| Red Check if the video signal cable is properly connected at the back of monitor. | |
| Check if the computer system is switched on and in power saving/standby mode. | |
- Special notes on LCD monitors
- Information for your safety and comfort
- Safety instructions
- Cleaning your monitor
- Connecting/disconnecting the device
- Accessibility
- Safe listening
- Warnings
- Using electrical power
- Product servicing
- Potentially explosive environments
- Additional safety information
- IT Equipment Recycling Information
- Disposal of Waste Equipment by Users in Private Household in the European Union
- LCD pixel statement
- Tips and information for comfortable use
- Finding your comfort zone
- Taking care of your vision
- Eyes
- Display
- Developing good work habits
- Declaration of Conformity
- Federal Communications Commission Declaration of Conformity
- Special notes on LCD monitors iii
- Information for your safety and comfort iii
- Unpacking 1
- Standard timing table 5
- Installation 6
- Users controls 7
- Troubleshooting
- Unpacking
- Attaching the base (for selected models)
- Screen position adjustment
- Connecting the adapter and AC Power cord
- Power saving
- Mode LED light
- Display Data Channel (DDC)
- Connector pin assignment
- 15-pin color display signal cable
- 19-pin color display signal cable
- Installation
- Steps
- Users controls
- External Controls
- Using the Shortcut Menu
- Input Source Select Menu/Auto Adjust Menu
- ECO Menu
- Image Ratio Menu
- Main Page
- Modes Selection Luminance
- Image Setup
- Note:
- Color Setup
- Color Boost
- Picture Boost
- OSD Setup
- Extra
- HDMI Mode (Optional)
Brand : AOPEN
Model : 20CH1Q
Category : Monitor
