| Product Type | Computer Case |
| Brand | Azza |
| Model | Forest |
| Form Factor | Mid-Tower |
| Dimensions (H x W x D) | 460 x 210 x 420 mm |
| Weight | 6.5 kg |
| Material | Steel, Tempered Glass, Plastic |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |
| PSU Support | Standard ATX PSU (up to 200 mm) |
| Front Panel Ports | 2x USB 3.0, 1x USB-C, 1x Audio/Mic |
| Internal Drive Bays | 2x 3.5", 2x 2.5" |
| Fan Support (Front) | 3x 120 mm or 2x 140 mm |
| Fan Support (Top) | 2x 120 mm or 2x 140 mm |
| Fan Support (Rear) | 1x 120 mm |
| Radiator Support | Front: 360/280 mm, Top: 240/280 mm, Rear: 120 mm |
| Maximum GPU Length | 360 mm |
| Maximum CPU Cooler Height | 160 mm |
| Installation Tips | Refer to manual for proper motherboard standoff placement and cable routing |
| Cleaning Instructions | Use compressed air for dust removal; wipe exterior with soft dry cloth |
| Safety Warnings | Keep away from liquids; ensure adequate ventilation; power off before installation |
| Spare Parts Availability | Contact Azza support for replacement filters, fans, and side panels |
| Warranty | 2 years limited warranty |
Frequently Asked Questions - Forest Azza
What motherboard sizes are compatible with the Azza Forest case?
The Azza Forest supports ATX, Micro-ATX, and Mini-ITX motherboards.
Can I install a 360mm radiator in the front of the Forest case?
Yes, the front panel supports radiators up to 360mm (triple 120mm) or 280mm (dual 140mm).
How many fans come pre-installed with the Azza Forest?
The Azza Forest typically comes with no pre-installed fans; you can add your own according to the supported configurations.
What is the maximum GPU length that can fit in the Forest case?
The maximum GPU length is 360mm, accommodating most high-end graphics cards.
Does the Azza Forest include a power supply?
No, the case does not include a power supply. You need to purchase a standard ATX PSU separately.
How do I clean the tempered glass side panel?
Use a soft microfiber cloth and a gentle glass cleaner. Avoid abrasive materials to prevent scratches.
Can I install a 2.5-inch SSD in the Azza Forest?
Yes, the case has dedicated 2.5-inch drive bays for SSDs, typically located behind the motherboard tray.
Is the front panel USB-C port functional on all motherboards?
The front panel USB-C port requires a motherboard with a USB 3.2 Gen 2 header. Check your motherboard manual for compatibility.
What is the warranty period for the Azza Forest case?
Azza offers a 2-year limited warranty covering manufacturing defects. Contact Azza support for claims.
How do I remove the front panel for cleaning or fan installation?
The front panel is attached with clips. Gently pull from the bottom while supporting the case. Refer to the manual for detailed steps.
User questions about Forest Azza
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Computer Case in PDF format for free! Find your manual Forest - Azza and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Forest by Azza.
USER MANUAL Forest Azza
FOREST
USER MANUAL
- Specifications
2.Chassis Parts - Control Panel Functions

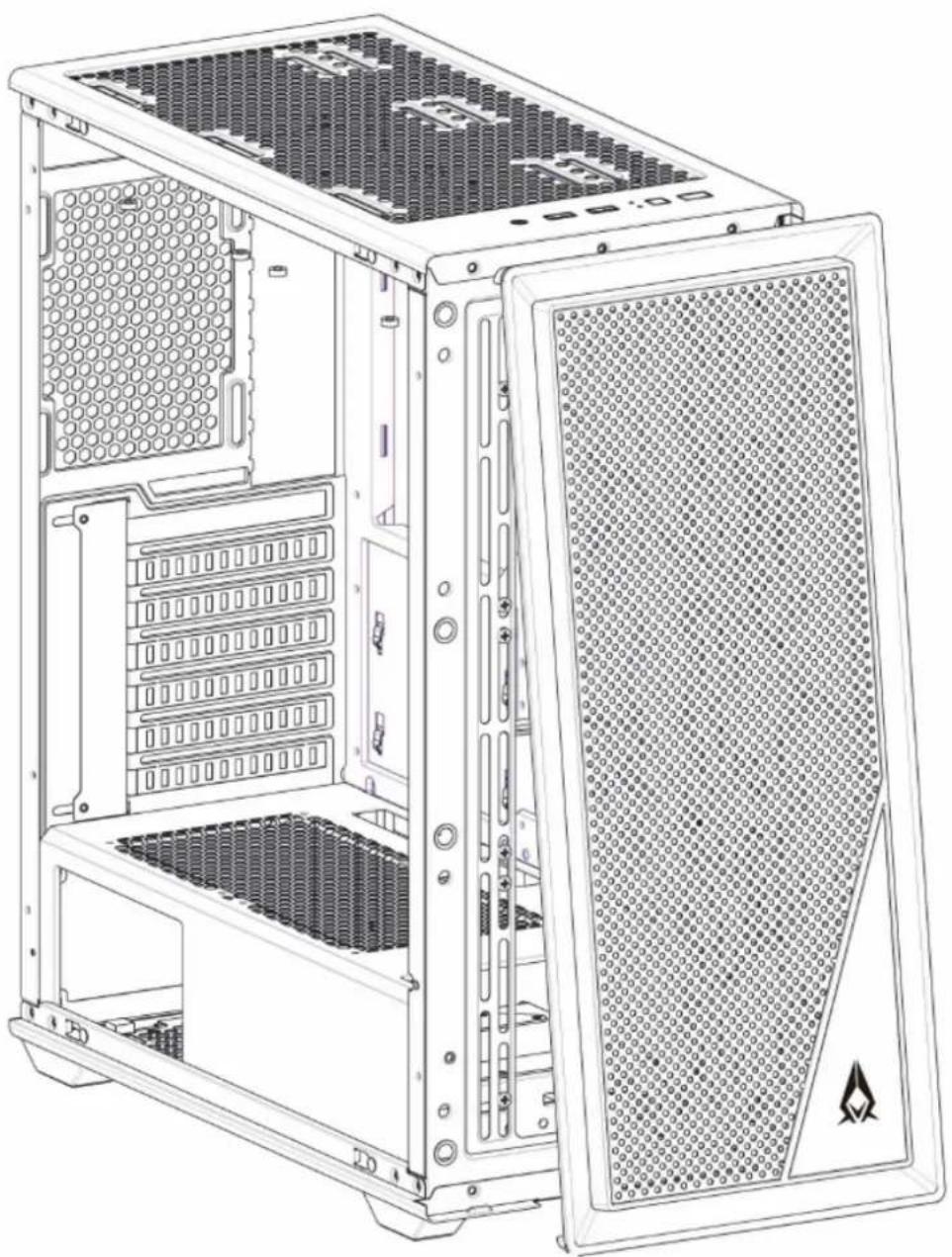

4.3.5"/2.5" HDD/SSD Installation - Remove the Front panel
- Cooling System Installation
- PSU Fans Installation
- Fan Installation
- RGB Lighting Switching
- ARGB IC Board Installation
| Model | |
| Model Name: | Forest |
| Model Number: | CSAZ-370 |
| Specifications | |
| Type: | ATX Mid Tower |
| Color: | Black |
| Side Panel Window: | Left side panel: Slidable tempered glass panel |
| Max CPU Cooler Height: | UP to 160 mm |
| Max Video Card Length: | Up to 330 mm long video card |
| Power Supply: | Not included |
| Motherboard Compatibility: | ATX、Micro ATX、ITX |
| Expansion | |
| External 5.25" Drive Bays: | 0 |
| Internal 2.5" Drive Bays: | Up to 4 |
| Internal 3.5" Drive Bays: | Up to 2 |
| Expansion Slots: | 7 |
| Top Ports: | Power button, LED button, Combo HD Audio, USB 3.0 x 2 |
| Physical Specifications | |
| Physical Dimension(HxWxD) | 486x205x400mm/19x8.1x15.7 inches |
| Weight: | 6Kg /13.2lbs |
| Features | |
| Addressable RGB Light Effects: | Addressable RGB devices connected to the ARGB&PWM control board can be controlled with the LED button or motherboard lighting software. |
| Available Fan Ports: | 3x120mm or 2x140mm fan ports in the front (3x120mm LFO-5212D ARGB&PWM Fan included)2x120mm or 2x140mm fan ports on the top1x120mm fan port in the rear (1x120mm LFO-5212D ARGB&PWM Fan included)2 x 120 mm fan ports on the PSU shroud |
| Water Cooling: | Supports radiators up to 280/360mm in the FrontSupports radiators up to 240/280mm in the Top |
| Dust Filters: | Removable (magnetic) dustproof net on the top, dust filter on bottom of chassis. |
| Power Supply Support: | Bottom mounted ATX Power Supply |
| 1 | Front panel |
| 2 | Metal side panel |
| 3 | Removable magnetic mesh |
| 4 | Hard disk cage |
| 5 | 3.5"HDD/ 2.5"SSD brackets |
| 6 | Chassis |
| 7 | Tempered glass panel |
| 8 | Dust filter mesh |
| LED | |
| HD Audio |
| USB3.0 | |
| USB 3.0 |
• Supports up to 330mm long video cards.
- Multifunctional hard disk bracket supports 3.5" HDD x 1 or 2.5" SSD x1 (A)
-2.5" SSD metal tray support 2.5"SSD x2 ( © ) - Multifunctional hard disk cage supports 3.5" HDD x 1 or 2.5" SSD x 1( B )


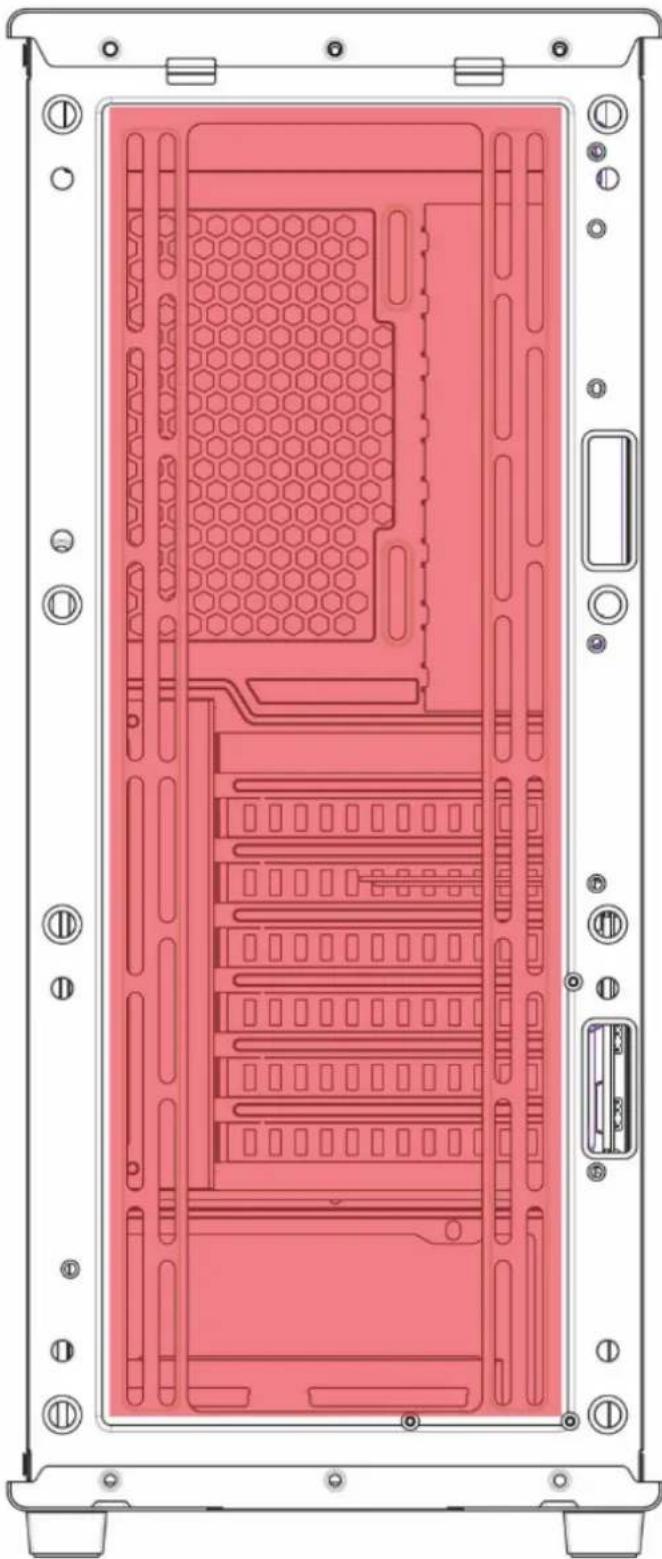

Red arrow pointing diagonally downward to the right (no text or symbols)Front
or


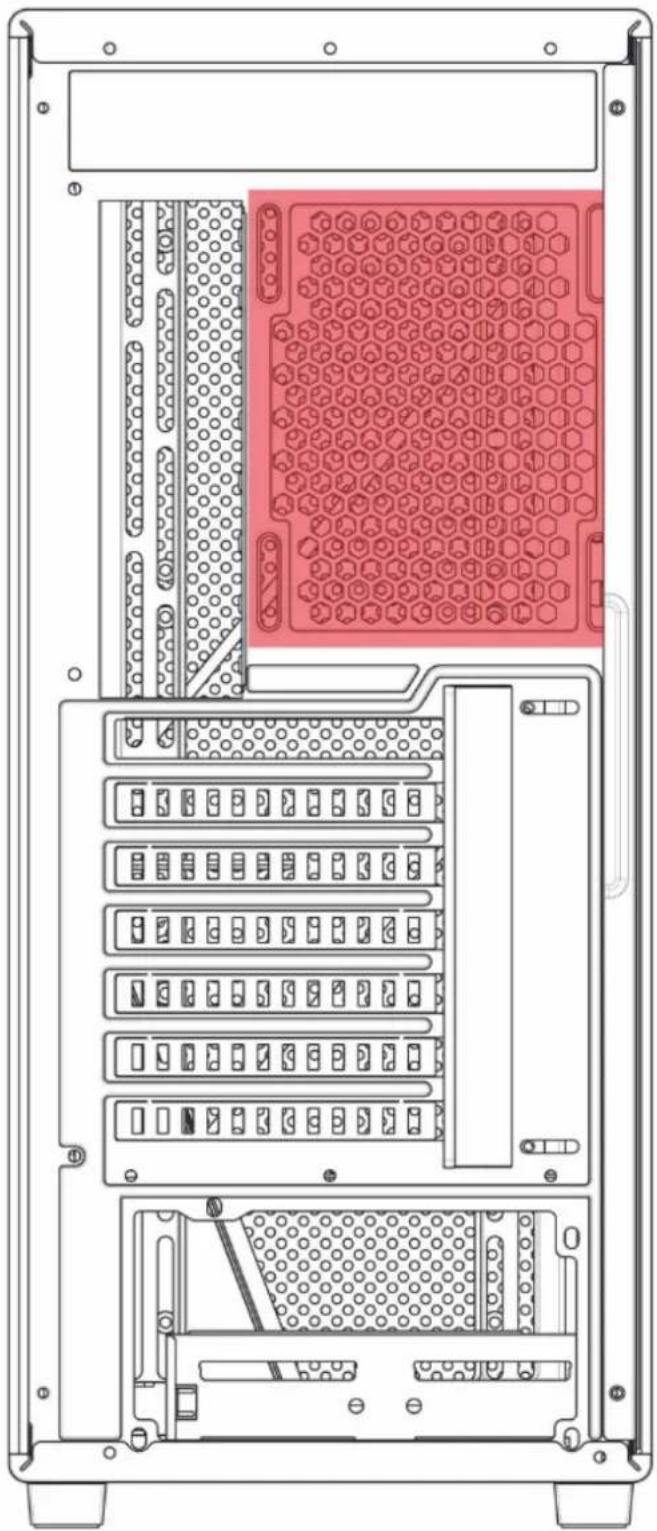

Rear
Top
or


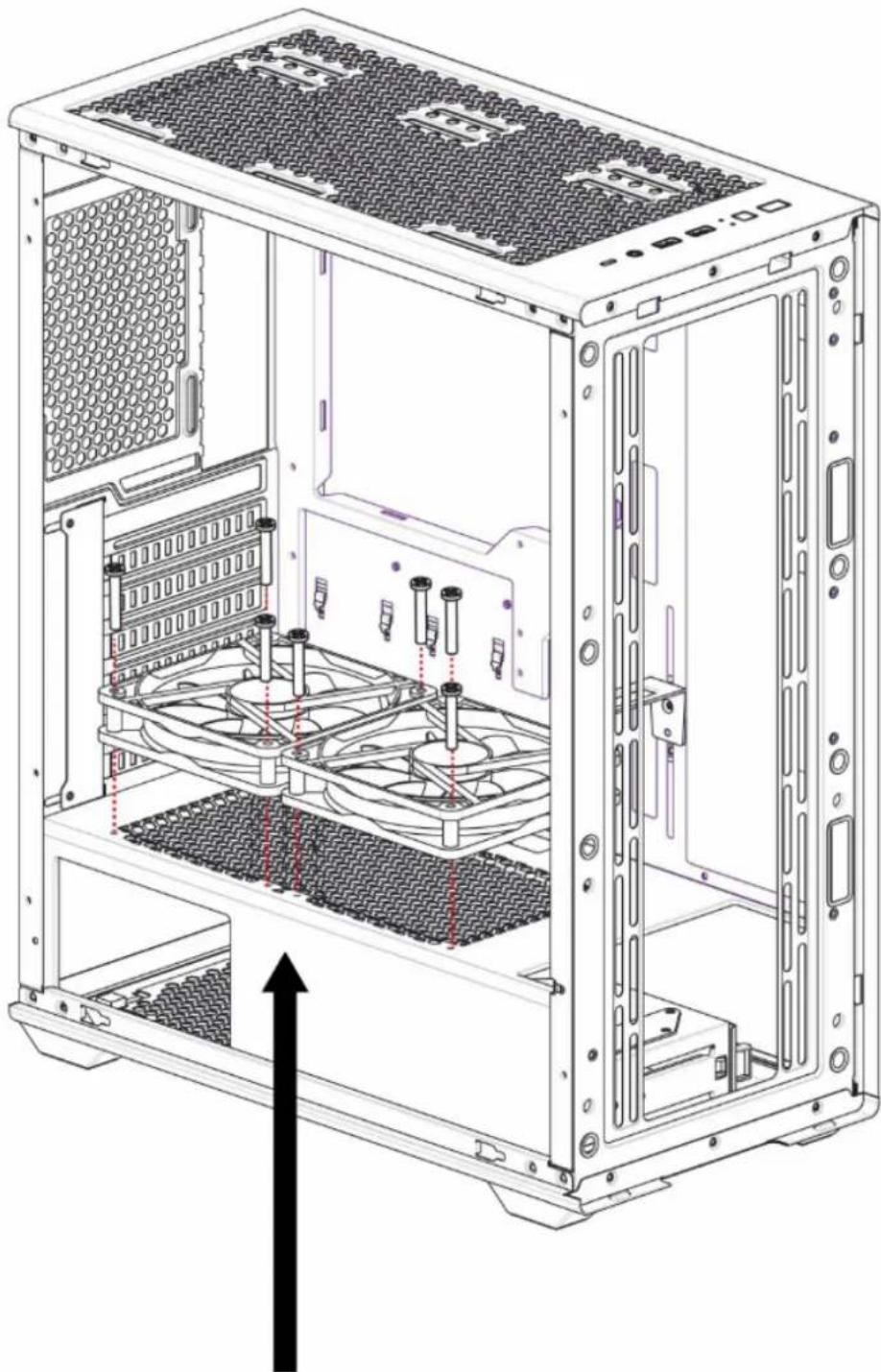

Technical line drawing of a desktop computer tower case with visible internal components and ventilation slots (no text or labels)2x120mm fan ports on the Power Supply Shroud
LED
Hold 2 Secs
(White light flash 2 times)
RGB control board control
Motherboard control
LED
Hold 1 Sec
LED
1 Sec
Circle change the 18 modes
6 Secs
Turn off the light (White light flash 4 times)
RGB control board and motherboard RGB lighting modes support the Power-off memory lighting effect function.
