Product Type	Ceiling Light Fixture
Brand	Livex Lighting
Model	7341-07
Series	7340, 7341, 7342, 7343
Material	Metal and Glass
Power Source	Hardwired (120V AC)
Number of Lights	1 (single shade)
Mounting Type	Ceiling Mount (flush to ceiling)
Installation Type	Hardwired, requires junction box
Included Components	Single bar, pan (A), glass shade (B), crown (D), mounting screws, wire nuts
Bulbs Included	No
Safety Warning	Shut off power at fuse or circuit breaker before installation
Wiring	Black (hot) to black house wire; white (neutral) to white house wire; bare copper (ground) to ground
Care Instructions	Wipe with soft, dry cloth; avoid harsh chemicals
Customer Service	800-761-8056
Weight (estimated)	2.5 lbs

Frequently Asked Questions - 7341-07 Livex Lighting

What type of bulbs does this fixture use?

The manual does not specify the bulb type. Typically, such fixtures use standard base (E26) bulbs. For exact specifications, check the fixture's label or contact Customer Service at 800-761-8056.

Is the fixture dimmable?

The fixture does not specify dimming capability. If you wish to use a dimmer, ensure you use dimmable bulbs and a compatible dimmer switch.

How do I clean the glass shade?

Clean the glass shade with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials that may damage the finish.

Can I install this fixture myself?

Yes, if you have basic electrical knowledge. Always turn off power at the fuse or circuit breaker before starting installation. Follow the provided assembly instructions carefully.

What is the warranty for this product?

The manual does not mention a specific warranty period. For warranty information, contact Livex Lighting customer service at 800-761-8056 or visit www.livexlighting.com.

Does the fixture come with bulbs?

No, bulbs are not included. You will need to purchase compatible bulbs separately, ensuring they do not exceed the maximum wattage rating.

What voltage does the fixture require?

The fixture is designed for 120V AC standard household wiring. Do not connect to higher voltage.

How do I remove the old fixture before installing this one?

First, turn off power at the fuse box or circuit breaker. Then remove the old fixture by unscrewing it and disconnecting the wires. Remove the old mounting bar if present.

Can I use LED bulbs in this fixture?

Yes, you can use LED bulbs as long as they fit the socket and do not exceed the fixture's maximum wattage rating. For optimal performance, use bulbs designed for enclosed fixtures.

Is this fixture suitable for outdoor use?

The manual does not indicate outdoor use. This fixture is designed for indoor installation only in dry locations.

USER MANUAL 7341-07 Livex Lighting

ASSEMBLING & INSTALLATION INSTRUCTIONS

The drawing shown may not exactly match the product enclosed. However, the installation instructions do apply to this product.

7340 7341 7342 7343

◆ WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
◆ ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJONCTEUR.

ASSEMBLING THE FIXTURE (Fig.1)

1. Shut off the power at the fuse box or circuit breaker box. Remove the old fixture from ceiling, including the single bar.
2. Carefully unpack your new fixture and lay out all the parts on a clear area. Take care not to lose any small parts necessary for installation.
3. Thread the pipe screw part way into the center hole of the single bar and secure with hex nut.
4. Attach the single bar to the junction box using two box screws as shown. The side of the single bar marked "GND" must face out. The junction box is not included.

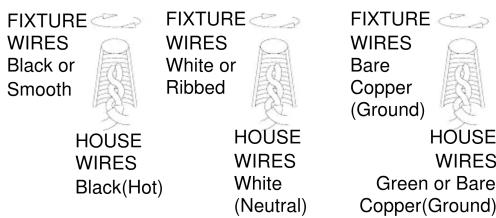

5. Hold the pan (A) towards the single bar and connect the electrical wires as follows (See Fig.2). Connect the black wire from the fixture to the black house (hot) wire; connect the white wire from the fixture to the white house (neutral) wire. Make sure all wire nuts are secured. You may wrap the connections with electrical tape. If your Junction box has a ground wire (green or bare copper) connects fixture's ground wire to it. Otherwise attach the bare copper fixture wire to the green ground screw on the single bar. Tuck the wire connections neatly into the ceiling junction box as you are holding the fixture assembly toward the ceiling.
6. Finish mounting the pan (A) by placing it over both mounting screws so that the screws protrude from the keyholes in the bottom of the pan (A). Rotate the pan (A) until the screw are seat in the slots of the keyholes and tighten it with a screwdriver.
7. Install the light bulbs (Not included) in accordance with the fixture's specifications. DO NOT EXCEED THE MAXIMUM WATTAGE RATING!
8. Attach the glass shade (B) to the crown (D), raise the assembly to the pan, aligning the thread hole of pan with the crown's hole, then tighten it with the screws (C).

Your installation is now complete. Return power to the junction box and test the fixture.

FIG.1

FIG.2

Thank you for purchasing a LIVEX product.
Need assistance with parts or assembly? Please call customer service at: 800-761-8056
Or visit us online at: WWW.LIVEXLIGHTING.COM
