Product Type	Flexible Macro Bracket with Arca-Style Mount
Brand	Vello
Model	CB-900
Compatibility	DSLR, mirrorless cameras, camcorders
Mount Type	Arca-style (compatible with most Arca tripod heads)
Arm Type	Padded flexible arm for attaching flash or LED light
Cold Shoe	Yes, for shoe-mount flash or LED light
Cold-Shoe Locking	Screw to secure accessory
Camera Mounting Thread	1/4"-20 threaded stud with D-ring
Adjustability	Adjustable stud for different camera sizes
Warranty	1-year limited warranty
Color	Black
Application	Macro photography for optimal lighting
TTL Cord Support	Yes, allows off-camera flash with TTL cord
Contact	Vello Customer Service: 212-594-2353 or www.vellogear.com

Frequently Asked Questions - CB-900 Vello

How do I mount the camera on the Vello CB-900 bracket?

Screw the 1/4"-20 mounting stud on the bottom of the bracket into the camera's tripod thread and tighten using the D-ring.

Can I use a shoe-mount flash with this bracket?

Yes, the bracket has a cold-shoe that accepts a shoe-mount flash. Loosen the cold-shoe locking screw, slide the flash foot in, tighten the screw, and then tighten the flash's locking collar.

What is the purpose of the padded flexible arm?

The padded flexible arm allows you to attach a flash or LED light and tilt it towards the lens for optimal lighting in macro photography.

Does the bracket work with Arca-style tripod heads?

Yes, the camera bracket features an Arca-style mount for quick mounting and dismounting to most Arca-style tripod heads.

Is the Vello CB-900 compatible with my camera?

It is designed for DSLR and mirrorless cameras, as well as camcorders, as long as they have a standard 1/4"-20 tripod thread and a hot shoe for TTL cord connection if needed.

How do I connect a TTL cord?

Install the camera-end of the TTL cord into the camera's hot shoe and tighten its locking collar. Then mount the flash-end into the bracket's cold-shoe, tighten the cold-shoe locking screw, and tighten the TTL cord's locking collar. Finally, mount your flash onto the cord's hot shoe.

What accessories can I mount on the cold-shoe?

You can mount a shoe-mount flash (with or without TTL cord) or an LED light with a shoe mount.

How do I adjust the bracket for different camera sizes?

The 1/4"-20 mounting stud is adjustable; you can turn it to fit the depth of your camera's tripod socket.

What is the warranty on the Vello CB-900?

It comes with a one-year limited warranty against defects in materials and workmanship for the original purchaser.

How do I contact Vello for support?

Call Customer Service at 212-594-2353 or visit www.vellogear.com. You may need a Return Merchandise Authorization (RMA) for warranty service.

USER MANUAL CB-900 Vello

WITH ARCA-STYLE MOUNT

USER MANUAL

VELLO

3D rendered image of a vertical cylindrical object with a protruding rod, shown against a black background (no text or symbols)

THANK YOU FOR CHOOSING VELLO

The Vello CB-900 Flexible Macro Bracket with Arca-Style Mount is designed for DSLR and mirrorless cameras, as well as camcorders, for close-up or macro shots. When shooting macro photography, the light source needs to be near the lens to light your subject properly. This bracket features a padded, flexible arm that allows you to attach a shoe mount flash or LED light and tilt that light source towards the lens for the best possible lighting. The cold-shoe accommodates a shoe-mount flash, with the use of a TTL cord, or LED lights with a shoe mount. A 1/4"-20 threaded stud with D-ring offers easy attachment to a camera, and is adjustable for different camera sizes. The camera bracket offers Arca-style attachment for quick mounting and dismounting to most Arca-style tripod heads.

OVERVIEW

Cold-shoe

Padded flexible arm

Camera bracket with Arca-style mount

Cold-shoe locking screw

Adjustable 1/4"-20 camera mounting stud with D-ring

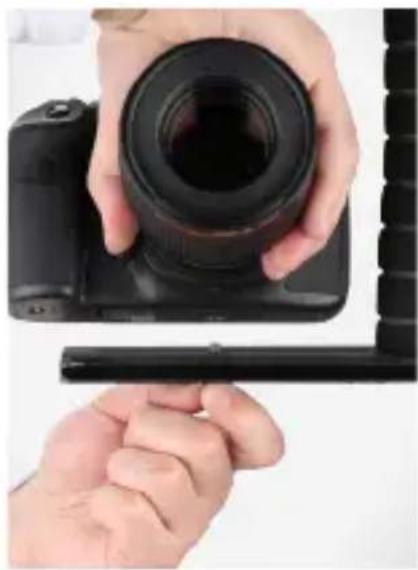

MOUNTING THE CAMERA

Screw the mounting stud on the bottom of the bracket into the camera's 1/4"-20 tripod thread.

Close-up of hands holding a black DSLR camera with a flexible strap (no visible text or symbols)

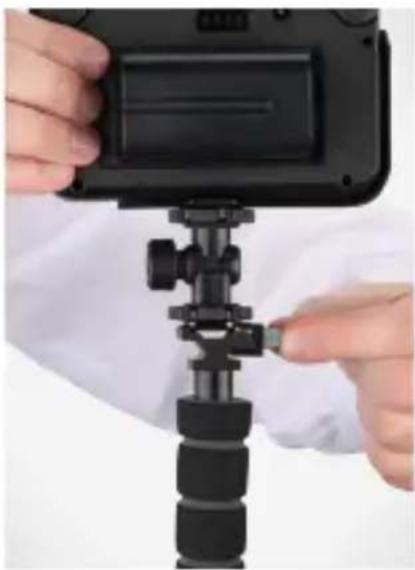

MOUNTING COLD-SHOE ACCESSORIES

When using a shoe-mount flash or LED light, mount the device by loosening the cold-shoe locking screw and sliding the mounting foot into the cold-shoe of the bracket. Tighten the cold-shoe locking screw, and then tighten the locking collar on the flash or LED light until secure.

Person adjusting a black tripod-mounted camera module with a small clip, no visible text or symbols

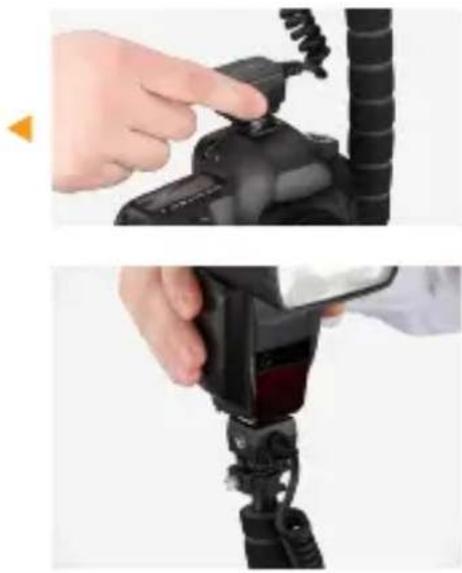

CONNECTING THE TTL CORD

1. When using a TTL cord, install the camera-end of the TTL cord into the camera's hot shoe, then tighten the locking collar on the TTL cord.

2. Mount the flash-end of the TTL cord into the cold-shoe of the bracket. Tighten the cold-shoe locking screw, and then tighten the locking collar on the TTL cord.

1. Mount your hot-shoe flash onto the flash-end of the TTL cord by sliding it into the cord's hot shoe, and then tighten the flash's locking collar.

Note: Check that all connections are secure before use.

ONE-YEAR LIMITED WARRANTY

This VELLO product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function. This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Vello Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Vello along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.

For more information or to arrange service, visit www.vellogear.com or call Customer Service at 212-594-2353.
