Stetson STS8624MBK - Lighting Quoizel - Free user manual and instructions

Product Type	Ceiling Mount Light Fixture
Brand	Quoizel
Model	Stetson STS8624MBK
Category	Lighting
Number of Lights	3
Bulb Base Type	Medium (E26)
Recommended Bulb Type	Type A
Bulbs Included	No
Power Source	Hardwired
Voltage	120V (typical)
Installation Type	Ceiling mount
Material	Metal (fixture body), Glass (shades)
Package Contents	Fixture body, 3 shades, 3 steel collars, 3 socket collars, socket collar tool, mounting hardware
Safety Warning	Risk of electric shock – disconnect power before installation. Risk of fire – use bulbs specified on fixture.
Cleaning Instructions	Wipe clean with soft dry cloth or static duster. Avoid harsh chemicals and abrasives.
Customer Support	1-800-645-3184 (9:00am - 5:00pm EST) or www.quoizel.com

Frequently Asked Questions - Stetson STS8624MBK Quoizel

What is the product type of the Quoizel Stetson STS8624MBK?

It is a ceiling mount light fixture, specifically a 3-light chandelier-style lighting fixture.

What bulb base does this fixture use?

It uses a medium (E26) base. The recommended bulb type is Type A.

Are bulbs included with the fixture?

No, bulbs are not included. You need to purchase 3 bulbs with medium (E26) base, Type A, respecting the maximum wattage indicated on the fixture.

How do I install the Quoizel Stetson STS8624MBK?

1. Turn off electricity at the circuit breaker. 2. Install the inner backplate to the outlet box. 3. Connect wires (white to white, black to black, ground to bare copper). 4. Attach the fixture body to the backplate. 5. Install the glass shades over the sockets and secure with steel collars. 6. Install bulbs. 7. Restore power.

Can I use LED bulbs with this fixture?

Yes, as long as they have a medium (E26) base and are Type A shape. Ensure the LED bulb's wattage is within the fixture's maximum rating.

What is the maximum wattage per bulb?

The maximum wattage is not specified in the manual. Please refer to the marking on the fixture for the exact rating. Typically, it is 60W per bulb.

How do I clean the fixture?

Wipe the fixture with a soft dry cloth or a static duster. Do not use harsh chemicals or abrasives as they may damage the finish.

Is this fixture dimmable?

Dimmability depends on the bulbs you use. The fixture itself does not have a dimmer. If you use dimmable bulbs with a compatible dimmer switch, it can be dimmed.

What is the warranty period for Quoizel lighting?

The manual does not specify a warranty period. For warranty inquiries, contact Quoizel Customer Care at 1-800-645-3184 or visit their website.

Can I install this in a bathroom or damp location?

The fixture is not specifically rated for damp locations. It is recommended for indoor, dry locations only. For bathrooms, ensure proper ventilation and avoid direct water contact.

USER MANUAL Stetson STS8624MBK Quoizel

Released Date: 2024-01-23

Please read and understand this entire manual before attempting to assemble, install or operate the product.

WARNING

• RISK OF ELECTRIC SHOCK - Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
• RISK OF FIRE - Use bulbs specified by the markings and/or labels on the fixture.

CAUTION

• For your safety, read instructions completely before beginning installation.
• If in doubt about electrical installation, consult a licensed electrician.
• Turn off electricity to fixture before replacing the bulb(s).

TOOLS REQUIRED

CARE AND MAINTENANCE

- Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.

If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00am - 5:00pm EST), or visit us on-line at www.quoizel.com.

PACKAGE CONTENTS

Fixture Body x 1

Shade x 3

Steel Collar [pre-assembled to Fixture Body] x 3

Socket Collar [pre-assembled to Fixture Body] x 3

Socket Collar Tool x 1

MOUNTING HARDWARE

Inner Backplate x 1

Mounting Screw x 4

Wire Connector x 3

Outlet Box Screw x 2

1

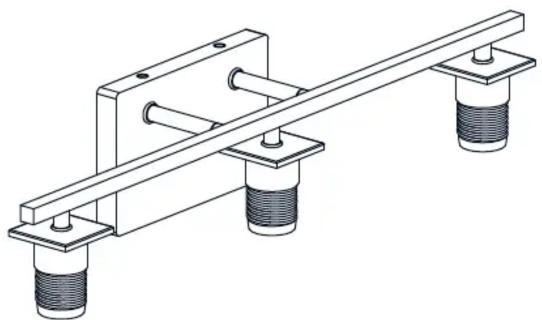

Install Inner Backplate

2
Wiring

3
Install Fixture Body

4

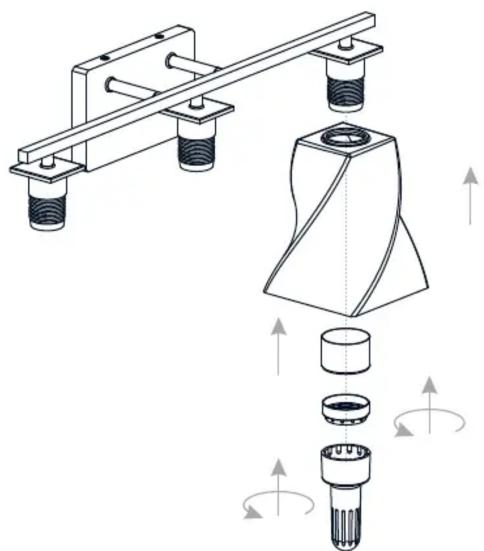

Install Glass Shades

5
Install Bulbs

Install correct bulbs referring to fixture markingsthree and/or labels for maximum wattage.

Recommended Bulb Type (not included):

BULB BASE TYPE Medium (E26)

BULB TYPE TYPE A

Your installation is now complete! Restore electricity and save this sheet for future reference.
